testo 770-2 - Clamp meter


Category: ELECTRICAL MEASURING INSTRUMENTS

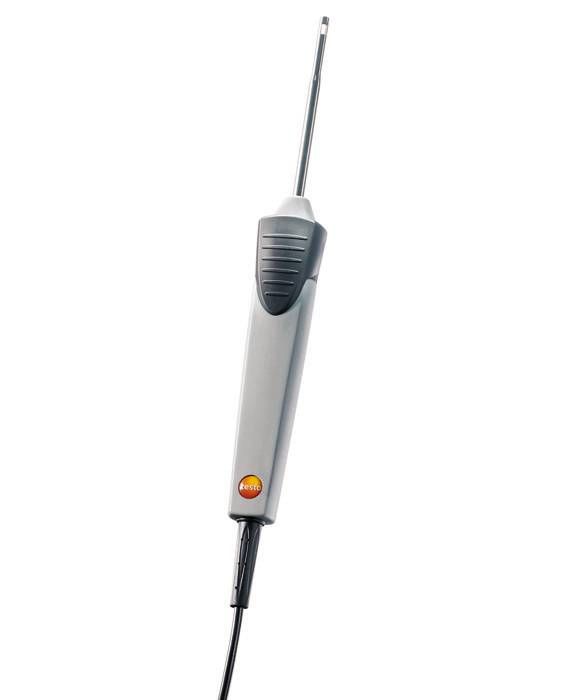

Robust air temperature probe (TC type K)

Part No. 0602 1793

Use the robust air temperature probe with exposed sensor (thermocouple type K) to measure air temperature with a short response time. It can be connected to a wide range of measuring instruments.

Temperature - TC Type K (NiCr-Ni) Technical Data
  • Measuring range -60 to +400 °C
  • Accuracy Class 2 ¹⁾
  • Reaction time 25 s
1) According to standard EN 60584-2, the accuracy of Class 1 refers to -40 to +1000 °C (Type K), Class 2 to -40 to +1200 °C (Type K), Class 3 to -200 to +40 °C (Type K).

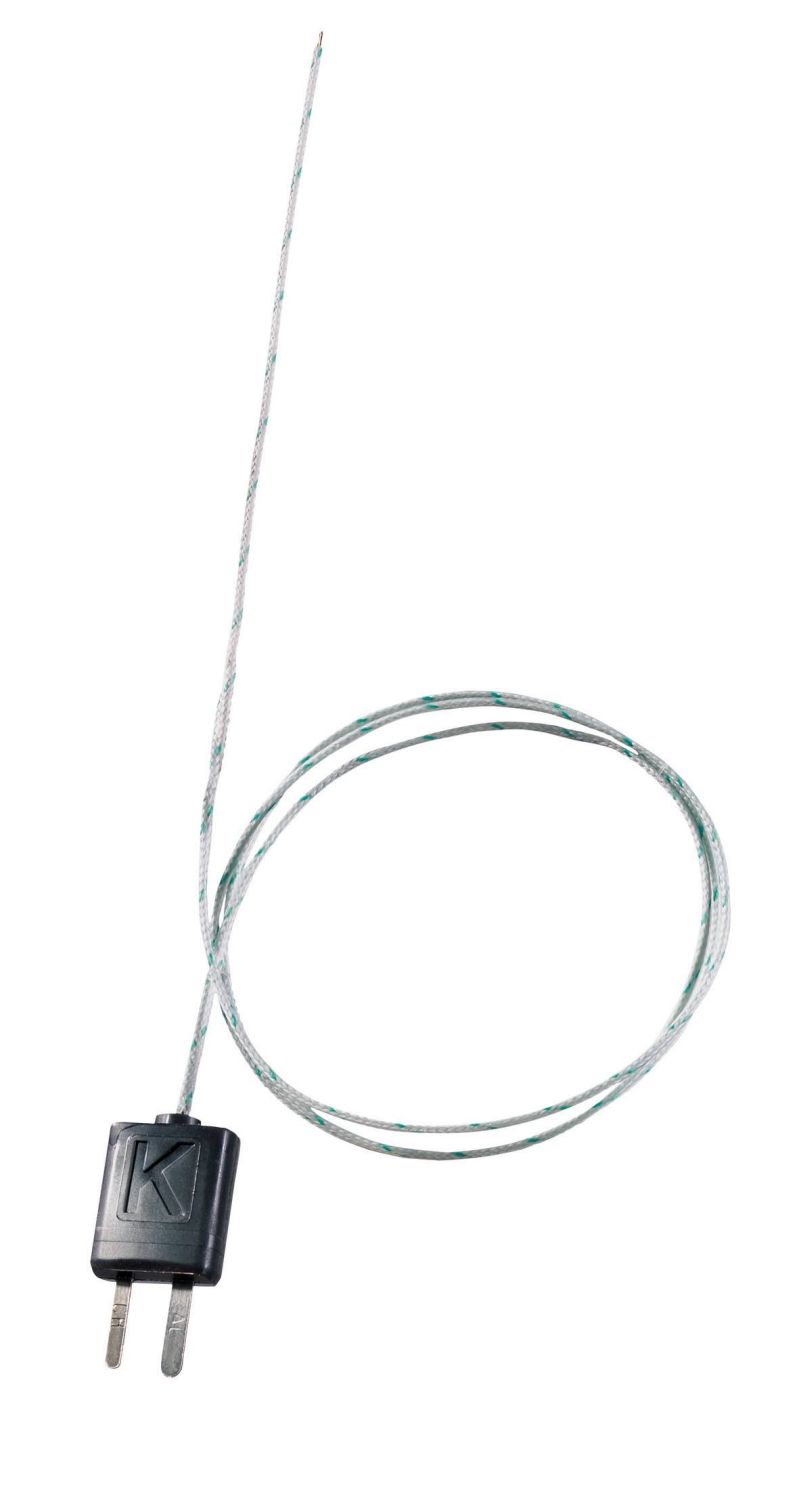

Thermocouple with TC adapter, flexible, 800 mm long

Part No.0602 0644

Temperature - TC Type K (NiCr-Ni) Technical Data
  • Measuring range -50.0 to +400.0 °C
  • Accuracy Class 2 ¹⁾
  • Reaction time 5 s
1) According to standard EN 60584-2, the accuracy of Class 1 refers to -40 to +1000 °C (Type K), Class 2 to -40 to +1200 °C (Type K), Class 3 to -200 to +40 °C (Type K).

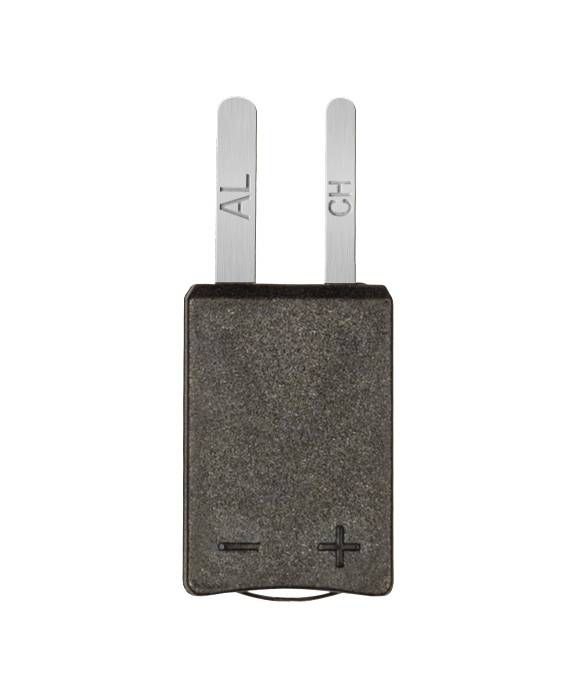

Spare meas. head for pipe wrap probe, TC Type K

Part No. 0602 0092

Product Benefits:
  • Replaceable measuring head with thermocouple strip for temperature probe with clamping bracket 0602 4592
  • Measuring range: -60 to +130°C, briefly up to +280 °C
  • Simple pull out the old measuring head with thermocouple strip and replace with new measuring head
Temperature - TC Type K (NiCr-Ni) Technical Data
  • Measuring range -60 to +130 °C
  • Accuracy Class 2 ²⁾
  • Reaction time 5 s
2) Accor ding to standard EN 60584-2, the accuracy of Class 1 refers t o -40 t o +1000 °C (Type K), Class 2 to -40 to +1200 °C (Type K), Class 3 to -200 to +40 °C (Type K).

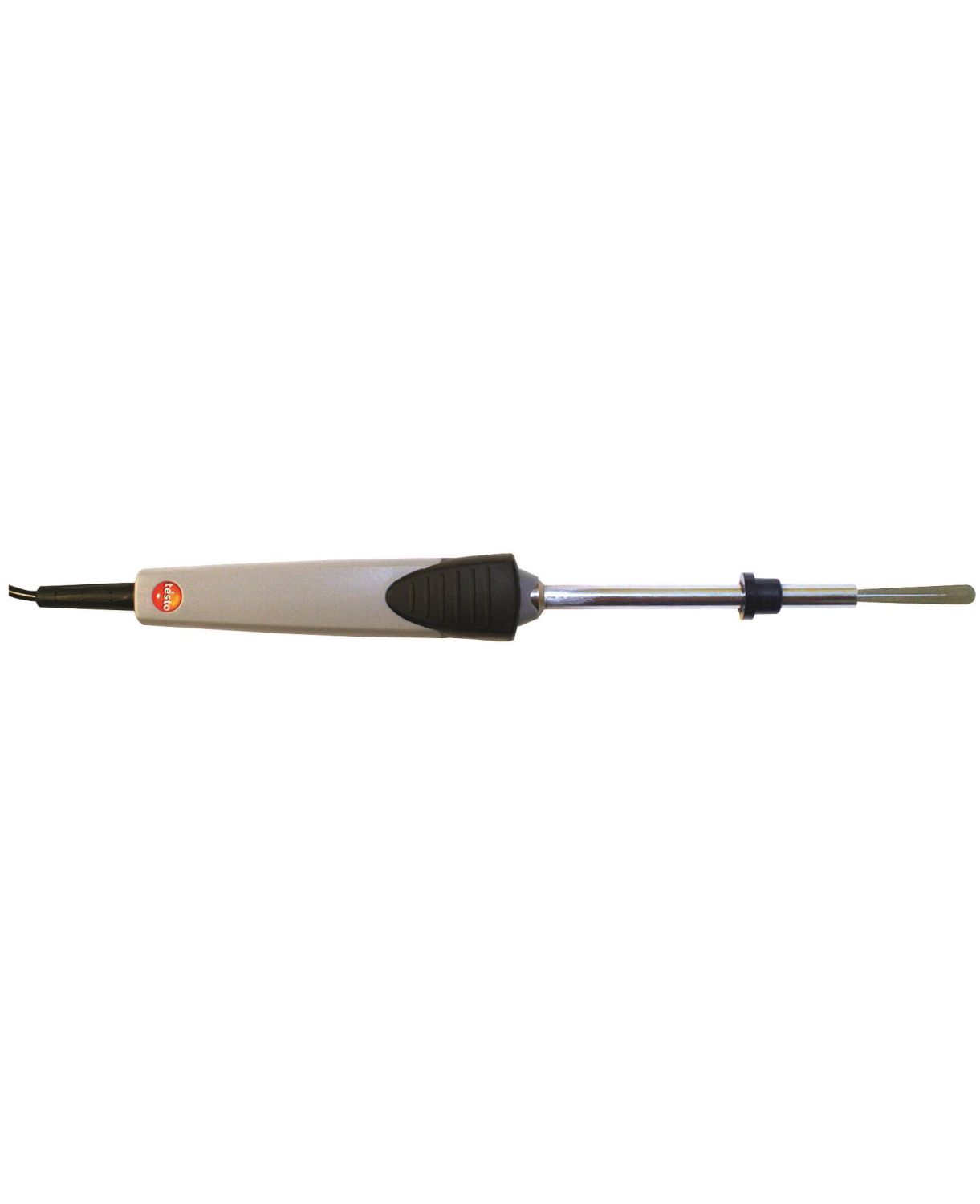

Fast-reaction paddle surface probe

Part No. 0602 0193

Temperature - TC Type K (NiCr-Ni) Technical Data
  • Measuring range 0 to +300 °C
  • Accuracy Class 2 *
  • Reaction time 5 s
*Accor ding t o standard EN 60584-2, the accuracy of Class 1 refers to -40 to +1000 °C (Type K), CLass 2 to -40 to +1200 °C (Type K), Class 3 to -200 to +40 °C (Tyoe K).

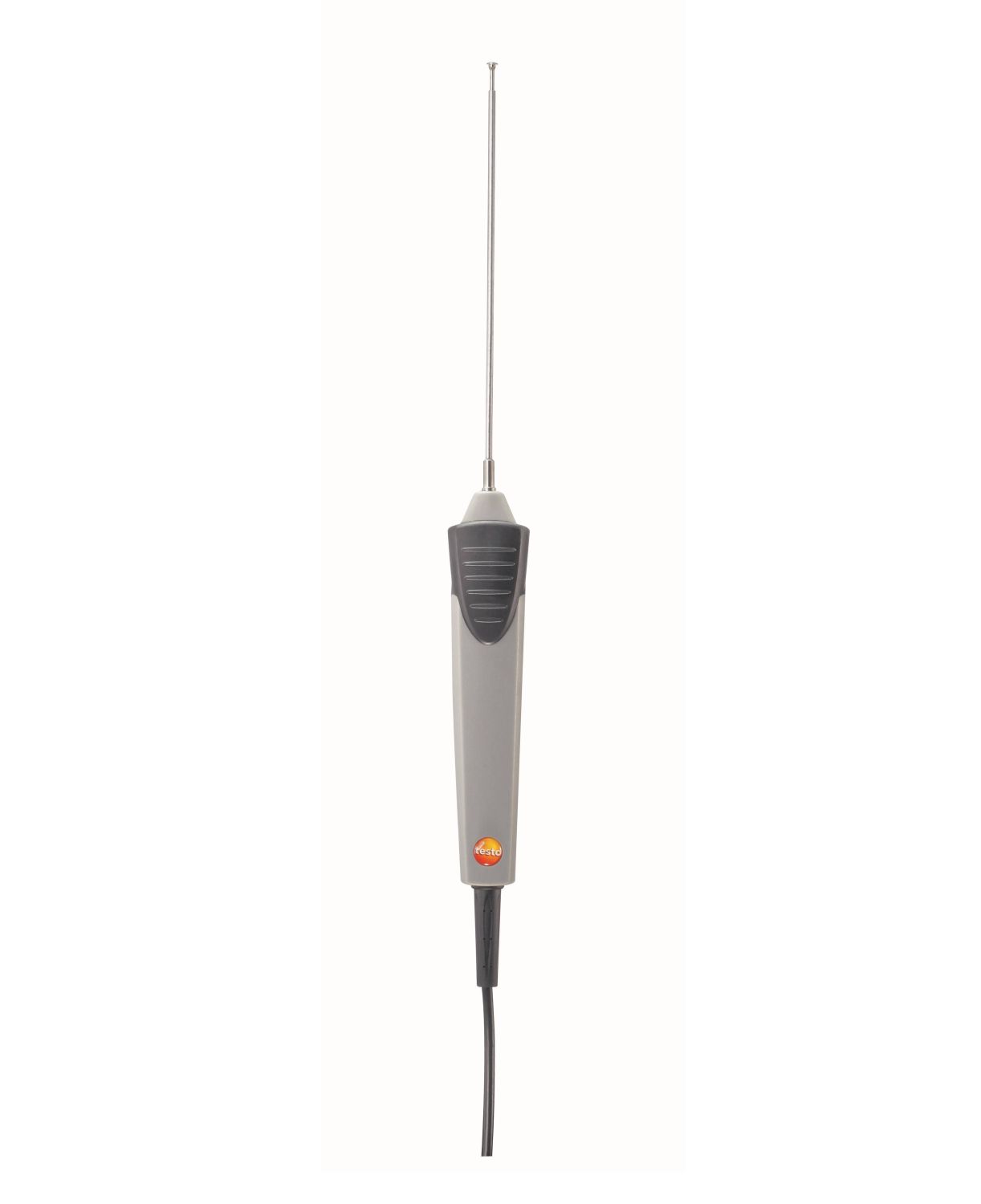

Surface probe with a small measuring head (TC type K)

Part No. 0602 0693

Accurate, waterproof and versatile: the temperature probe measures surface temperatures of up to 1000 °C. Its small measuring head is ideal for carrying out measurements on flat surfaces. Short response time.

Temperature - TC Type K (NiCr-Ni) Technical Data
  • Measuring range -60 to +1000 °C
  • Accuracy Class 1 ¹⁾
  • Reaction time 20 s
1) According to standard EN 60584-2, the accuracy of Class 1 refers to -40 to +1000 °C (Type K), Class 2 to -40 to +1200 °C (Type K), Class 3 to -200 to +40 °C (Type K).

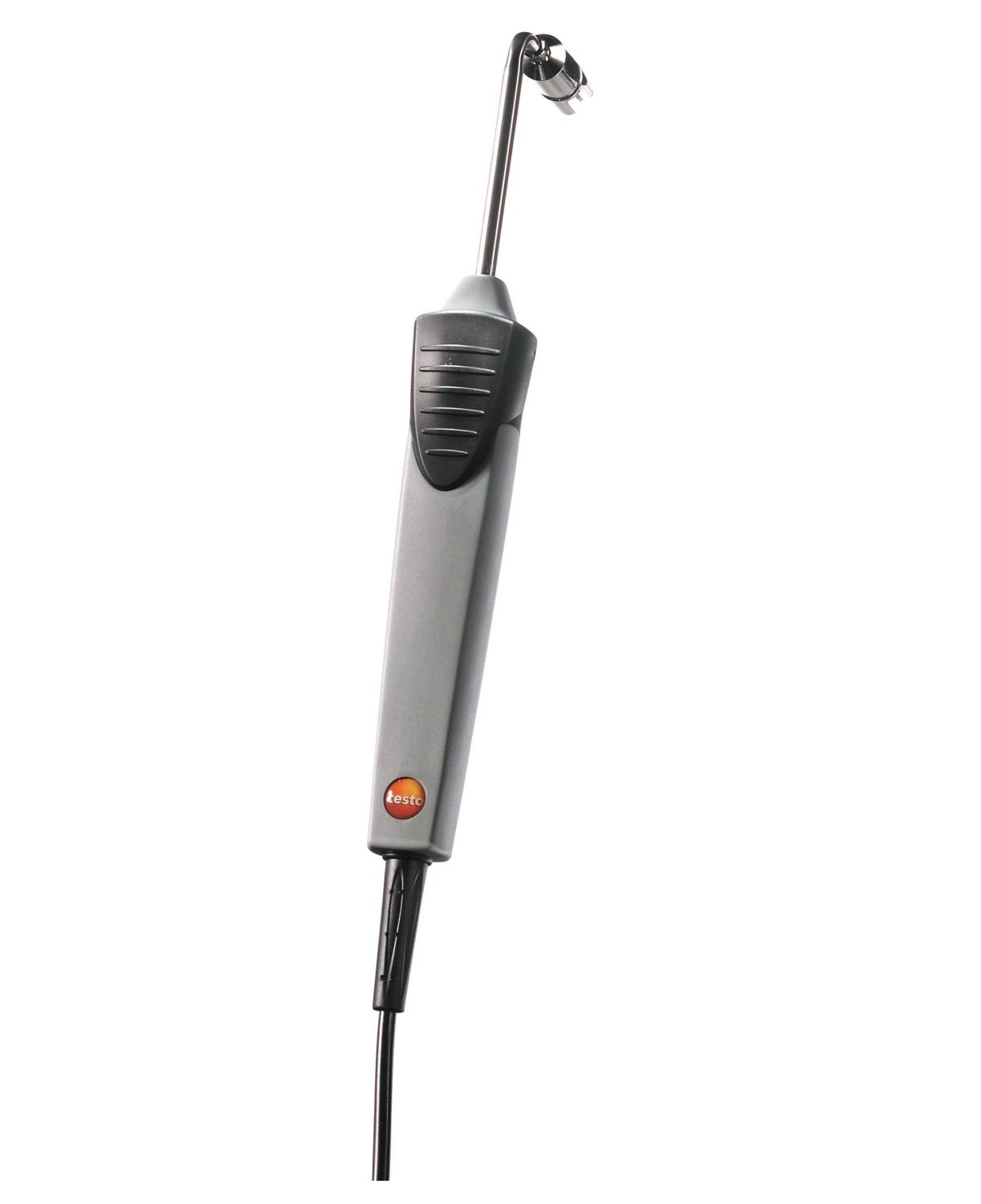

Fast-action, angled surface probe (TC type K)

Part No. 0602 0993

Use this fast-action temperature probe to measure surface temperatures accurately and reliably, even in inaccessible areas – the angled probe tube makes this possible.

Temperature - TC Type K (NiCr-Ni) Technical Data
  • Measuring range -60 to +300 °C
  • Accuracy Class 2 ¹⁾
  • Reaction time 3 s
1) According to standard EN 60584-2, the accuracy of Class 1 refers to -40 to +1000 °C (Type K), Class 2 to -40 to +1200 °C (Type K), Class 3 to -200 to +40 °C (Type K).

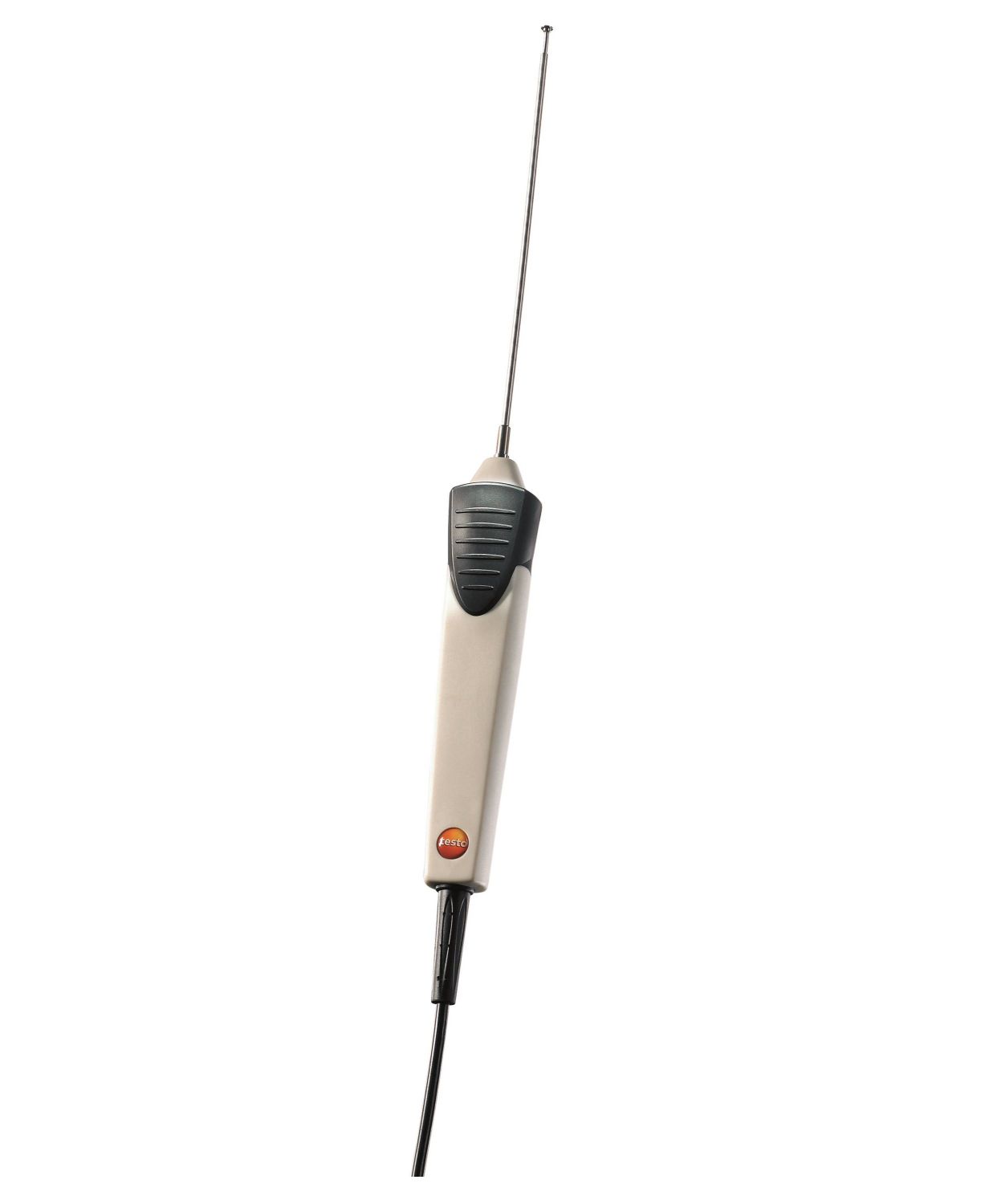

Surface probe with widened measuring tip (TC type K)

Part No. 0602 1993

Waterproof, robust and versatile: this temperature probe with sturdy probe shaft and widened measuring tip is ideal for measuring the temperature on flat surfaces.

Temperature - TC Type K (NiCr-Ni) Technical Data
  • Measuring range -60 to +400 °C
  • Accuracy Class 2 ¹⁾
  • Reaction time 30 s
1) According to standard EN 60584-2, the accuracy of Class 1 refers to -40 to +1000 °C (Type K), Class 2 to -40 to +1200 °C (Type K), Class 3 to -200 to +40 °C (Type K).

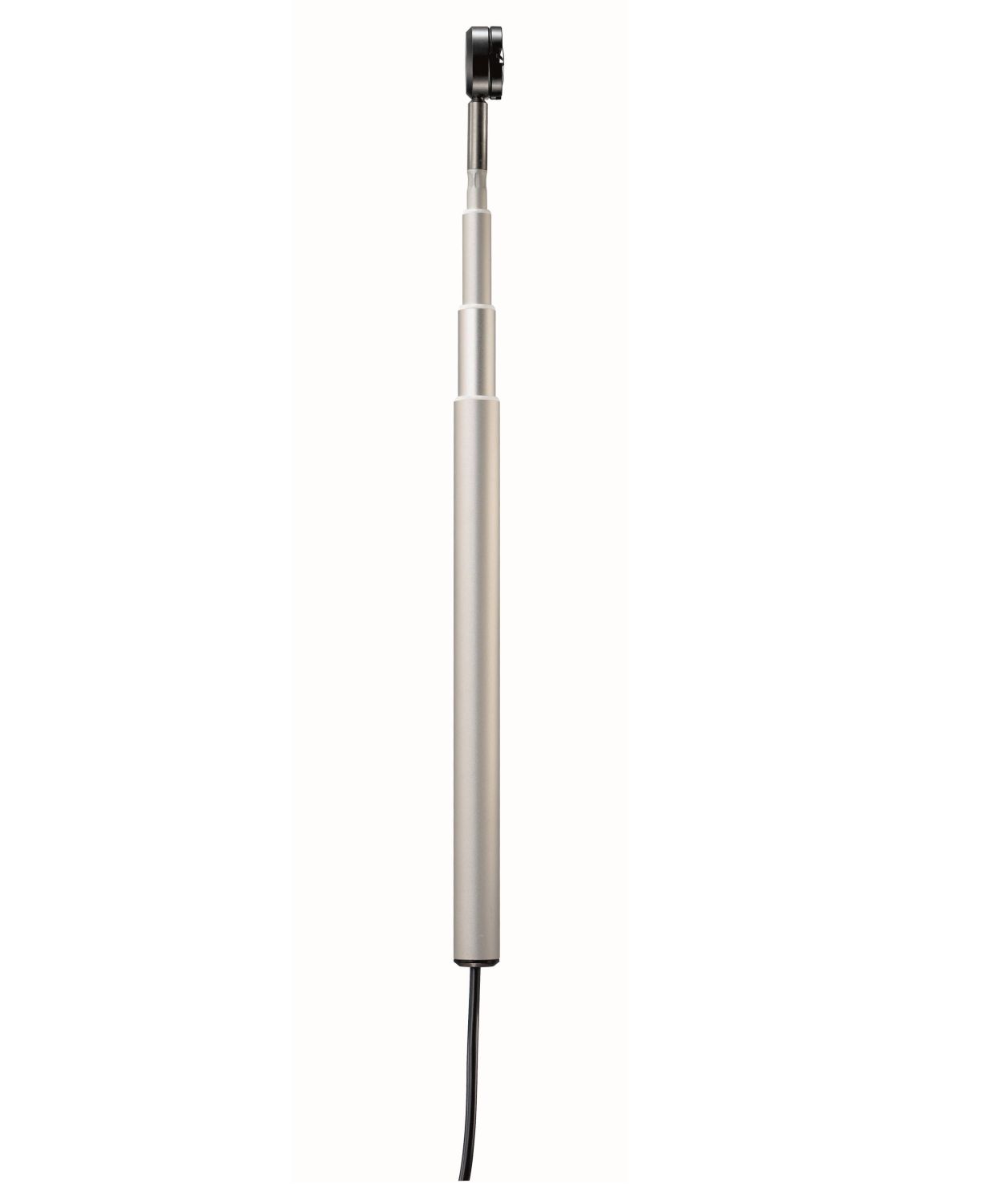

Flat head surface probe with telescopic handle max

Part No. 0602 2394

Temperature - TC Type K (NiCr-Ni) Technical Data
  • Measuring range -50 to +250 °C
  • Accuracy Class 2 ¹⁾
  • Reaction time 3 s
1) According to standard EN 60584-2, the accuracy of Class 1 refers to -40 to +1000 °C (Type K), Class 2 to -40 to +1200 °C (Type K), Class 3 to -200 to +40 °C (Type K).

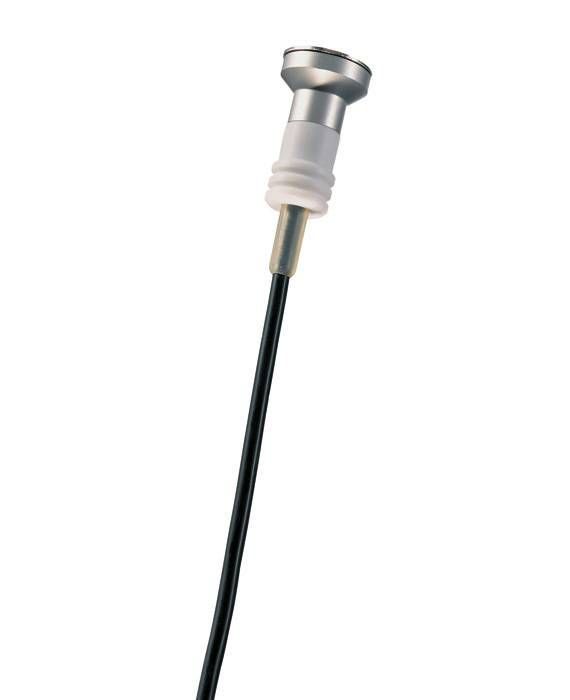

Magnetic probe (TC type K) - for surface temperatures

Part No. 0602 4792

Key Features:

  • Thermocouple type K
  • Adhesive force approx. 20 N
  • Can be connected to a wide range of measuring instruments/data loggers
  • Measuring range: -50 to +170 °C
Temperature - TC Type K (NiCr-Ni) Technical Data
  • Measuring range -50 to +170 °C
  • Accuracy Class 2 ¹⁾
  • Reaction time 150 s
1) According to standard EN 60584-2, the accuracy of Class 1 refers to -40 to +1000 °C (Type K), Class 2 to -40 to +1200 °C (Type K), Class 3 to -200 to +40 °C (Type K).

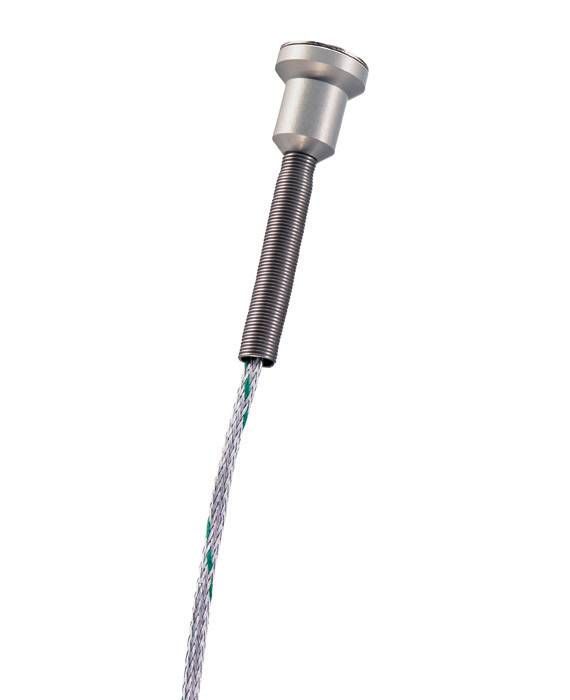

Temperature probe with magnet (TC Type K)

Part No. 0602 4892

Key Features:
  • Self-adhesive thanks to a magnet: probe for measuring surface temperature on metal surfaces
  • TC Type K temperature probe with 1.6 m cable
Temperature - TC Type K (NiCr-Ni) Technical Data
  • Measuring range -50 to +400 °C
  • Accuracy Class 2 ¹⁾
1) According to standard EN 60584-2, the accuracy of Class 1 refers to -40 to +1000 °C (Type K), Class 2 to -40 to +1200 °C (Type K), Class 3 to -200 to +40 °C (Type K).

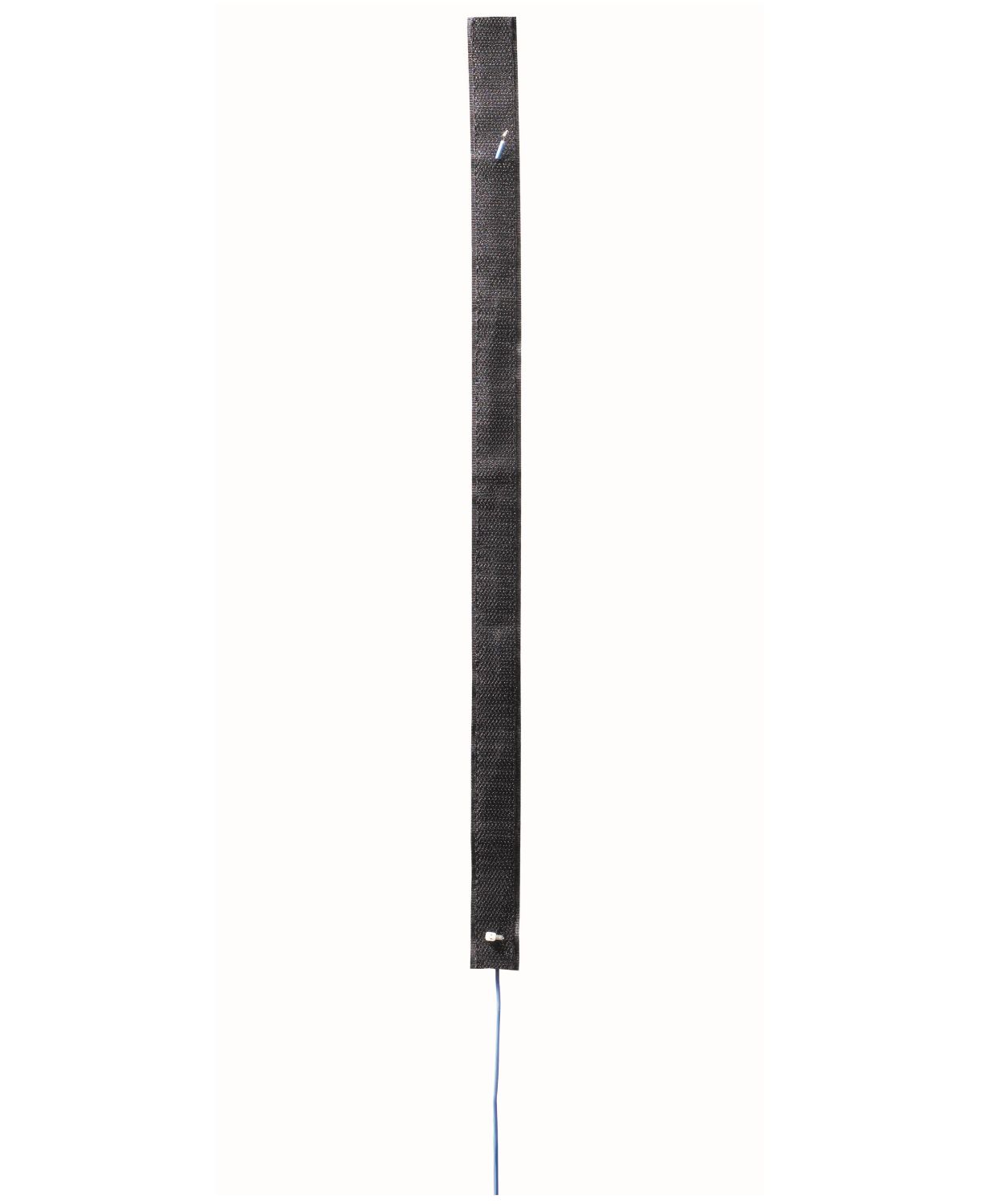

Temperature probe with Velcro (TC Type K)

Part No. 0628 0020

Key Features:
  • With Velcro: makes it easy to attach the surface probe to pipes with a diameter of up to 120 mm
  • TC Type K temperature probe with 1.5 m cable
  • Measuring range: -50 to +120 °C
Temperature - TC Type K (NiCr-Ni) Technical Data
  • Measuring range -50 to +120 °C
  • Accuracy Class 1 ¹⁾
  • Reaction time 90 s
1) According to standard EN 60584-2, the accuracy of Class 1 refers to -40 to +1000 °C (Type K), Class 2 to -40 to +1200 °C (Type K), Class 3 to -200 to +40 °C (Type K).

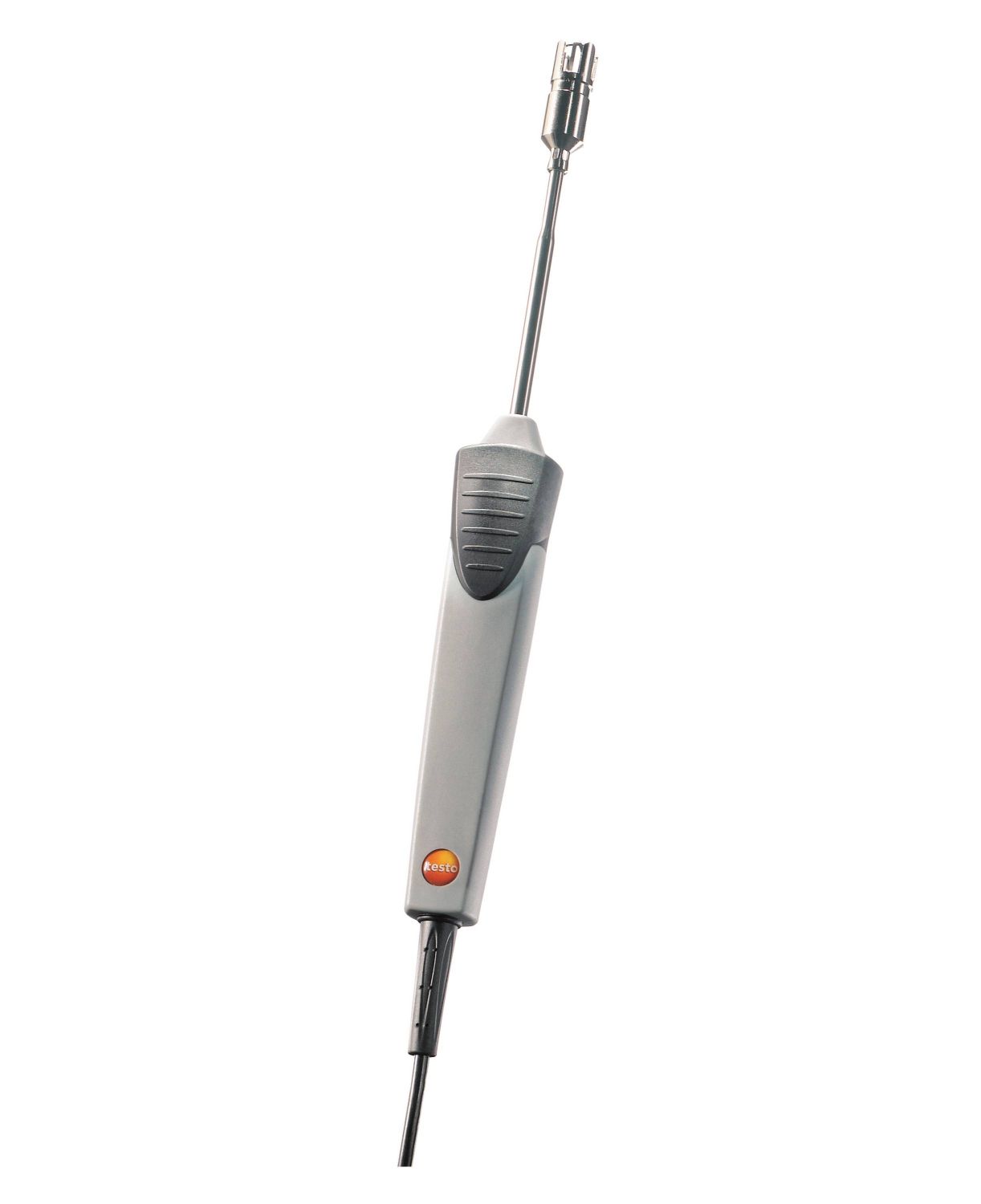

Fast-action surface probe (TC type K)

Part No. 0602 0393

The extremely fast-action surface temperature probe with sprung thermocouple strip is suitable for a wide range of applications – including uneven surfaces.

Temperature - TC Type K (NiCr-Ni) Technical Data
  • Measuring range -60 to +300 °C
  • Accuracy Class 2 ¹⁾
  • Reaction time 3 s
1) According to standard EN 60584-2, the accuracy of Class 2 refers to -40 to +1200 °C.

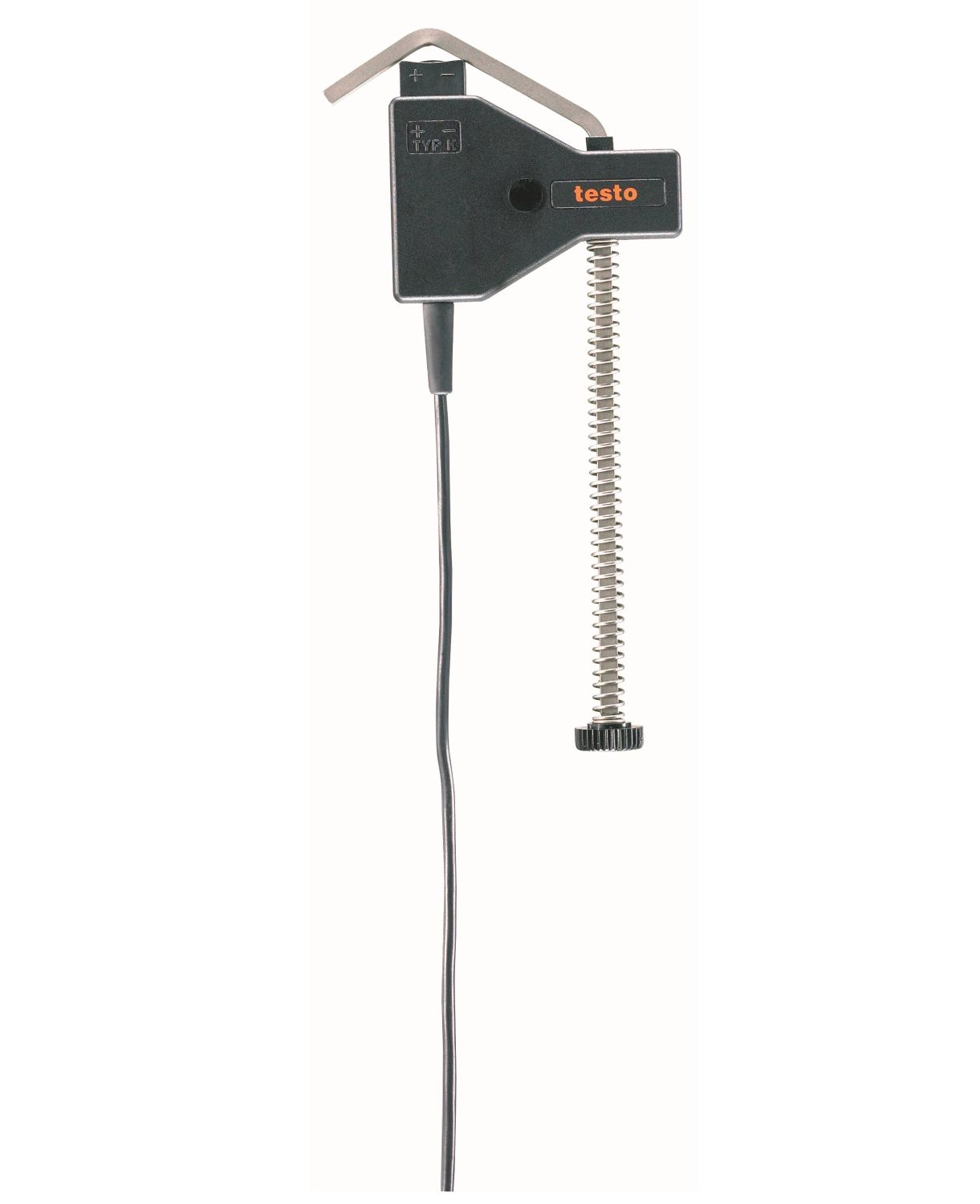

Temperature probe with clamping bracket (TC Type K)

Part No. 0602 4592

Pipe wrap probe for pipe diameter 5 to 65 mm, with exchangeable measuring head. Meas. range short-term up to +280°C, TC Type K

Temperature - TC Type K (NiCr-Ni) Technical Data
  • Measuring range -60 to +130 °C
  • Accuracy Class 2 ¹⁾
  • Reaction time 5 s
1) According to standard EN 60584-2, the accuracy of Class 1 refers to -40 to +1000 °C (Type K), Class 2 to -40 to +1200 °C (Type K), Class 3 to -200 to +40 °C (Type K).

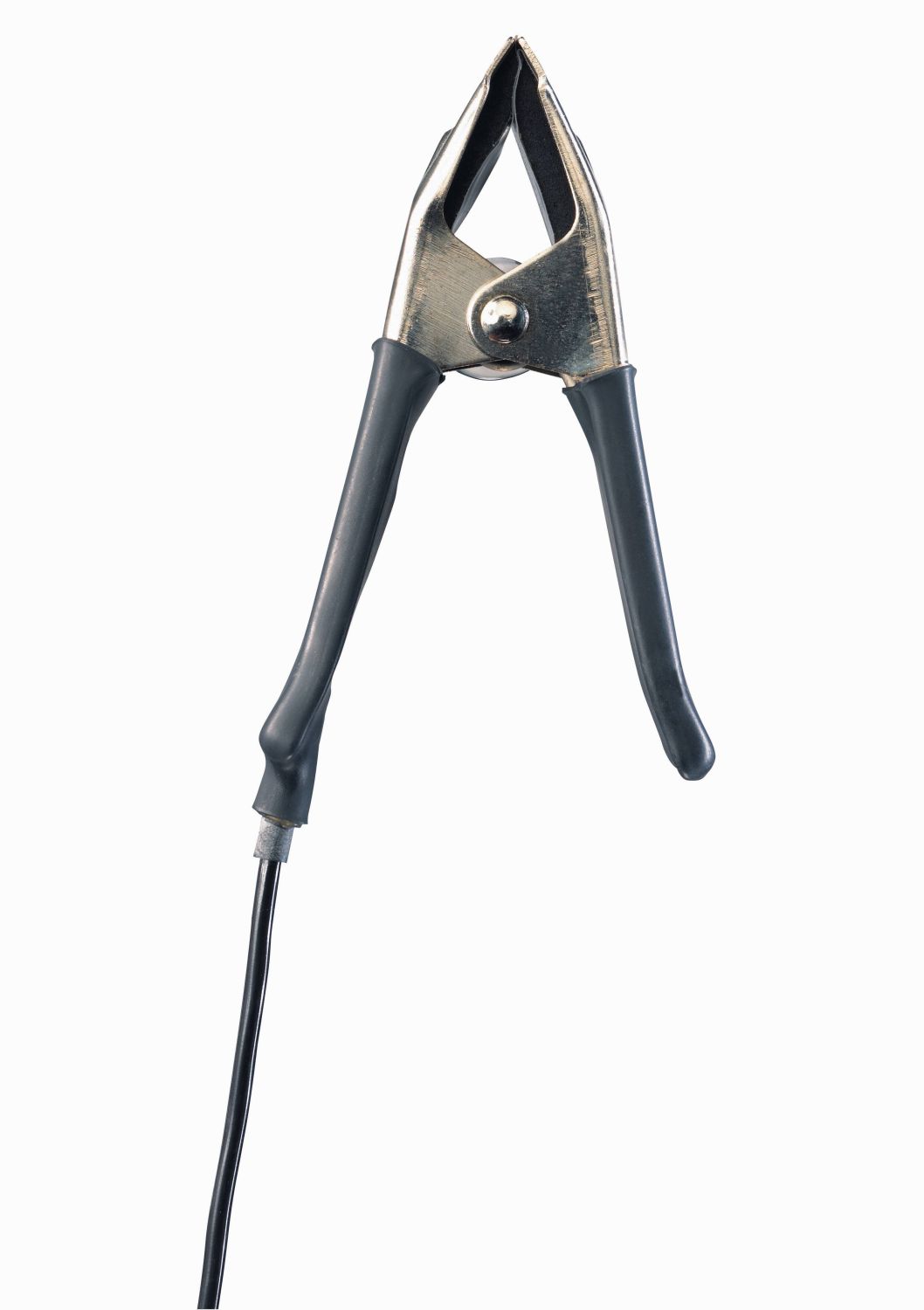

Clamp probe for measurements on pipes

Part No. 0602 4692

Temperature - TC Type K (NiCr-Ni) Technical Data
  • Measuring range -50 to +100 °C
  • Accuracy briefly to +130
  • Reaction time 5 s
1) According to standard EN 60584-2, the accuracy of Class 1 refers to -40 to +1000 °C (Type K), Class 2 to -40 to +1200 °C (Type K), Class 3 to -200 to +40 °C (Type K).

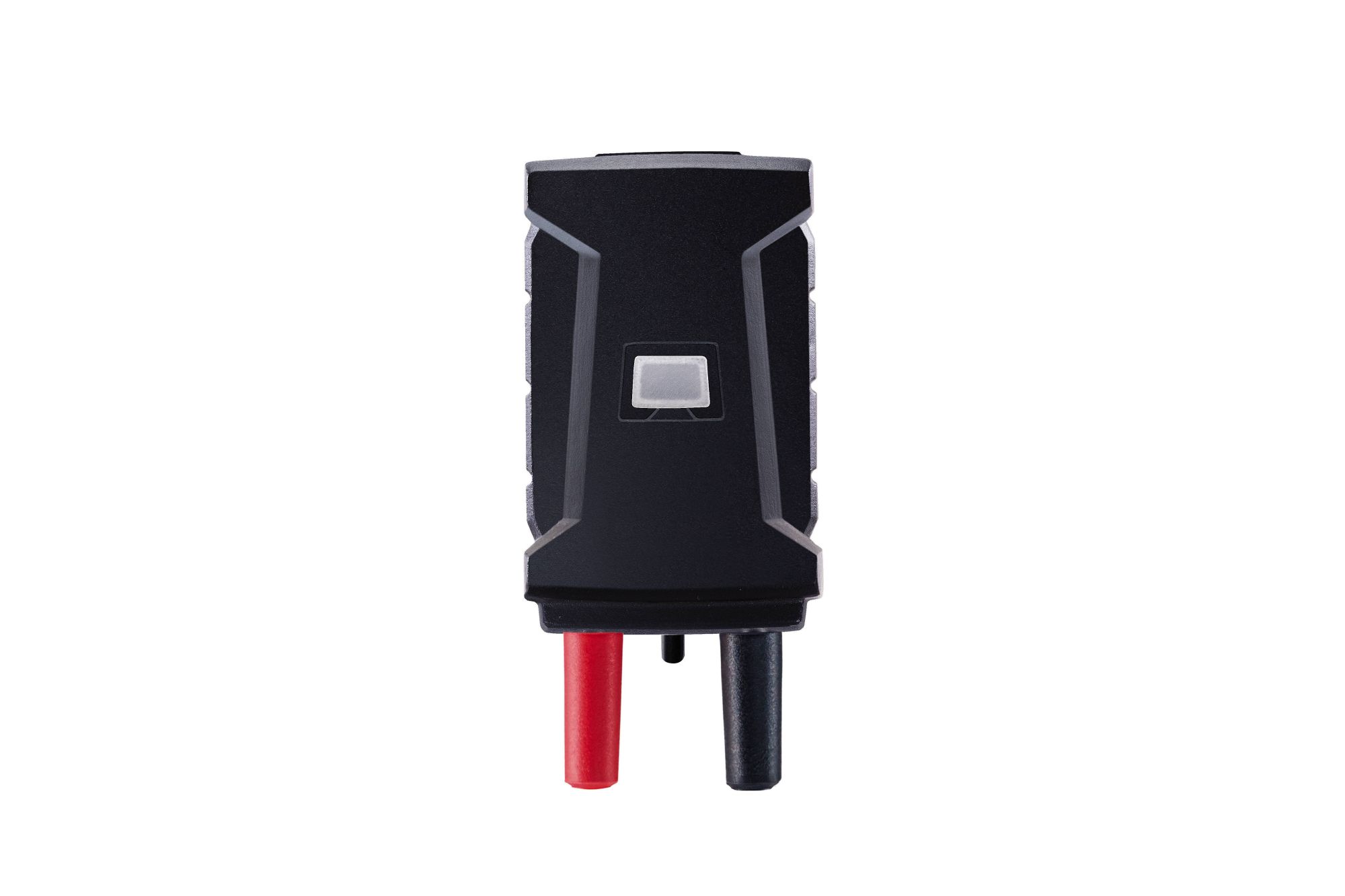

Adapter for type K thermocouples

Part No. 0590 0021

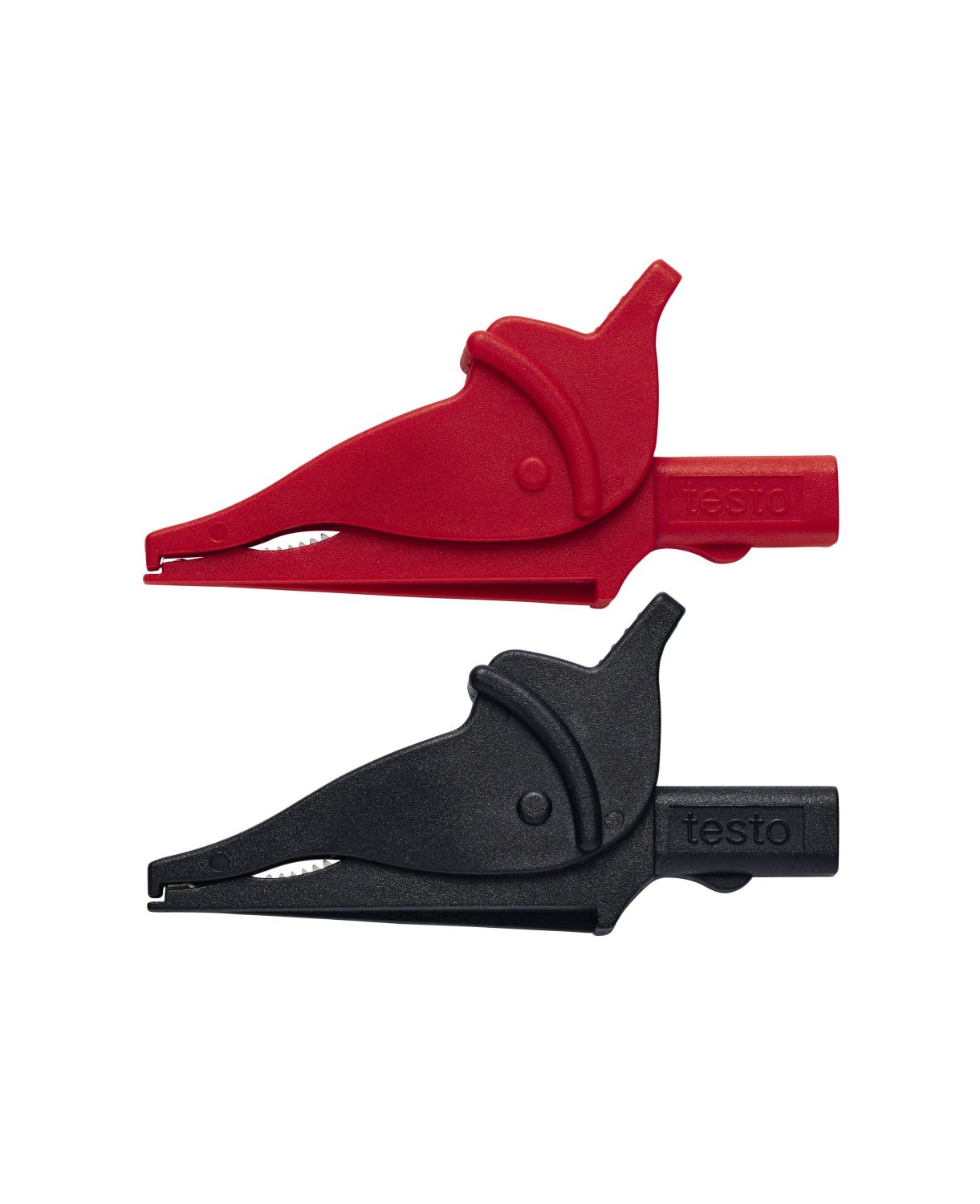

Safety crocodile clips - 1 set

Part No. 0590 0008

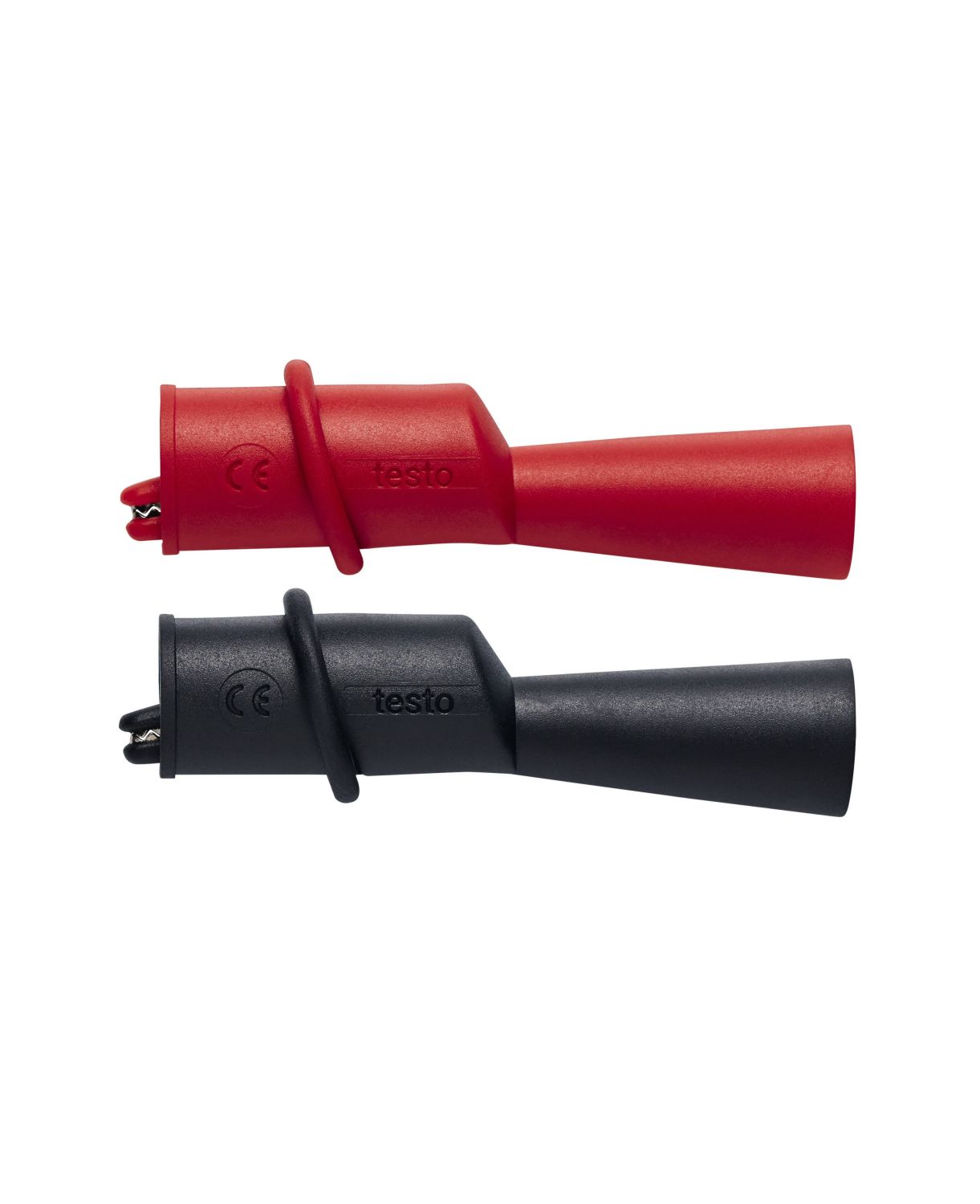

Crocodile clips - 1 set

Part No. 0590 0009

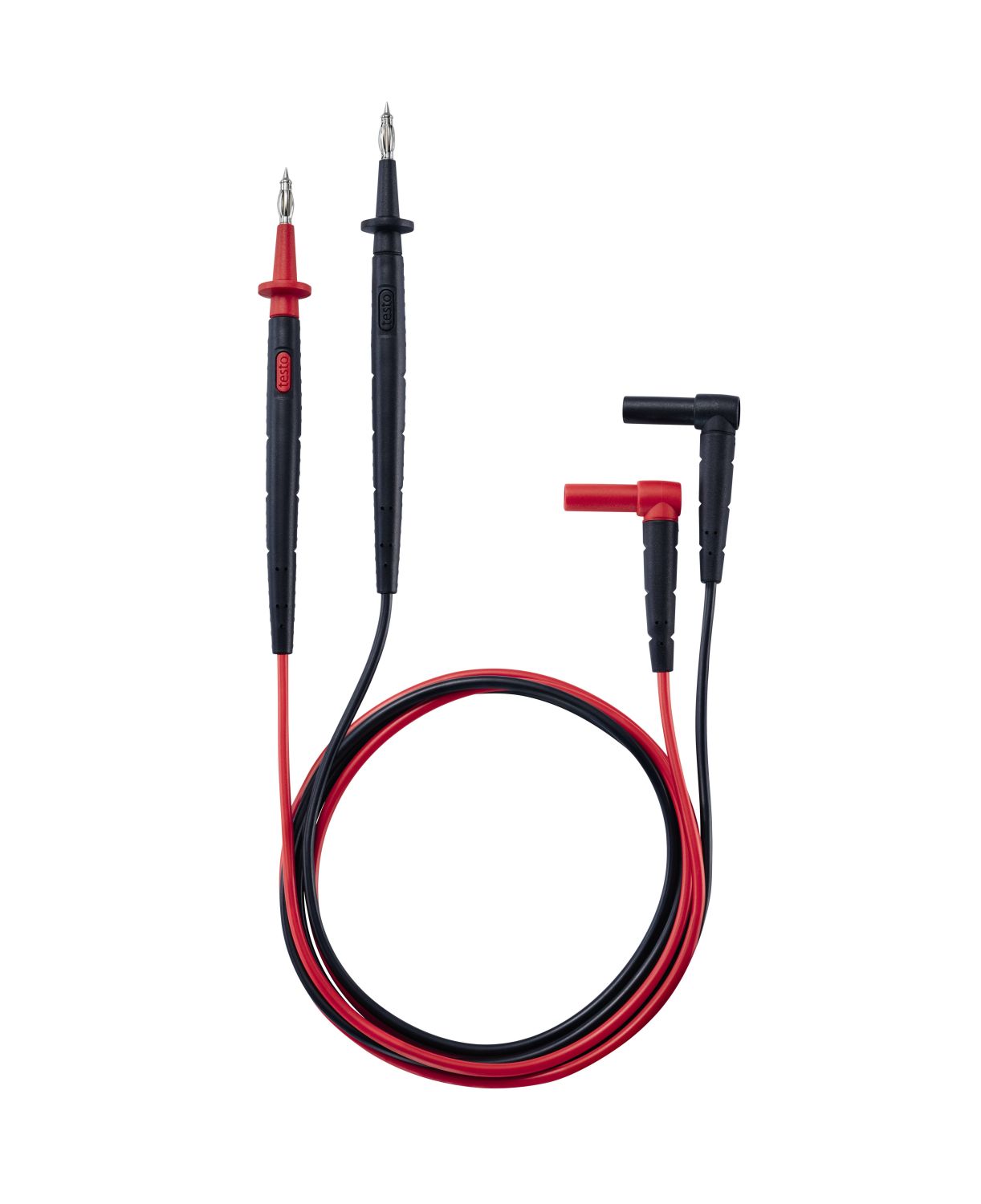

Standard measuring cables (angled plug) - tip Ø: 4 mm

Part No. 0590 0011

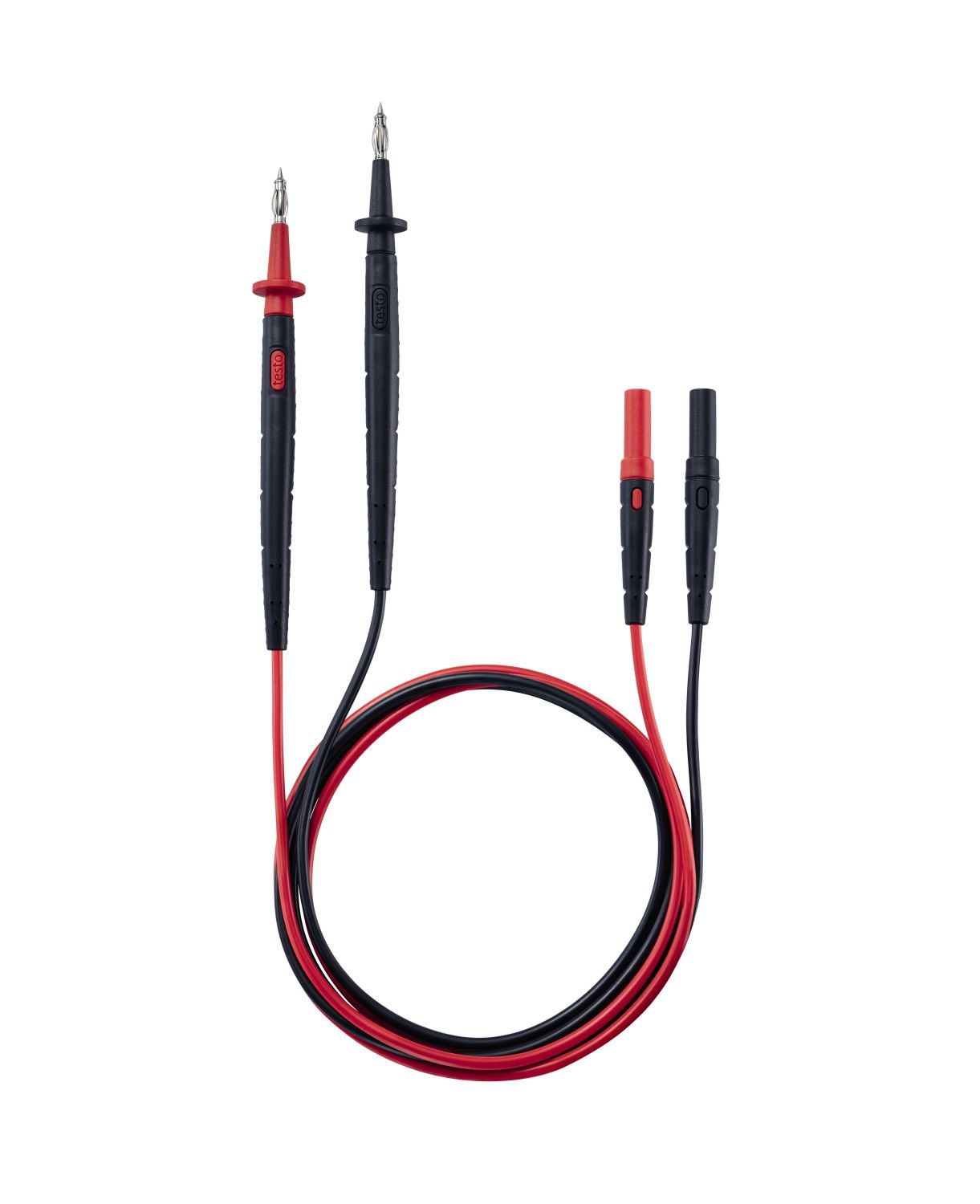

Standard measuring cables (straight plug) - tip Ø: 4 mm

Part No. 0590 0012

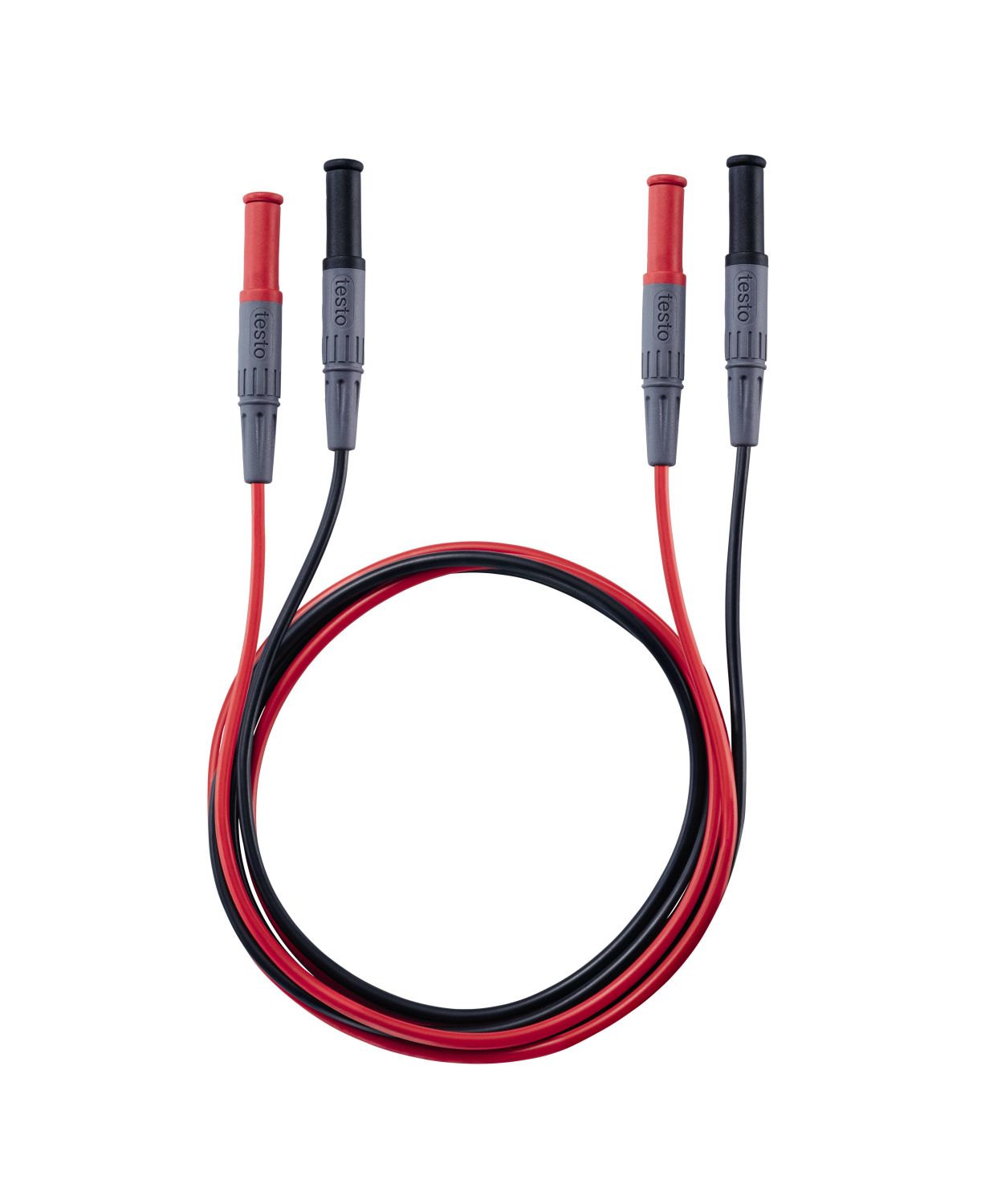

Measuring cable extensions (straight plug) - 1 set

Part No. 0590 0013

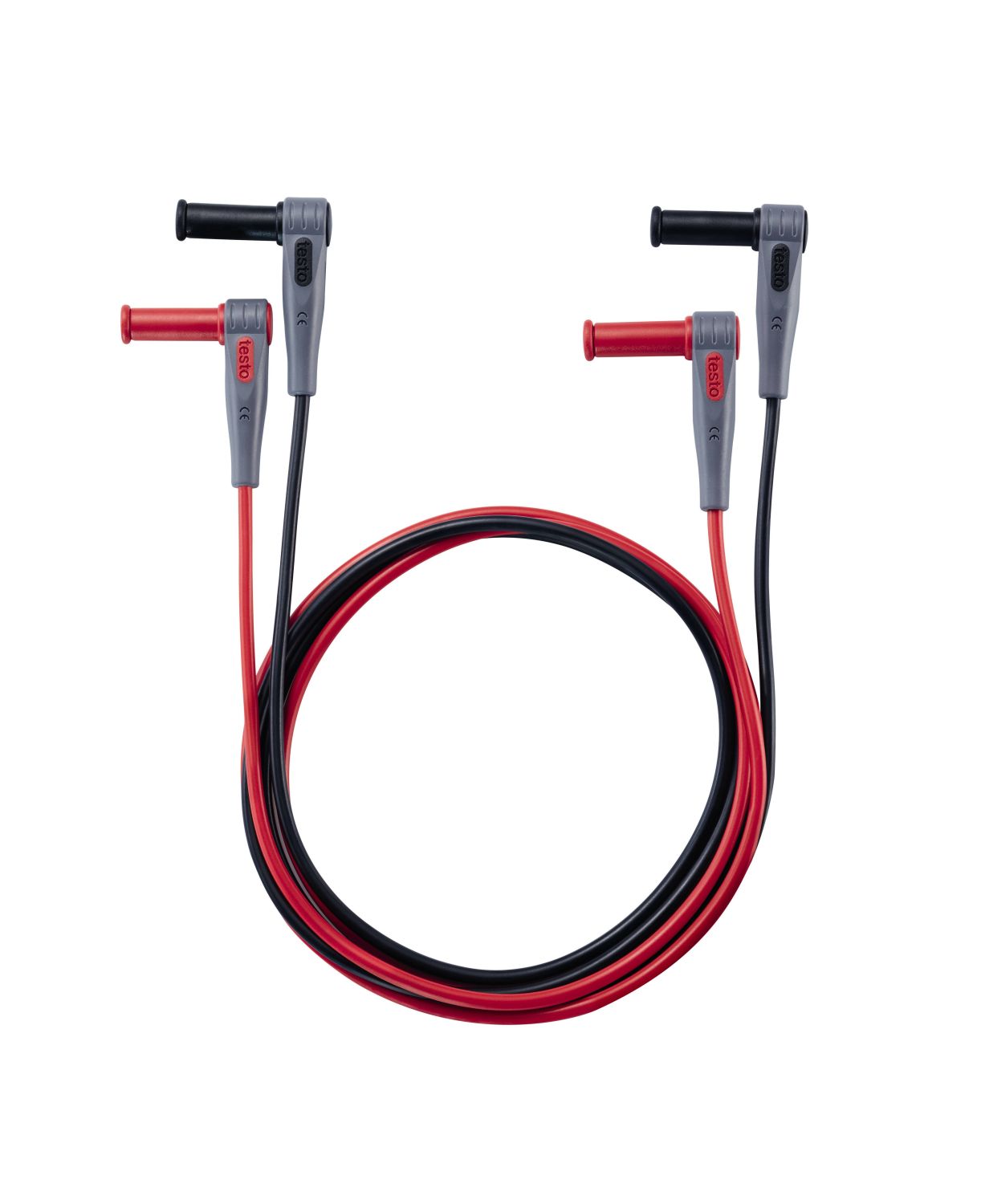

Measuring cable extensions (angled plug) - 1 set

Part No. 0590 0014

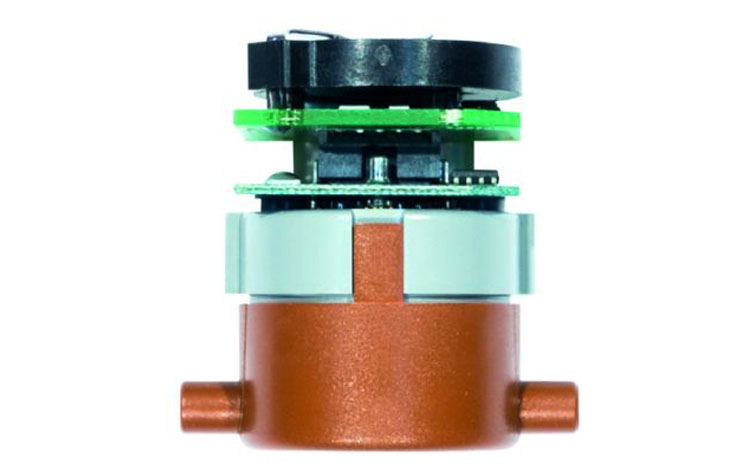

UPGRADE NOLOW-SENSOR; TESTO 330-1 LL; 0 TO 300 PPM; 0,1 PPM RESOLUTION

Part No. 0554 3931

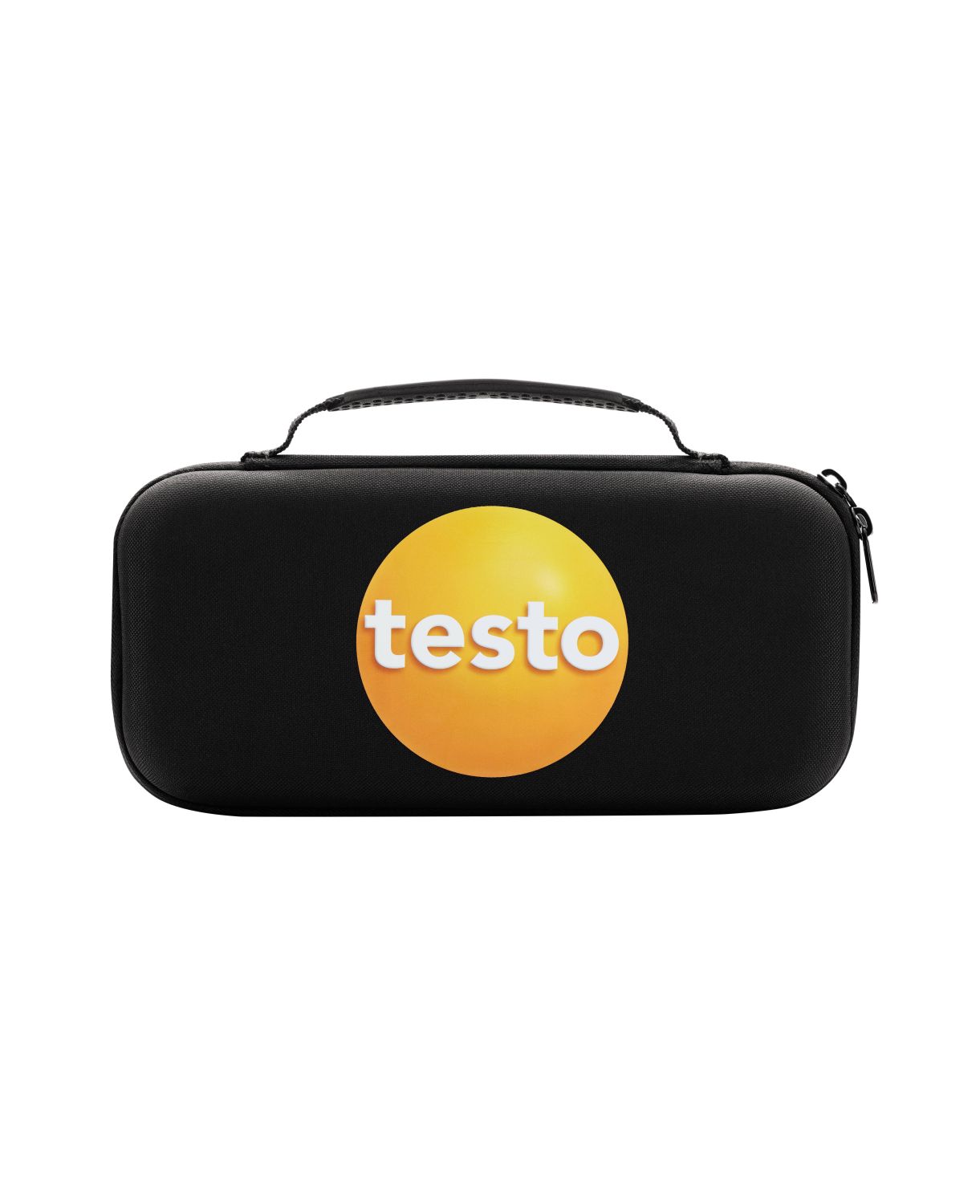

Transport bag

Part No. 0590 0017

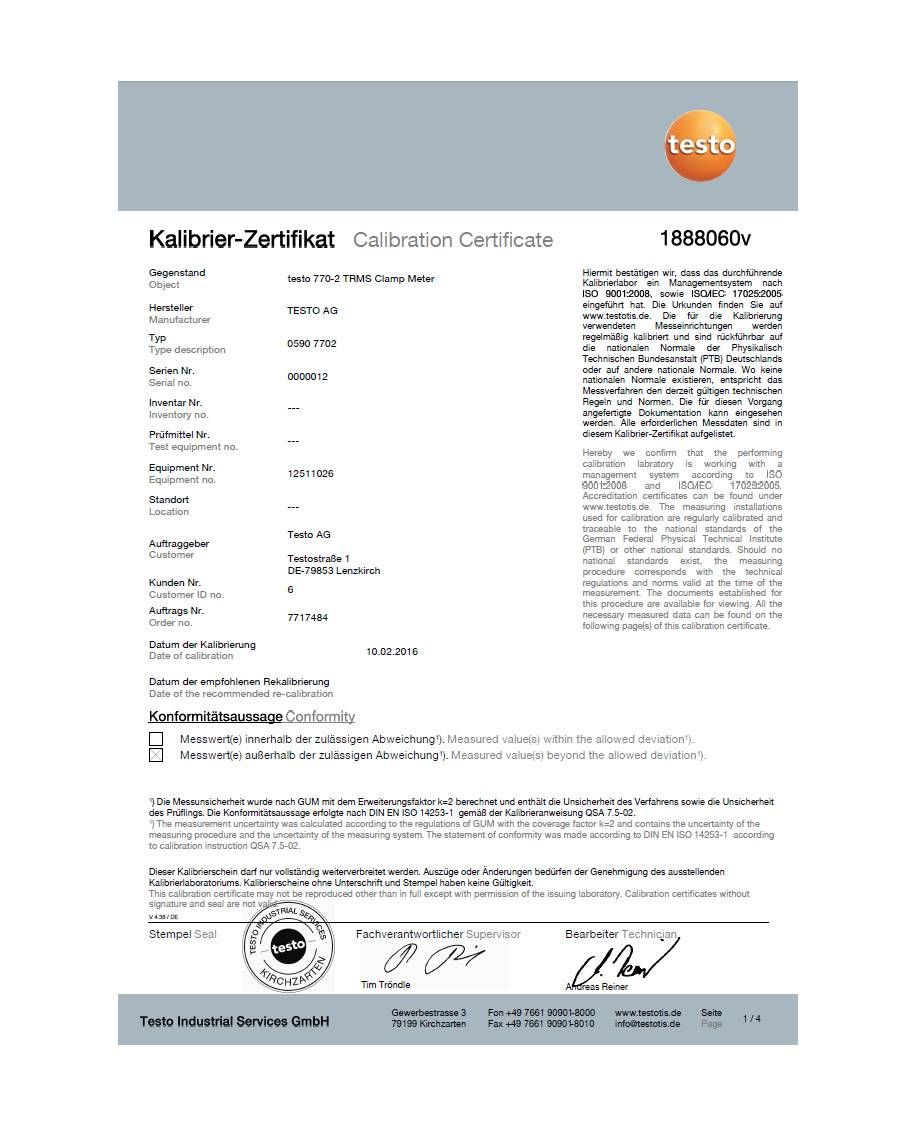

ISO calibration certificate for clamp meters

Part No. 0520 0770

This ISO calibration certificate will calibrate your clamp meter. Calibration is carried out according to the ISO standard.
Product Benefits:
  • Calibration of clamp meters for DC and AC voltage, resistance, capacitance, direct current and alternating current measurement parameters
  • According to the ISO standard
  • Certificate with 57 measuring points

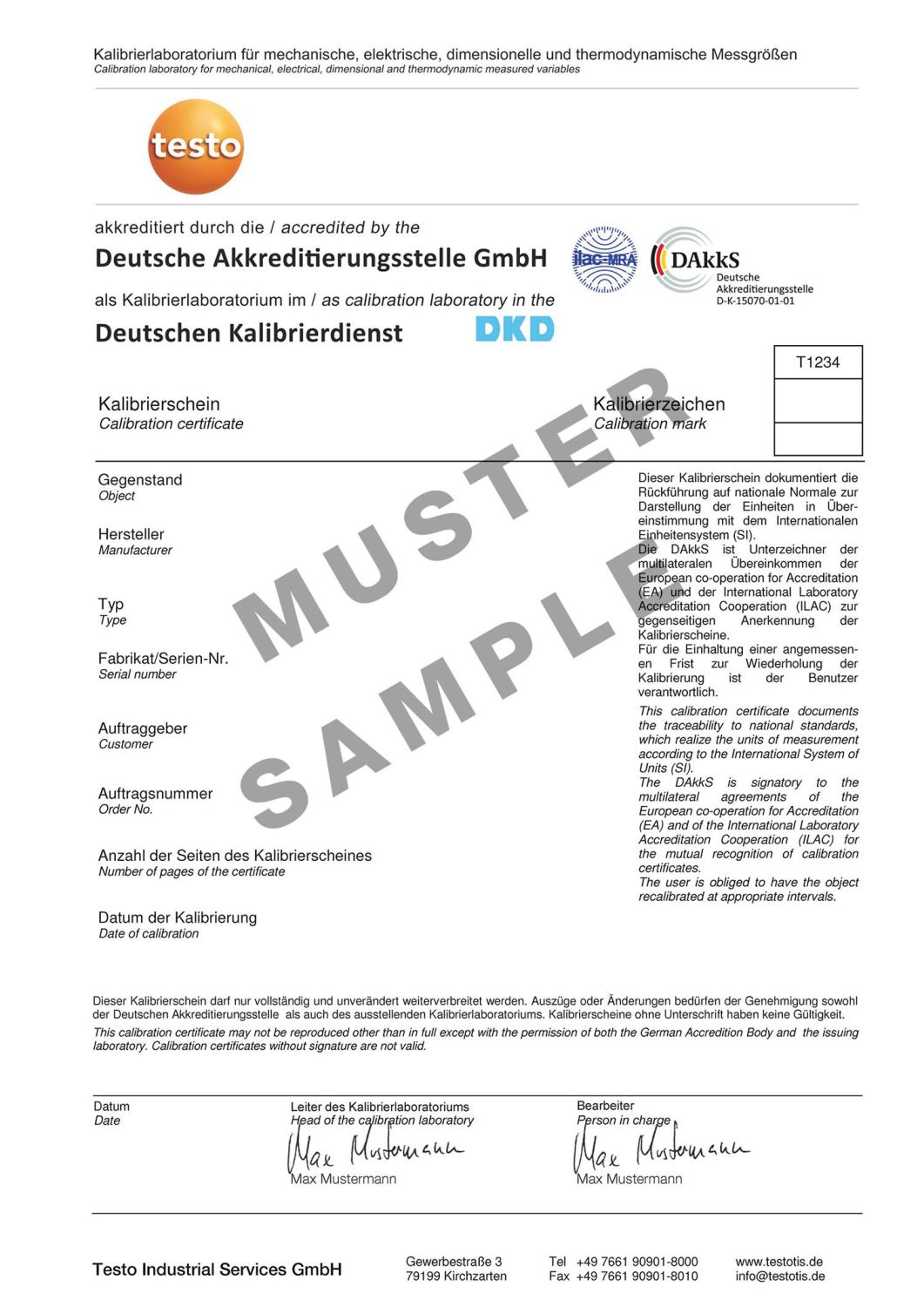

DAkkS calibration certificate for clamp meters

Part No. 0520 0771

This DAkkS calibration certificate will calibrate your clamp meter. Calibration is carried out according to the DAkkS standard.
Product Benefits:
  • Calibration of clamp meters for DC and AC voltage, resistance, capacitance, direct current and alternating current measurement parameters
  • According to the DAkkS standard
  • Certificate with 57 measuring points
