testo 175 T3 - Temperature Data Logger

Category: REFRIGERATION TECHNOLOGY

Spare meas. head for pipe wrap probe, TC Type K

Part No. 0602 0092

Product Benefits:

Replaceable measuring head with thermocouple strip for temperature probe with clamping bracket 0602 4592
Measuring range: -60 to +130°C, briefly up to +280 °C
Simple pull out the old measuring head with thermocouple strip and replace with new measuring head

Temperature - TC Type K (NiCr-Ni) Technical Data

Measuring range -60 to +130 °C
Accuracy Class 2 ²⁾
Reaction time 5 s

2) Accor ding to standard EN 60584-2, the accuracy of Class 1 refers t o -40 t o +1000 °C (Type K), Class 2 to -40 to +1200 °C (Type K), Class 3 to -200 to +40 °C (Type K).

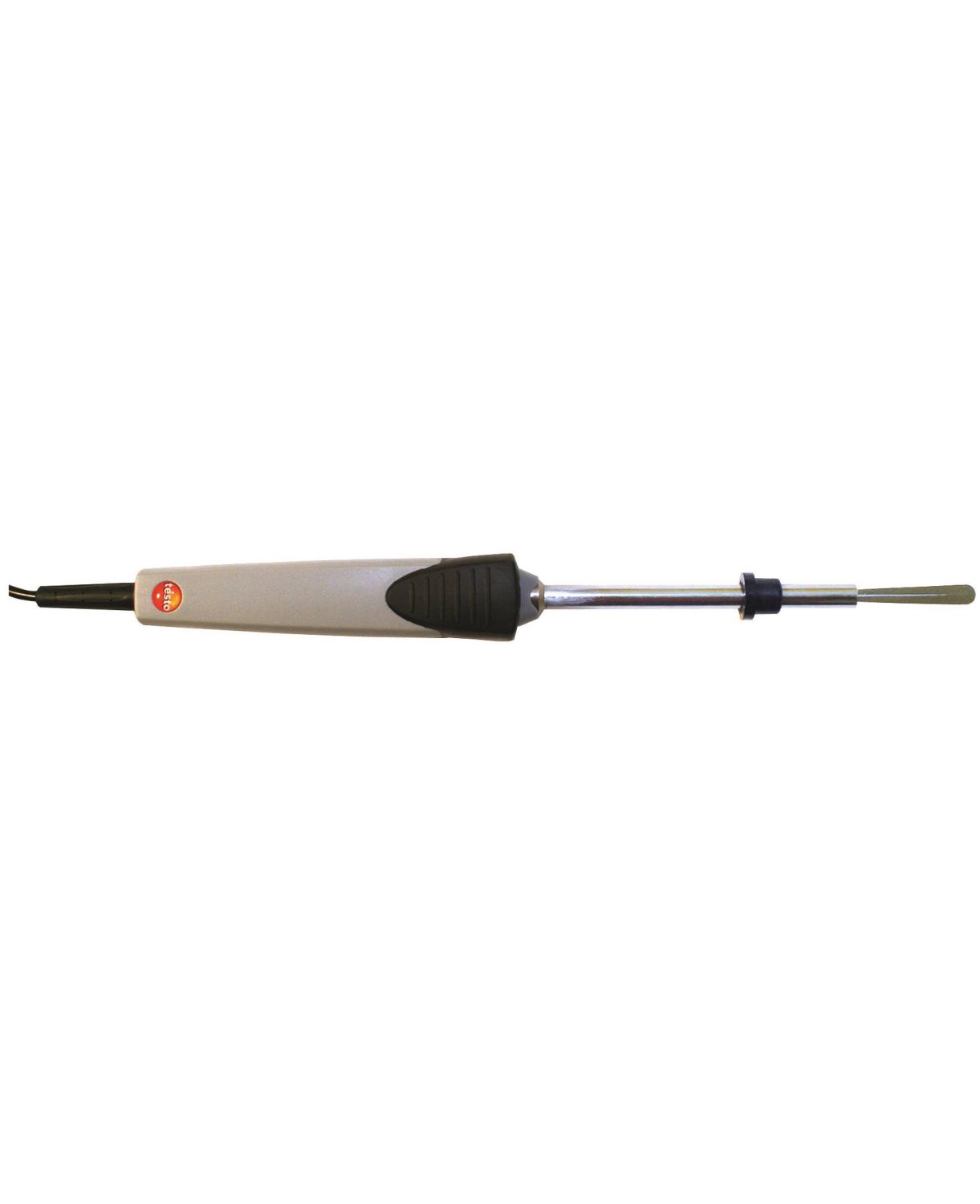

Fast-reaction paddle surface probe, for measurements in inaccessible places, e.g. narrow apertures and slots, TC Type K

Part No. 0602 0193

Technical Data

Temperature - TC Type K (NiCr-Ni)

Measuring range 0 to +300 °C
Accuracy Class 2 *
Reaction time 5 s

*Accor ding t o standard EN 60584-2, the accuracy of Class 1 refers to -40 to +1000 °C (Type K), CLass 2 to -40 to +1200 °C (Type K), Class 3 to -200 to +40 °C (Tyoe K).

General Technical Data

Fixed cable true
Diameter probe shaft tip 7 mm
Diameter probe shaft 8 mm
Length probe shaft tip 40 mm
Length probe shaft 145 mm

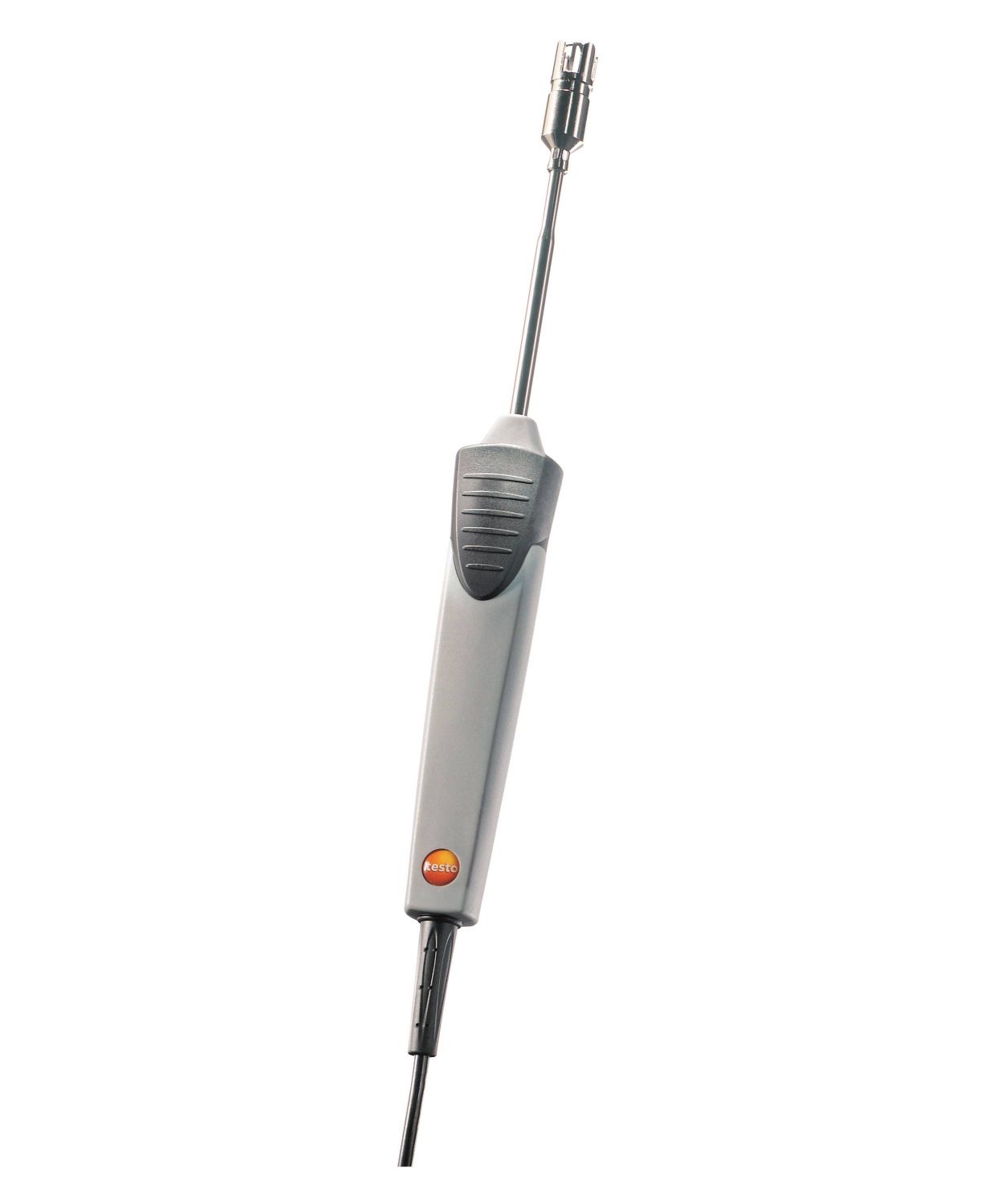

Fast-action surface probe (TC type K)

Part No. 0602 0393

The extremely fast-action surface temperature probe with sprung thermocouple strip is suitable for a wide range of applications – including uneven surfaces.

Temperature - TC Type K (NiCr-Ni) Technical Data

Measuring range -60 to +300 °C
Accuracy Class 2 ¹⁾
Reaction time 3 s

1) According to standard EN 60584-2, the accuracy of Class 2 refers to -40 to +1200 °C.

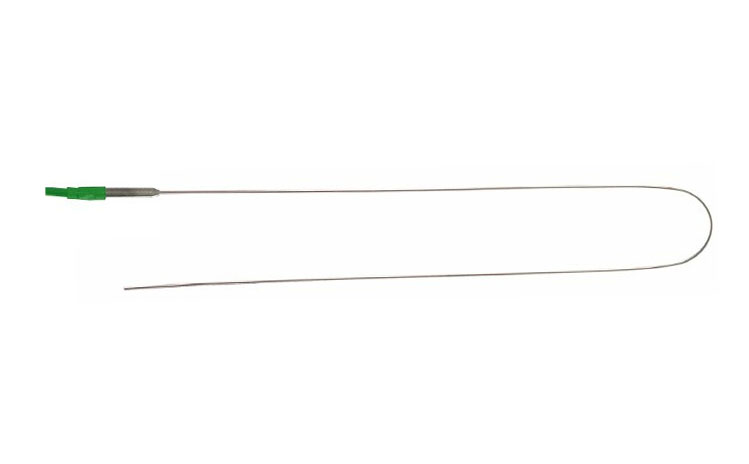

Exceptionally fast temperature probe (TC Type K)

Part No. 0602 0493

Flexible, low-mass immersion measurement tip, ideal for measurements in small volumes such as petri dishes, or for surface measurements (e.g. attached with adhesive tape), TC Type K

Key Features:

TC Type K temperature probe with flexible measuring tip, short response time and 2 m cable
Very fast temperature measurement in air, liquids, pastes and on surfaces
Measuring range: -328 to 1832 °F (-200 to +1000 °C)

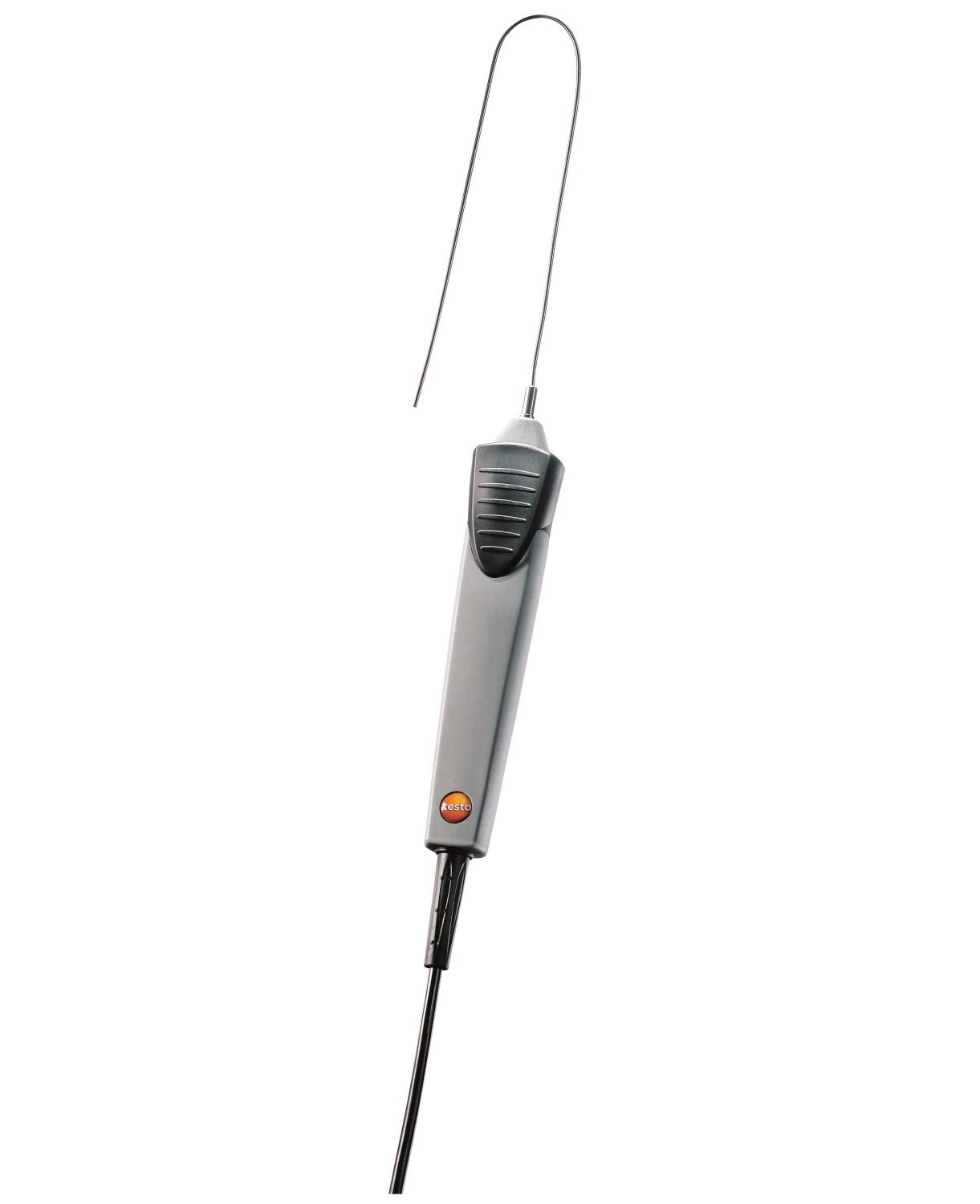

Flexible, fast-action immersion probe (TC type K)

Part No. 0602 0593

Key Features:

Short response time of 2 seconds
Thermocouple type K
Waterproof
Very large measuring range: -60 to +1000 °C

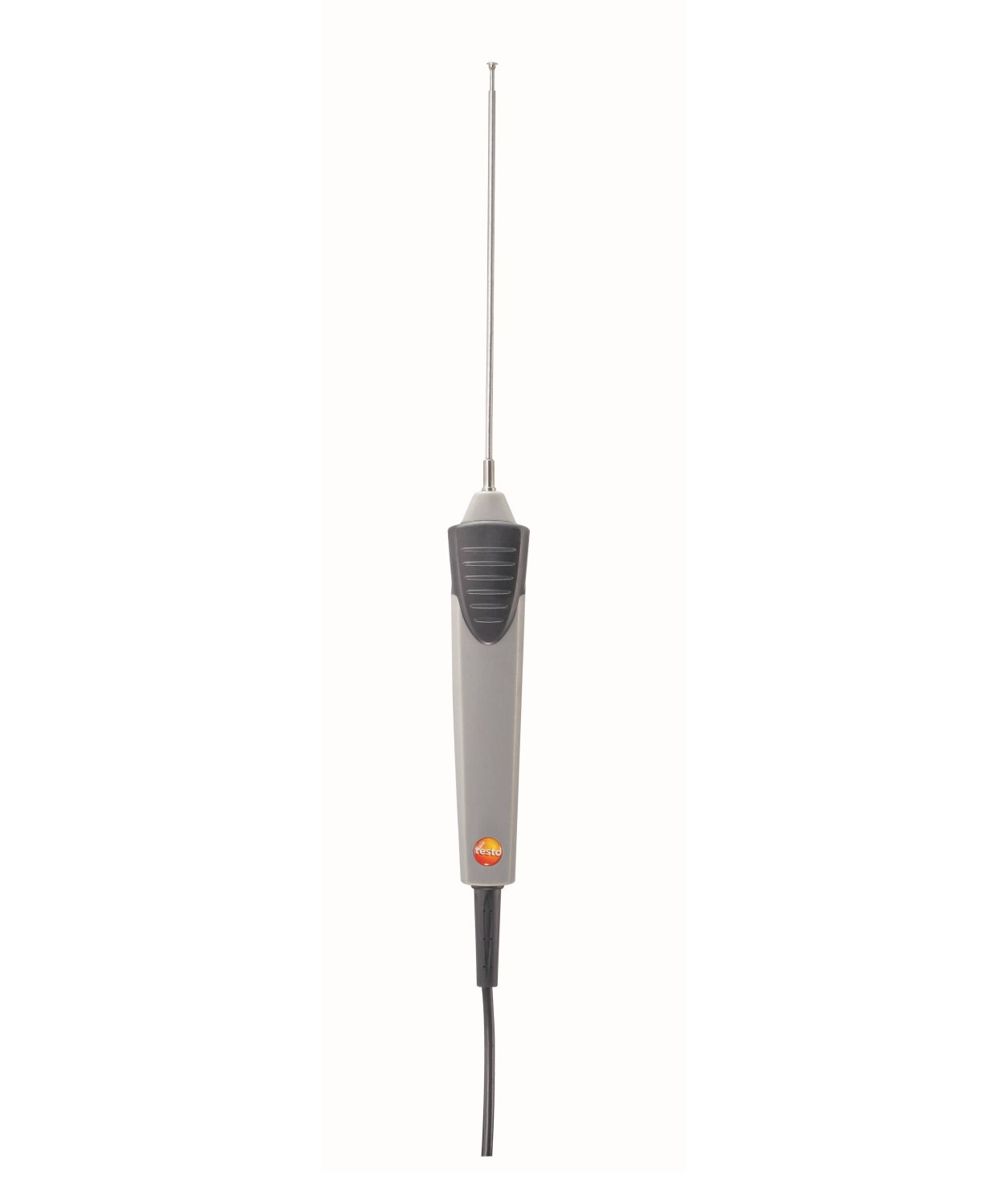

Surface probe with a small measuring head (TC type K)

Part No. 0602 0693

Accurate, waterproof and versatile: the temperature probe measures surface temperatures of up to 1000 °C. Its small measuring head is ideal for carrying out measurements on flat surfaces. Short response time.

Temperature - TC Type K (NiCr-Ni) Technical Data

Measuring range -60 to +1000 °C
Accuracy Class 1 ¹⁾
Reaction time 20 s

1) According to standard EN 60584-2, the accuracy of Class 1 refers to -40 to +1000 °C (Type K), Class 2 to -40 to +1200 °C (Type K), Class 3 to -200 to +40 °C (Type K).

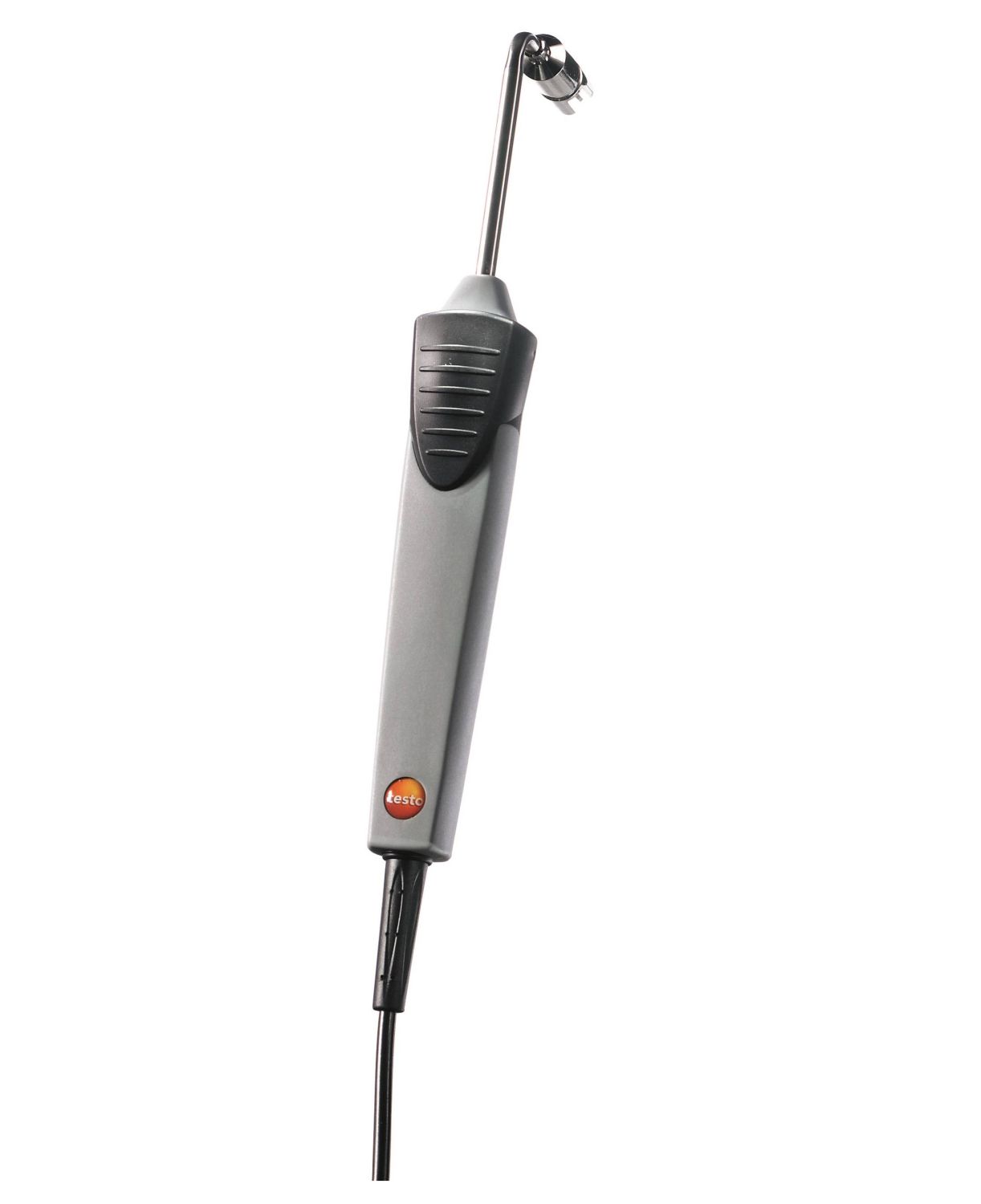

Fast-action, angled surface probe (TC type K)

Part No. 0602 0993

Use this fast-action temperature probe to measure surface temperatures accurately and reliably, even in inaccessible areas – the angled probe tube makes this possible.

Temperature - TC Type K (NiCr-Ni) Technical Data

Measuring range -60 to +300 °C
Accuracy Class 2 ¹⁾
Reaction time 3 s

1) According to standard EN 60584-2, the accuracy of Class 1 refers to -40 to +1000 °C (Type K), Class 2 to -40 to +1200 °C (Type K), Class 3 to -200 to +40 °C (Type K).

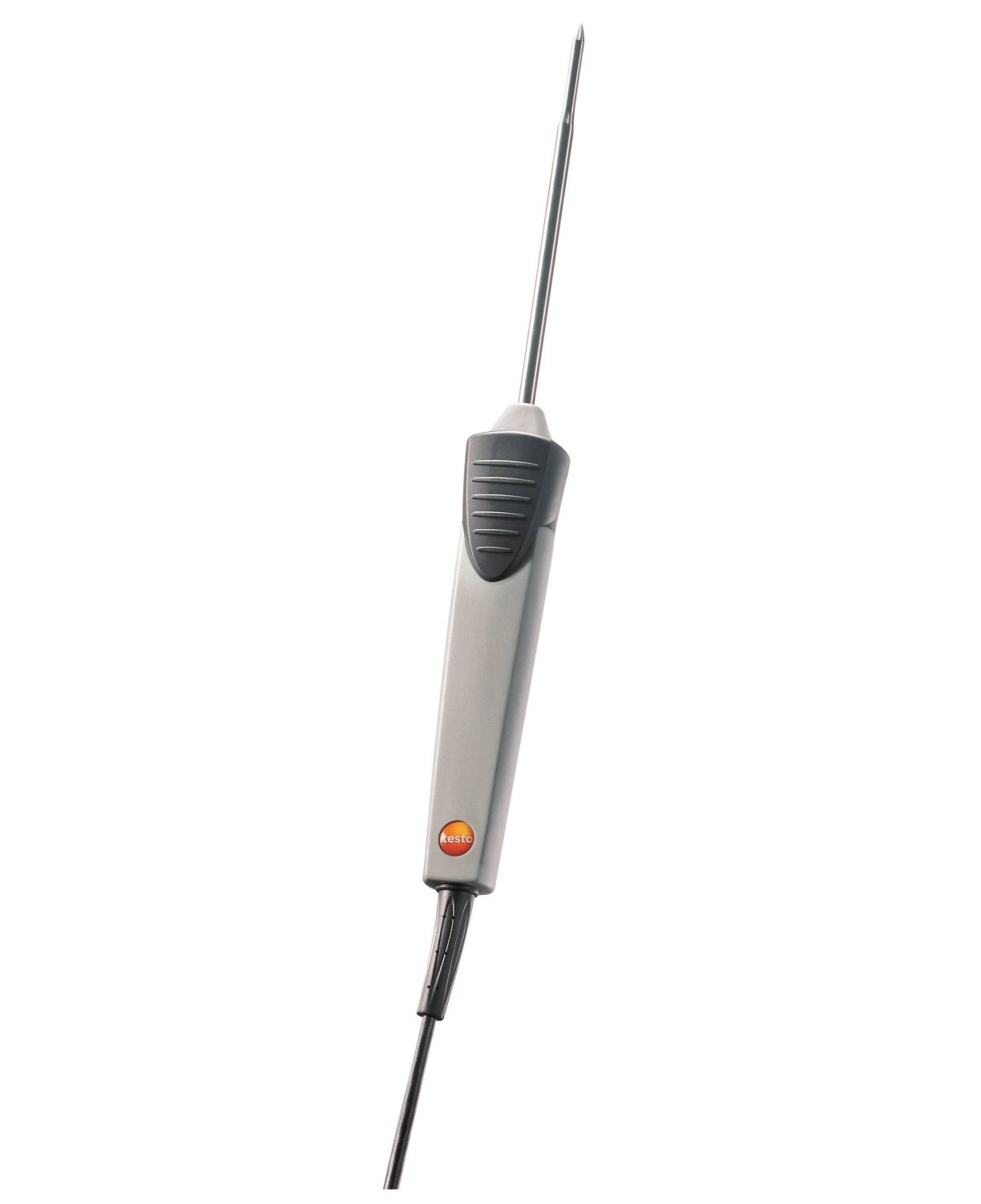

Waterproof immersion/penetration probe (TC type K)

Part No. 0602 1293

The waterproof immersion and penetration probe guarantees fast temperature measurement in liquids and semi-solid media.

Key Features:

Thermocouple type K
Response time of 7 seconds
Waterproof
Measuring range: -60 to +400 °C

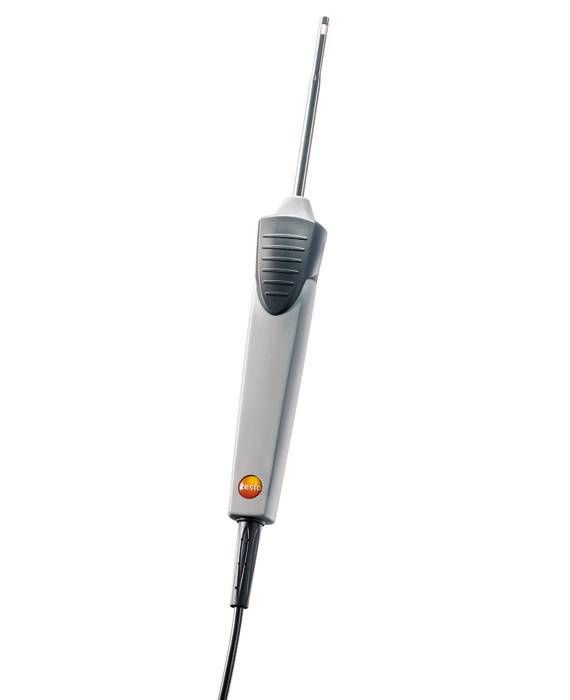

Robust air temperature probe (TC type K)

Part No. 0602 1793

Use the robust air temperature probe with exposed sensor (thermocouple type K) to measure air temperature with a short response time. It can be connected to a wide range of measuring instruments.

Key Features:

Thermocouple type K
Short response time thanks to the exposed sensor
Can be connected to a wide range of measuring instruments
Measuring range: -60 to +400 °C

Surface probe with widened measuring tip (TC type K)

Part No. 0602 1993

Waterproof, robust and versatile: this temperature probe with sturdy probe shaft and widened measuring tip is ideal for measuring the temperature on flat surfaces.

Key Features:

Extra-wide measuring tip for flat surfaces
Thermocouple type K
Waterproof and robust (sturdy probe shaft)
Measuring range: -60 to +400 °C

Temperature - TC Type K (NiCr-Ni)

Measuring range -60 to +400 °C
Accuracy Class 2 ¹⁾
Reaction time 30 s

1) According to standard EN 60584-2, the accuracy of Class 1 refers to -40 to +1000 °C (Type K), Class 2 to -40 to +1200 °C (Type K), Class 3 to -200 to +40 °C (Type K).

General Technical Data

Waterproof Waterproof surface probe with widened measurement tip for flat surfaces, T/C Type K
Fixed cable true
Cable length 1.2 m
Diameter probe shaft tip 6 mm
Diameter probe shaft 5 mm
Length probe shaft 115 mm

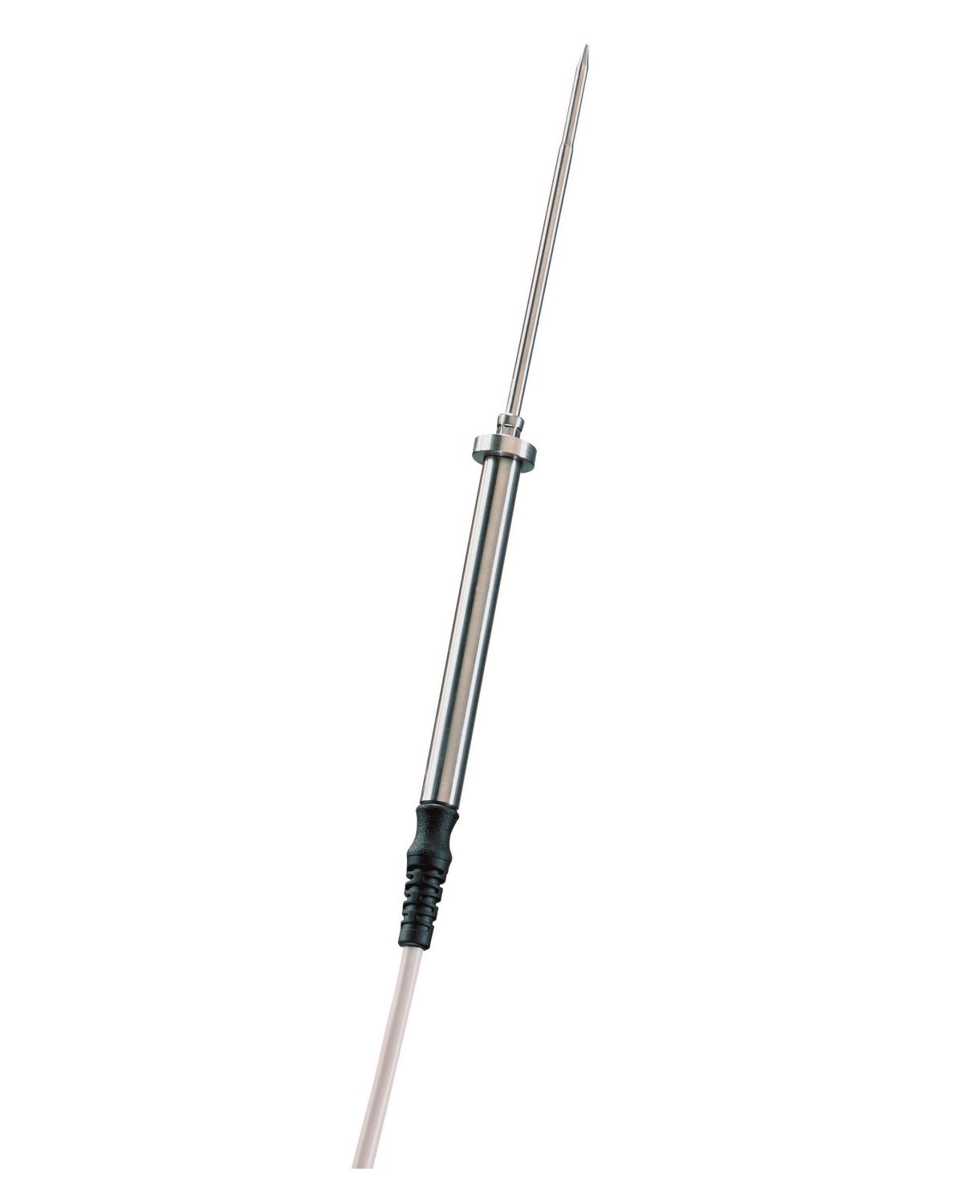

Stainless steel food probe (IP67) with PUR cable, T/C Type T

Part No. 0603 2192

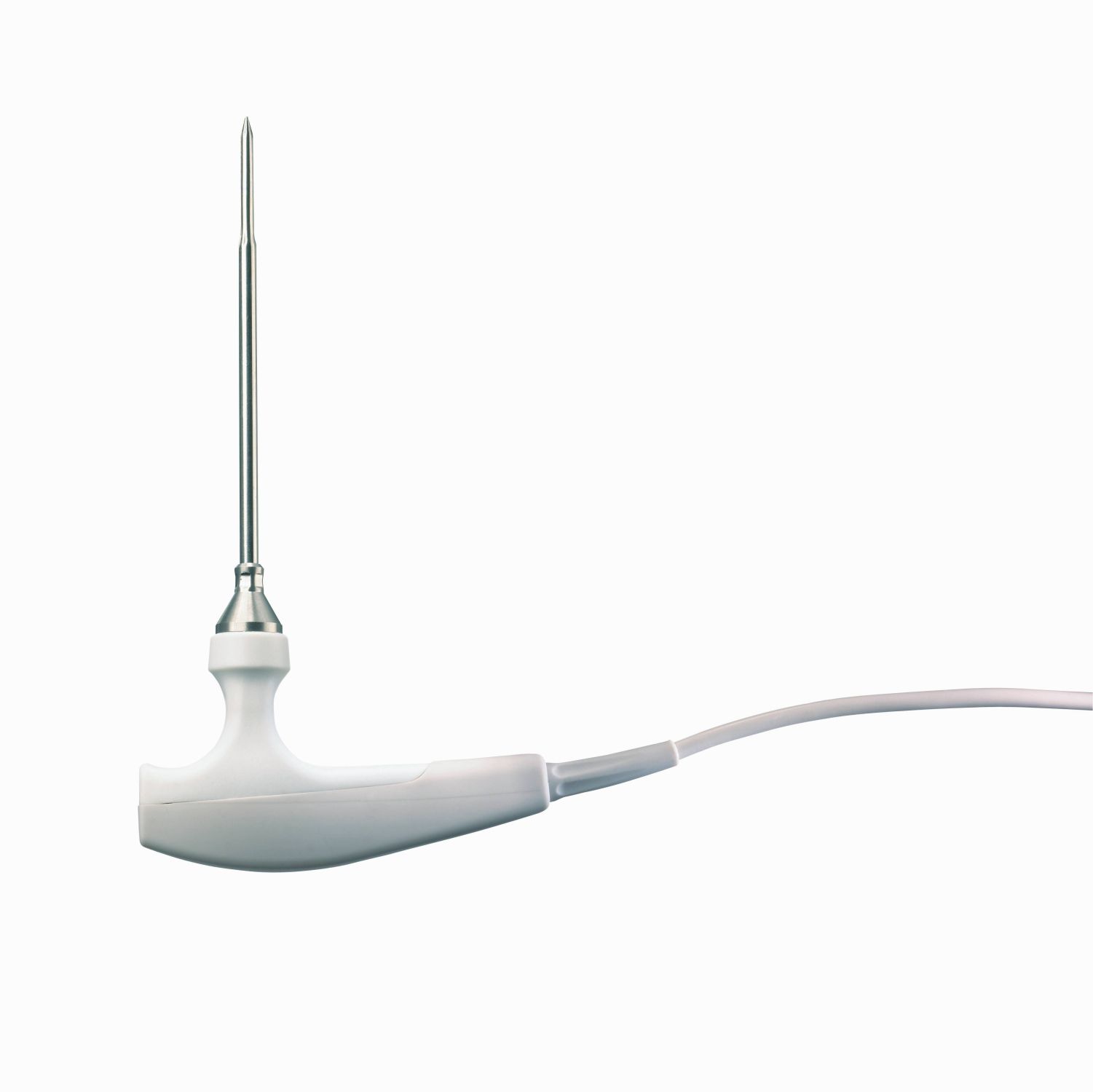

Robust food penetration probe (TC type T)

Part No. 0603 2492

The robust food penetration probe (with a corresponding measuring instrument) enables quick and accurate measurement of the core temperature of food.

Key Features:

Thermocouple type T
EN 13485 and HACCP-compliant
With special handle, reinforced cable (PVC)
Measuring range: -50 to +350 °C

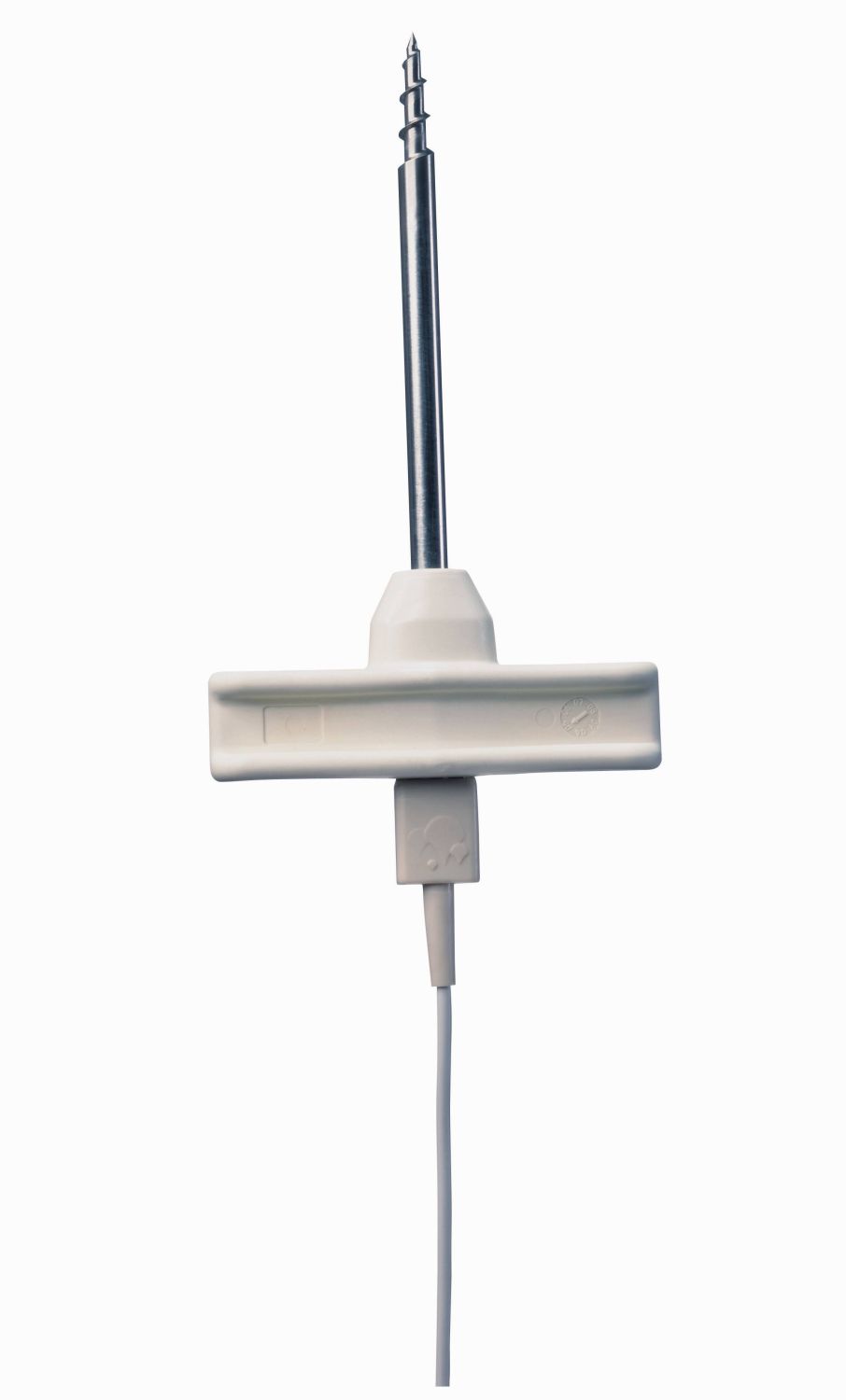

Frozen food probe, corkscrew design, T/C Type T

Part No.0603 3292

Temperature - TC Type T (Cu-CuNi) Technical Data

Measuring range -50 to +350 °C
Accuracy ±0.2 °C (-20 to +70 °C)
Class 1 (Remaining Range) ¹⁾
Reaction time 8 s

1) According to standard EN 60584-2, the accuracy of Class 1 refers to -40 to +350 °C (Type T).

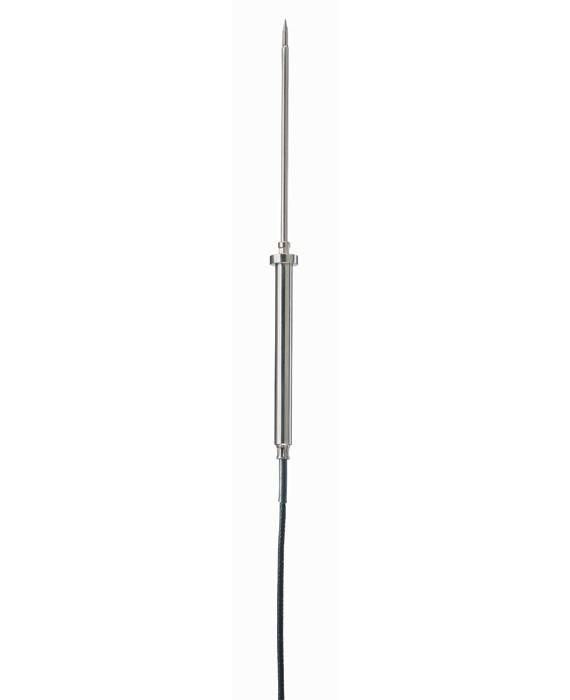

Stainless steel food probe (IP67), with FEP cable to +200 °C, TC Type T

Part No. 0603 3392

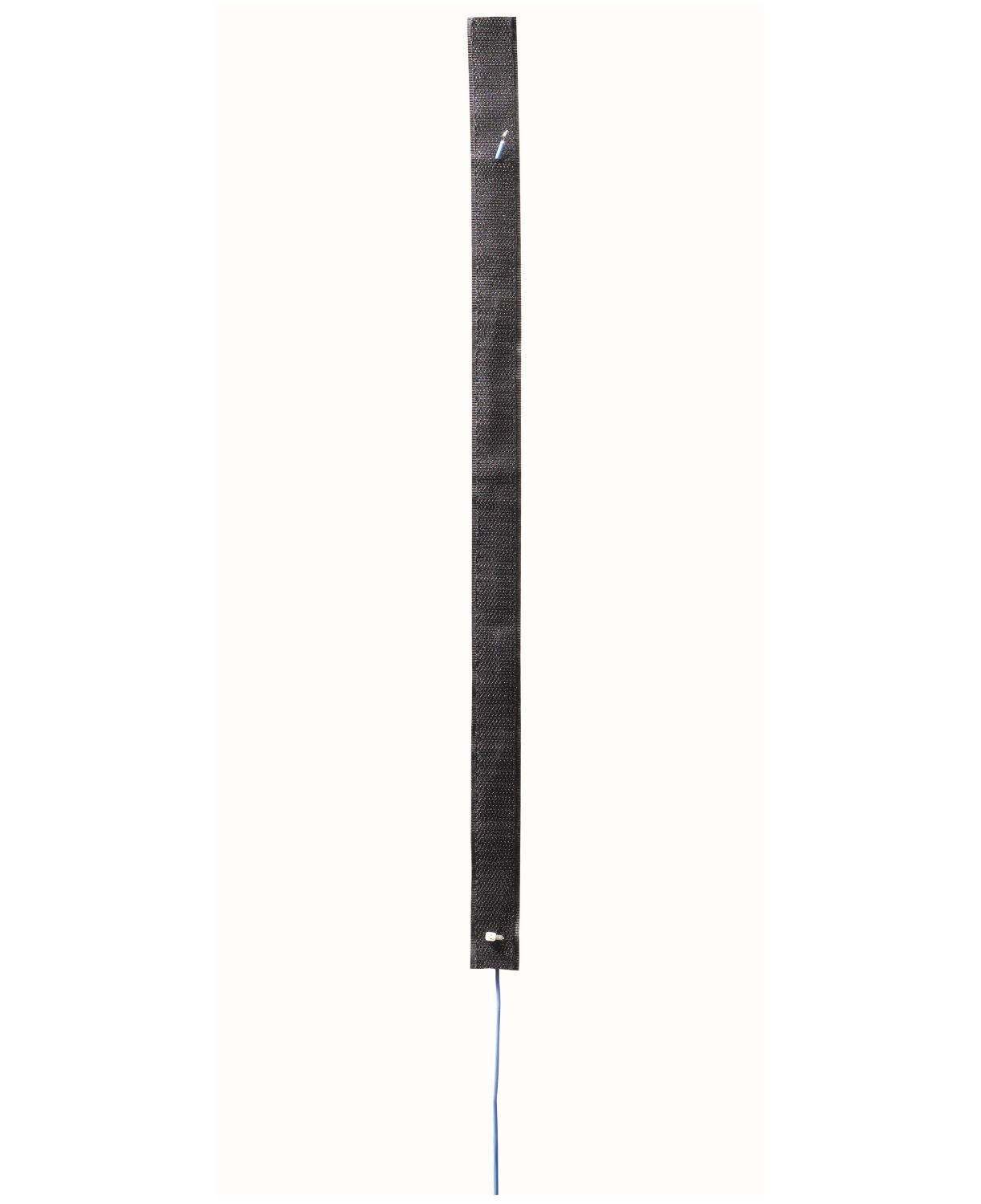

Temperature probe with Velcro (TC Type K)

Part No. 0628 0020

Key Features:

With Velcro: makes it easy to attach the surface probe to pipes with a diameter of up to 120 mm
TC Type K temperature probe with 1.5 m cable
Measuring range: -50 to +120 °C

Temperature - TC Type K (NiCr-Ni) Technical Data

Measuring range -50 to +120 °C
Accuracy Class 1 ¹⁾
Reaction time 90 s

1) According to standard EN 60584-2, the accuracy of Class 1 refers to -40 to +1000 °C (Type K), Class 2 to -40 to +1200 °C (Type K), Class 3 to -200 to +40 °C (Type K).

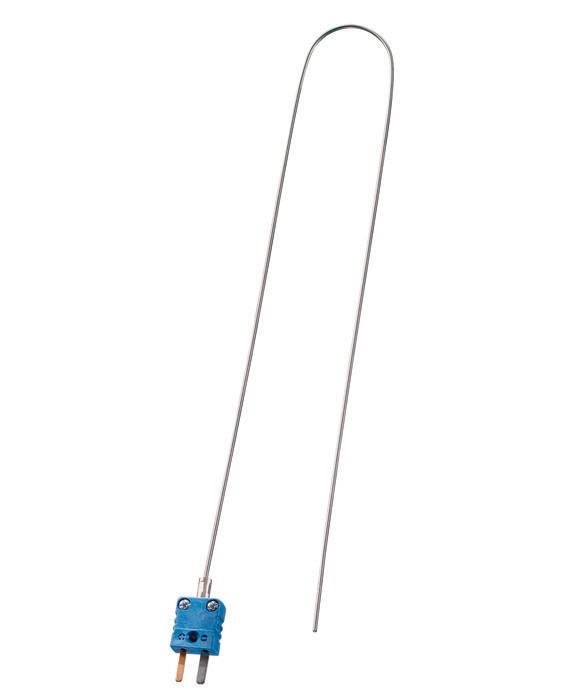

Measurement tip with T/C adapter Type T, ideal for fast-acti...

Part No. 0628 0023

Technical Data

Temperature - TC Type T (Cu-CuNi)

Measuring range -50 to +350 °C
Accuracy Class 1 ¹⁾
Reaction time 5 s

1) According to standard EN 60584-2, the accuracy of Class 1 refers to -40 to +350 °C (Type T).

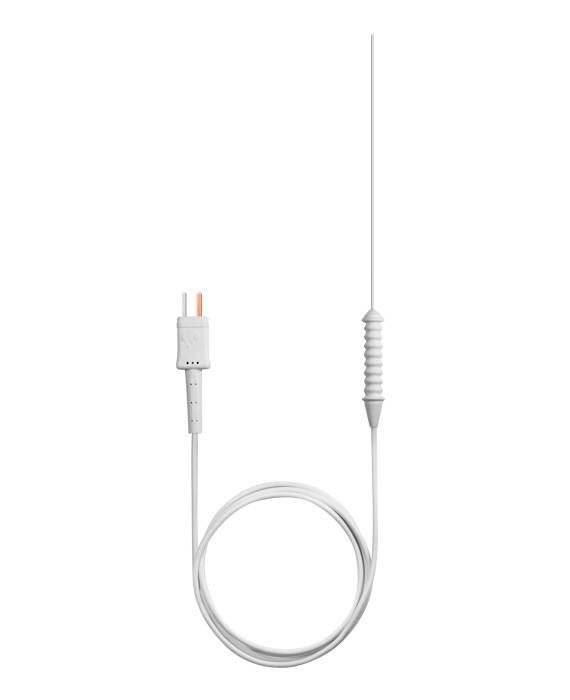

Waterproof, super-quick needle probe for measurements withou...

Part No. 0628 0027

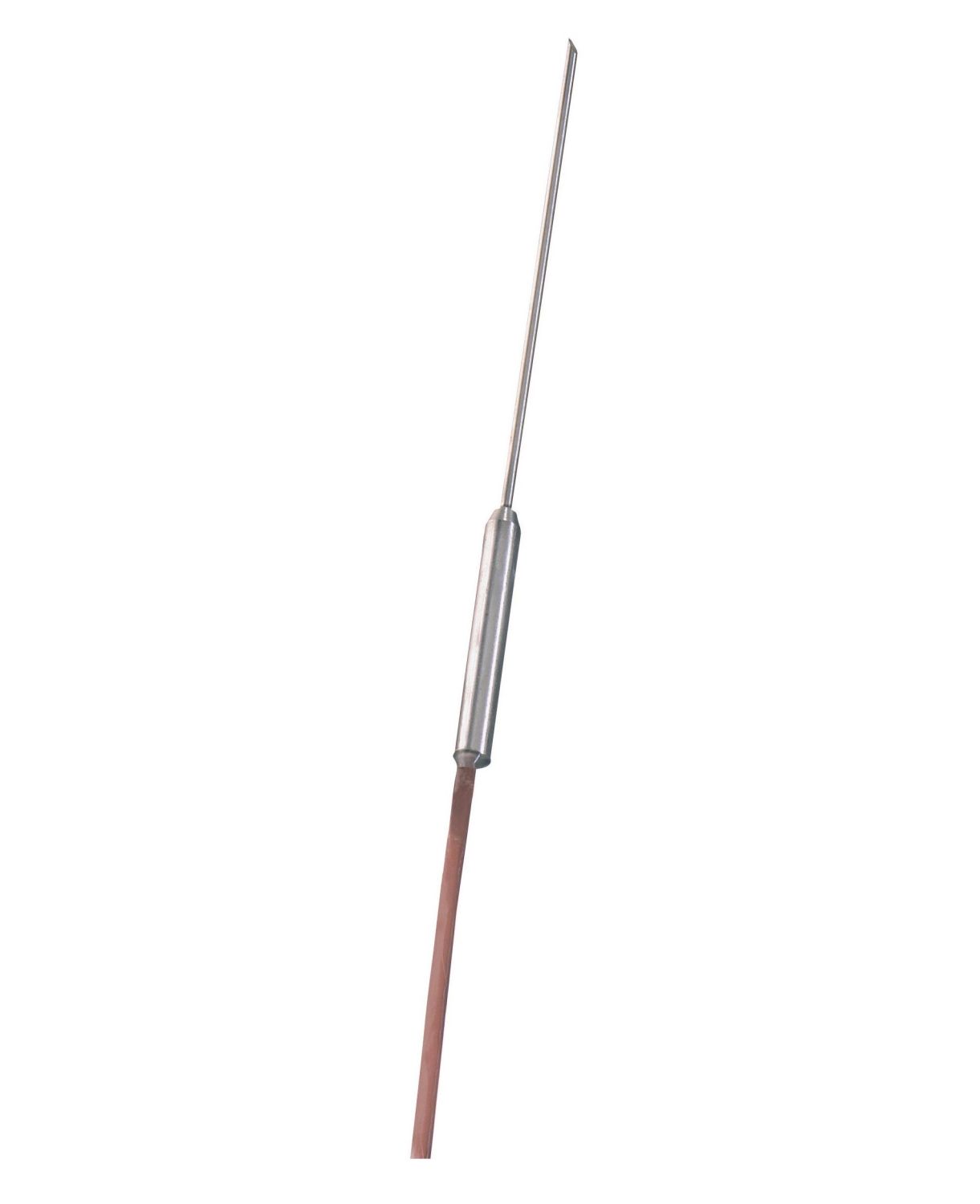

Quick needle probe to monitor cooking in oven, T/C Type T

Part No. 0628 0030

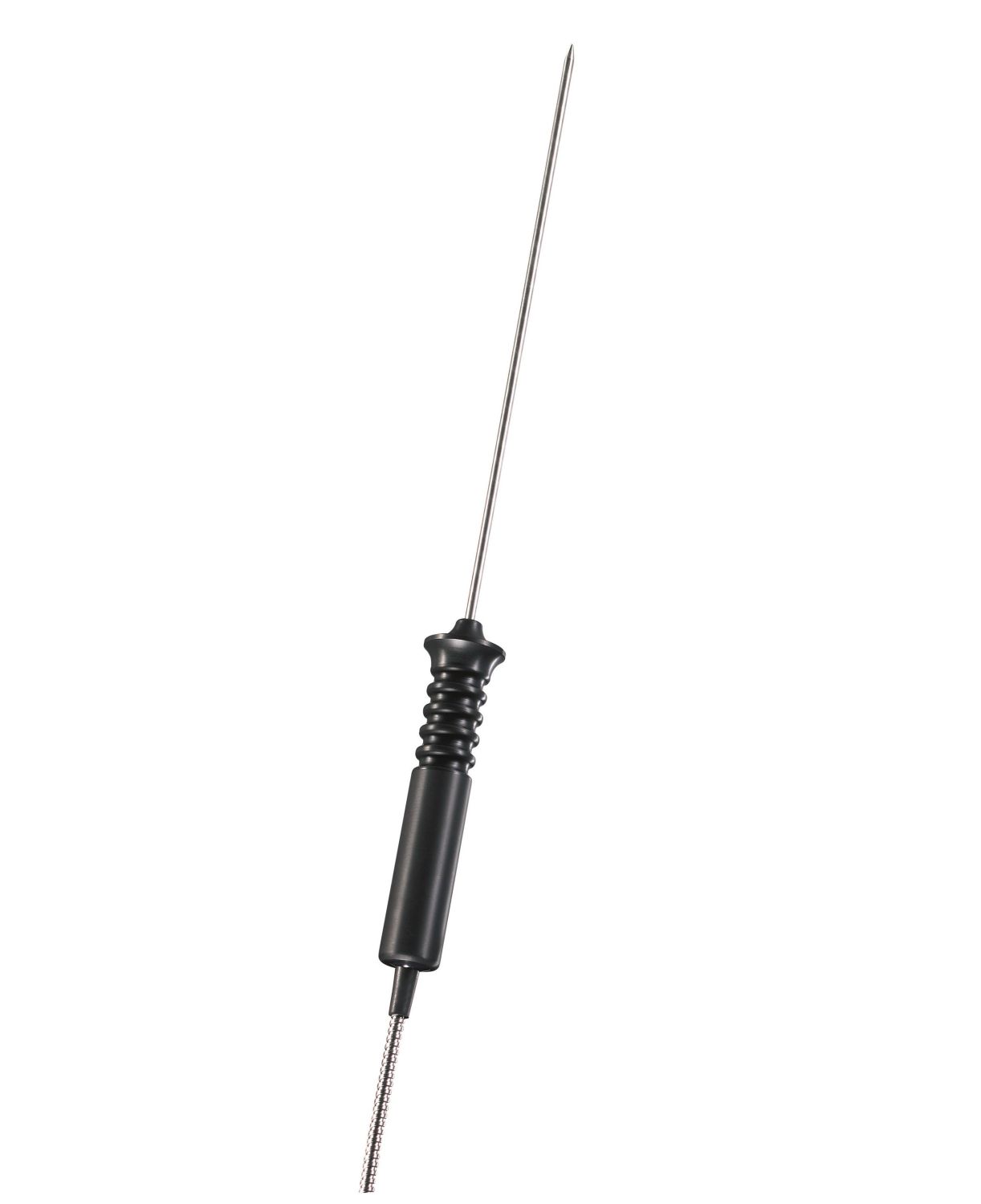

Waterproof rugged immersion/penetration probe with metal protection hose

Part No. 0628 1292

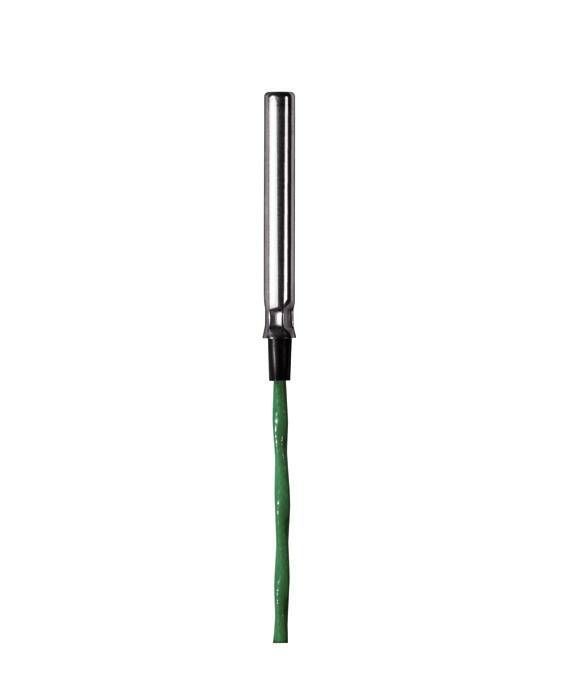

Temperature probe with stainless steel sleeve (TC Type K)

Part No. 0628 7533

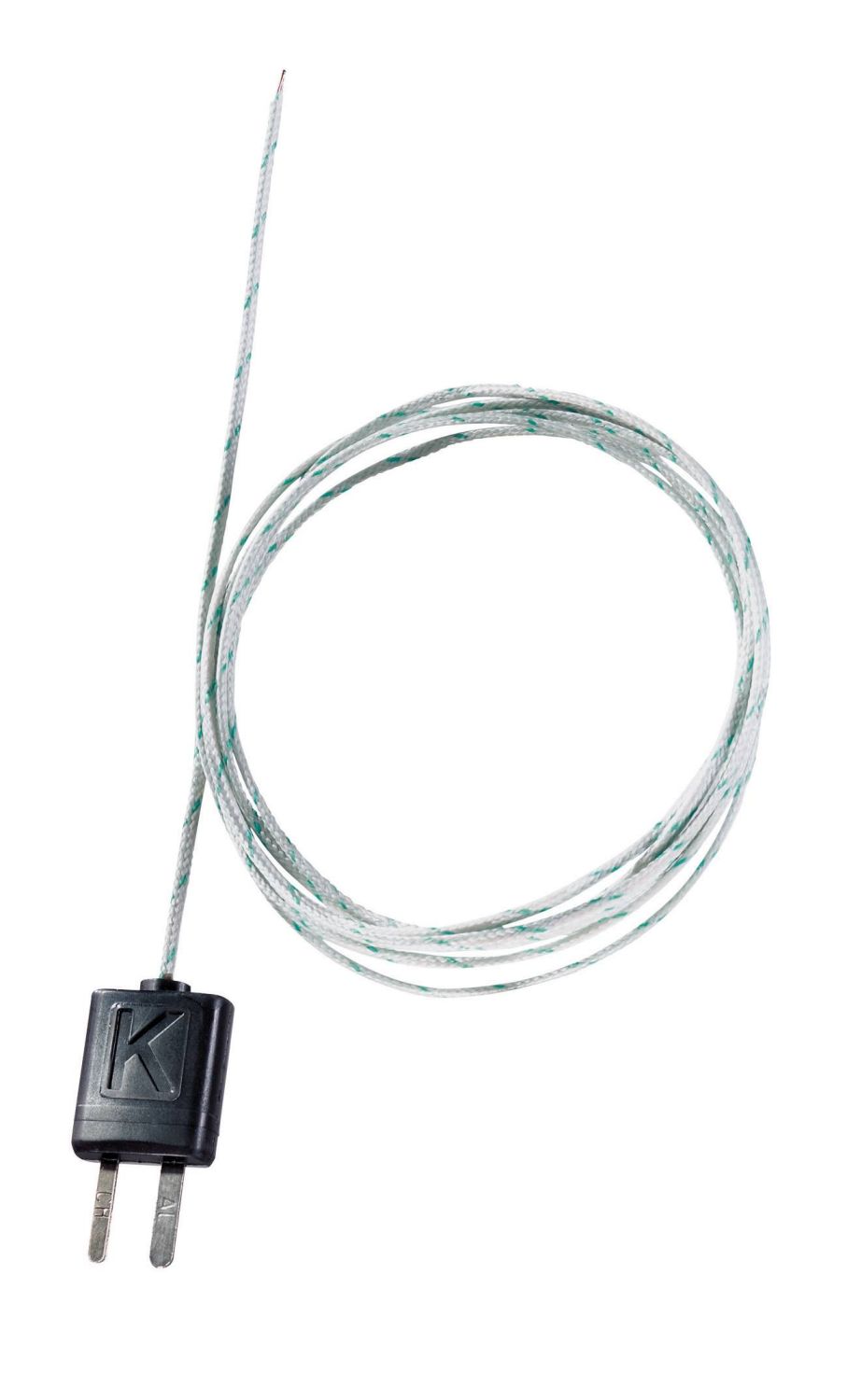

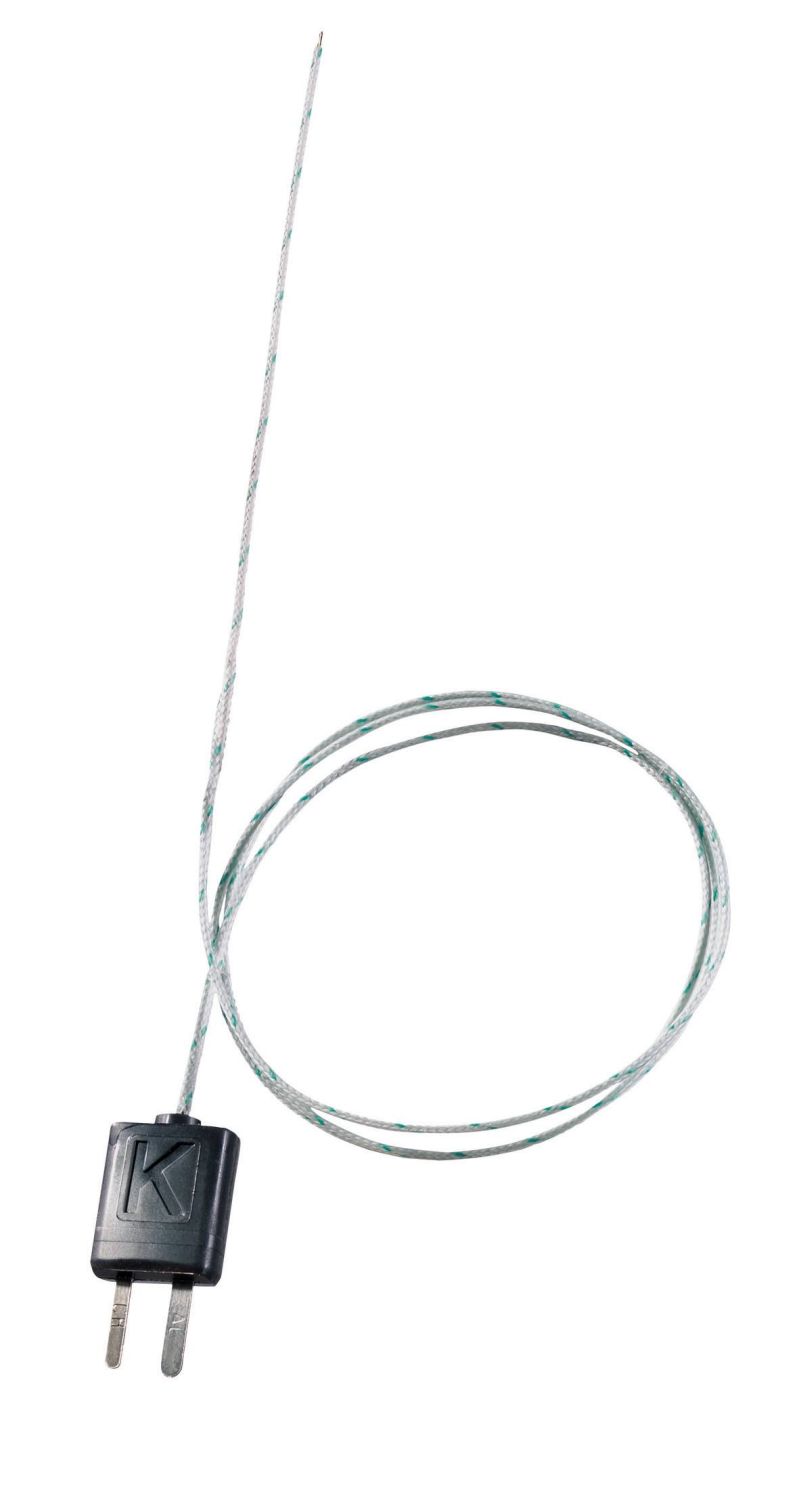

Thermocouple with TC adapter, flexible, 800 mm long

Part No. 0602 0644

Thermocouple with TC adapter, flexible, length 1500 mm , fibreglass, TC Type K

Part No. 0602 0645

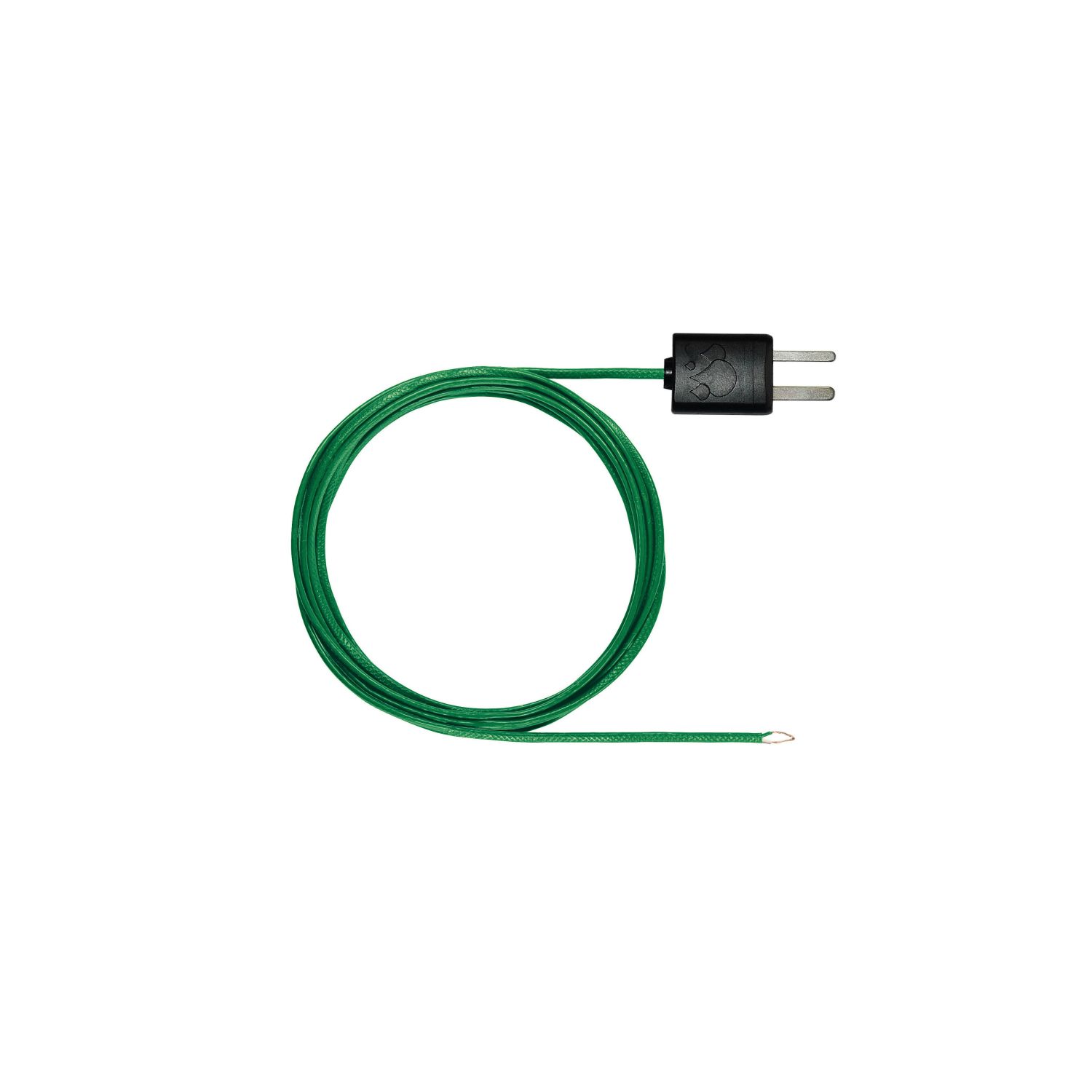

hermocouple with TC adapter, flexible, 1500 mm long, PTFE, TC Type K

Part No. 0602 0646

Technical Data

Temperature - TC Type K (NiCr-Ni)

Measuring range -50 to +400 °C
Accuracy Class 2 ¹⁾
Reaction time 5 s

1) According to standard EN 60584-2, the accuracy of Class 1 refers to -40 to +1000 °C (Type K), Class 2 to -40 to +1200 °C (Type K), Class 3 to -200 to +40 °C (Type K).

General Technical Data
