testo 835-H1 - Infrared thermometer plus moisture measuring

Category: INDUSTRIAL THERMOMETERS

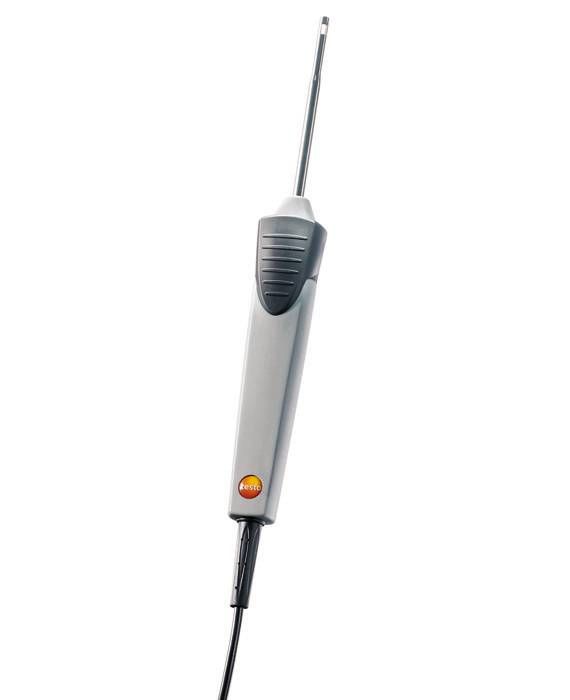

Robust air temperature probe (TC type K)

Part No. 0602 1793

Use the robust air temperature probe with exposed sensor (thermocouple type K) to measure air temperature with a short response time. It can be connected to a wide range of measuring instruments.

Key Features:

Thermocouple type K
Short response time thanks to the exposed sensor
Can be connected to a wide range of measuring instruments
Measuring range: -60 to +400 °C

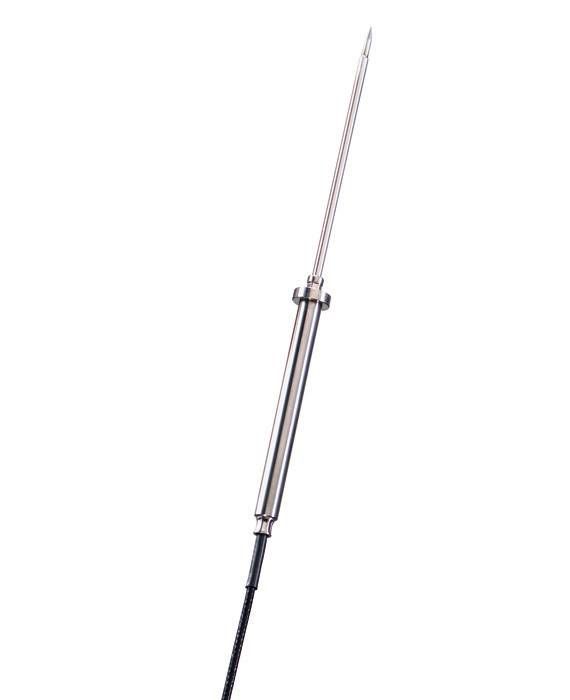

Waterproof food probe made of stainless steel (IP65), TC Type K

Part No. 0602 2292

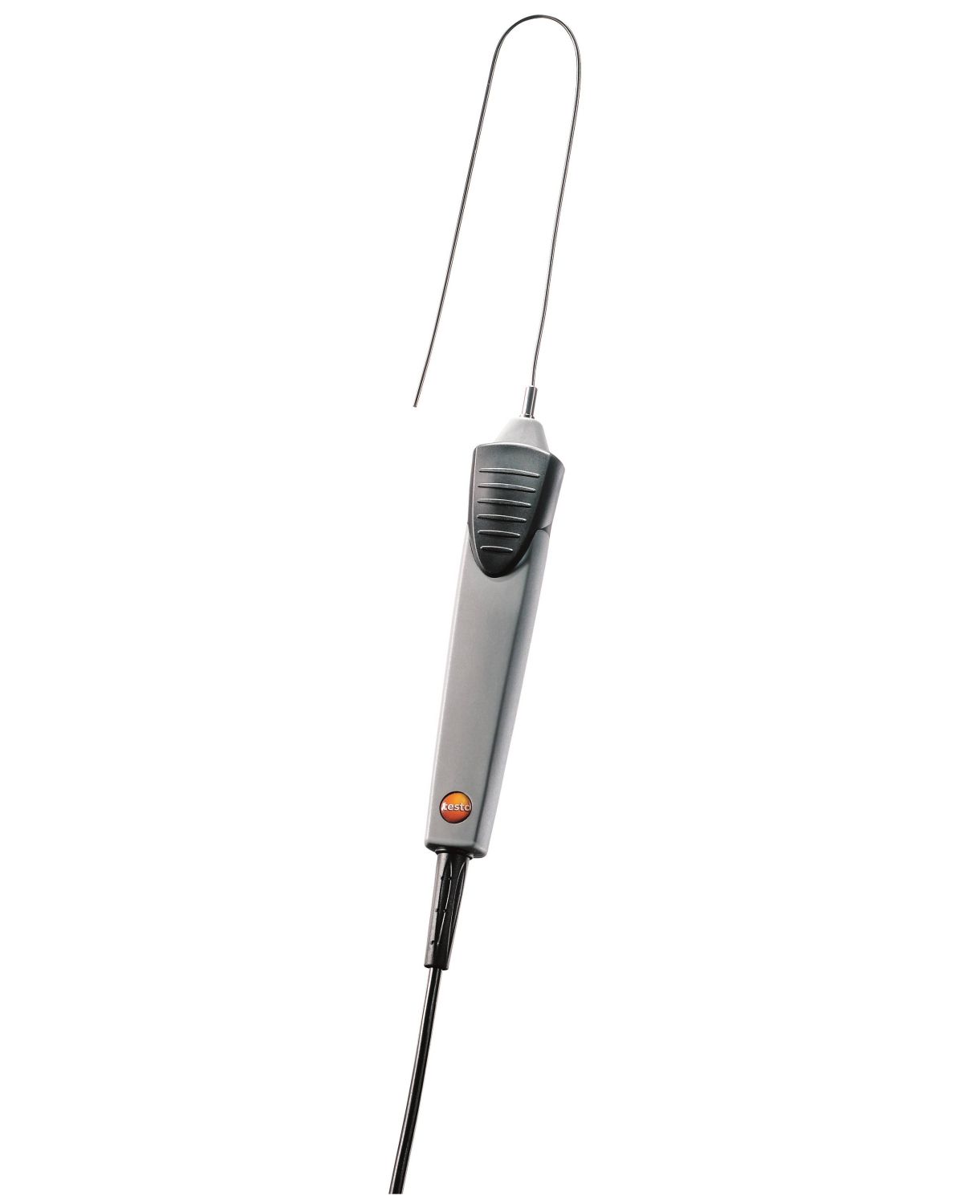

Flexible, fast-action immersion probe (TC type K)

Part No. 0602 0593

Key Features:

Short response time of 2 seconds
Thermocouple type K
Waterproof
Very large measuring range: -60 to +1000 °C

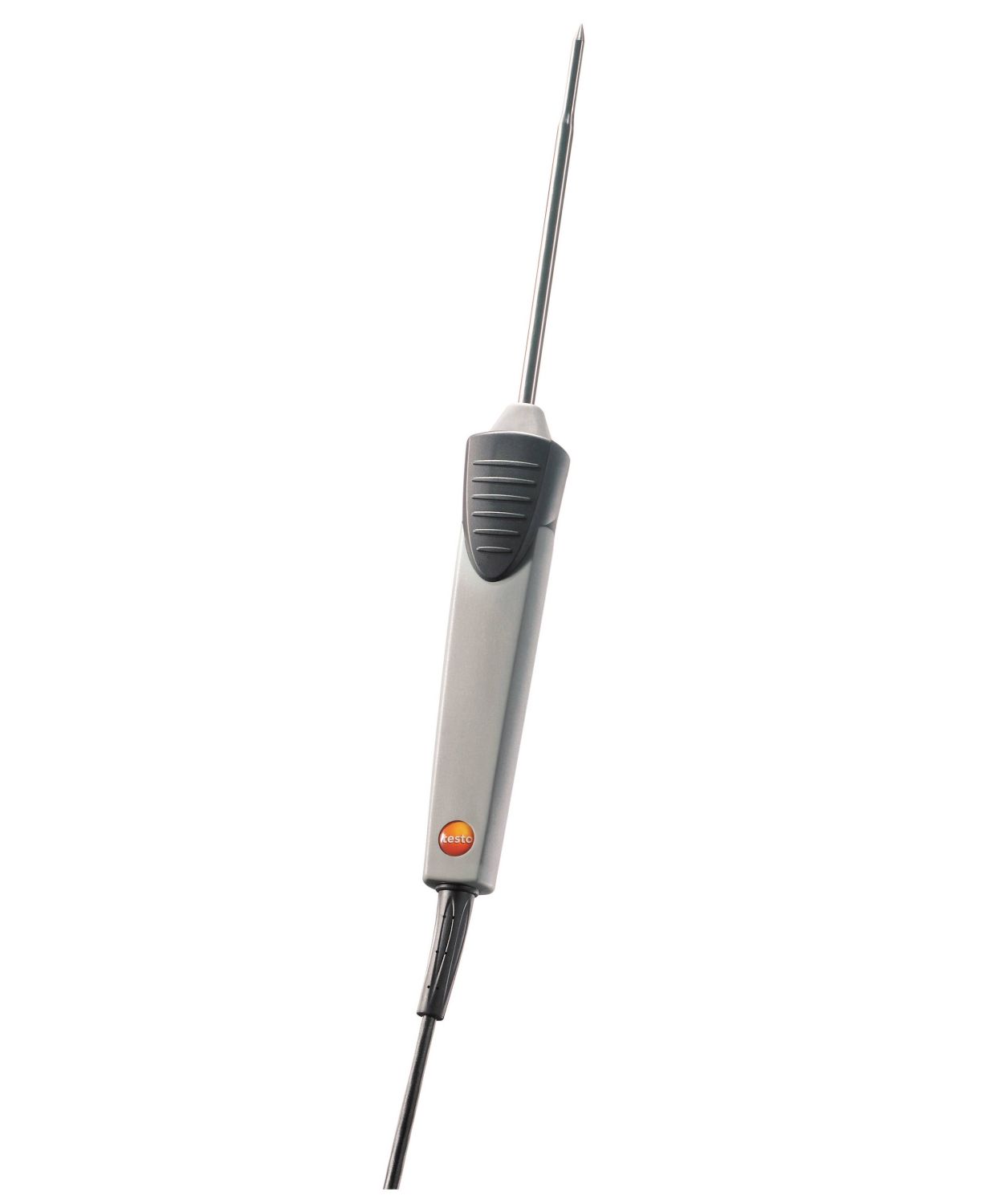

Waterproof immersion/penetration probe (TC type K)

Part No. 0602 1293

The waterproof immersion and penetration probe guarantees fast temperature measurement in liquids and semi-solid media.

Key Features:

Thermocouple type K
Response time of 7 seconds
Waterproof
Measuring range: -60 to +400 °C

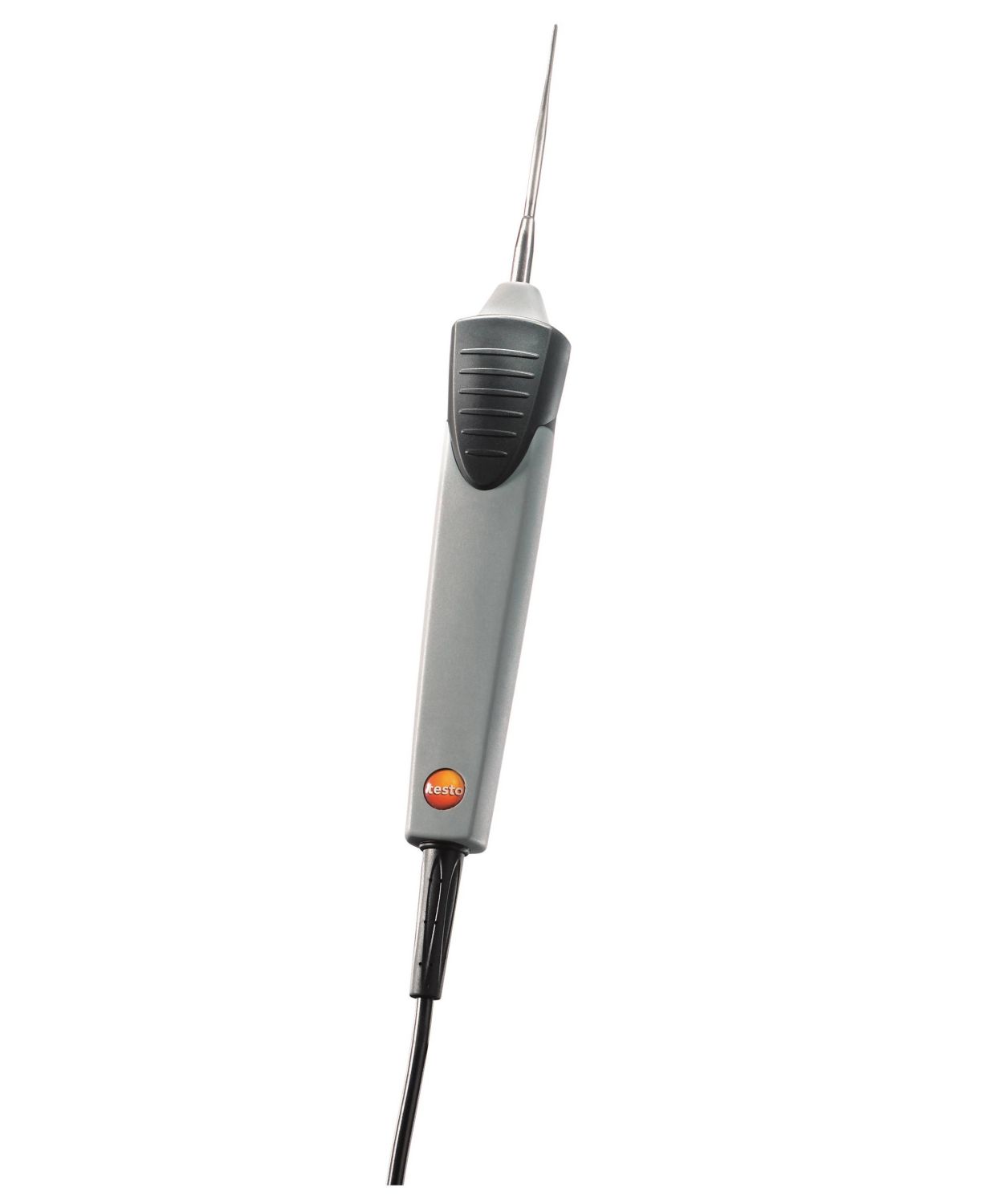

Fast-action immersion/penetration probe (TC type K)

Part No. 0602 2693

Fast-action temperature probe with penetration tip – ideal for temperature measurements in pastes and semi-solid media, in liquids and in the air.

Key Features:

1.5 mm thin probe tip for fast temperature recording, 60 mm long probe shaft
Splash-proof in accordance with IP54
Very short response time of 3 seconds
Measuring range: -60 to +800 °C

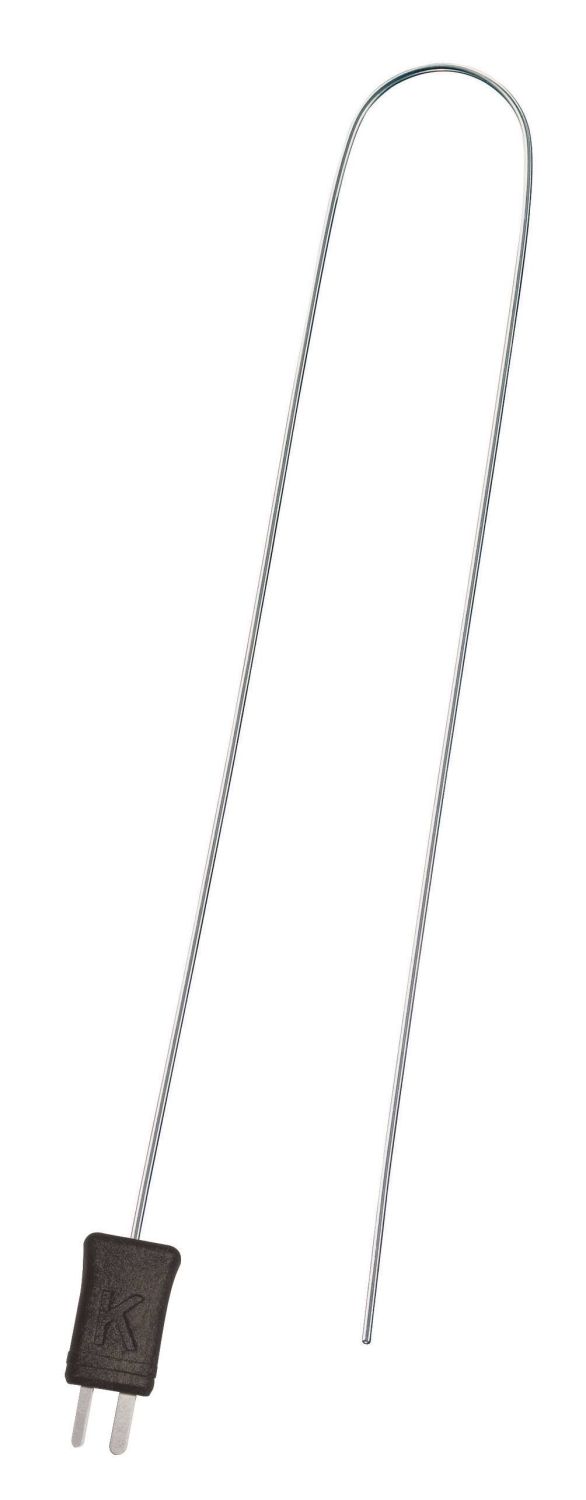

Immersion tip, flexible, TC Type K

Part No. 0602 5792

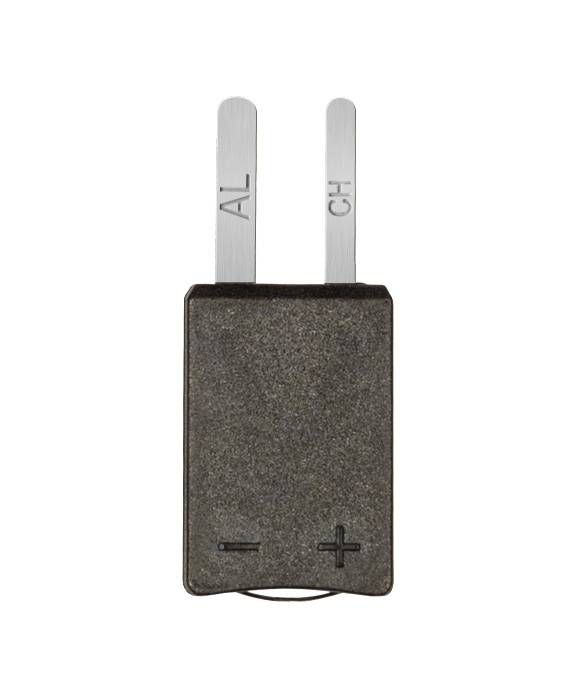

Spare meas. head for pipe wrap probe, TC Type K

Part No. 0602 0092

Product Benefits:

Replaceable measuring head with thermocouple strip for temperature probe with clamping bracket 0602 4592
Measuring range: -60 to +130°C, briefly up to +280 °C
Simple pull out the old measuring head with thermocouple strip and replace with new measuring head

Temperature - TC Type K (NiCr-Ni) Technical Data

Measuring range -60 to +130 °C
Accuracy Class 2 ²⁾
Reaction time 5 s

2) Accor ding to standard EN 60584-2, the accuracy of Class 1 refers t o -40 t o +1000 °C (Type K), Class 2 to -40 to +1200 °C (Type K), Class 3 to -200 to +40 °C (Type K).

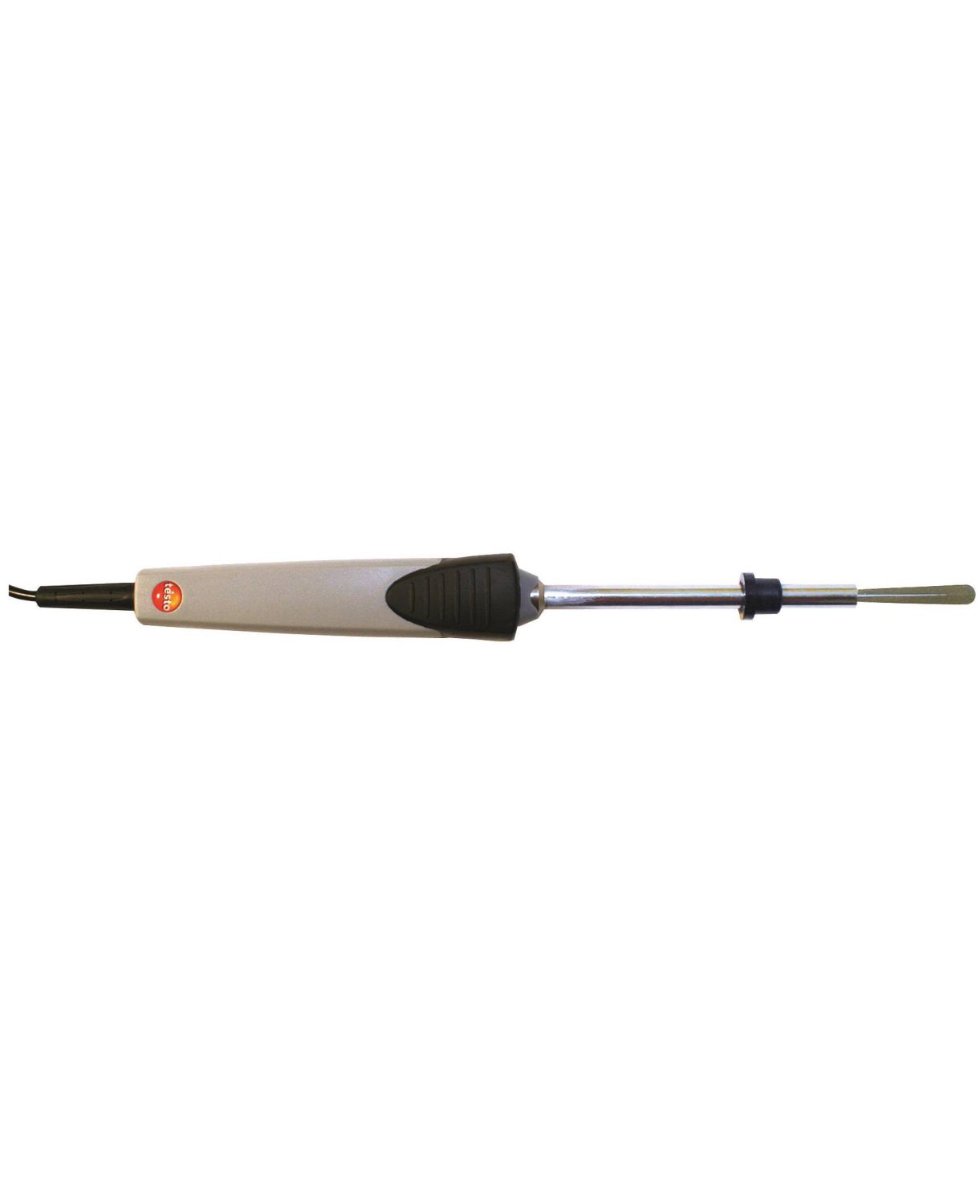

Fast-reaction paddle surface probe, for measurements in inaccessible places, e.g. narrow apertures and slots, TC Type K

Part No. 0602 0193

Technical Data

Temperature - TC Type K (NiCr-Ni)

Measuring range 0 to +300 °C
Accuracy Class 2 *
Reaction time 5 s

*Accor ding t o standard EN 60584-2, the accuracy of Class 1 refers to -40 to +1000 °C (Type K), CLass 2 to -40 to +1200 °C (Type K), Class 3 to -200 to +40 °C (Tyoe K).

General Technical Data

Fixed cable true
Diameter probe shaft tip 7 mm
Diameter probe shaft 8 mm
Length probe shaft tip 40 mm
Length probe shaft 145 mm

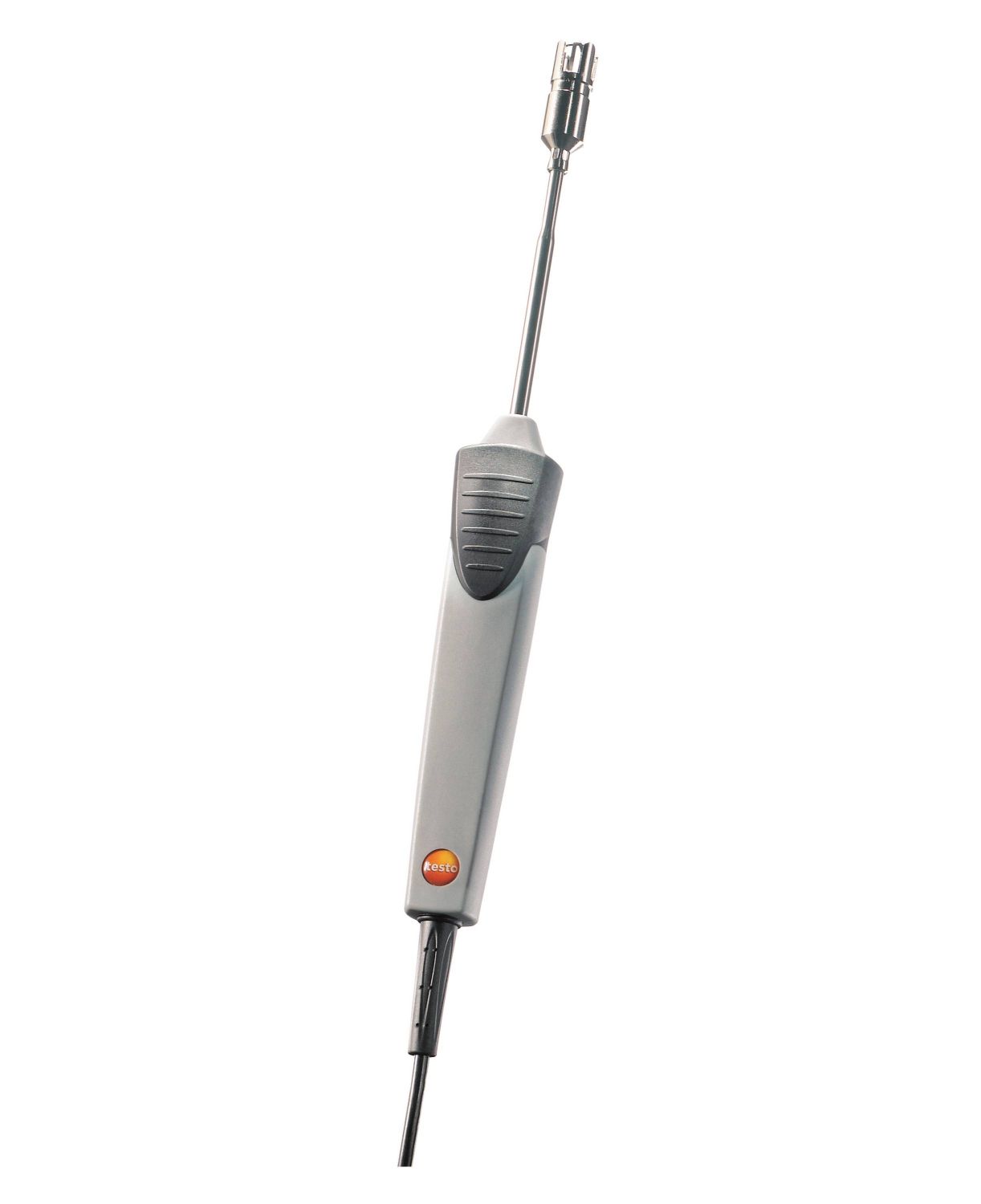

Fast-action surface probe (TC type K)

Part No. 0602 0393

The extremely fast-action surface temperature probe with sprung thermocouple strip is suitable for a wide range of applications – including uneven surfaces.

Temperature - TC Type K (NiCr-Ni) Technical Data

Measuring range -60 to +300 °C
Accuracy Class 2 ¹⁾
Reaction time 3 s

1) According to standard EN 60584-2, the accuracy of Class 2 refers to -40 to +1200 °C.

Surface probe with a small measuring head (TC type K)

Part No. 0602 0693

Accurate, waterproof and versatile: the temperature probe measures surface temperatures of up to 1000 °C. Its small measuring head is ideal for carrying out measurements on flat surfaces. Short response time.

Temperature - TC Type K (NiCr-Ni) Technical Data

Measuring range -60 to +1000 °C
Accuracy Class 1 ¹⁾
Reaction time 20 s

1) According to standard EN 60584-2, the accuracy of Class 1 refers to -40 to +1000 °C (Type K), Class 2 to -40 to +1200 °C (Type K), Class 3 to -200 to +40 °C (Type K).

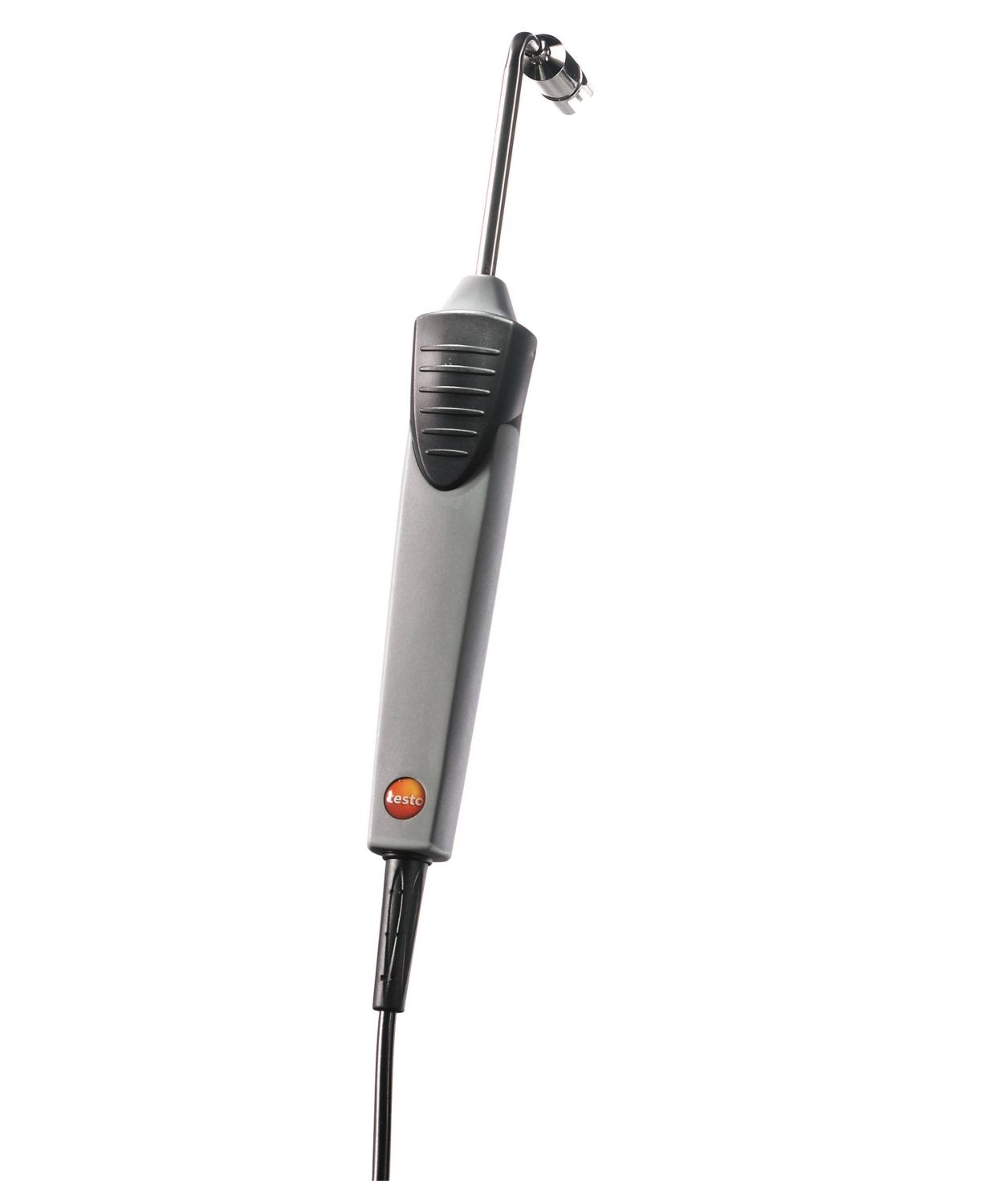

Fast-action, angled surface probe (TC type K)

Part No. 0602 0993

Use this fast-action temperature probe to measure surface temperatures accurately and reliably, even in inaccessible areas – the angled probe tube makes this possible.

Temperature - TC Type K (NiCr-Ni) Technical Data

Measuring range -60 to +300 °C
Accuracy Class 2 ¹⁾
Reaction time 3 s

1) According to standard EN 60584-2, the accuracy of Class 1 refers to -40 to +1000 °C (Type K), Class 2 to -40 to +1200 °C (Type K), Class 3 to -200 to +40 °C (Type K).

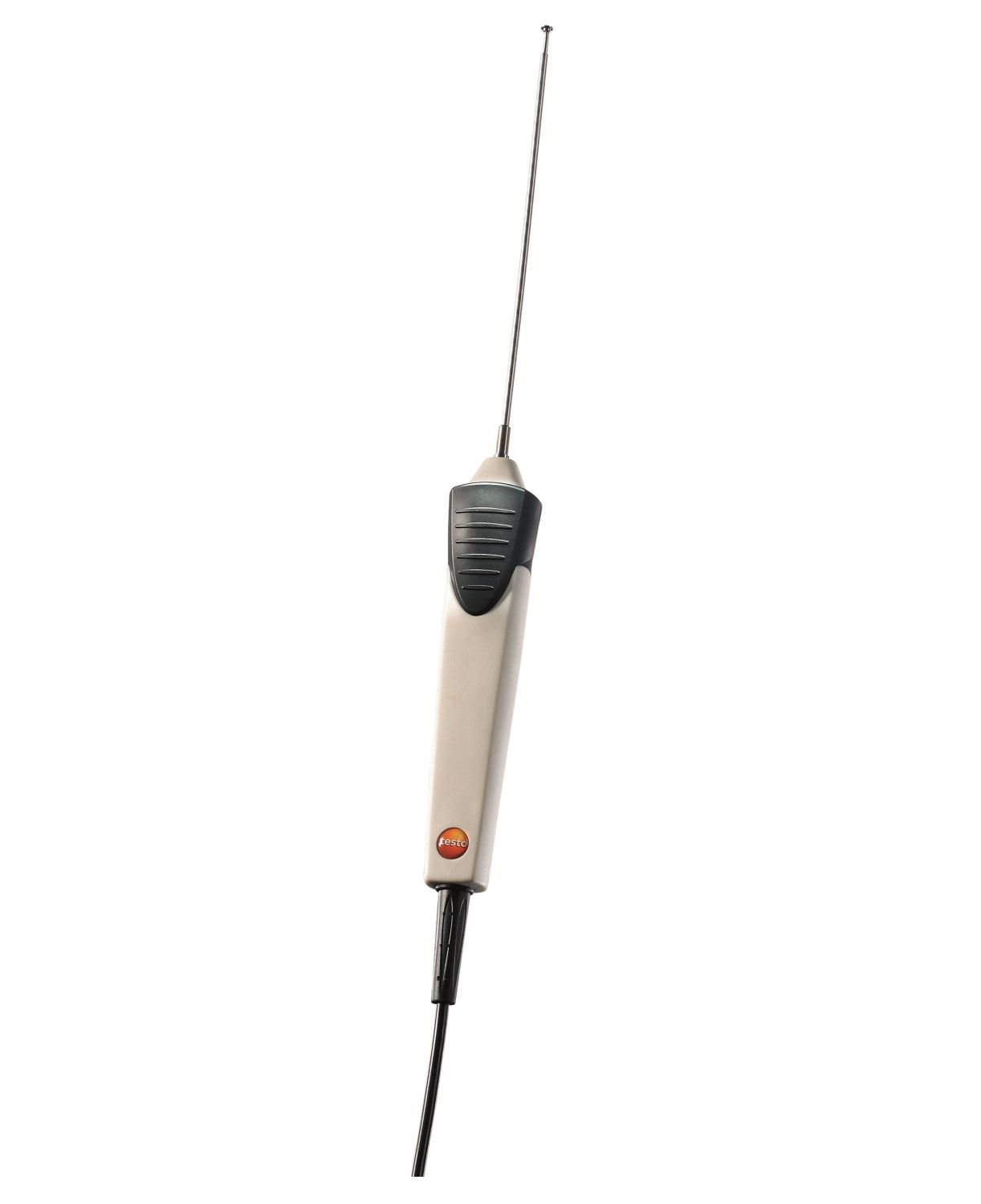

Surface probe with widened measuring tip (TC type K)

Part No. 0602 1993

Waterproof, robust and versatile: this temperature probe with sturdy probe shaft and widened measuring tip is ideal for measuring the temperature on flat surfaces.

Temperature - TC Type K (NiCr-Ni) Technical Data

Measuring range -60 to +400 °C
Accuracy Class 2 ¹⁾
Reaction time 30 s

1) According to standard EN 60584-2, the accuracy of Class 1 refers to -40 to +1000 °C (Type K), Class 2 to -40 to +1200 °C (Type K), Class 3 to -200 to +40 °C (Type K).

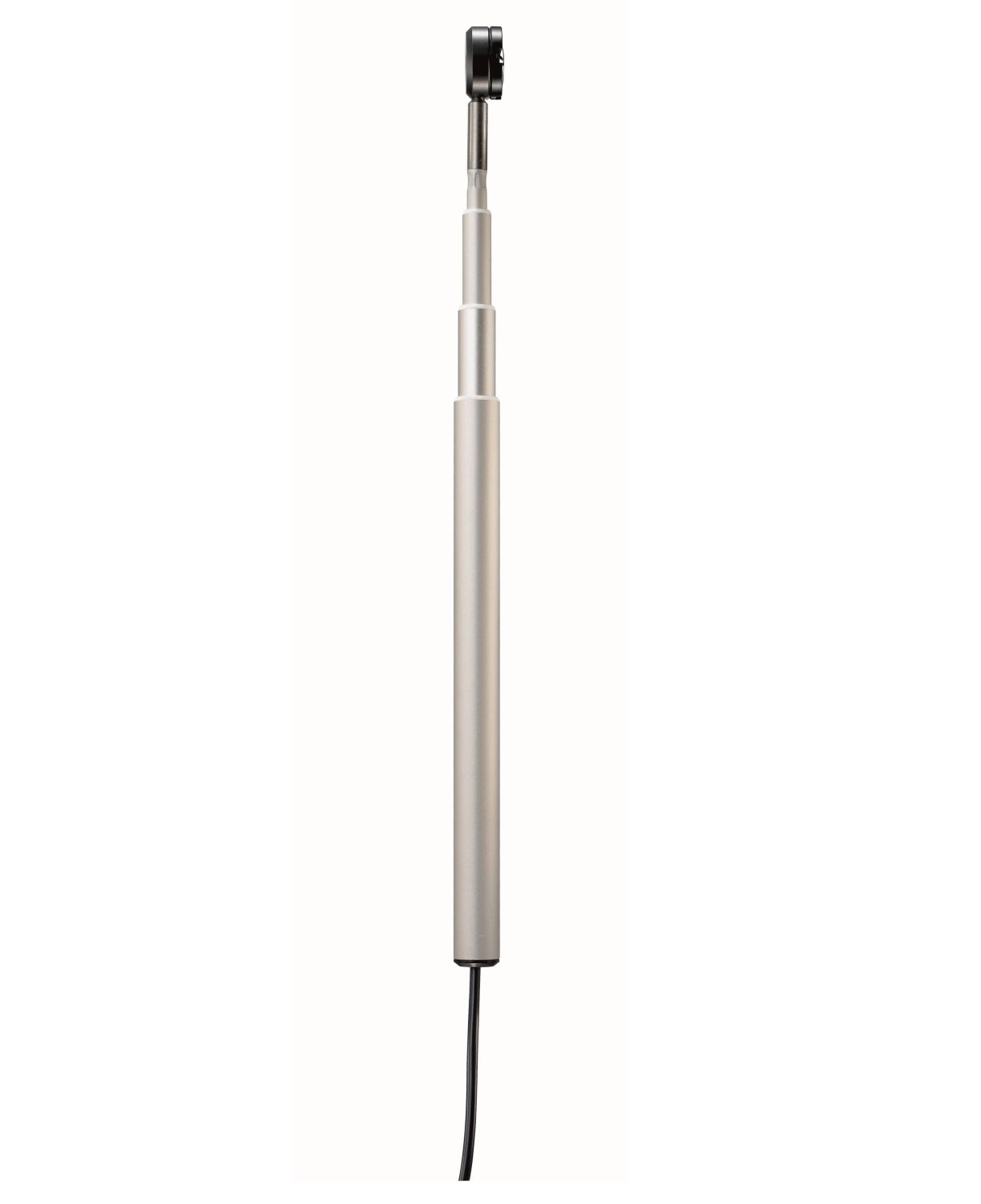

Flat head surface probe with telescopic handle max

Part No. 0602 2394

Temperature - TC Type K (NiCr-Ni) Technical Data

Measuring range -50 to +250 °C
Accuracy Class 2 ¹⁾
Reaction time 3 s

1) According to standard EN 60584-2, the accuracy of Class 1 refers to -40 to +1000 °C (Type K), Class 2 to -40 to +1200 °C (Type K), Class 3 to -200 to +40 °C (Type K).

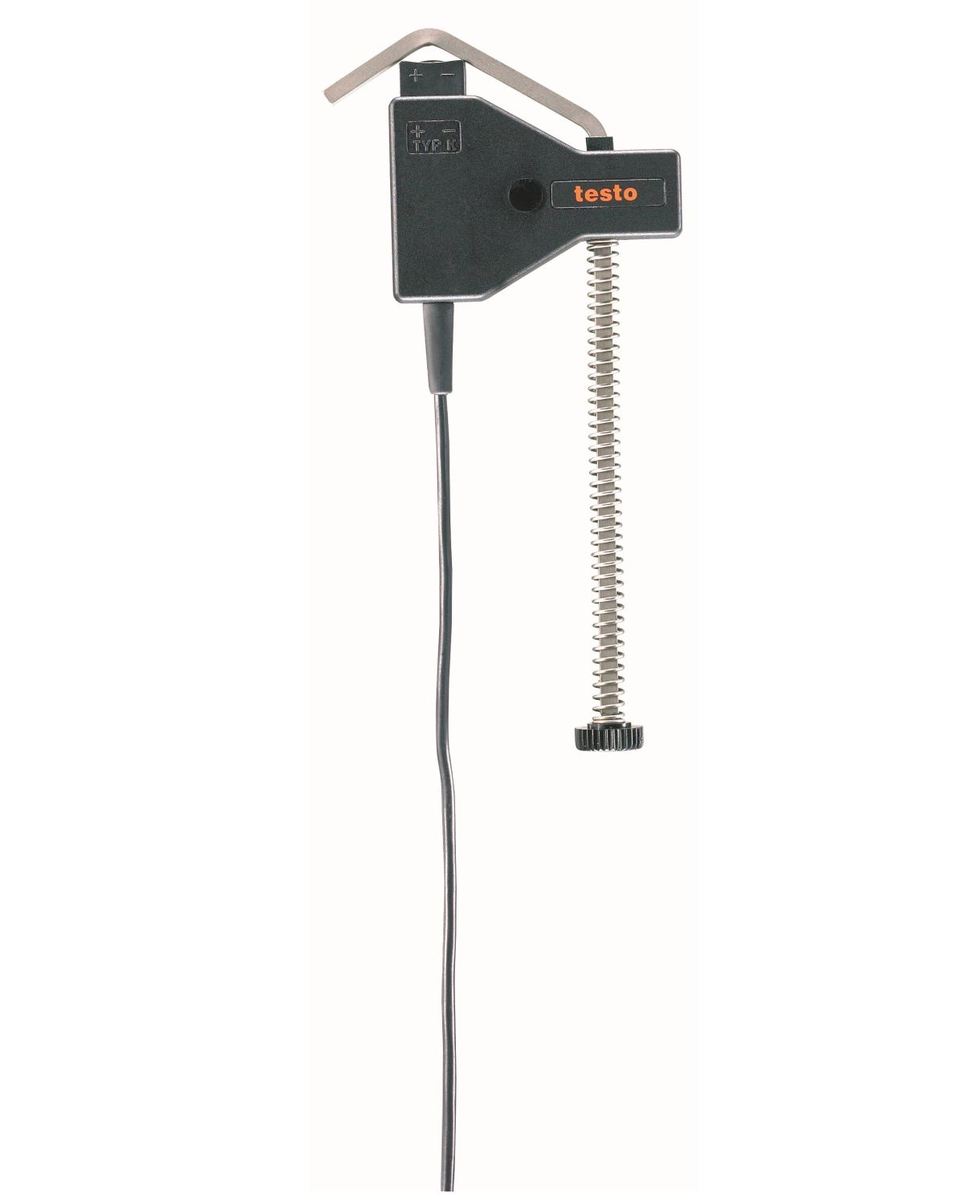

Temperature probe with clamping bracket (TC Type K)

Part No. 0602 4592

Pipe wrap probe for pipe diameter 5 to 65 mm, with exchangeable measuring head. Meas. range short-term up to +280°C, TC Type K

Temperature - TC Type K (NiCr-Ni) Technical Data

Measuring range -60 to +130 °C
Accuracy Class 2 ¹⁾
Reaction time 5 s

1) According to standard EN 60584-2, the accuracy of Class 1 refers to -40 to +1000 °C (Type K), Class 2 to -40 to +1200 °C (Type K), Class 3 to -200 to +40 °C (Type K).

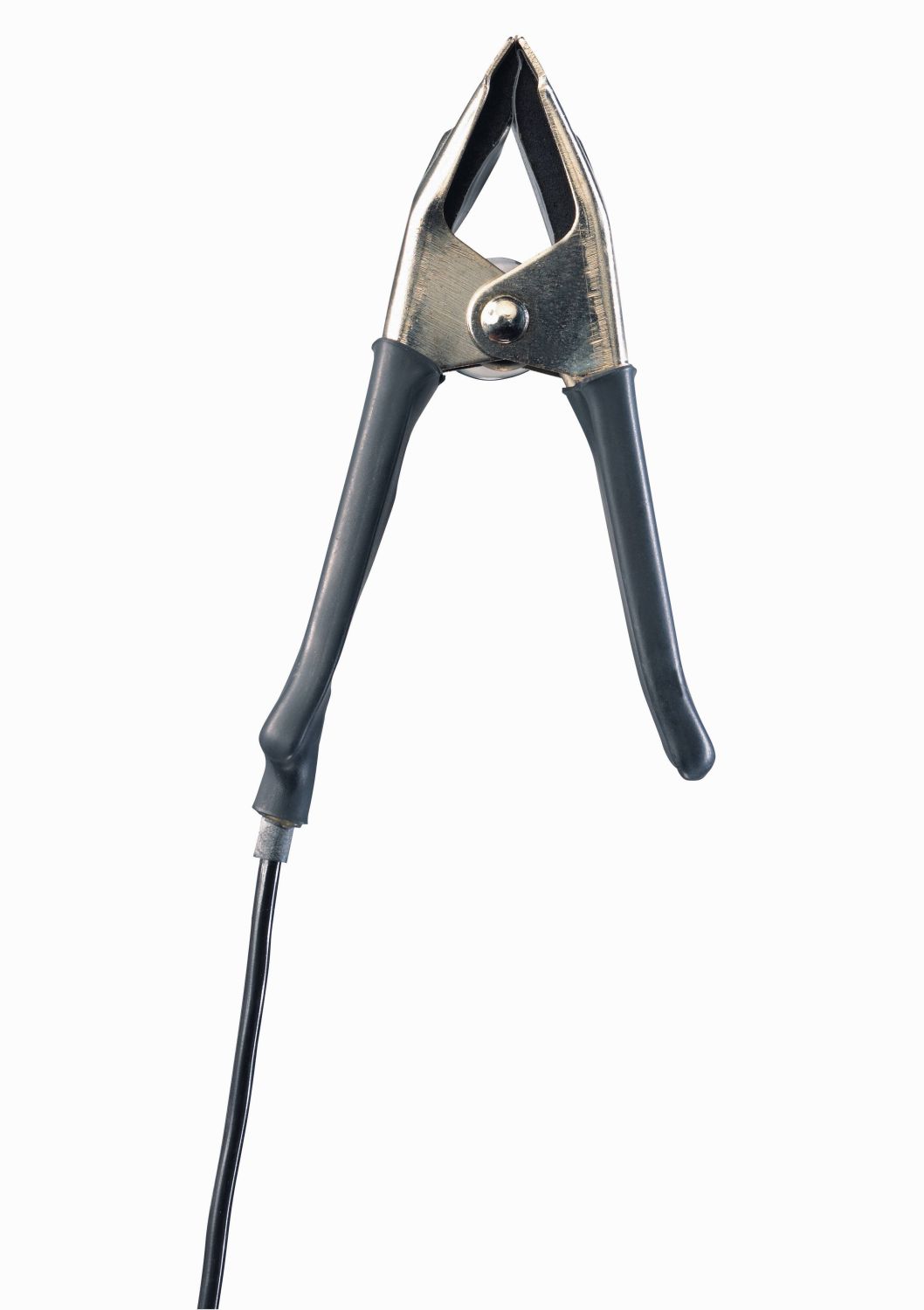

Clamp probe for measurements on pipes

Part No. 0602 4692

Temperature - TC Type K (NiCr-Ni) Technical Data

Measuring range -50 to +100 °C
Accuracy briefly to +130
Reaction time 5 s

1) According to standard EN 60584-2, the accuracy of Class 1 refers to -40 to +1000 °C (Type K), Class 2 to -40 to +1200 °C (Type K), Class 3 to -200 to +40 °C (Type K).

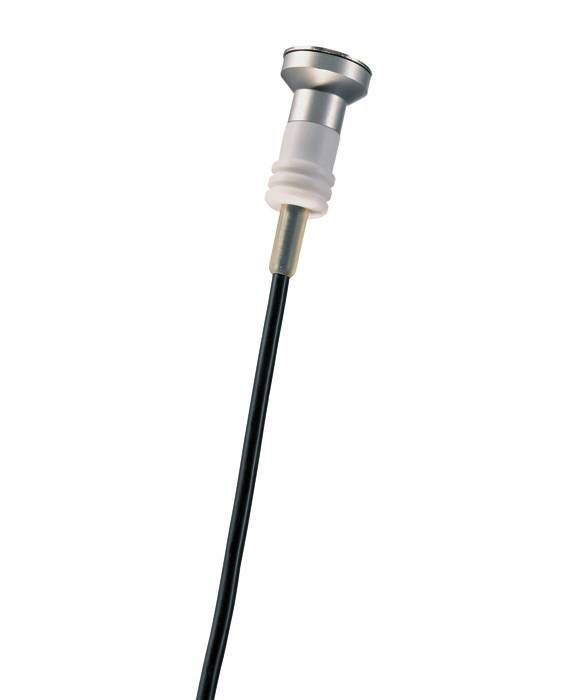

Magnetic probe (TC type K) - for surface temperatures

Part No. 0602 4792

Key Features:

Thermocouple type K
Adhesive force approx. 20 N
Can be connected to a wide range of measuring instruments/data loggers
Measuring range: -50 to +170 °C

Temperature - TC Type K (NiCr-Ni) Technical Data

Measuring range -50 to +170 °C
Accuracy Class 2 ¹⁾
Reaction time 150 s

1) According to standard EN 60584-2, the accuracy of Class 1 refers to -40 to +1000 °C (Type K), Class 2 to -40 to +1200 °C (Type K), Class 3 to -200 to +40 °C (Type K).

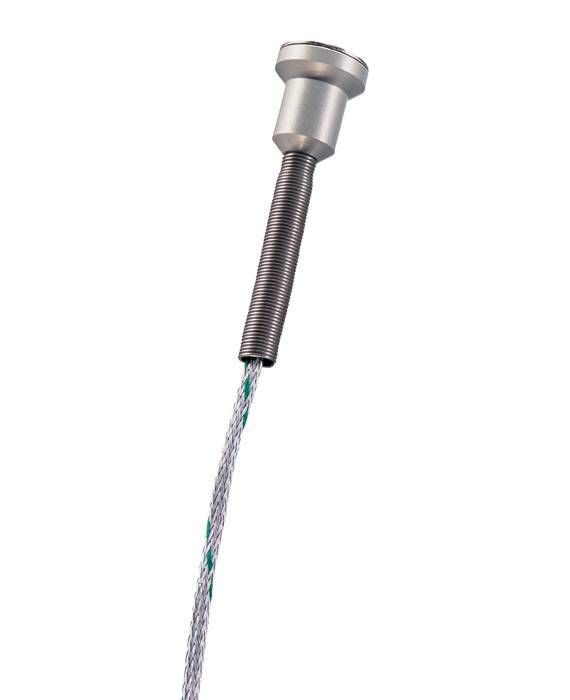

Temperature probe with magnet (TC Type K)

Part No. 0602 4892

Key Features:

Self-adhesive thanks to a magnet: probe for measuring surface temperature on metal surfaces
TC Type K temperature probe with 1.6 m cable

Temperature - TC Type K (NiCr-Ni) Technical Data

Measuring range -50 to +400 °C
Accuracy Class 2 ¹⁾

1) According to standard EN 60584-2, the accuracy of Class 1 refers to -40 to +1000 °C (Type K), Class 2 to -40 to +1200 °C (Type K), Class 3 to -200 to +40 °C (Type K).

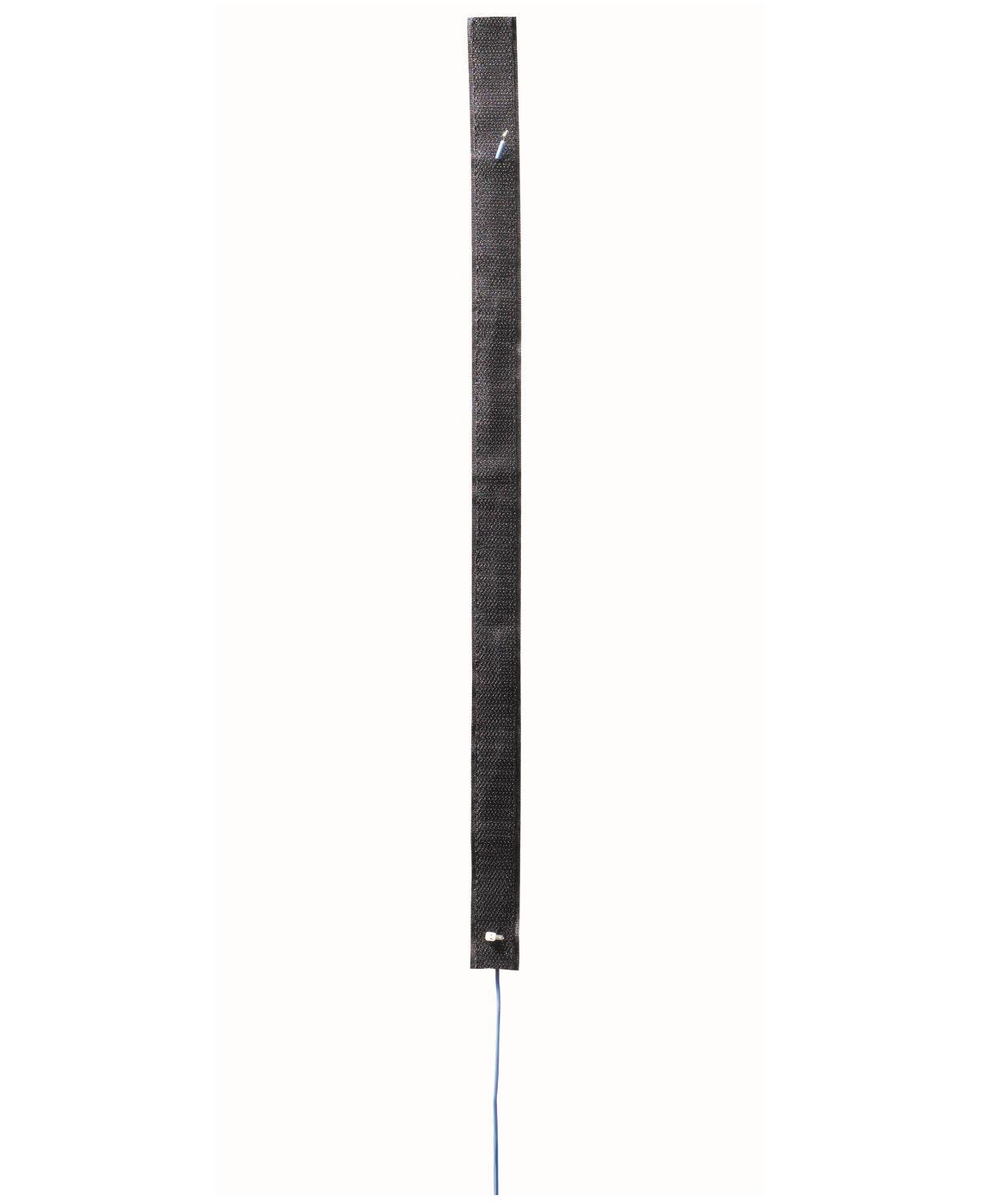

Temperature probe with Velcro (TC Type K)

Part No. 0628 0020

Key Features:

With Velcro: makes it easy to attach the surface probe to pipes with a diameter of up to 120 mm
TC Type K temperature probe with 1.5 m cable
Measuring range: -50 to +120 °C

Temperature - TC Type K (NiCr-Ni) Technical Data

Measuring range -50 to +120 °C
Accuracy Class 1 ¹⁾
Reaction time 90 s

1) According to standard EN 60584-2, the accuracy of Class 1 refers to -40 to +1000 °C (Type K), Class 2 to -40 to +1200 °C (Type K), Class 3 to -200 to +40 °C (Type K).
