testo 735-1 - Temperature measuring instrument (3-channel)

Category: INDUSTRIAL THERMOMETERS

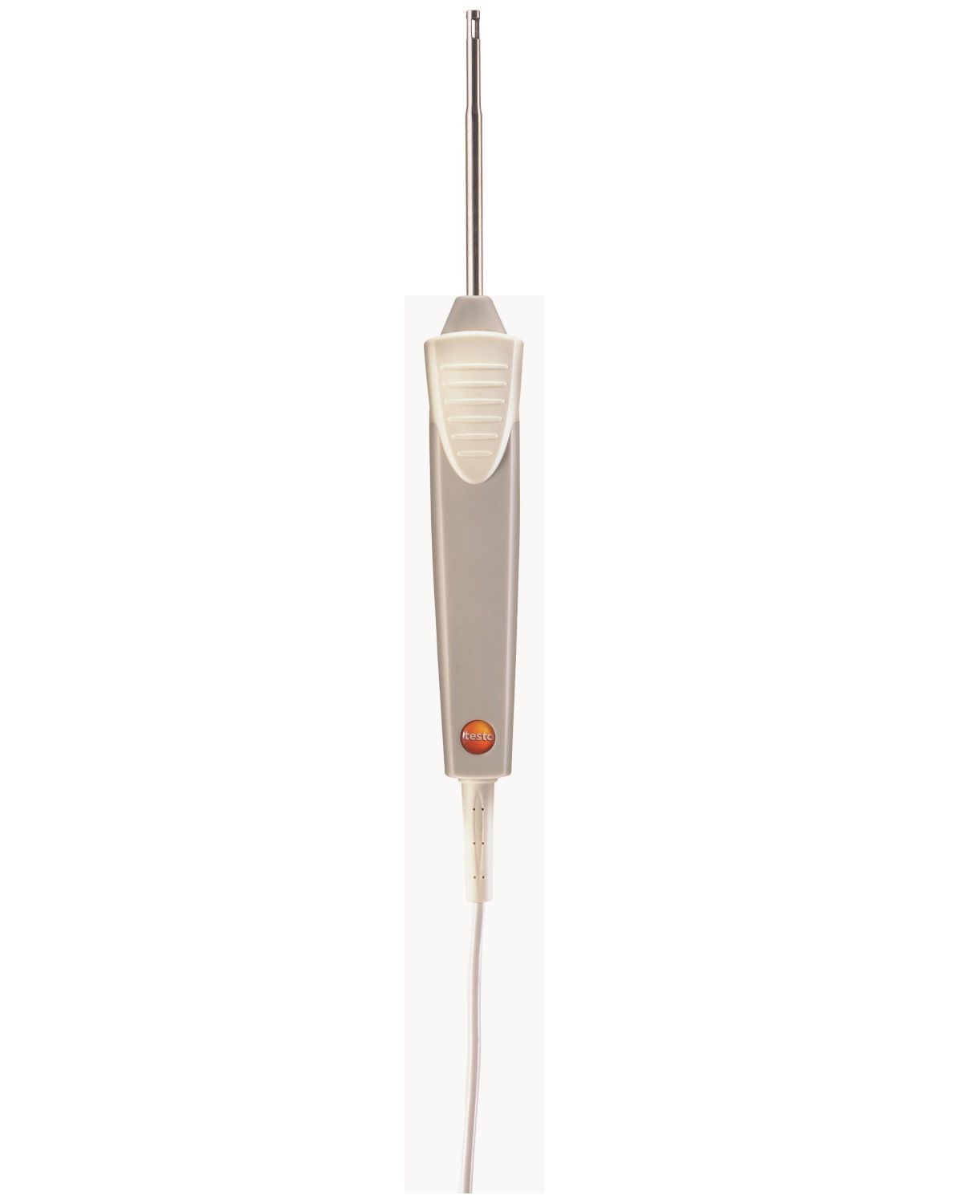

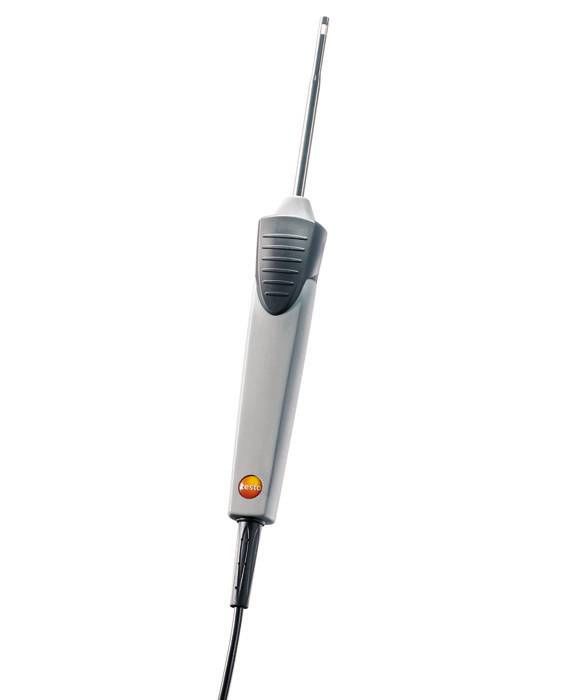

Robust air temperature probe (TC type K)

Part No. 0602 1793

Use the robust air temperature probe with exposed sensor (thermocouple type K) to measure air temperature with a short response time. It can be connected to a wide range of measuring instruments.

Key Features:

Thermocouple type K
Short response time thanks to the exposed sensor
Can be connected to a wide range of measuring instruments
Measuring range: -60 to +400 °C

Robust, affordable air probe, T/C Type T

Part No. 0603 1793

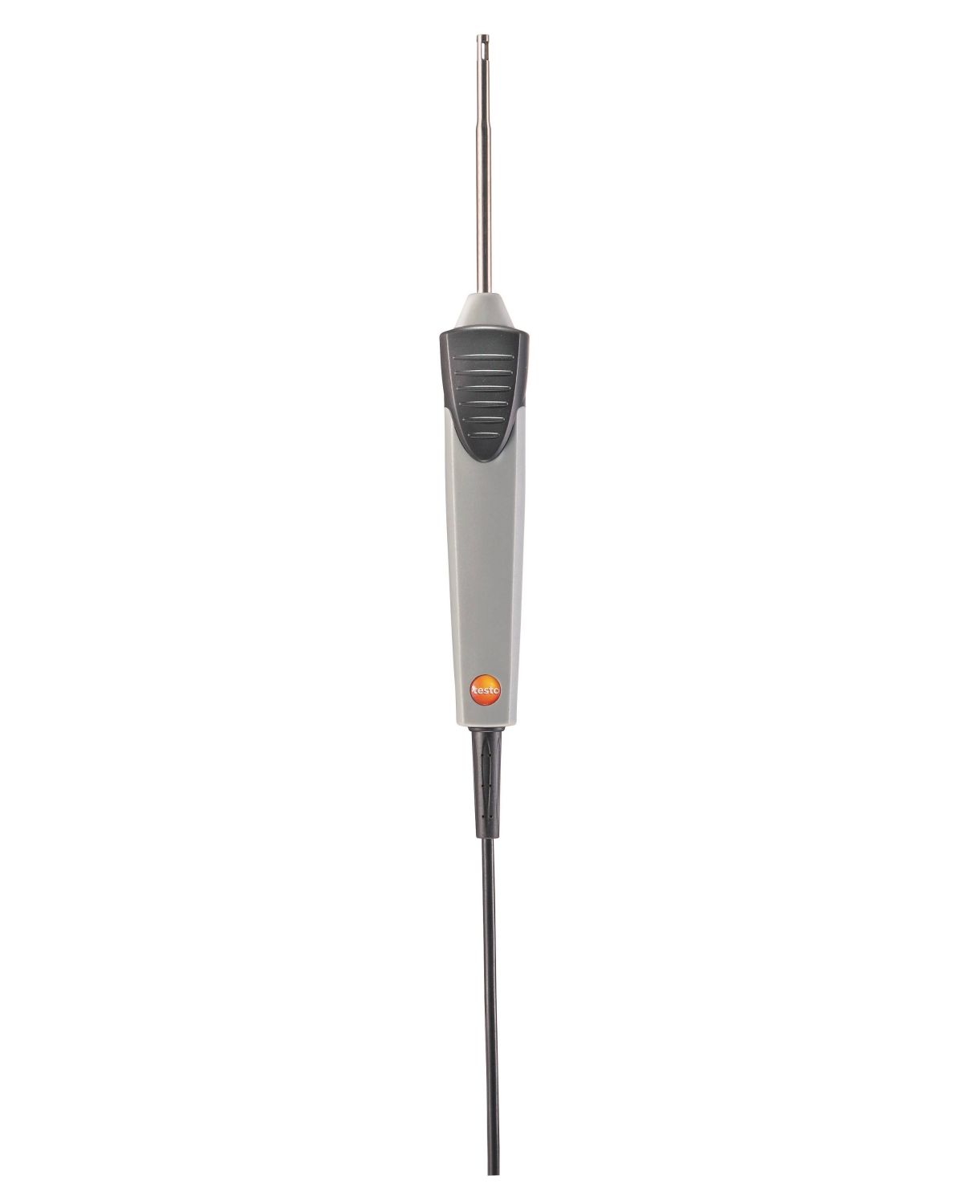

Efficient, robust air probe, Pt100

Part No. 0609 1773

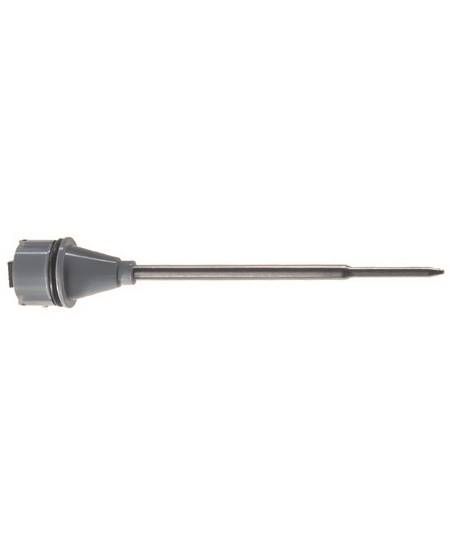

T/C PROBE HEAD FOR AIR/IMMERSION/PENETRATION MEASUREMENT (T/C TYPE K)

Part No. 0602 0293

Temperature - Type K TC Technical Data

Measuring range -58.0 ° to 662.0 ° F / -50 to +350 ° C , t2 +932.0 ° F / t2 + 500 ° C
Accuracy Radio handle:
± (32.9 ° F 0.3% of remaining measurement value) -40.0 to 500.0 ° F / ± (0.5 ° C +0.3% of mv) (-40 to +500 ° C
± (33.3 ° F 0.5% of residual measurement value) (Remaining Range) / ± (0.7 ° C +0.5% of mv) (Remaining Range)
T / C probe head: Class 2
Resolution 0.1 ° F (-58.0 to 391.8 ° F) / 0.1 ° C (-50 to +199.9 ° C)
1.0 ° F Remaining Range / 1.0 ° C Remaining Range
Reaction time (in water) 10 sec

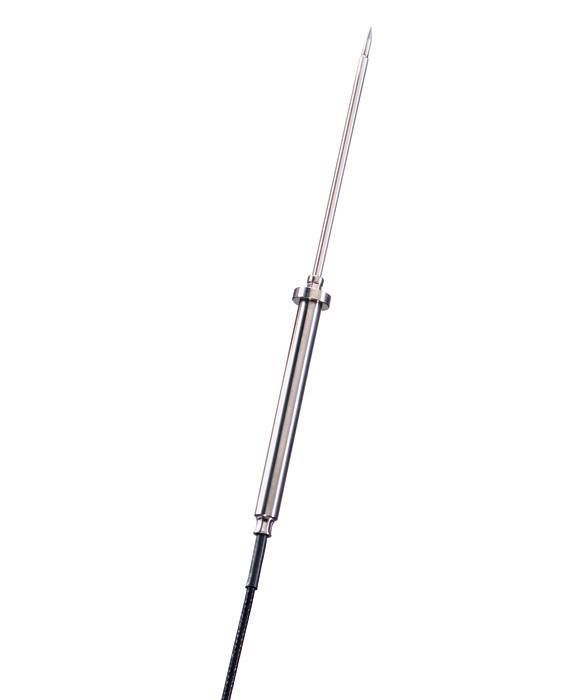

Waterproof food probe made of stainless steel (IP65), TC Type K

Part No. 0602 2292

Waterproof standard immersion/penetration probe (TC type T)

Part No.0603 1293

Stainless steel food probe (IP67) with PUR cable, T/C Type T

Part No. 0603 2192

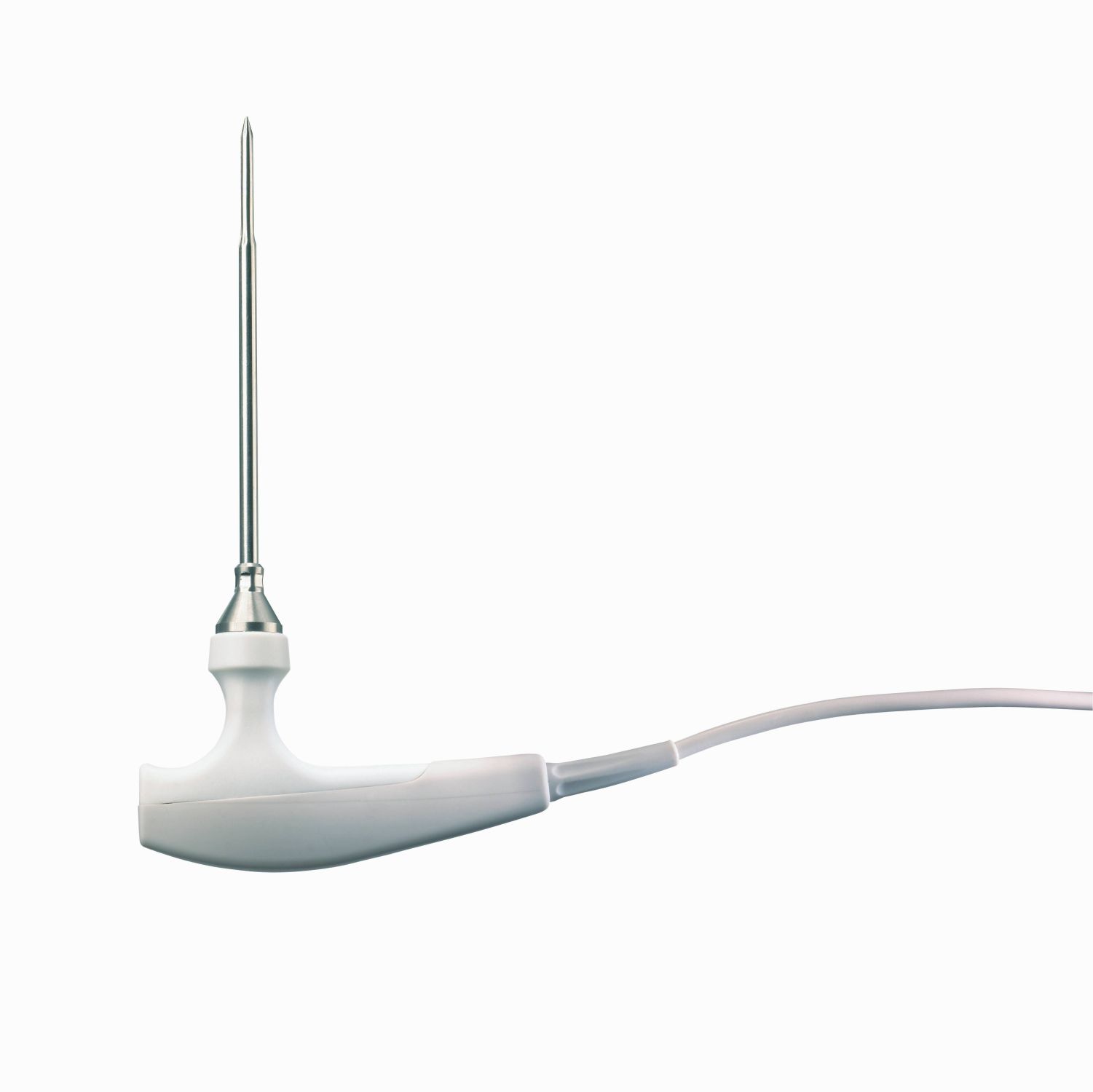

Robust food penetration probe (TC type T)

Part No. 0603 2492

The robust food penetration probe (with a corresponding measuring instrument) enables quick and accurate measurement of the core temperature of food.

Key Features:

Thermocouple type T
EN 13485 and HACCP-compliant
With special handle, reinforced cable (PVC)
Measuring range: -50 to +350 °C

Frozen food probe, corkscrew design, T/C Type T

Part No.0603 3292

Temperature - TC Type T (Cu-CuNi) Technical Data

Measuring range -50 to +350 °C
Accuracy ±0.2 °C (-20 to +70 °C)
Class 1 (Remaining Range) ¹⁾
Reaction time 8 s

1) According to standard EN 60584-2, the accuracy of Class 1 refers to -40 to +350 °C (Type T).

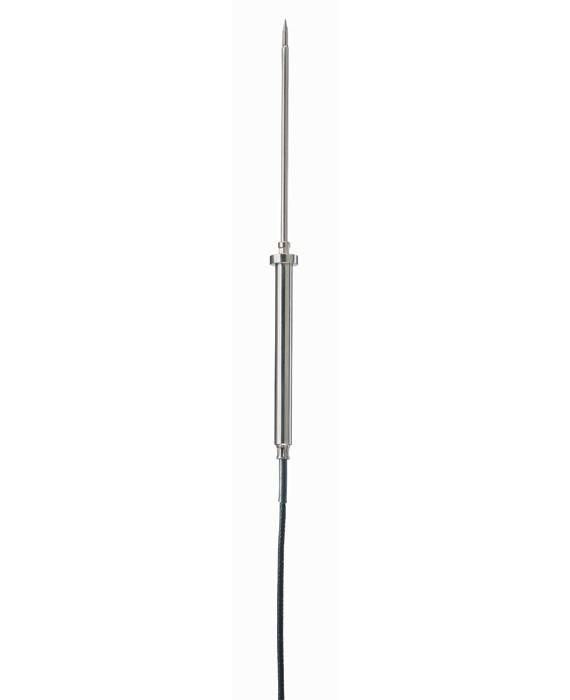

Stainless steel food probe (IP67), with FEP cable to +200 °C, TC Type T

Part No. 0603 3392

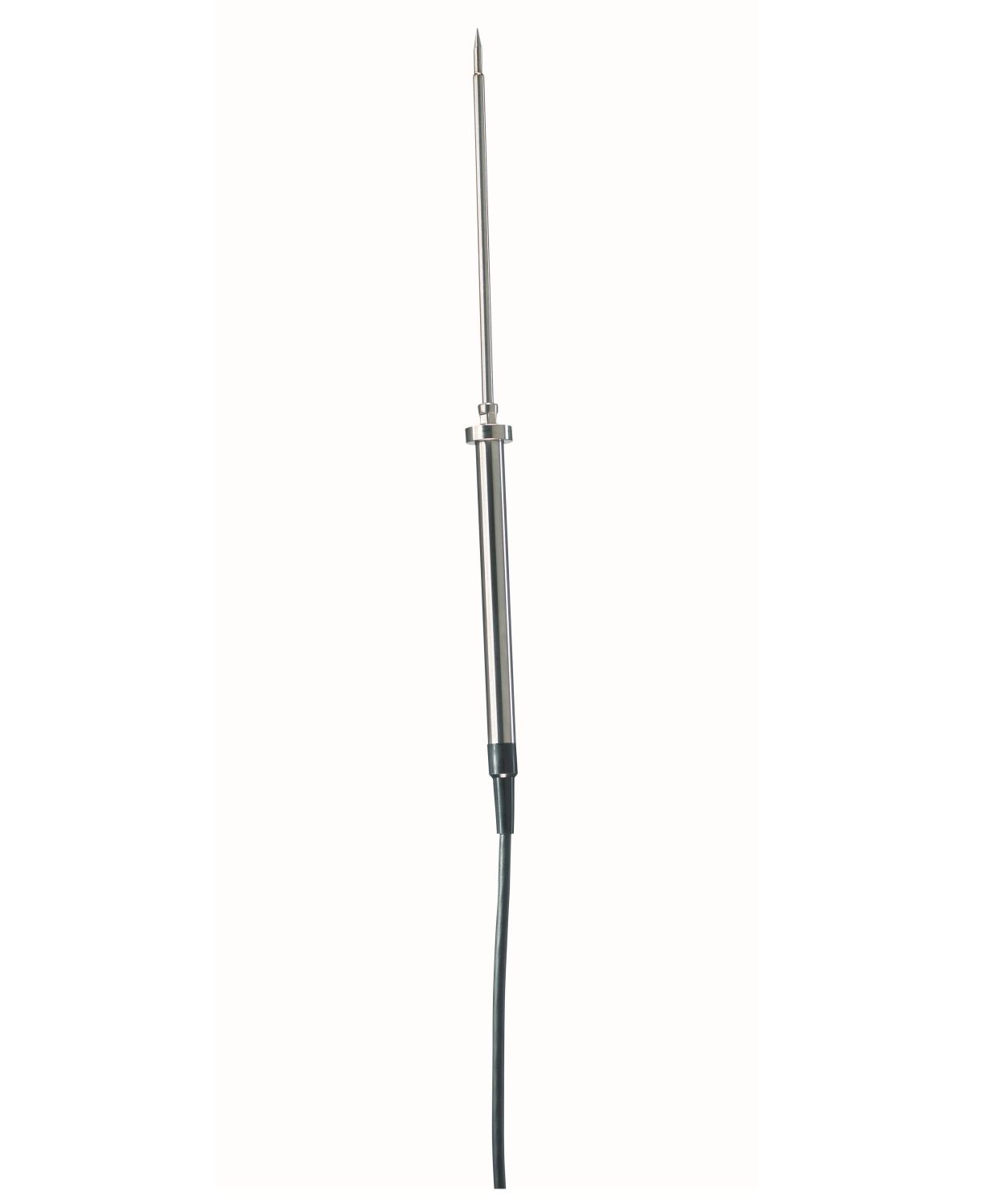

Robust stainless steel food probe (Pt100)

Part No. 0609 2272

The robust stainless steel food probe (with an appropriate measuring instrument) enables particularly accurate measurement of the core temperature of foods.

Key Features:

Pt100 sensor for particularly accurate measurement results

EN 13485 and HACCP-compliant

Protected against water jets according to IP65

Measuring range: -50 to +400 °C

Temperature - Pt100 Technical Data

Measuring range -50 to +400 °C
Accuracy Class A (-50 to +300 °C)
Class B (Remaining Range) ¹⁾
Reaction time 10 s

1) According to standard 60751, the accuracies of Class A and B refer to -200 to +600 °C (Pt100)

General Technical Data

Protection class IP65
Fixed cable true
Cable length 1.5 m
Diameter probe shaft tip 3 mm
Diameter probe shaft 4 mm
Length probe shaft tip 15 mm
Length probe shaft 125 mm

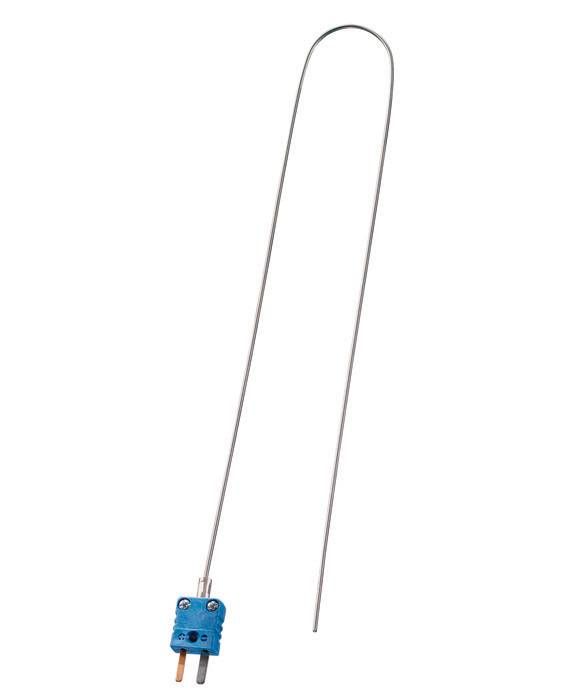

Measurement tip with T/C adapter Type T, ideal for fast-acti...

Part No. 0628 0023

Technical Data

Temperature - TC Type T (Cu-CuNi)

Measuring range -50 to +350 °C
Accuracy Class 1 ¹⁾
Reaction time 5 s

1) According to standard EN 60584-2, the accuracy of Class 1 refers to -40 to +350 °C (Type T).

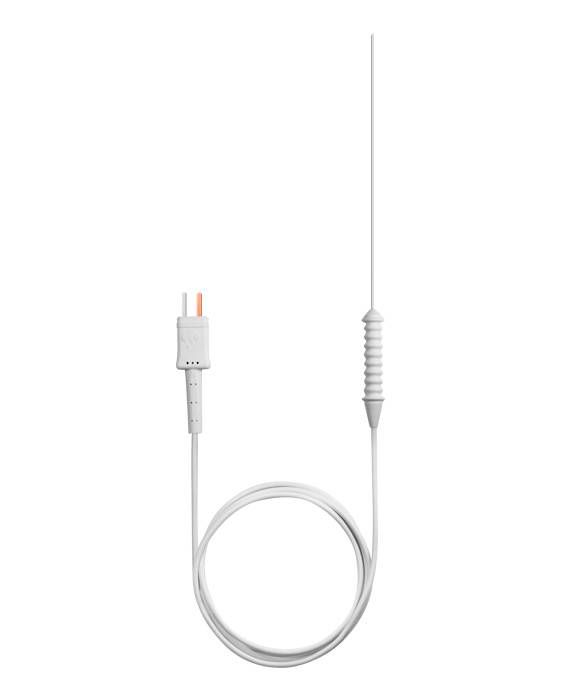

Waterproof, super-quick needle probe for measurements withou...

Part No. 0628 0027

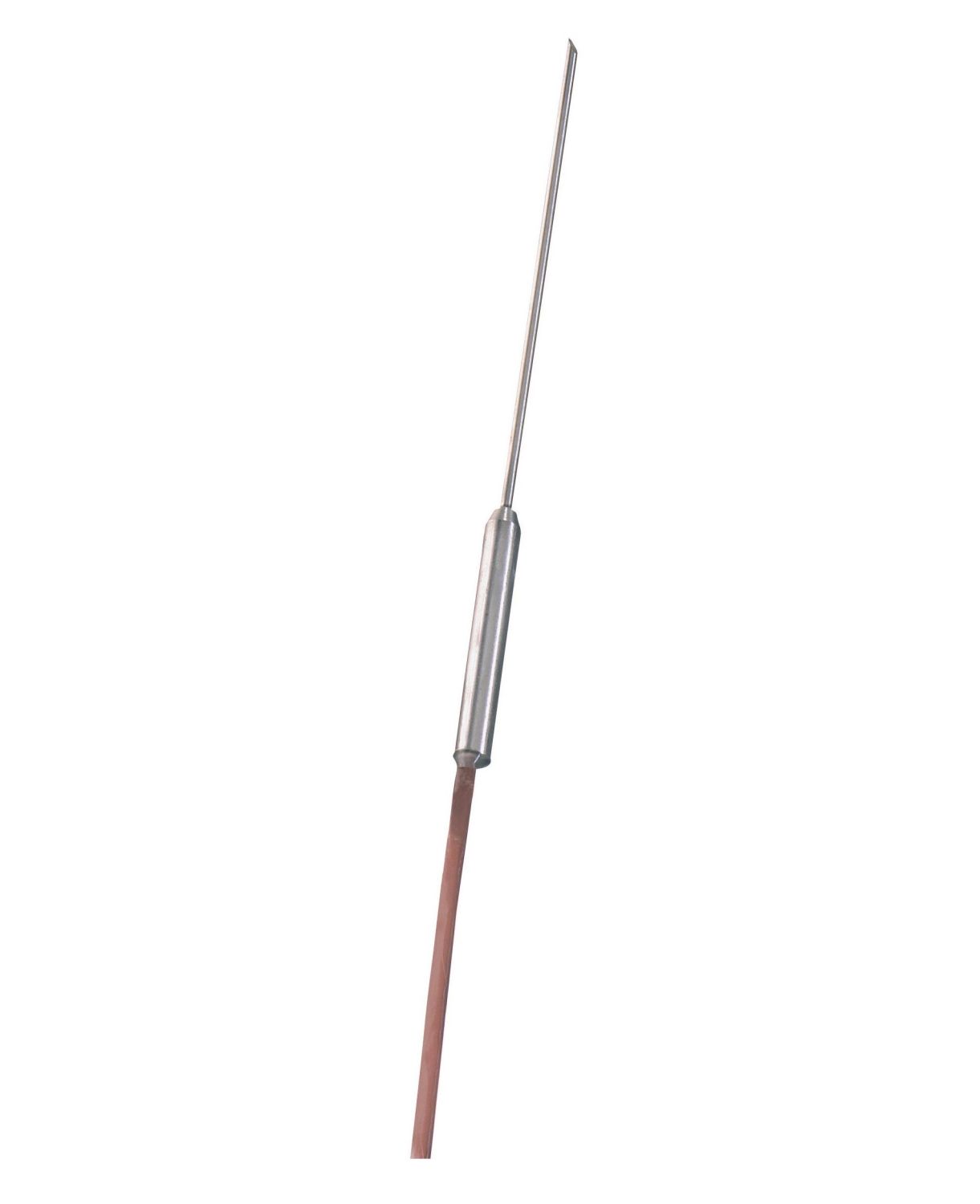

Quick needle probe to monitor cooking in oven, T/C Type T

Part No. 0628 0030

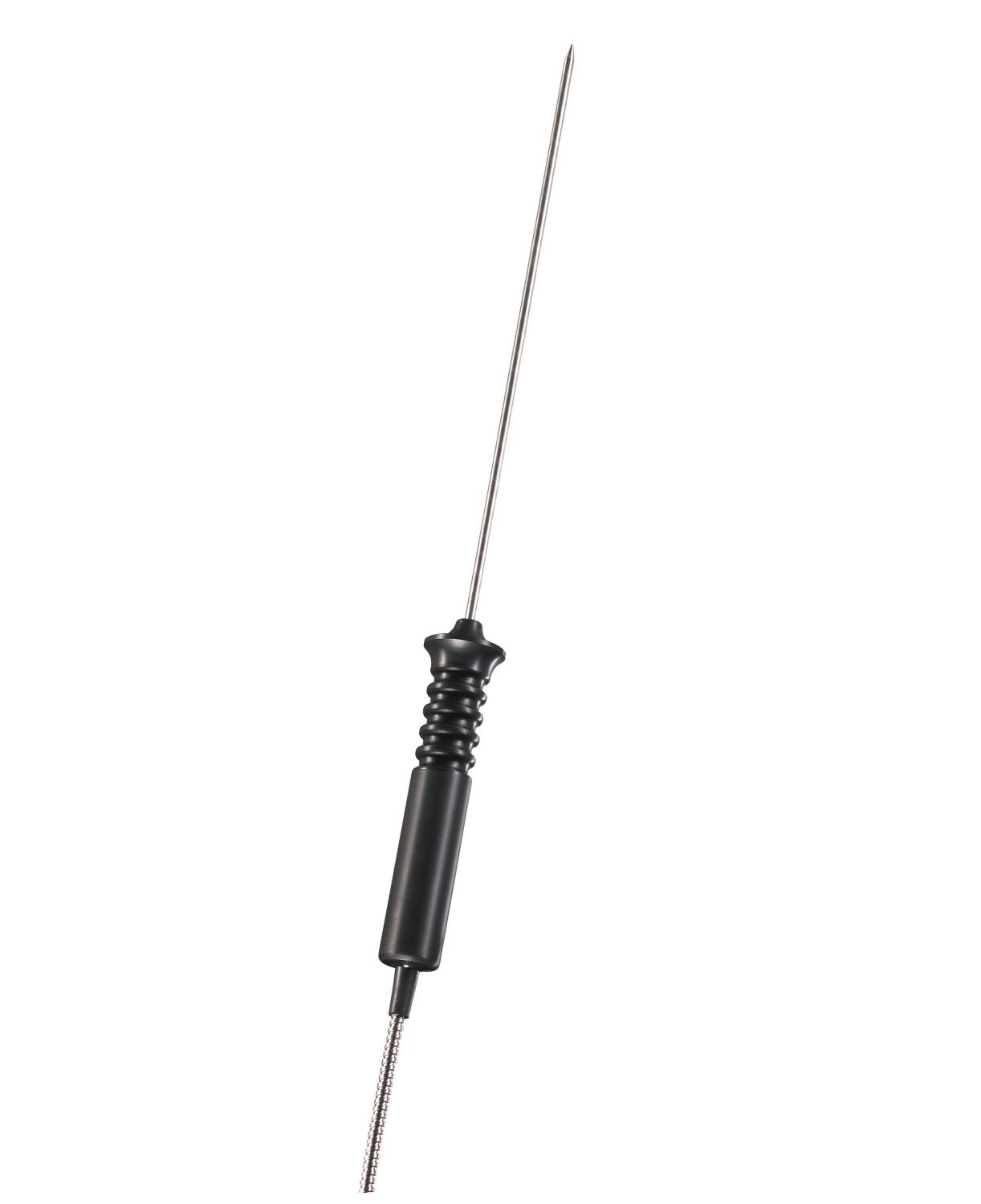

Waterproof rugged immersion/penetration probe with metal protection hose

Part No. 0628 1292

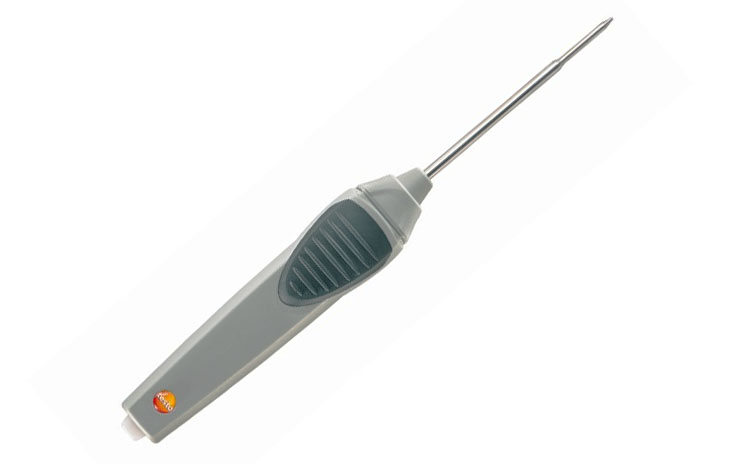

RADIO IMMERSION/PENETRATION PROBE, NTC, APPROVAL FOR THE COUNTRIES

Part No. 0613 1001

RADIO IMMERSION/PENETRATION PROBE, NTC, APPROVAL FOR THE COUNTRIES: DE, FR, UK, BE, NL, ES, IT, SE, AT, DK, FI, HU, CZ, PL, GR, CH, PT, SI, MT, CY, SK, LU, EE, LT, IE, LV, NO

Temperature - NTC Technical Data

Measuring range -58 to +527 °F / -50 to +275 °C
Accuracy

±0.9 °F (-4.0° to 176 {#0.0} °F) / ±0.5 °C (-20 to +80 °C)
±1.4 °F (-58.0° to -4.2 {#0.0} °F) / ±0.8 °C (-50 to -20.1 °C)
±1.4 °F (176.2° to 392 {#0.0} °F) / ±0.8 °C (+80.1 to +200 °C)
±2.7 °F (Remaining Range) / ±1.5 °C (Remaining Range)

Resolution 0.1 °F / 0.1 °C
Reaction time (in water) 12 sec

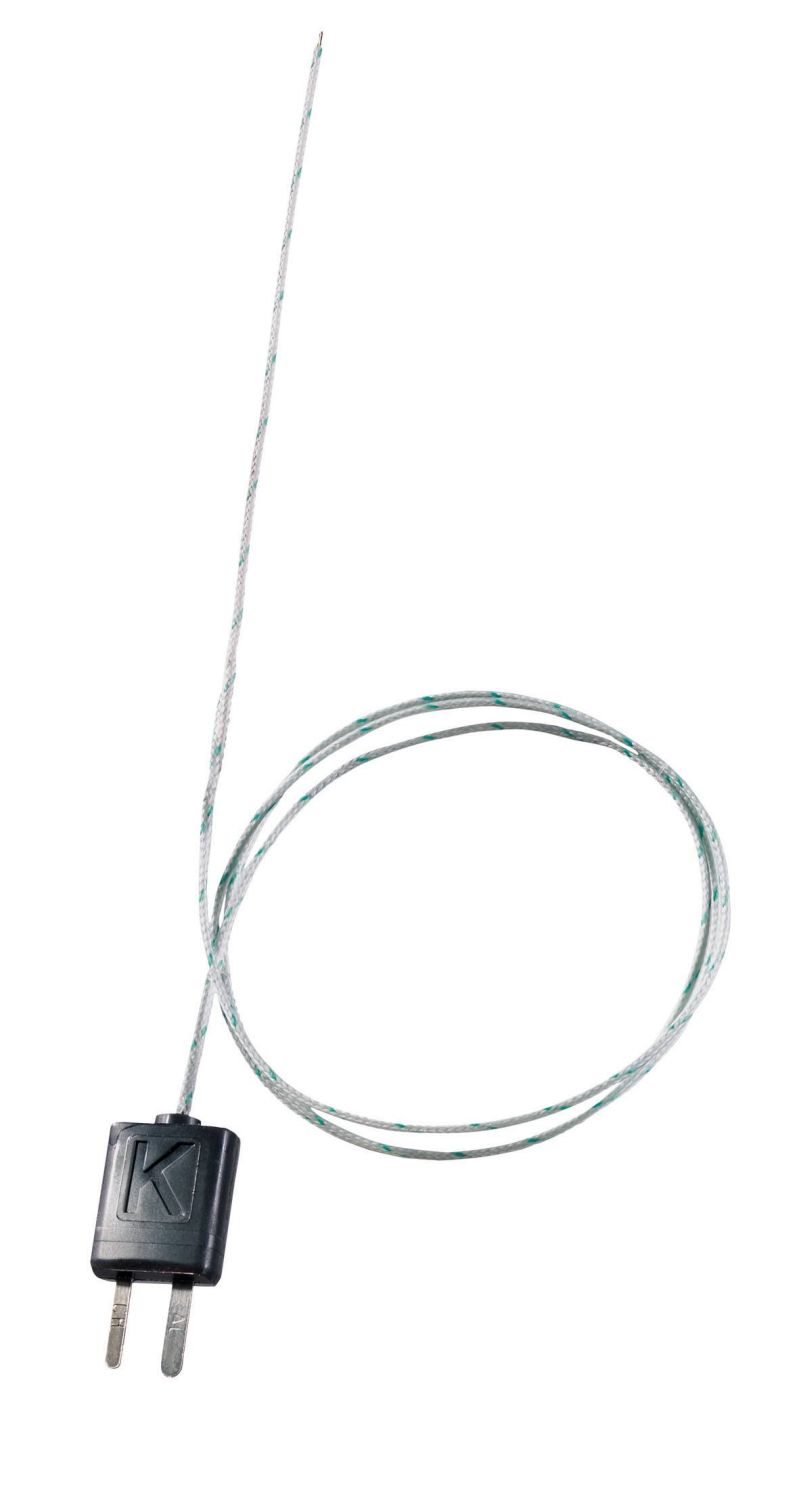

Thermocouple with TC adapter, flexible, 800 mm long

Part No. 0602 0644

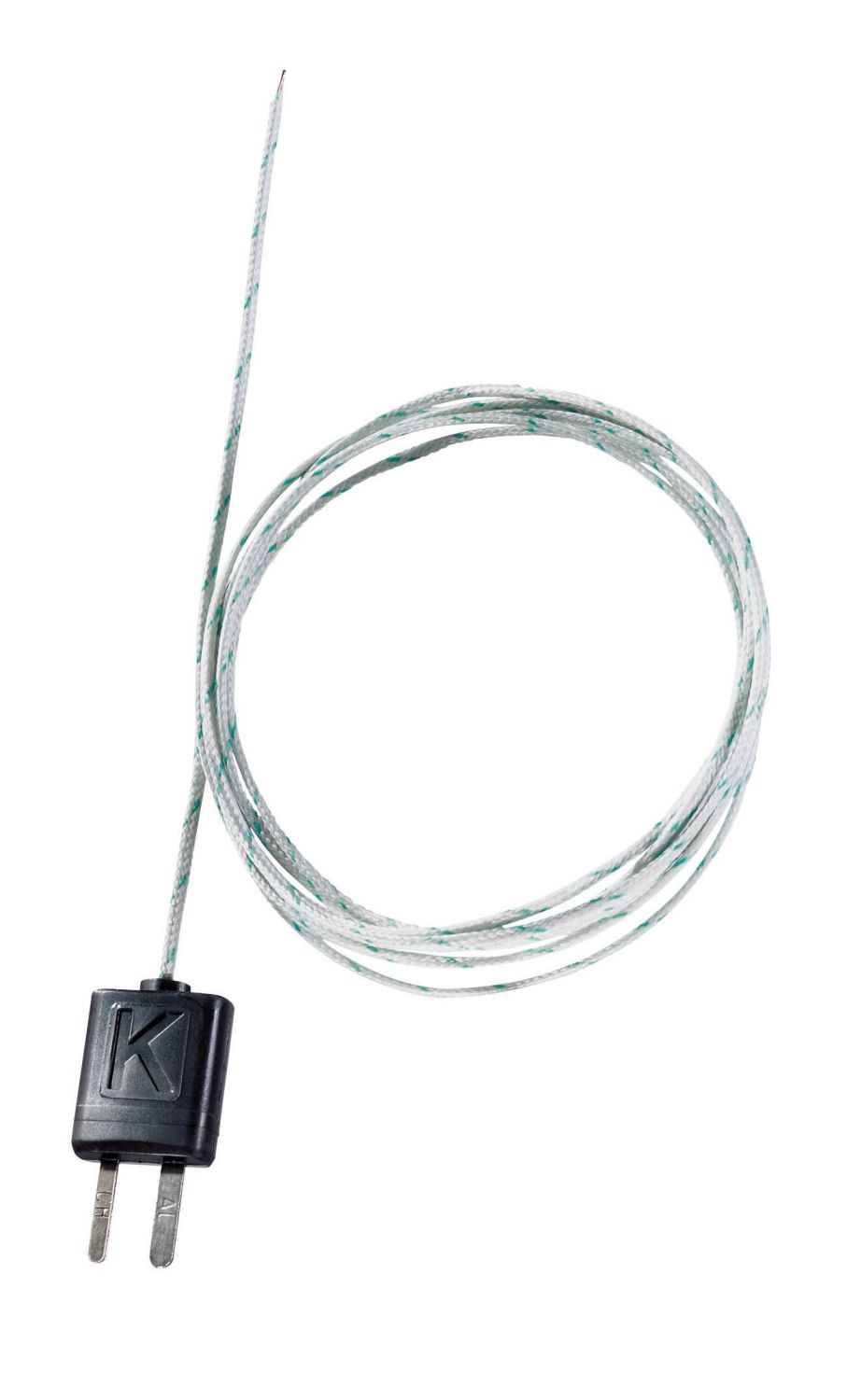

Thermocouple with TC adapter, flexible, length 1500 mm , fibreglass, TC Type K

Part No. 0602 0645

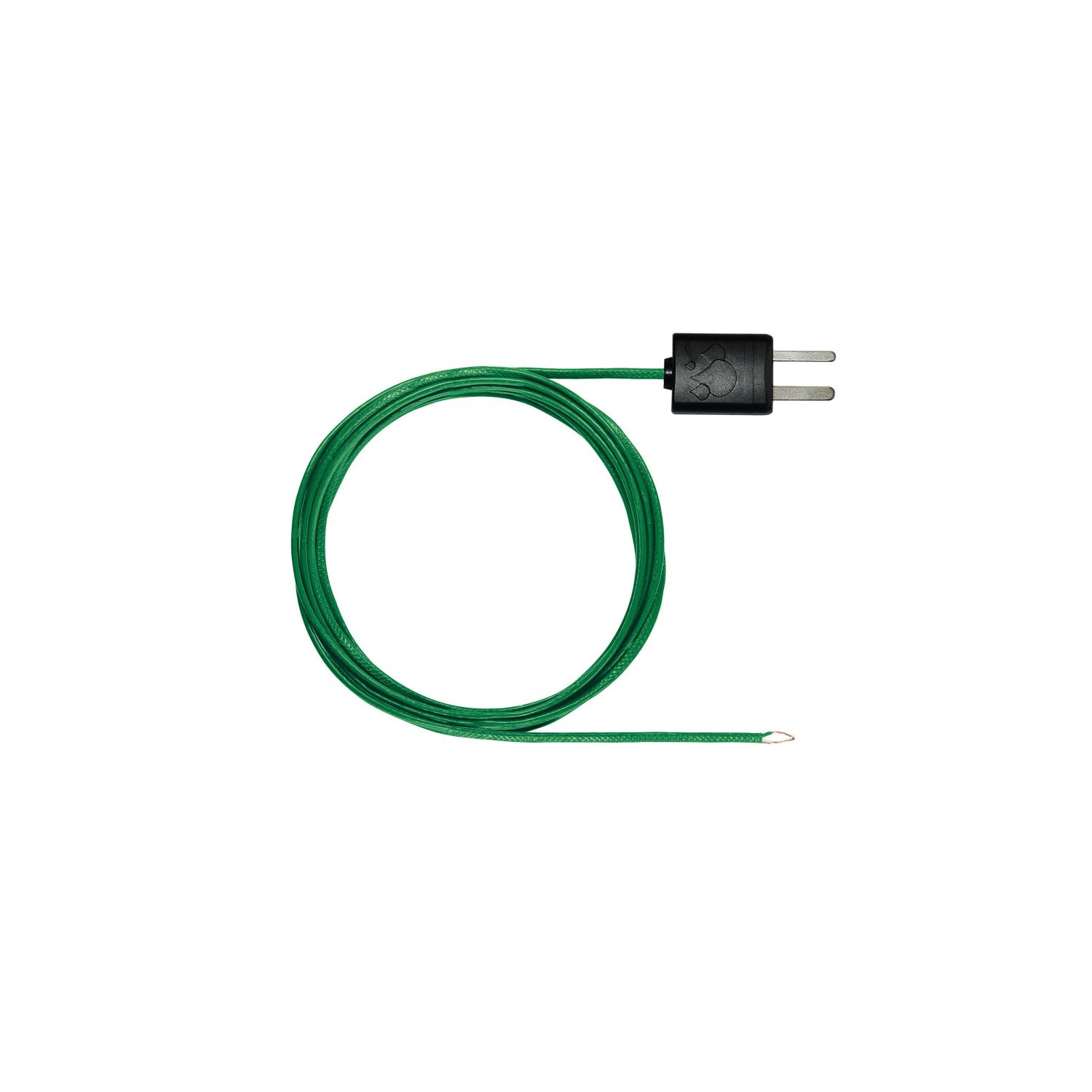

hermocouple with TC adapter, flexible, 1500 mm long, PTFE, TC Type K

Part No. 0602 0646

Technical Data

Temperature - TC Type K (NiCr-Ni)

Measuring range -50 to +400 °C
Accuracy Class 2 ¹⁾
Reaction time 5 s

1) According to standard EN 60584-2, the accuracy of Class 1 refers to -40 to +1000 °C (Type K), Class 2 to -40 to +1200 °C (Type K), Class 3 to -200 to +40 °C (Type K).

General Technical Data

Diameter probe shaft 1.5 mm
Length probe shaft 1,500 mm

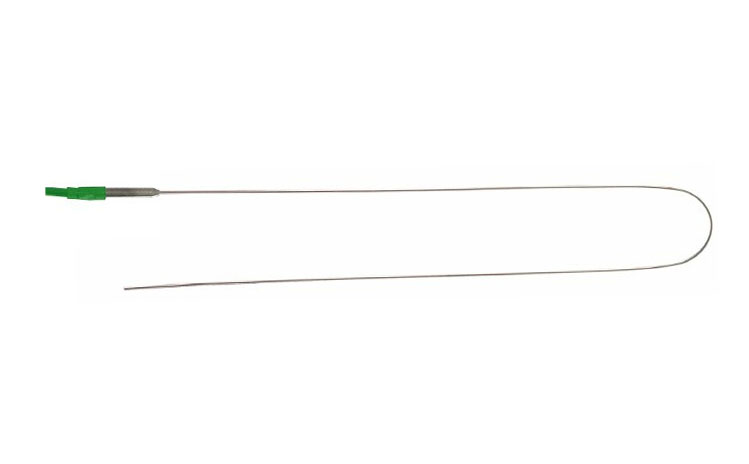

Exceptionally fast temperature probe (TC Type K)

Part No. 0602 0493

Flexible, low-mass immersion measurement tip, ideal for measurements in small volumes such as petri dishes, or for surface measurements (e.g. attached with adhesive tape), TC Type K

Key Features:

TC Type K temperature probe with flexible measuring tip, short response time and 2 m cable
Very fast temperature measurement in air, liquids, pastes and on surfaces
Measuring range: -328 to 1832 °F (-200 to +1000 °C)

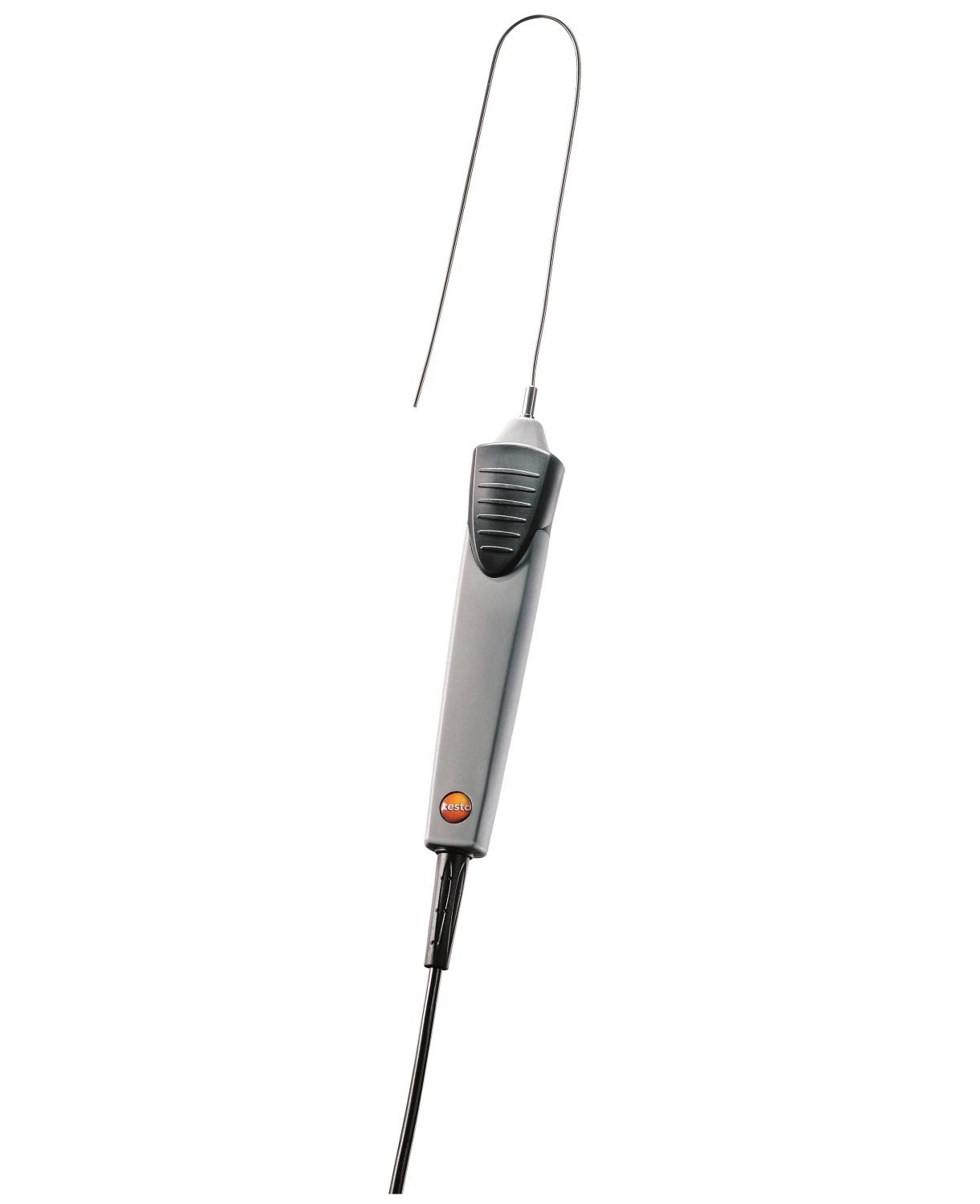

Flexible, fast-action immersion probe (TC type K)

Part No. 0602 0593

Key Features:

Short response time of 2 seconds
Thermocouple type K
Waterproof
Very large measuring range: -60 to +1000 °C

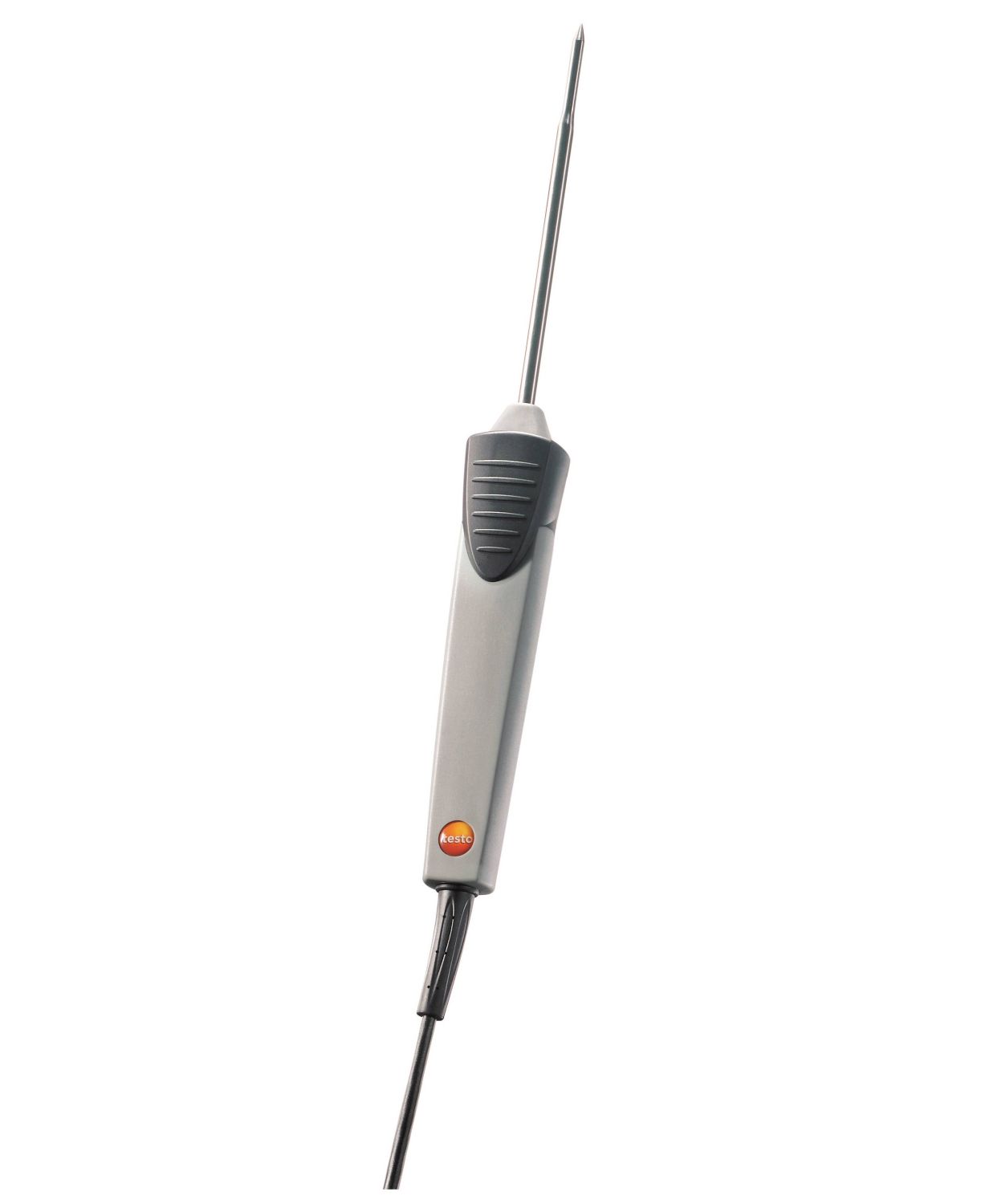

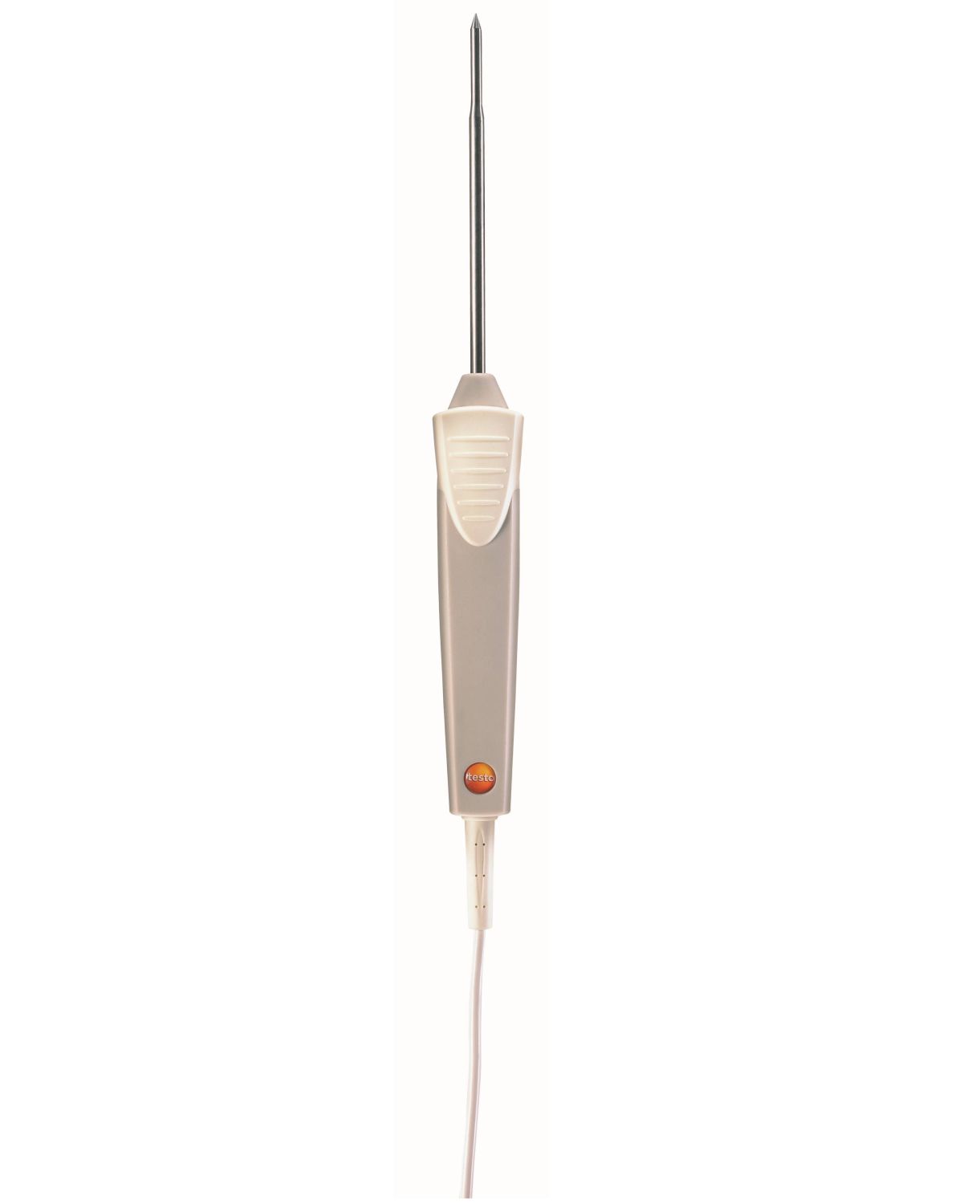

Waterproof immersion/penetration probe (TC type K)

Part No. 0602 1293

The waterproof immersion and penetration probe guarantees fast temperature measurement in liquids and semi-solid media.

Key Features:

Thermocouple type K
Response time of 7 seconds
Waterproof
Measuring range: -60 to +400 °C

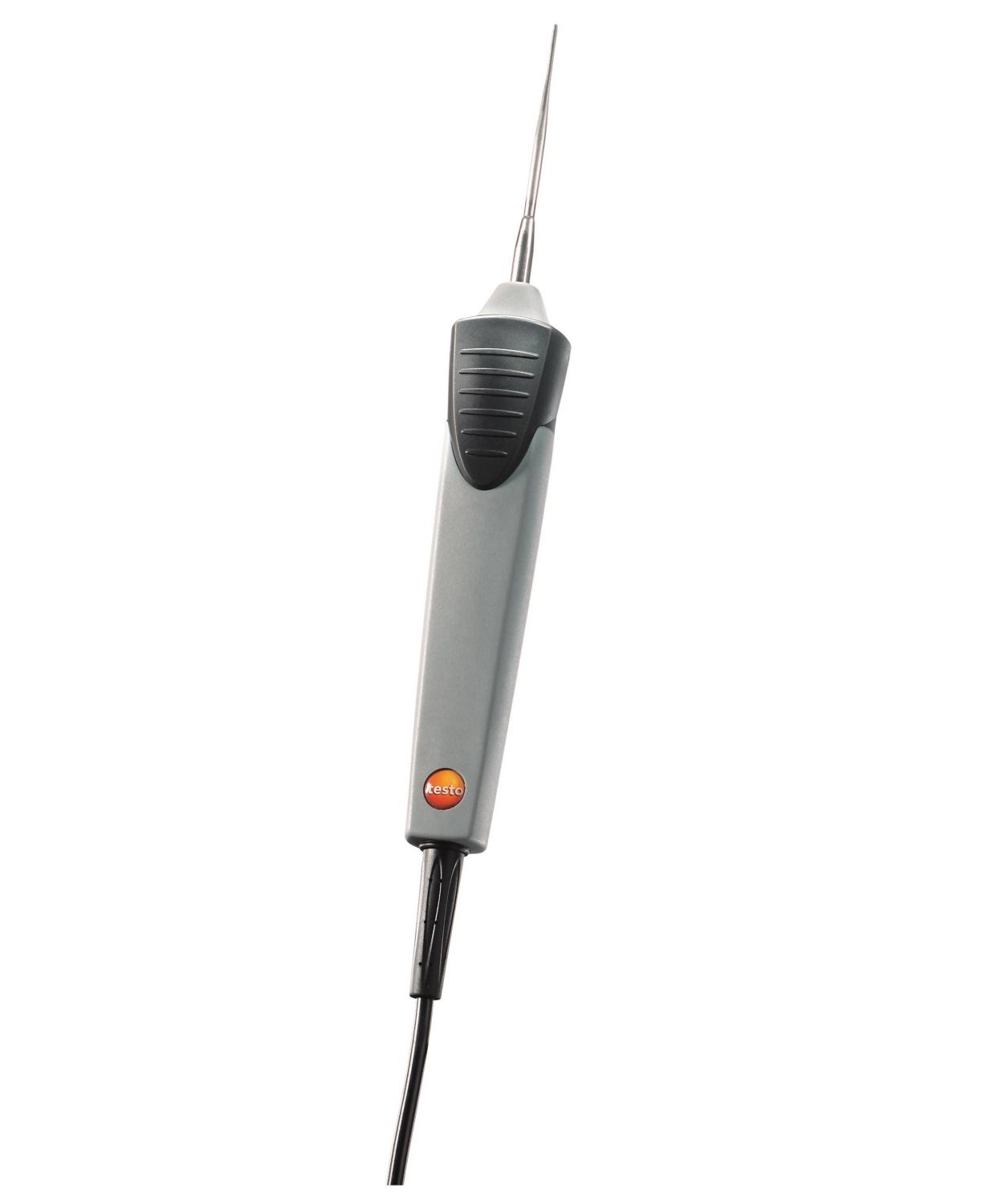

Fast-action immersion/penetration probe (TC type K)

Part No. 0602 2693

Fast-action temperature probe with penetration tip – ideal for temperature measurements in pastes and semi-solid media, in liquids and in the air.

Key Features:

1.5 mm thin probe tip for fast temperature recording, 60 mm long probe shaft
Splash-proof in accordance with IP54
Very short response time of 3 seconds
Measuring range: -60 to +800 °C

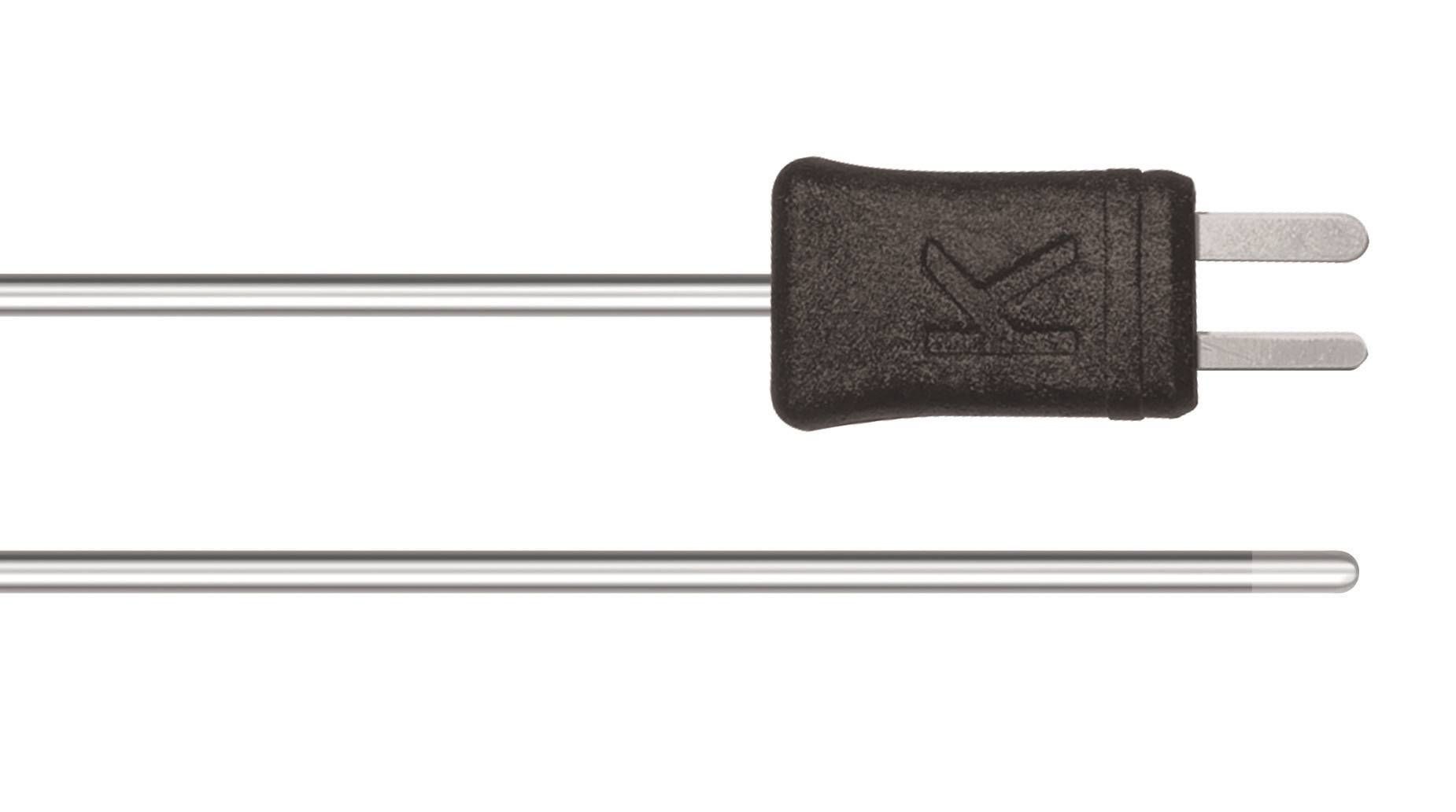

Immersion measurement tip, flexible, for measurements in air/exhaust gases

Part No. 0602 5693

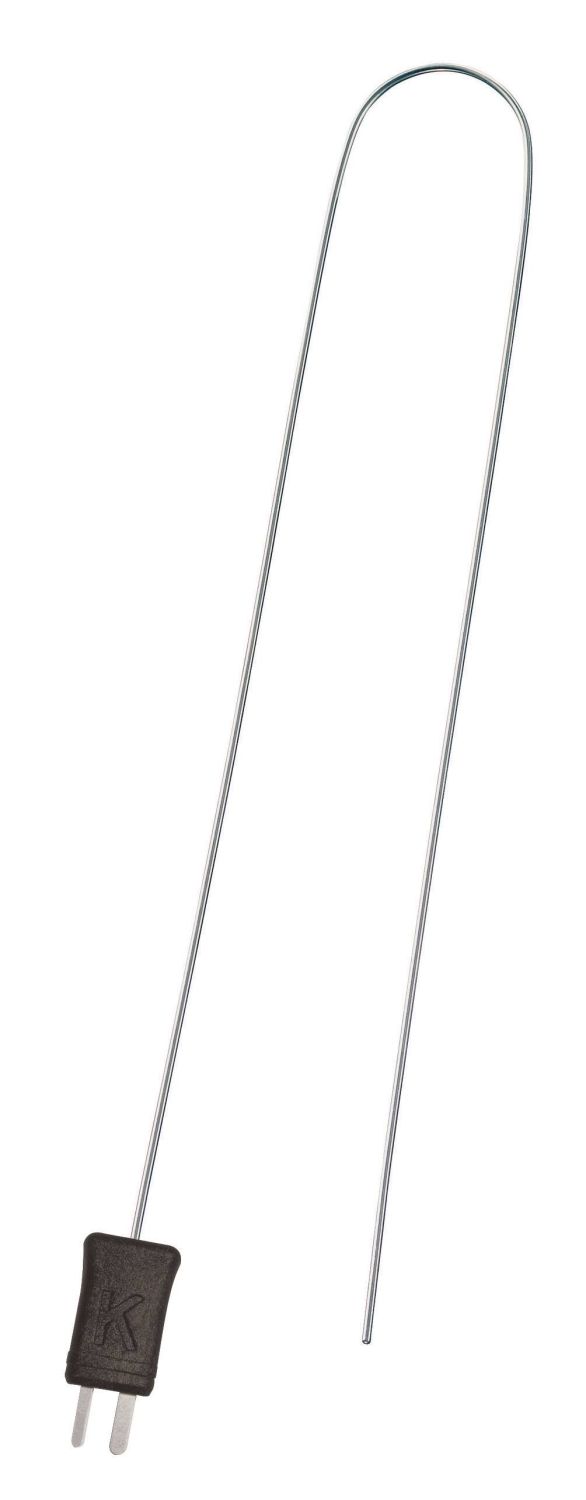

Immersion tip, flexible, TC Type K

Part No. 0602 5792

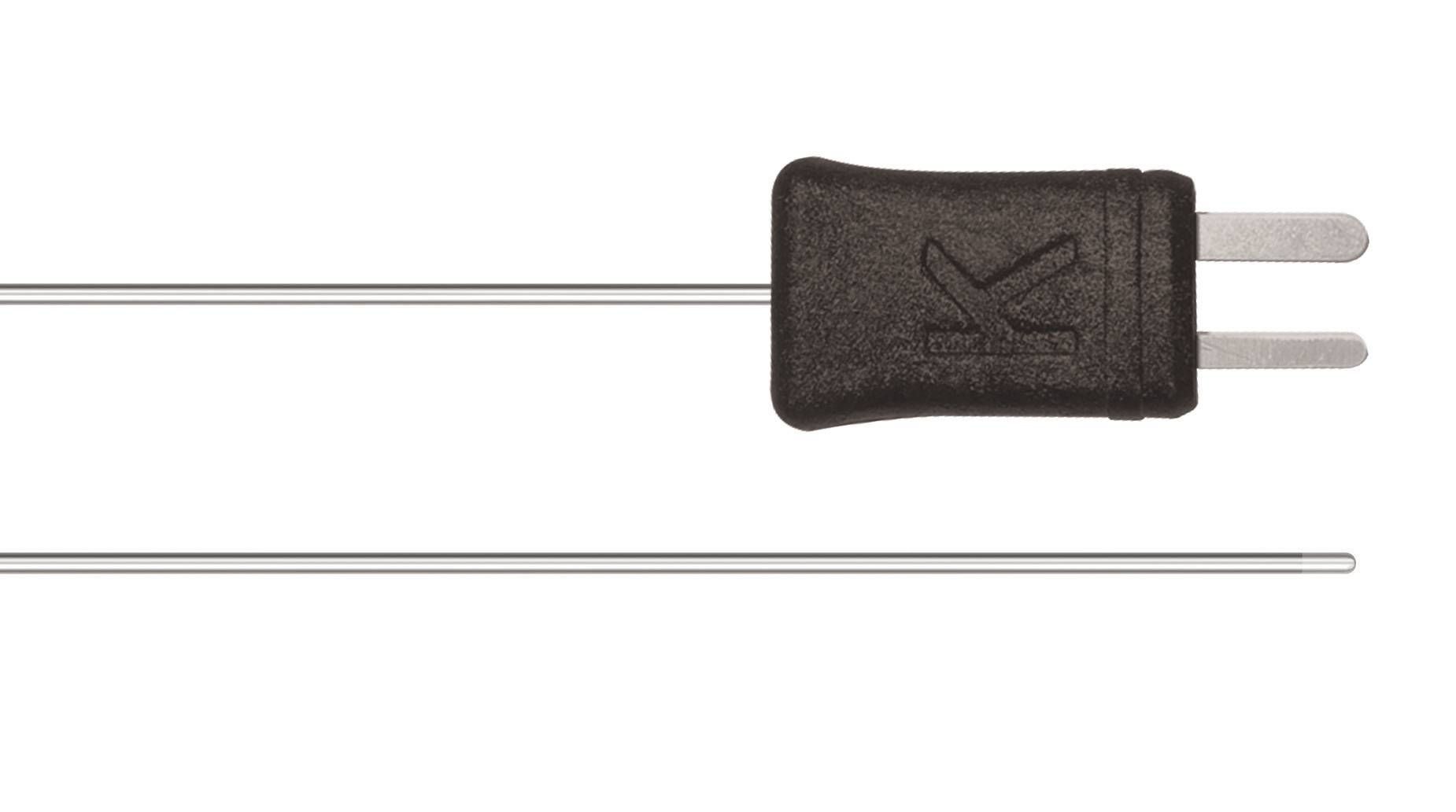

Immersion tip, flexible, TC Type K

Part No. 0602 5793

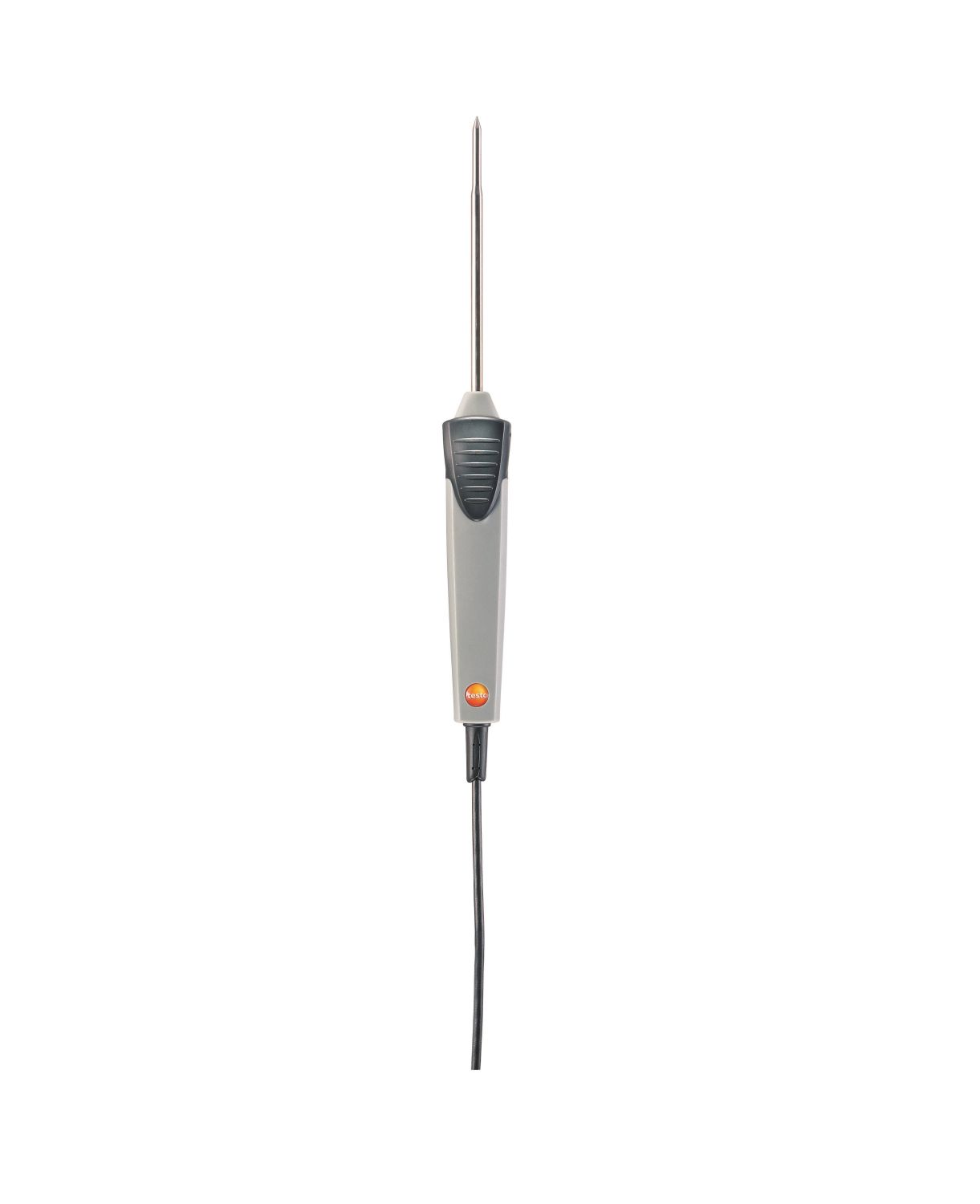

Robust waterproof immersion/penetration probe (Pt100)

Part No. 0609 1273

Temperature - Pt100 Technical Data

Measuring range -50 to +400 °C
Accuracy Class A (-50 to +300 °C)
Class B (Remaining Range) ¹⁾
Reaction time 12 s

1) According to standard 60751, the accuracies of Class A and B refer to -200 to +600 °C (Pt100)

General Technical Data

Fixed cable true
Cable length 1.2 m
Diameter probe shaft tip 3.7 mm
Diameter probe shaft 5 mm
Length probe shaft tip 50 mm
Length probe shaft 114 mm

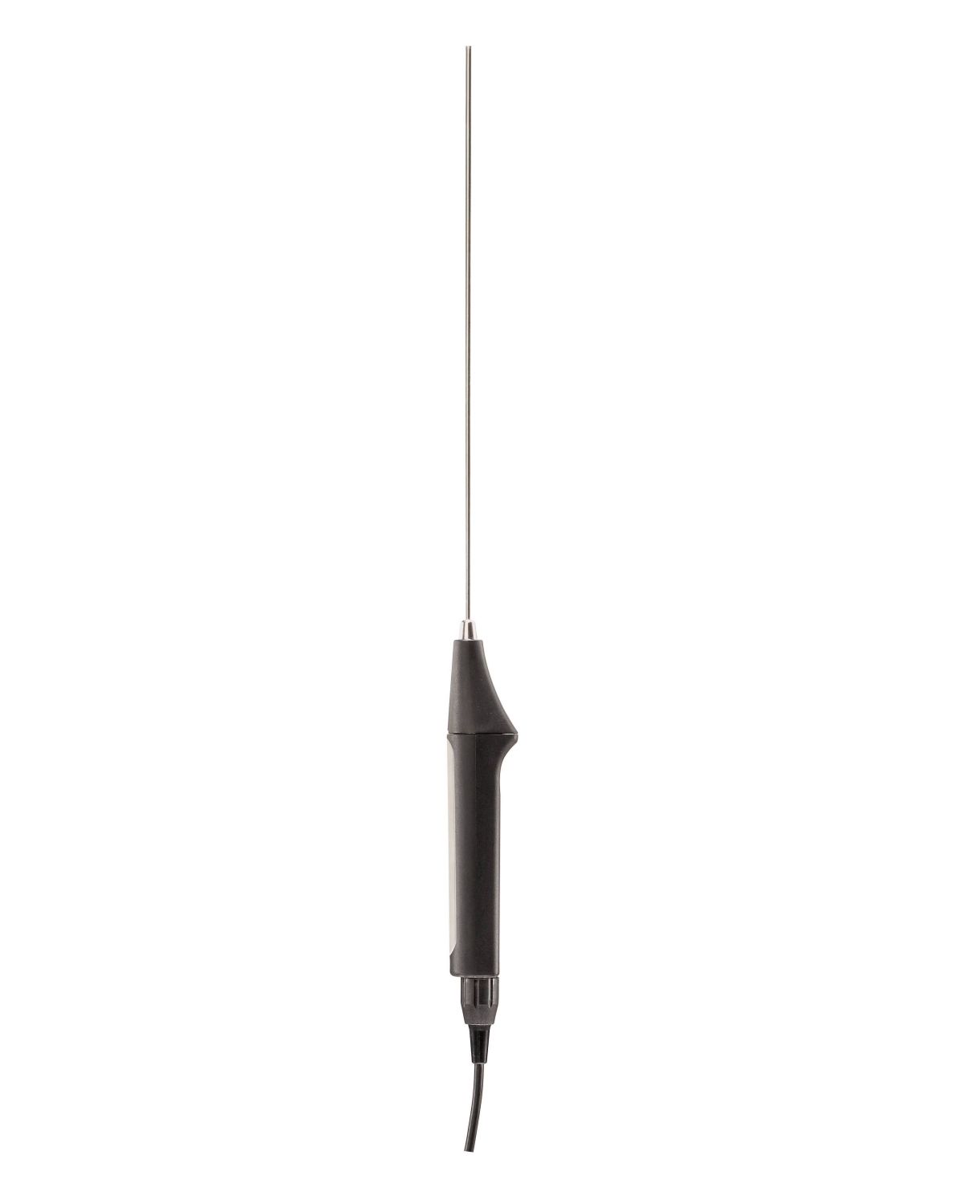

High-precision immersion/penetration probe (Pt100)

Part No. 0614 0235

In conjunction with an appropriate temperature measuring instrument – e.g. the testo 735 – the high-precision immersion/penetration probe can achieve a system accuracy of 0.05 °C at a resolution of 0.001 °C.

Key Features:

Pt100 sensor for highly accurate measurement results
Potential system accuracy of 0.05 °C at a resolution of 0.001 °C (depending on the measuring instrument connected)
Optional calibration to ISO or DAkkS possible
Measuring range: -80 to +300 °C

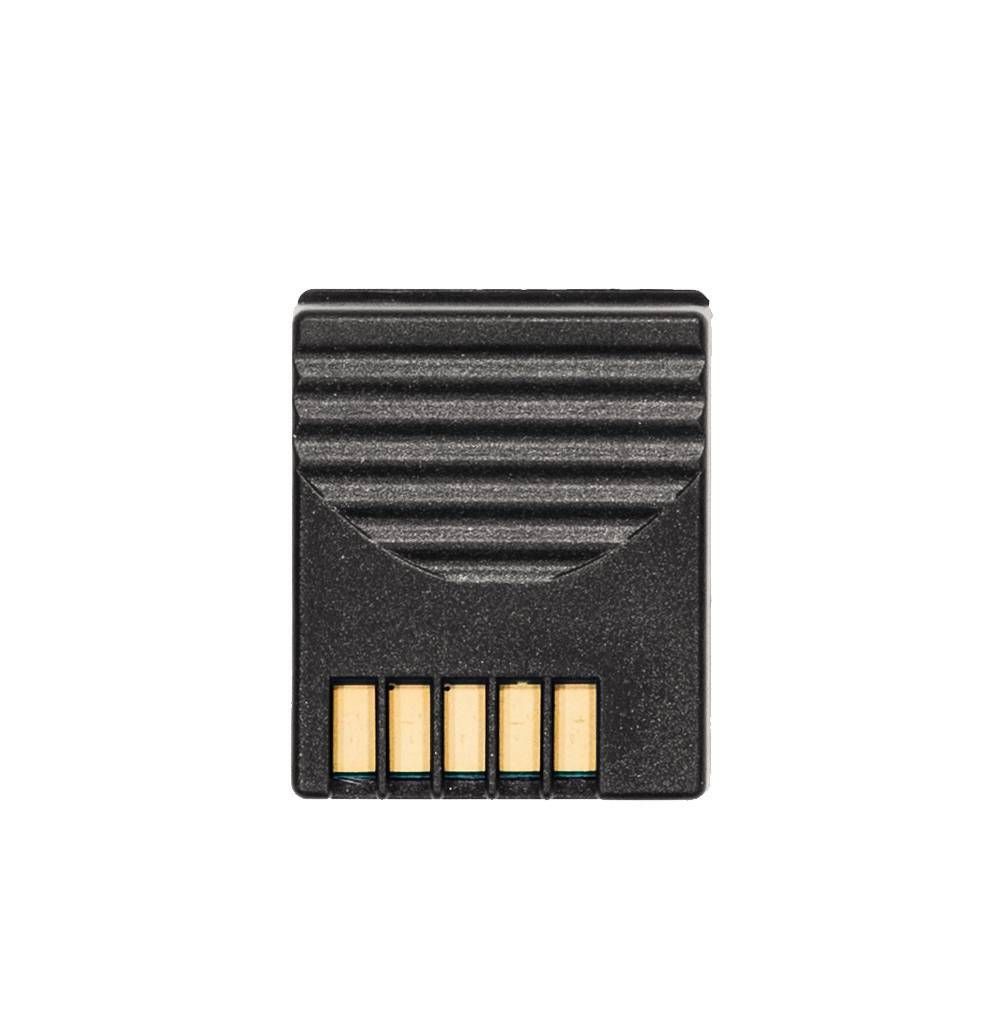

WIRELESS MODULE FOR ATTACHABLE PROBE HEADS INCL. ADAPTER FOR ATTACHING T/C PROBES (TYPE K)

Part No. 0554 0189

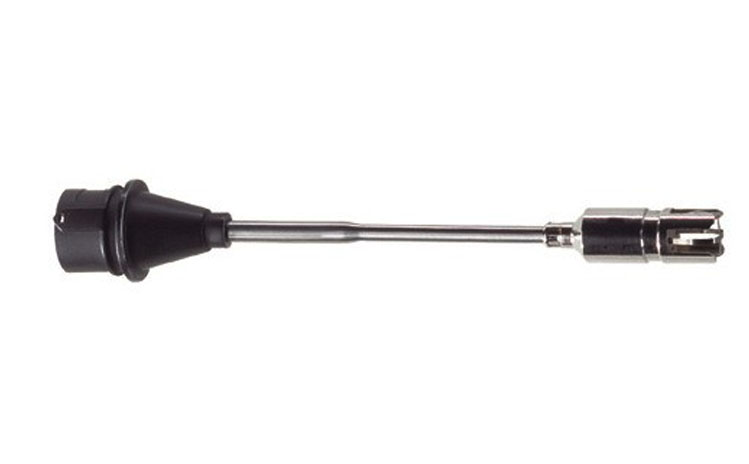

T/C probe head for surface measurement (T/C Type K)

Part No. 0602 0394

A stub type uneven surface temperature probe, specifically designed to be used with wireless probe handle (0554 0191). Probe connection is Type K.

Temperature - Type K TC Technical Data

Measuring range -58.0 to 662.0 °F / -50 to +350 °C , t2 +932.0 °F / t2 +500 °C
Accuracy Radio handle:
±(32.9 °F 0.3 % of remaining measurement value) (-40.0 to 500.0 °F / ±(0.5 °C +0.3 % of mv) (-40 to +500 °C
±(33.3 °F 0.5 ) (Remaining Range) / ±(0.7 °C +0.5 ) (Remaining Range)
T/C probe head: Class 2
Resolution 0.1 °F (-58.0 to 391.8 °F) / 0.1 °C (-50 to +199.9 °C) ,1.0 °F Remaining Range / 1.0 °C Remaining Range
Reaction time 5 sec

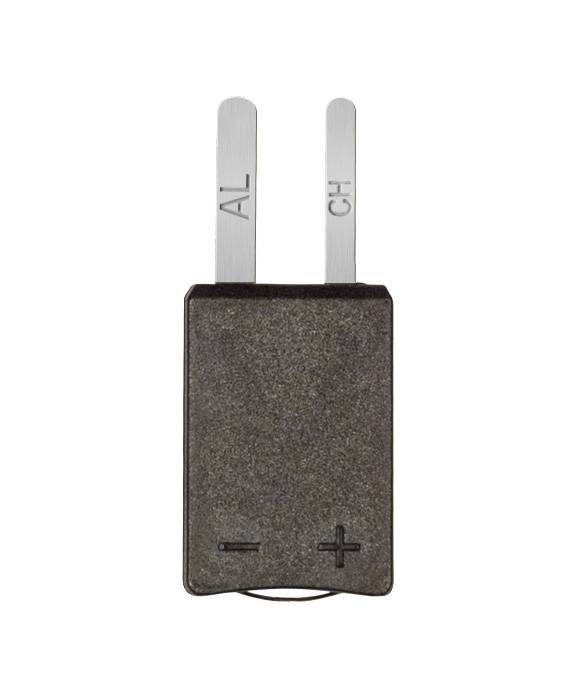

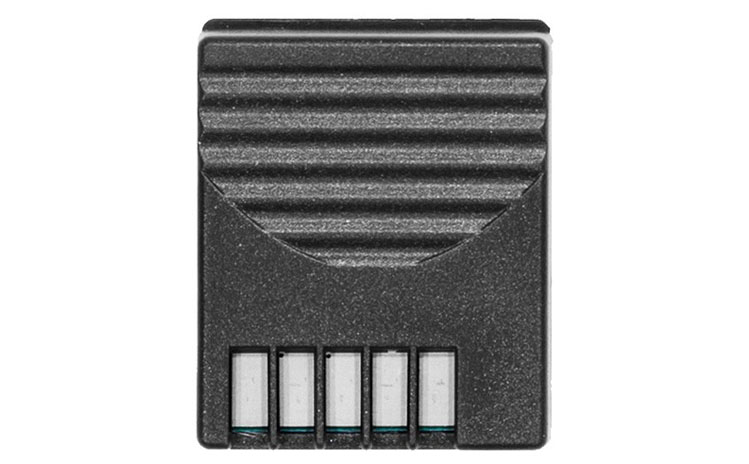

Spare meas. head for pipe wrap probe, TC Type K

Part No. 0602 0092

Product Benefits:

Replaceable measuring head with thermocouple strip for temperature probe with clamping bracket 0602 4592
Measuring range: -60 to +130°C, briefly up to +280 °C
Simple pull out the old measuring head with thermocouple strip and replace with new measuring head

Temperature - TC Type K (NiCr-Ni) Technical Data

Measuring range -60 to +130 °C
Accuracy Class 2 ²⁾
Reaction time 5 s

2) Accor ding to standard EN 60584-2, the accuracy of Class 1 refers t o -40 t o +1000 °C (Type K), Class 2 to -40 to +1200 °C (Type K), Class 3 to -200 to +40 °C (Type K).

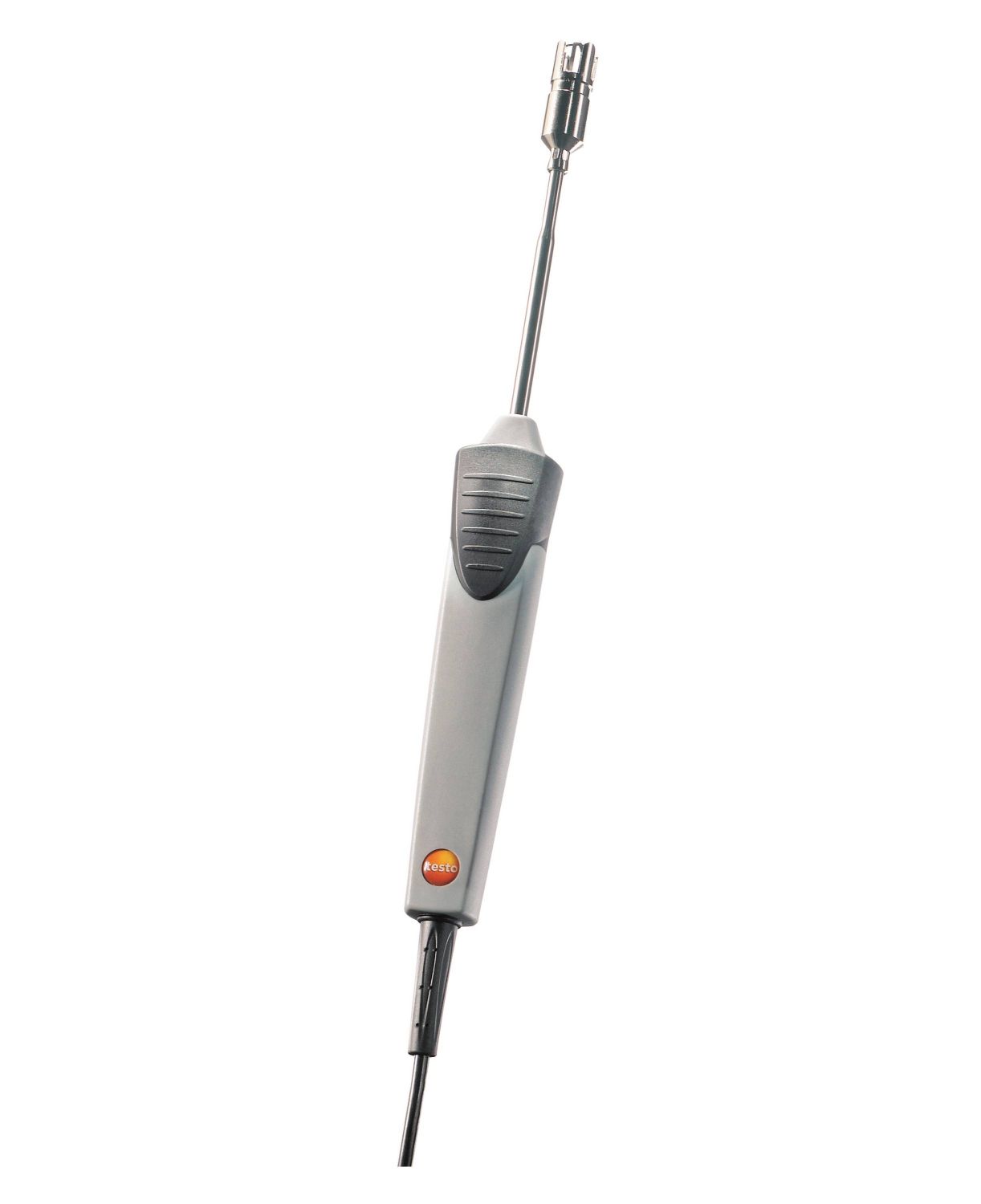

Fast-action surface probe (TC type K)

Part No. 0602 0393

The extremely fast-action surface temperature probe with sprung thermocouple strip is suitable for a wide range of applications – including uneven surfaces.

Temperature - TC Type K (NiCr-Ni) Technical Data

Measuring range -60 to +300 °C
Accuracy Class 2 ¹⁾
Reaction time 3 s

1) According to standard EN 60584-2, the accuracy of Class 2 refers to -40 to +1200 °C.

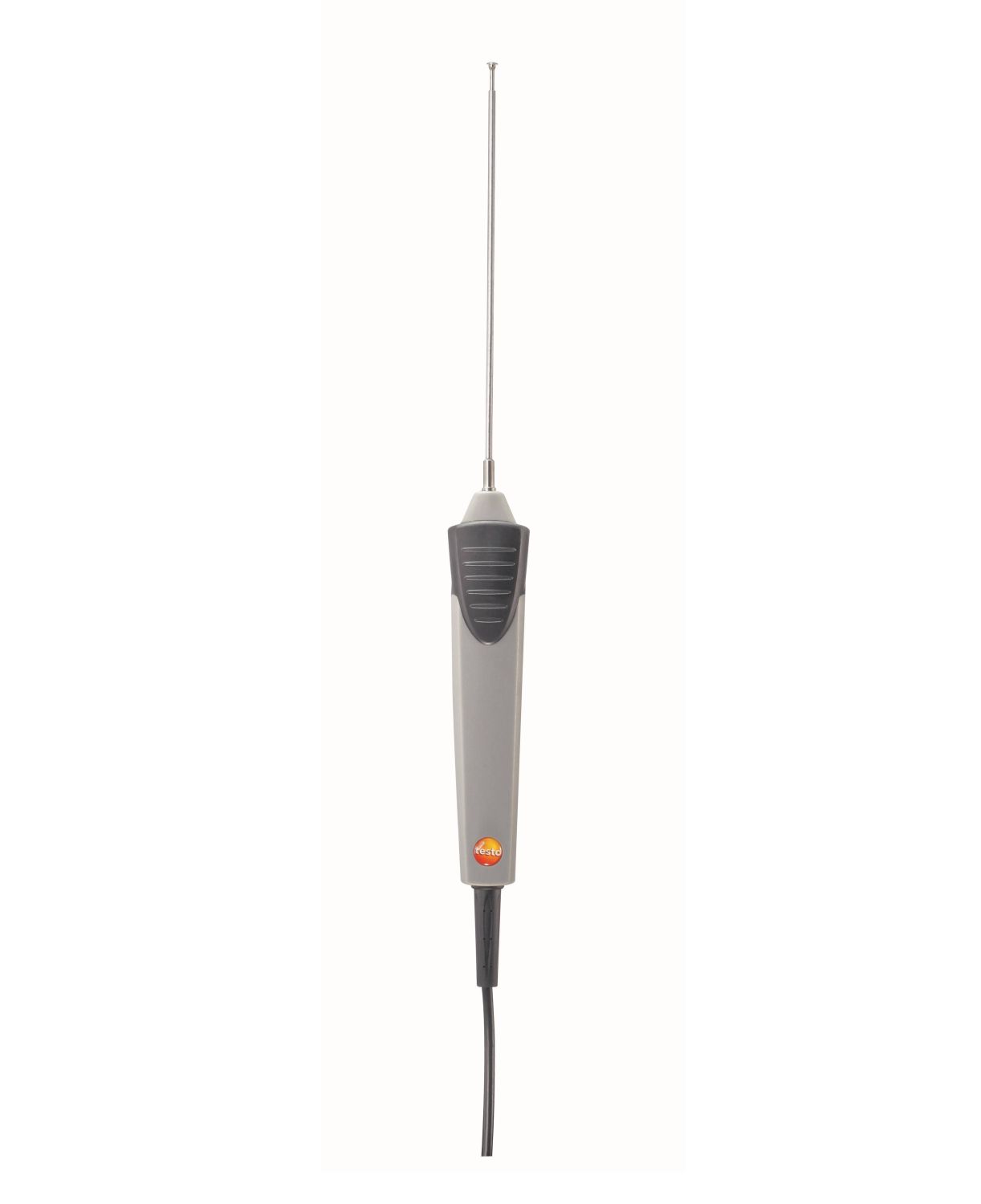

Surface probe with a small measuring head (TC type K)

Part No. 0602 0693

Accurate, waterproof and versatile: the temperature probe measures surface temperatures of up to 1000 °C. Its small measuring head is ideal for carrying out measurements on flat surfaces. Short response time.

Temperature - TC Type K (NiCr-Ni) Technical Data

Measuring range -60 to +1000 °C
Accuracy Class 1 ¹⁾
Reaction time 20 s

1) According to standard EN 60584-2, the accuracy of Class 1 refers to -40 to +1000 °C (Type K), Class 2 to -40 to +1200 °C (Type K), Class 3 to -200 to +40 °C (Type K).

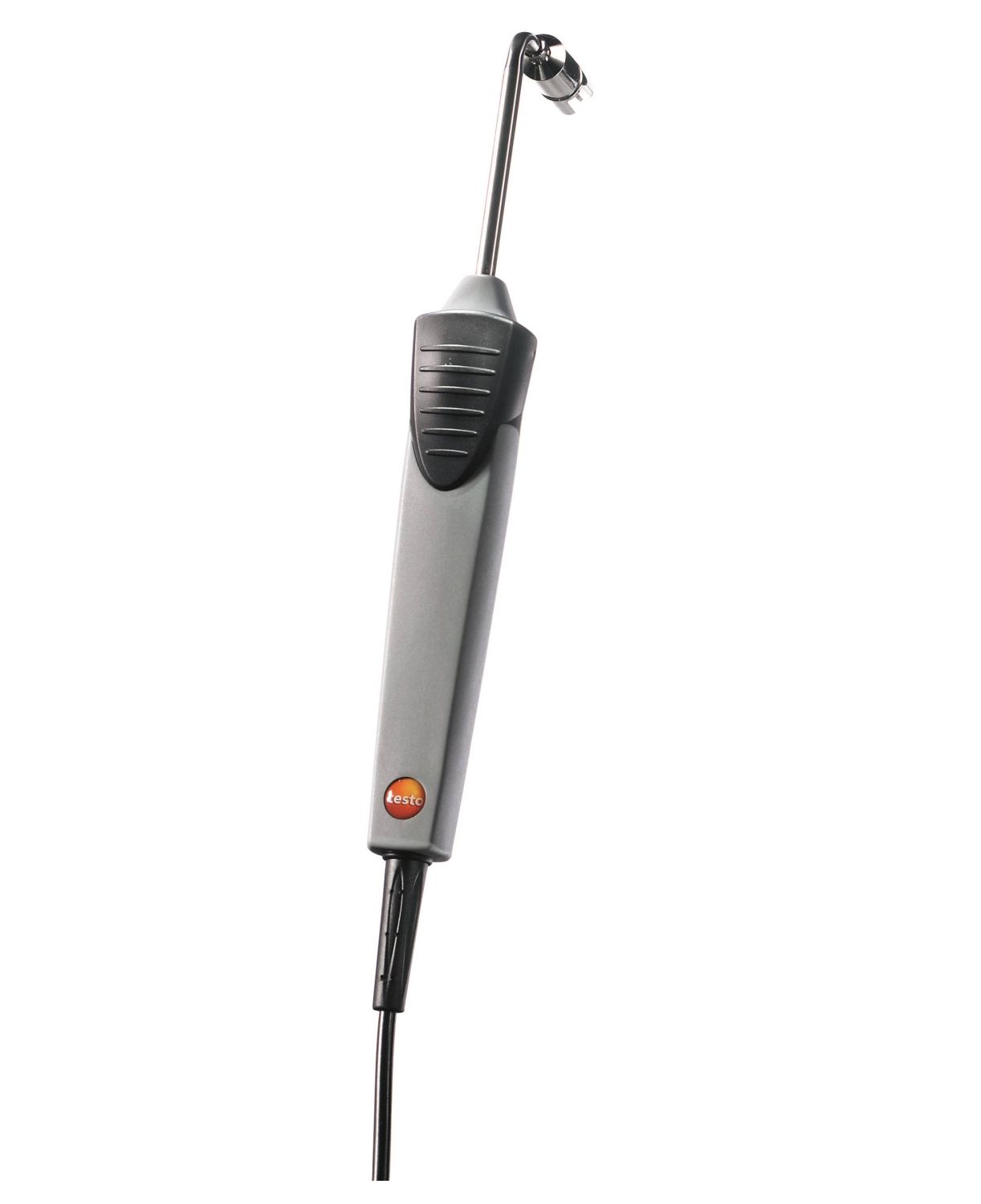

Fast-action, angled surface probe (TC type K)

Part No. 0602 0993

Use this fast-action temperature probe to measure surface temperatures accurately and reliably, even in inaccessible areas – the angled probe tube makes this possible.

Temperature - TC Type K (NiCr-Ni) Technical Data

Measuring range -60 to +300 °C
Accuracy Class 2 ¹⁾
Reaction time 3 s

1) According to standard EN 60584-2, the accuracy of Class 1 refers to -40 to +1000 °C (Type K), Class 2 to -40 to +1200 °C (Type K), Class 3 to -200 to +40 °C (Type K).

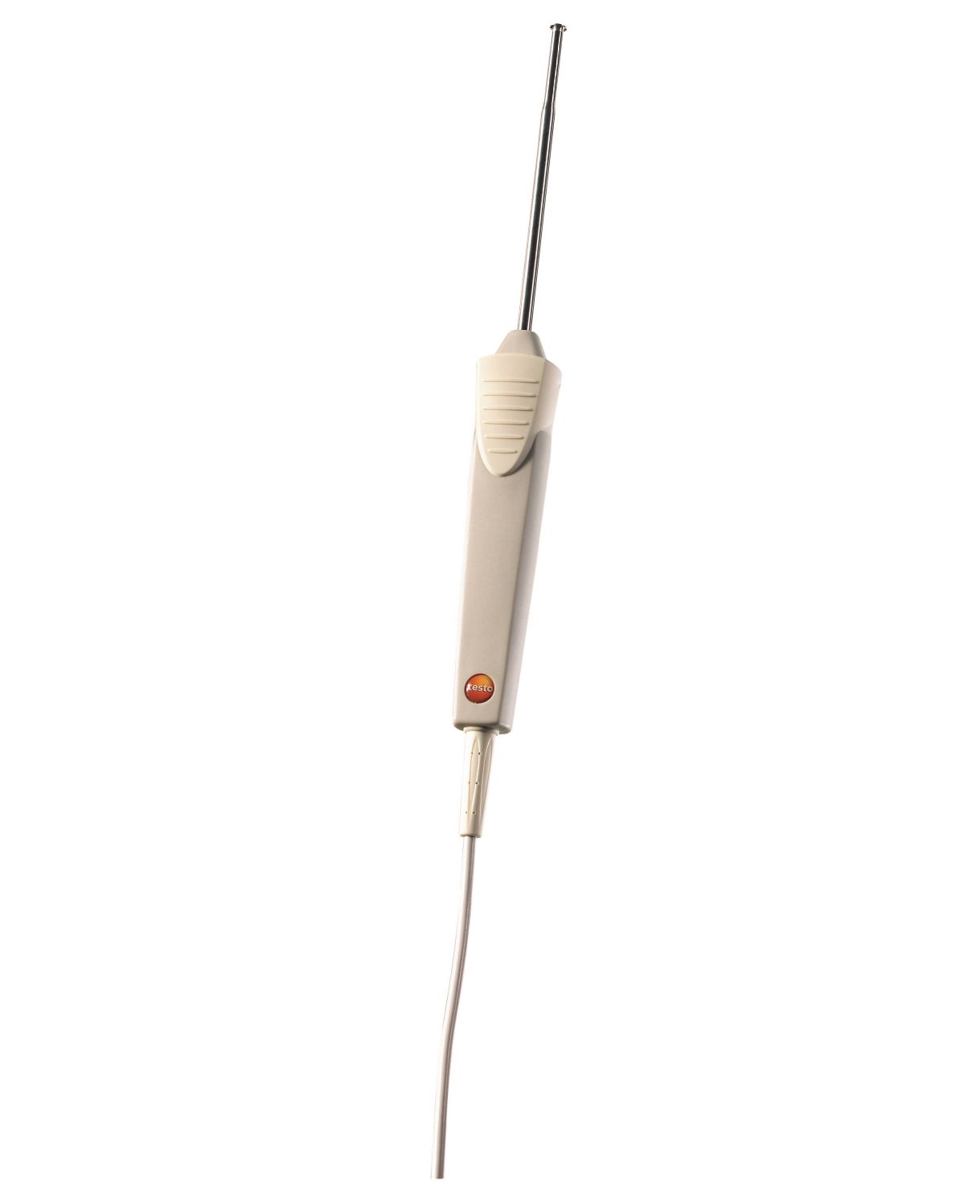

Surface probe with widened measuring tip (TC type K)

Part No. 0602 1993

Waterproof, robust and versatile: this temperature probe with sturdy probe shaft and widened measuring tip is ideal for measuring the temperature on flat surfaces.

Temperature - TC Type K (NiCr-Ni) Technical Data

Measuring range -60 to +400 °C
Accuracy Class 2 ¹⁾
Reaction time 30 s

1) According to standard EN 60584-2, the accuracy of Class 1 refers to -40 to +1000 °C (Type K), Class 2 to -40 to +1200 °C (Type K), Class 3 to -200 to +40 °C (Type K).

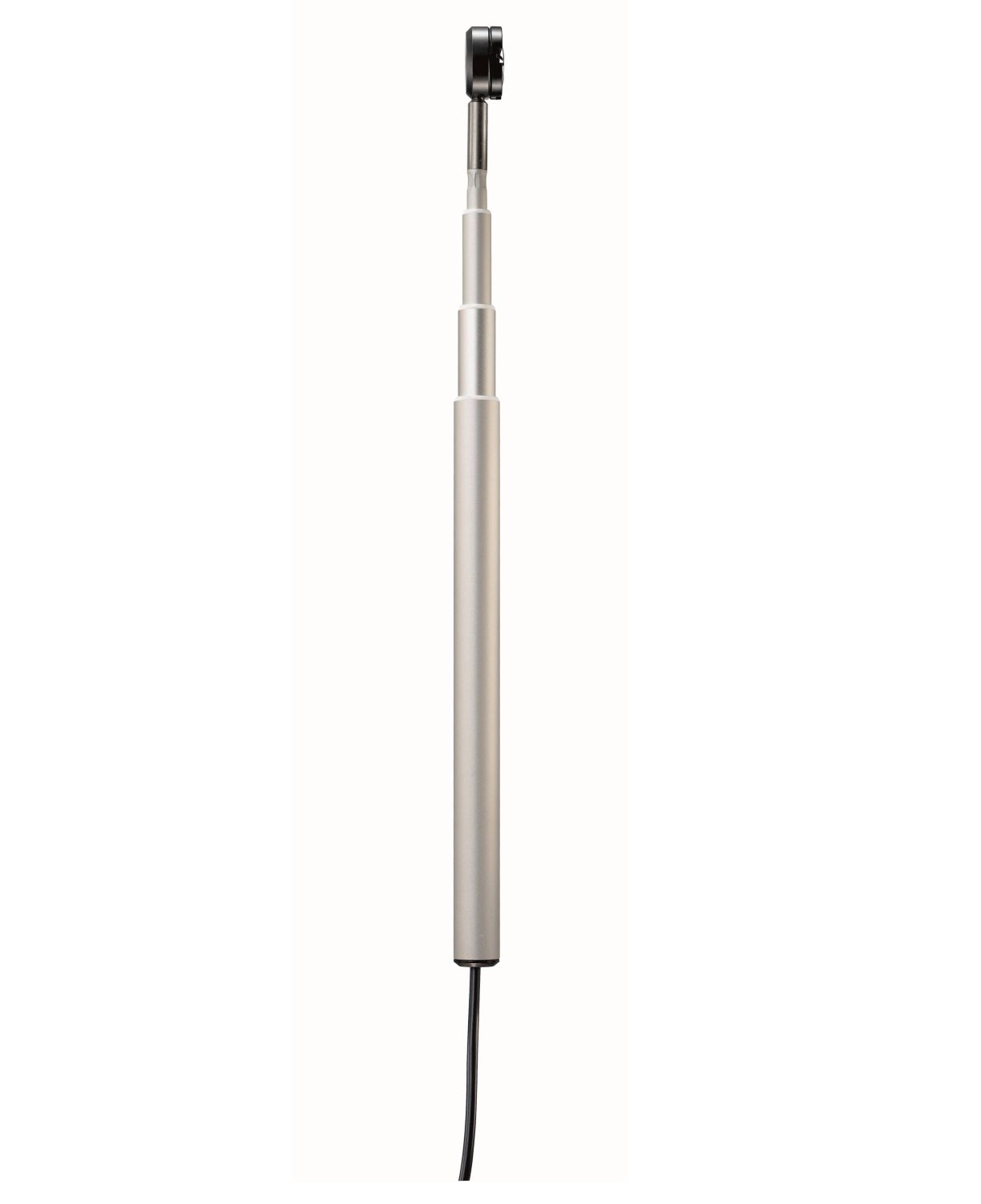

Flat head surface probe with telescopic handle max

Part No. 0602 2394

Temperature - TC Type K (NiCr-Ni) Technical Data

Measuring range -50 to +250 °C
Accuracy Class 2 ¹⁾
Reaction time 3 s

1) According to standard EN 60584-2, the accuracy of Class 1 refers to -40 to +1000 °C (Type K), Class 2 to -40 to +1200 °C (Type K), Class 3 to -200 to +40 °C (Type K).

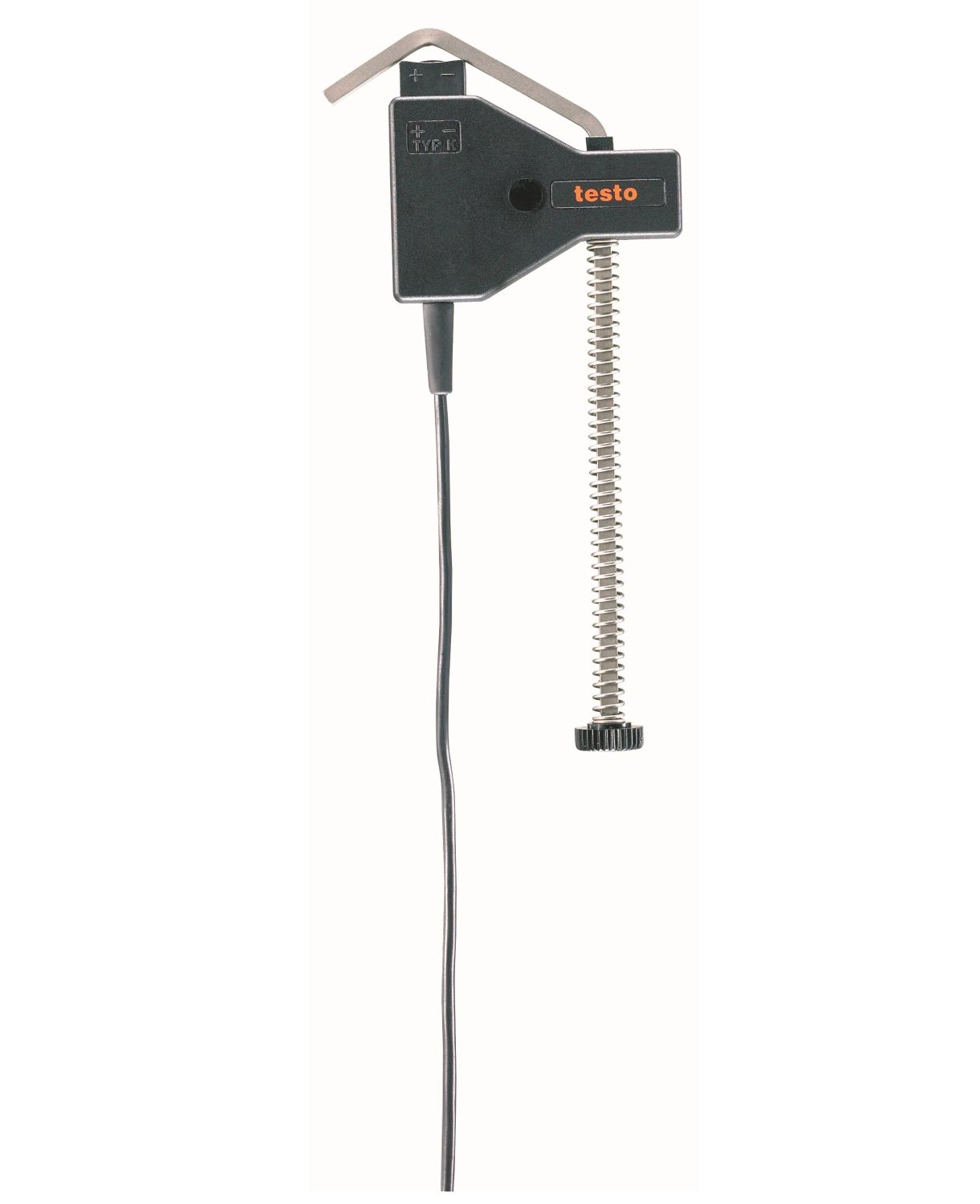

Temperature probe with clamping bracket (TC Type K)

Part No. 0602 4592

Pipe wrap probe for pipe diameter 5 to 65 mm, with exchangeable measuring head. Meas. range short-term up to +280°C, TC Type K

Temperature - TC Type K (NiCr-Ni) Technical Data

Measuring range -60 to +130 °C
Accuracy Class 2 ¹⁾
Reaction time 5 s

1) According to standard EN 60584-2, the accuracy of Class 1 refers to -40 to +1000 °C (Type K), Class 2 to -40 to +1200 °C (Type K), Class 3 to -200 to +40 °C (Type K).

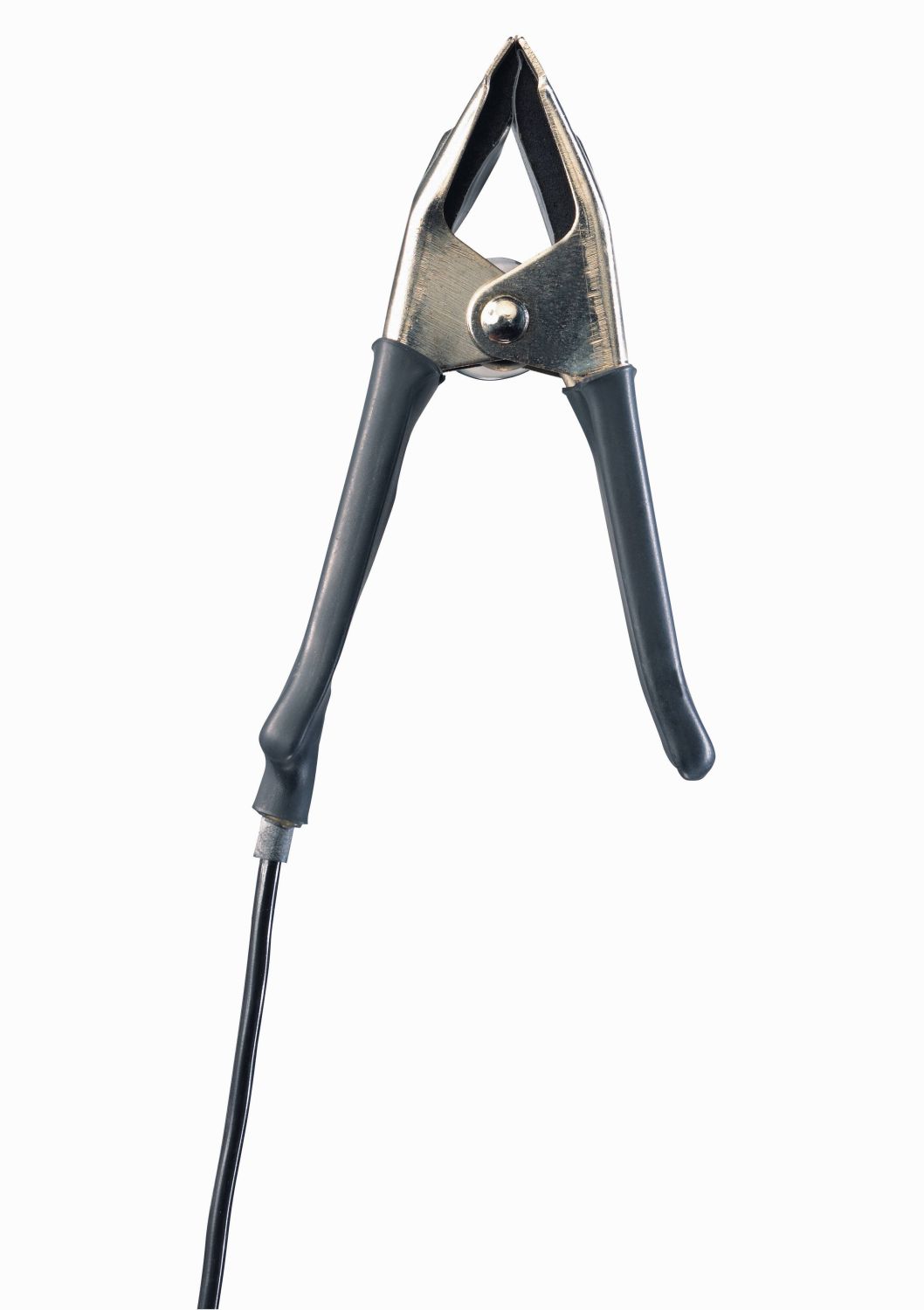

Clamp probe for measurements on pipes

Part No. 0602 4692

Temperature - TC Type K (NiCr-Ni) Technical Data

Measuring range -50 to +100 °C
Accuracy briefly to +130
Reaction time 5 s

1) According to standard EN 60584-2, the accuracy of Class 1 refers to -40 to +1000 °C (Type K), Class 2 to -40 to +1200 °C (Type K), Class 3 to -200 to +40 °C (Type K).

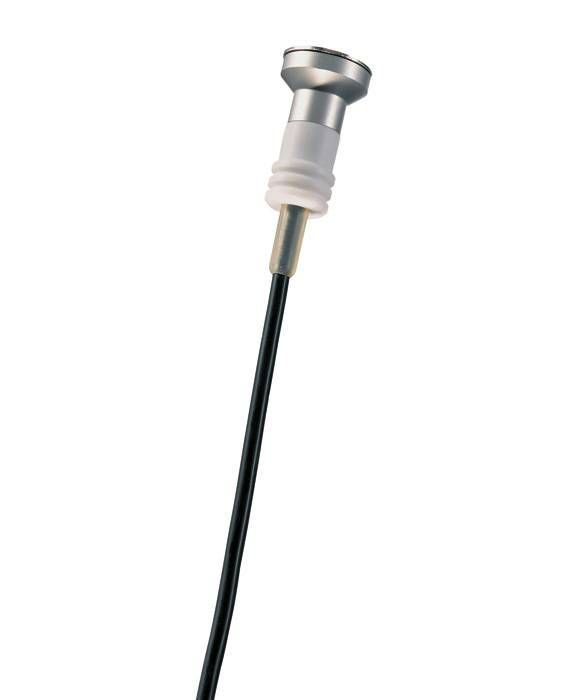

Magnetic probe (TC type K) - for surface temperatures

Part No. 0602 4792

Key Features:

Thermocouple type K
Adhesive force approx. 20 N
Can be connected to a wide range of measuring instruments/data loggers
Measuring range: -50 to +170 °C

Temperature - TC Type K (NiCr-Ni) Technical Data

Measuring range -50 to +170 °C
Accuracy Class 2 ¹⁾
Reaction time 150 s

1) According to standard EN 60584-2, the accuracy of Class 1 refers to -40 to +1000 °C (Type K), Class 2 to -40 to +1200 °C (Type K), Class 3 to -200 to +40 °C (Type K).

Temperature probe with magnet (TC Type K)

Part No. 0602 4892

Key Features:

Self-adhesive thanks to a magnet: probe for measuring surface temperature on metal surfaces
TC Type K temperature probe with 1.6 m cable

Temperature - TC Type K (NiCr-Ni) Technical Data

Measuring range -50 to +400 °C
Accuracy Class 2 ¹⁾

1) According to standard EN 60584-2, the accuracy of Class 1 refers to -40 to +1000 °C (Type K), Class 2 to -40 to +1200 °C (Type K), Class 3 to -200 to +40 °C (Type K).

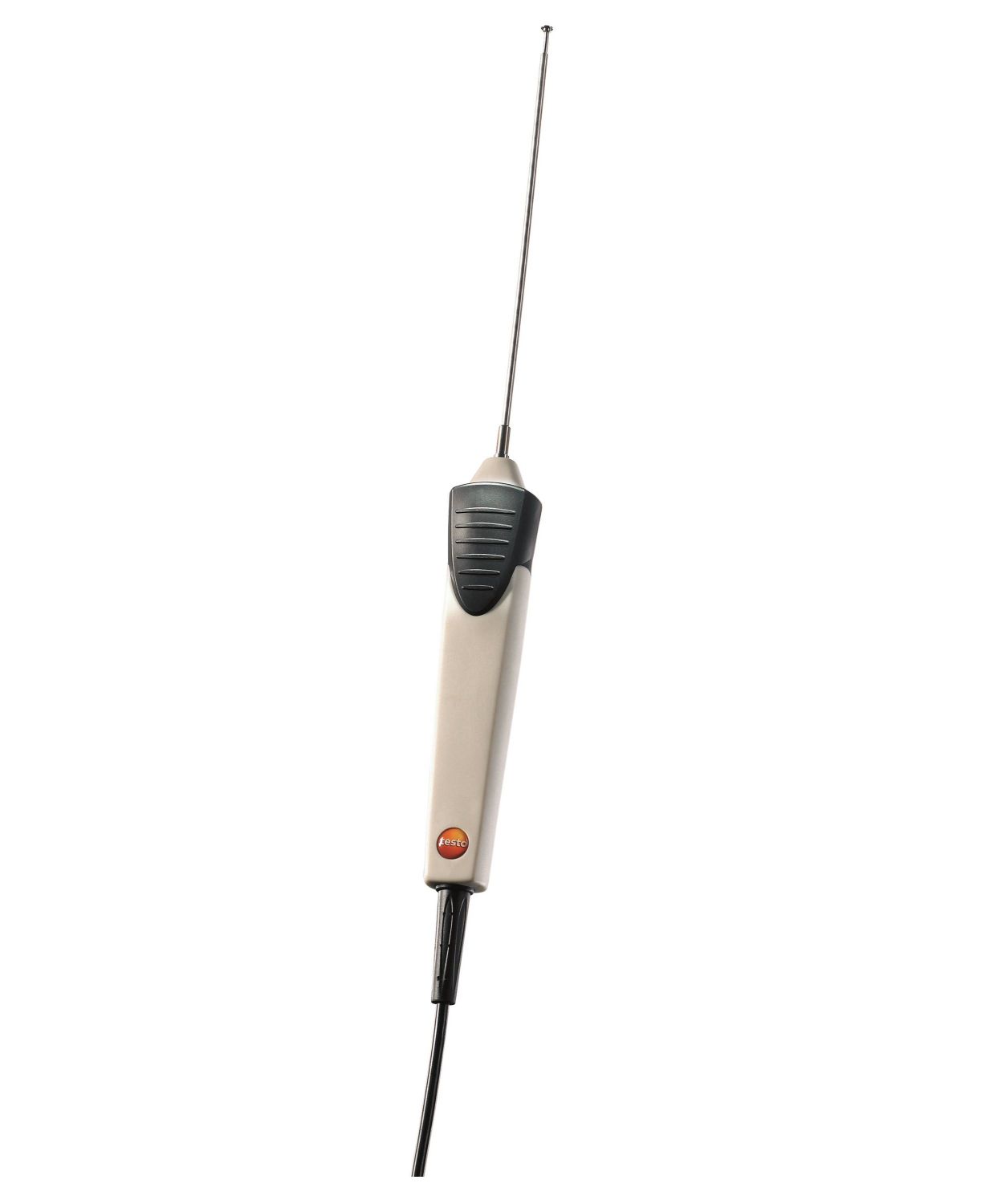

Waterproof surface probe with widened measurement tip for flat surfaces, T/C Type T

Part No. 0603 1993

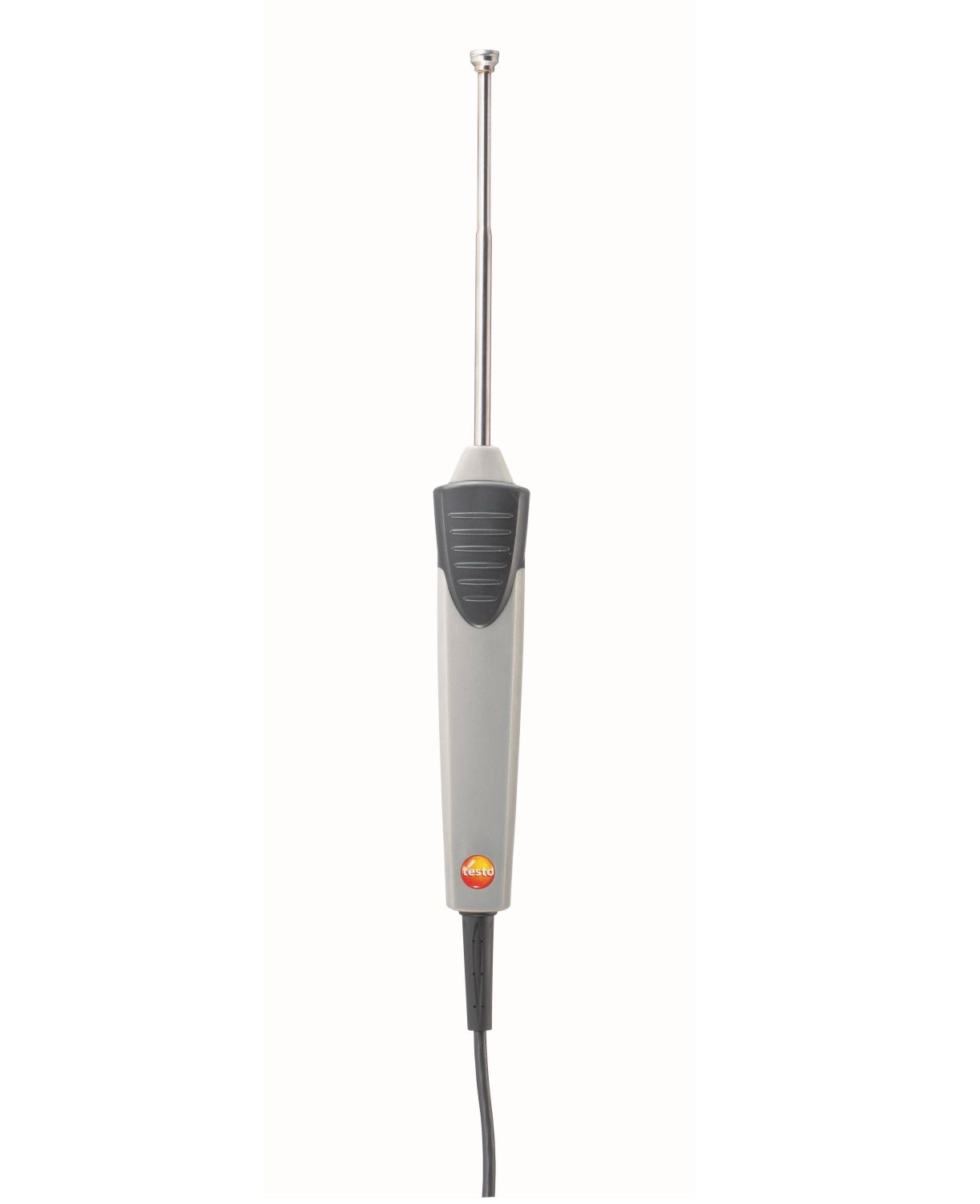

Robust, waterproof surface probe (Pt100)

Part No. 0609 1973

The robust waterproof surface probe (with a corresponding measuring instrument) enables particularly accurate measurement of the surface temperature.

Key Features:

Pt100 sensor for highly accurate measurement results
Waterproof
EN 13485 and HACCP-compliant
Measuring range: -50 to +400 °C

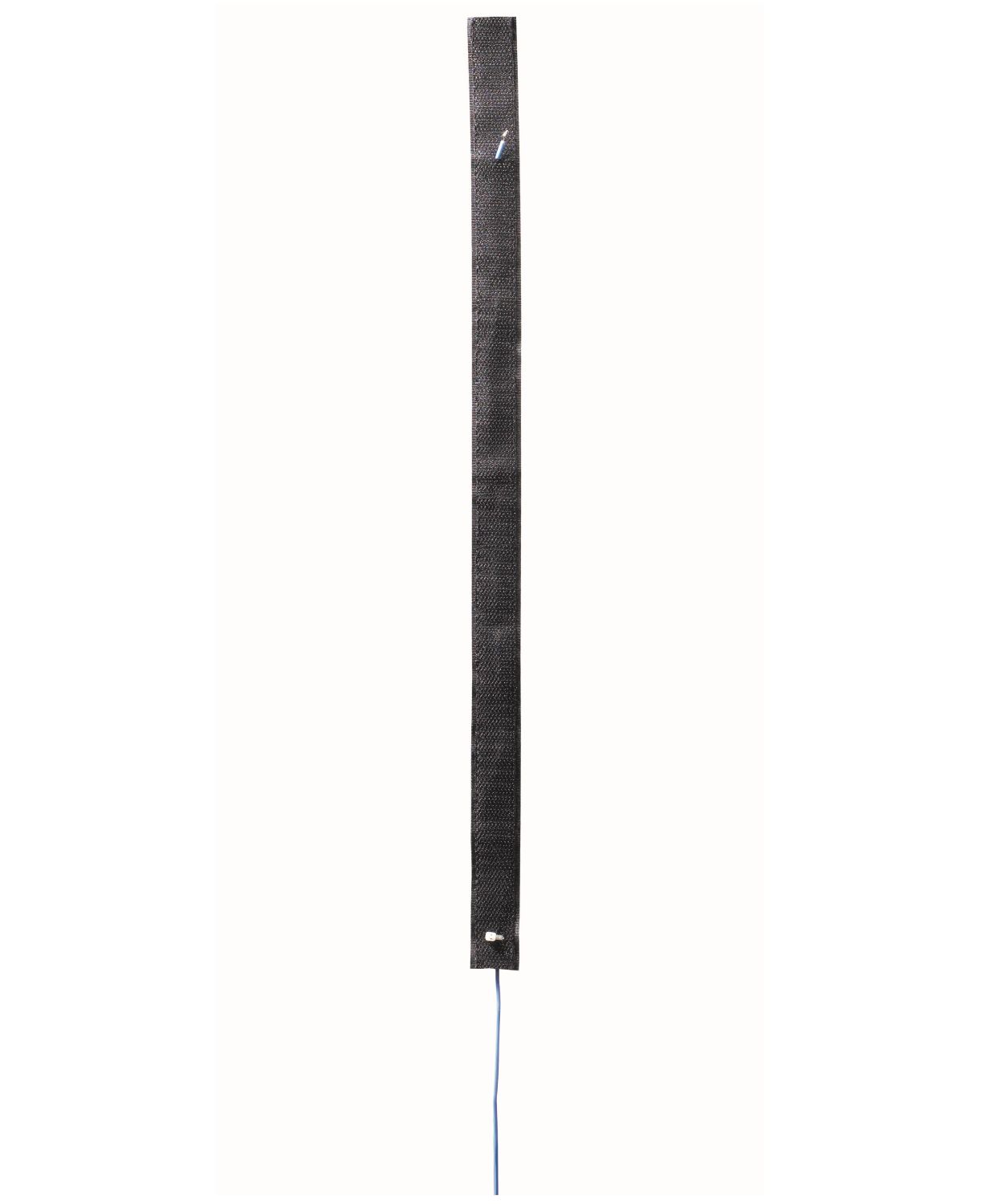

Temperature probe with Velcro (TC Type K)

Part No. 0628 0020

Key Features:

With Velcro: makes it easy to attach the surface probe to pipes with a diameter of up to 120 mm
TC Type K temperature probe with 1.5 m cable
Measuring range: -50 to +120 °C

Temperature - TC Type K (NiCr-Ni) Technical Data

Measuring range -50 to +120 °C
Accuracy Class 1 ¹⁾
Reaction time 90 s

1) According to standard EN 60584-2, the accuracy of Class 1 refers to -40 to +1000 °C (Type K), Class 2 to -40 to +1200 °C (Type K), Class 3 to -200 to +40 °C (Type K).

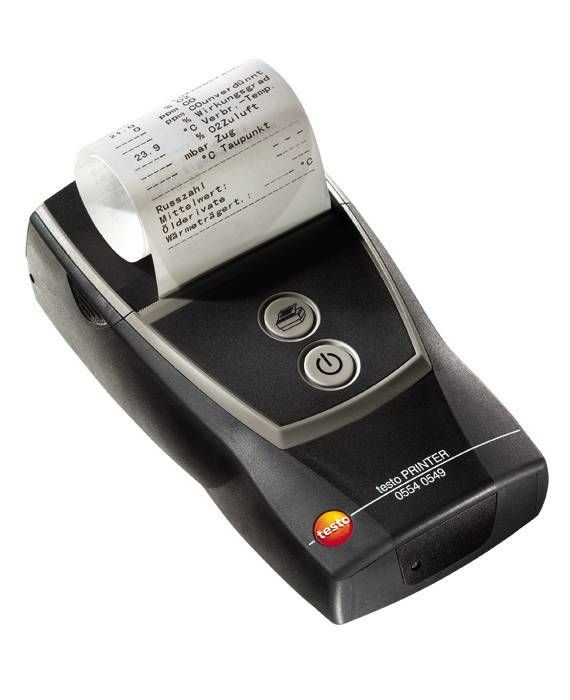

Testo quick printer

Part No. 0554 0549

Compact printer, with IRDA technology offers fast, easy to read printouts of measurements at every job site. Internal magnets will hold the printer to magnetic surfaces for hands free operation.

Key Features:

Evaluate restoration measures quickly and without error.
Measurement of air moisture, material equilibrium moisture, pressure dew point
Instrument memory for up to 10,000 readings

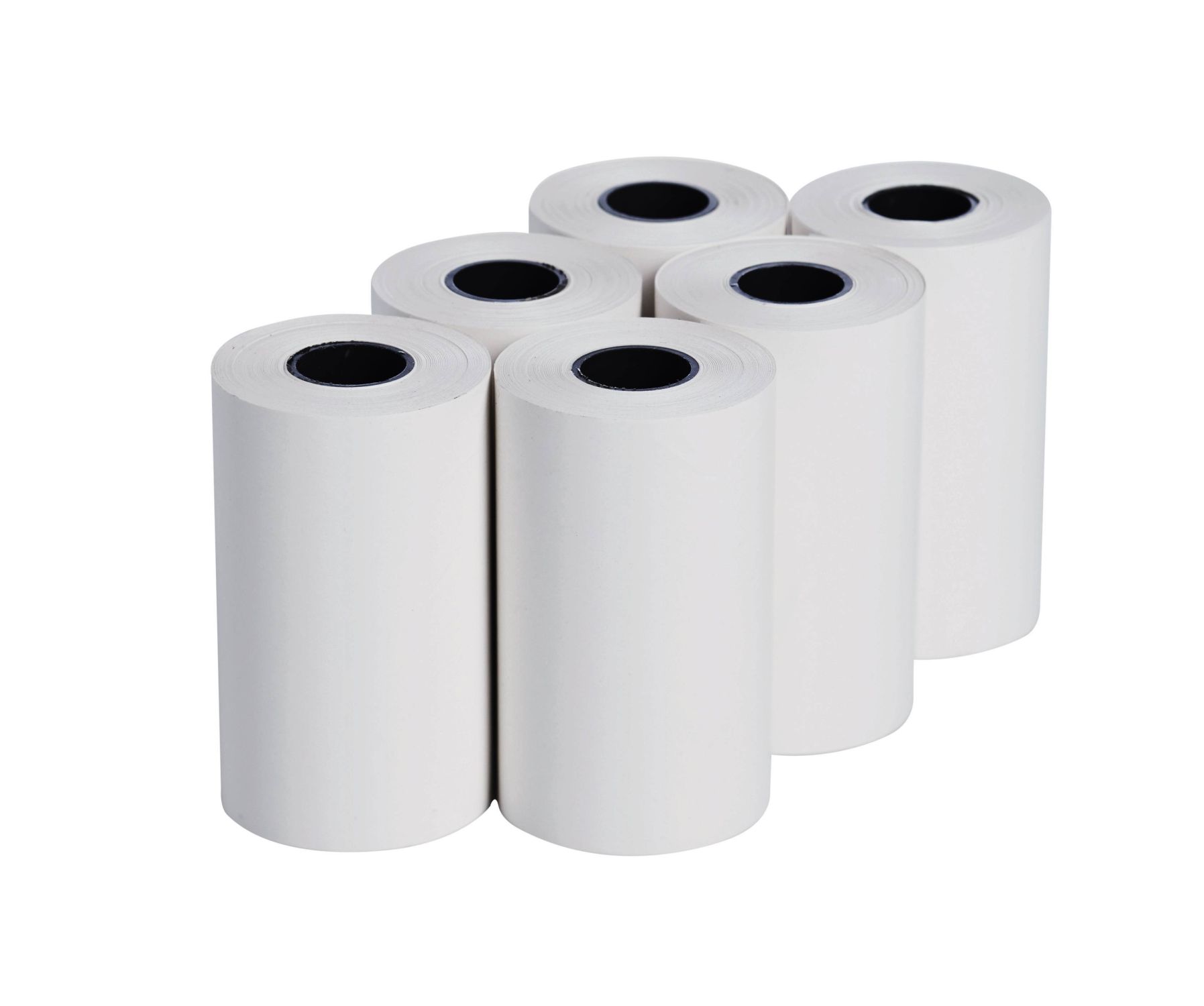

Spare thermal paper for printer, permanent ink

Part No. 0554 0568

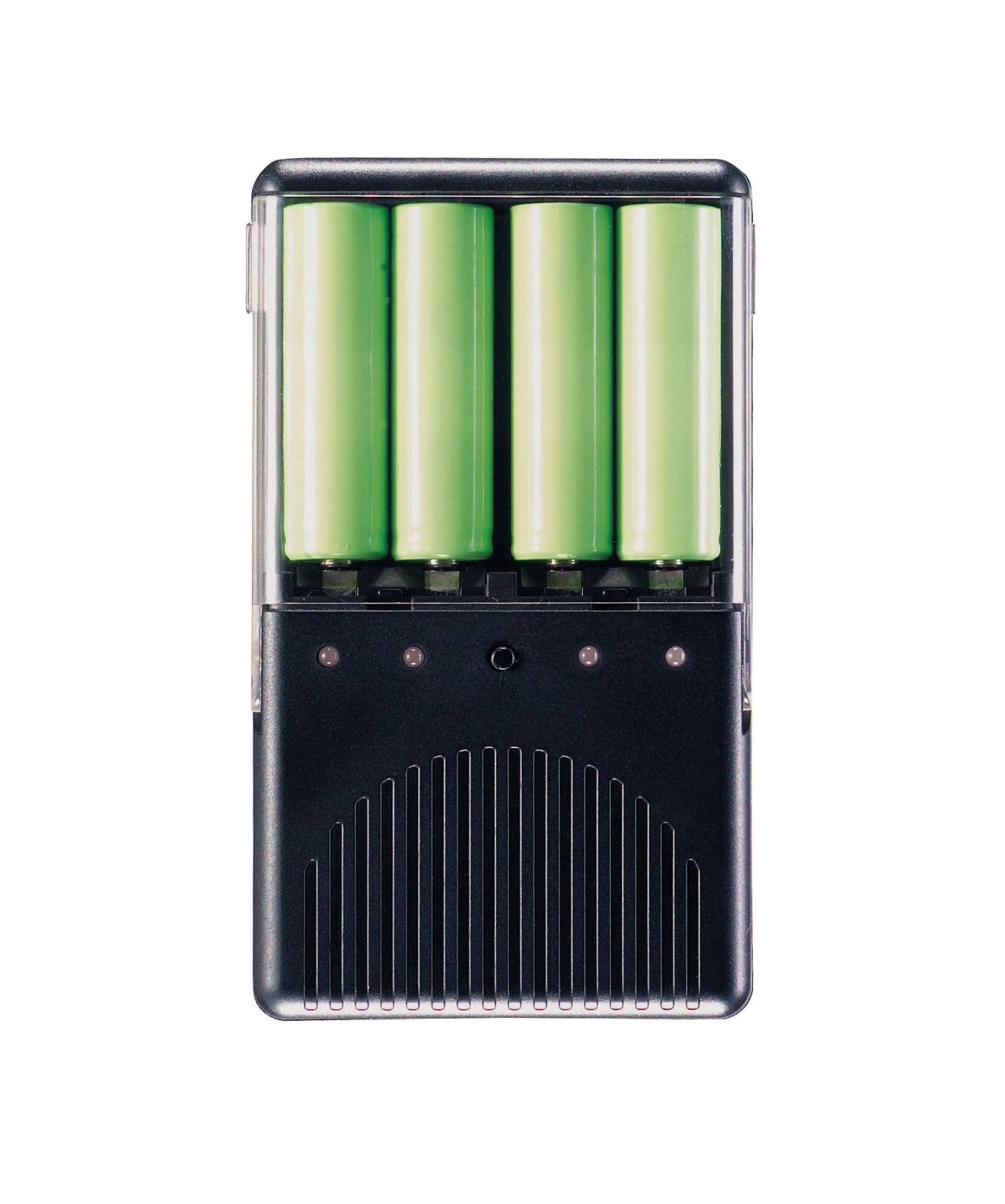

External fast charger for 1-4 AA rech. batteries

Part No. 0554 0610

External fast charger for 1-4 AA rech. batteries, incl. 4 Ni-MH rech. batteries with individual cell charging and charge control display, incl. impulse trickle charging, integrated discharge function, with built-in international mains plug, 100-240 V, 300 mA, 50/60 Hz

Plug-in mains adapter, 5 VDC 500 mA with European adapter, 100-250 VAC, 50-60 Hz

Part No. 0554 0447

Power Supply for products with a Mini-B USB connection. 5 VDC 500 mA with European adapter, 100-250 VAC, 50-60 Hz. Includes interchangeable "plug" types for use in several countries.

Handle for attachable measurement tips

Part No. 0409 1092

Silicone heat paste (14g), Tmax = +260°C

Part No. 0554 0004

Key Features:

To improve heat transfer in surface probes
Can be used for temperatures up to 500 °F (+260 °C)
Contents: 14 g

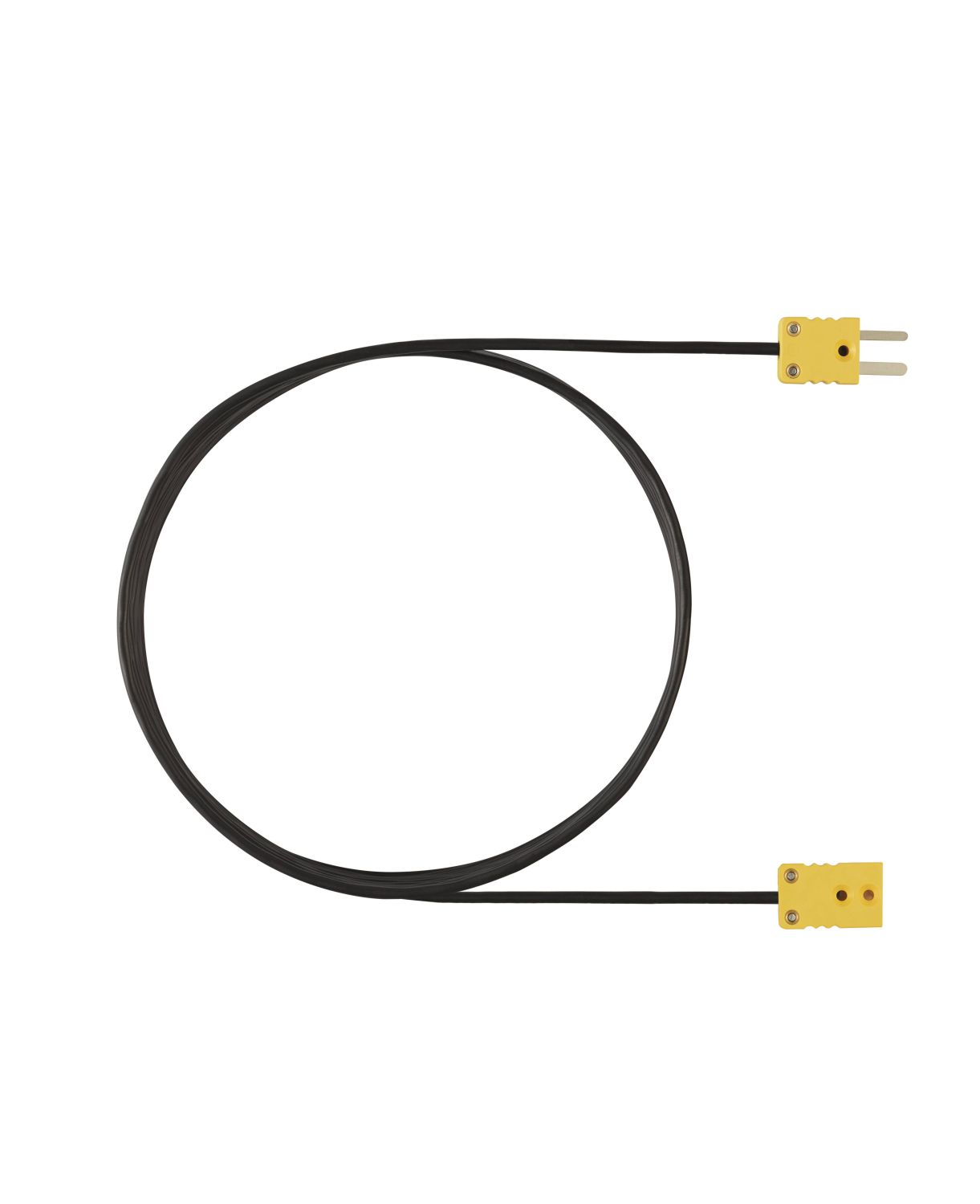

Extension cable, 5m, for thermocouple probe Type K

Part No. 0554 0592

Radio module for measuring instrument, 869.85 MHz, approval for the countries

Part No. 0554 0188

Radio module for measuring instrument, 869.85 MHz, approval for the countries: DE, FR, UK, BE, NL, ES, IT, SE, AT, DK, FI, HU, CZ, PL, GR, CH, PT, SI, MT, CY, SK, LU, EE, LT, IE, LV, NO
