testo 110 - Temperature meter


Category: INDUSTRIAL THERMOMETERS

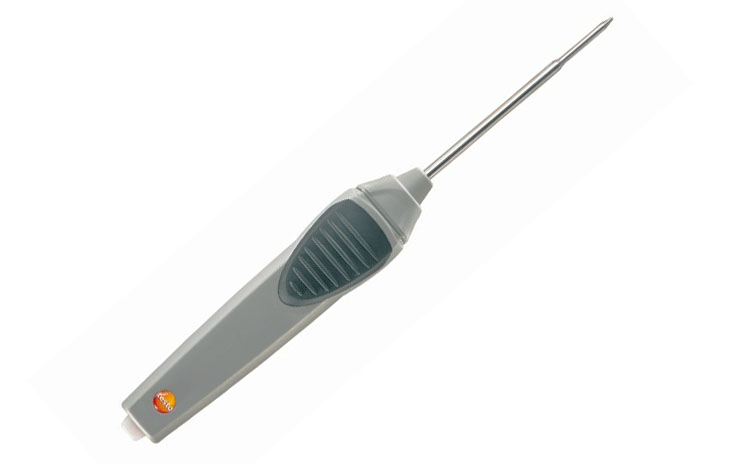

RADIO IMMERSION/PENETRATION PROBE, NTC, APPROVAL FOR THE COUNTRIES

Part No. 0613 1001

RADIO IMMERSION/PENETRATION PROBE, NTC, APPROVAL FOR THE COUNTRIES: DE, FR, UK, BE, NL, ES, IT, SE, AT, DK, FI, HU, CZ, PL, GR, CH, PT, SI, MT, CY, SK, LU, EE, LT, IE, LV, NO

Temperature - NTC Technical Data
  • Measuring range -58 to +527 °F / -50 to +275 °C
  • Accuracy
  1. ±0.9 °F (-4.0° to 176 {#0.0} °F) / ±0.5 °C (-20 to +80 °C)
  2.  ±1.4 °F (-58.0° to -4.2 {#0.0} °F) / ±0.8 °C (-50 to -20.1 °C)
  3.  ±1.4 °F (176.2° to 392 {#0.0} °F) / ±0.8 °C (+80.1 to +200 °C)
  4.  ±2.7 °F (Remaining Range) / ±1.5 °C (Remaining Range)
  • Resolution 0.1 °F / 0.1 °C
  • Reaction time (in water) 12 sec

WIRELESS IMMERSION/PENETRATION PROBE, NTC, APPROVED FOR USA

Part No. 0613 1002

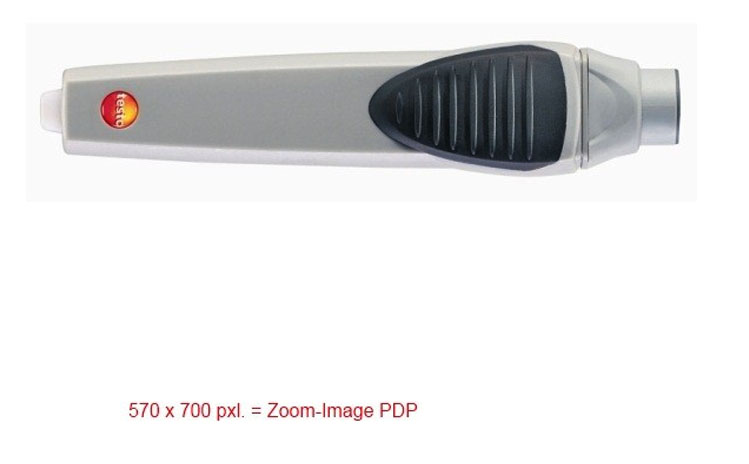

WIRELESS MODULE FOR ATTACHABLE PROBE HEADS INCL. ADAPTER FOR ATTACHING T/C PROBES (TYPE K)

Part No. 0554 0189

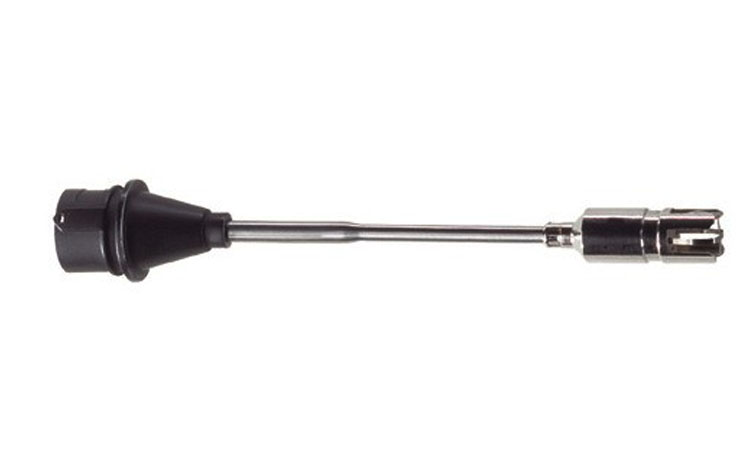

T/C probe head for surface measurement (T/C Type K)

Part No. 0602 0394

A stub type uneven surface temperature probe, specifically designed to be used with wireless probe handle (0554 0191). Probe connection is Type K.

Temperature - Type K TC Technical Data

  • Measuring range -58.0 to 662.0 °F / -50 to +350 °C , t2 +932.0 °F / t2 +500 °C
  • Accuracy Radio handle:
  •  ±(32.9 °F 0.3 % of remaining measurement value) (-40.0 to 500.0 °F / ±(0.5 °C +0.3 % of mv) (-40 to +500 °C
  • ±(33.3 °F 0.5 ) (Remaining Range) / ±(0.7 °C +0.5 ) (Remaining Range)
  • T/C probe head: Class 2
  • Resolution 0.1 °F (-58.0 to 391.8 °F) / 0.1 °C (-50 to +199.9 °C) ,1.0 °F Remaining Range / 1.0 °C Remaining Range
  • Reaction time 5 sec

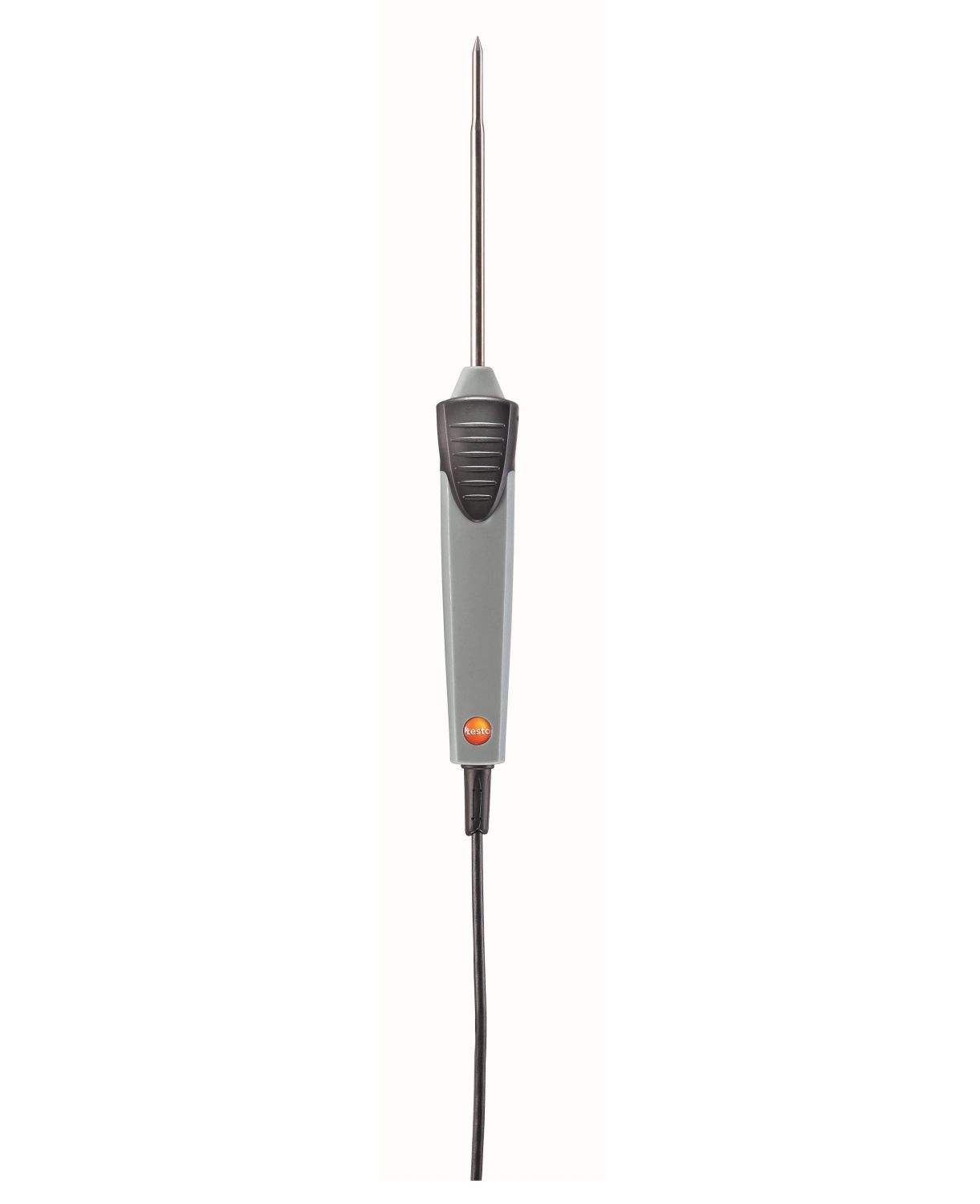

Waterproof immersion/penetration probe (NTC)

Part No. 0613 1212

Key Features:
  • NTC temperature sensor
  • Waterproof
  • Measuring accuracy of up to ±0.2 °C
  • Measuring range: -50 to +150 °C

Temperature - NTC Technical data
  • Measuring range -58.0° to 302.0 °F / -50 to +150 °C
  • Accuracy ±0.5 % of remaining measurement value (212.0° to 302 {#0.0} °F) / ±0.5 % of mv (100 to +150 °C)
  •                   ±0.4 °F (-13.0° to 166.8 {#0.0} °F) / ±0.2 °C (-25 to +74.9 °C)
  •                   ±0.7 °F (remaimig range) / ±0.4 °C (remaimig range)
  • Reaction time 10 sec

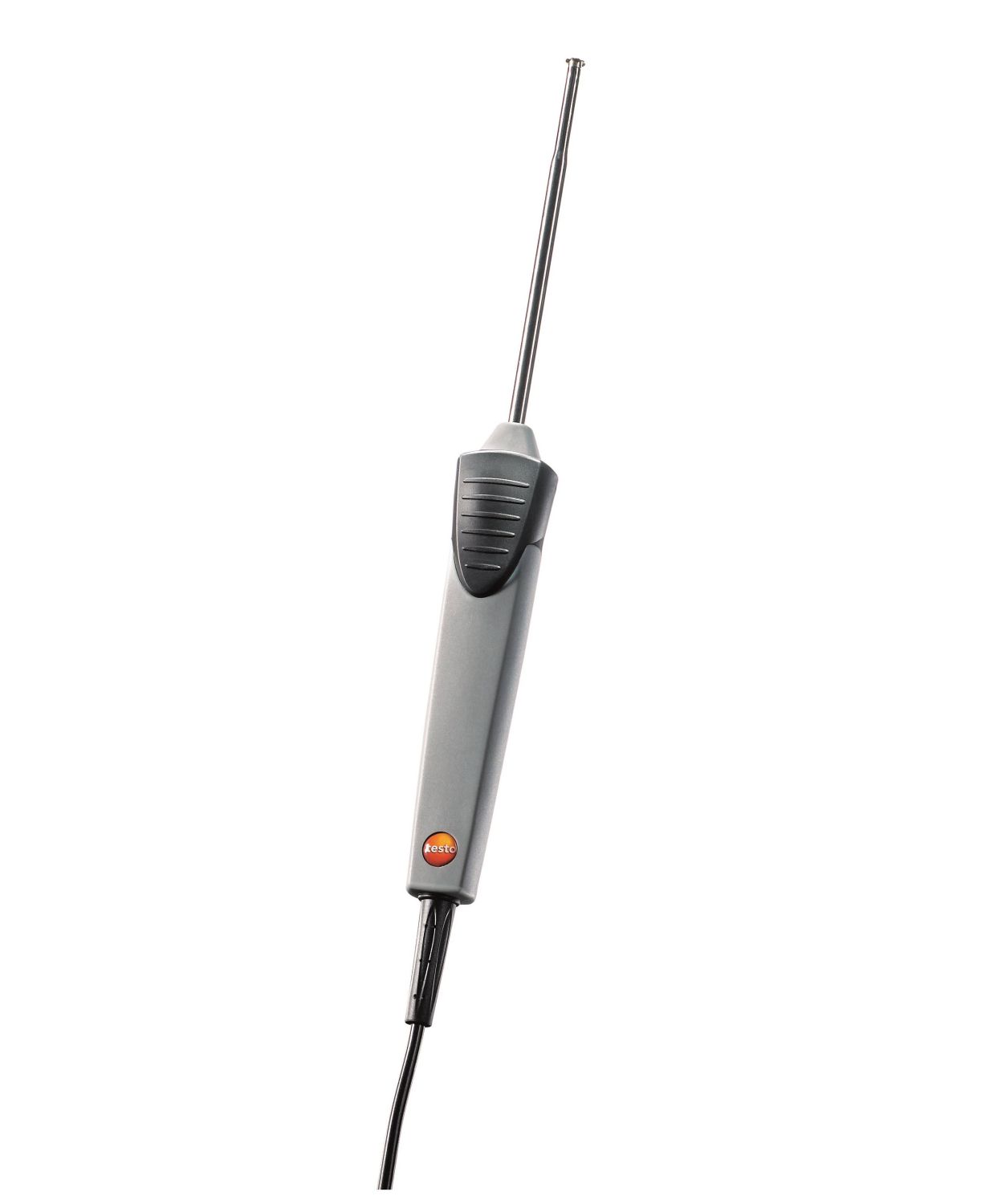

Waterproof surface probe (NTC)

Part No. 0613 1912

Waterproof NTC Temperature probe that is designed with a flat tip in order to take accurate readings of surface temperatures. Probe is waterproof making it ideal for areas where possible submersion may occur.

Key Features:
  • NTC temperature sensor
  • Measuring accuracy of up to ±0.2 °C
  • Ideal for measurements on refrigeration systems, in cold storage warehouses/rooms or outdoors
  • Measuring range: -50 to +150 °C

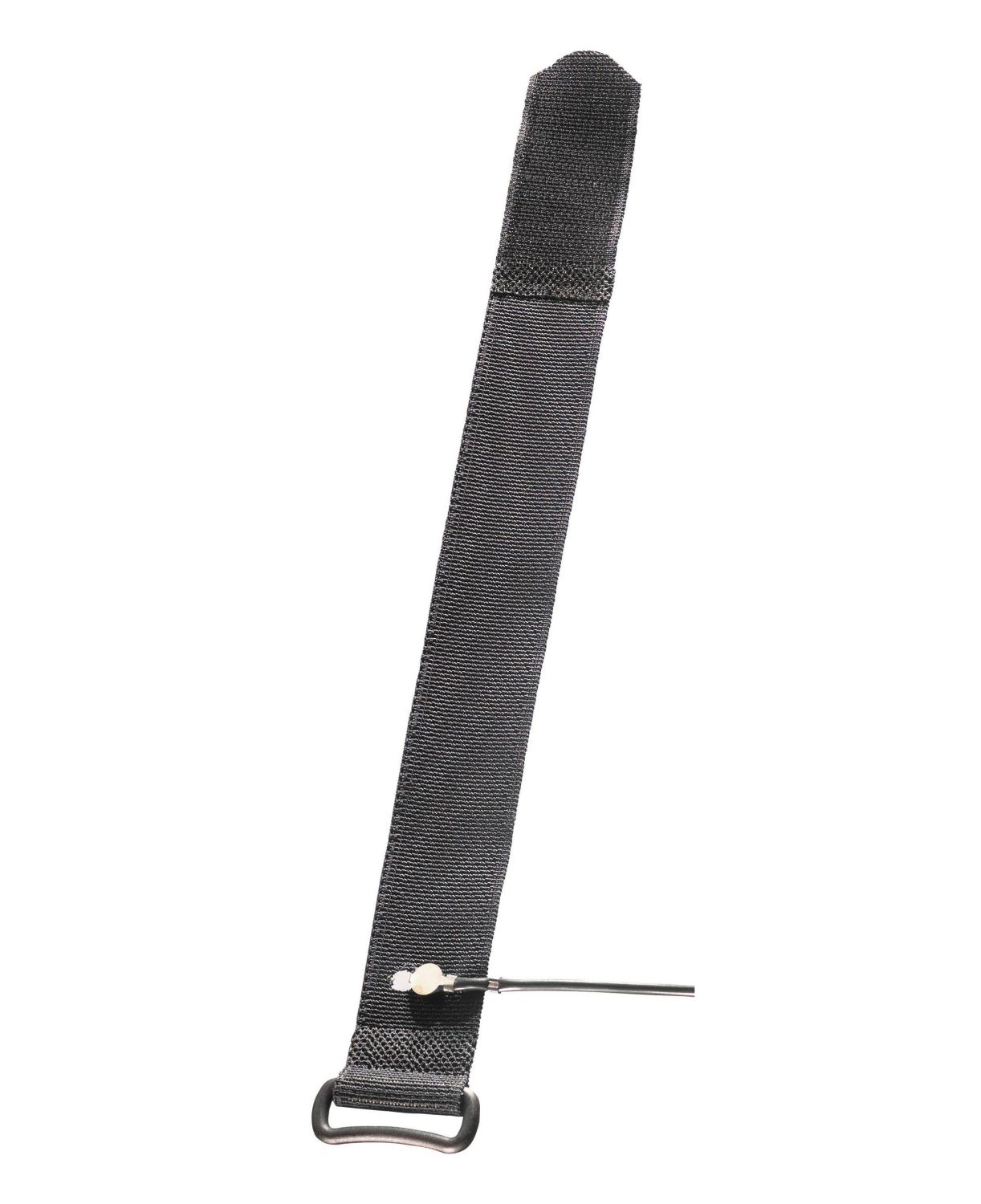

Temperature probe with Velcro (NTC)

Part No. 0613 4611

Key Features:
  • With Velcro: makes it easy to attach the surface probe to pipes with a pipe diameter of up to 75 mm
  • NTC temperature probe with cable
  • Measuring range: -58 to 158 °F (-50 to +70 °C)

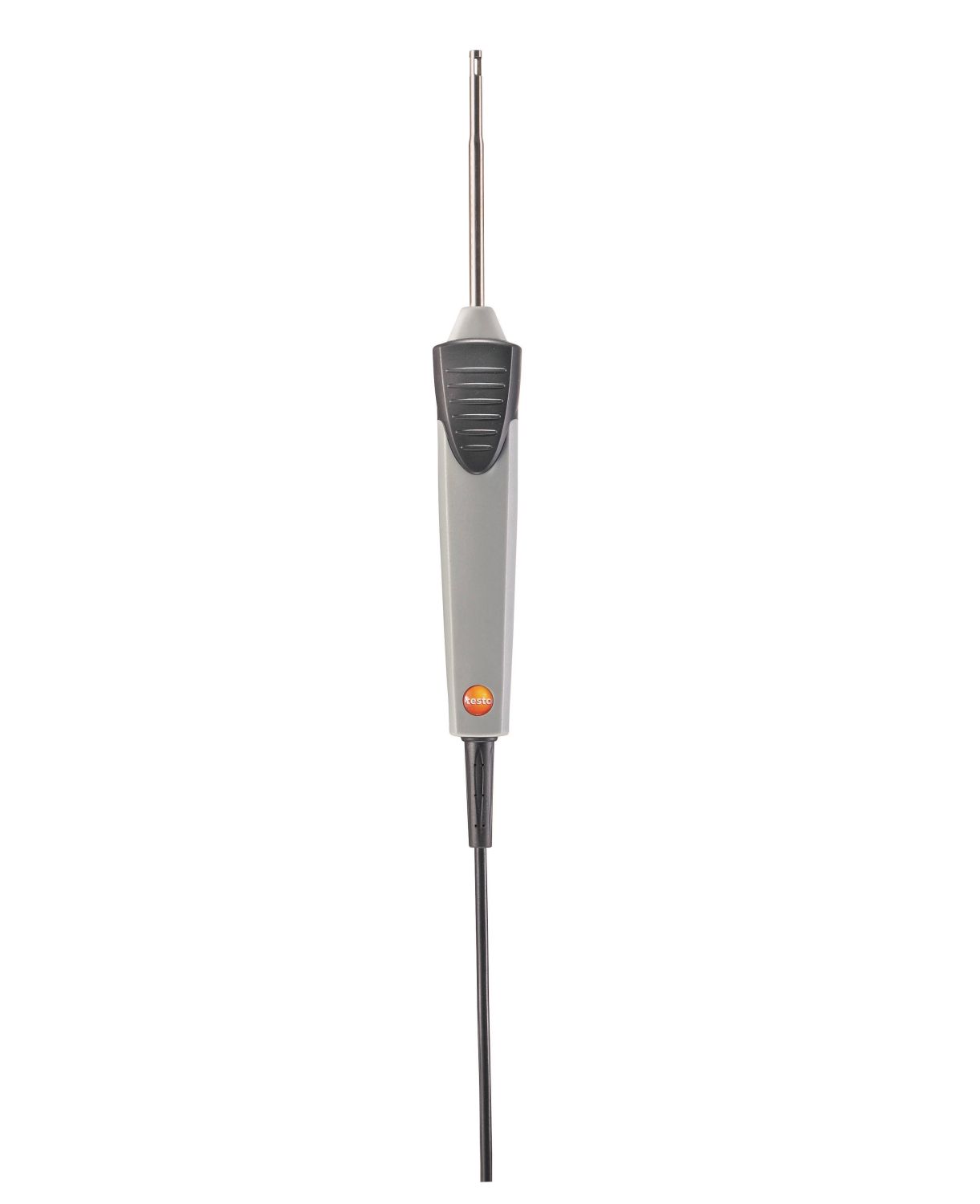

Robust air temperature probe (NTC)

Part No.  0613 1712

NTC Air Probe with a miniDIN type connection allows you to accurately measure air temperature. Compatible with any Testo product with a miniDIN connector, the NTC Air Probe is a solution for a variety of temperature applications.

Key Features:
  • Short response time thanks to the exposed sensor
  • High level of accuracy of up to ±0.2 °C
  • Measuring range: -50 to +125 °C
  • NTC temperature sensor

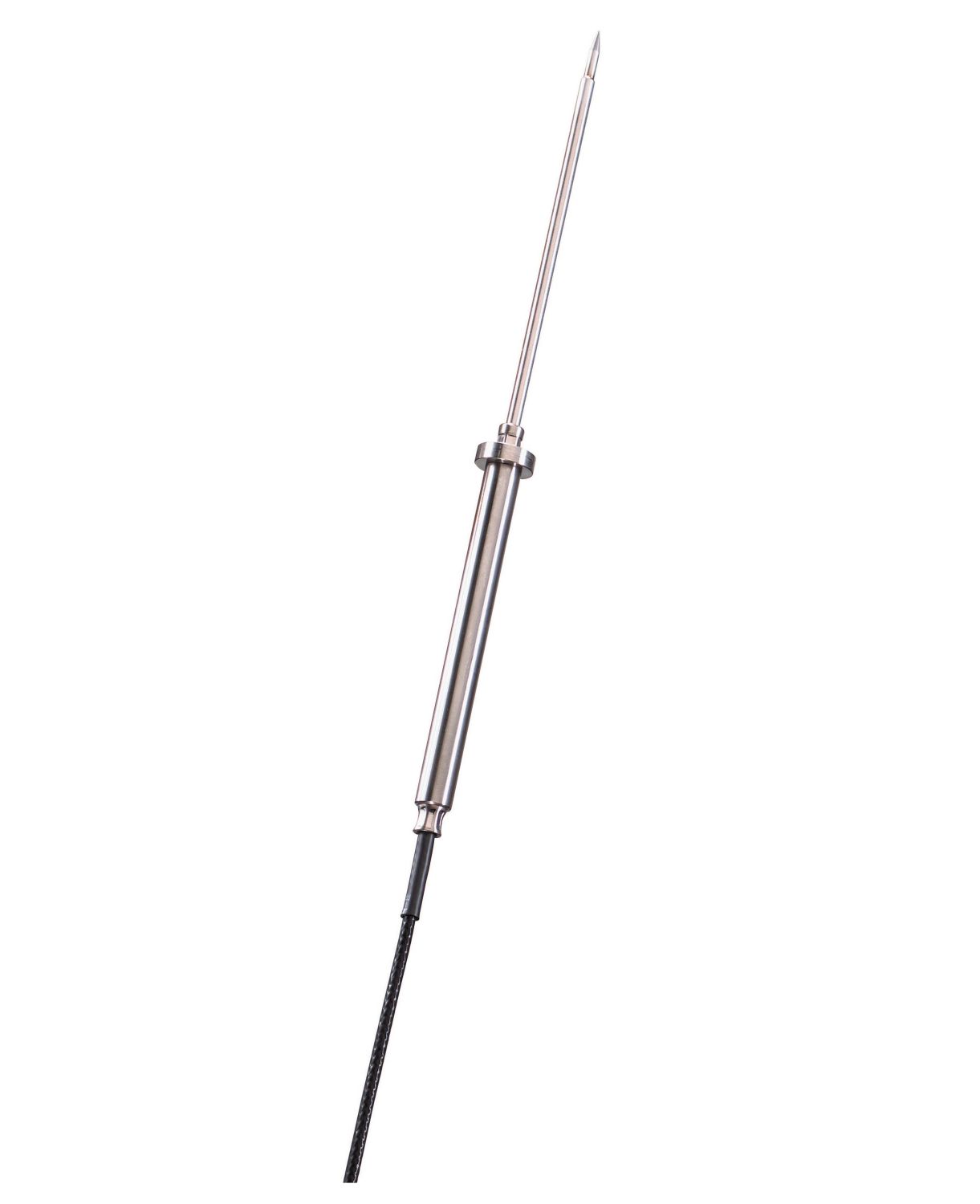

Stainless steel food probe (NTC)

Part No. 0613 2211

Key Features:
  • Precision NTC temperature sensor
  • Made of hygienic stainless steel, waterproof according to IP65
  • Short response time of 8 seconds
  • Measuring range: -50 to +150 °C

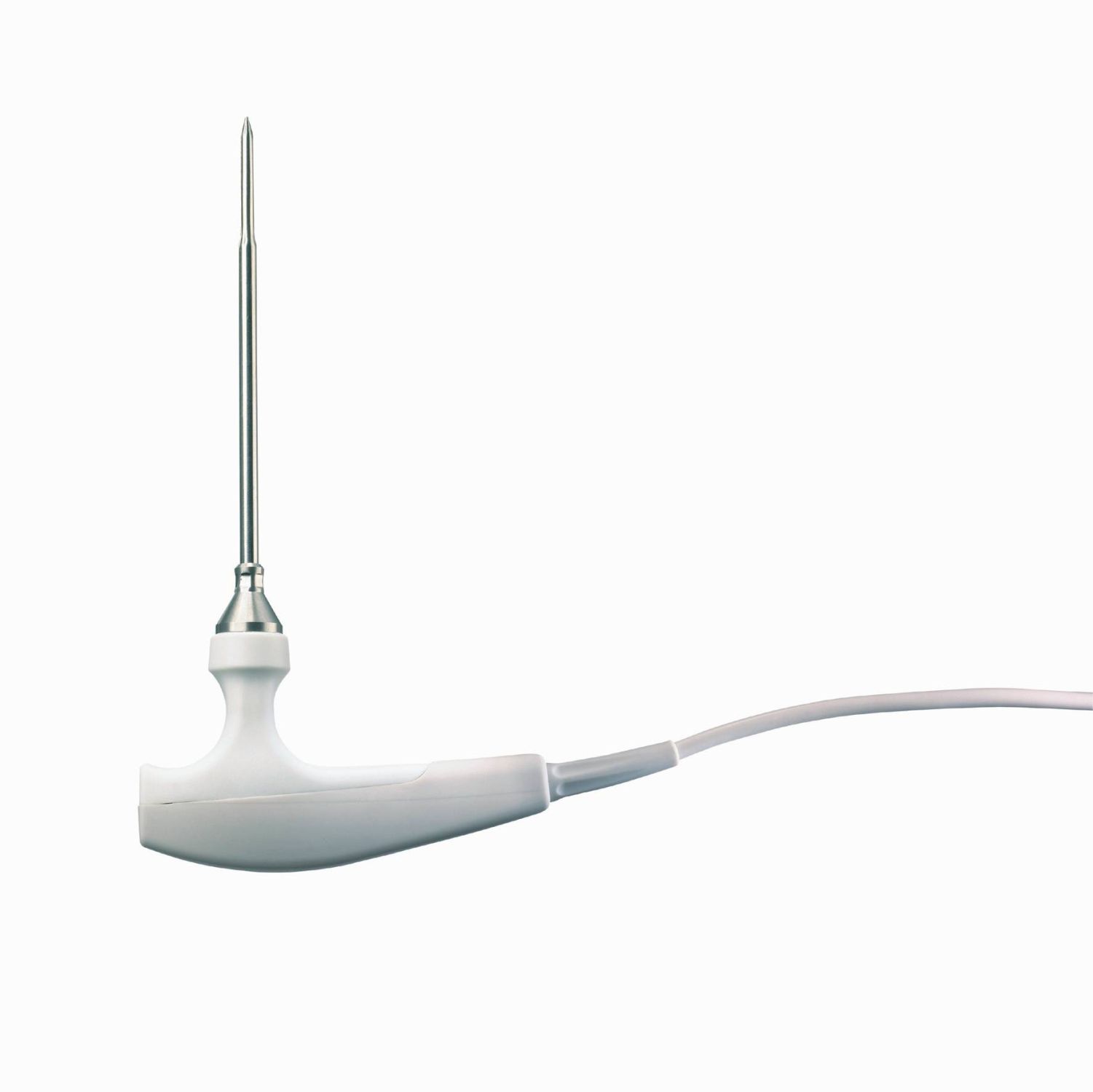

Robust food penetration probe (NTC)

Part No. 0613 2411
  • The robust food penetration probe (with a corresponding measuring instrument) enables the measurement of core food temperatures.
Key Features:
  • NTC temperature sensor
  • EN 13485 and HACCP-compliant
  • With special handle, reinforced PUR cable
  • Measuring range: -25 to +150 °C

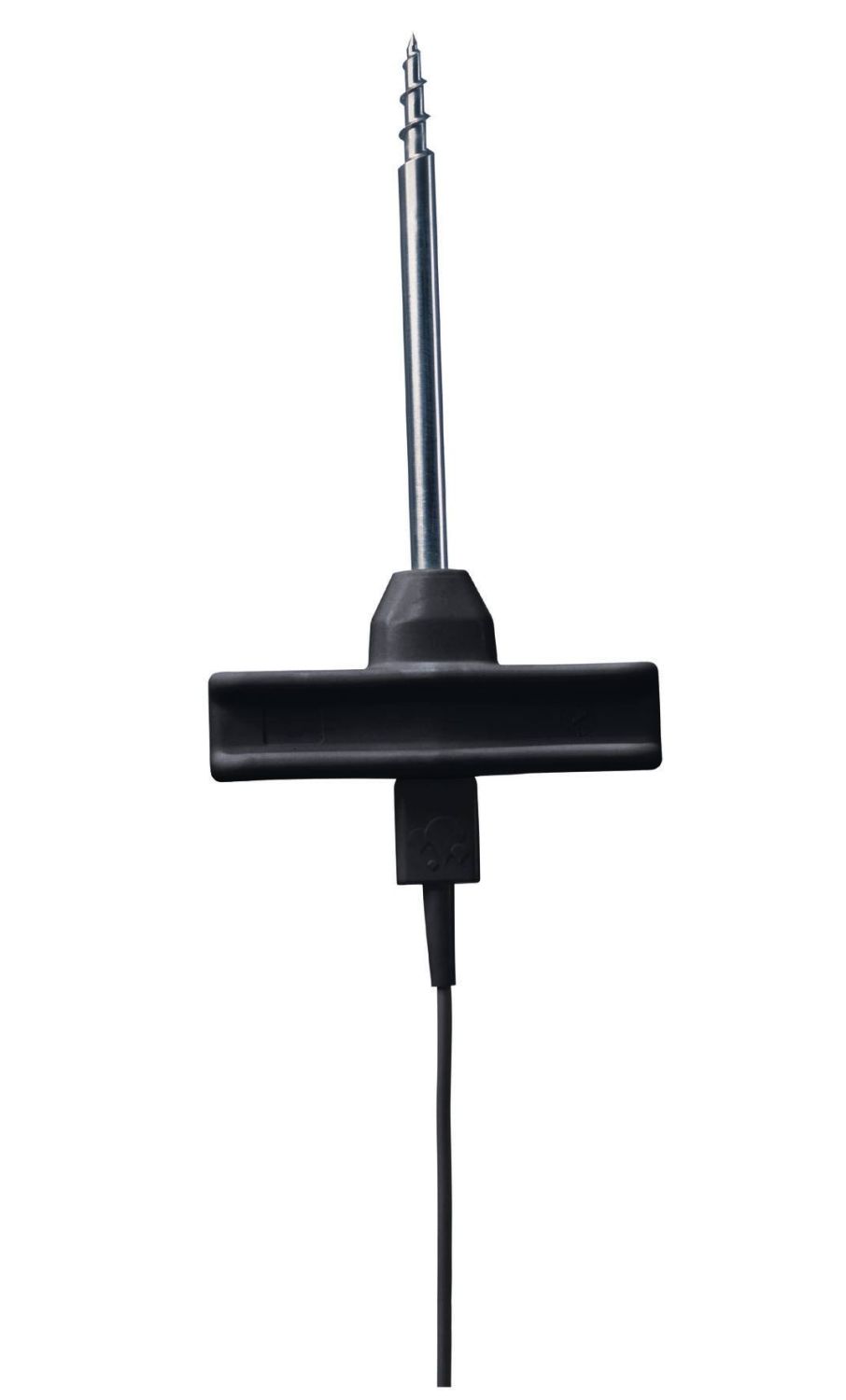

Frozen food probe (NTC) - for screw-in use

Part No. 0613 3211

Key Features:
  • NTC temperature sensor
  • Can be screwed directly into frozen food, no pre-drilling required
  • EN 13485 and HACCP-compliant
  • Measuring range: -50 to +140 °C

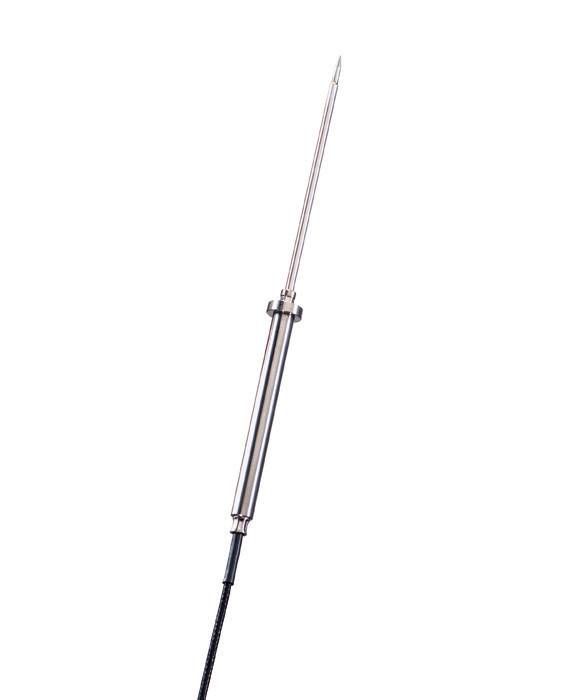

Waterproof stainless steel food probe (NTC)

Part No. 0613 3311

Key Features:
  • NTC temperature sensor
  • EN 13485 and HACCP-compliant, water-protected according to IP 67
  • Measuring range: -50 to +150 °C
  • Heat-resistant probe cable

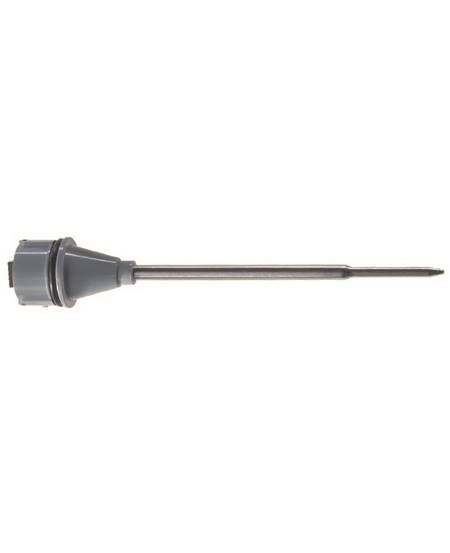

T/C PROBE HEAD FOR AIR/IMMERSION/PENETRATION MEASUREMENT (T/C TYPE K)

Part No. 0602 0293

Temperature - Type K TC Technical Data

  •  Measuring range -58.0 ° to 662.0 ° F / -50 to +350 ° C , t2 +932.0 ° F / t2 + 500 ° C
  •  Accuracy Radio handle:
  • ± (32.9 ° F 0.3% of remaining measurement value) -40.0 to 500.0 ° F / ± (0.5 ° C +0.3% of mv) (-40 to +500 ° C
  • ± (33.3 ° F 0.5% of residual measurement value) (Remaining Range) / ± (0.7 ° C +0.5% of mv) (Remaining Range)
  • T / C probe head: Class 2
  •  Resolution 0.1 ° F (-58.0 to 391.8 ° F) / 0.1 ° C (-50 to +199.9 ° C)
  • 1.0 ° F Remaining Range / 1.0 ° C Remaining Range
  •  Reaction time (in water) 10 sec

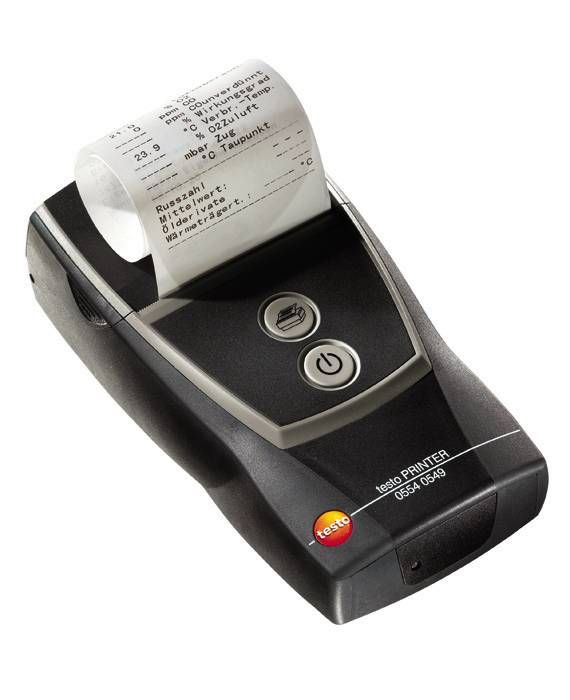

Testo quick printer

Part No. 0554 0549

Compact printer, with IRDA technology offers fast, easy to read printouts of measurements at every job site. Internal magnets will hold the printer to magnetic surfaces for hands free operation.

Key Features:
  • Evaluate restoration measures quickly and without error.
  • Measurement of air moisture, material equilibrium moisture, pressure dew point
  • Instrument memory for up to 10,000 readings

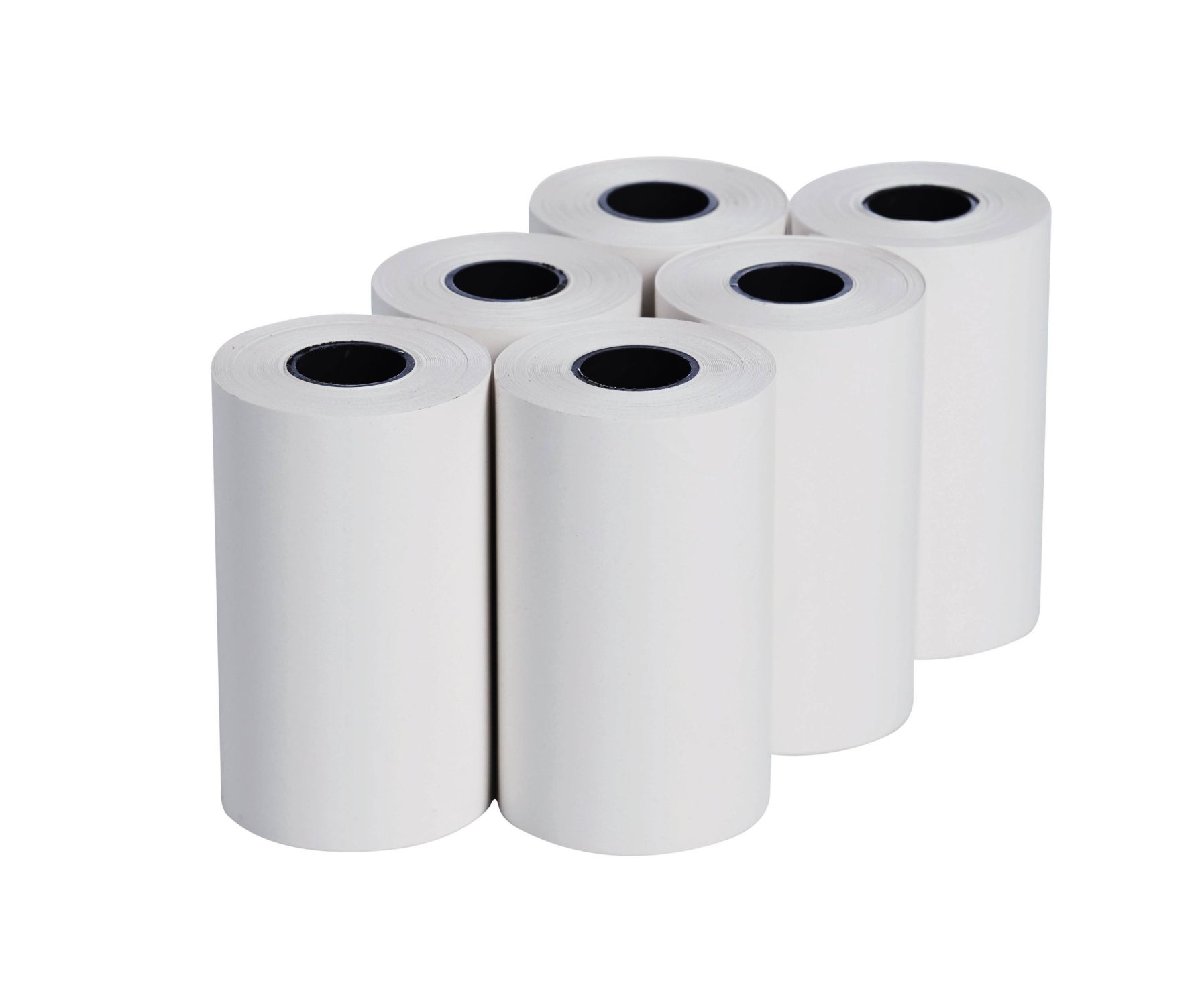

Spare thermal paper for printer, permanent ink

Part No. 0554 0568

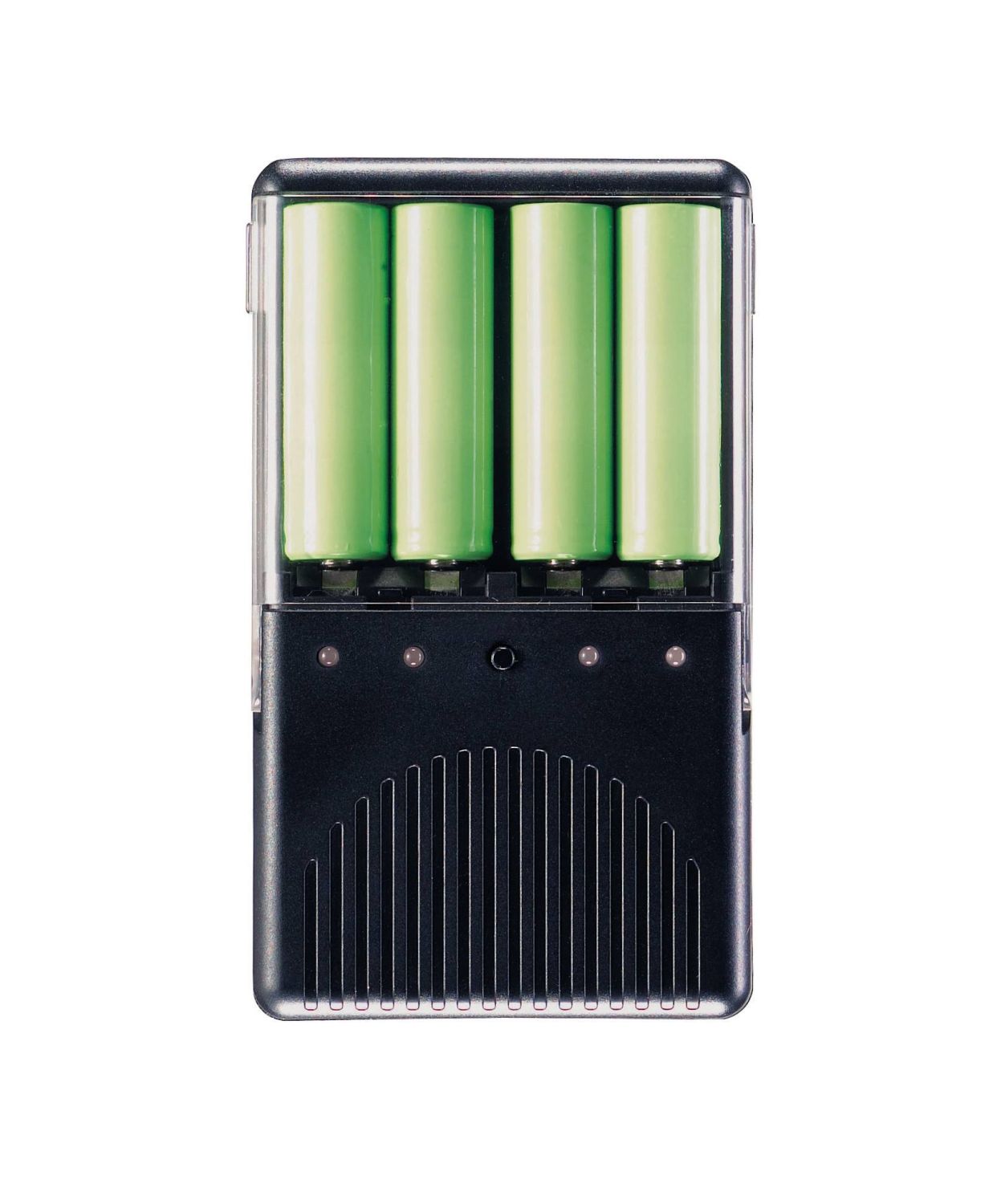

External fast charger for 1-4 AA rech. batteries

Part No. 0554 0610

External fast charger for 1-4 AA rech. batteries, incl. 4 Ni-MH rech. batteries with individual cell charging and charge control display, incl. impulse trickle charging, integrated discharge function, with built-in international mains plug, 100-240 V, 300 mA, 50/60 Hz

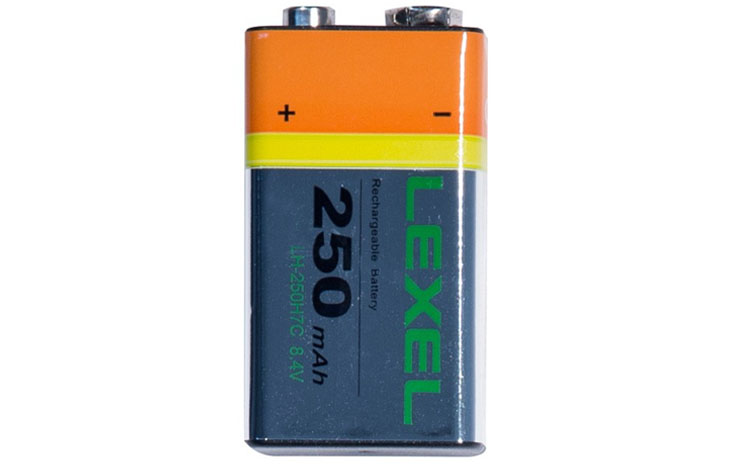

9V RECH. BATTERY FOR INSTRUMENT, INSTEAD OF BATTERY

Part No. 0515 0025

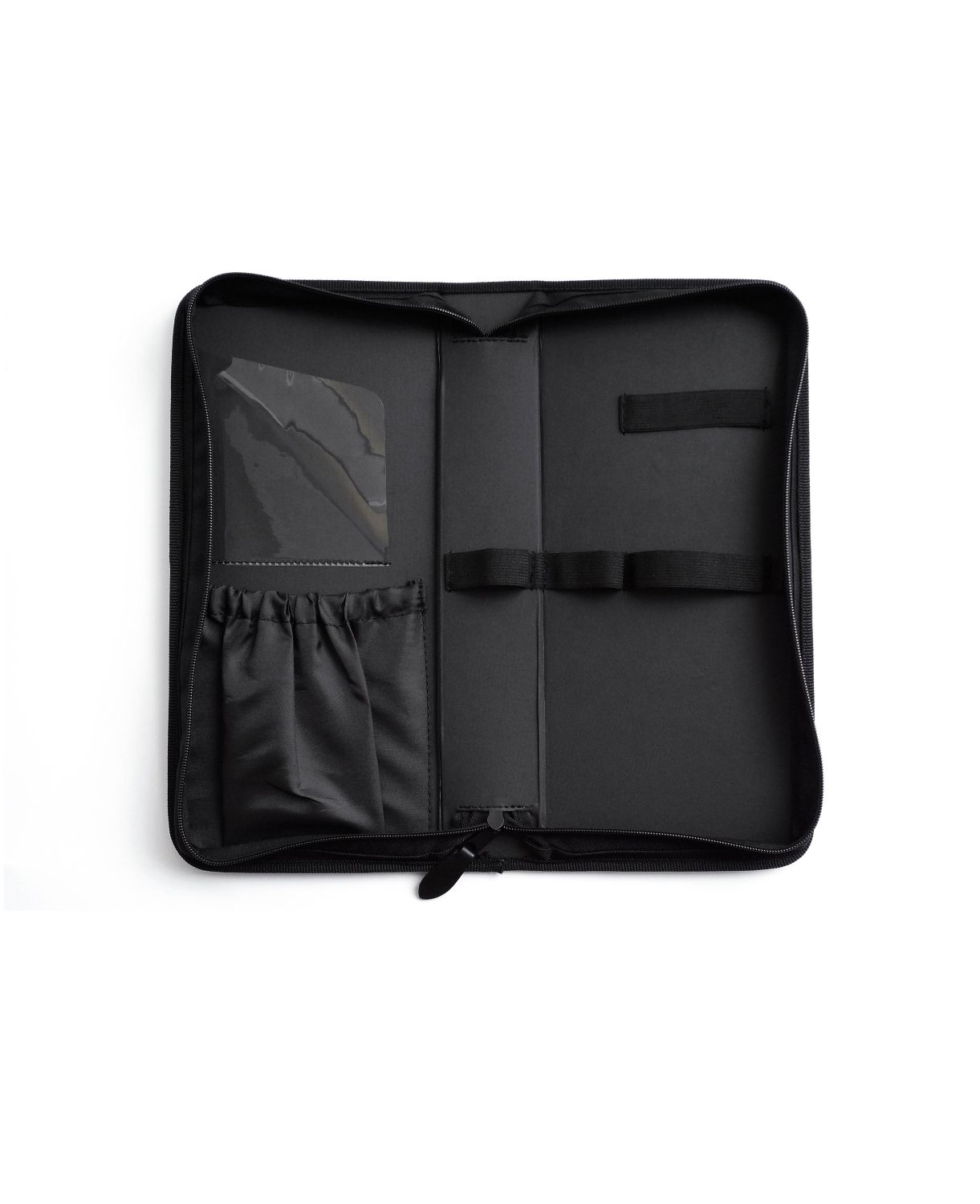

Case for measuring instrument and probes

Part No. 0516 0210

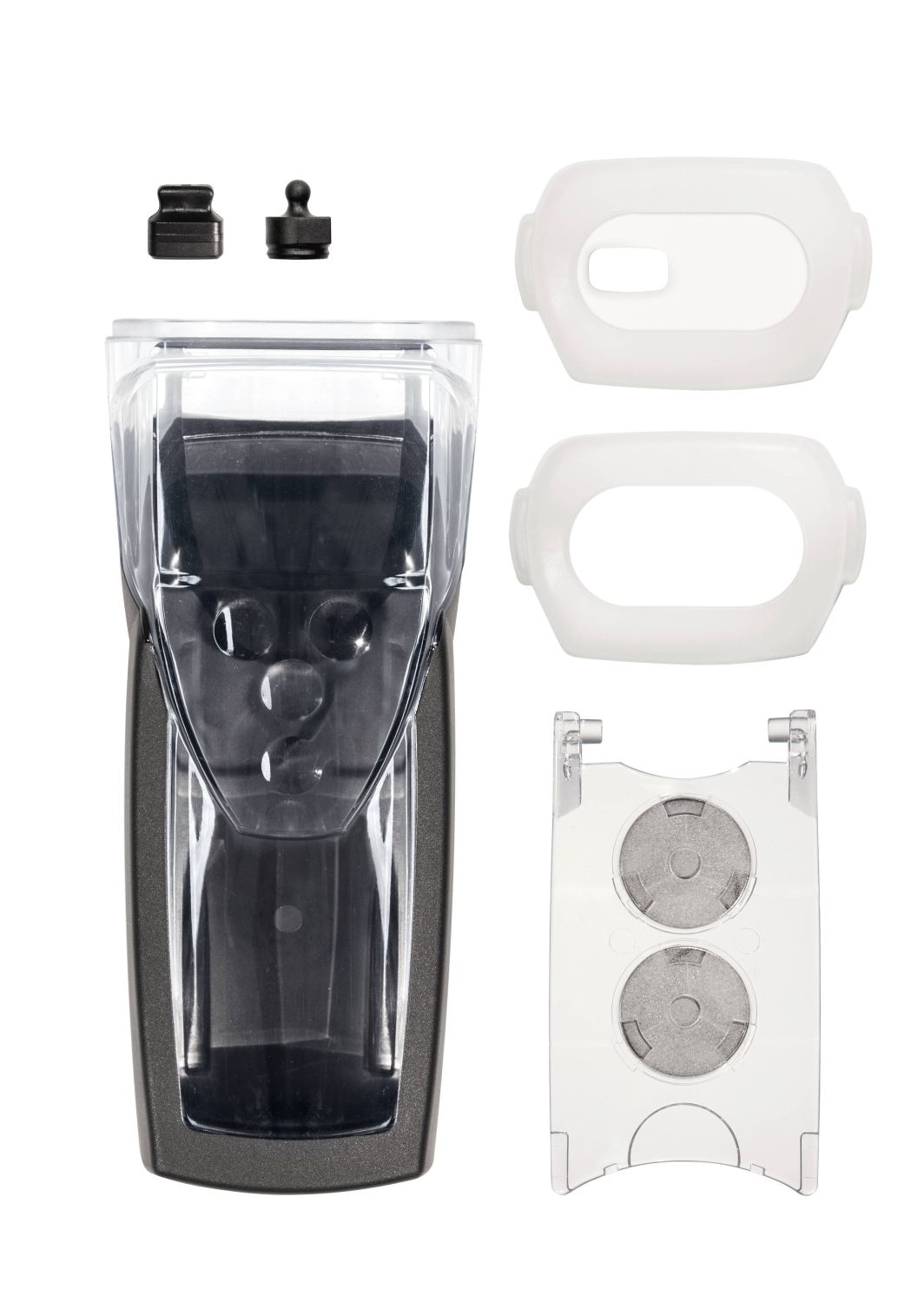

TopSafe, protects from impact and dirt

Part No. 0516 0221

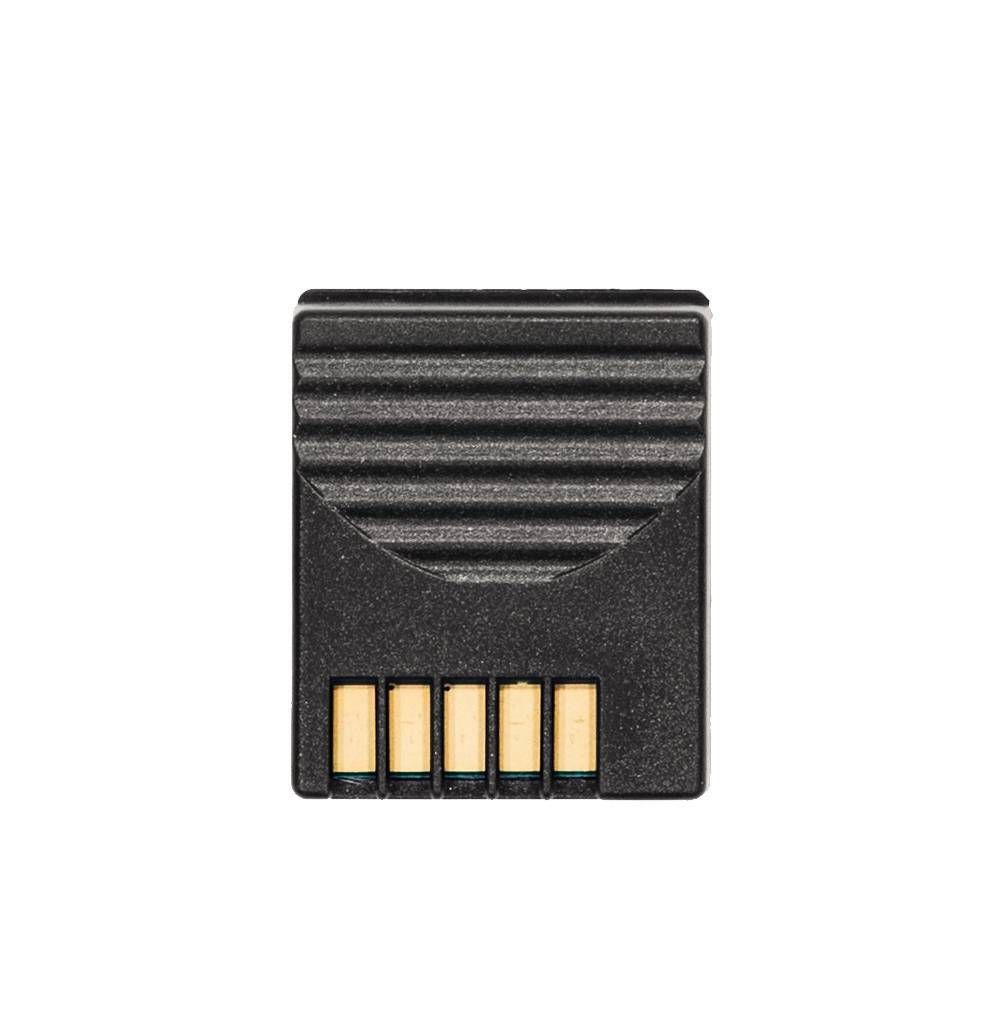

Radio module for measuring instrument, 869.85 MHz, approval for the countries

Part No. 0554 0188

Radio module for measuring instrument, 869.85 MHz, approval for the countries: DE, FR, UK, BE, NL, ES, IT, SE, AT, DK, FI, HU, CZ, PL, GR, CH, PT, SI, MT, CY, SK, LU, EE, LT, IE, LV, NO

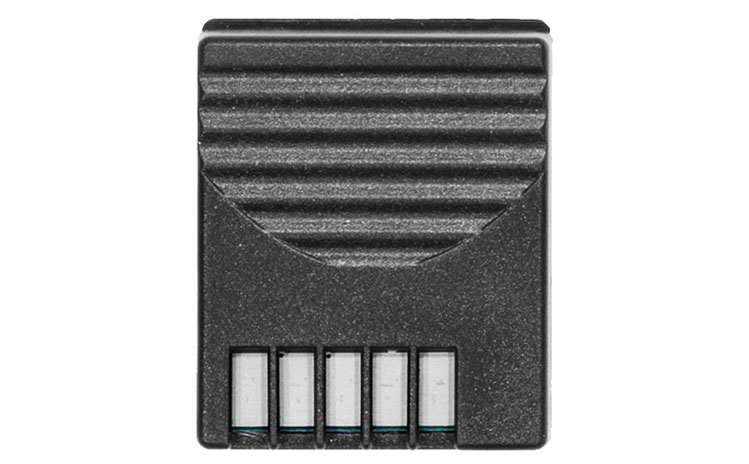

WIRELESS MODULE FOR MEASURING INSTRUMENT, 915.00 MHZ FSK, APPROVED FOR USA & CANADA

Part No. 0554 0190


ISO temperature calibration certificate - with 3 measuring points

Part No. 0520 0001


ISO temperature calibration certificate - with 1 measuring point

Part No. 0520 0072

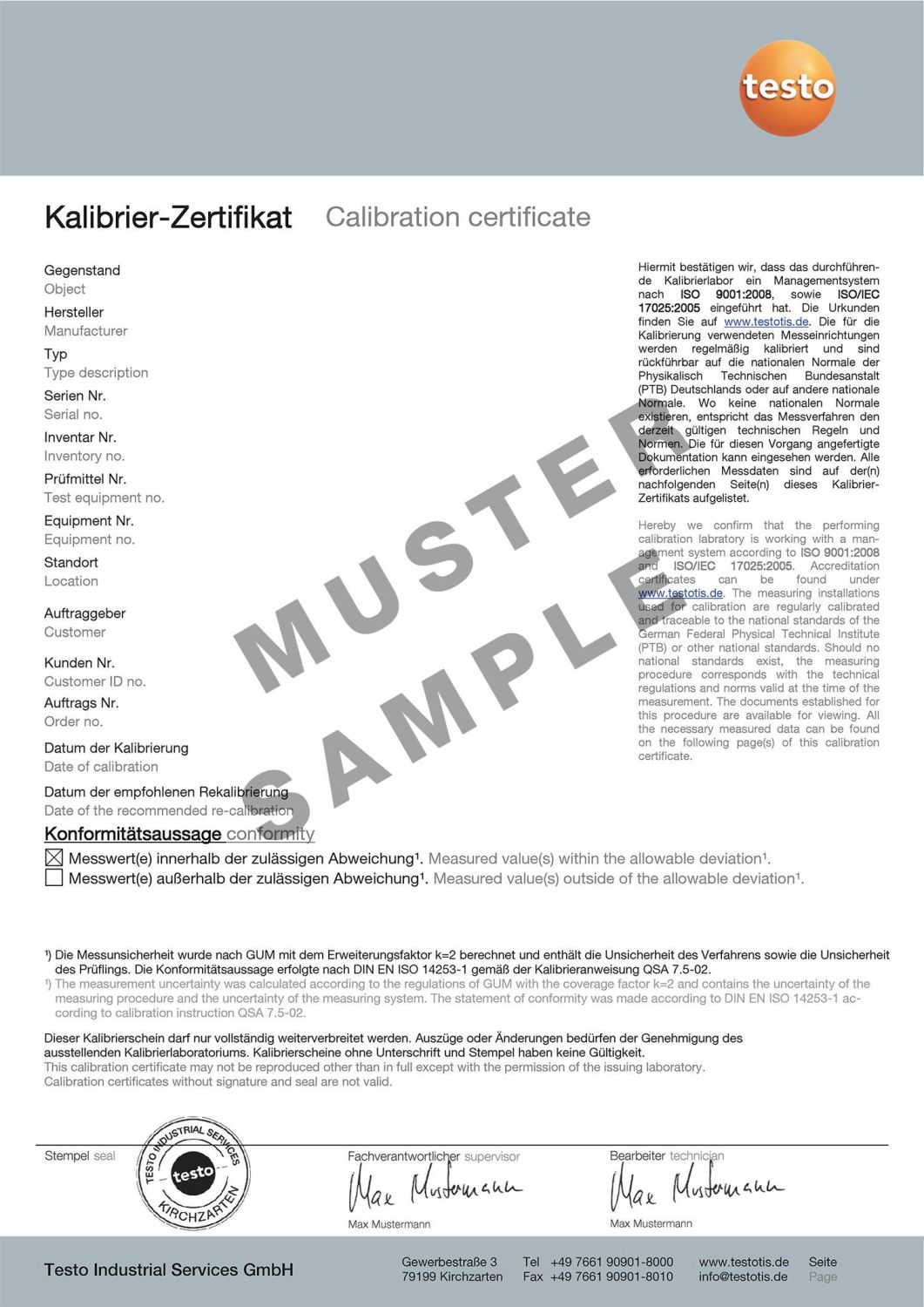

ISO temperature calibration certificate - with 1 measuring point

Part No. 0520 0073


DAkkS temperature calibration certificate - with 3 measuring points

Part No. 0520 0211
