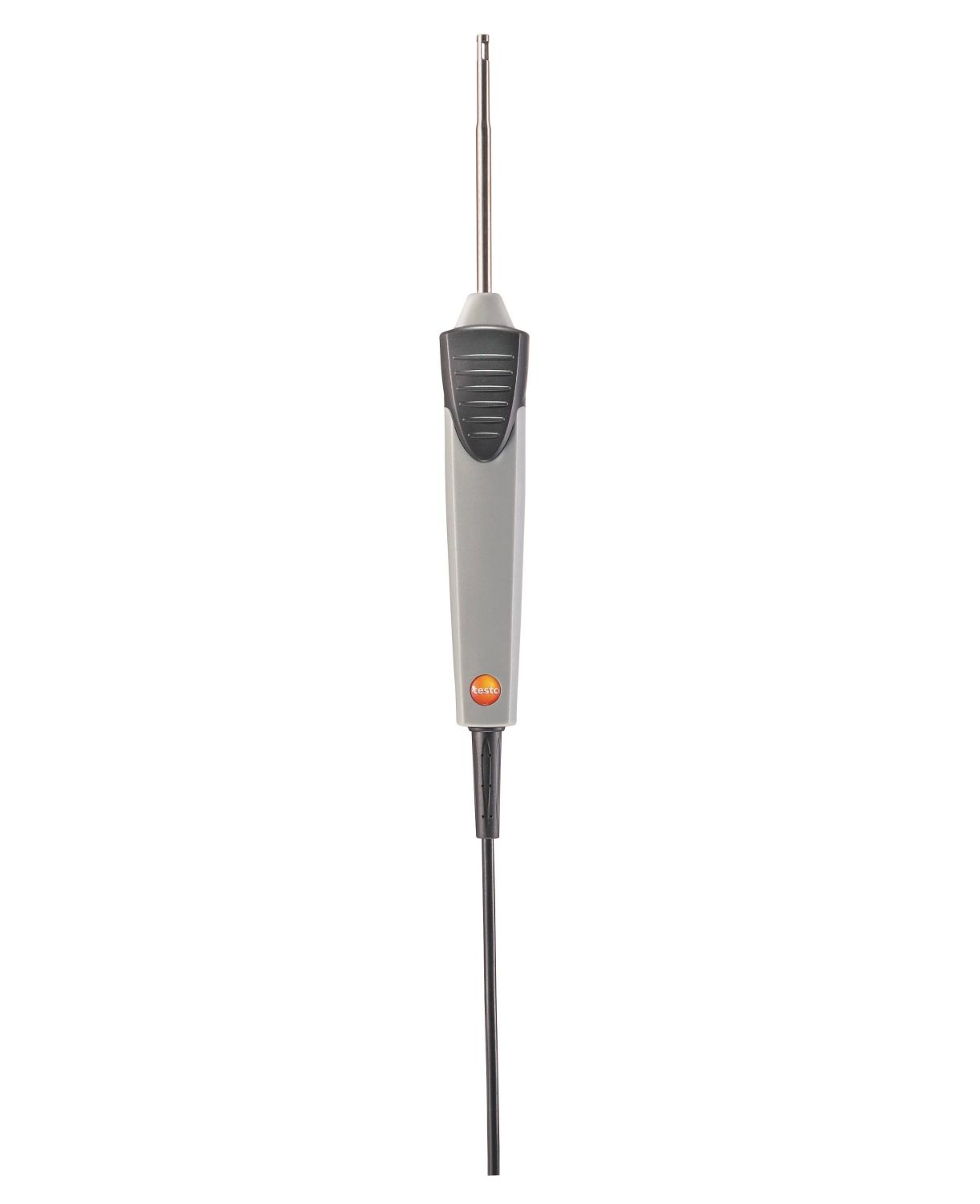

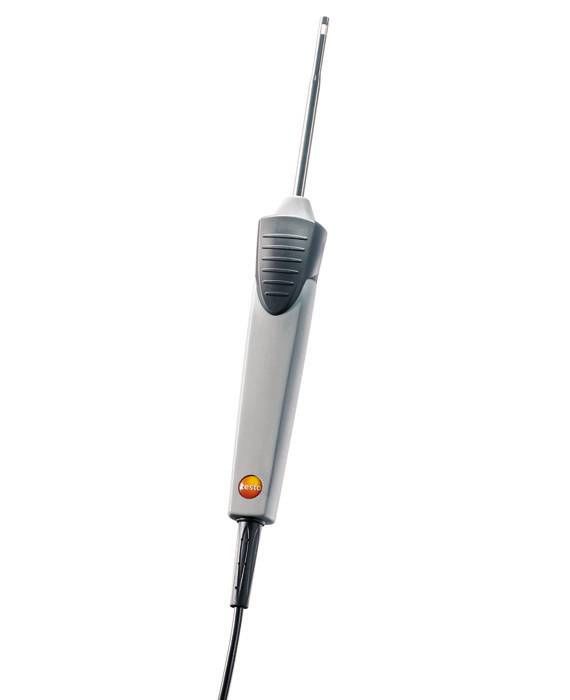

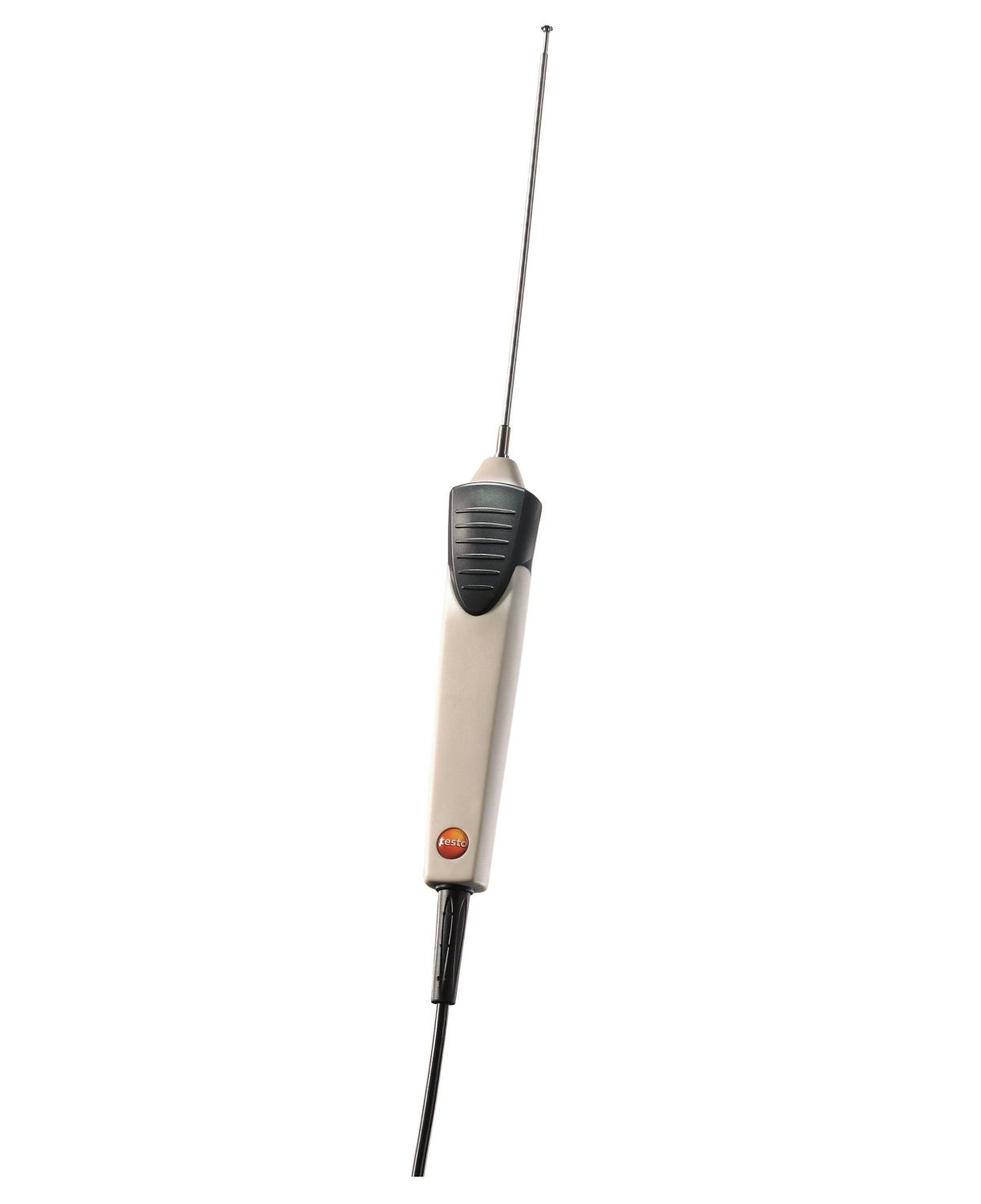

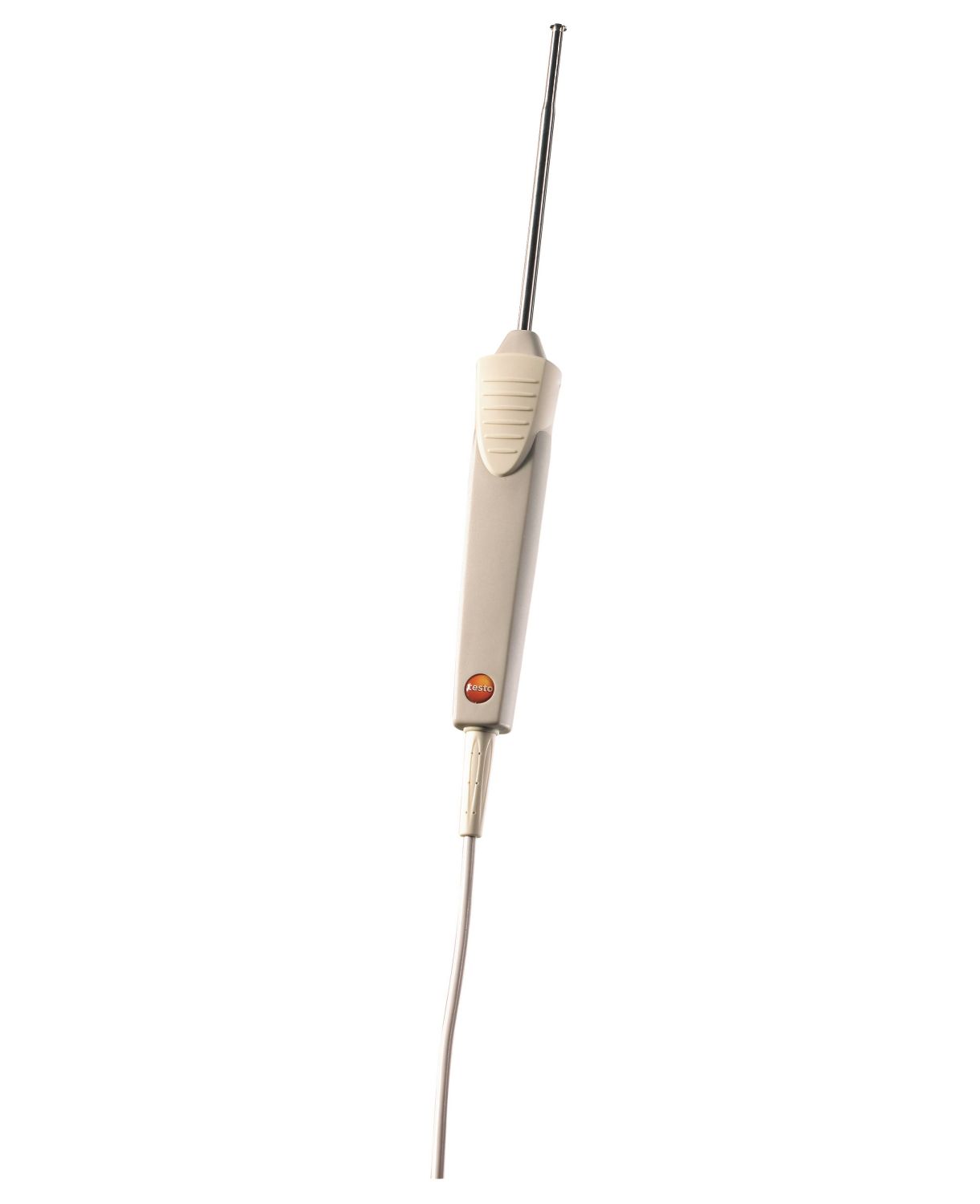

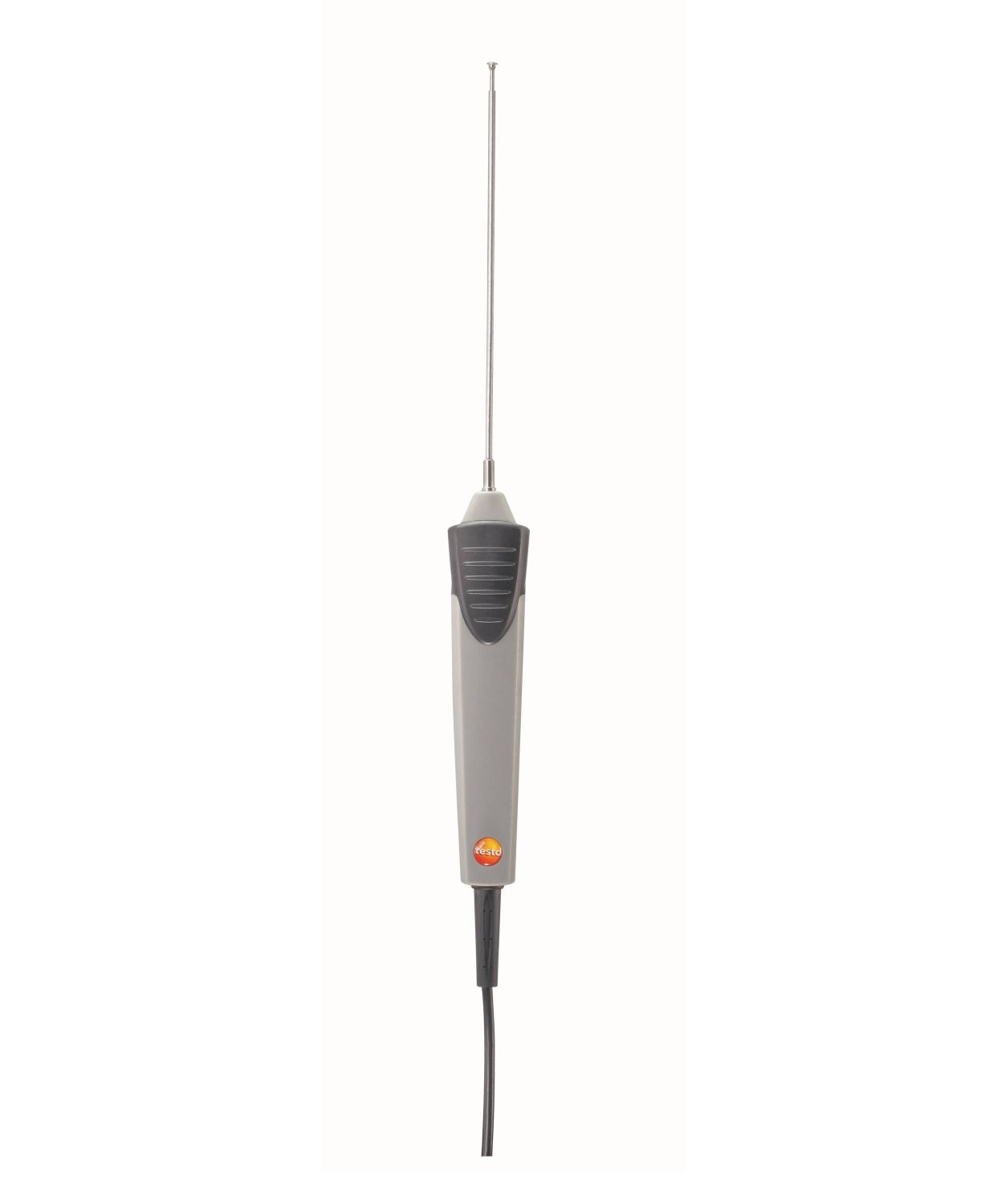

Robust air temperature probe (TC type K)

• Use the robust air temperature probe with exposed sensor (thermocouple type K) to measure air temperature with a short response time. It can be connected to a wide range of measuring instruments.

• Thermocouple type K
• Short response time thanks to the exposed sensor
• Can be connected to a wide range of measuring instruments
• Measuring range: -60 to +400 °C

Robust, affordable air probe, T/C Type T

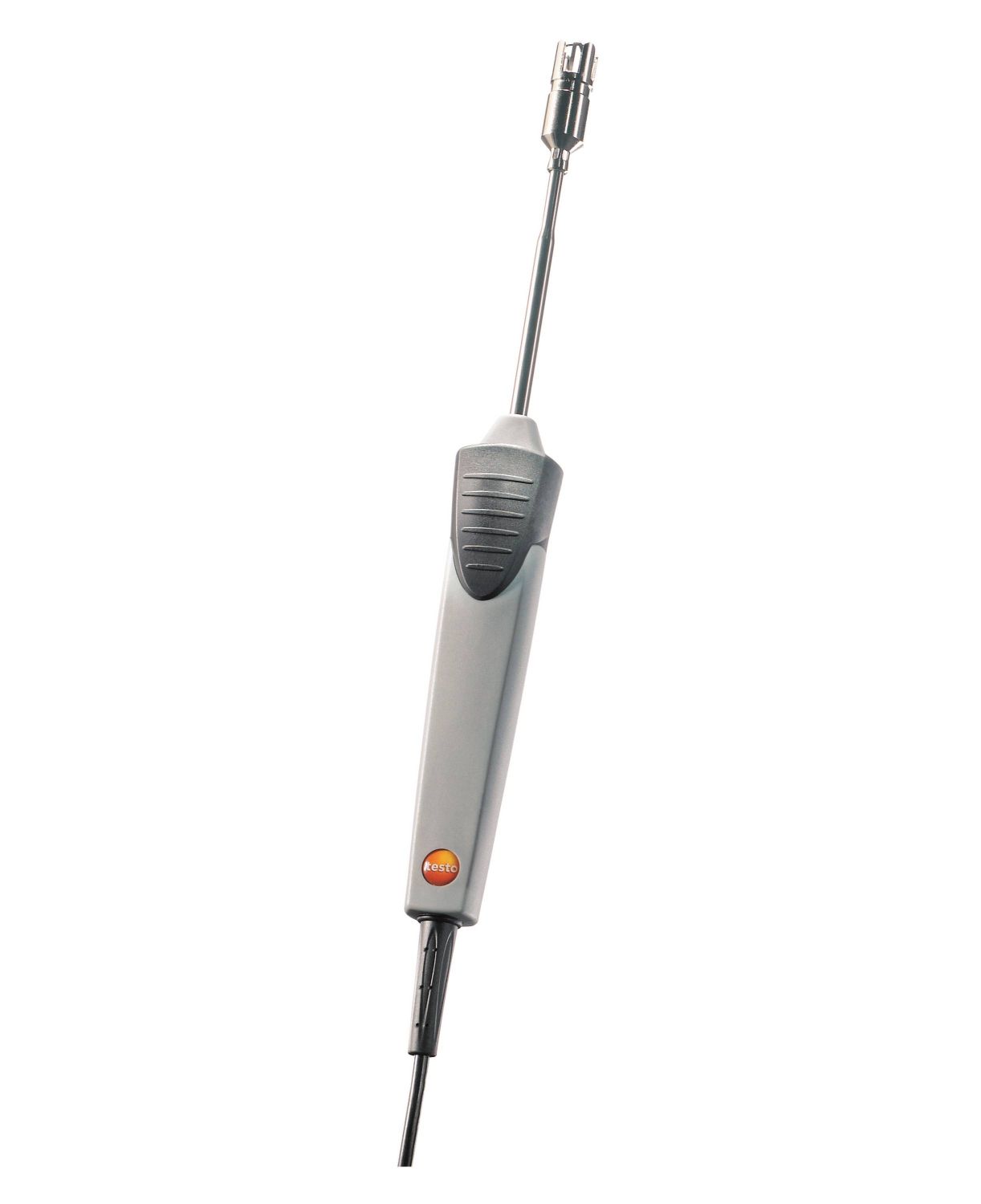

Efficient, robust air probe, Pt100

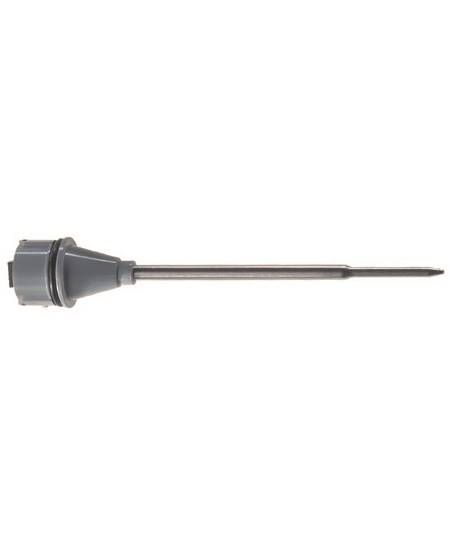

T/C PROBE HEAD FOR AIR/IMMERSION/PENETRATION MEASUREMENT (T/C TYPE K)

•  Measuring range -58.0 ° to 662.0 ° F / -50 to +350 ° C , t2 +932.0 ° F / t2 + 500 ° C
•  Accuracy Radio handle:
• ± (32.9 ° F 0.3% of remaining measurement value) -40.0 to 500.0 ° F / ± (0.5 ° C +0.3% of mv) (-40 to +500 ° C
• ± (33.3 ° F 0.5% of residual measurement value) (Remaining Range) / ± (0.7 ° C +0.5% of mv) (Remaining Range)
• T / C probe head: Class 2
•  Resolution 0.1 ° F (-58.0 to 391.8 ° F) / 0.1 ° C (-50 to +199.9 ° C)
• 1.0 ° F Remaining Range / 1.0 ° C Remaining Range
•  Reaction time (in water) 10 sec

Waterproof food probe made of stainless steel (IP65), TC Type K

Waterproof standard immersion/penetration probe (TC type T)

Stainless steel food probe (IP67) with PUR cable, T/C Type T

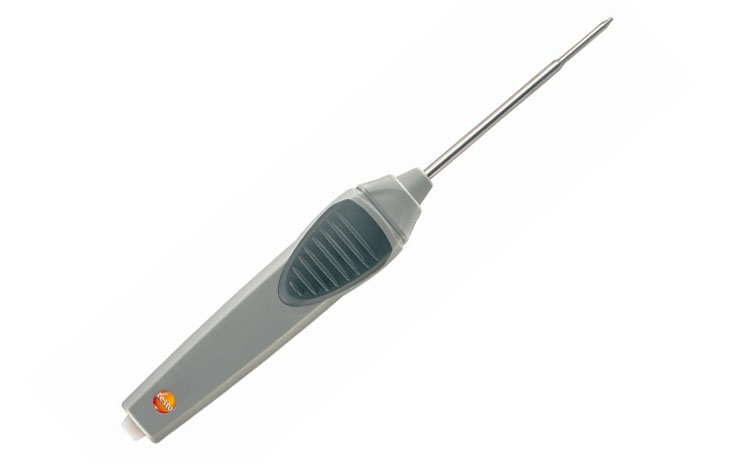

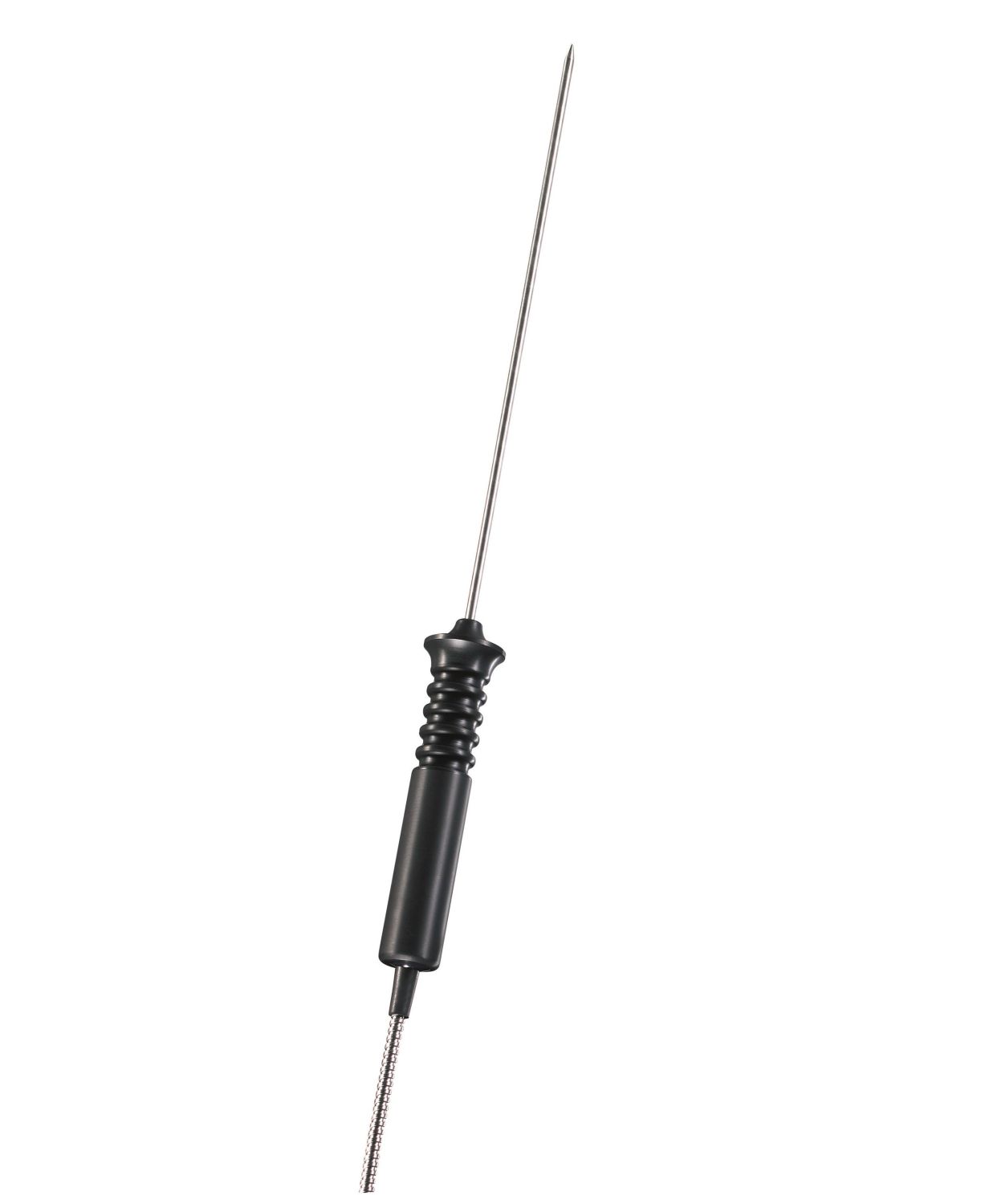

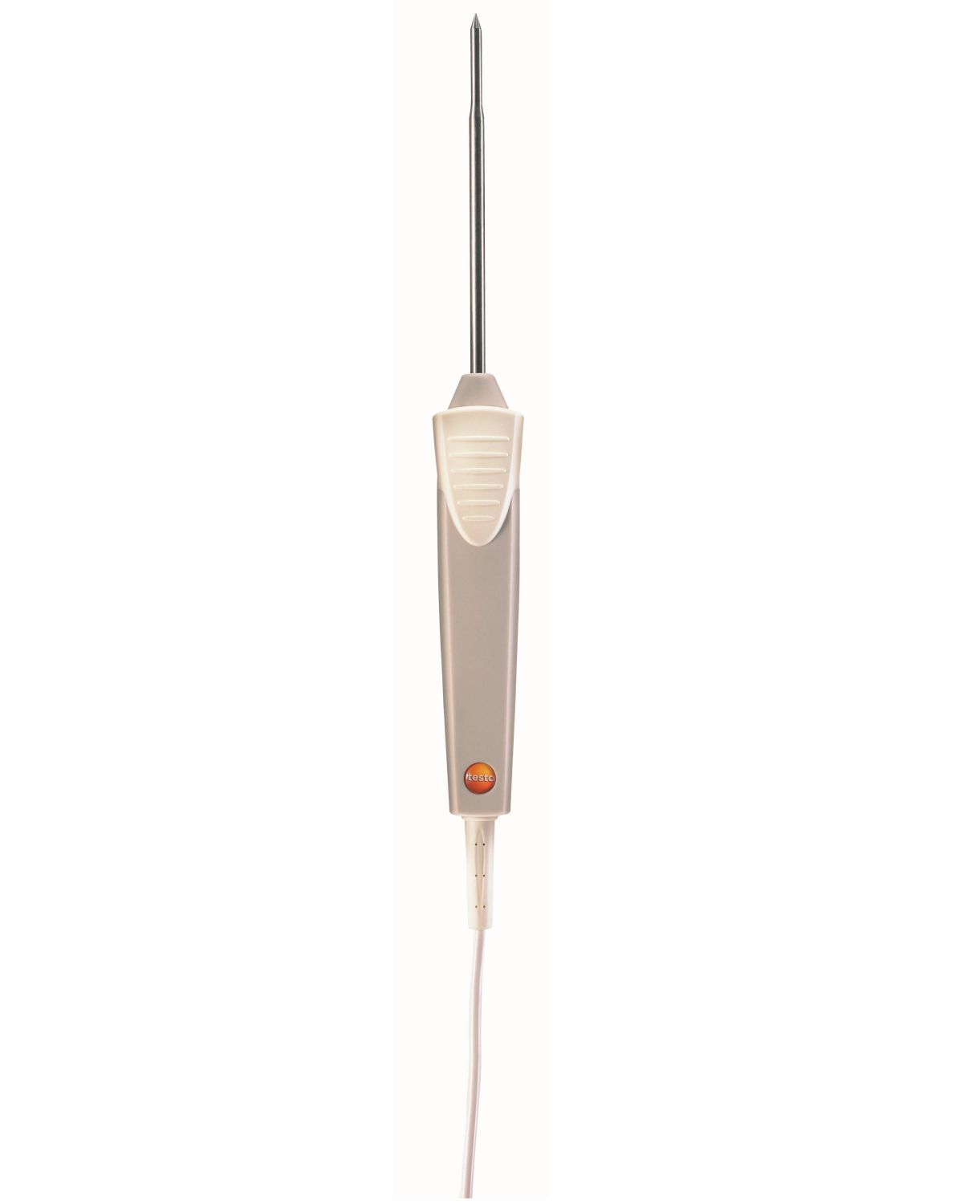

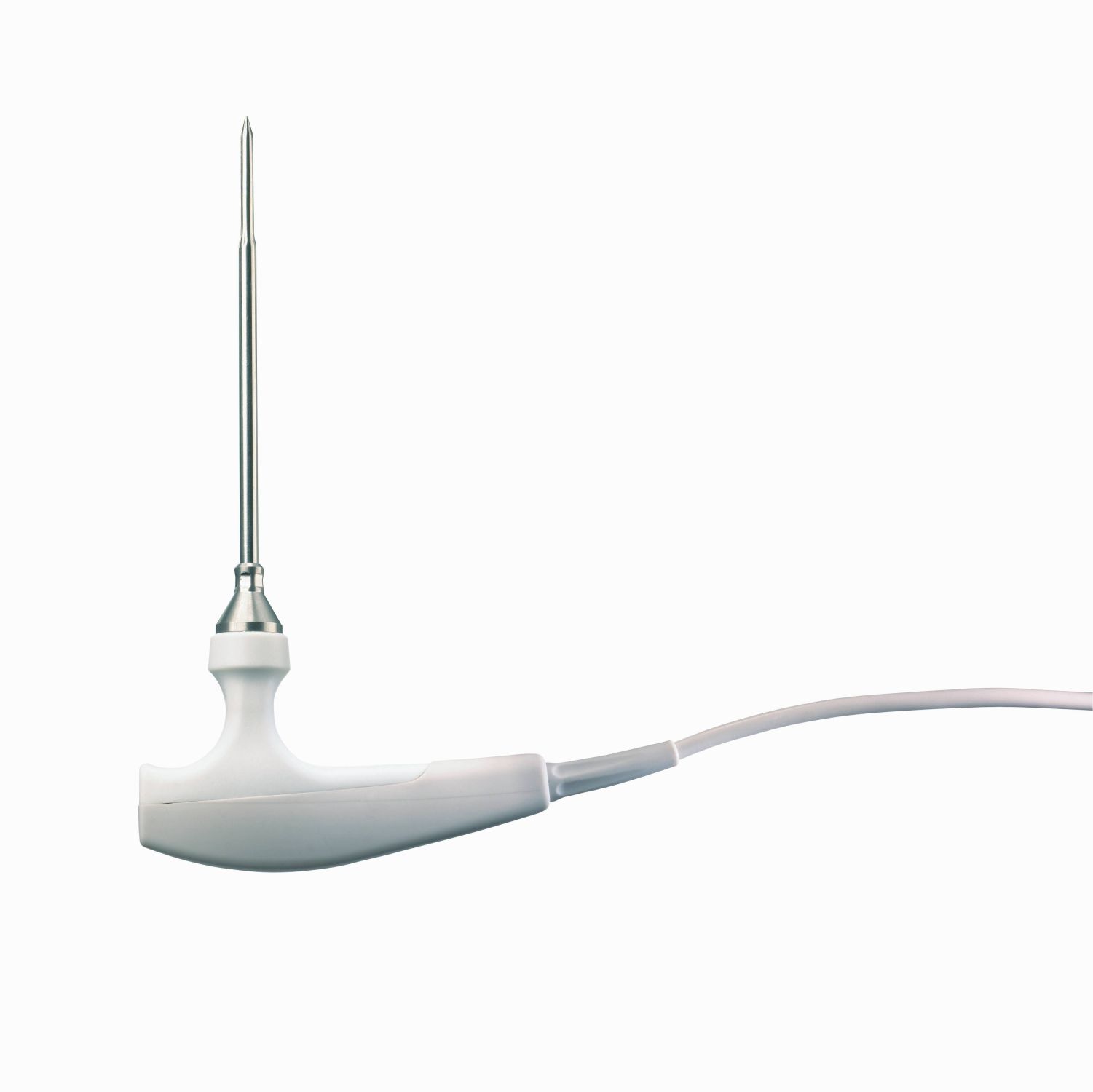

Robust food penetration probe (TC type T)

• The robust food penetration probe (with a corresponding measuring instrument) enables quick and accurate measurement of the core temperature of food.

• Thermocouple type T
• EN 13485 and HACCP-compliant
• With special handle, reinforced cable (PVC)
• Measuring range: -50 to +350 °C

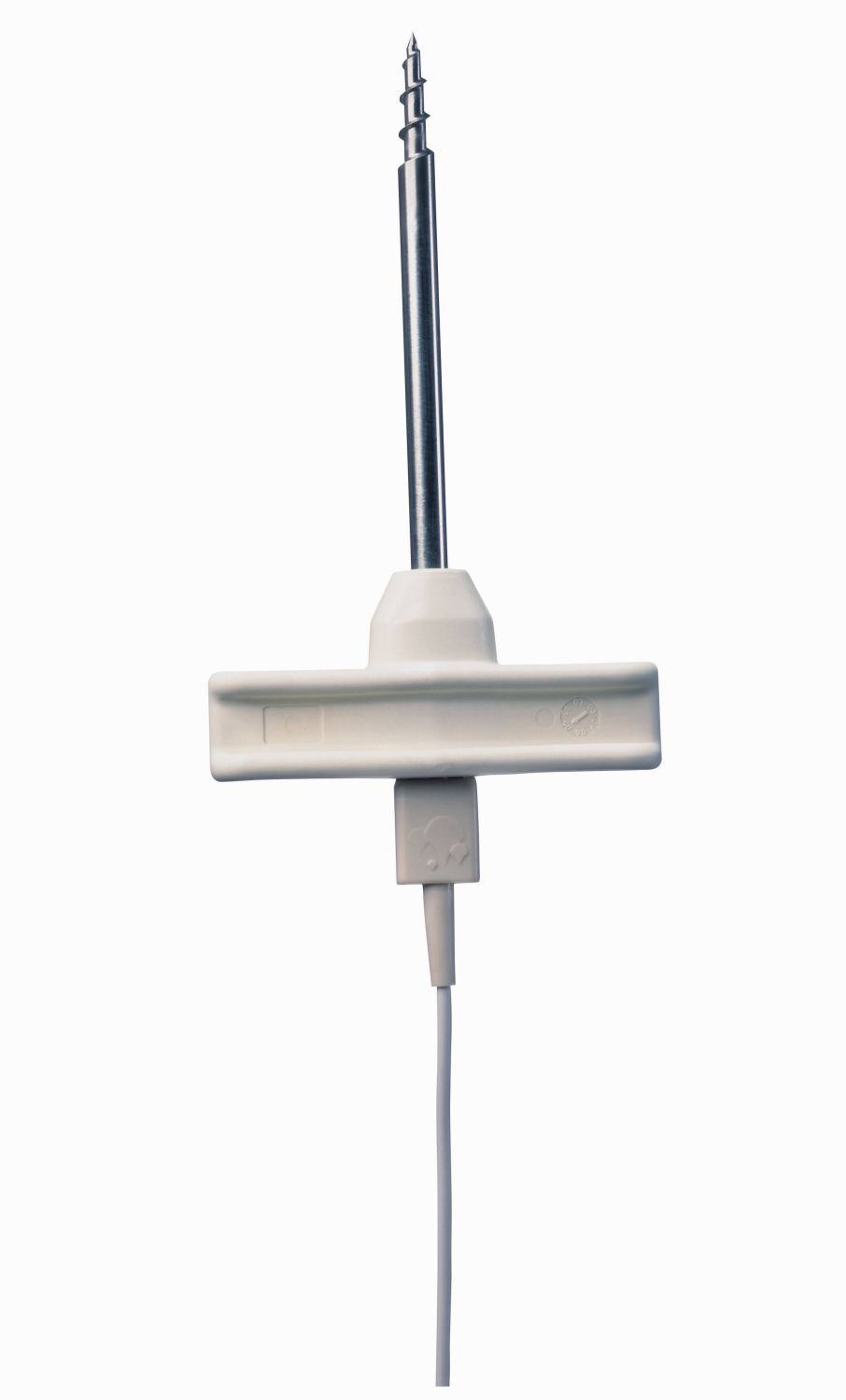

Frozen food probe, corkscrew design, T/C Type T

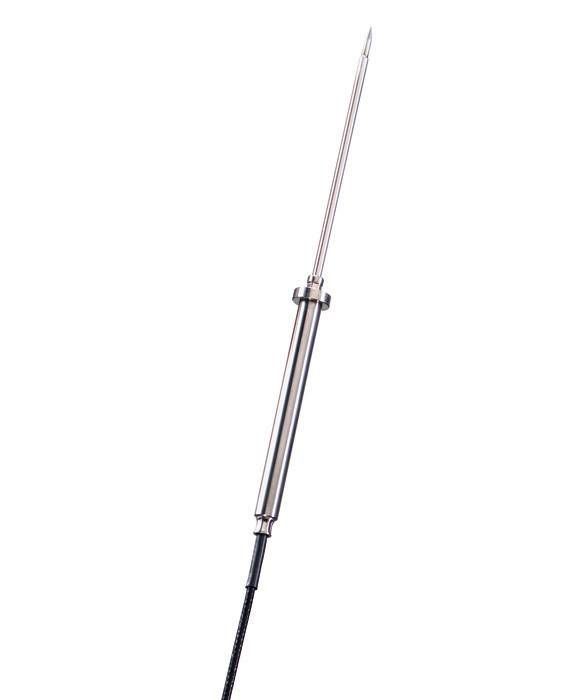

Stainless steel food probe (IP67), with FEP cable to +200 °C, TC Type T

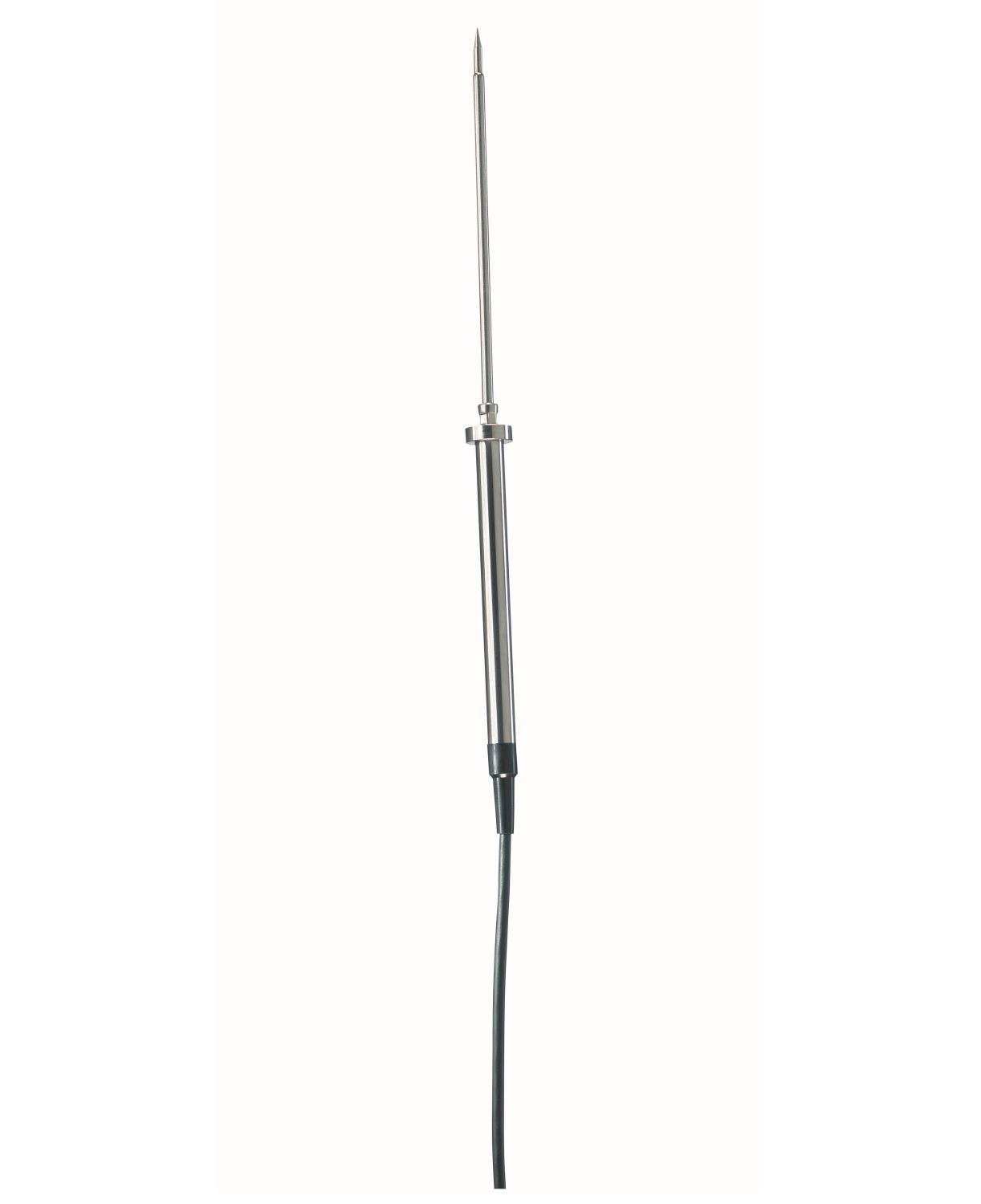

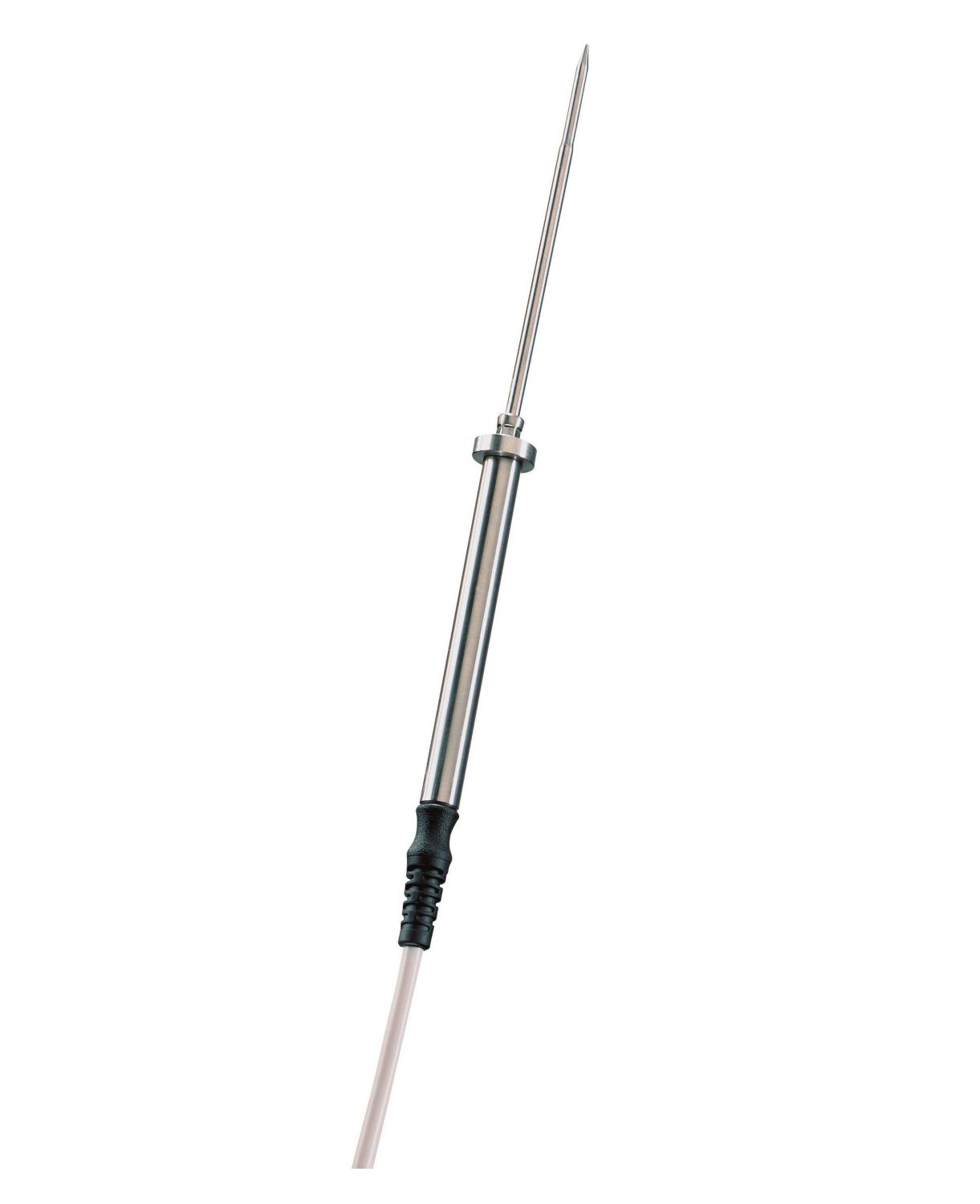

Robust stainless steel food probe (Pt100)

• Measuring range -50 to +400 °C
• Accuracy Class A (-50 to +300 °C)
• Class B (Remaining Range) ¹⁾
• Reaction time 10 s

1. Protection class IP65
2. Fixed cable true
3. Cable length 1.5 m
4. Diameter probe shaft tip 3 mm
5. Diameter probe shaft 4 mm
6. Length probe shaft tip 15 mm
7. Length probe shaft 125 mm

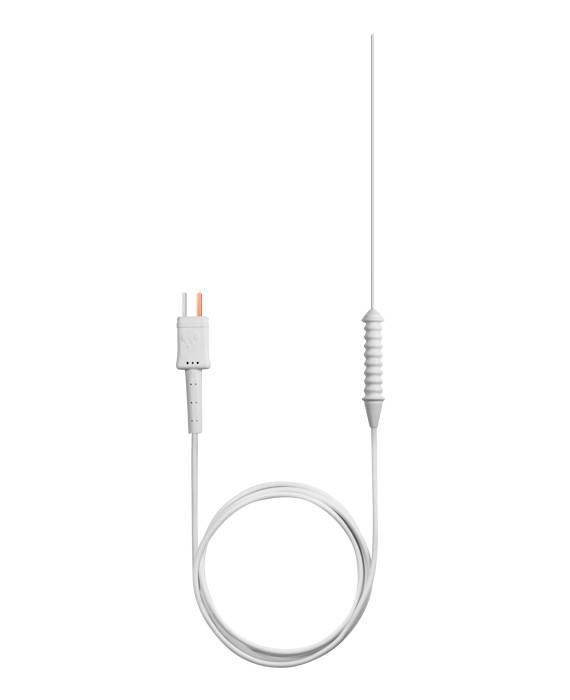

Measurement tip with T/C adapter Type T, ideal for fast-acti...

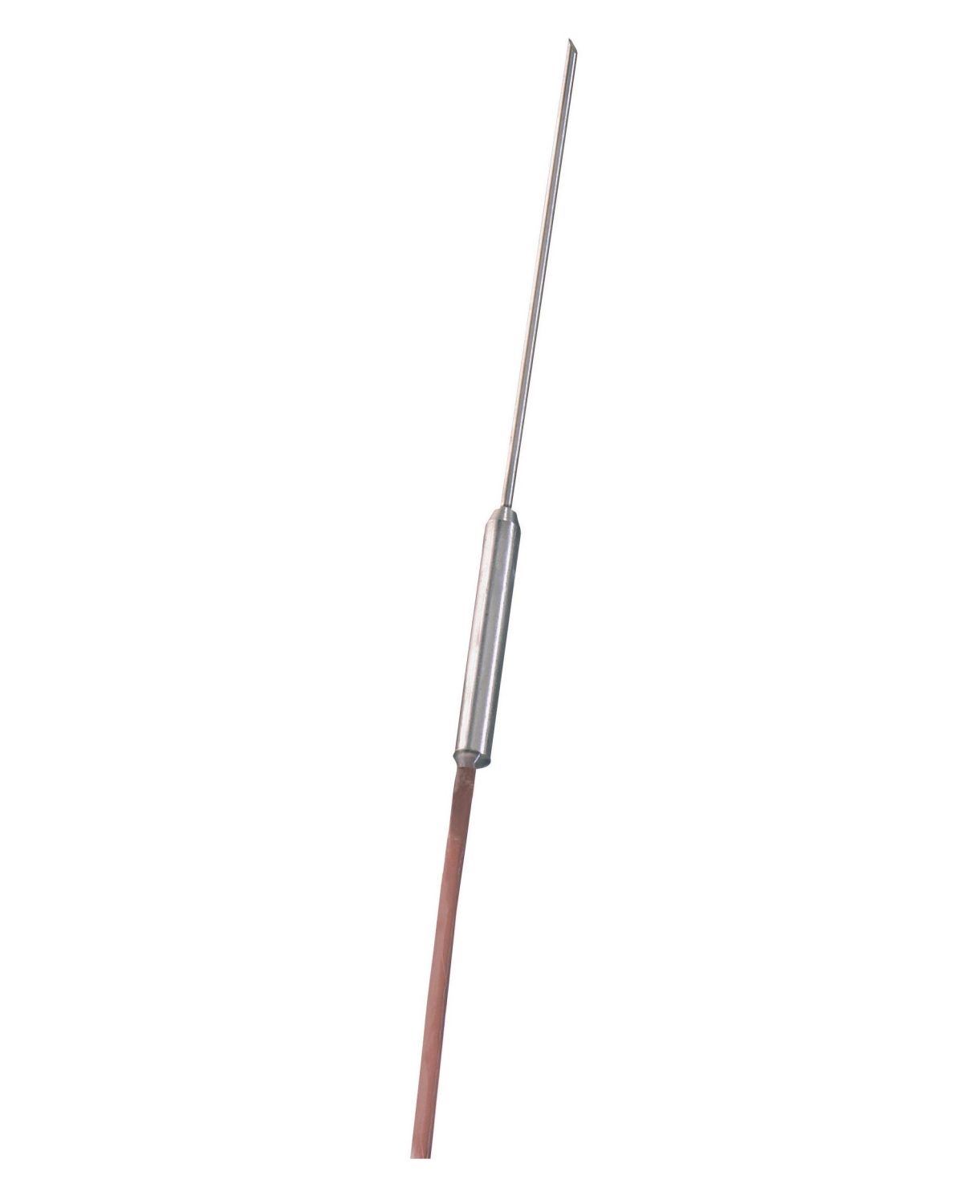

Waterproof, super-quick needle probe for measurements withou...

Quick needle probe to monitor cooking in oven, T/C Type T

Waterproof rugged immersion/penetration probe with metal protection hose

RADIO IMMERSION/PENETRATION PROBE, NTC, APPROVAL FOR THE COUNTRIES

• Measuring range -58 to +527 °F / -50 to +275 °C
• Accuracy

1. ±0.9 °F (-4.0° to 176 {#0.0} °F) / ±0.5 °C (-20 to +80 °C)
2.  ±1.4 °F (-58.0° to -4.2 {#0.0} °F) / ±0.8 °C (-50 to -20.1 °C)
3.  ±1.4 °F (176.2° to 392 {#0.0} °F) / ±0.8 °C (+80.1 to +200 °C)
4.  ±2.7 °F (Remaining Range) / ±1.5 °C (Remaining Range)

• Resolution 0.1 °F / 0.1 °C
• Reaction time (in water) 12 sec

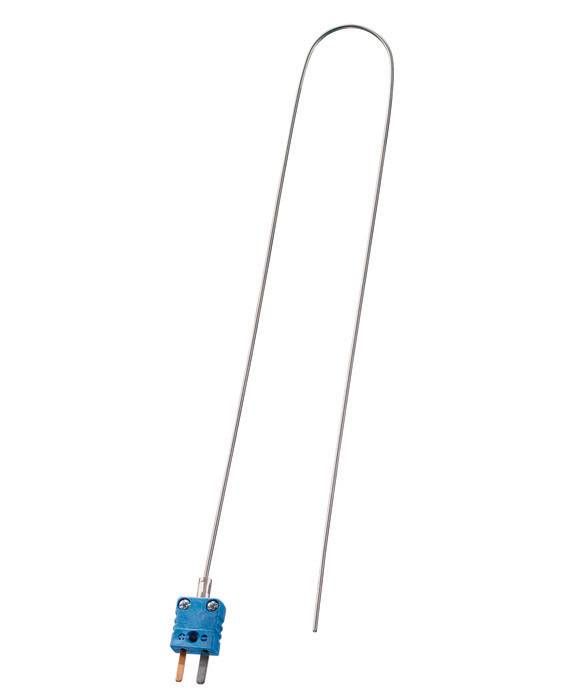

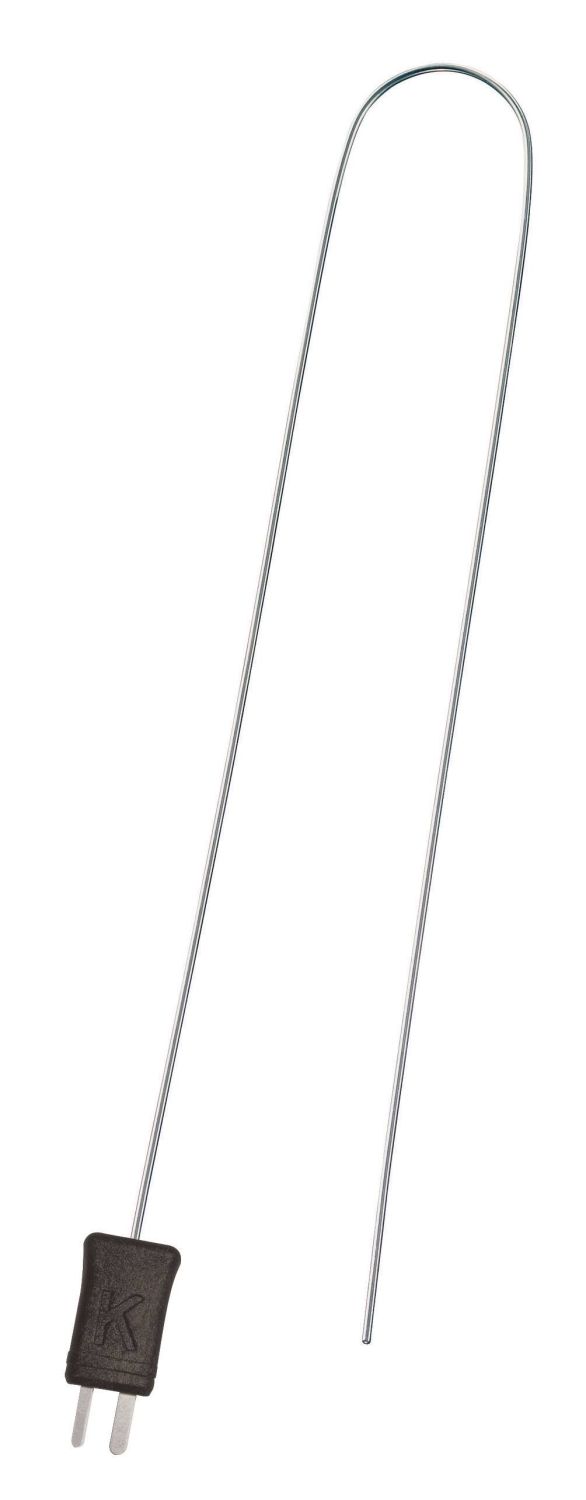

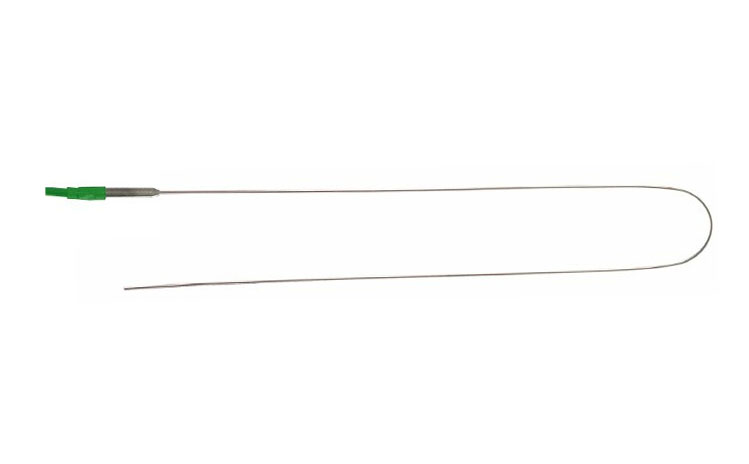

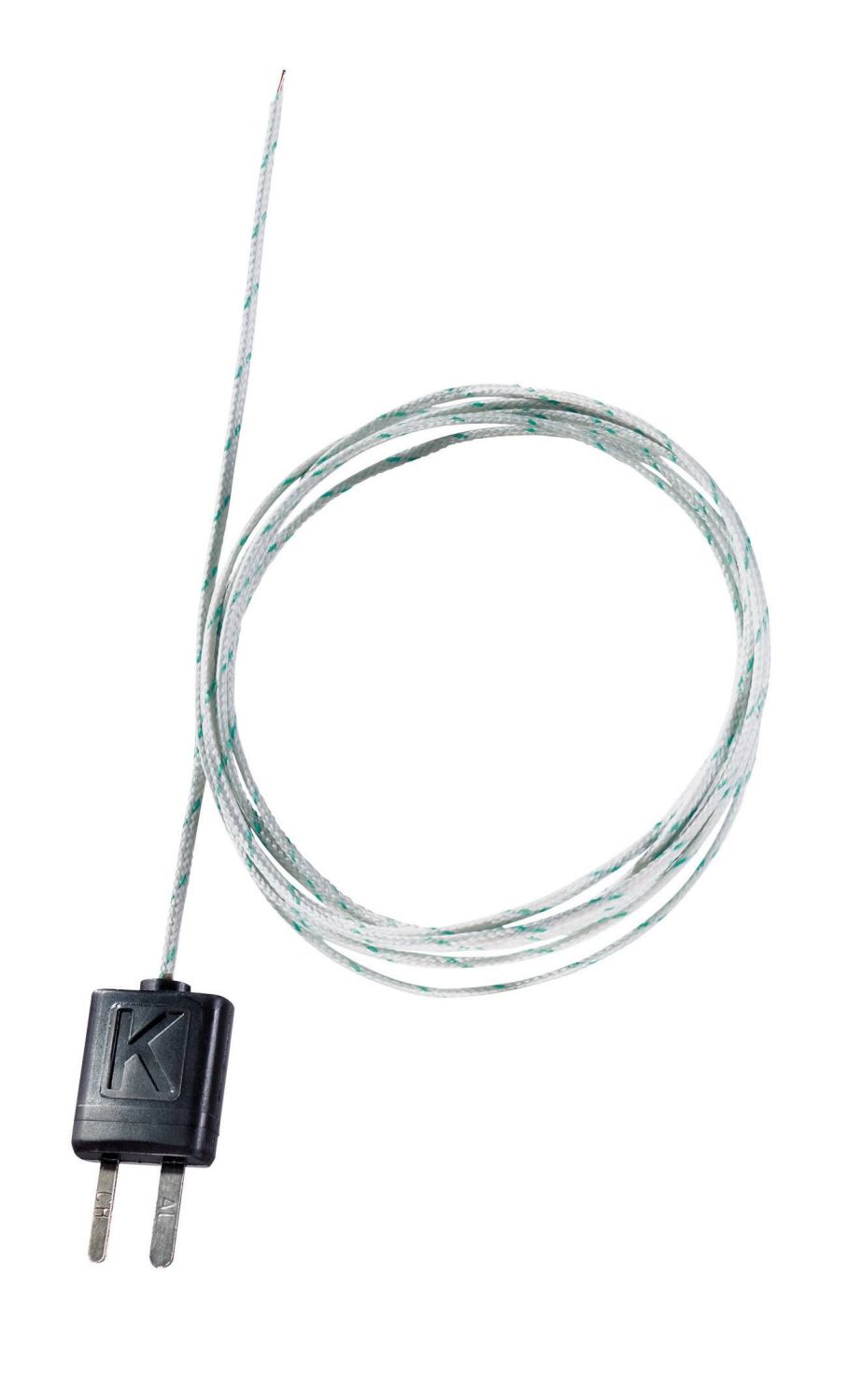

Thermocouple with TC adapter, flexible, 800 mm long

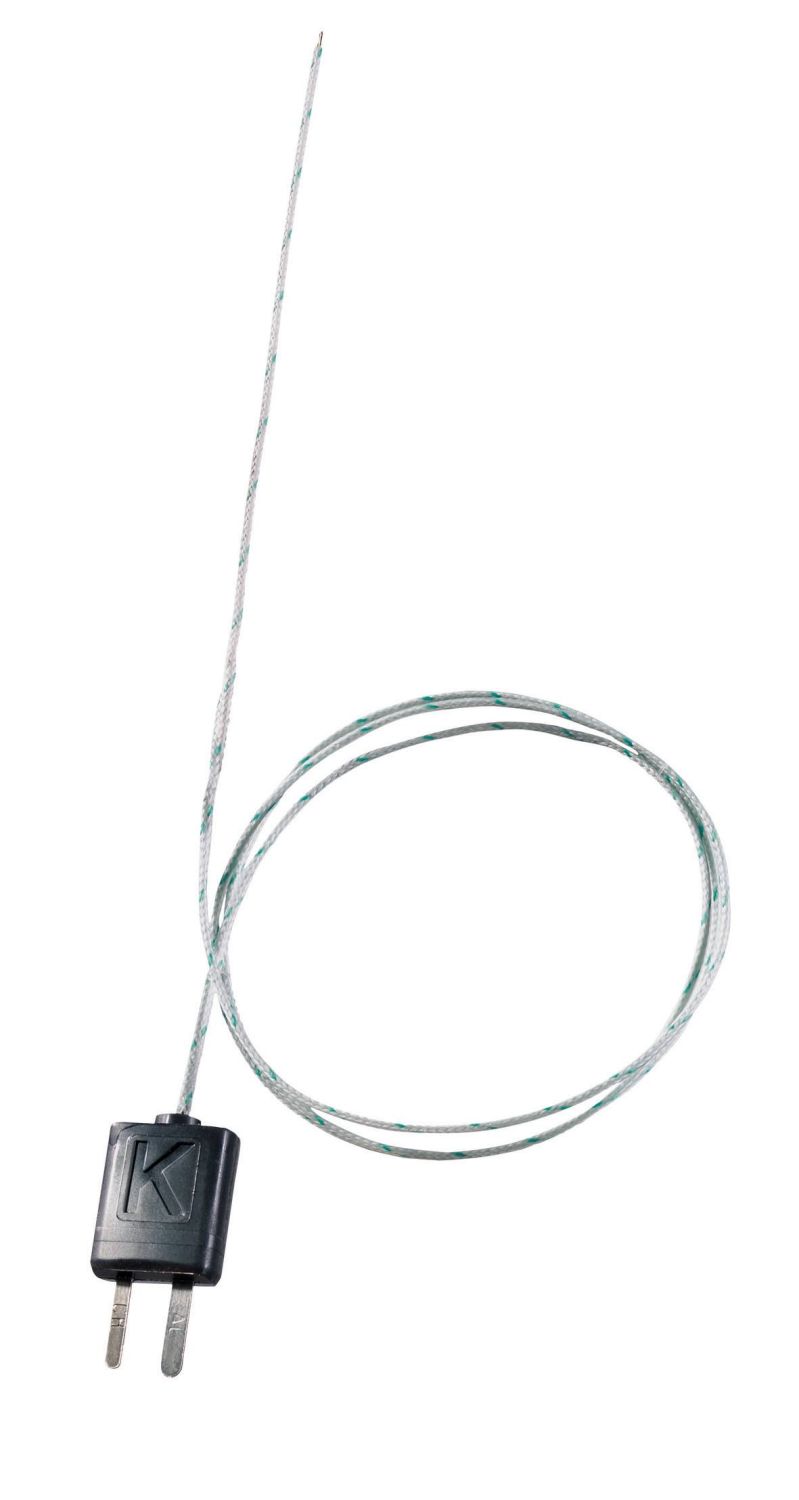

Thermocouple with TC adapter, flexible, length 1500 mm , fibreglass, TC Type K

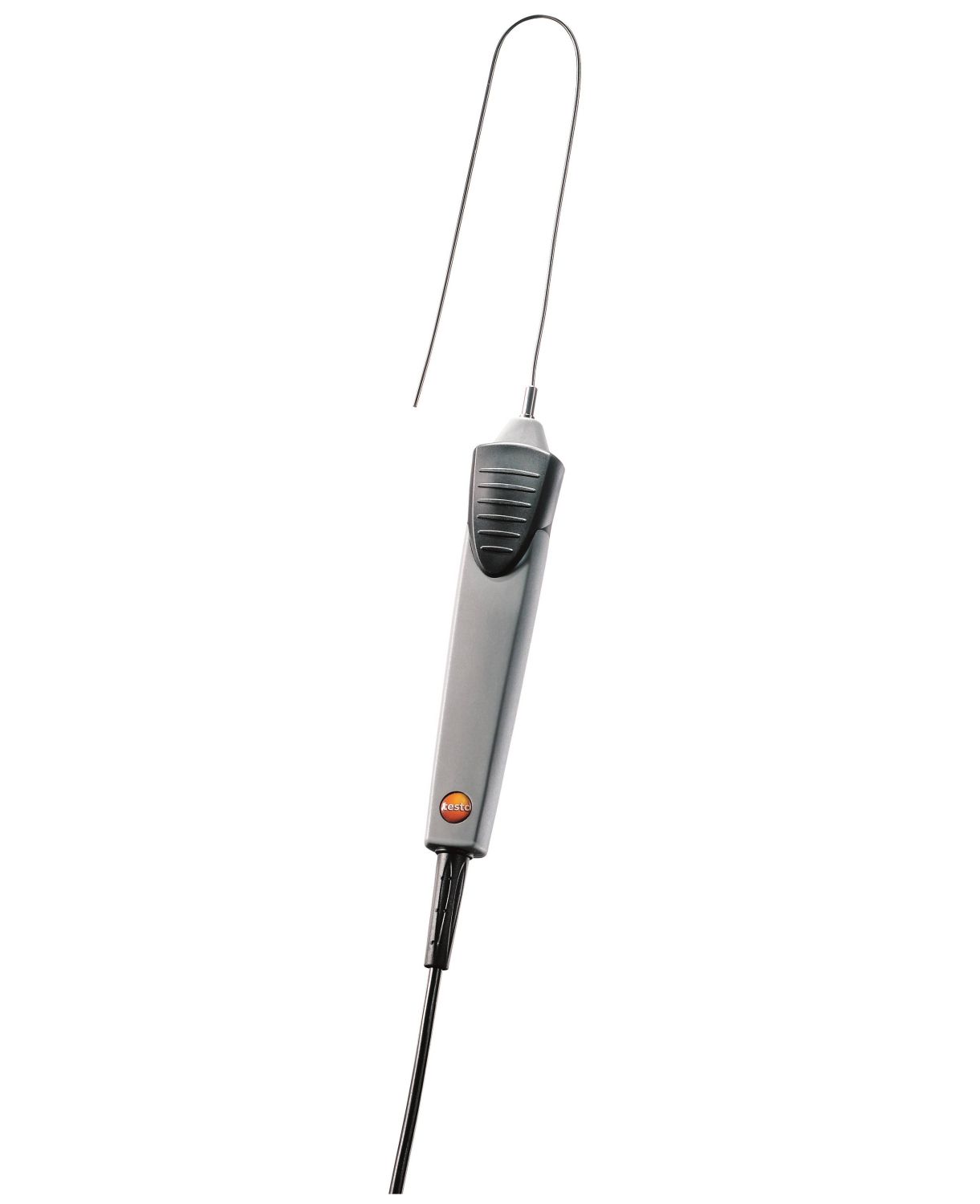

Exceptionally fast temperature probe (TC Type K)

• TC Type K temperature probe with flexible measuring tip, short response time and 2 m cable
• Very fast temperature measurement in air, liquids, pastes and on surfaces
• Measuring range: -328 to 1832 °F (-200 to +1000 °C)

Flexible, fast-action immersion probe (TC type K)

• Short response time of 2 seconds
• Thermocouple type K
• Waterproof
• Very large measuring range: -60 to +1000 °C

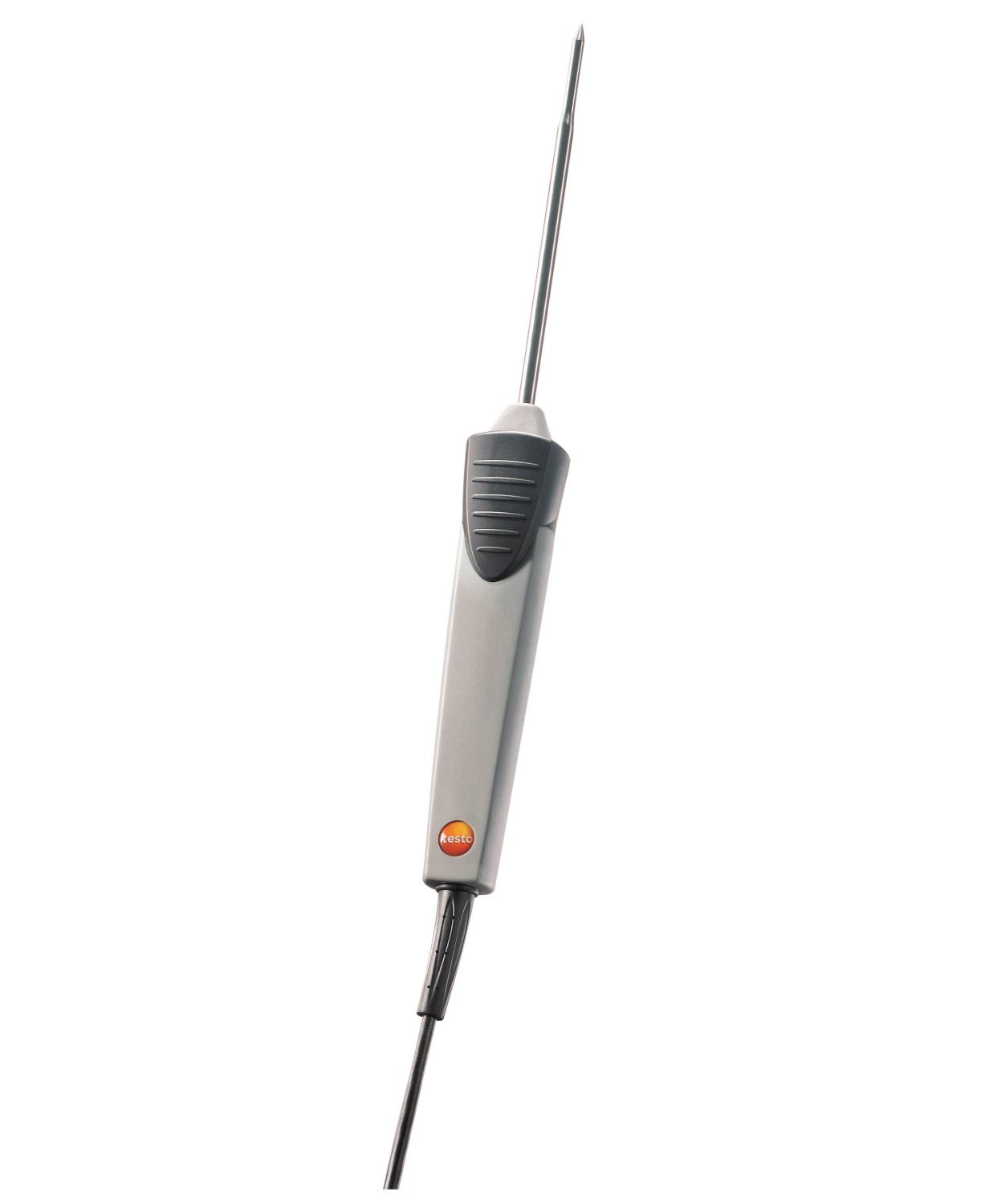

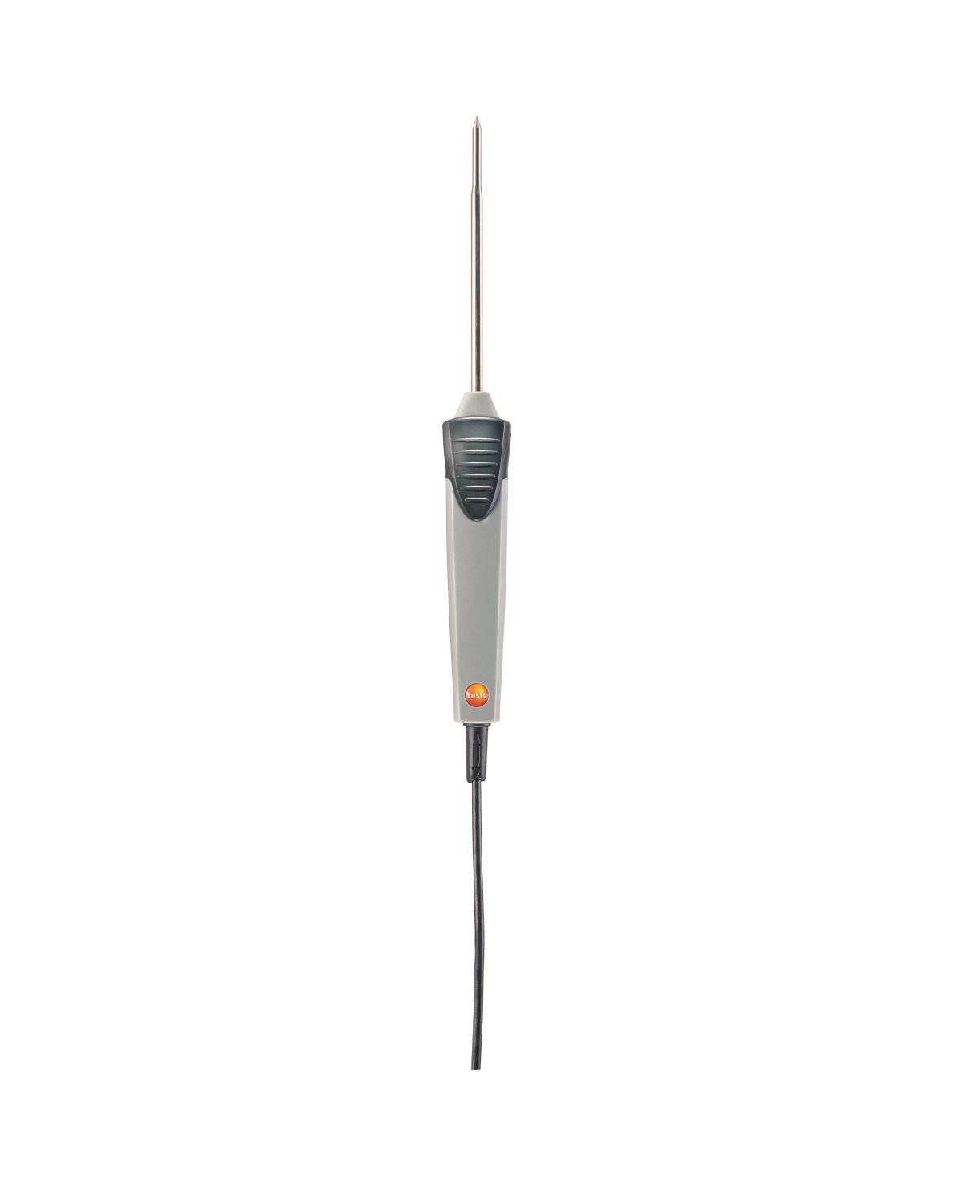

Waterproof immersion/penetration probe (TC type K)

• The waterproof immersion and penetration probe guarantees fast temperature measurement in liquids and semi-solid media.

• Thermocouple type K
• Response time of 7 seconds
• Waterproof
• Measuring range: -60 to +400 °C

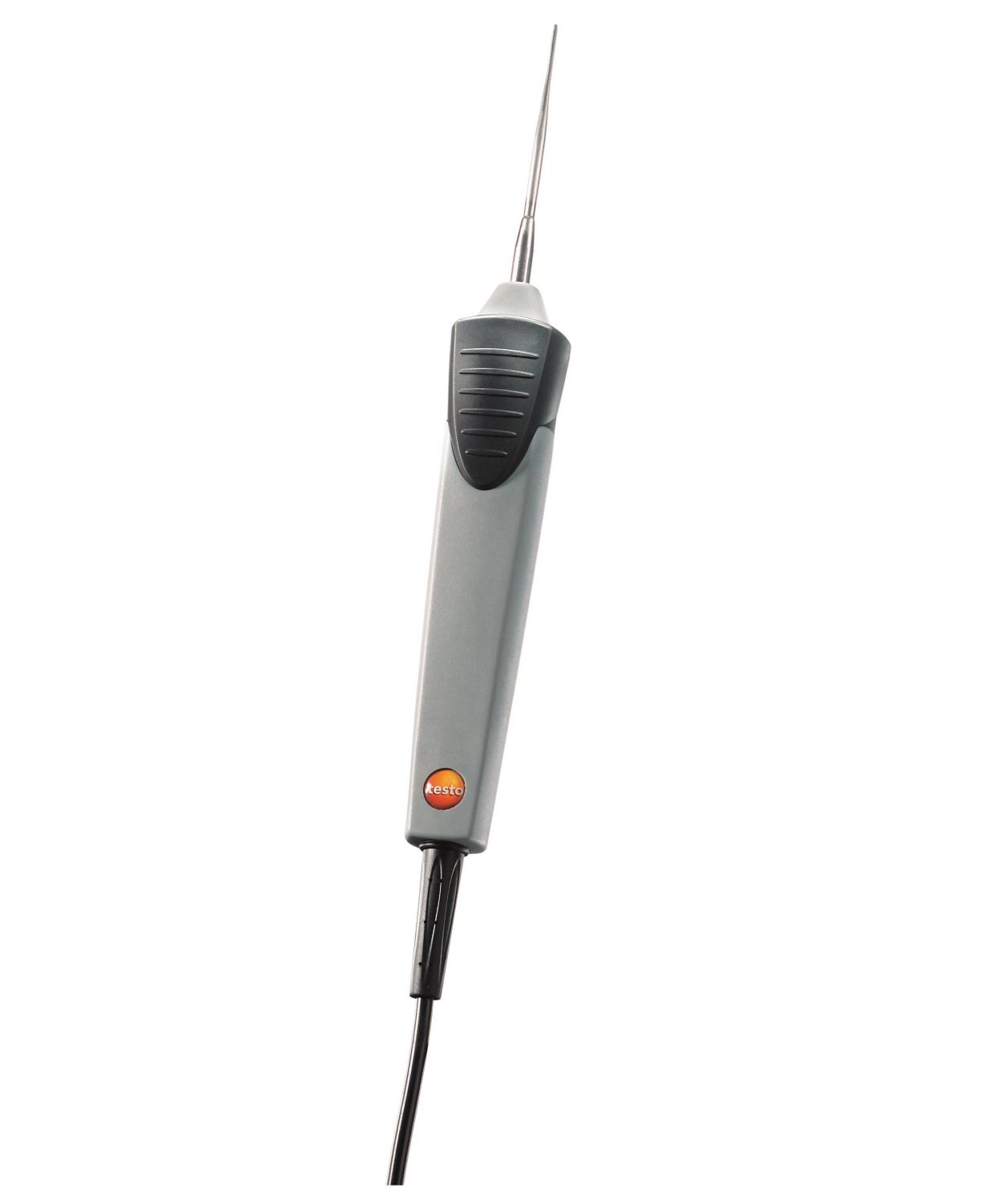

Fast-action immersion/penetration probe (TC type K)

• 1.5 mm thin probe tip for fast temperature recording, 60 mm long probe shaft
• Splash-proof in accordance with IP54
• Very short response time of 3 seconds
• Measuring range: -60 to +800 °C

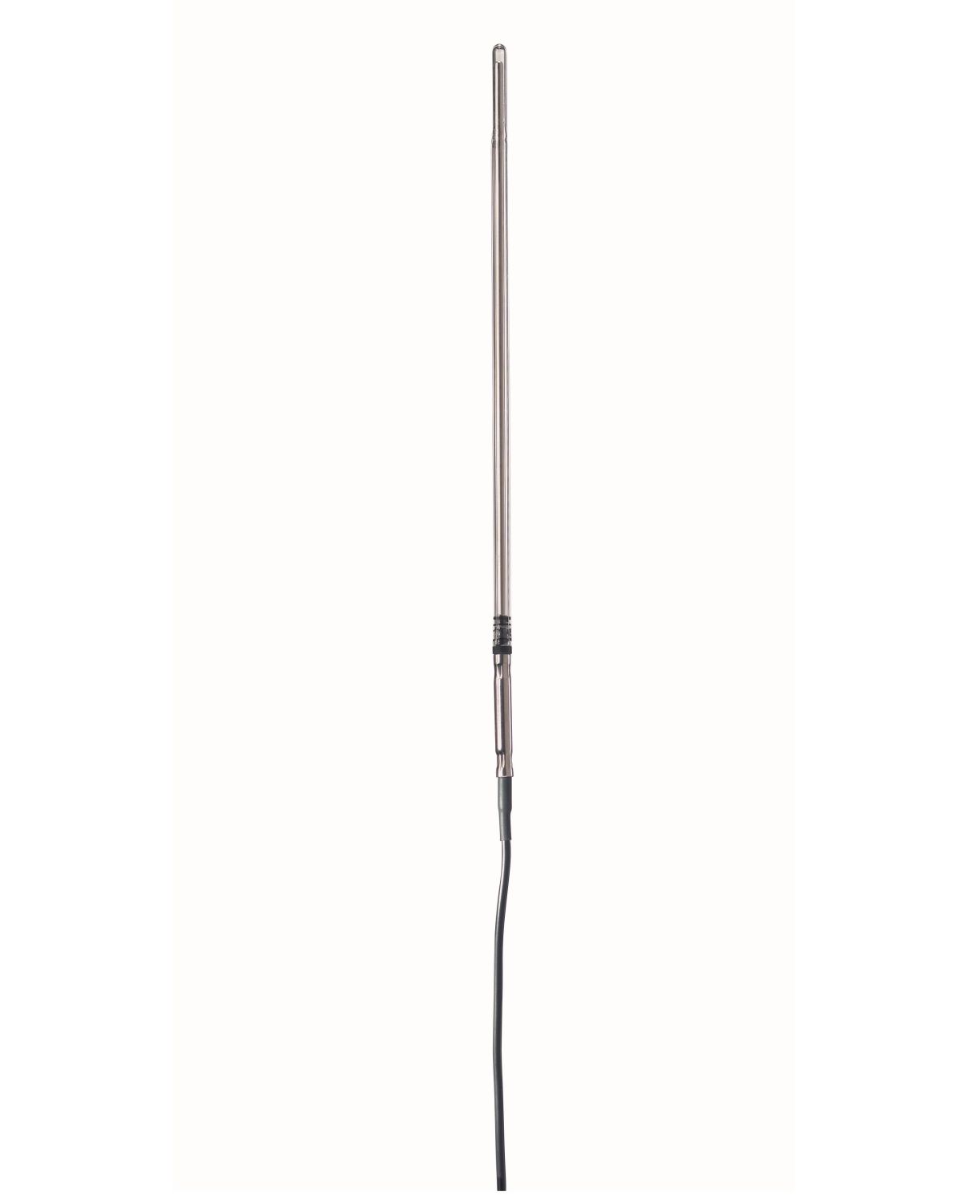

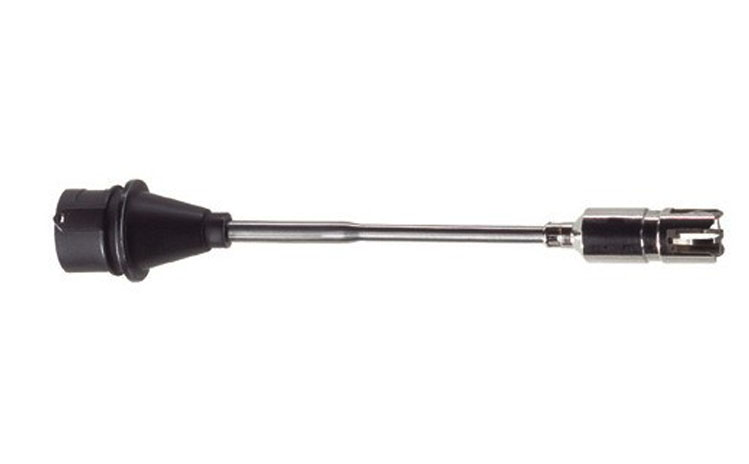

Immersion measurement tip, flexible, for measurements in air/exhaust gases

Immersion measurement tip, flexible, for measurements in air/exhaust gases

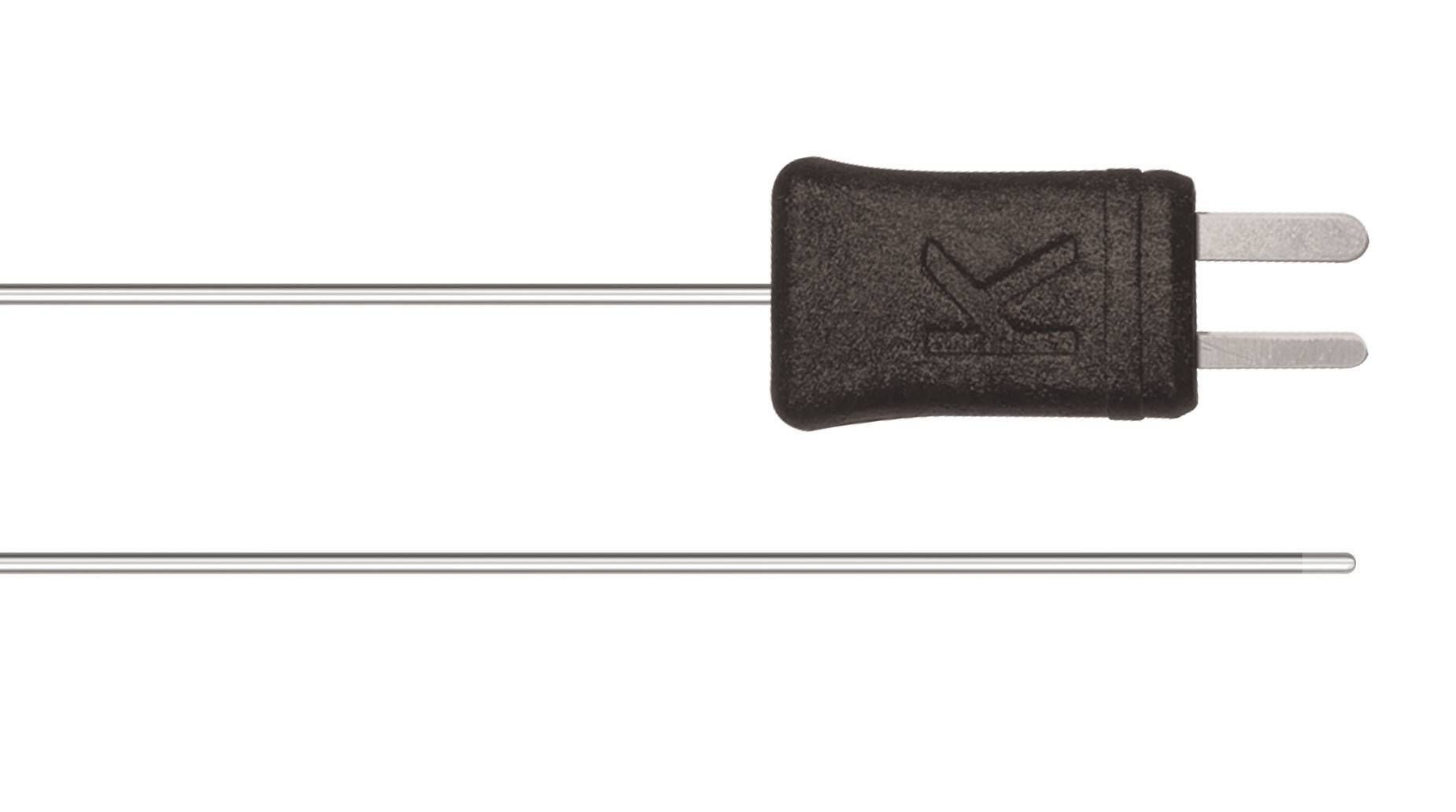

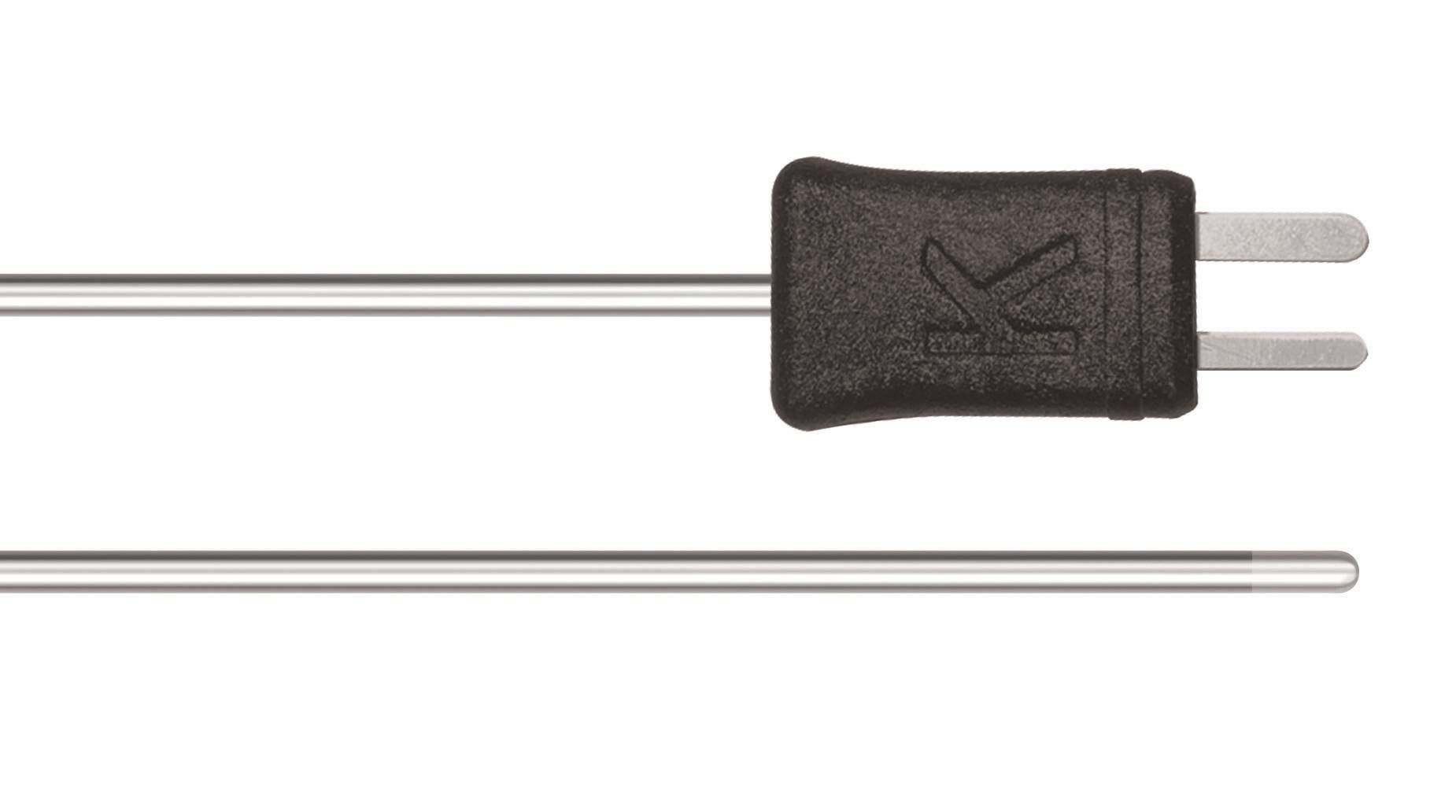

Immersion tip, flexible, TC Type K

Immersion tip, flexible, TC Type K

Robust waterproof immersion/penetration probe (Pt100)

• Measuring range -50 to +400 °C
• Accuracy Class A (-50 to +300 °C)
• Class B (Remaining Range) ¹⁾
• Reaction time 12 s

1. Fixed cable true
2. Cable length 1.2 m
3. Diameter probe shaft tip 3.7 mm
4. Diameter probe shaft 5 mm
5. Length probe shaft tip 50 mm
6. Length probe shaft 114 mm

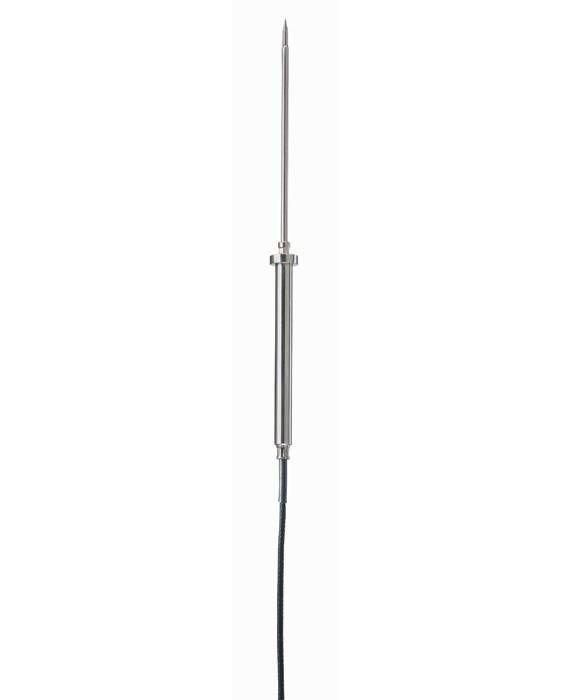

High-precision immersion/penetration probe (Pt100)

• Pt100 sensor for highly accurate measurement results
• Potential system accuracy of 0.05 °C at a resolution of 0.001 °C (depending on the measuring instrument connected)
• Optional calibration to ISO or DAkkS possible
• Measuring range: -80 to +300 °C

• Measuring range -80 to +300 °C
• Accuracy

1. ±0.3 °C (-80 to -+40 °C)
2.  ±(0.1 °C +0.05 % of mv) (-40 to 0 )
3.  ±0.05 °C (0 to +100 °C)
4.  ±(0.05 °C +0.05 % of mv) (100 to 300 °C)

• Reaction time 60 s

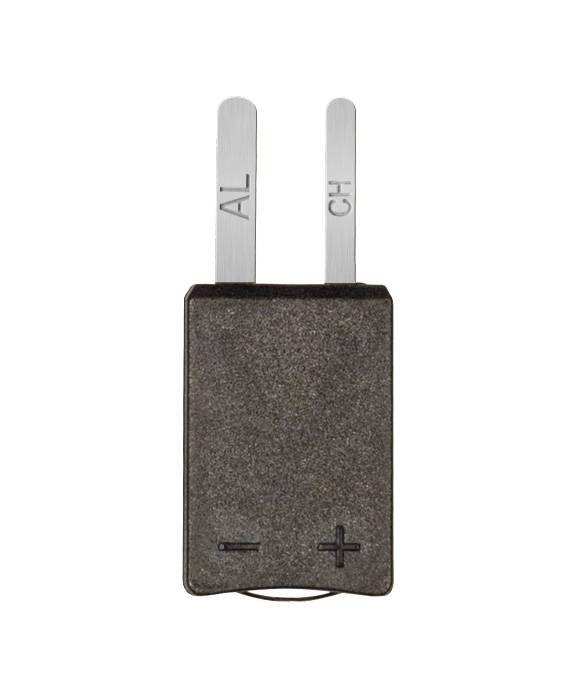

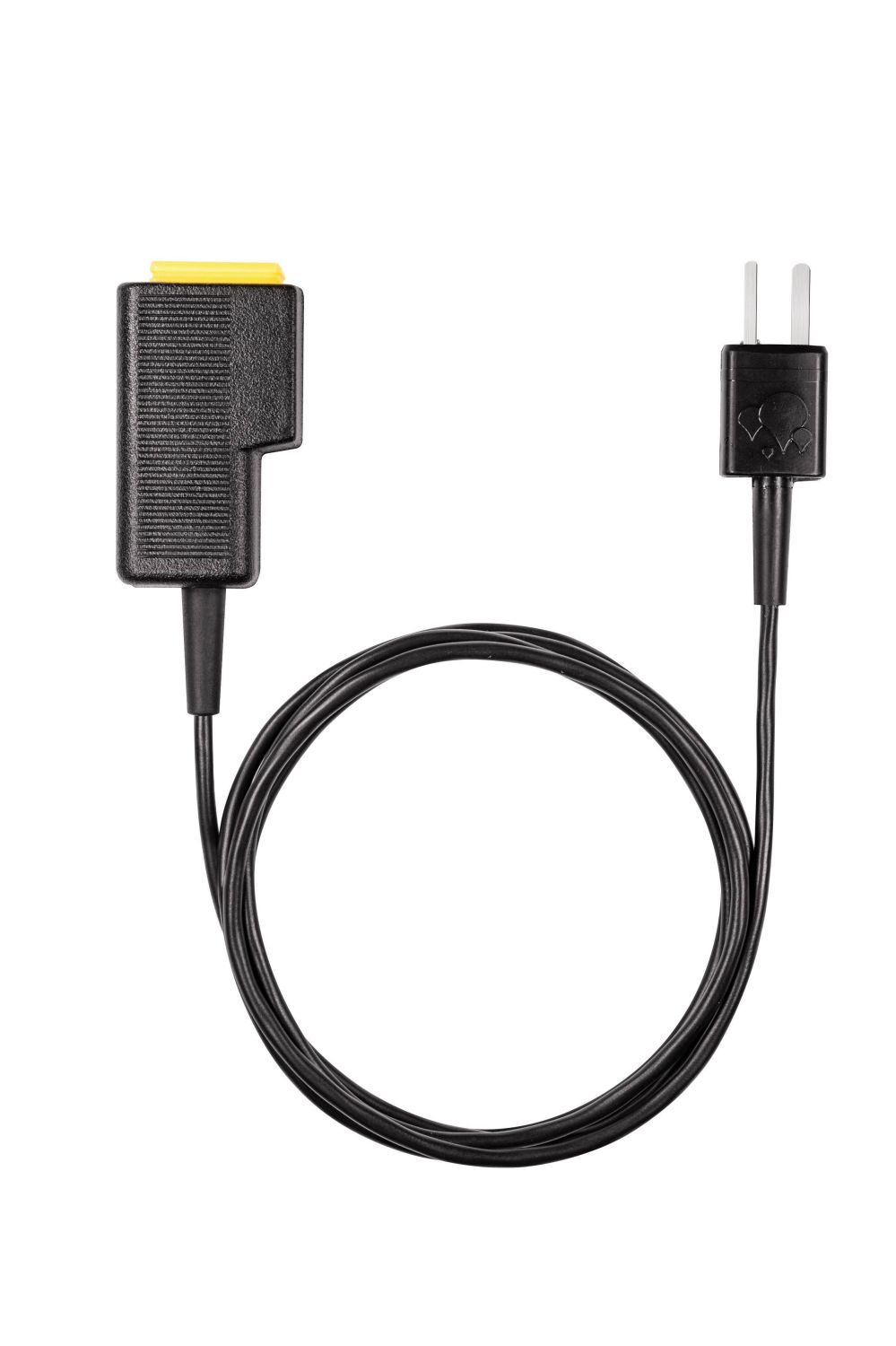

WIRELESS MODULE FOR ATTACHABLE PROBE HEADS INCL. ADAPTER FOR ATTACHING T/C PROBES (TYPE K)

T/C probe head for surface measurement (T/C Type K)

• Measuring range -58.0 to 662.0 °F / -50 to +350 °C , t2 +932.0 °F / t2 +500 °C
• Accuracy Radio handle:
•  ±(32.9 °F 0.3 % of remaining measurement value) (-40.0 to 500.0 °F / ±(0.5 °C +0.3 % of mv) (-40 to +500 °C
• ±(33.3 °F 0.5 ) (Remaining Range) / ±(0.7 °C +0.5 ) (Remaining Range)
• T/C probe head: Class 2
• Resolution 0.1 °F (-58.0 to 391.8 °F) / 0.1 °C (-50 to +199.9 °C) ,1.0 °F Remaining Range / 1.0 °C Remaining Range
• Reaction time 5 sec

Spare meas. head for pipe wrap probe, TC Type K

• Replaceable measuring head with thermocouple strip for temperature probe with clamping bracket 0602 4592
• Measuring range: -60 to +130°C, briefly up to +280 °C
• Simple pull out the old measuring head with thermocouple strip and replace with new measuring head

• Measuring range -60 to +130 °C
• Accuracy Class 2 ²⁾
• Reaction time 5 s

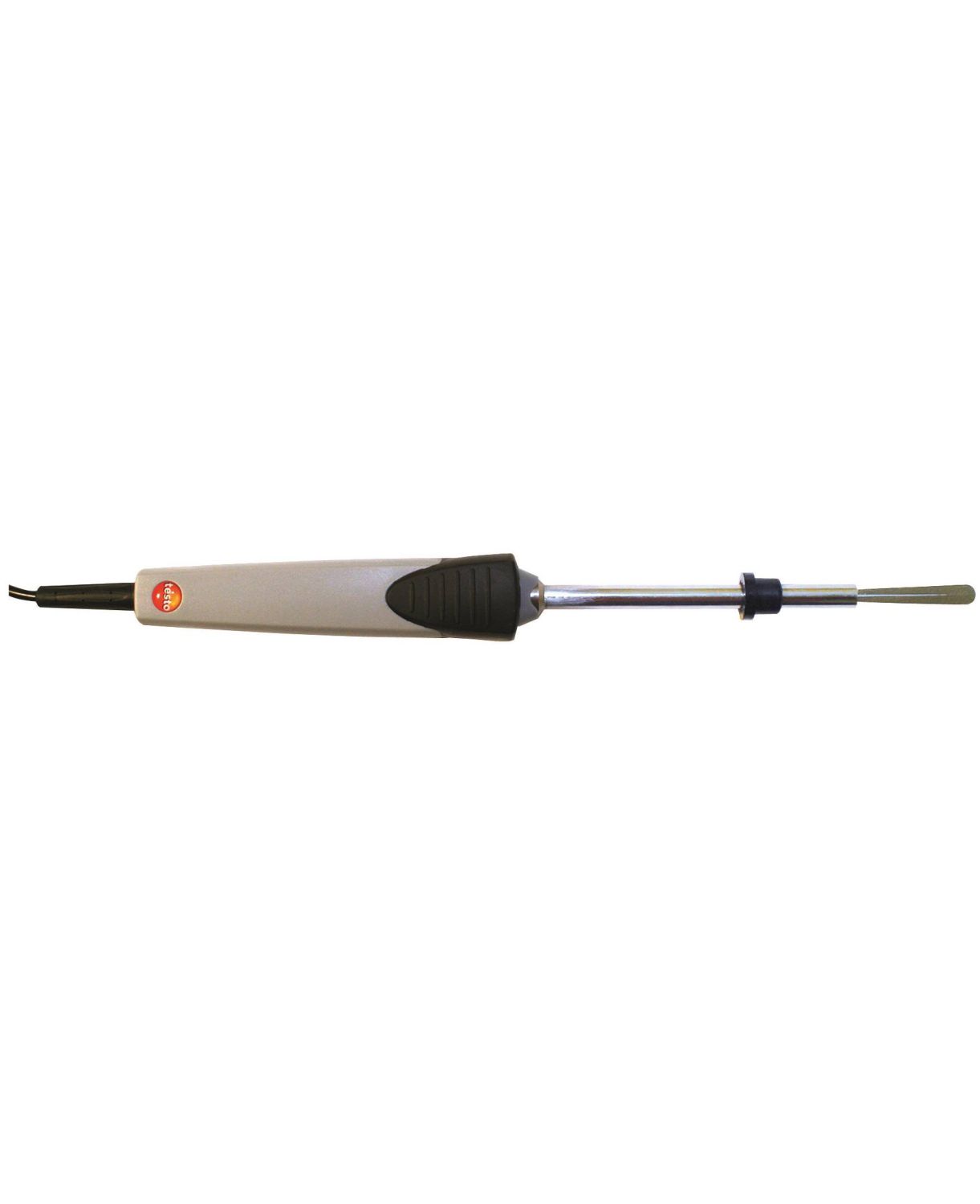

Fast-reaction paddle surface probe, for measurements in inaccessible places, e.g. narrow apertures and slots, TC Type K

Part No. 0602 0193

Technical Data

Temperature - TC Type K (NiCr-Ni)

• Measuring range 0 to +300 °C
• Accuracy Class 2 *
• Reaction time 5 s

1. Fixed cable true
2. Diameter probe shaft tip 7 mm
3. Diameter probe shaft 8 mm
4. Length probe shaft tip 40 mm
5. Length probe shaft 145 mm

Fast-action surface probe (TC type K)

• Measuring range -60 to +300 °C
• Accuracy Class 2 ¹⁾
• Reaction time 3 s

Surface probe with a small measuring head (TC type K)

• Measuring range -60 to +1000 °C
• Accuracy Class 1 ¹⁾
• Reaction time 20 s

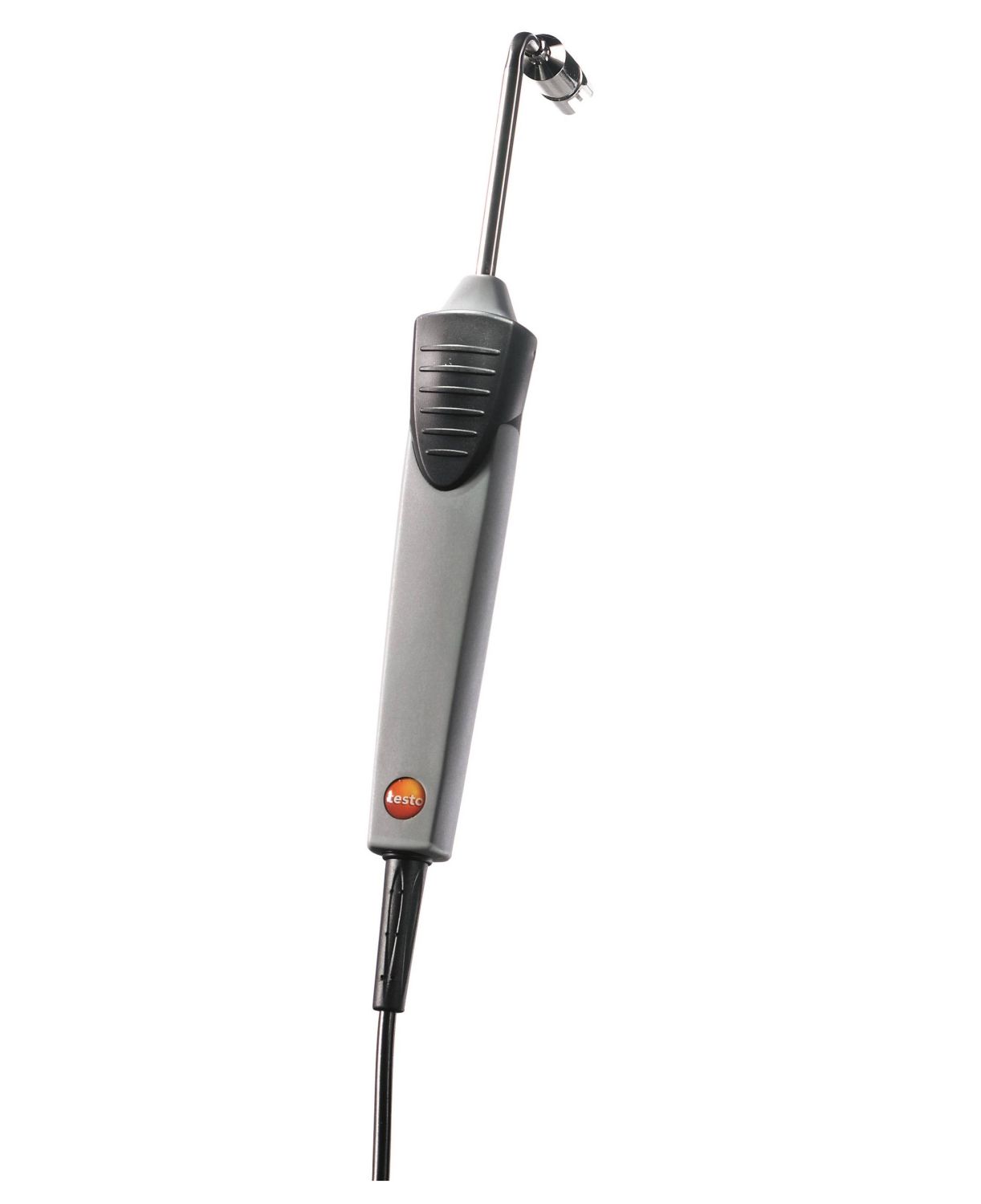

Fast-action, angled surface probe (TC type K)

• Measuring range -60 to +300 °C
• Accuracy Class 2 ¹⁾
• Reaction time 3 s

Surface probe with widened measuring tip (TC type K)

• Measuring range -60 to +400 °C
• Accuracy Class 2 ¹⁾
• Reaction time 30 s

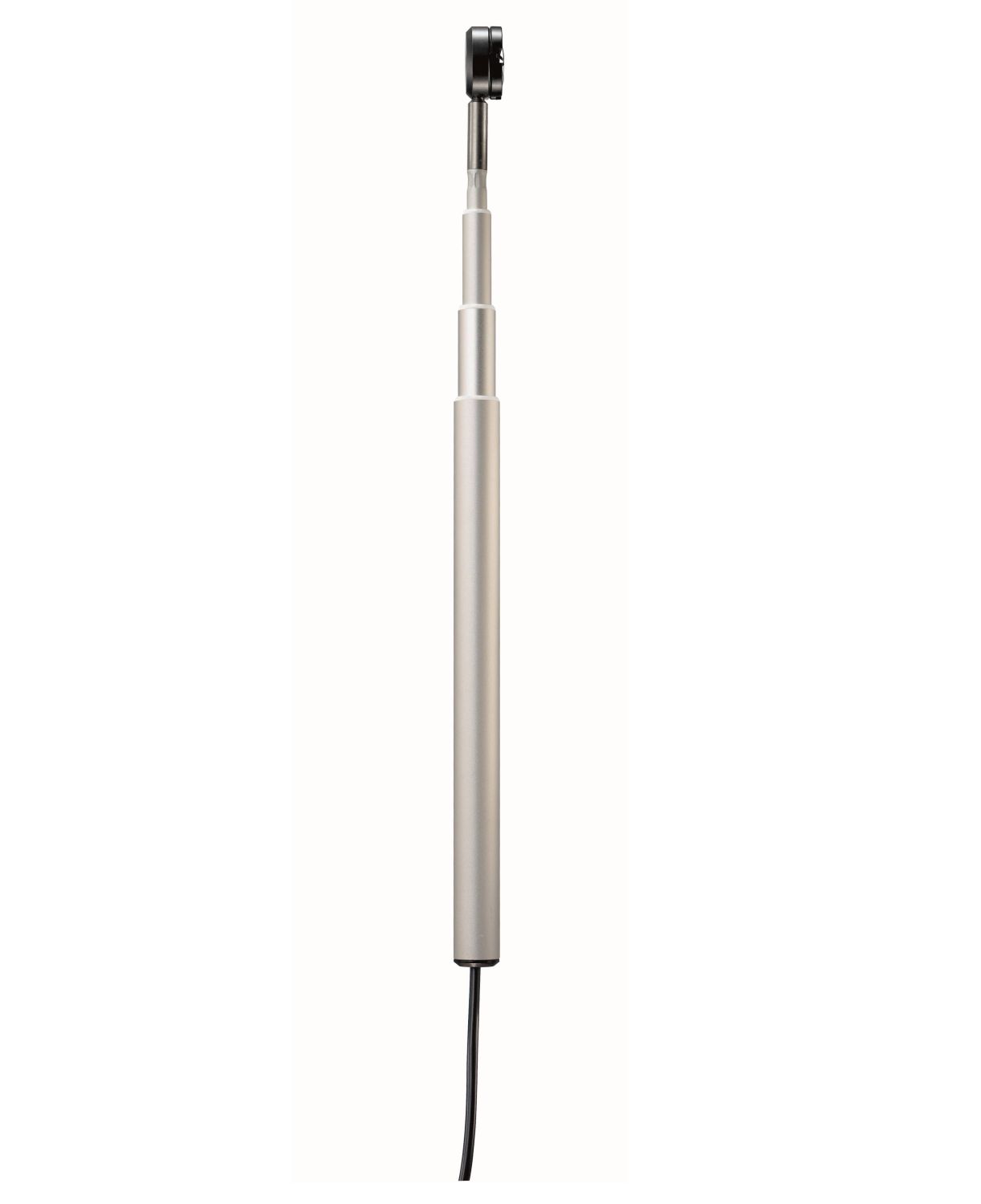

Flat head surface probe with telescopic handle max

• Measuring range -50 to +250 °C
• Accuracy Class 2 ¹⁾
• Reaction time 3 s

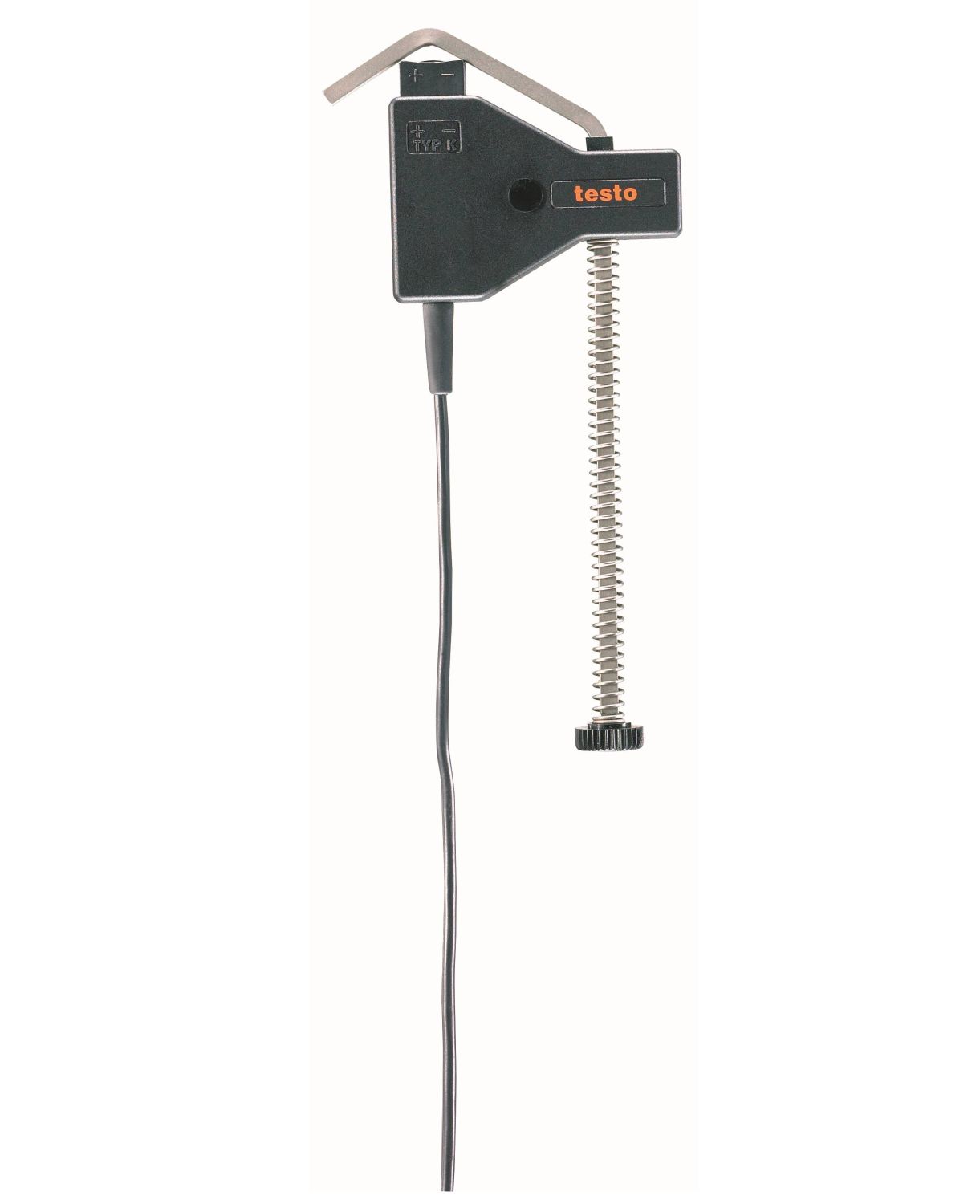

Temperature probe with clamping bracket (TC Type K)

• Measuring range -60 to +130 °C
• Accuracy Class 2 ¹⁾
• Reaction time 5 s

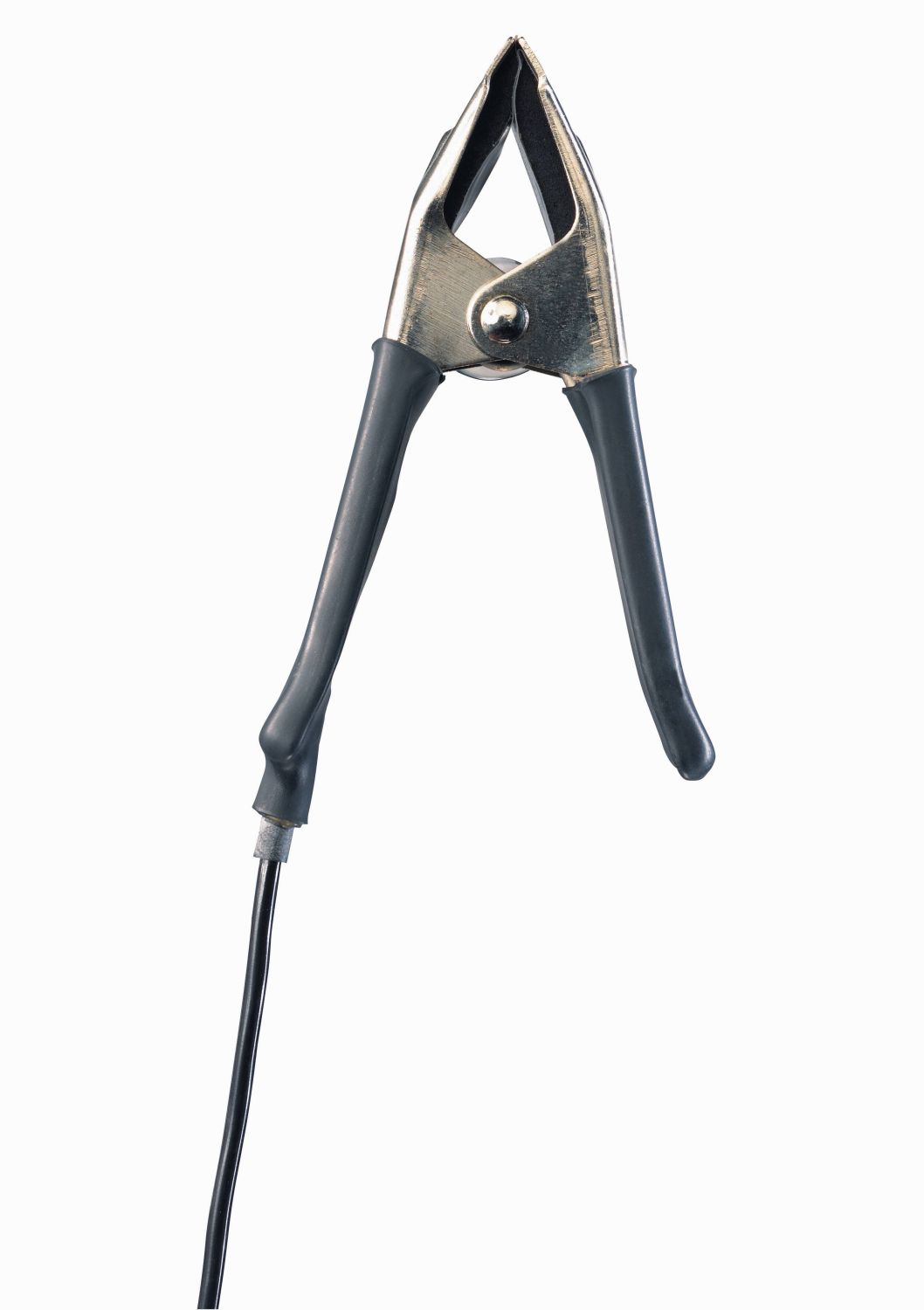

Clamp probe for measurements on pipes

• Measuring range -50 to +100 °C
• Accuracy briefly to +130
• Reaction time 5 s

Magnetic probe (TC type K) - for surface temperatures

• Thermocouple type K
• Adhesive force approx. 20 N
• Can be connected to a wide range of measuring instruments/data loggers
• Measuring range: -50 to +170 °C

• Measuring range -50 to +170 °C
• Accuracy Class 2 ¹⁾
• Reaction time 150 s

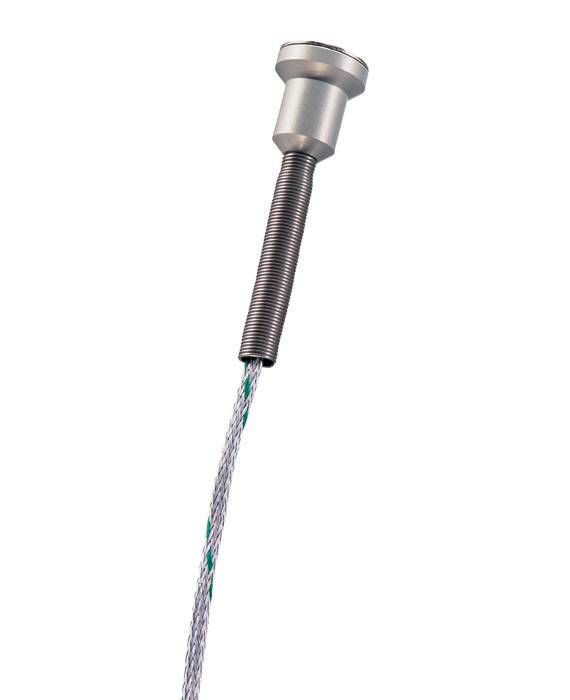

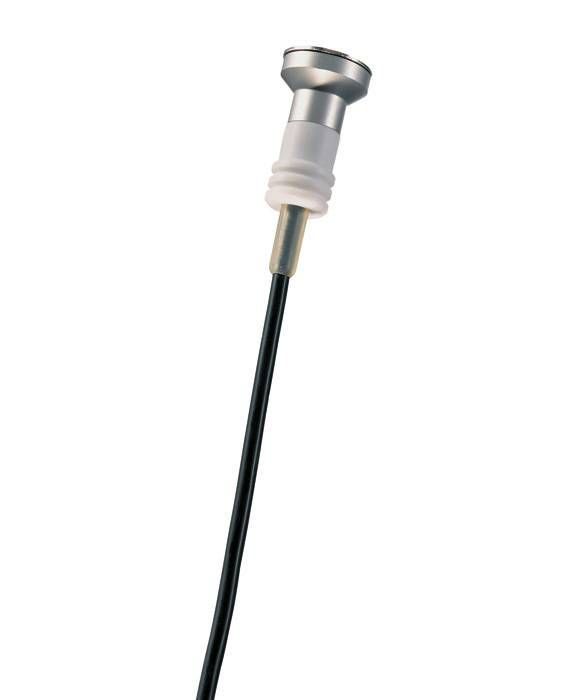

Temperature probe with magnet (TC Type K)

• Self-adhesive thanks to a magnet: probe for measuring surface temperature on metal surfaces
• TC Type K temperature probe with 1.6 m cable

• Measuring range -50 to +400 °C
• Accuracy Class 2 ¹⁾

Waterproof surface probe with widened measurement tip for flat surfaces, T/C Type T

Robust, waterproof surface probe (Pt100)

• The robust waterproof surface probe (with a corresponding measuring instrument) enables particularly accurate measurement of the surface temperature.

• Pt100 sensor for highly accurate measurement results
• Waterproof
• EN 13485 and HACCP-compliant
• Measuring range: -50 to +400 °C

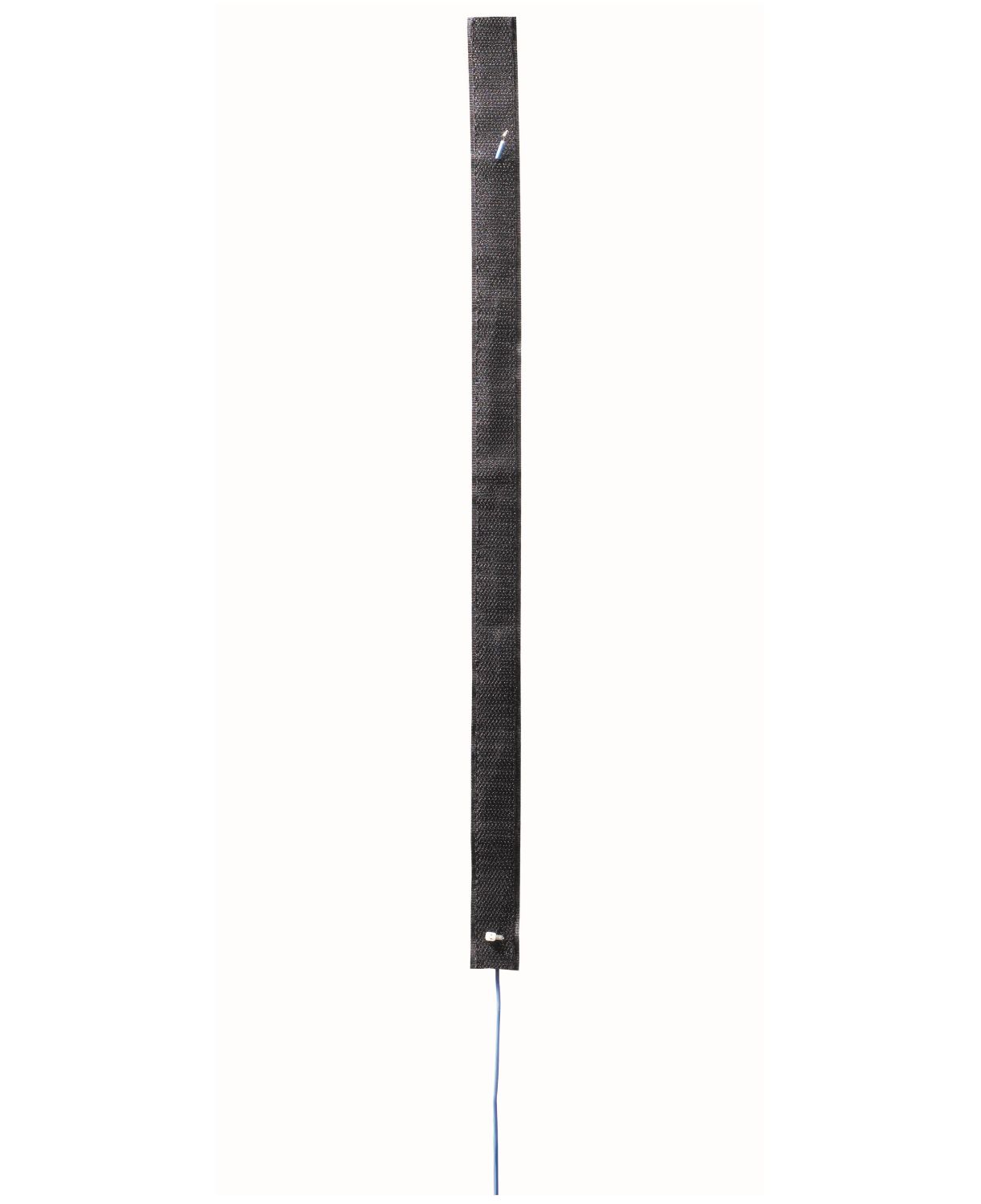

Temperature probe with Velcro (TC Type K)

• With Velcro: makes it easy to attach the surface probe to pipes with a diameter of up to 120 mm
• TC Type K temperature probe with 1.5 m cable
• Measuring range: -50 to +120 °C

• Measuring range -50 to +120 °C
• Accuracy Class 1 ¹⁾
• Reaction time 90 s

Laboratory probe Pt100, glass-coated, exchangeable glass pip...

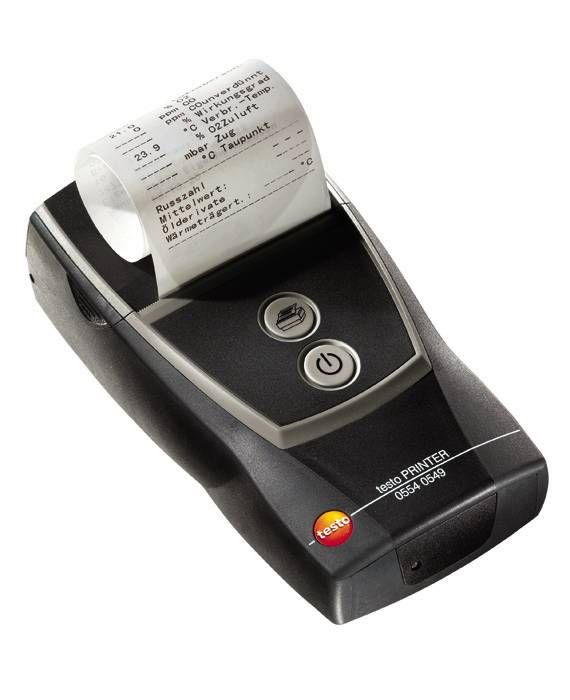

Testo quick printer

• Evaluate restoration measures quickly and without error.
• Measurement of air moisture, material equilibrium moisture, pressure dew point
• Instrument memory for up to 10,000 readings

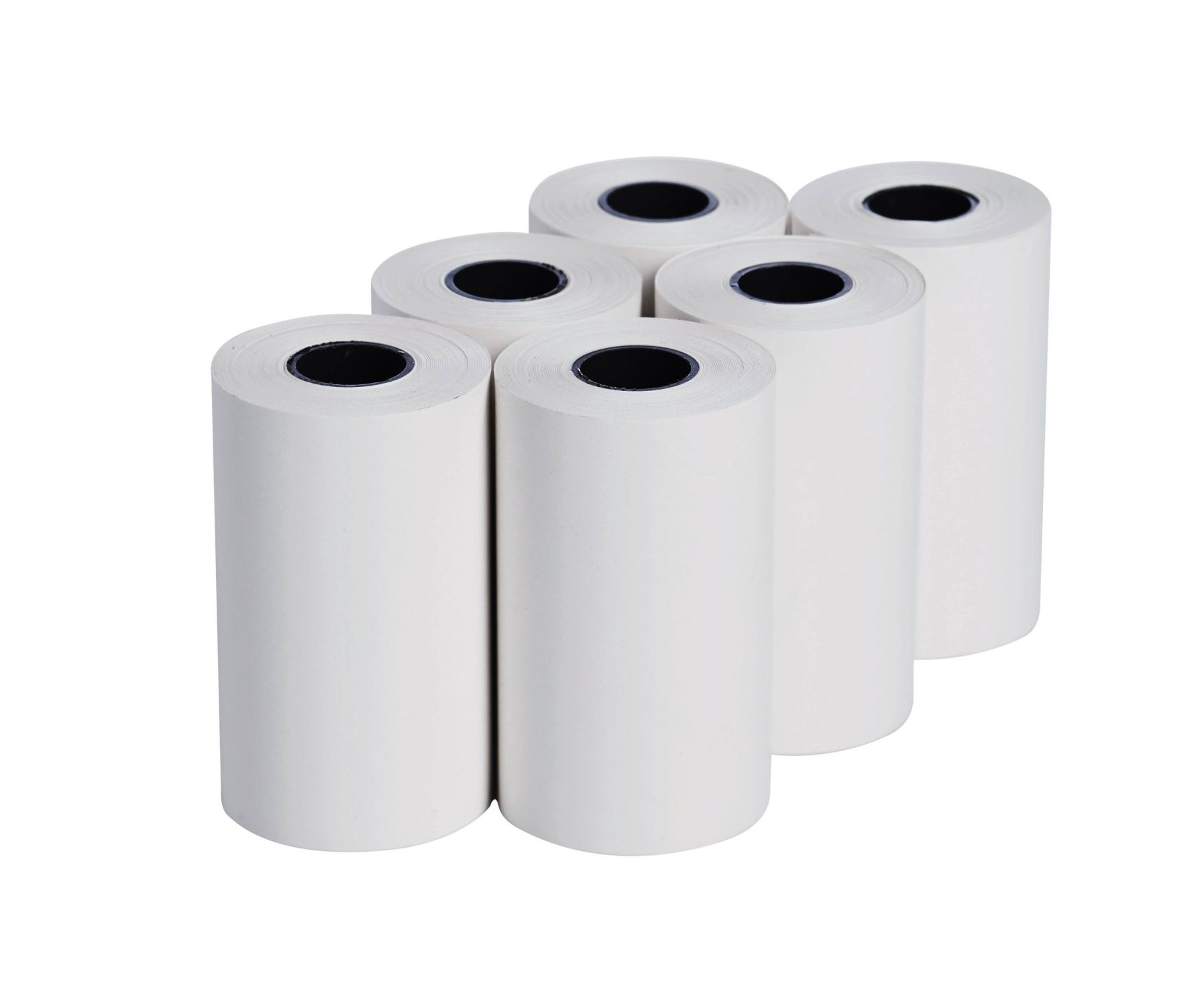

Spare thermal paper for printer, permanent ink

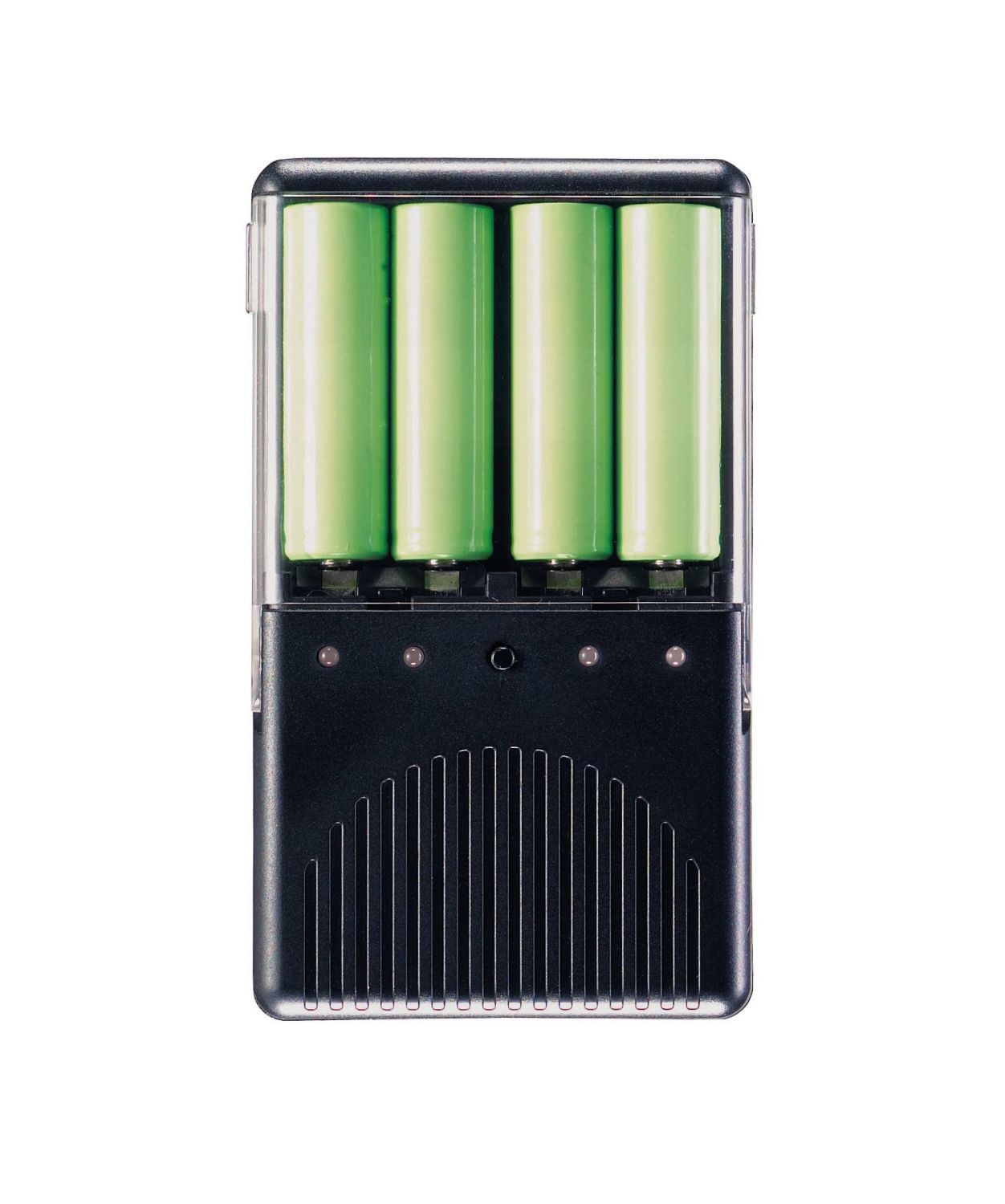

External fast charger for 1-4 AA rech. batteries

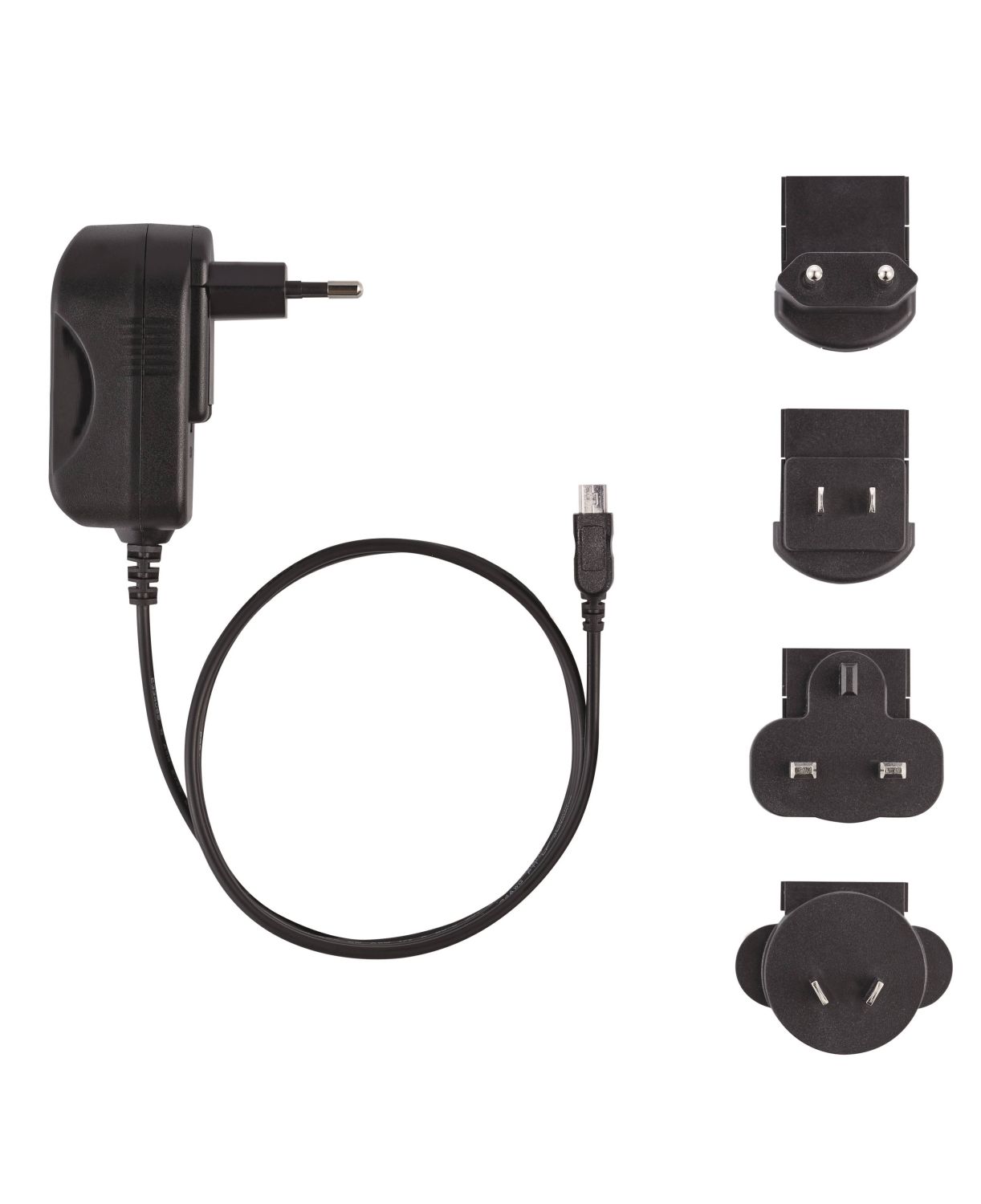

Plug-in mains adapter, 5 VDC 500 mA with European adapter, 100-250 VAC, 50-60 Hz

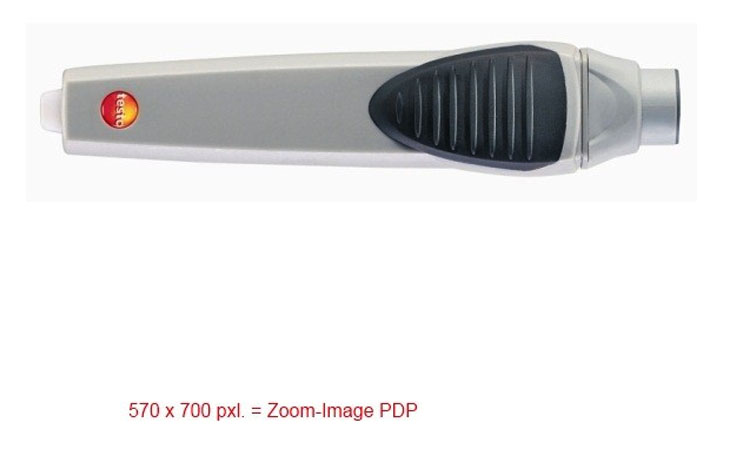

Handle for attachable measurement tips

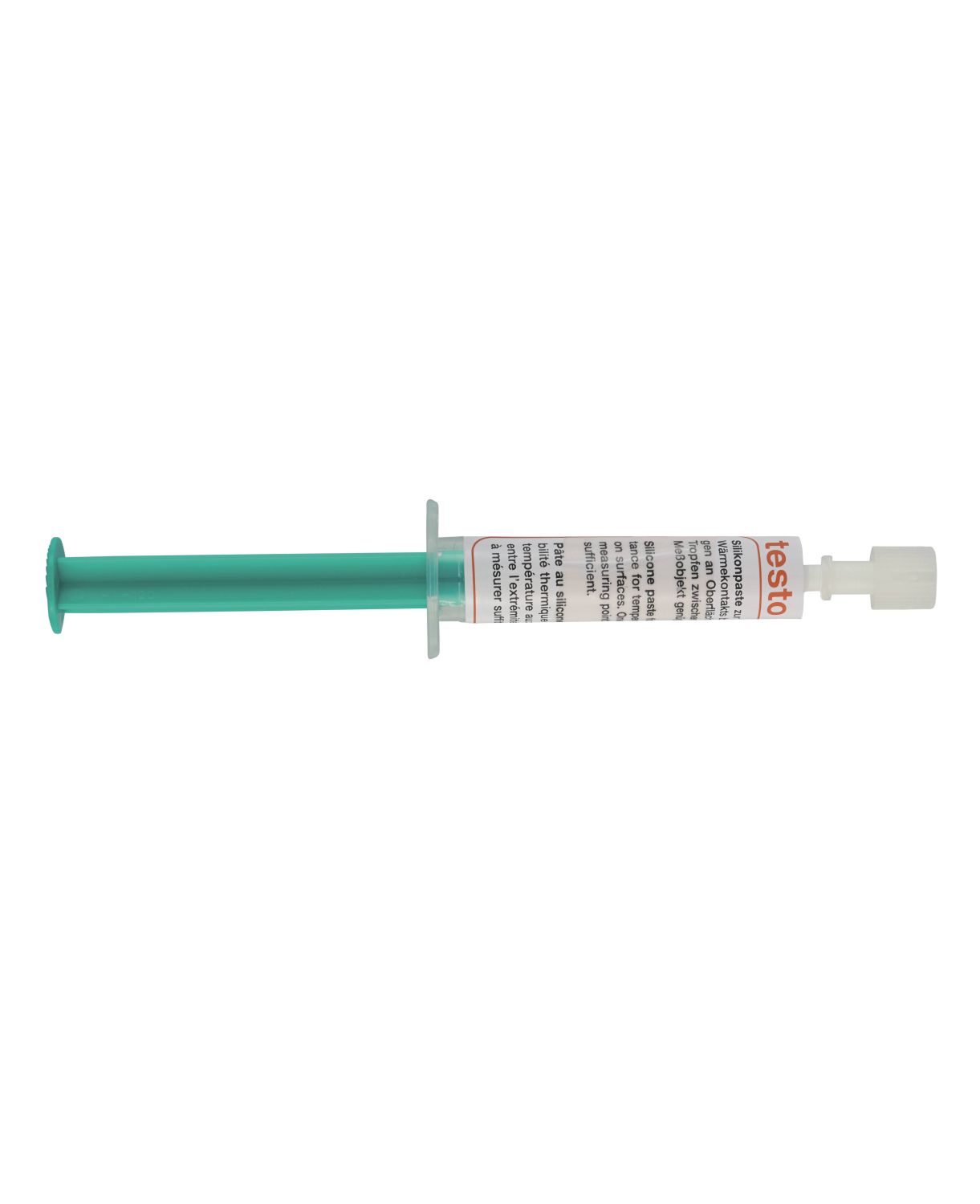

Silicone heat paste (14g), Tmax = +260°C

• To improve heat transfer in surface probes
• Can be used for temperatures up to 500 °F (+260 °C)
• Contents: 14 g

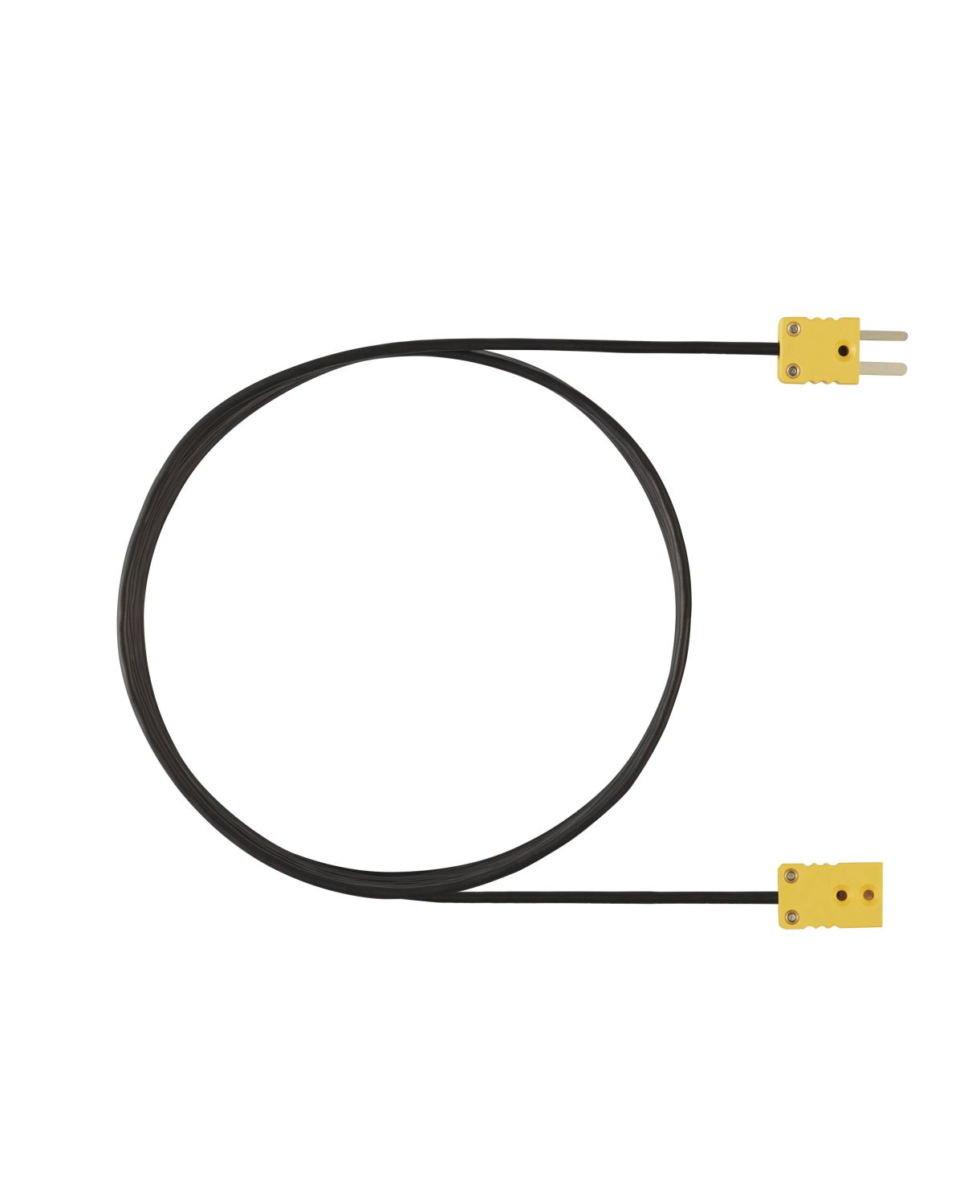

Extension cable, 5m, for thermocouple probe Type K

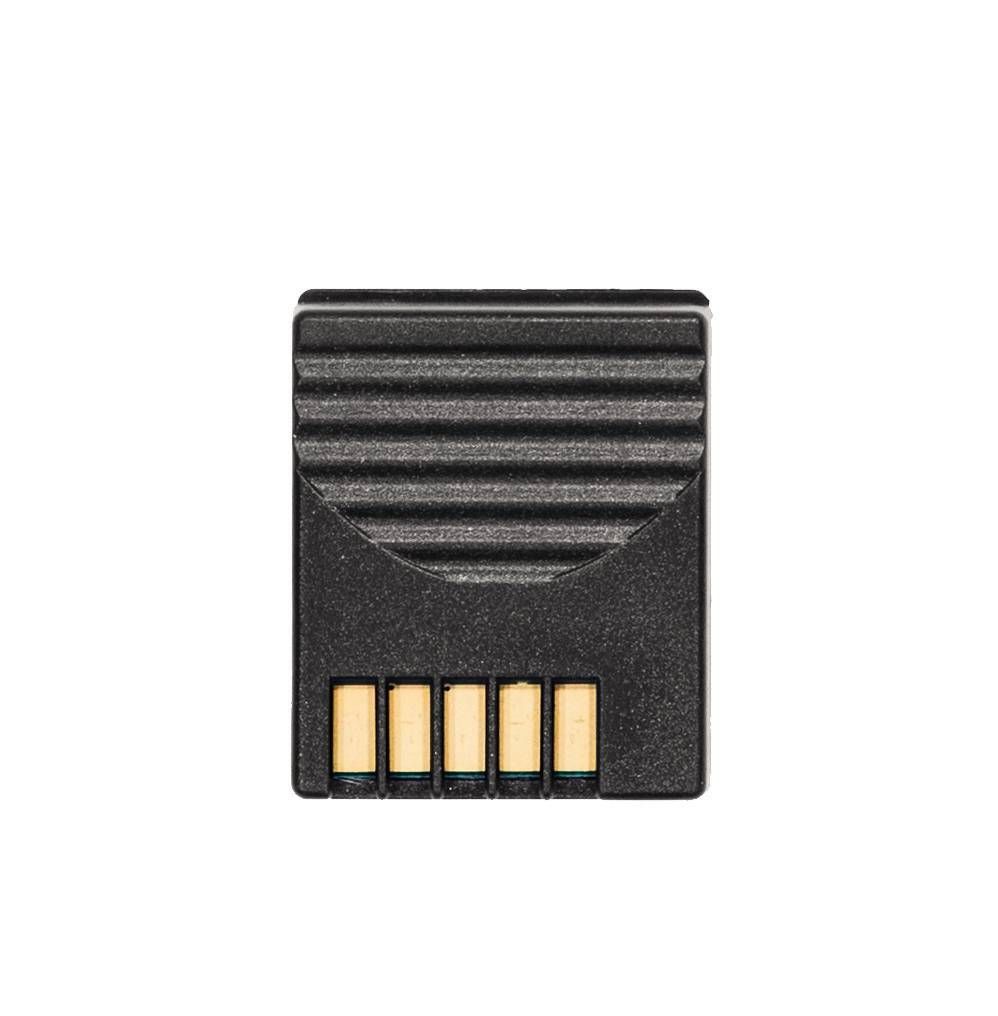

Radio module for measuring instrument, 869.85 MHz, approval for the countries

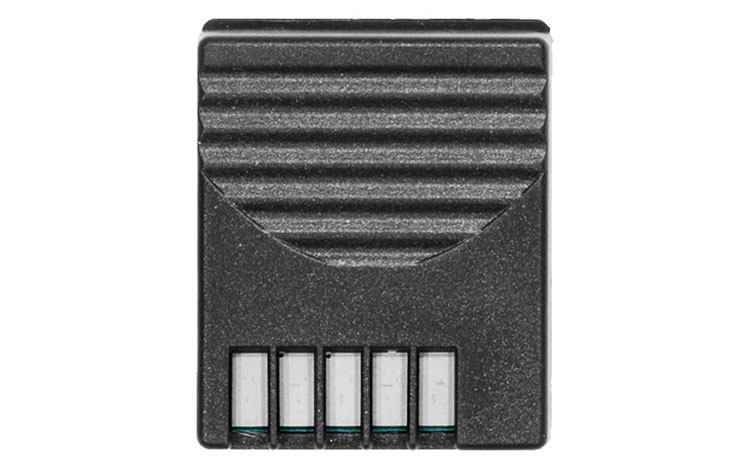

WIRELESS MODULE FOR MEASURING INSTRUMENT, 915.00 MHZ FSK, APPROVED FOR USA & CANADA

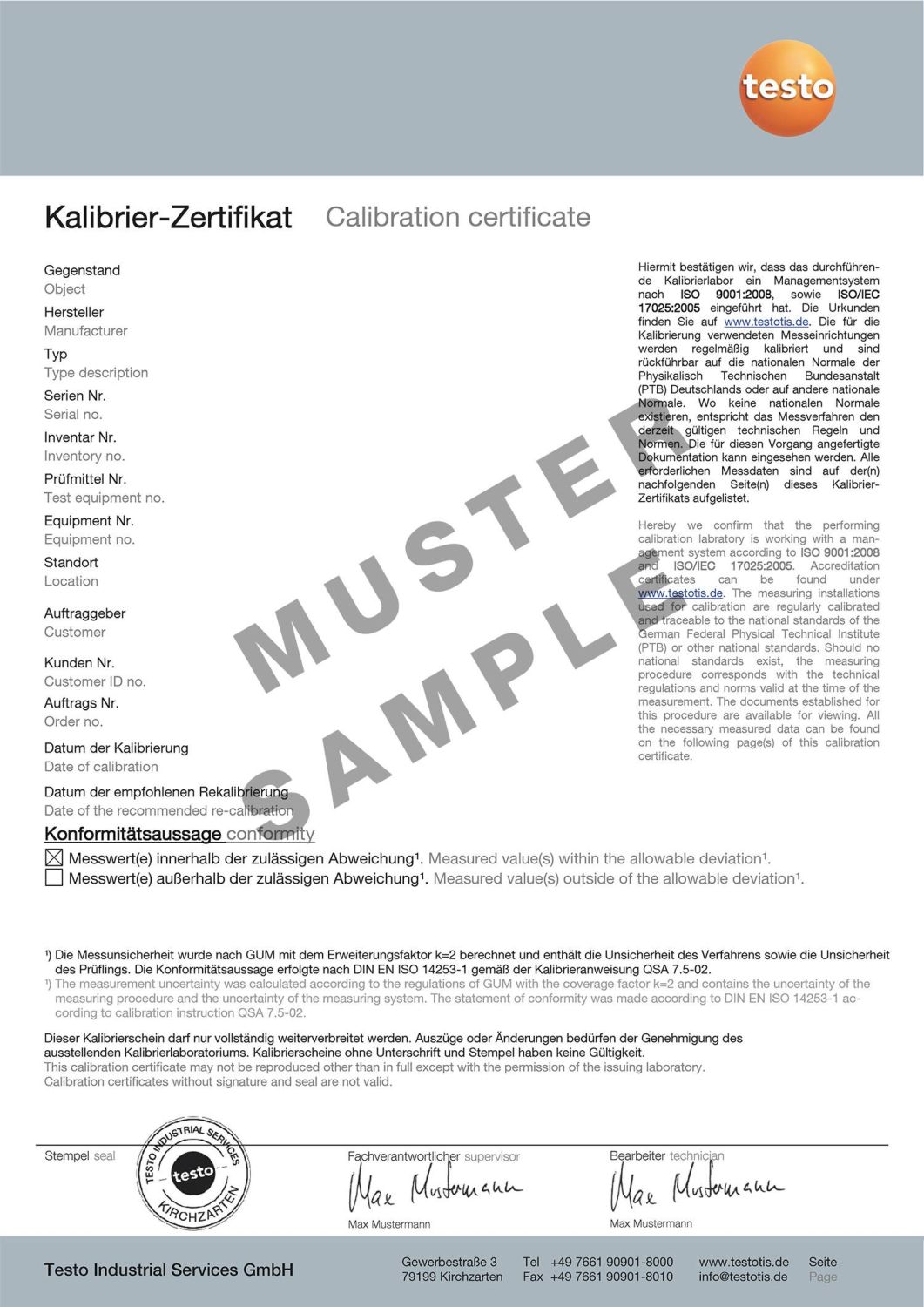

ISO temperature calibration certificate - with 3 measuring points

ISO temperature calibration certificate - with 3 measuring points

ISO temperature calibration certificate - with 3 measuring points

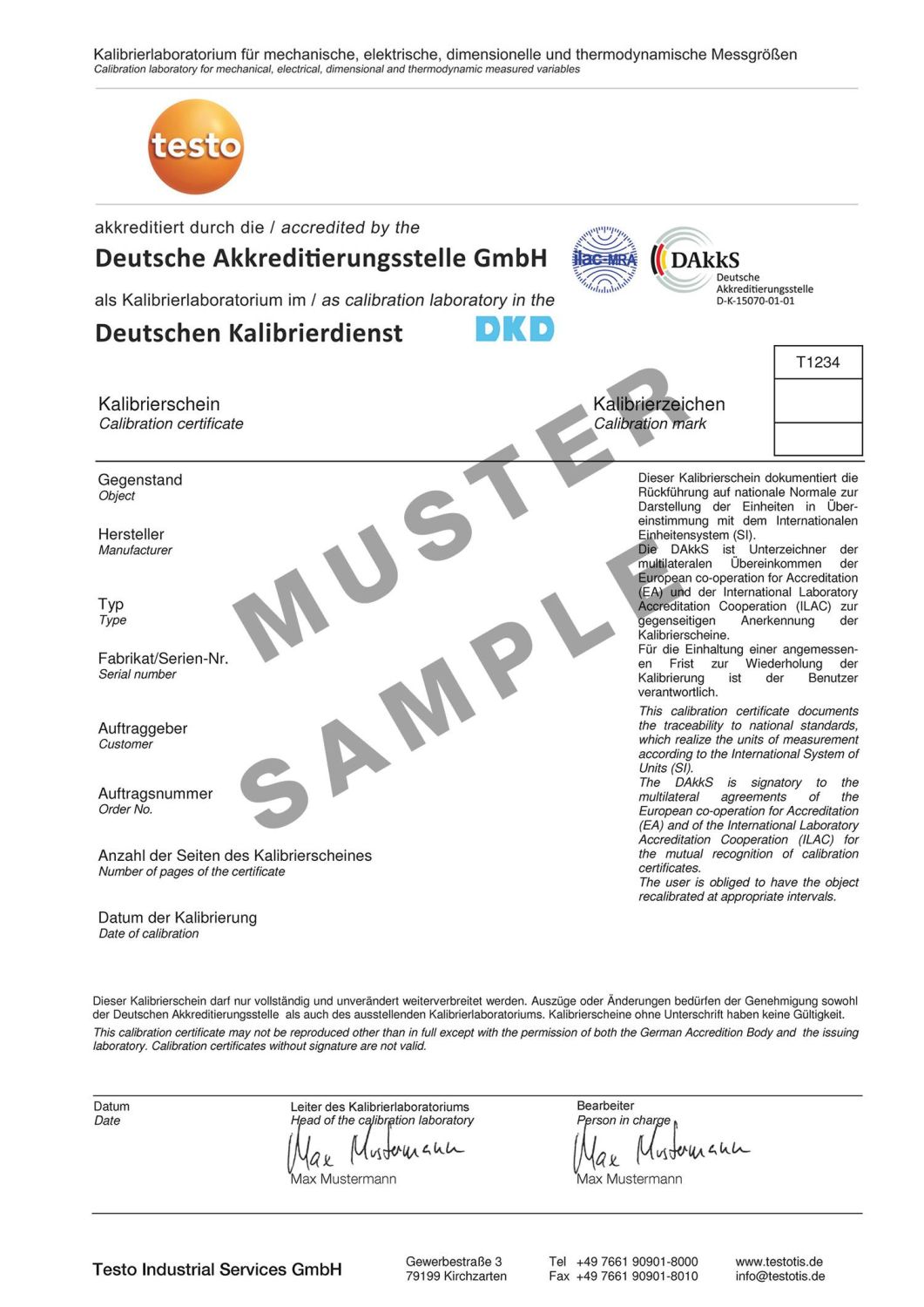

DAkkS temperature calibration certificate - with 3 measuring points

DAKKS CALIBRATION CERTIFICATE/TEMPERATURE CONTACT SURFACE TEMPERATURE PROBES;

4-point adjustment

4-point adjustment
