testo 635-1 - temperature and humidity measuring instrument

Category: HVAC INSTRUMENTS

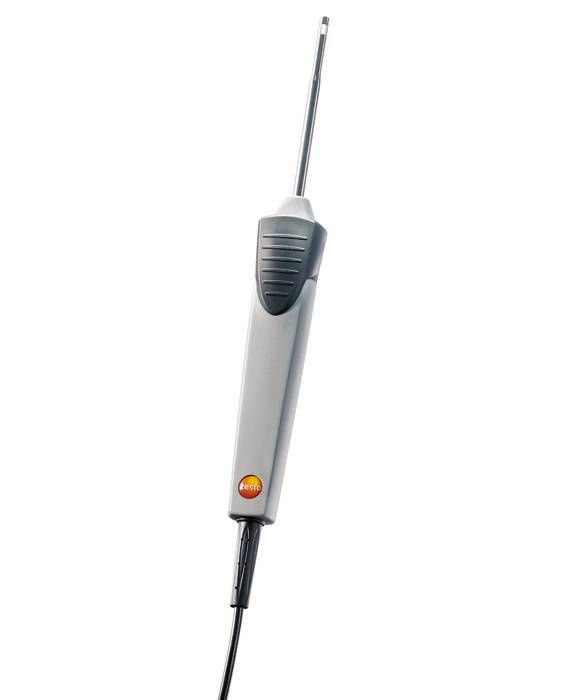

Robust air temperature probe (TC type K)

Part No. 0602 1793

Use the robust air temperature probe with exposed sensor (thermocouple type K) to measure air temperature with a short response time. It can be connected to a wide range of measuring instruments.

Key Features:

Thermocouple type K
Short response time thanks to the exposed sensor
Can be connected to a wide range of measuring instruments
Measuring range: -60 to +400 °C

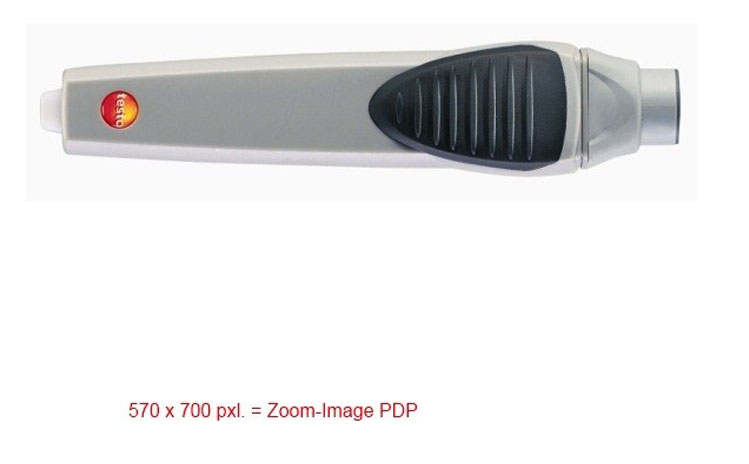

WIRELESS MODULE FOR ATTACHABLE PROBE HEADS INCL. ADAPTER FOR ATTACHING T/C PROBES (TYPE K)

Part No. 0554 0189

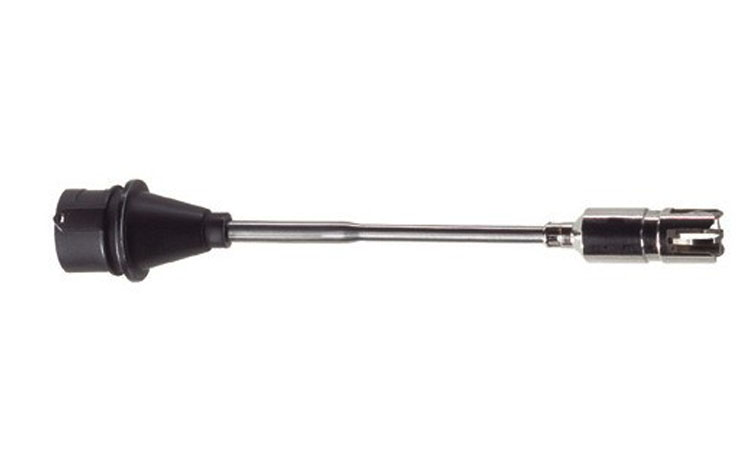

T/C probe head for surface measurement (T/C Type K)

Part No. 0602 0394

A stub type uneven surface temperature probe, specifically designed to be used with wireless probe handle (0554 0191). Probe connection is Type K.

Temperature - Type K TC Technical Data

Measuring range -58.0 to 662.0 °F / -50 to +350 °C , t2 +932.0 °F / t2 +500 °C
Accuracy Radio handle:
±(32.9 °F 0.3 % of remaining measurement value) (-40.0 to 500.0 °F / ±(0.5 °C +0.3 % of mv) (-40 to +500 °C
±(33.3 °F 0.5 ) (Remaining Range) / ±(0.7 °C +0.5 ) (Remaining Range)
T/C probe head: Class 2
Resolution 0.1 °F (-58.0 to 391.8 °F) / 0.1 °C (-50 to +199.9 °C) ,1.0 °F Remaining Range / 1.0 °C Remaining Range
Reaction time 5 sec

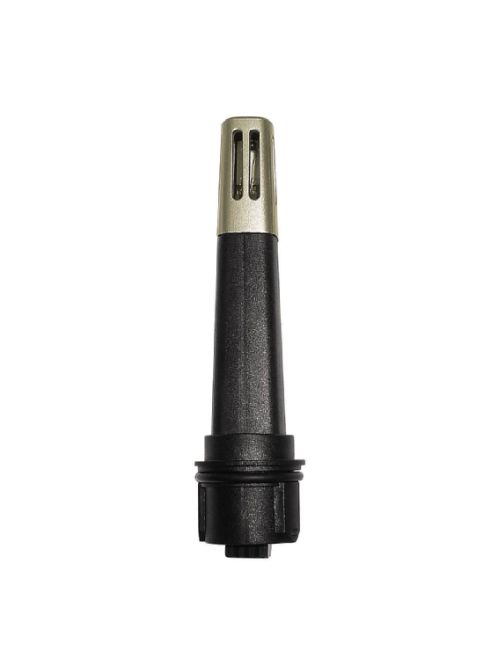

Compact professional humidity module

Part No. 0636 9736

Key Features:

For wireless humidity and temperature measurements
Can be attached to different Testo radio handles (available to order separately)
High precision in humidity measurement
Temperature measuring range: -20 to +70 °C

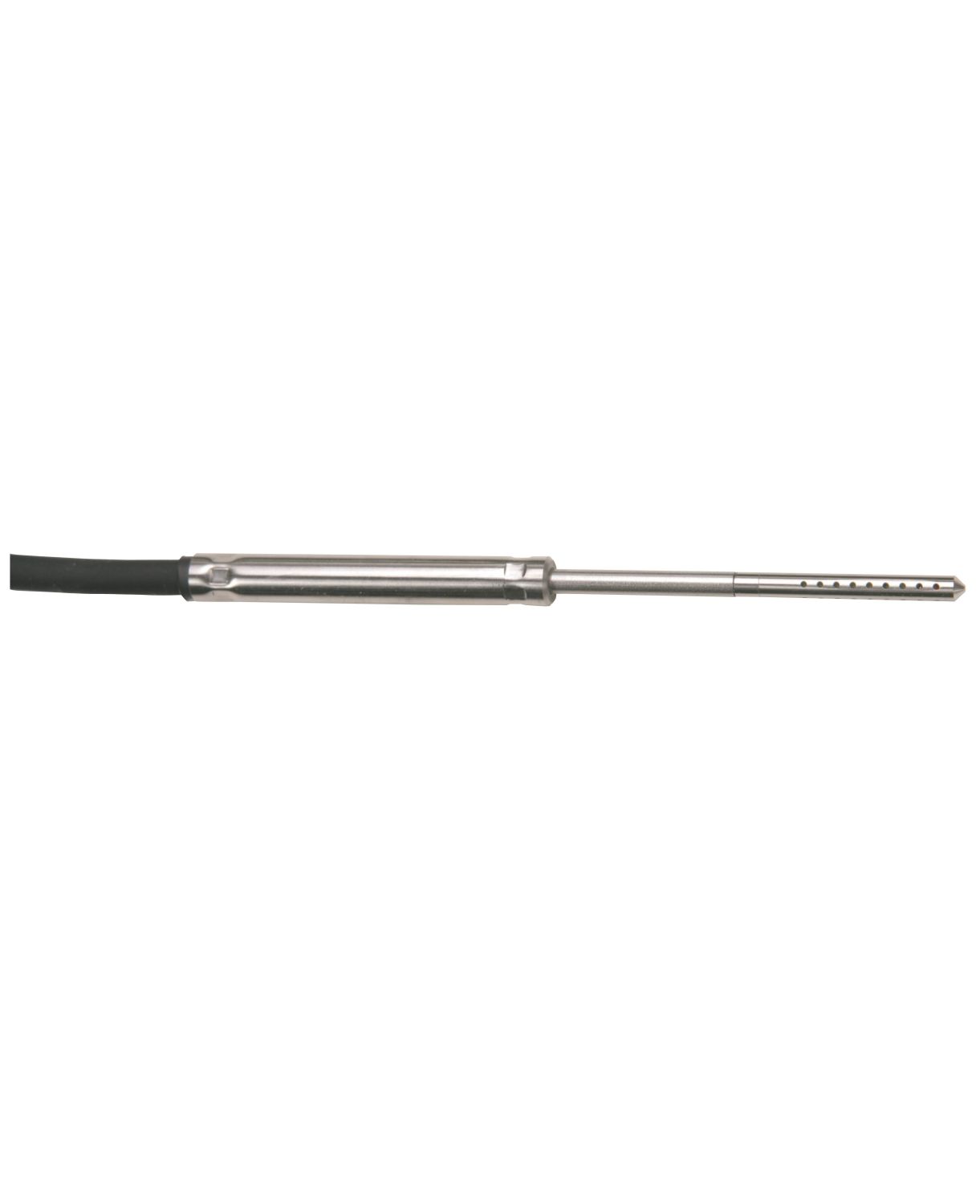

Thin humidity probe (Ø 4 mm) - for material moisture

Part No. 0636 2135

Product Features:

Measurement of the material moisture via the equilibrium moisture content
Slim design (Ø 4 mm) with remote electronics – ideal for tight measuring points

Temperature – NTC

Measuring range 1 to +40 °C
Accuracy ±0.2 °C

Humidity – Capacitive

Measuring range 0 to +100 %RH
Accuracy ±2 %RH (+2 to +98 %RH)

General Technical Data

Diameter probe shaft 4 mm
Length probe shaft 60 mm

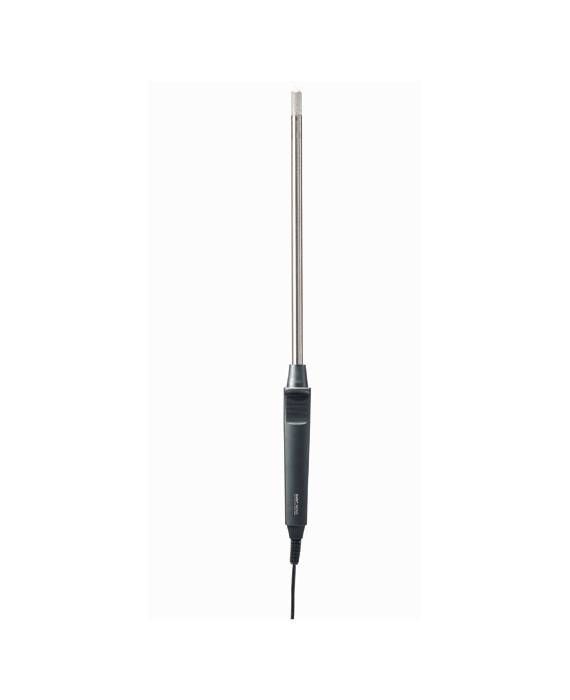

Robust humidity probe

Part No. 0636 2161

In combination with the testo 635, the robust humidity probe measures the humidity and temperature of the air. Because the probe can be used up to 125 °C, it also enables measurements in air exhaust ducts. In addition, it is suitable for measuring the material equilibrium moisture content, for example in bulk materials.

Technical Data

Temperature – NTC

Measuring range -20 to +125 °C
Accuracy ±0.2 °C

Humidity – Capacitive

Measuring range 0 to +100 %RH
Accuracy ±2 %RH (+2 to +98 %RH)

General Technical Data

Diameter probe shaft 12 mm
Length probe shaft 300 mm

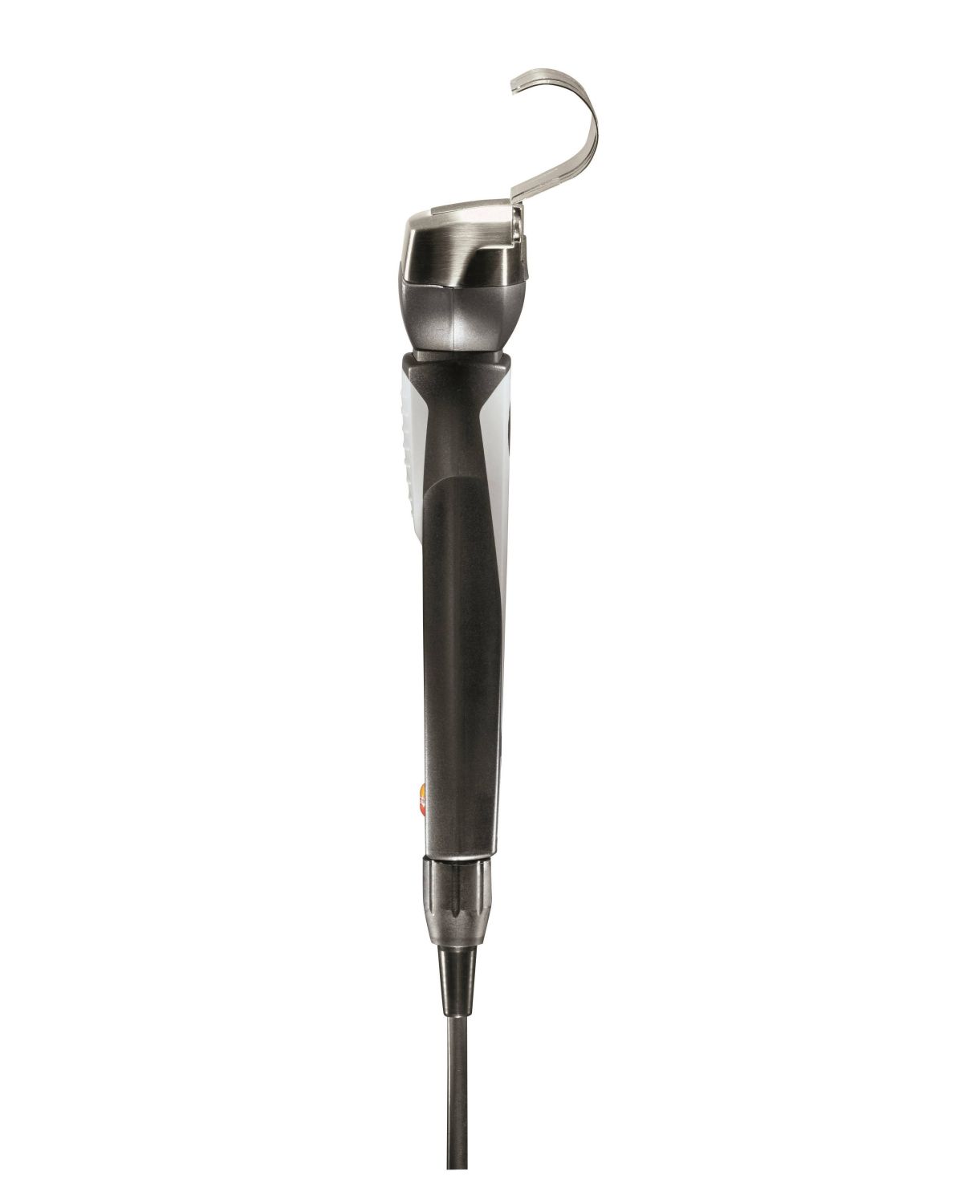

Scatter field probe for fast and damage-free material moisture measurement

Part No. 0636 6160

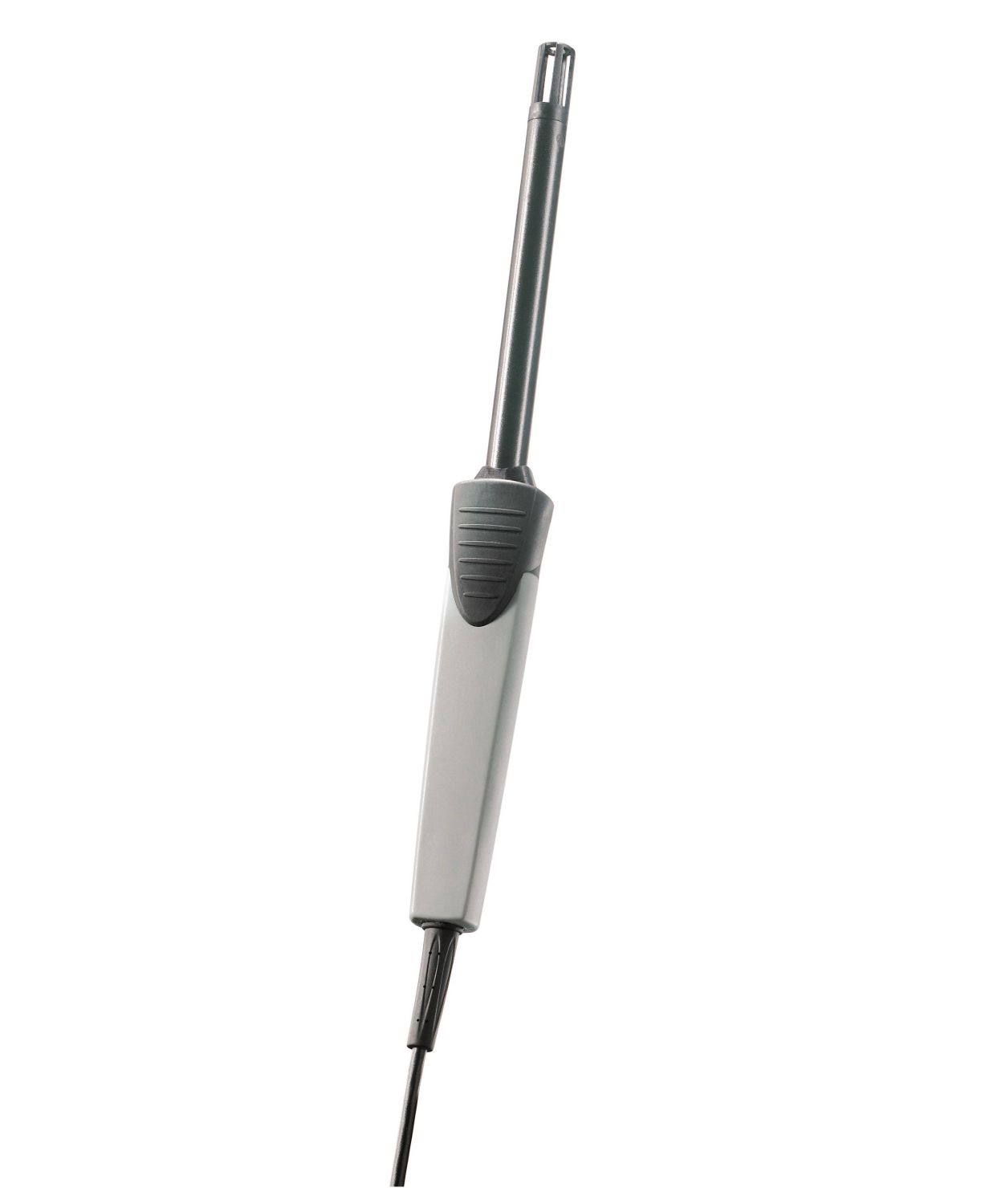

Humidity/temperature probe (Ø 12 mm)

Part No. 0636 9735

Key Features:

Humidity sensor with long-term stability
Temperature measuring range: -20 to +70 °C

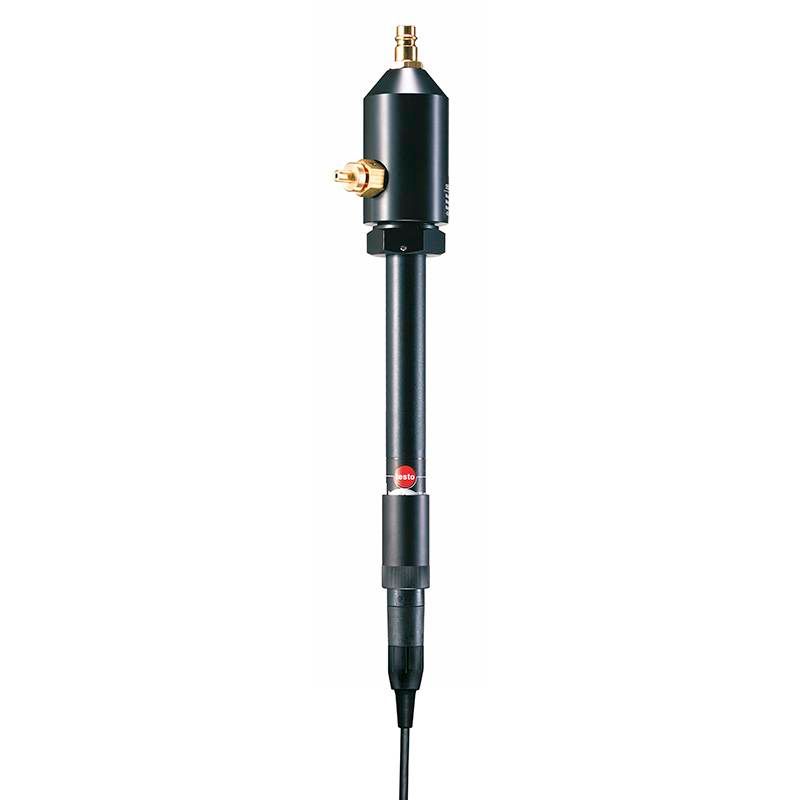

Pressure dewpoint probe for measurements in compressed air systems

Part No. 0636 9835

Technical Data

Pressure Dewpoint

Measuring range -30 to +50 °Ctpd
Accuracy

±0.9 °Ctpd (+0.1 to +50.0 °Ctpd)
±1 °Ctpd (-4.9 to 0 °Ctpd)
±2 °Ctpd (-9.9 to -5 °Ctpd)
±3 °Ctpd (-19.9 to -10 °Ctpd)
±4 °Ctpd (-30 to -20 °Ctpd)

Reaction time 300 s

General Technical Data

Length probe shaft 300 mm

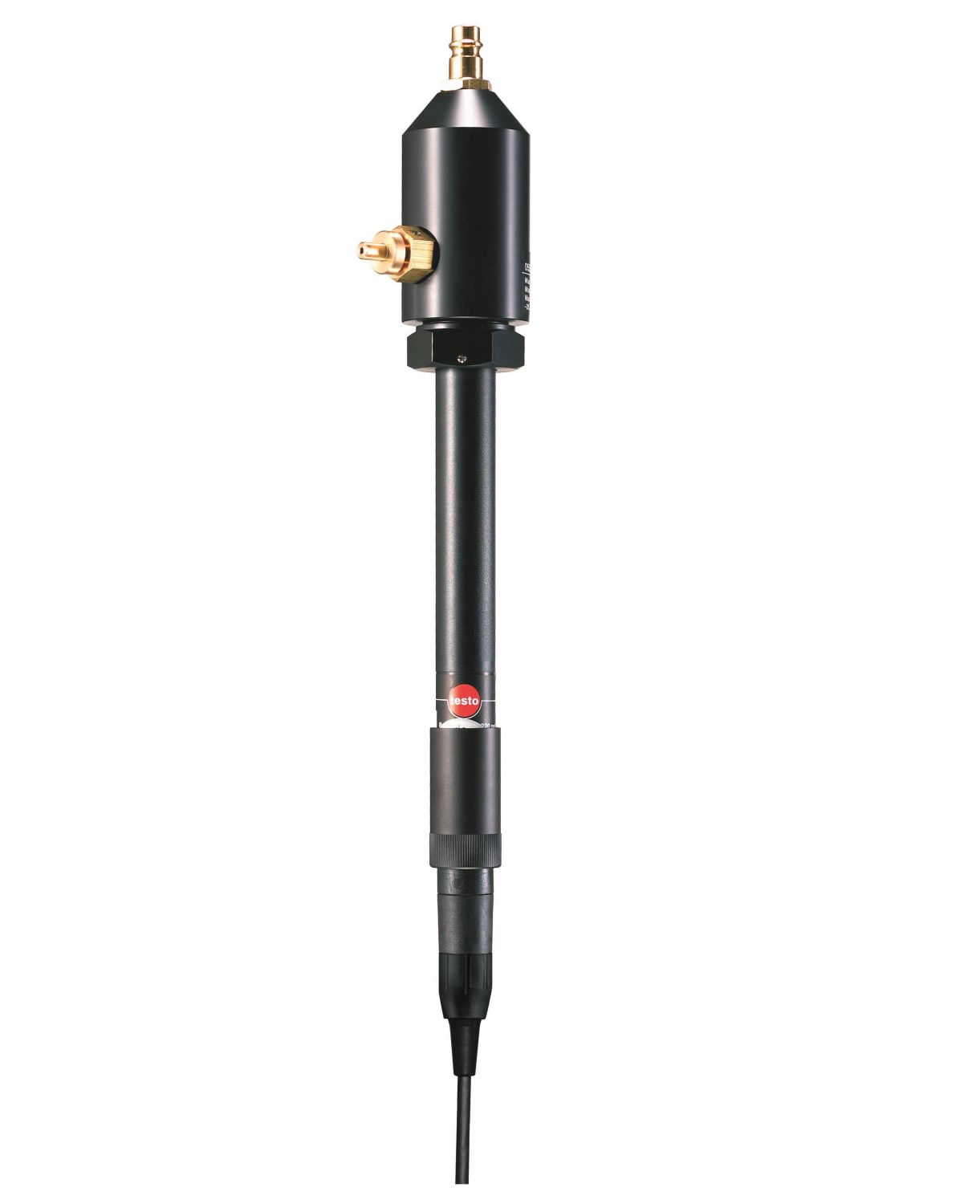

Precision pressure dew point probe with measuring chamber

Part No. 0636 9836

Check compressed air lines reliably: the precision pressure dew point probe with measuring chamber is ideally suited for fast and accurate determination of the pressure dew point and for high-precision measurements in the trace humidity range.

Technical Data

Pressure Dewpoint

Measuring range -60 to +50 °Ctpd
Accuracy

±0.8 °Ctpd (+0.1 to +50 °Ctpd)
±1 °Ctpd (-9.9 to -5 °Ctpd)
±2 °Ctpd (-19.0 to -10 °Ctpd)
±3 °Ctpd (-29.9 to -20 °Ctpd)
±4 °Ctpd (-40 to -30 °Ctpd)

Reaction time 300 s

General Technical Data

Length probe shaft 300 mm
Fixed cable yes

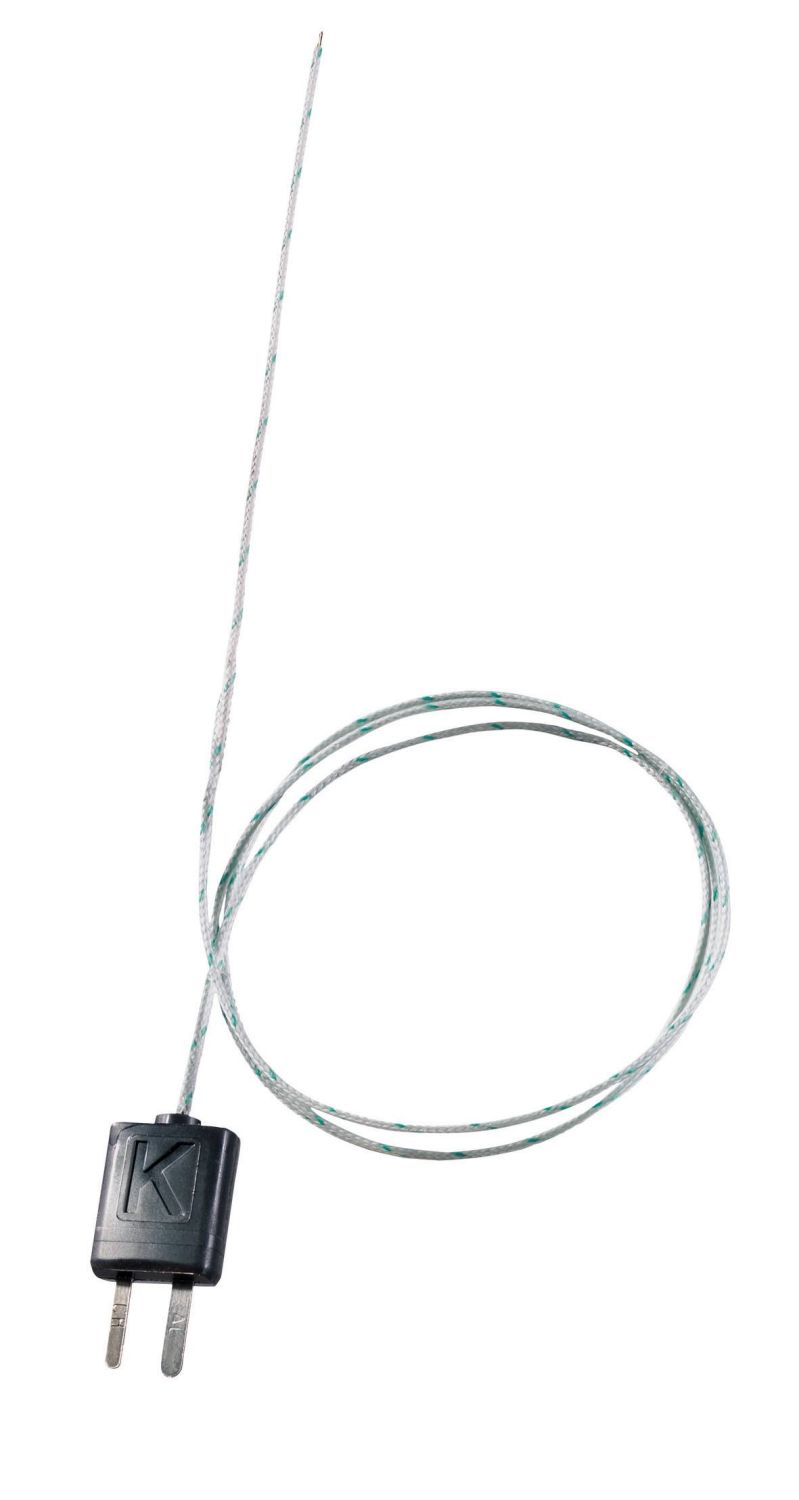

Thermocouple with TC adapter, flexible, 800 mm long

Part No. 0602 0644

Temperature - TC Type K (NiCr-Ni) Technical Data

Measuring range -50.0 to +400.0 °C
Accuracy Class 2 ¹⁾
Reaction time 5 s

1) According to standard EN 60584-2, the accuracy of Class 1 refers to -40 to +1000 °C (Type K), Class 2 to -40 to +1200 °C (Type K), Class 3 to -200 to +40 °C (Type K).

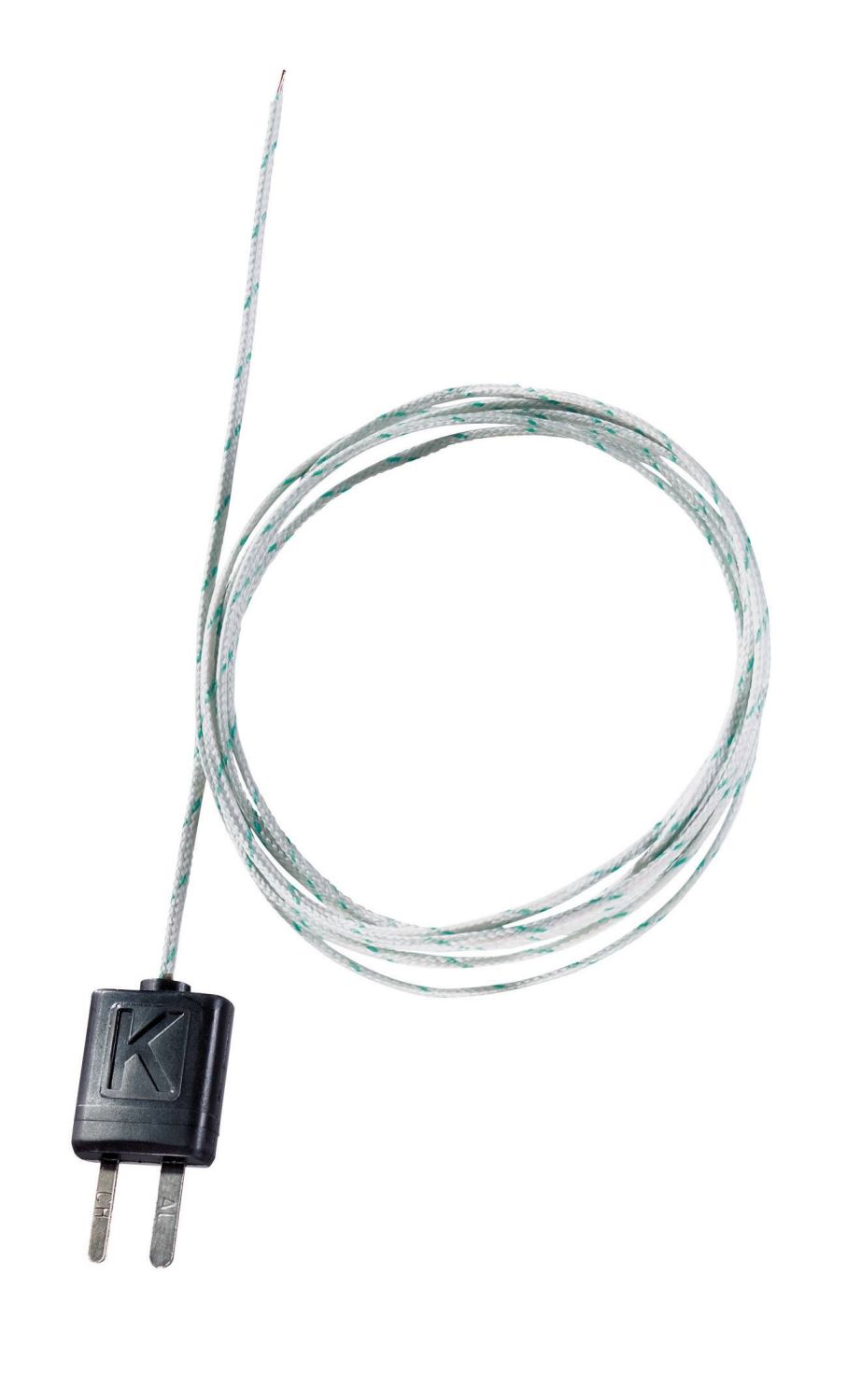

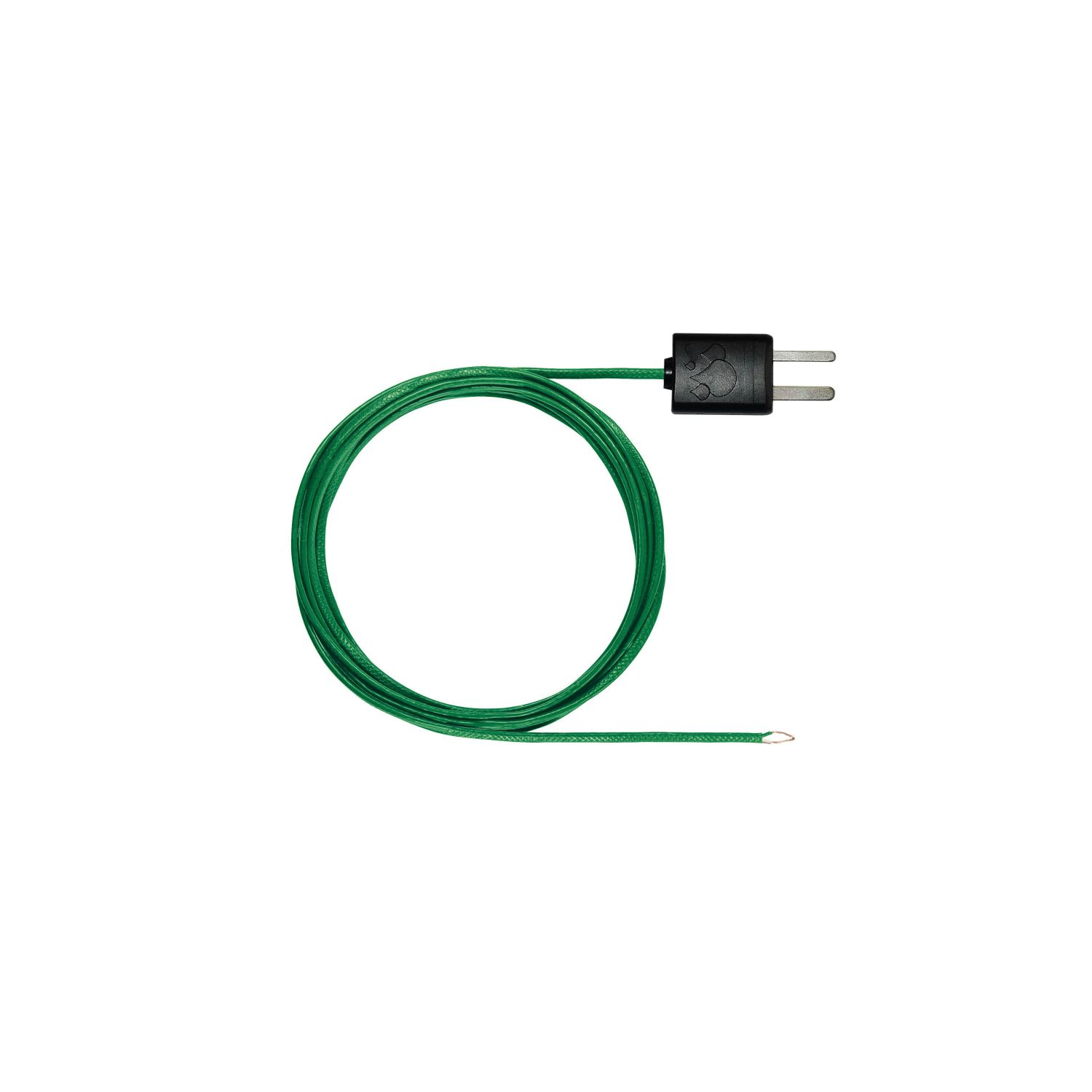

Thermocouple with TC adapter, flexible, length 1500 mm , fibreglass, TC Type K

Part No. 0602 0645

hermocouple with TC adapter, flexible, 1500 mm long, PTFE, TC Type K

Part No. 0602 0646

Technical Data

Temperature - TC Type K (NiCr-Ni)

Measuring range -50 to +400 °C
Accuracy Class 2 ¹⁾
Reaction time 5 s

1) According to standard EN 60584-2, the accuracy of Class 1 refers to -40 to +1000 °C (Type K), Class 2 to -40 to +1200 °C (Type K), Class 3 to -200 to +40 °C (Type K).

General Technical Data

Diameter probe shaft 1.5 mm
Length probe shaft 1,500 mm

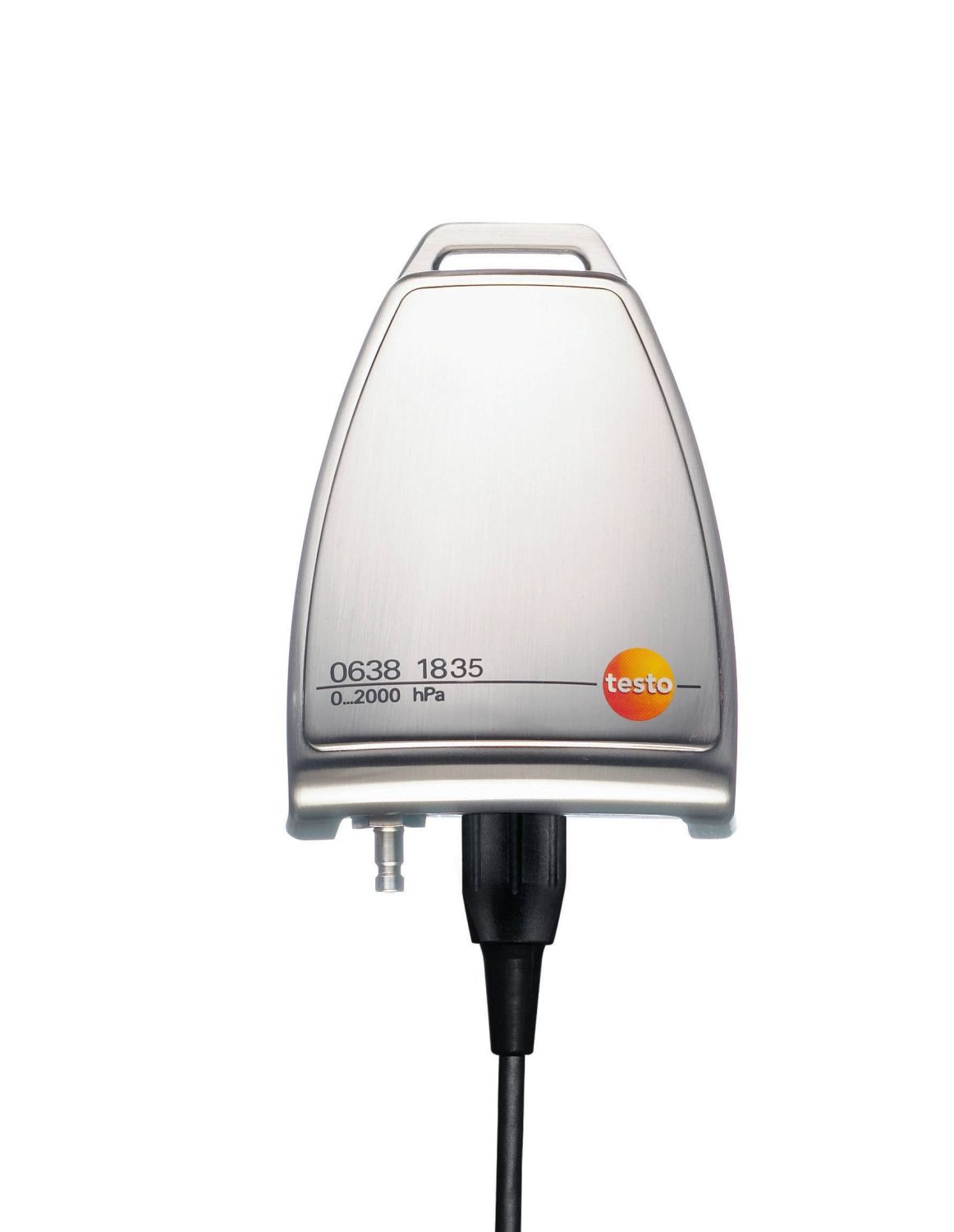

Absolute pressure probe 2000 hPa

Part No. 0638 1835

Technical Data

Absolute Pressure

Measuring range 0 to +2000 hPa
Accuracy ±5 hPa
Resolution 0.1 hPa
Overload 4000 hPa

General Technical Data

Cable length 1.6 m
Operating temperature 0 to +50 °C

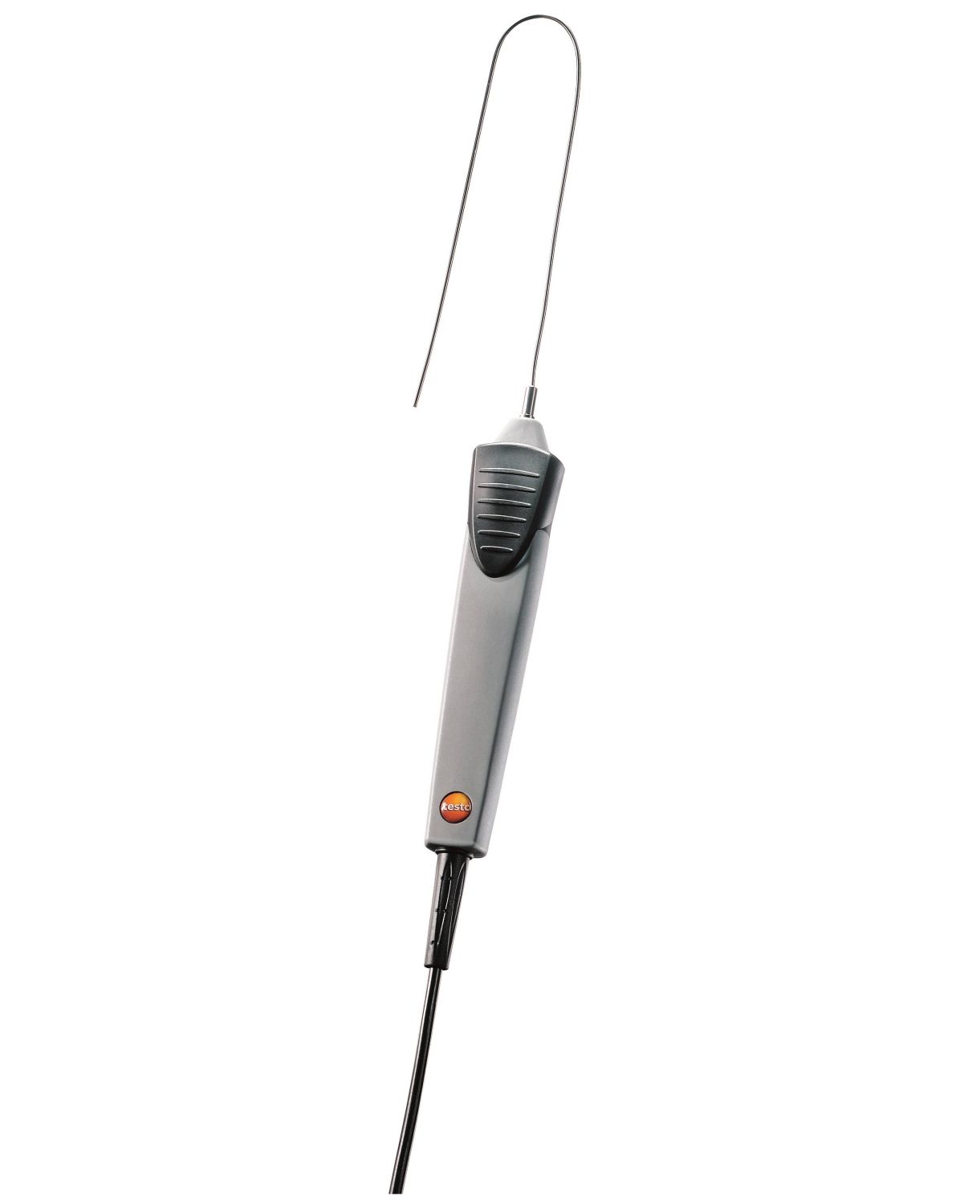

Flexible, fast-action immersion probe (TC type K)

Part No. 0602 0593

Key Features:

Short response time of 2 seconds
Thermocouple type K
Waterproof
Very large measuring range: -60 to +1000 °C

Waterproof immersion/penetration probe (TC type K)

Part No. 0602 1293

The waterproof immersion and penetration probe guarantees fast temperature measurement in liquids and semi-solid media.

Key Features:

Thermocouple type K
Response time of 7 seconds
Waterproof
Measuring range: -60 to +400 °C

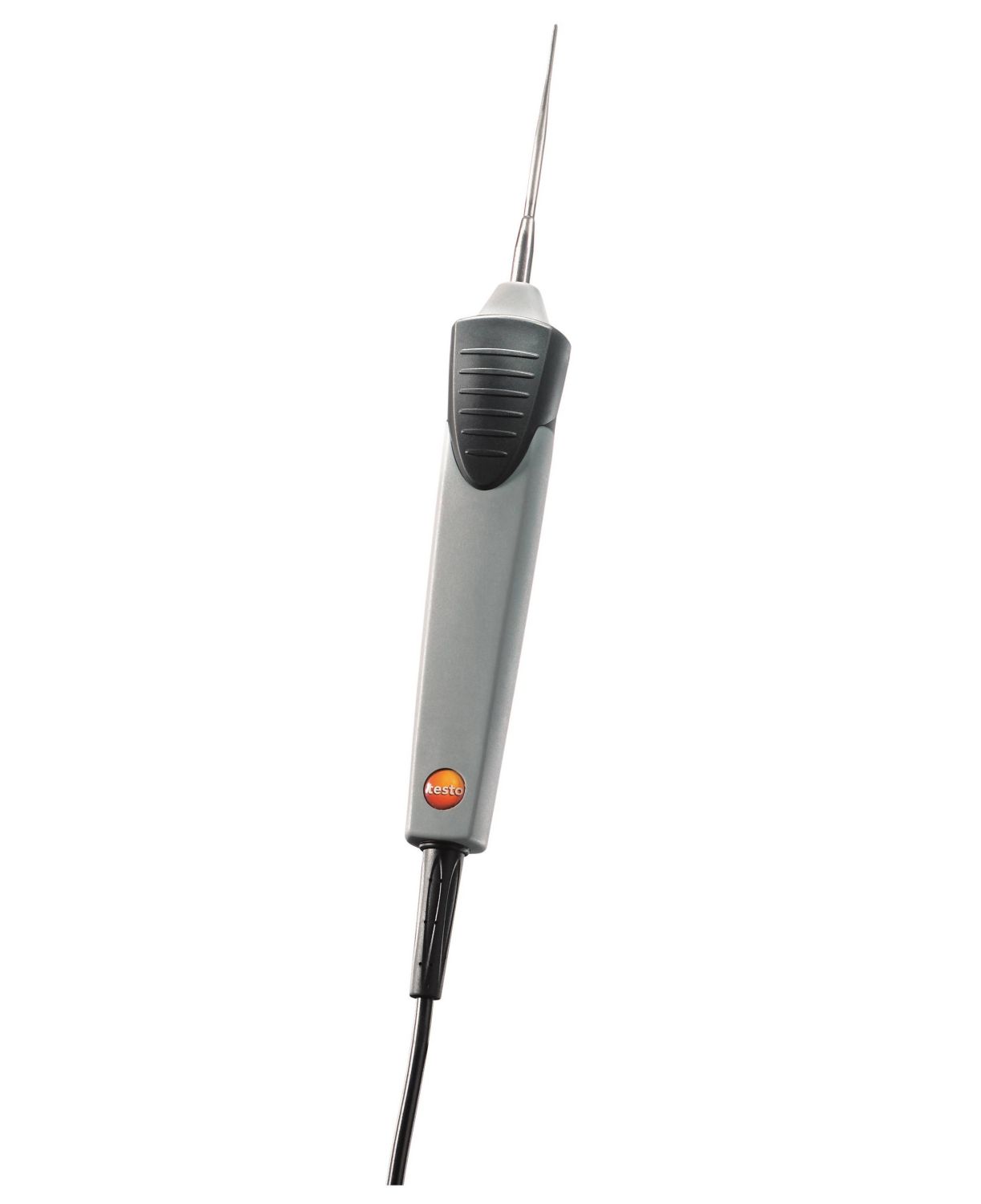

Fast-action immersion/penetration probe (TC type K)

Part No. 0602 2693

Fast-action temperature probe with penetration tip – ideal for temperature measurements in pastes and semi-solid media, in liquids and in the air.

Key Features:

1.5 mm thin probe tip for fast temperature recording, 60 mm long probe shaft
Splash-proof in accordance with IP54
Very short response time of 3 seconds
Measuring range: -60 to +800 °C

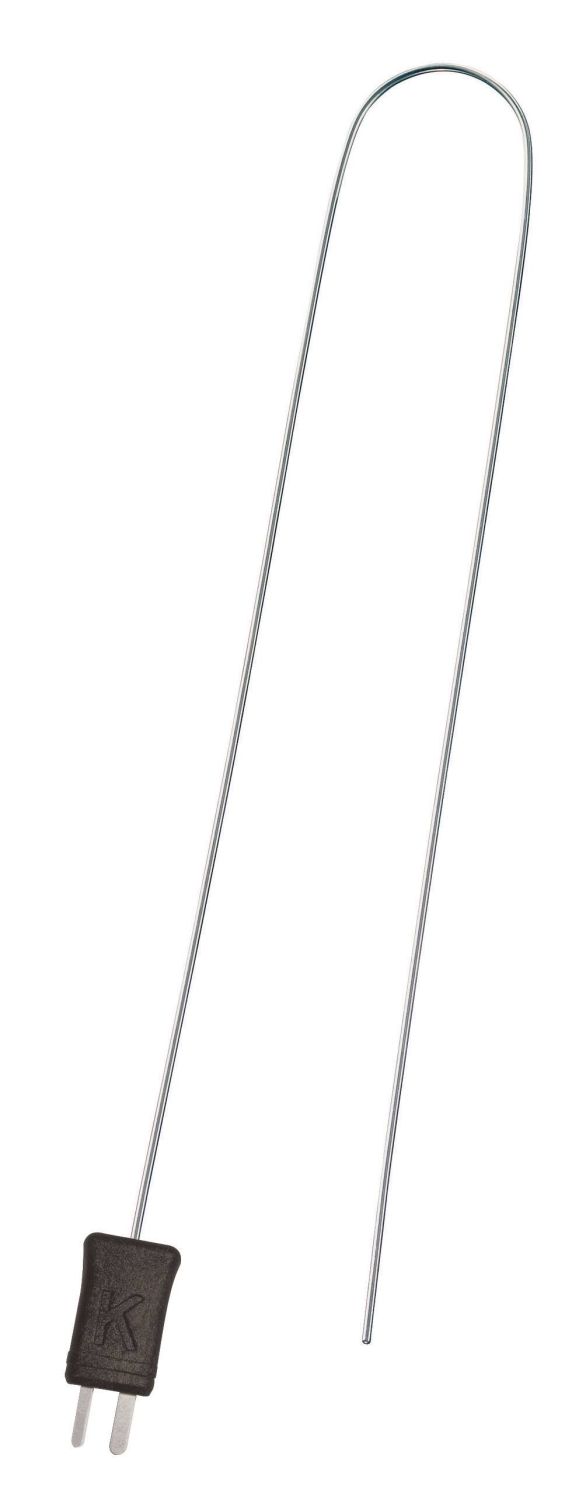

Immersion tip, flexible, TC Type K

Part No. 0602 5792

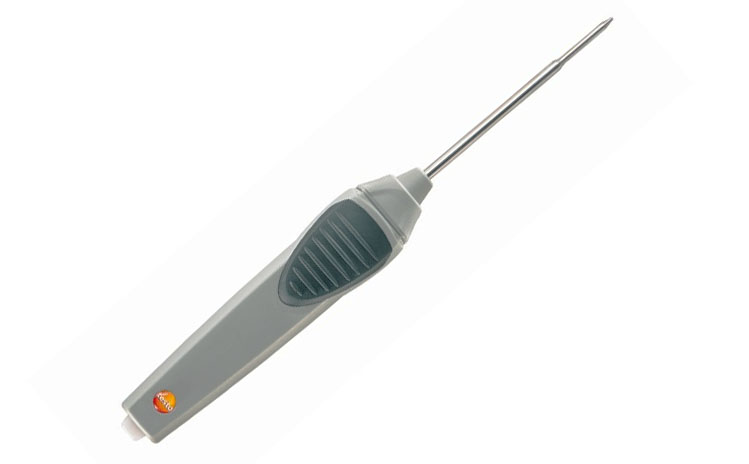

RADIO IMMERSION/PENETRATION PROBE, NTC, APPROVAL FOR THE COUNTRIES

Part No. 0613 1001

RADIO IMMERSION/PENETRATION PROBE, NTC, APPROVAL FOR THE COUNTRIES: DE, FR, UK, BE, NL, ES, IT, SE, AT, DK, FI, HU, CZ, PL, GR, CH, PT, SI, MT, CY, SK, LU, EE, LT, IE, LV, NO

Temperature - NTC Technical Data

Measuring range -58 to +527 °F / -50 to +275 °C
Accuracy

±0.9 °F (-4.0° to 176 {#0.0} °F) / ±0.5 °C (-20 to +80 °C)
±1.4 °F (-58.0° to -4.2 {#0.0} °F) / ±0.8 °C (-50 to -20.1 °C)
±1.4 °F (176.2° to 392 {#0.0} °F) / ±0.8 °C (+80.1 to +200 °C)
±2.7 °F (Remaining Range) / ±1.5 °C (Remaining Range)

Resolution 0.1 °F / 0.1 °C
Reaction time (in water) 12 sec

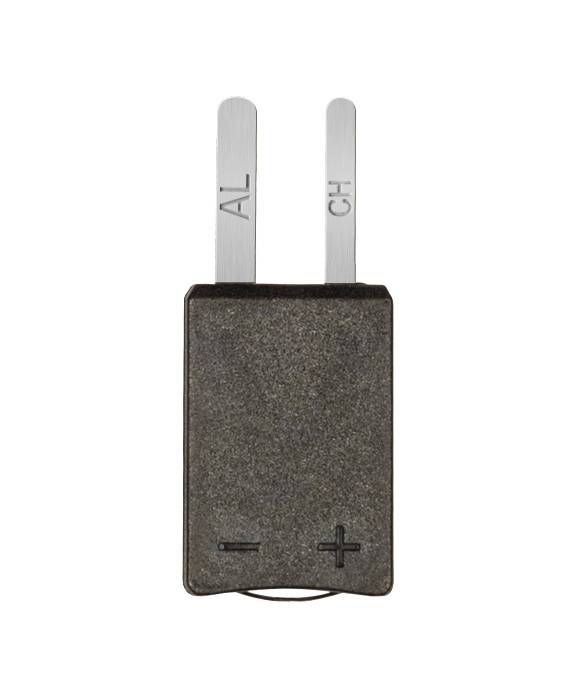

Spare meas. head for pipe wrap probe, TC Type K

Part No. 0602 0092

Product Benefits:

Replaceable measuring head with thermocouple strip for temperature probe with clamping bracket 0602 4592
Measuring range: -60 to +130°C, briefly up to +280 °C
Simple pull out the old measuring head with thermocouple strip and replace with new measuring head

Temperature - TC Type K (NiCr-Ni) Technical Data

Measuring range -60 to +130 °C
Accuracy Class 2 ²⁾
Reaction time 5 s

2) Accor ding to standard EN 60584-2, the accuracy of Class 1 refers t o -40 t o +1000 °C (Type K), Class 2 to -40 to +1200 °C (Type K), Class 3 to -200 to +40 °C (Type K).

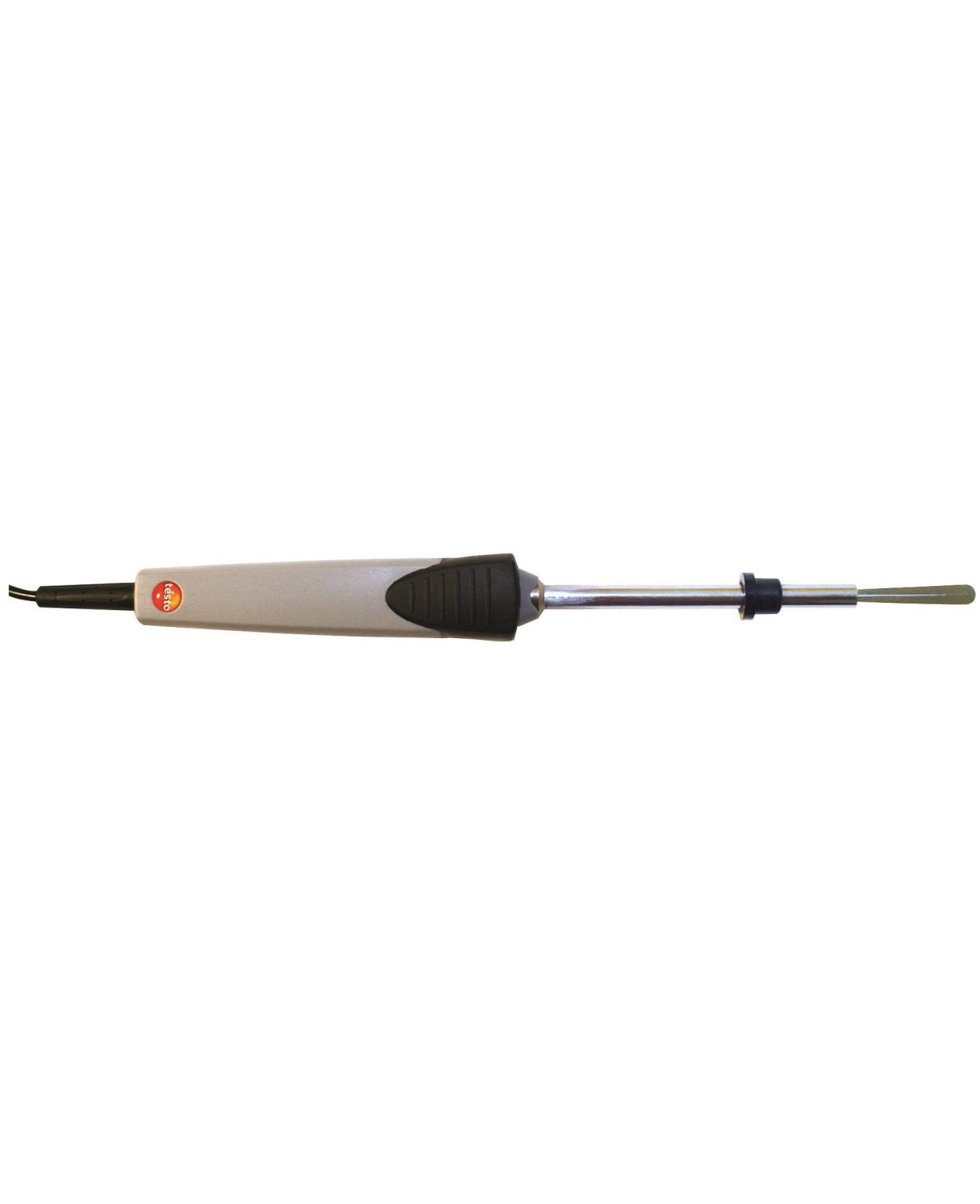

Fast-reaction paddle surface probe, for measurements in inaccessible places, e.g. narrow apertures and slots, TC Type K

Part No. 0602 0193

Technical Data

Temperature - TC Type K (NiCr-Ni)

Measuring range 0 to +300 °C
Accuracy Class 2 *
Reaction time 5 s

*Accor ding t o standard EN 60584-2, the accuracy of Class 1 refers to -40 to +1000 °C (Type K), CLass 2 to -40 to +1200 °C (Type K), Class 3 to -200 to +40 °C (Tyoe K).

General Technical Data

Fixed cable true
Diameter probe shaft tip 7 mm
Diameter probe shaft 8 mm
Length probe shaft tip 40 mm
Length probe shaft 145 mm

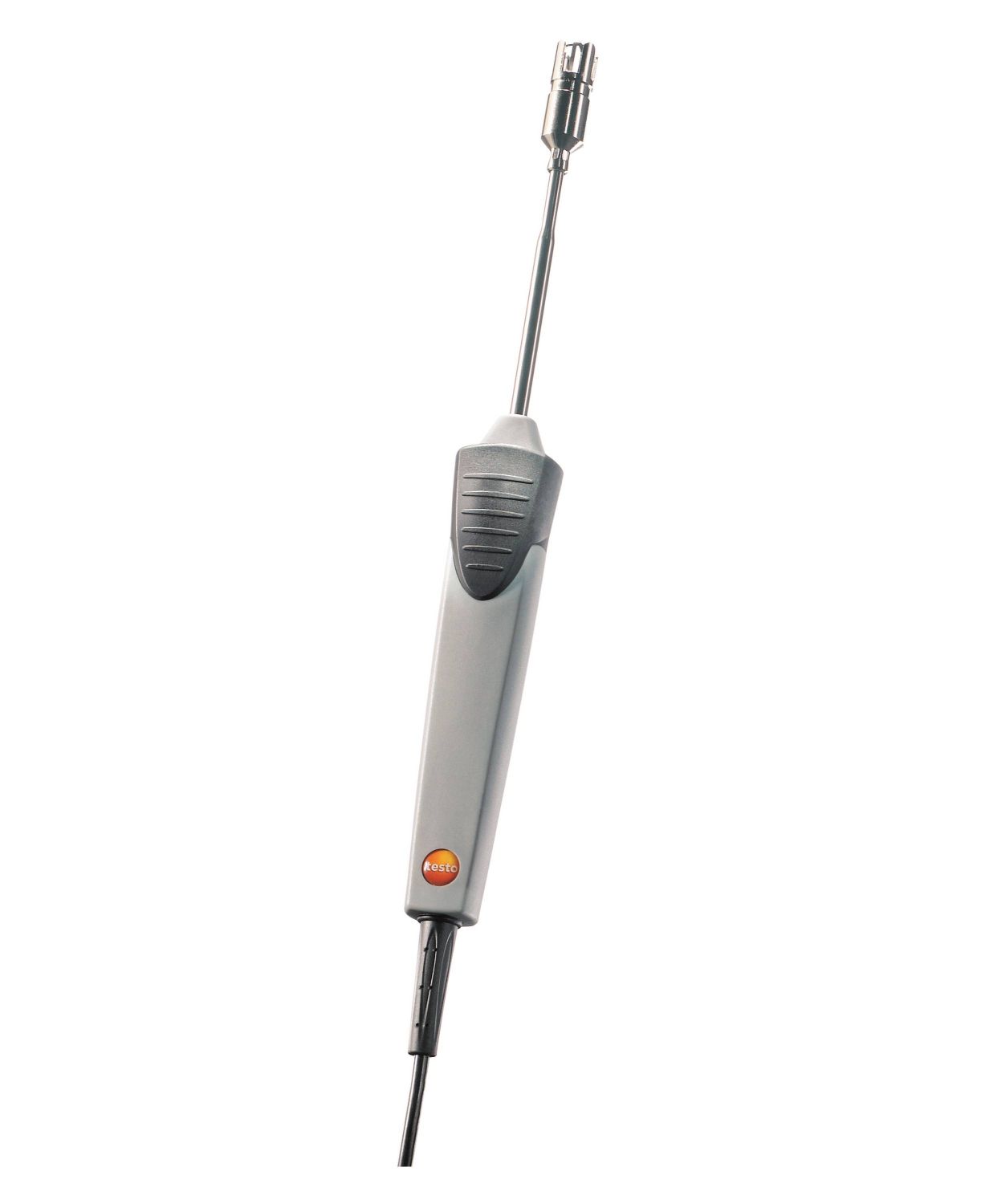

Fast-action surface probe (TC type K)

Part No. 0602 0393

The extremely fast-action surface temperature probe with sprung thermocouple strip is suitable for a wide range of applications – including uneven surfaces.

Temperature - TC Type K (NiCr-Ni) Technical Data

Measuring range -60 to +300 °C
Accuracy Class 2 ¹⁾
Reaction time 3 s

1) According to standard EN 60584-2, the accuracy of Class 2 refers to -40 to +1200 °C.

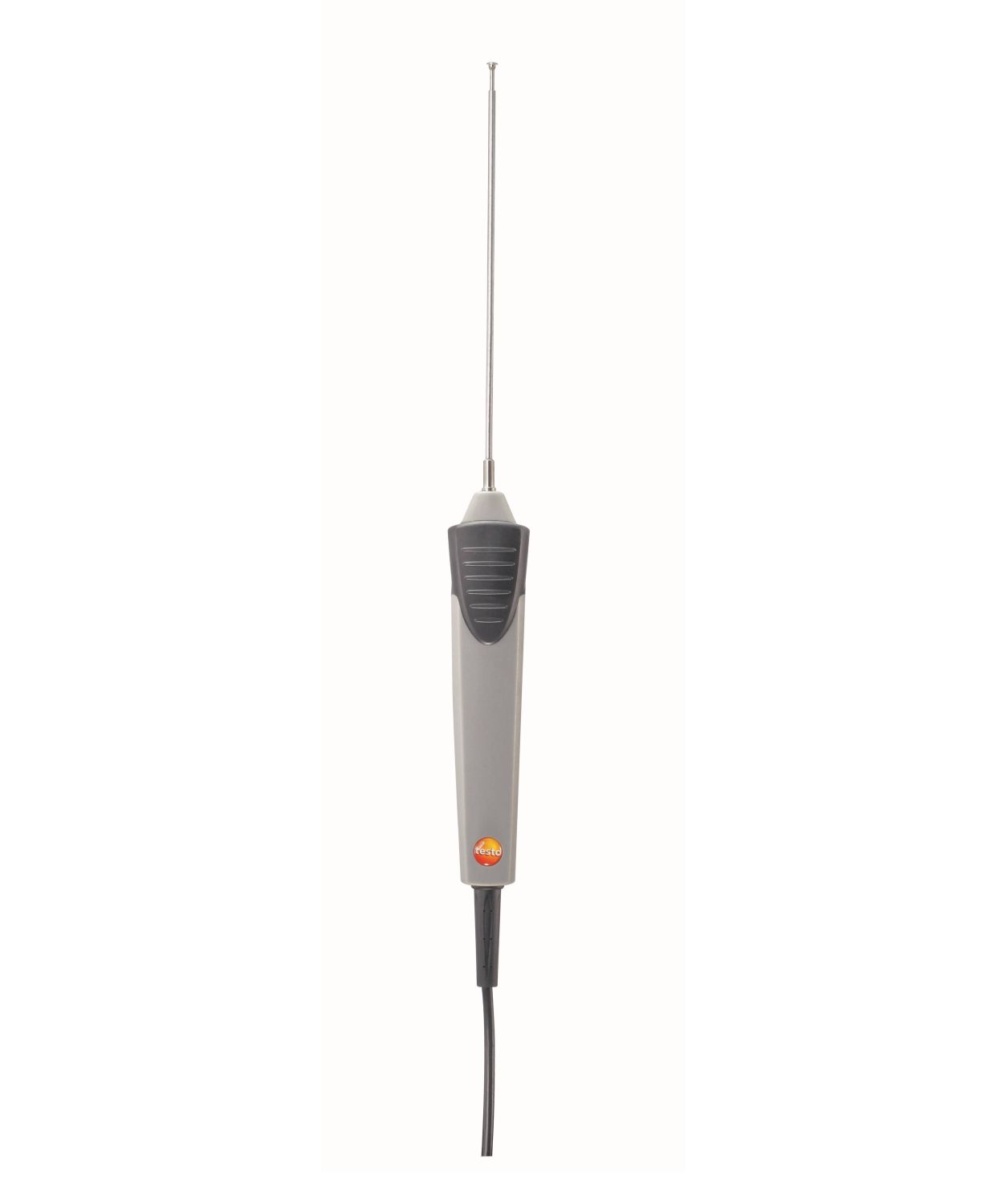

Surface probe with a small measuring head (TC type K)

Part No. 0602 0693

Accurate, waterproof and versatile: the temperature probe measures surface temperatures of up to 1000 °C. Its small measuring head is ideal for carrying out measurements on flat surfaces. Short response time.

Temperature - TC Type K (NiCr-Ni) Technical Data

Measuring range -60 to +1000 °C
Accuracy Class 1 ¹⁾
Reaction time 20 s

1) According to standard EN 60584-2, the accuracy of Class 1 refers to -40 to +1000 °C (Type K), Class 2 to -40 to +1200 °C (Type K), Class 3 to -200 to +40 °C (Type K).

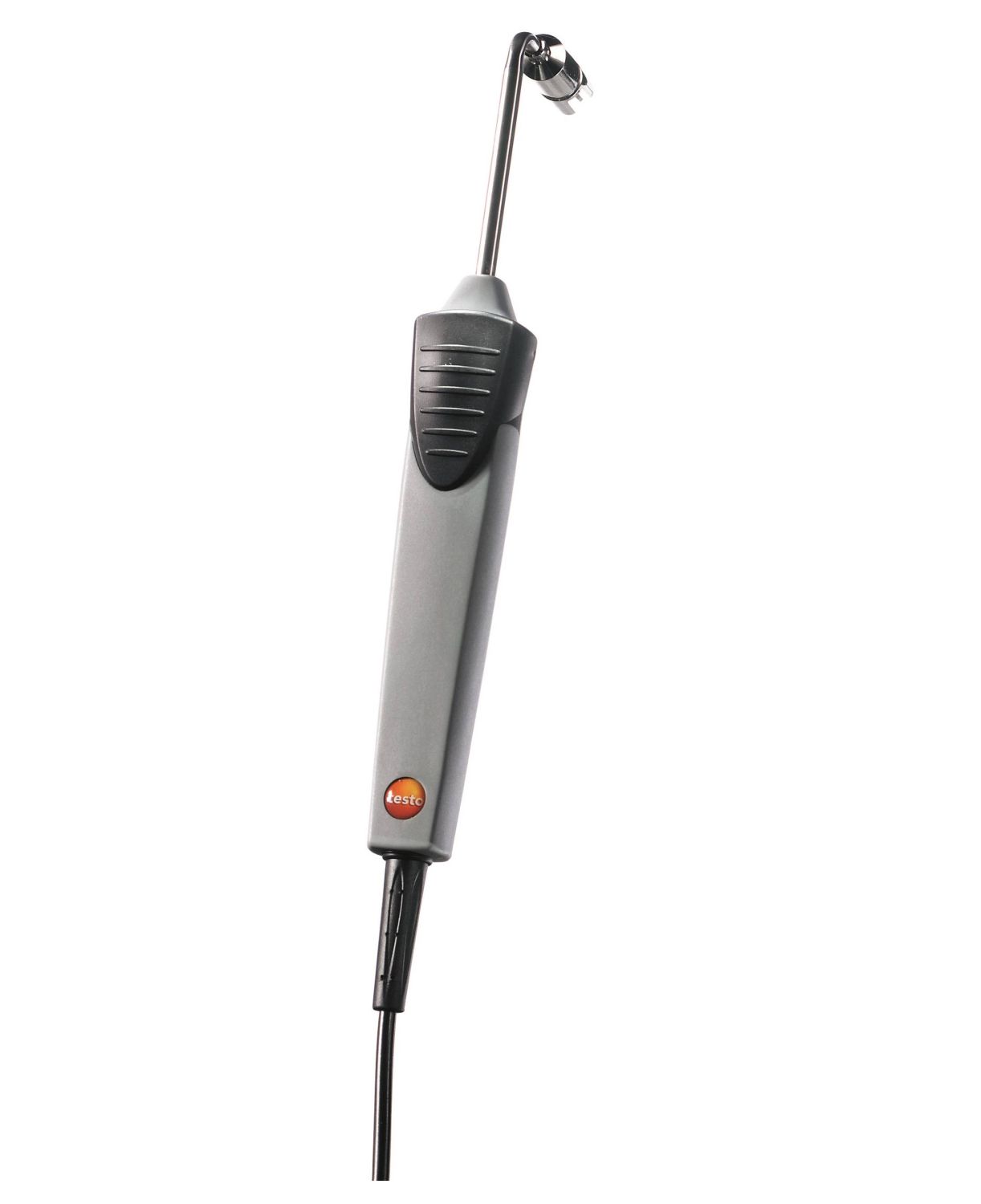

Fast-action, angled surface probe (TC type K)

Part No. 0602 0993

Use this fast-action temperature probe to measure surface temperatures accurately and reliably, even in inaccessible areas – the angled probe tube makes this possible.

Temperature - TC Type K (NiCr-Ni) Technical Data

Measuring range -60 to +300 °C
Accuracy Class 2 ¹⁾
Reaction time 3 s

1) According to standard EN 60584-2, the accuracy of Class 1 refers to -40 to +1000 °C (Type K), Class 2 to -40 to +1200 °C (Type K), Class 3 to -200 to +40 °C (Type K).

Surface probe with widened measuring tip (TC type K)

Part No. 0602 1993

Waterproof, robust and versatile: this temperature probe with sturdy probe shaft and widened measuring tip is ideal for measuring the temperature on flat surfaces.

Temperature - TC Type K (NiCr-Ni) Technical Data

Measuring range -60 to +400 °C
Accuracy Class 2 ¹⁾
Reaction time 30 s

1) According to standard EN 60584-2, the accuracy of Class 1 refers to -40 to +1000 °C (Type K), Class 2 to -40 to +1200 °C (Type K), Class 3 to -200 to +40 °C (Type K).

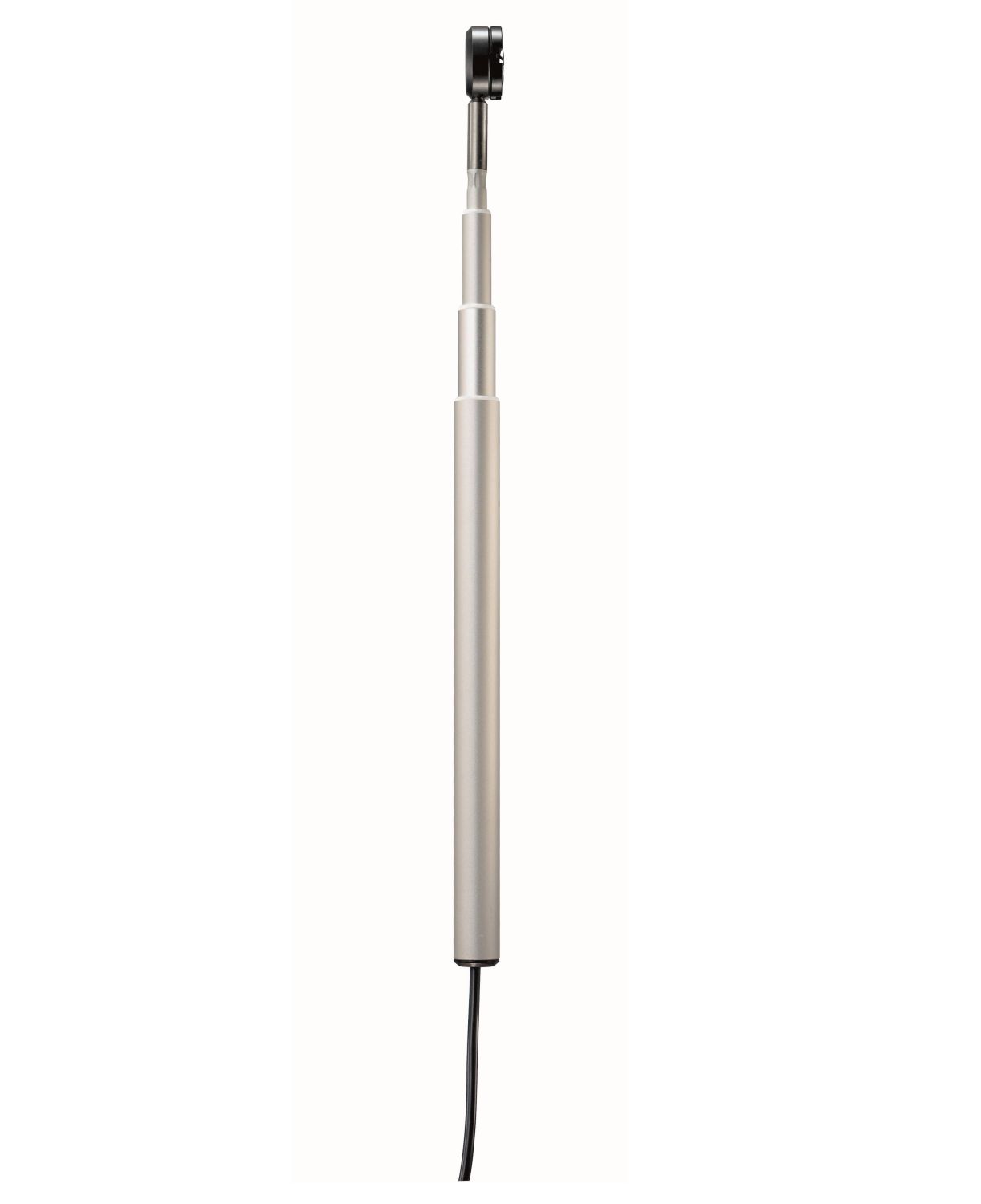

Flat head surface probe with telescopic handle max

Part No. 0602 2394

Temperature - TC Type K (NiCr-Ni) Technical Data

Measuring range -50 to +250 °C
Accuracy Class 2 ¹⁾
Reaction time 3 s

1) According to standard EN 60584-2, the accuracy of Class 1 refers to -40 to +1000 °C (Type K), Class 2 to -40 to +1200 °C (Type K), Class 3 to -200 to +40 °C (Type K).

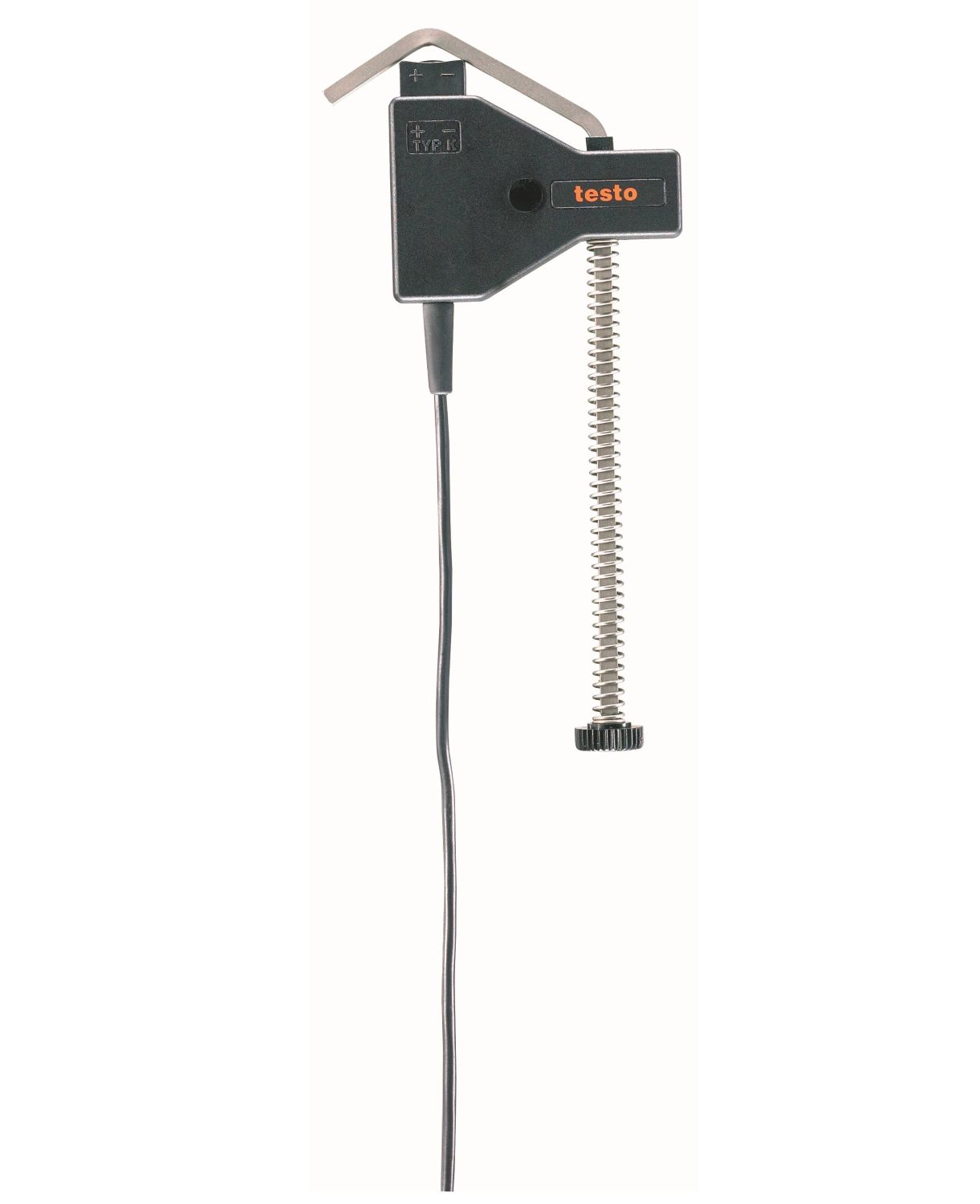

Temperature probe with clamping bracket (TC Type K)

Part No. 0602 4592

Pipe wrap probe for pipe diameter 5 to 65 mm, with exchangeable measuring head. Meas. range short-term up to +280°C, TC Type K

Temperature - TC Type K (NiCr-Ni) Technical Data

Measuring range -60 to +130 °C
Accuracy Class 2 ¹⁾
Reaction time 5 s

1) According to standard EN 60584-2, the accuracy of Class 1 refers to -40 to +1000 °C (Type K), Class 2 to -40 to +1200 °C (Type K), Class 3 to -200 to +40 °C (Type K).

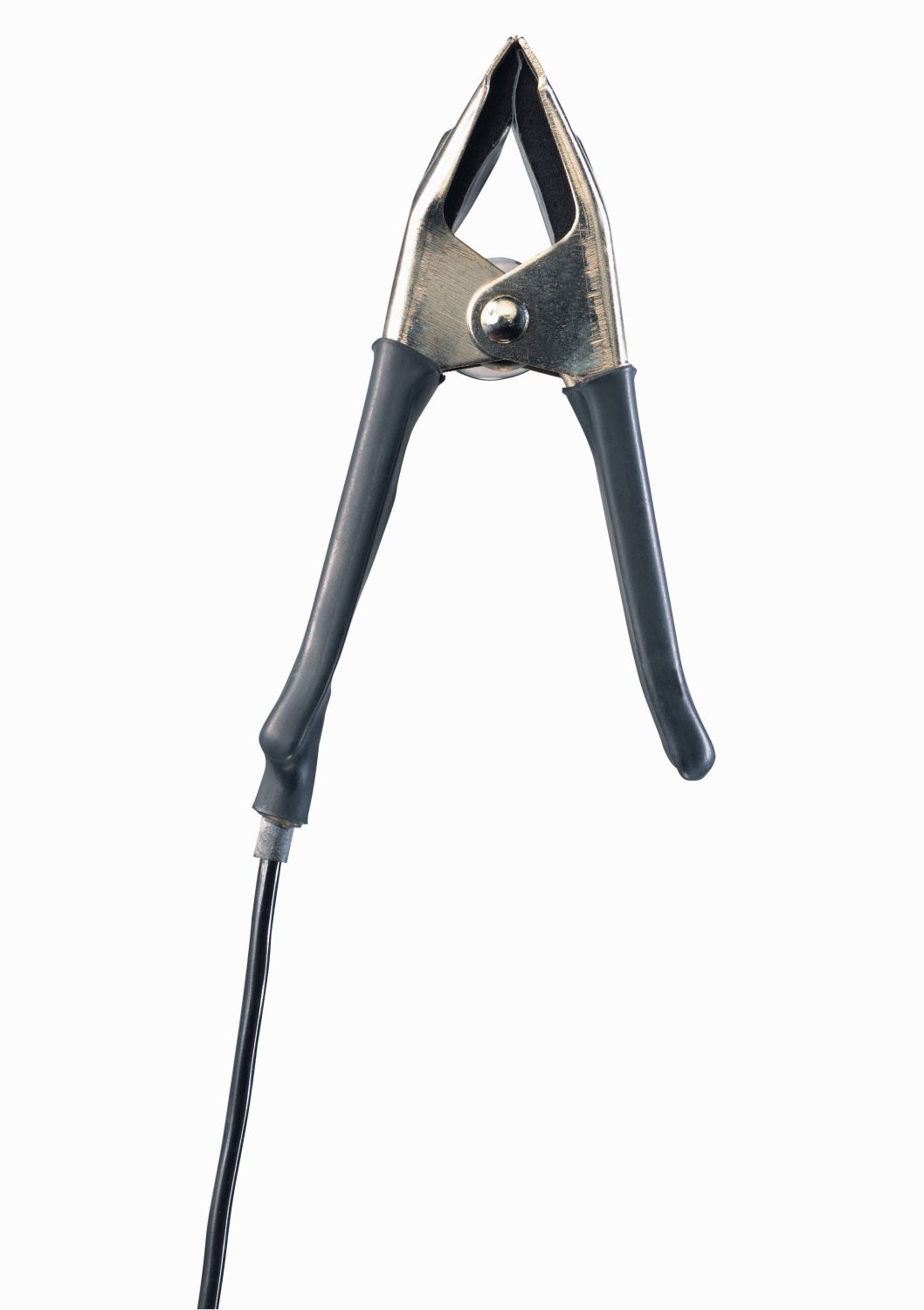

Clamp probe for measurements on pipes

Part No. 0602 4692

Temperature - TC Type K (NiCr-Ni) Technical Data

Measuring range -50 to +100 °C
Accuracy briefly to +130
Reaction time 5 s

1) According to standard EN 60584-2, the accuracy of Class 1 refers to -40 to +1000 °C (Type K), Class 2 to -40 to +1200 °C (Type K), Class 3 to -200 to +40 °C (Type K).

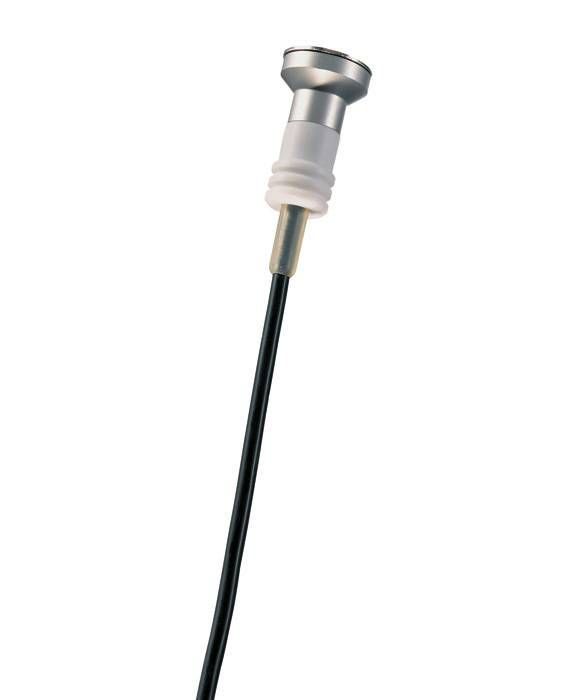

Magnetic probe (TC type K) - for surface temperatures

Part No. 0602 4792

Key Features:

Thermocouple type K
Adhesive force approx. 20 N
Can be connected to a wide range of measuring instruments/data loggers
Measuring range: -50 to +170 °C

Temperature - TC Type K (NiCr-Ni) Technical Data

Measuring range -50 to +170 °C
Accuracy Class 2 ¹⁾
Reaction time 150 s

1) According to standard EN 60584-2, the accuracy of Class 1 refers to -40 to +1000 °C (Type K), Class 2 to -40 to +1200 °C (Type K), Class 3 to -200 to +40 °C (Type K).

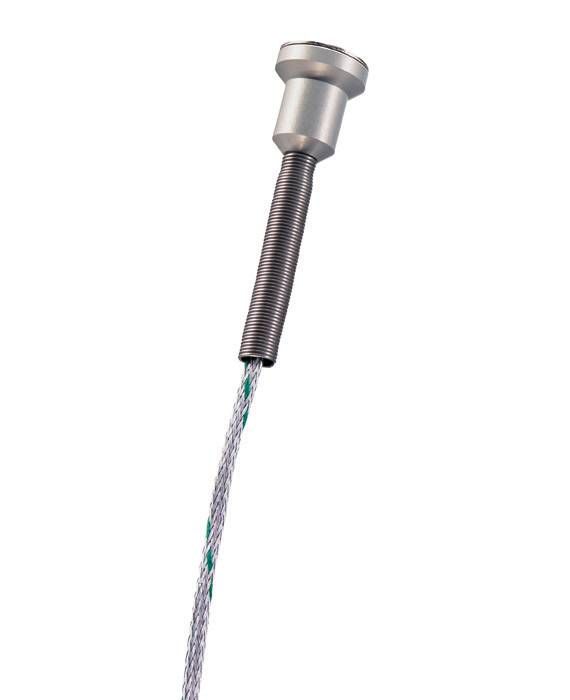

Temperature probe with magnet (TC Type K)

Part No. 0602 4892

Key Features:

Self-adhesive thanks to a magnet: probe for measuring surface temperature on metal surfaces
TC Type K temperature probe with 1.6 m cable

Temperature - TC Type K (NiCr-Ni) Technical Data

Measuring range -50 to +400 °C
Accuracy Class 2 ¹⁾

1) According to standard EN 60584-2, the accuracy of Class 1 refers to -40 to +1000 °C (Type K), Class 2 to -40 to +1200 °C (Type K), Class 3 to -200 to +40 °C (Type K).

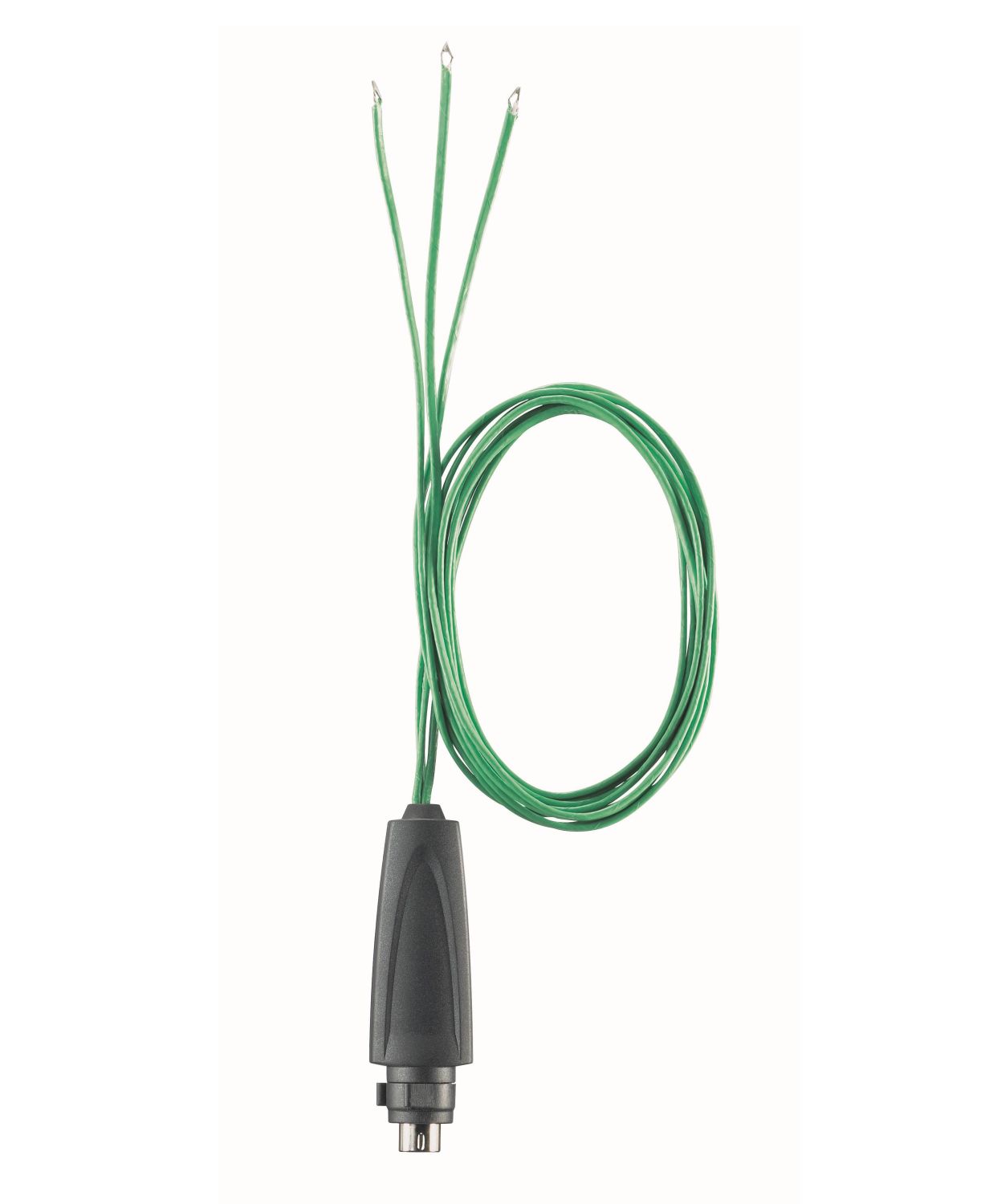

Temperature probe to determine U-value

Part No. 0614 1635

Temperature probe to determine U-value, triple sensor system for measuring wall temperature, modelling clay included

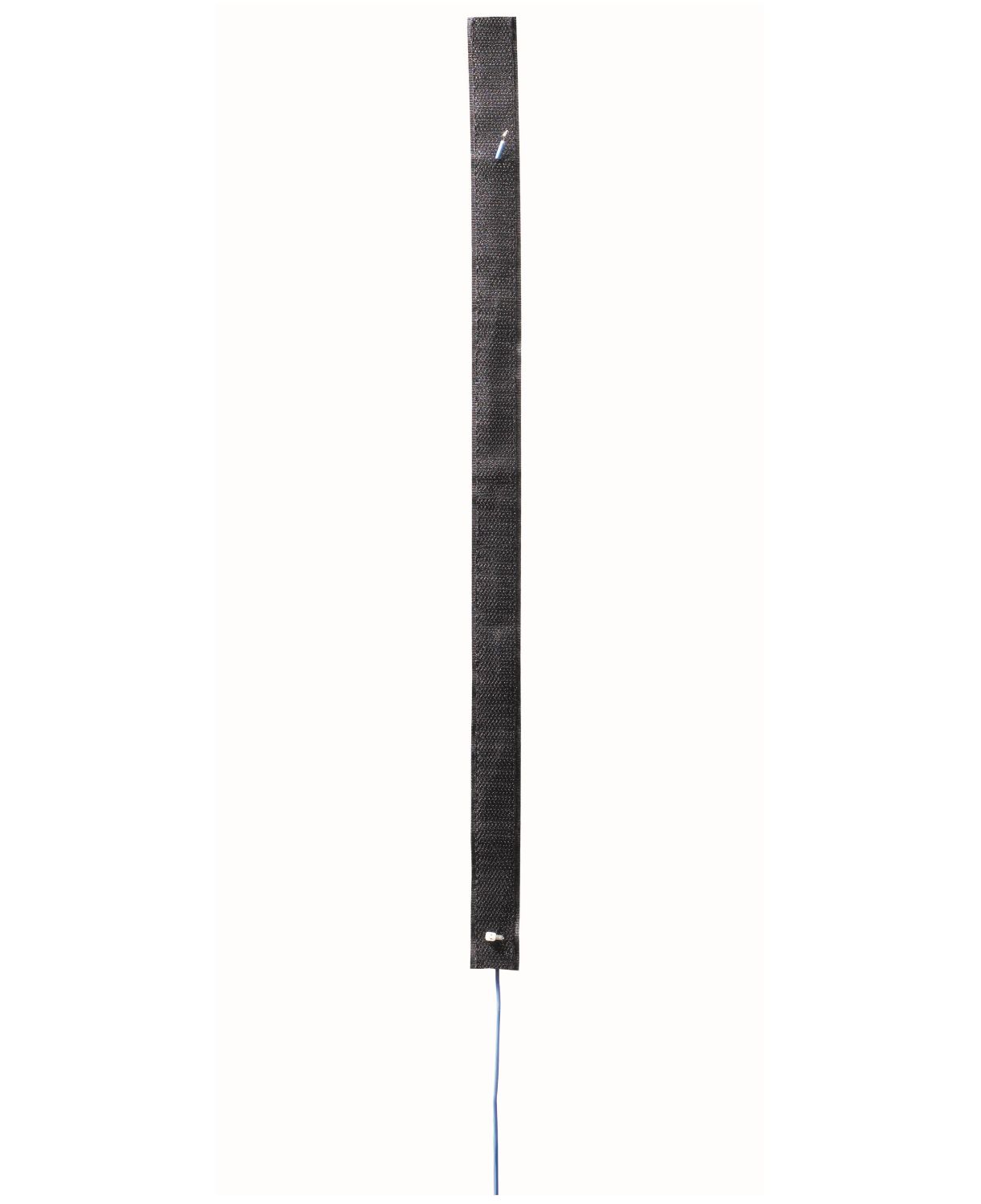

Temperature probe with Velcro (TC Type K)

Part No. 0628 0020

Key Features:

With Velcro: makes it easy to attach the surface probe to pipes with a diameter of up to 120 mm
TC Type K temperature probe with 1.5 m cable
Measuring range: -50 to +120 °C

Temperature - TC Type K (NiCr-Ni) Technical Data

Measuring range -50 to +120 °C
Accuracy Class 1 ¹⁾
Reaction time 90 s

1) According to standard EN 60584-2, the accuracy of Class 1 refers to -40 to +1000 °C (Type K), Class 2 to -40 to +1200 °C (Type K), Class 3 to -200 to +40 °C (Type K).

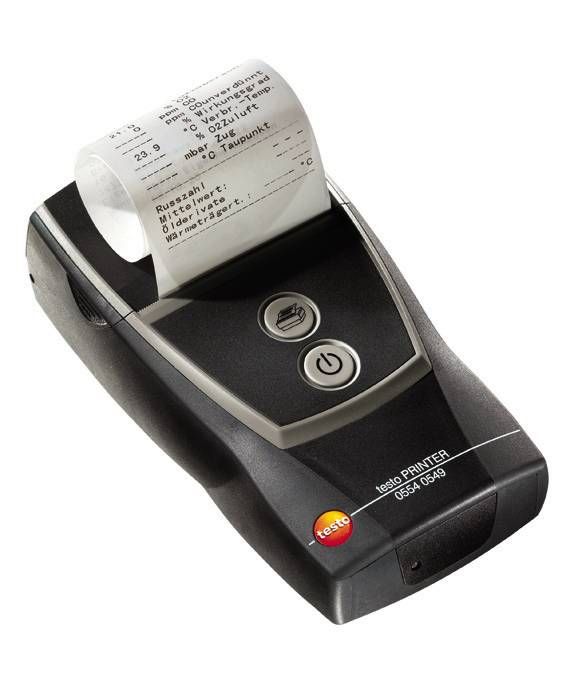

Testo quick printer

Part No. 0554 0549

Compact printer, with IRDA technology offers fast, easy to read printouts of measurements at every job site. Internal magnets will hold the printer to magnetic surfaces for hands free operation.

Key Features:

Evaluate restoration measures quickly and without error.
Measurement of air moisture, material equilibrium moisture, pressure dew point
Instrument memory for up to 10,000 readings

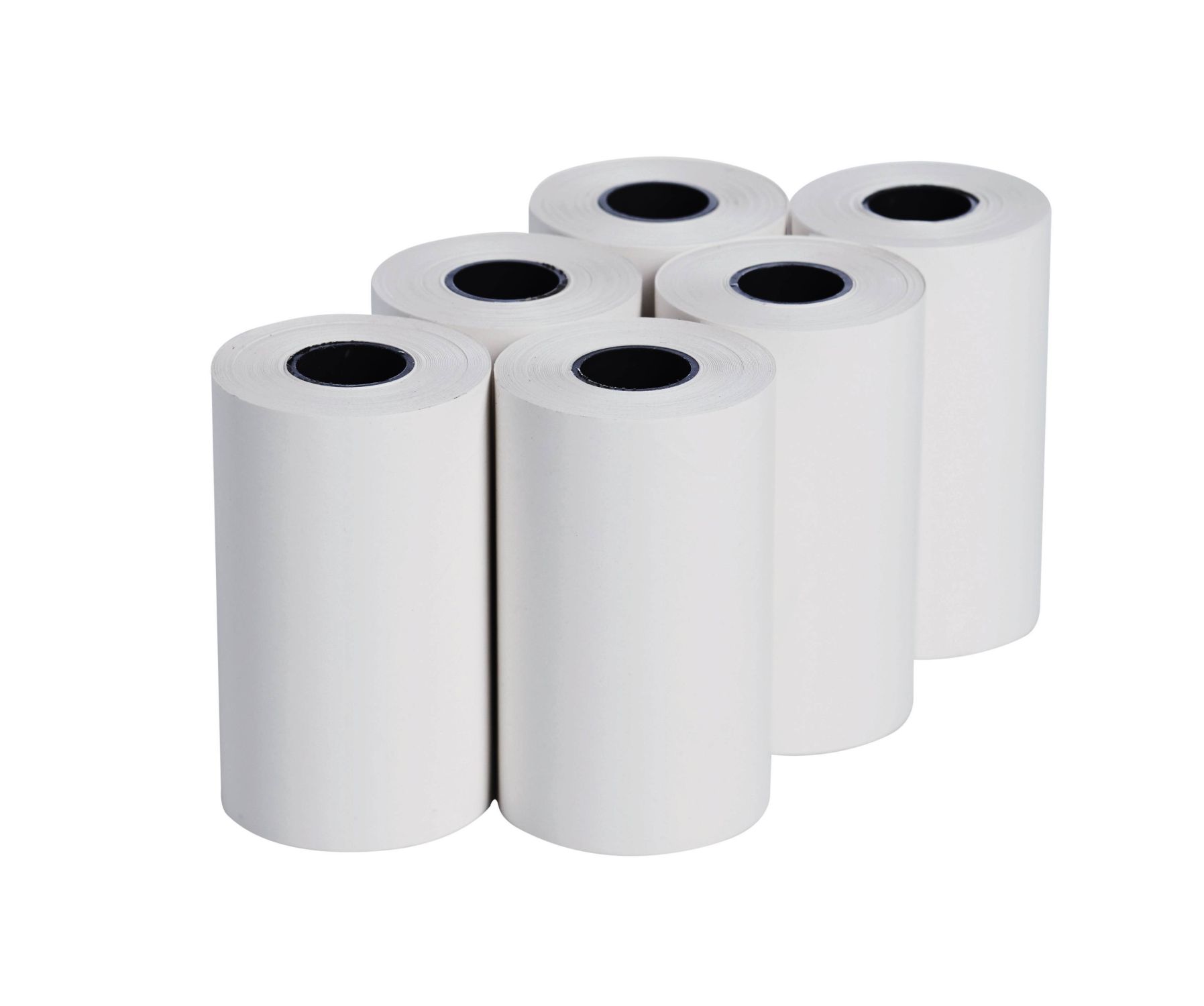

Spare thermal paper for printer, permanent ink

Part No. 0554 0568

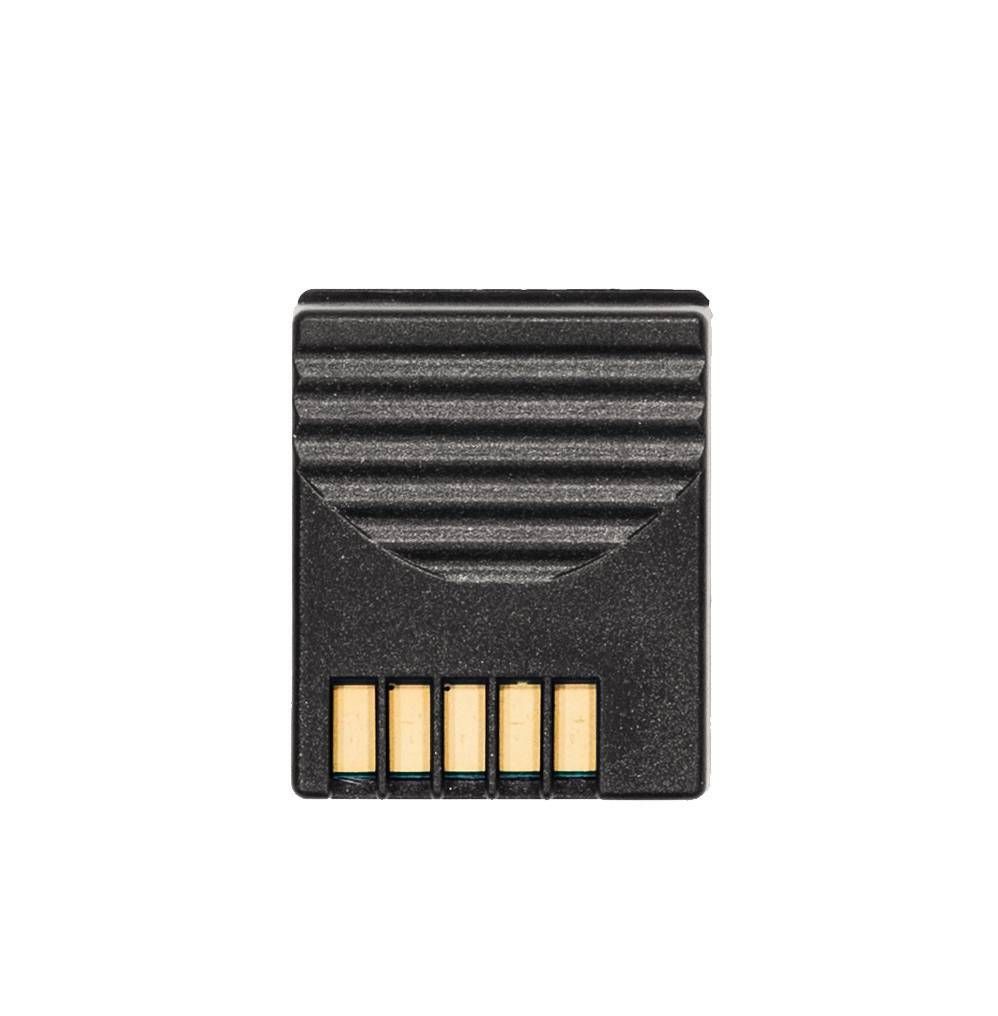

Radio module for measuring instrument, 869.85 MHz, approval for the countries

Part No. 0554 0188

Radio module for measuring instrument, 869.85 MHz, approval for the countries: DE, FR, UK, BE, NL, ES, IT, SE, AT, DK, FI, HU, CZ, PL, GR, CH, PT, SI, MT, CY, SK, LU, EE, LT, IE, LV, NO

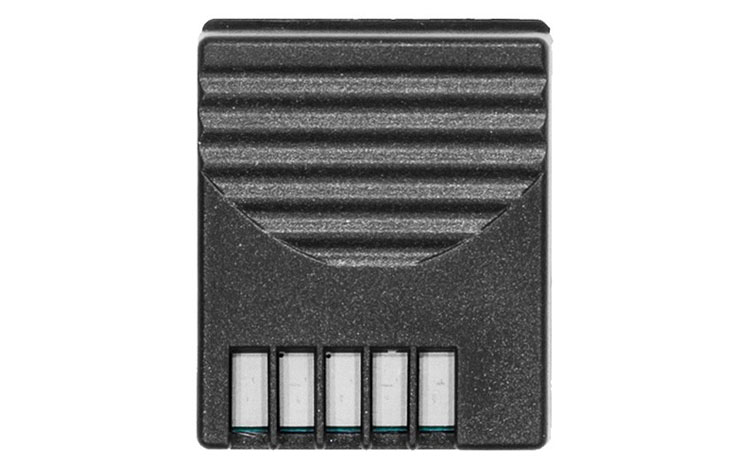

WIRELESS MODULE FOR MEASURING INSTRUMENT, 915.00 MHZ FSK, APPROVED FOR USA & CANADA

Part No. 0554 0190

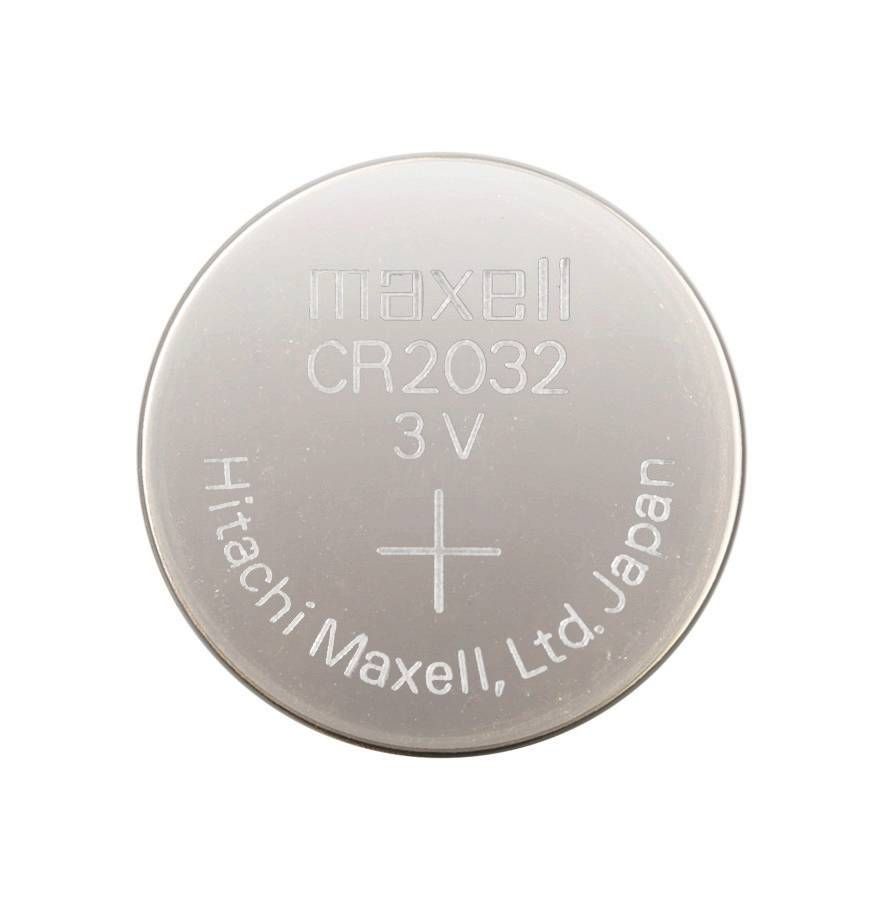

LITHIUM BATTERY, BUTTON CELL, TYPE CR 2032

Part No. 0515 0028

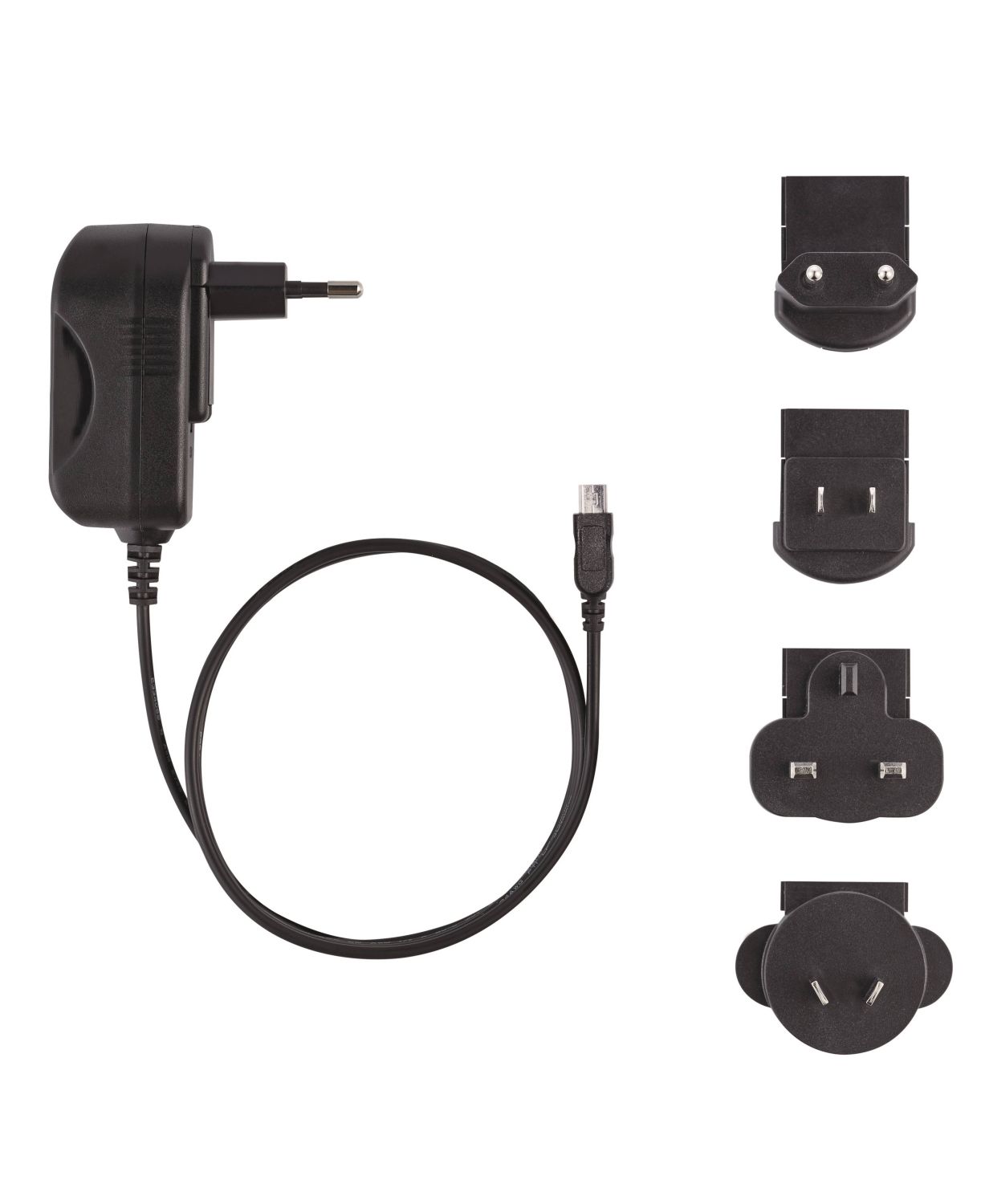

Plug-in mains adapter, 5 VDC 500 mA with European adapter, 100-250 VAC, 50-60 Hz

Part No. 0554 0447

Power Supply for products with a Mini-B USB connection. 5 VDC 500 mA with European adapter, 100-250 VAC, 50-60 Hz. Includes interchangeable "plug" types for use in several countries.

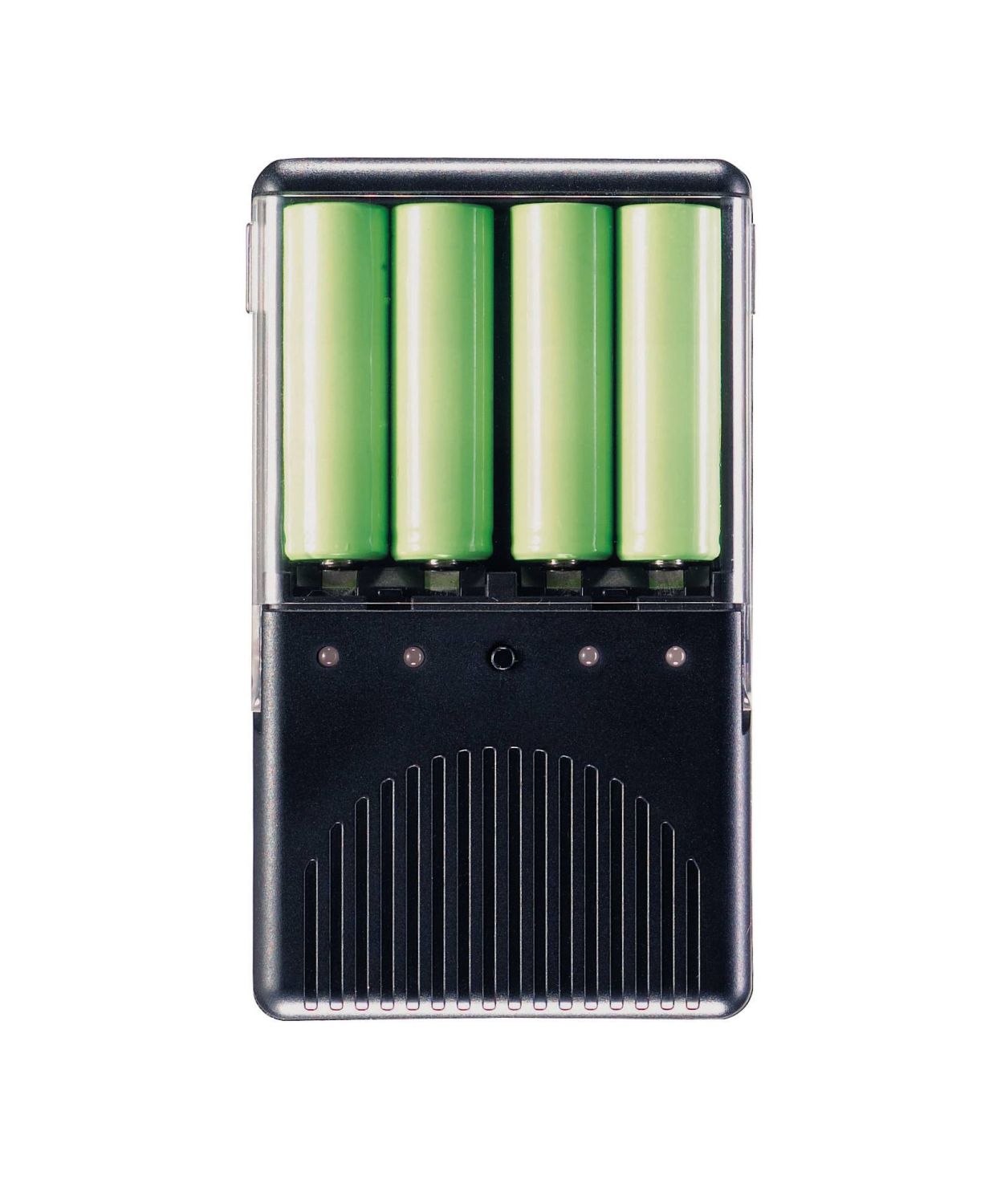

External fast charger for 1-4 AA rech. batteries

Part No. 0554 0610

External fast charger for 1-4 AA rech. batteries, incl. 4 Ni-MH rech. batteries with individual cell charging and charge control display, incl. impulse trickle charging, integrated discharge function, with built-in international mains plug, 100-240 V, 300 mA, 50/60 Hz
