testo 480 - Digital temperature, humidity and air flow meter

Category: HVAC INSTRUMENTS

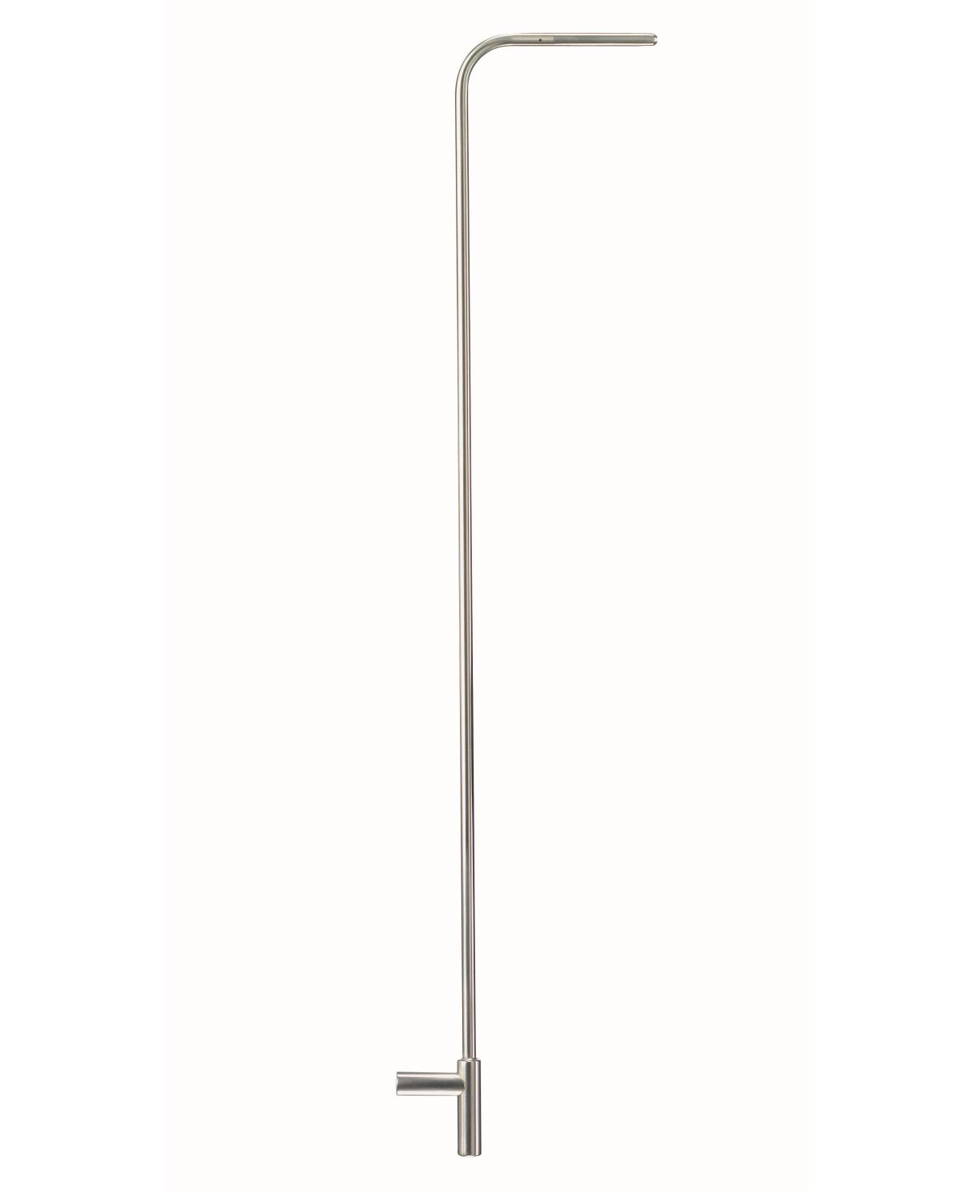

Pitot tube, 500 mm long, stainless steel, for measuring flow velocity

Part No. 0635 2045

General Technical Data

Length 500 mm
Diameter 7 mm
Pitot tube factor 1
Measuring range +1 to +100 m/s
Operating temperature 0 to +600 °C

Straight Pitot tube 500 mm

Part No. 0635 2143

Key Features:

For measuring flow velocities, e.g. in ventilation ducts or process air
Length: 500 mm
Measuring range: 1 to 30 m/s
Operating temperature: 0 to +600 °C

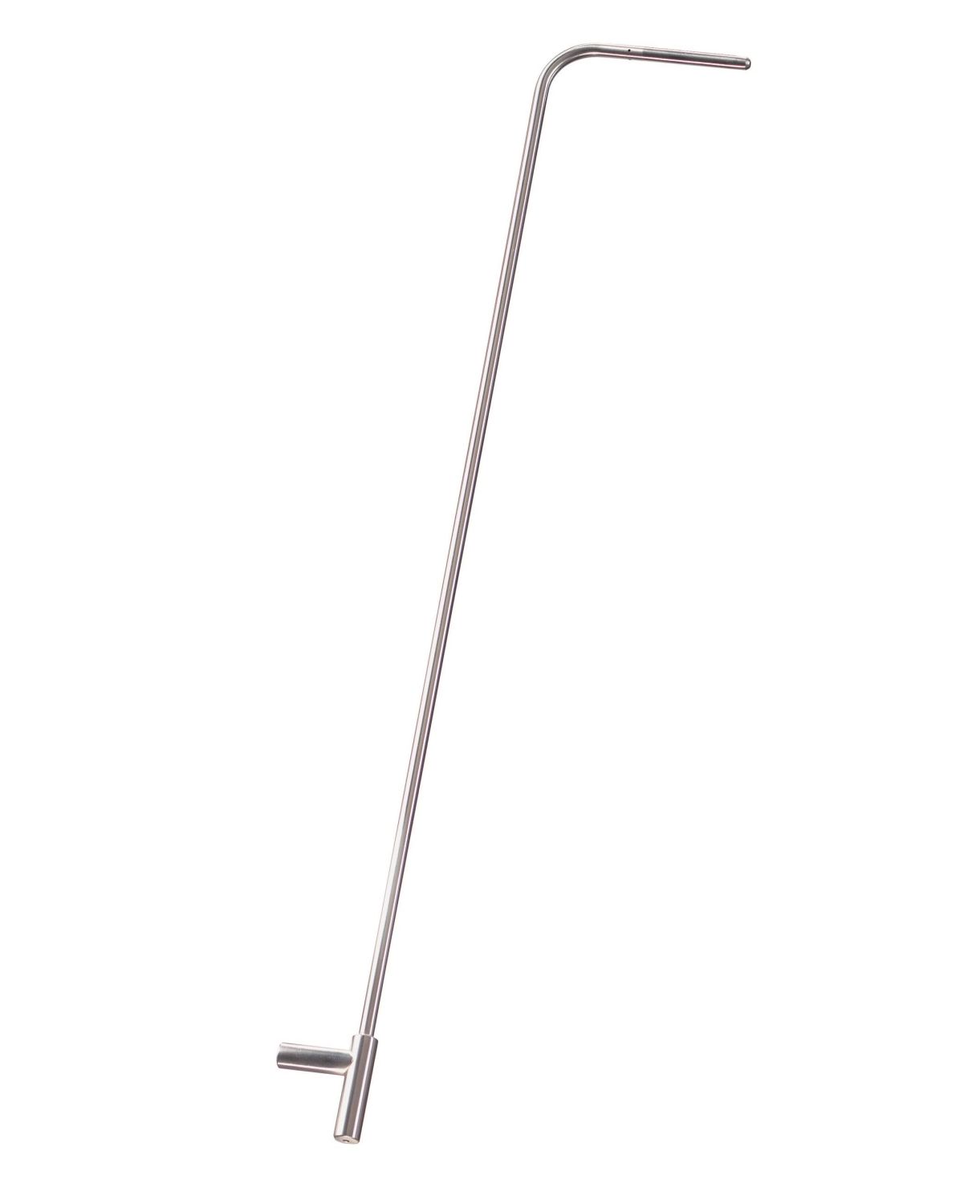

Pitot tube, 350 mm long, stainless steel, for measuring flow velocity

Part No. 0635 2145

Straight Pitot tube 1000 mm

Part No. 0635 2243

Key Features:

For measuring flow velocities, e.g. in ventilation ducts or process air
Length: 1000 mm
Measuring range: 1 to 30 m/s
Operating temperature: 0 to +600 °C

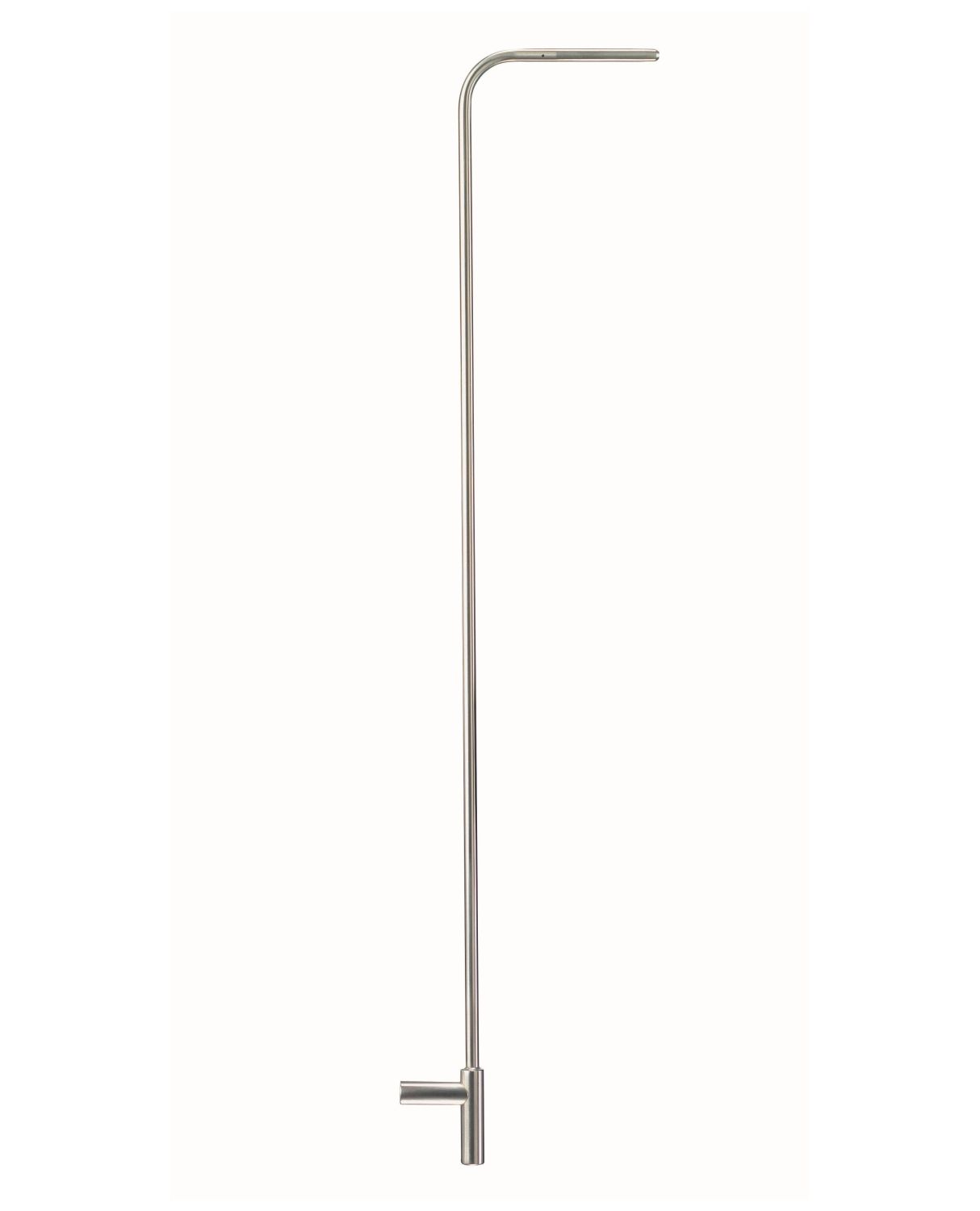

Pitot tube, length 1000 mm, stainless steel, for measuring flow velocity

Part No. 0635 2345

Globe thermometer (TC type K) - for radiant heat

Part No. 0602 0743

Designed to simulate human skin, the globe probe will measure thermal radiant temperature. The 6" globe probe will take omnidirectional temperature measurements, ensuring a proper comfort level can be achieved. Globe probe has a Type K thermocouple.

Key Features:

For the measurement of radiant heat according to ISO 7243, ISO 7726, DIN EN 27726 and DIN 33403
Thermocouple type K
Measuring range: 0 to + 120 °C

Comfort probe for turbulence measurement

Part No. 0628 0143

Key Features:

Turbulence measurement in accordance with EN 13779
Determination of air velocity and draught risk
Integrated temperature and ambient pressure measurement
Intelligent calibration concept

Indoor air quality probe for CO2, temperature, humidity and absolute pressure

Part No. 0632 1543

Key Features:

4 functions in one probe: measurement of CO2, humidity, temperature and absolute pressure
Rapid checking of the indoor climate
Prevention of poor air quality in indoor rooms via CO2 measurement
Intelligent calibration concept

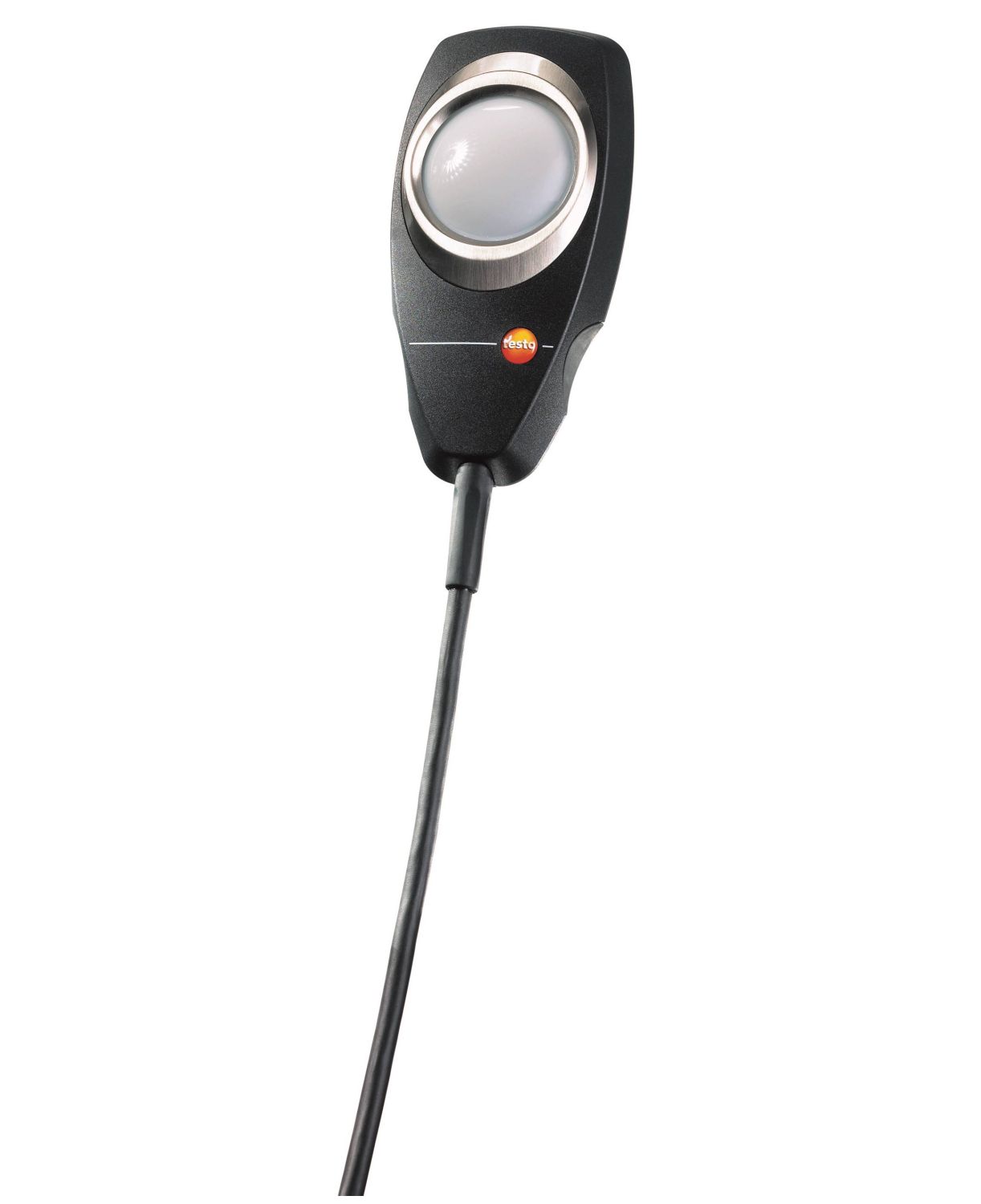

Lux probe - for measuring illuminance

Part No. 0635 0543

Key Features:

Assessment according to the V-lambda curve, making it suitable for all common lamps and light sources
Accuracy according to DIN EN 13032-1 and class C according to DIN 5032-7
White or warm light LEDs (K< 5,000) can be measured without any problem
Measuring range: 0 to +100,000 lux

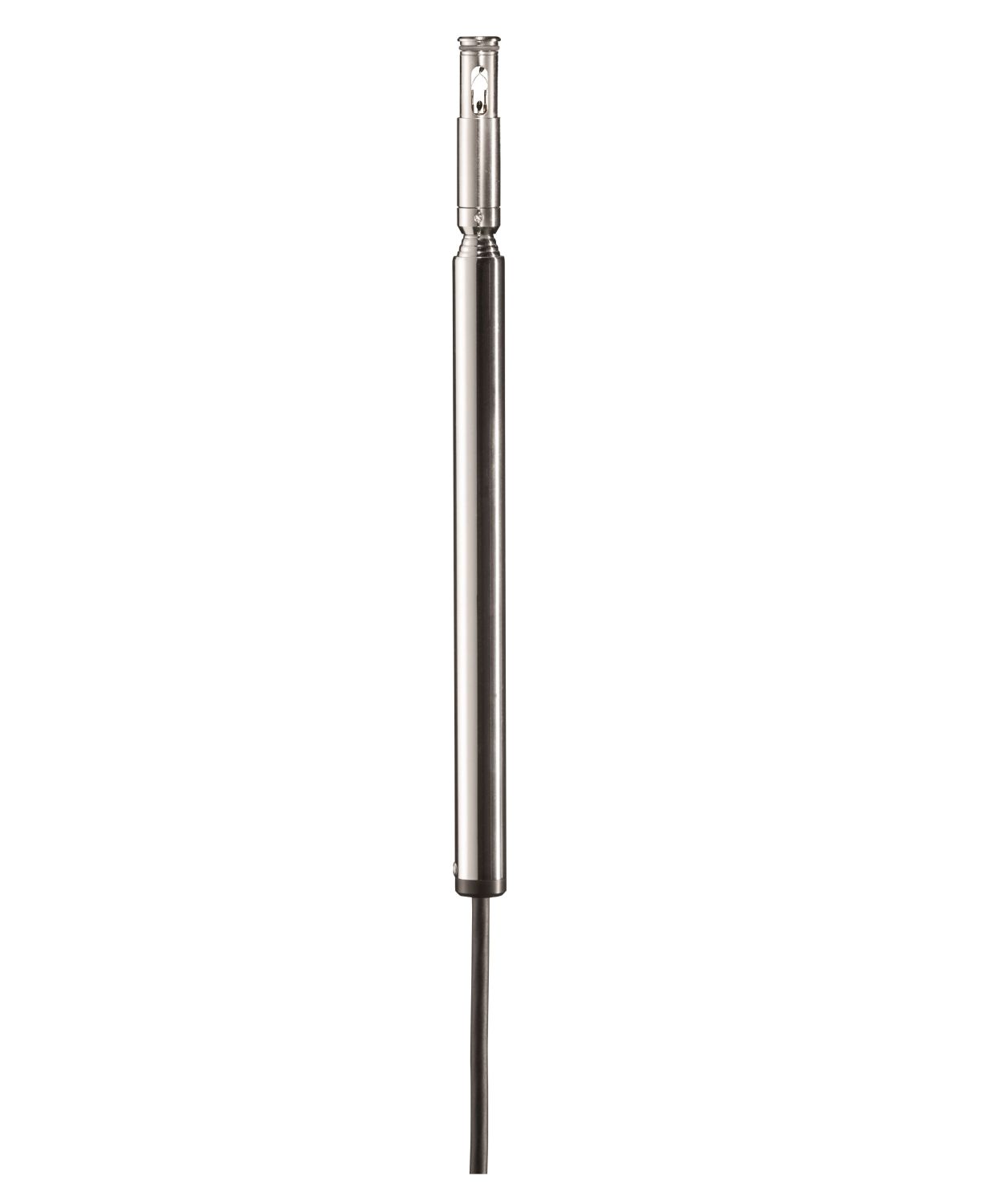

Hot wire probe (Ø 10 mm) - for measuring flow and temperature in laboratory fume cupboards

Part No. 0635 1048

Thermal flow velocity probe (hot wire) Ø 10 mm, with telescope, (max. 730 mm) and fixed plug-in head cable, for the measurement of air flow velocity in laboratory extractors according to EN 14175-3/-4

Key Features:

Integrated temperature measurement and absolute pressure compensation for accurate measurement results
Maximum precision for measuring flow in laboratory fume cupboards according to DIN EN 14175-3/-4
Intelligent calibration concept
Flow measuring range: 0 to +5 m/s

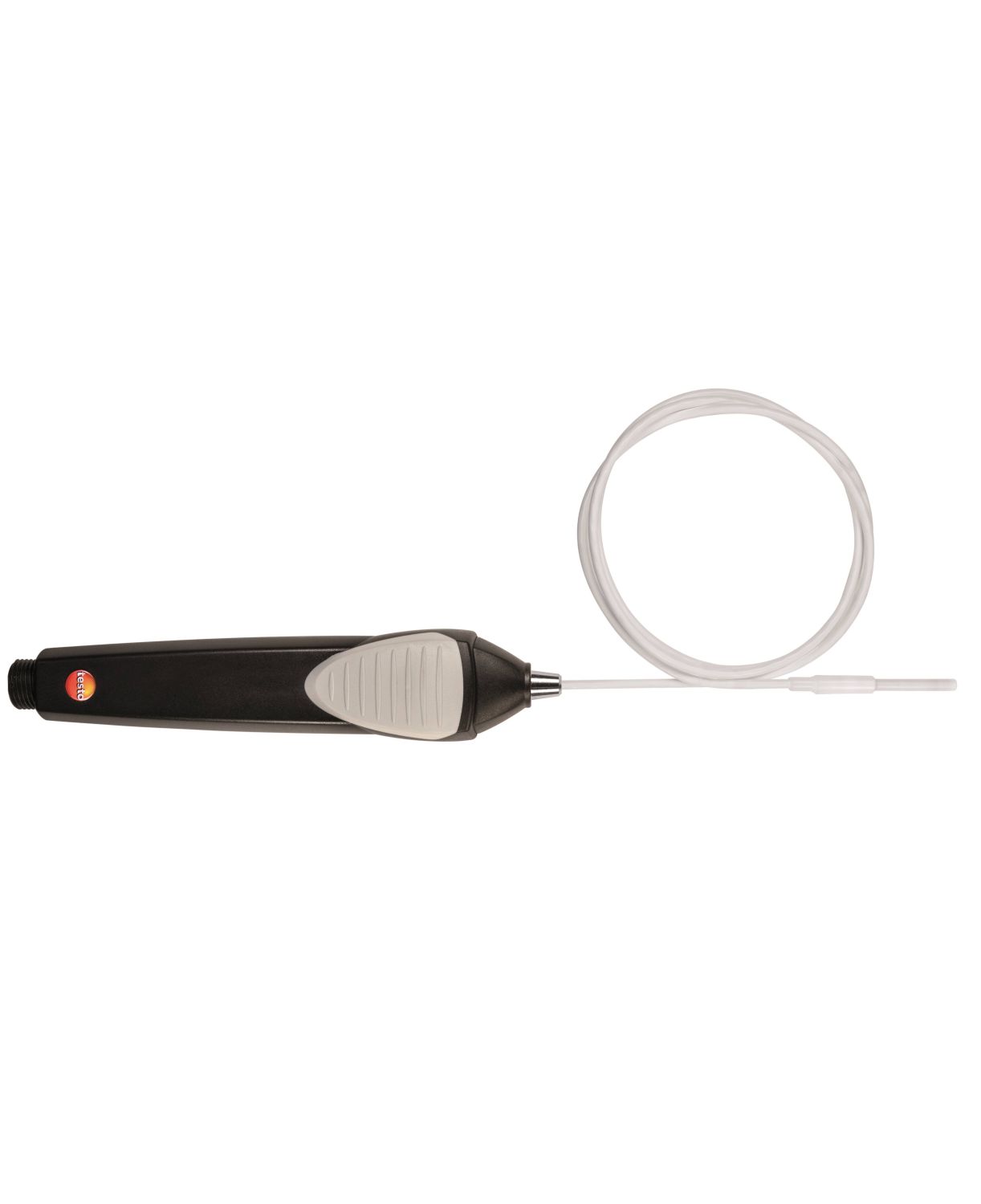

Pt100 flexible temperature probe

Part No. 0614 0071

You can use the new Pt100 temperature probe to carry out measurements even in places that are difficult to access. The flexible probe shaft makes this possible.

Key Features:

Pt100 immersion and penetration probe for temperature measurements
Flexible probe shaft
Easy to carry out measurements in places that are difficult to access
Measuring range: -100 to +265 °C

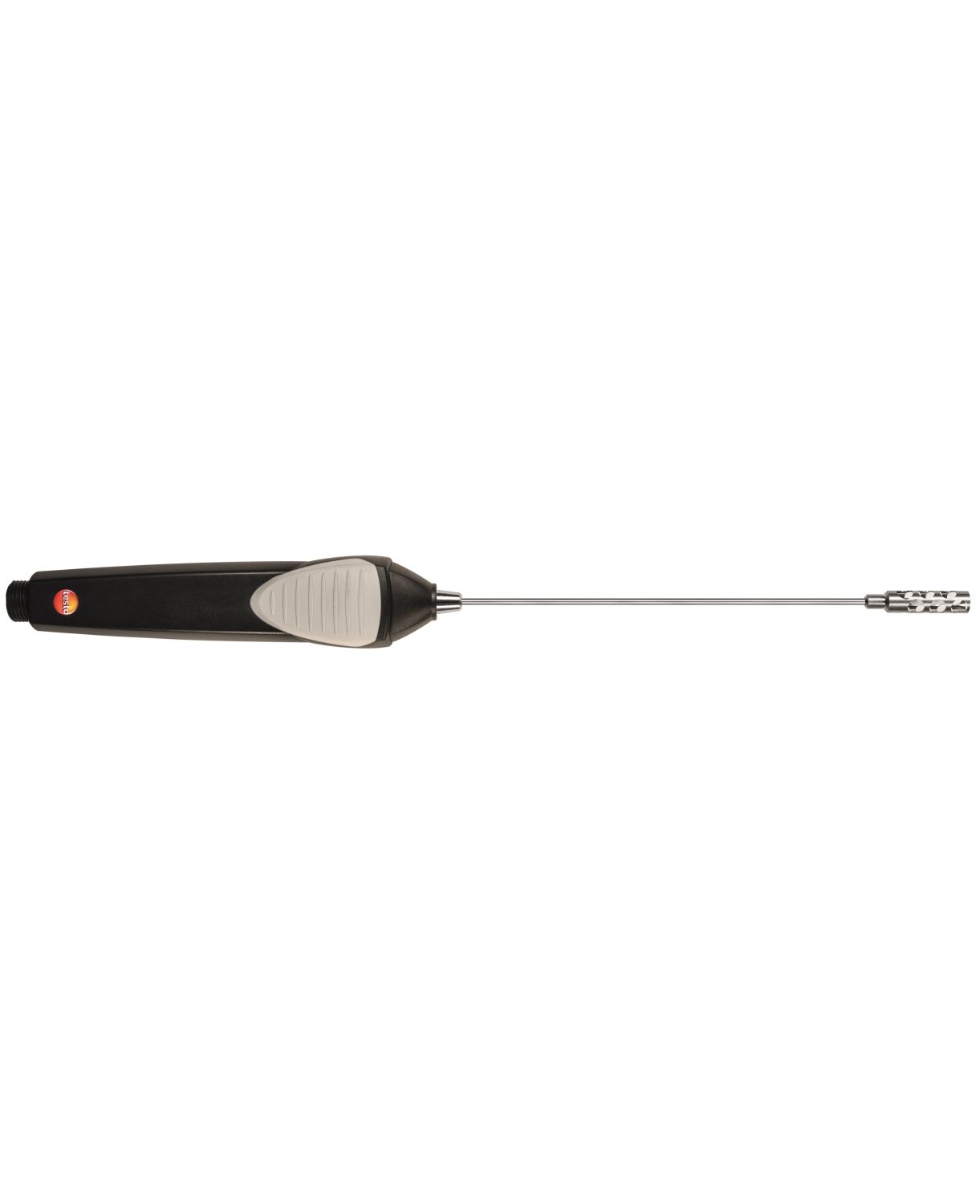

Pt100 air temperature probe

Part No. 0614 0072

This digital temperature probe offers an exceptionally short response time for air temperature measurements, since its sensor is exposed.

Key Features:

Pt100 probe for air temperature measurements
Quick response time
With a guard to protect against impact and contact
Measuring range: -100 to +400 °C

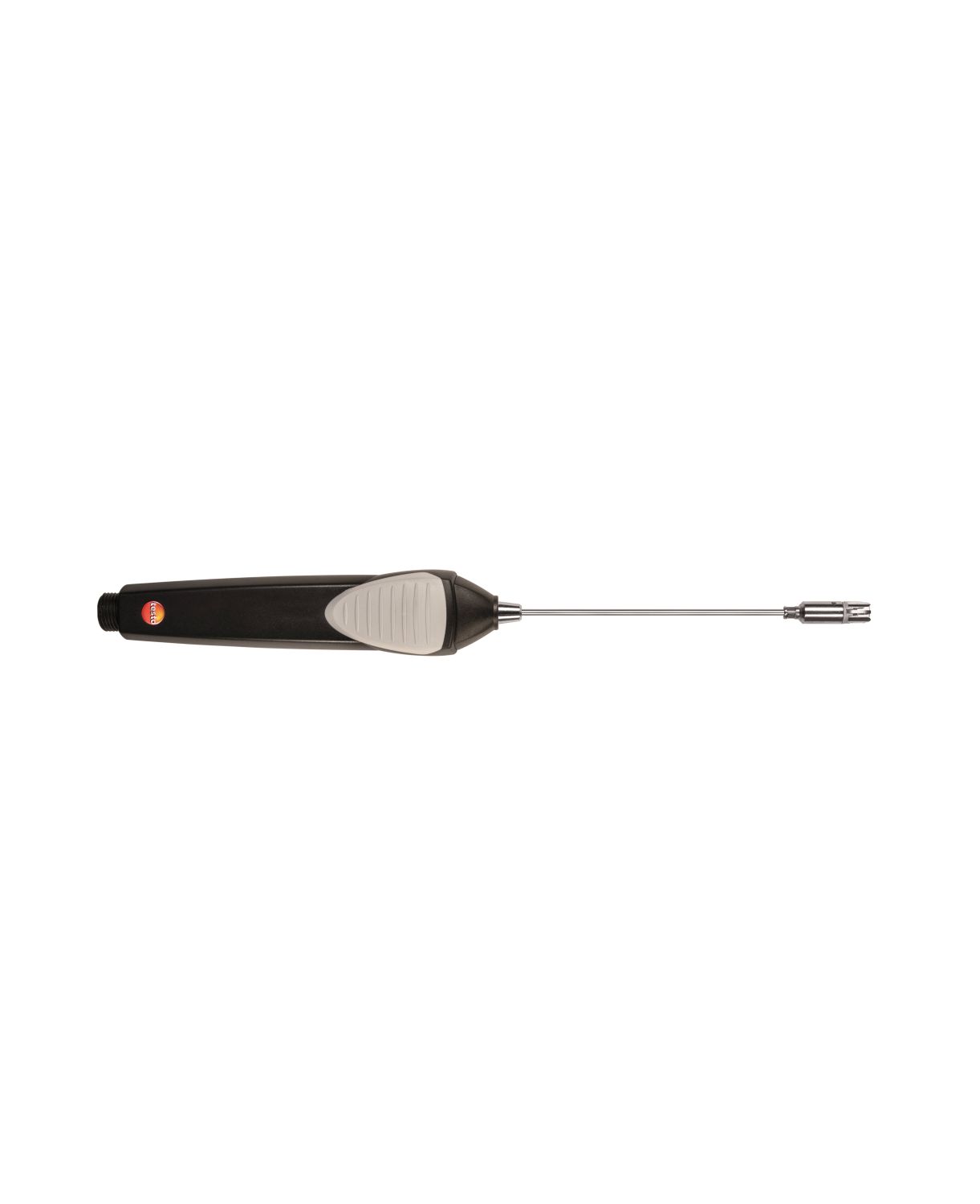

Fast-action surface temperature probe TC Type K

Part No. 0614 0195

Fast-action surface probe with T-hinge measuring head. Ideal for fast temperature measurement, even on non-planar surfaces.

Key Features:

TC Type K temperature probe for measurements on surfaces
Quick response time
With T-hinge measuring head
Measuring range: -200 to +300 °C

Pt100 precision temperature probe

Part No. 0614 0275

This digital precision temperature probe measures in liquids and pastes with an accuracy of up to ±0.05 °C.

Key Features:

Pt100 temperature probe for measurements in liquids and pastes
High-precision temperature measurement
For use in laboratories, in industry and in food control
Measuring range: -80 to +300 °C

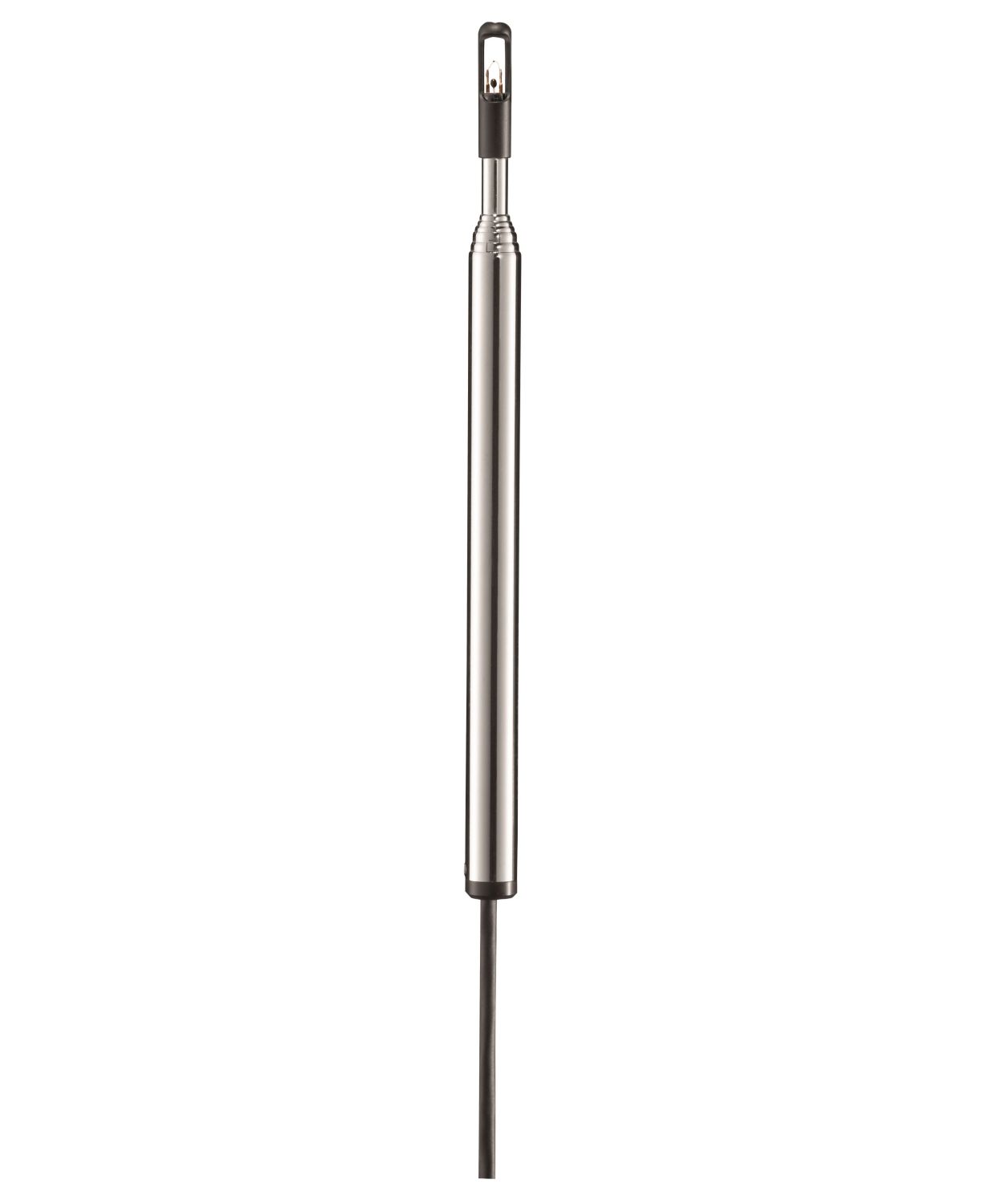

Hot wire probe (Ø 7.5 mm) - for flow and temperature

Part No. 0635 1024

Key Features:

Integrated temperature measurement and absolute pressure compensation for accurate measurement results
Probe head diameter: 7.5 mm – ideal for ventilation ducts with small holes
Intelligent calibration concept
Flow measuring range: 0 to +20 m/s

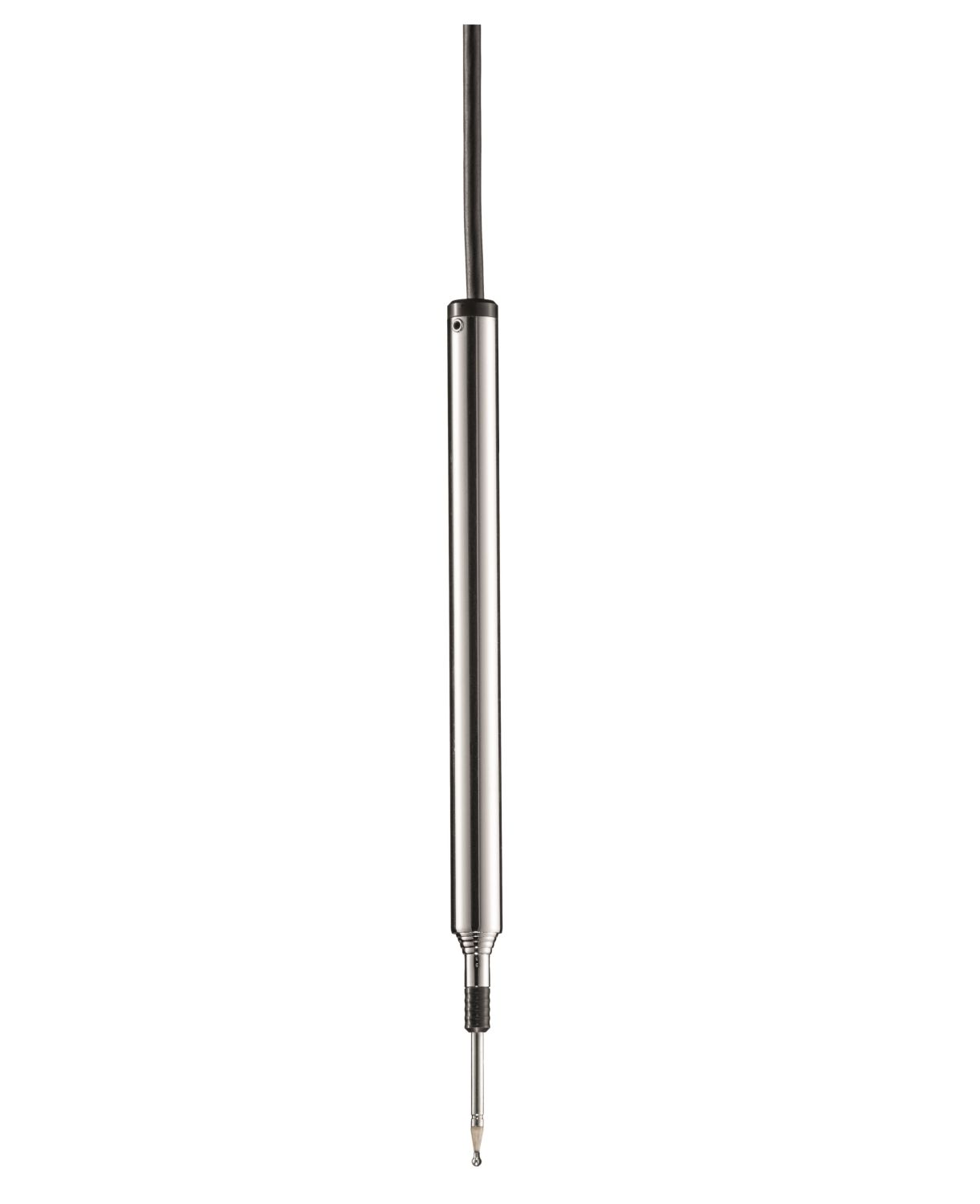

Hot ball probe (Ø 3 mm) - for flow and temperature

Part No. 0635 1050

Key Features:

Non-directional flow measurement with unknown flow direction
Integrated temperature measurement and absolute pressure compensation for accurate measurement results
Intelligent calibration concept
Flow measuring range: 0 to +10 m/s

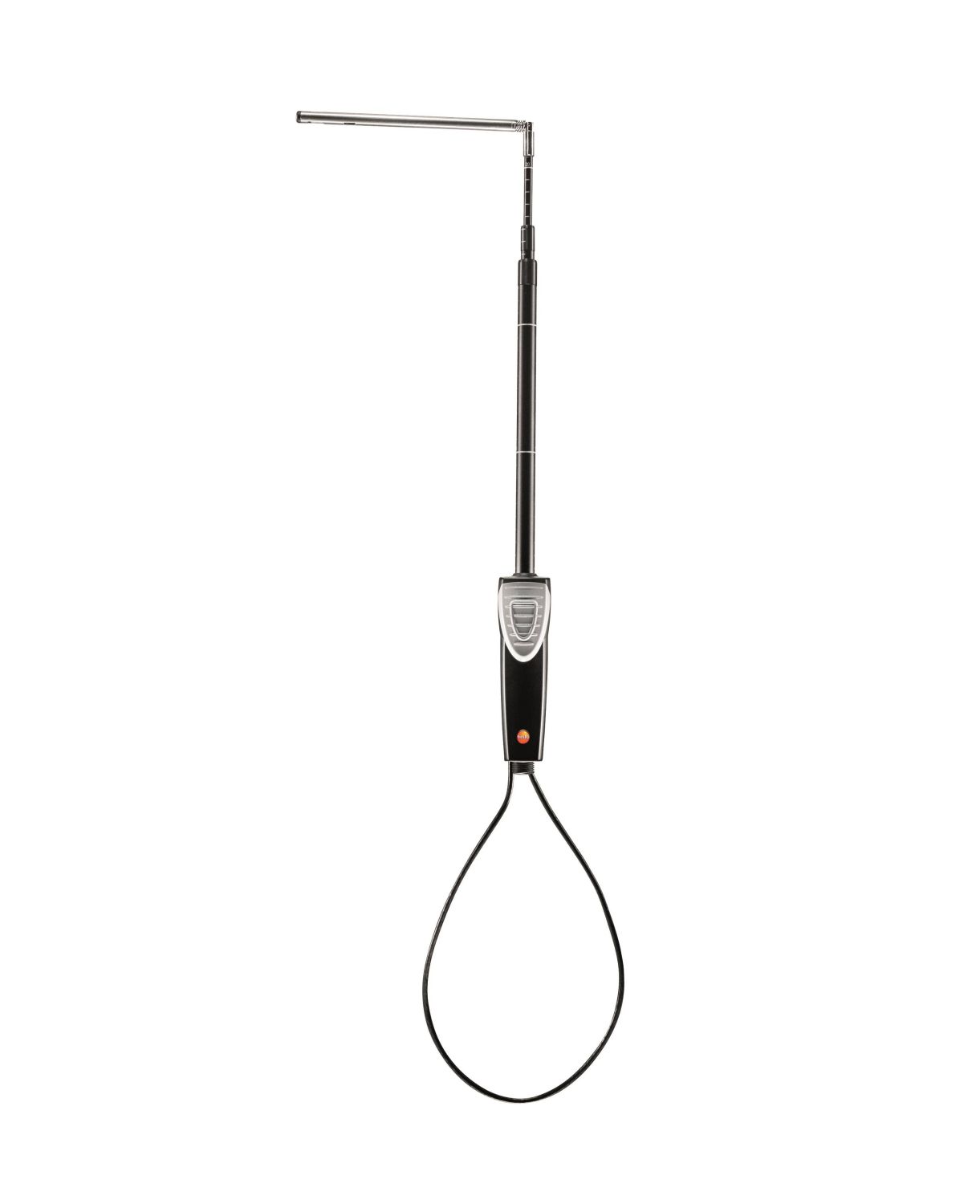

Hot wire probe (Ø 10 mm) - for flow, temperature, humidity and pressure

Part No. 0635 1543

Key Features:

4 functions in 1 probe: measurement of flow, temperature, humidity and absolute pressure
With robust, non-rotatable telescope (can be extended to 1100 mm)
Intelligent calibration concept
Flow measuring range: 0 to +20 m/s

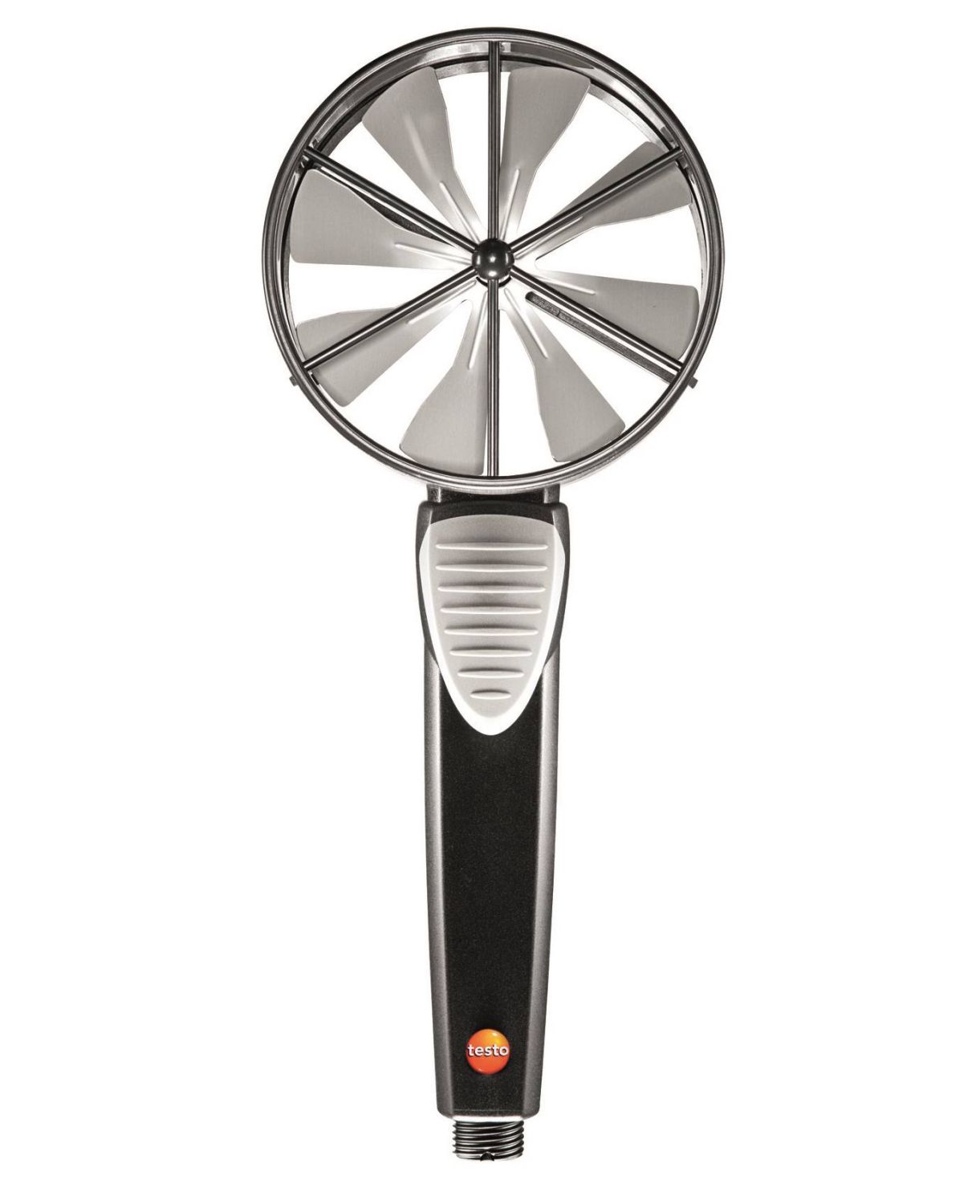

Vane/temperature probe (Ø 100 mm) - for air outlets

Part No. 0635 9343

Key Features:

Vane diameter: 100 mm
Integrated temperature measurement up to +60 °C
Intelligent calibration concept
Flow measuring range: +0.1 to +15 m/s

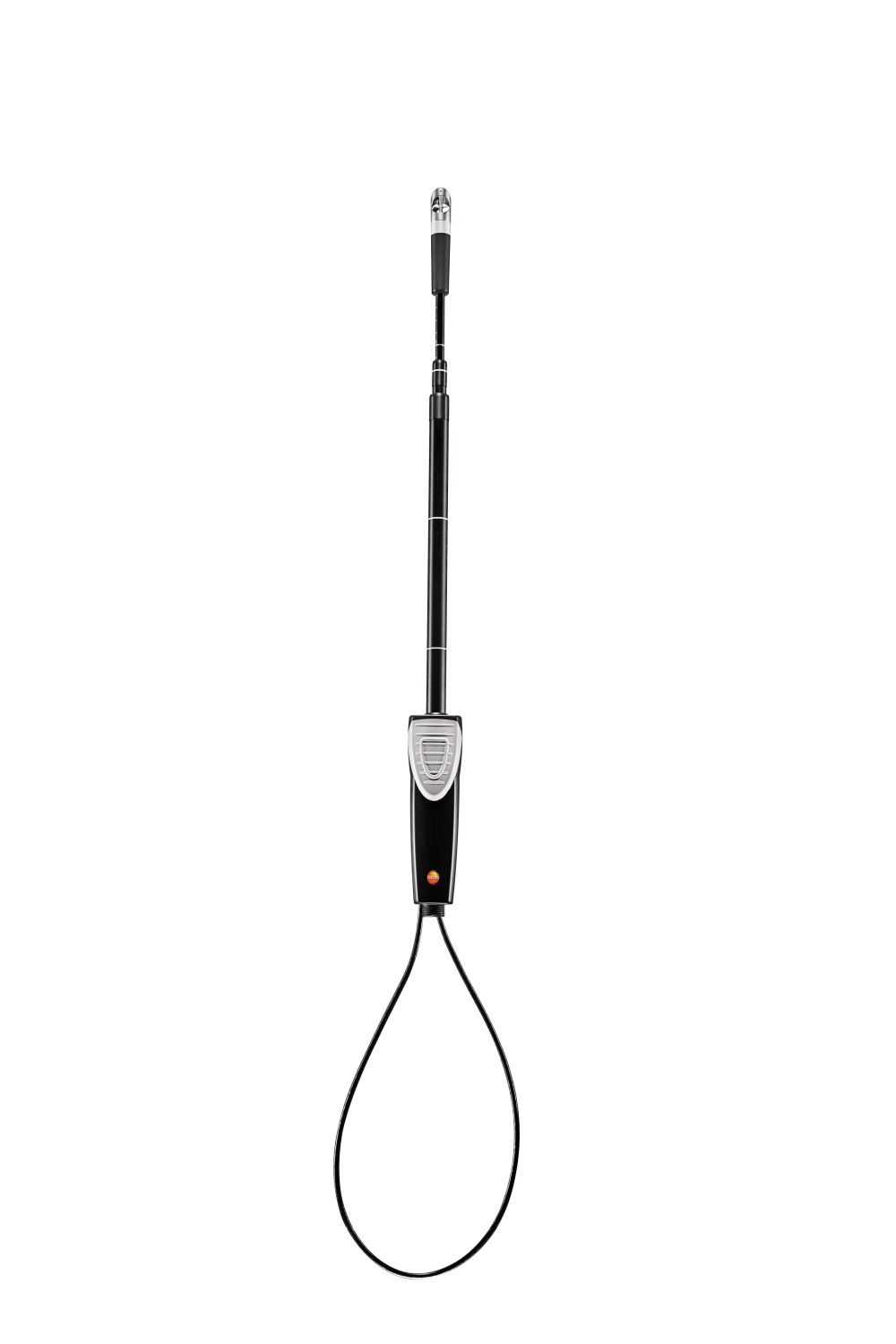

Vane/temperature probe (Ø 16 mm) - for ventilation ducts

Part No. 0635 9542

Key Features:

Digital probe connection with integrated calibration concept.
PC software for fast analysis, archiving and documentation of measurement and customer data.
High-quality digital probes with testo's intelligent calibration concept.
Standards-compliant HVAC and comfort level measurements.

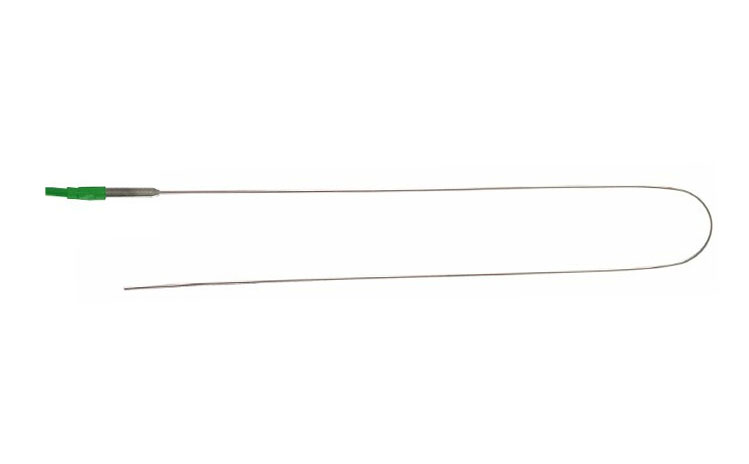

Exceptionally fast temperature probe (TC Type K)

Part No. 0602 0493

Flexible, low-mass immersion measurement tip, ideal for measurements in small volumes such as petri dishes, or for surface measurements (e.g. attached with adhesive tape), TC Type K

Key Features:

TC Type K temperature probe with flexible measuring tip, short response time and 2 m cable
Very fast temperature measurement in air, liquids, pastes and on surfaces
Measuring range: -328 to 1832 °F (-200 to +1000 °C)

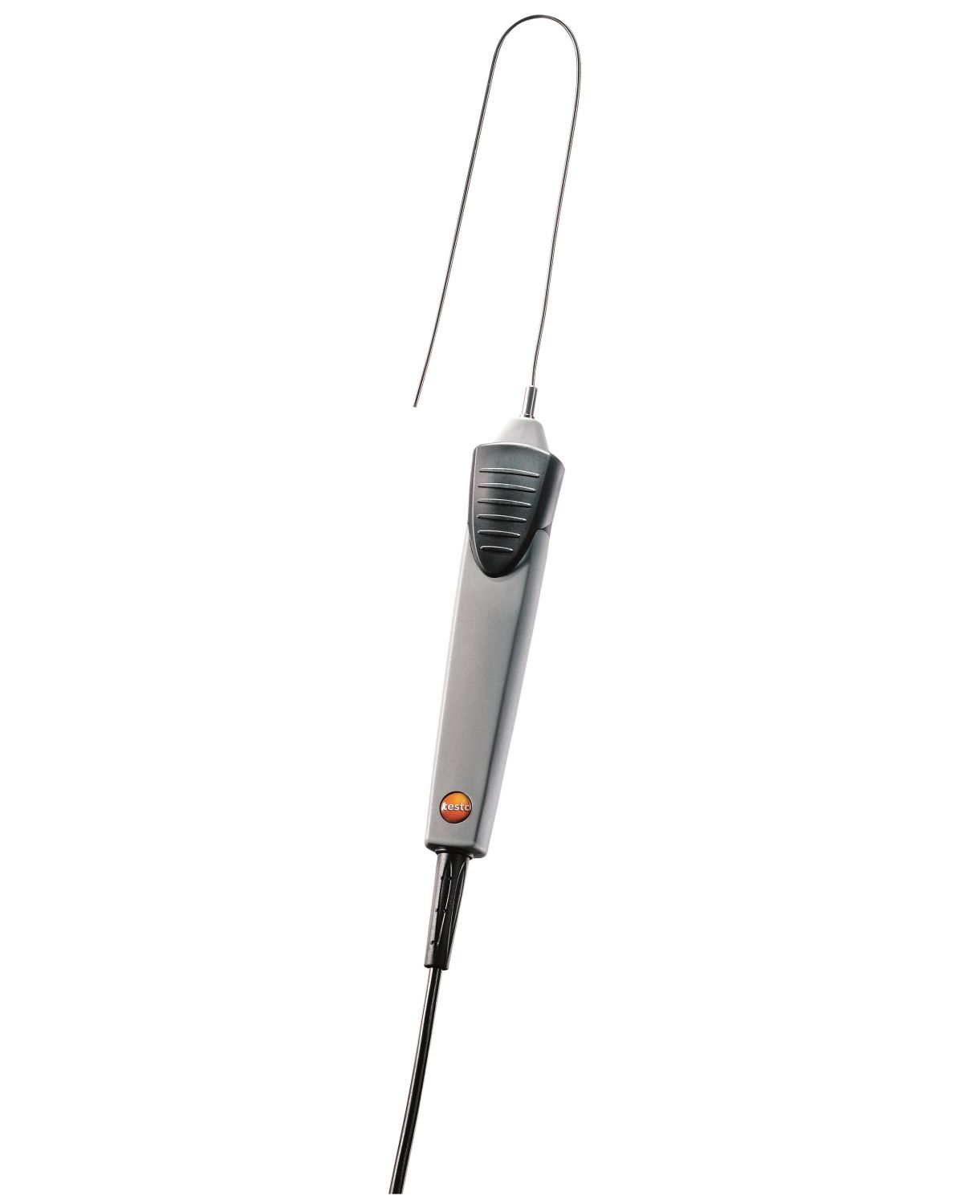

Flexible, fast-action immersion probe (TC type K)

Part No. 0602 0593

Key Features:

Short response time of 2 seconds
Thermocouple type K
Waterproof
Very large measuring range: -60 to +1000 °C

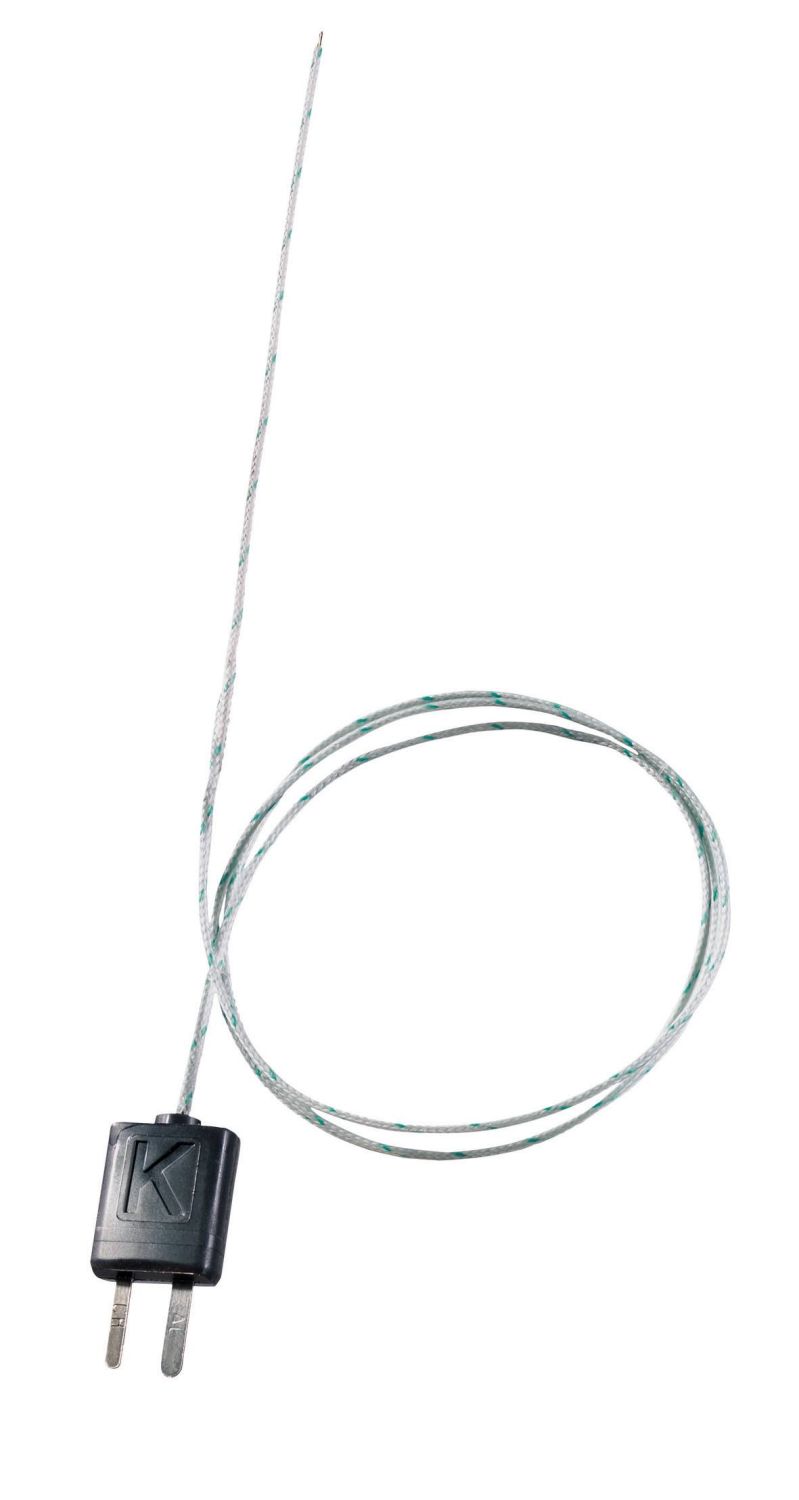

Thermocouple with TC adapter, flexible, 800 mm long

Part No. 0602 0644

hermocouple with TC adapter, flexible, 1500 mm long, PTFE, TC Type K

Part No. 0602 0646

Technical Data

Temperature - TC Type K (NiCr-Ni)

Measuring range -50 to +400 °C
Accuracy Class 2 ¹⁾
Reaction time 5 s

1) According to standard EN 60584-2, the accuracy of Class 1 refers to -40 to +1000 °C (Type K), Class 2 to -40 to +1200 °C (Type K), Class 3 to -200 to +40 °C (Type K).

General Technical Data

Diameter probe shaft 1.5 mm
Length probe shaft 1,500 mm

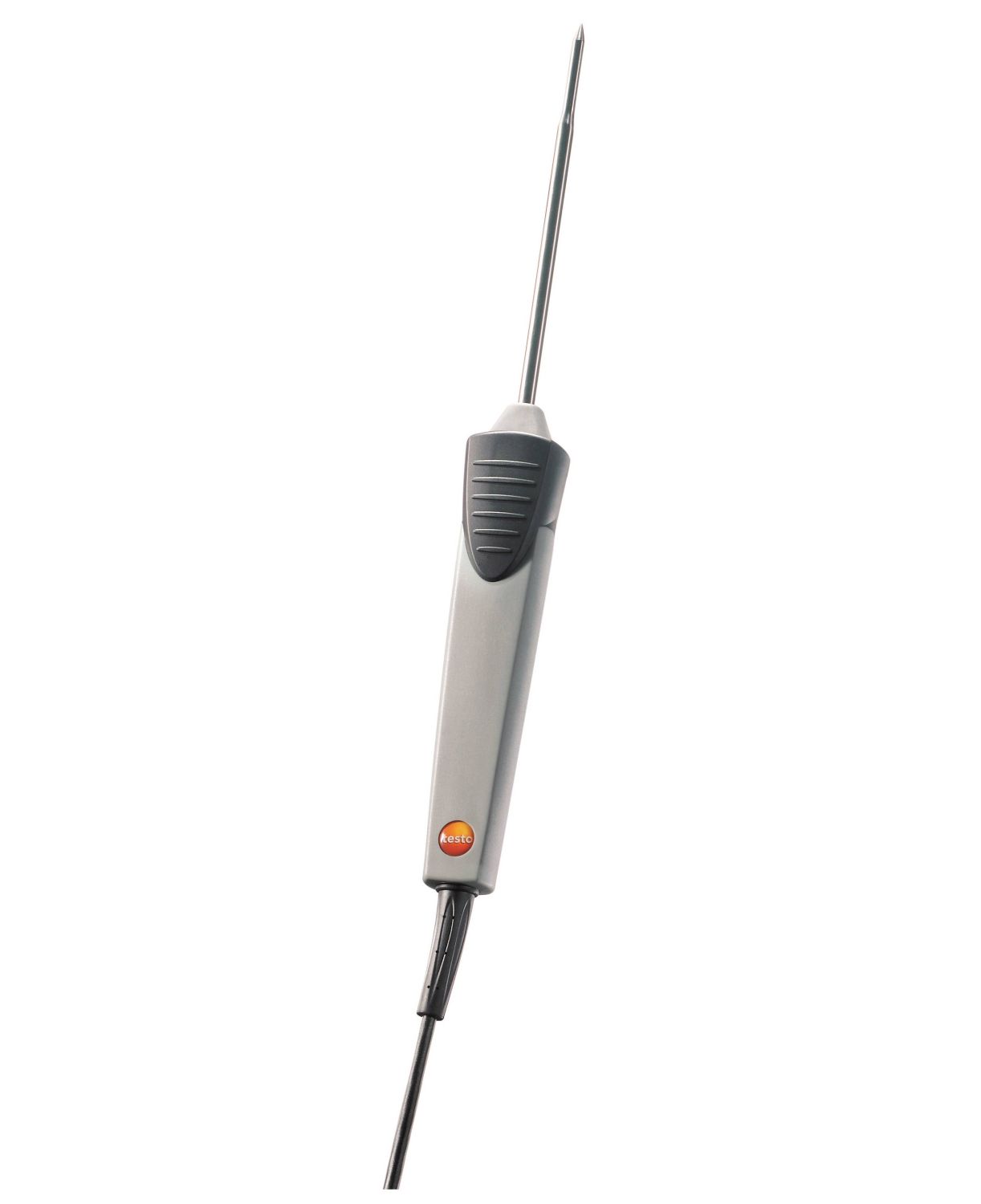

Waterproof immersion/penetration probe (TC type K)

Part No. 0602 1293

The waterproof immersion and penetration probe guarantees fast temperature measurement in liquids and semi-solid media.

Key Features:

Thermocouple type K
Response time of 7 seconds
Waterproof
Measuring range: -60 to +400 °C

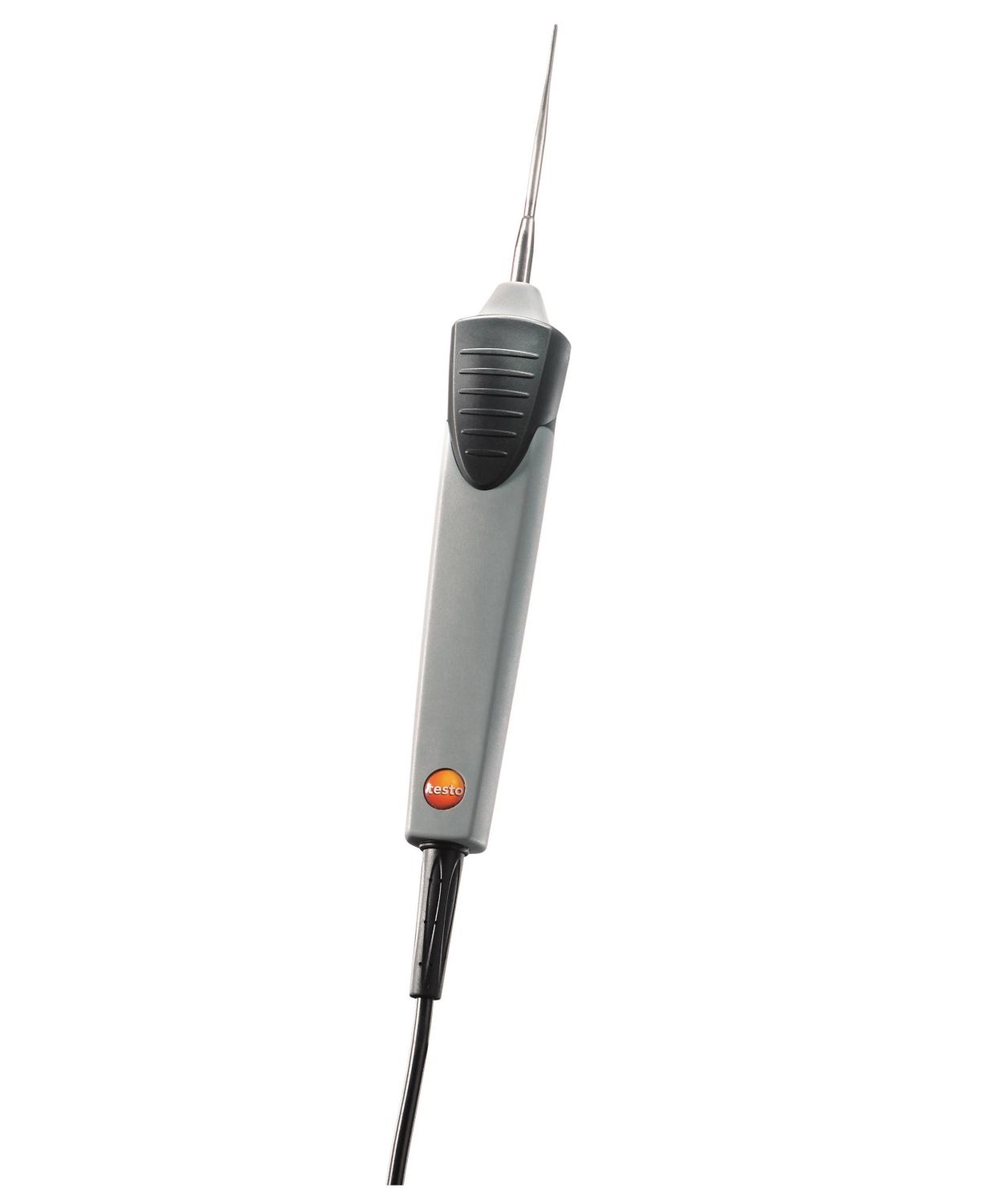

Fast-action immersion/penetration probe (TC type K)

Part No. 0602 2693

Fast-action temperature probe with penetration tip – ideal for temperature measurements in pastes and semi-solid media, in liquids and in the air.

Key Features:

1.5 mm thin probe tip for fast temperature recording, 60 mm long probe shaft
Splash-proof in accordance with IP54
Very short response time of 3 seconds
Measuring range: -60 to +800 °C

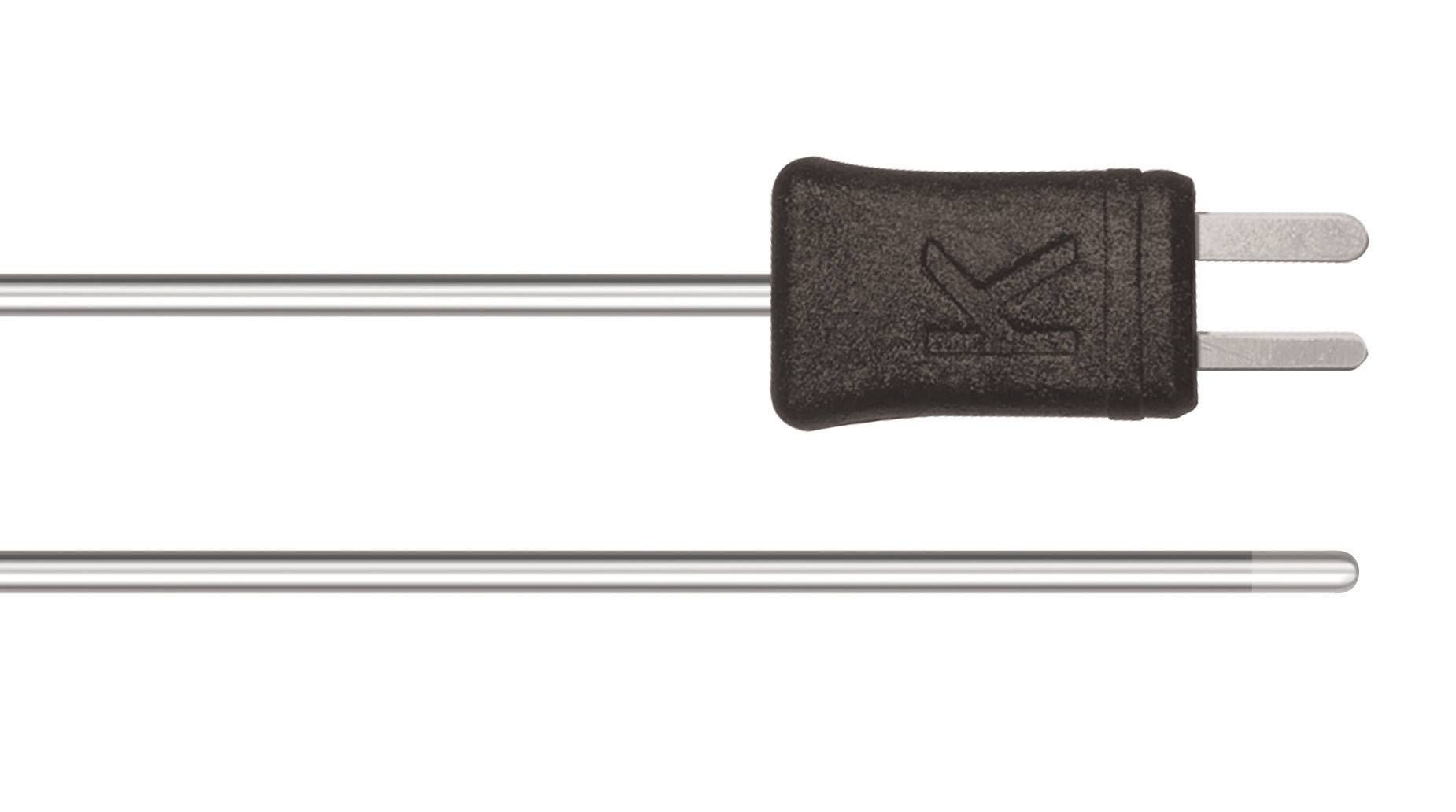

Immersion measurement tip, flexible, for measurements in air/exhaust gases

Part No. 0602 5693

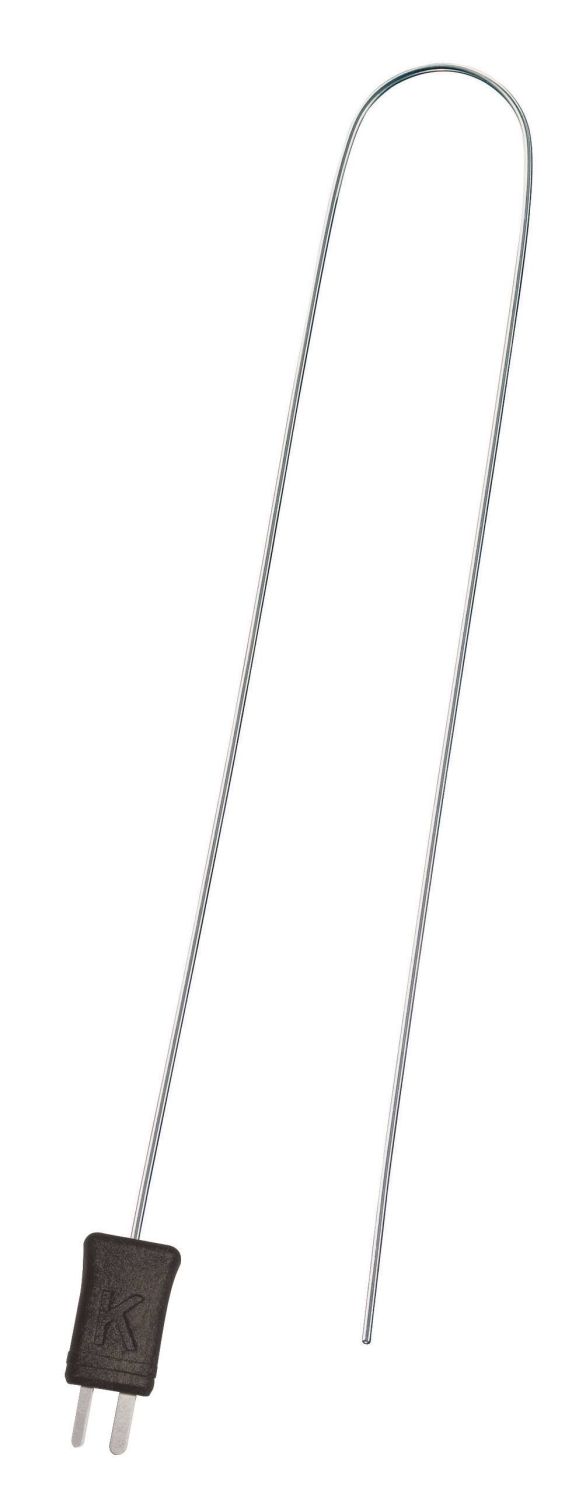

Immersion tip, flexible, TC Type K

Part No. 0602 5792

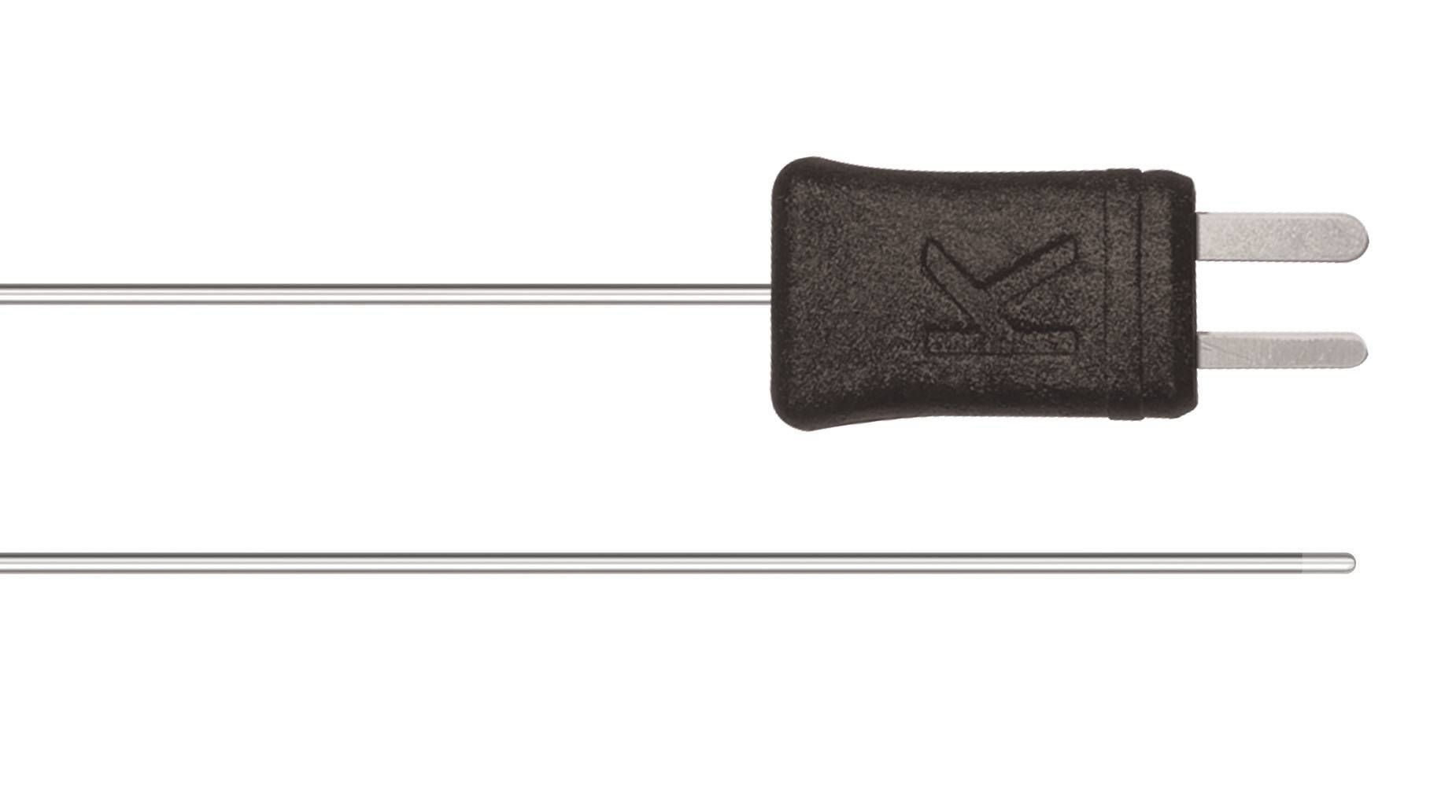

Immersion tip, flexible, TC Type K

Part No. 0602 5793

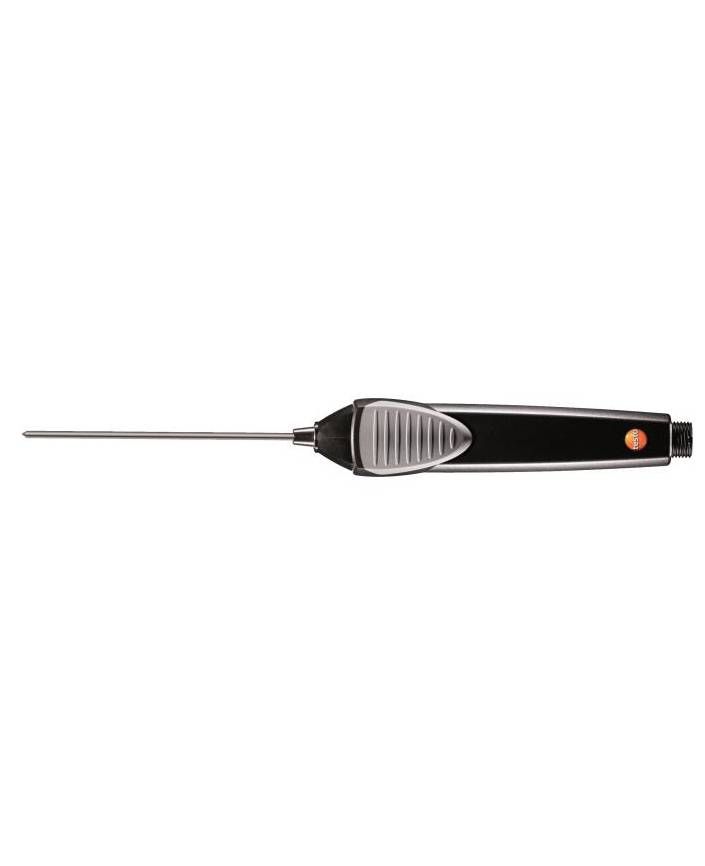

High-precision Pt100 immersion and penetration probe

Part No. 0614 0073

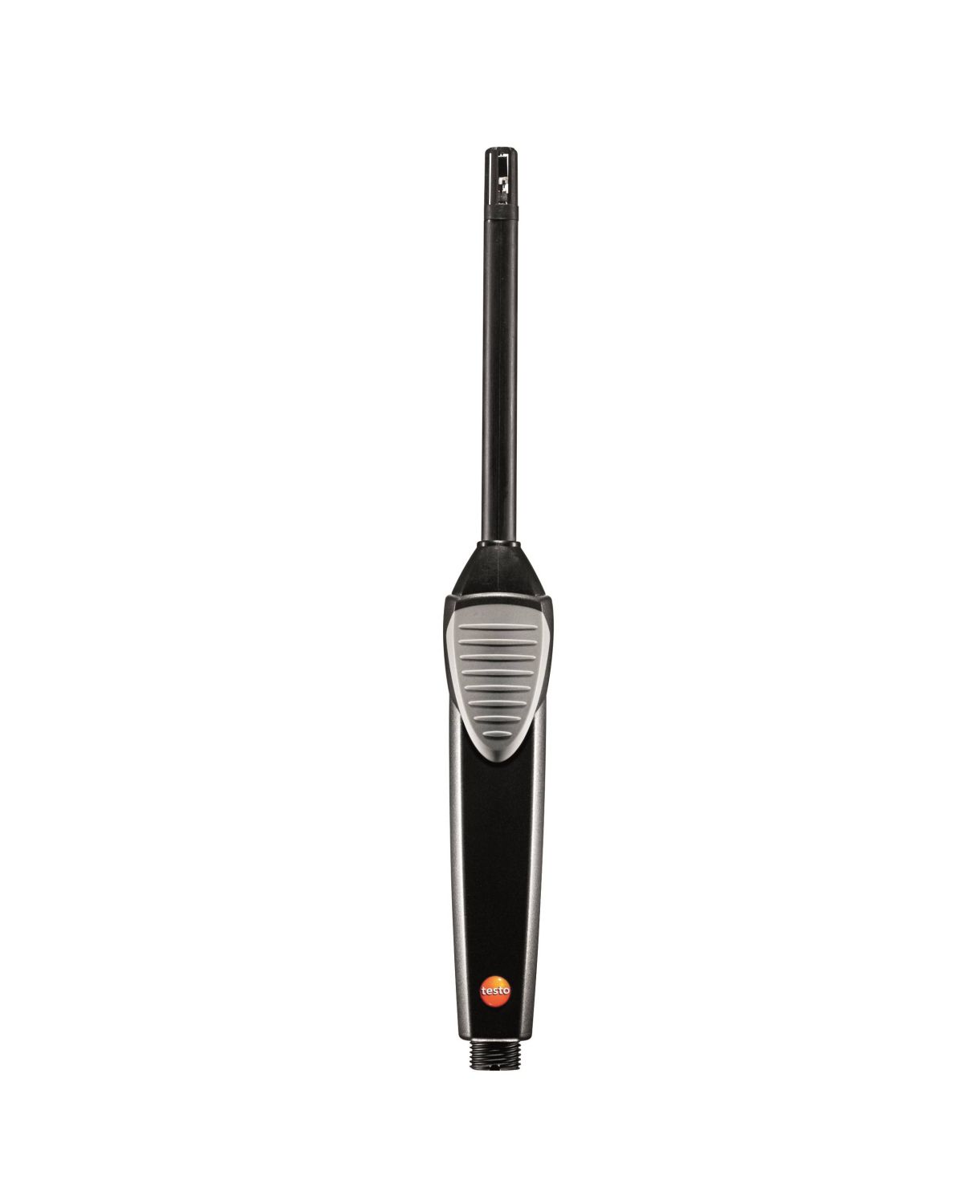

High-precision humidity/temperature probe (Ø 12 mm)

Part No. 0636 9743

Humidity and temperature probe Ø 0.5"

Key Features:

High-precision humidity measurement: accuracy of up to ±1% RH
Intelligent calibration concept
Temperature measuring range: -20 to +70 °C

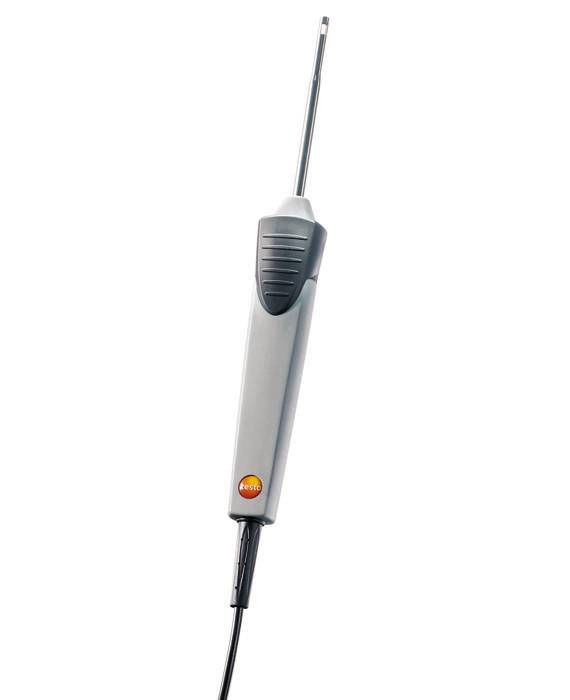

Robust air temperature probe (TC type K)

Part No. 0602 1793

Use the robust air temperature probe with exposed sensor (thermocouple type K) to measure air temperature with a short response time. It can be connected to a wide range of measuring instruments.

Key Features:

Thermocouple type K
Short response time thanks to the exposed sensor
Can be connected to a wide range of measuring instruments
Measuring range: -60 to +400 °C

Spare meas. head for pipe wrap probe, TC Type K

Part No. 0602 0092

Product Benefits:

Replaceable measuring head with thermocouple strip for temperature probe with clamping bracket 0602 4592
Measuring range: -60 to +130°C, briefly up to +280 °C
Simple pull out the old measuring head with thermocouple strip and replace with new measuring head

Temperature - TC Type K (NiCr-Ni) Technical Data

Measuring range -60 to +130 °C
Accuracy Class 2 ²⁾
Reaction time 5 s

2) Accor ding to standard EN 60584-2, the accuracy of Class 1 refers t o -40 t o +1000 °C (Type K), Class 2 to -40 to +1200 °C (Type K), Class 3 to -200 to +40 °C (Type K).

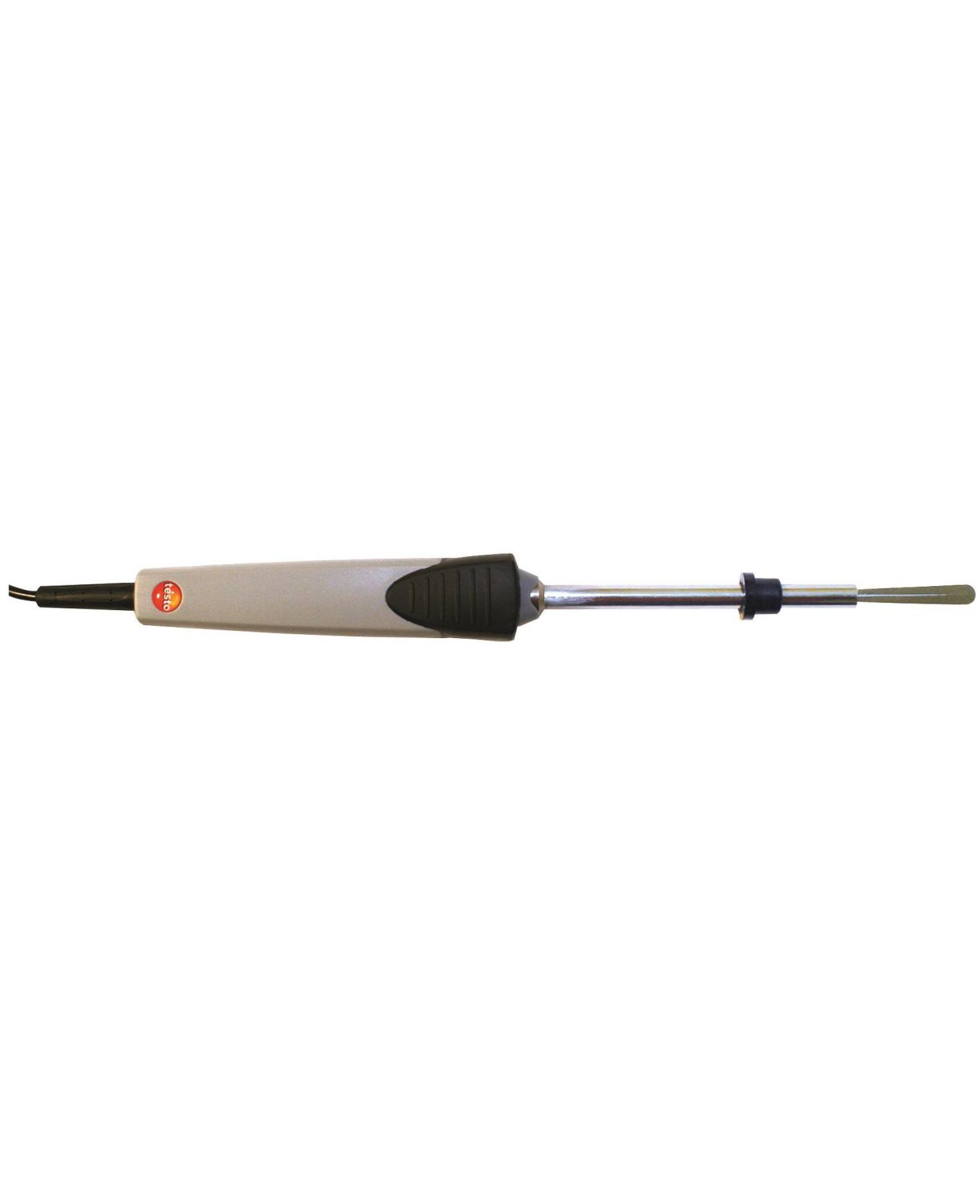

Fast-reaction paddle surface probe, for measurements in inaccessible places, e.g. narrow apertures and slots, TC Type K

Part No. 0602 0193

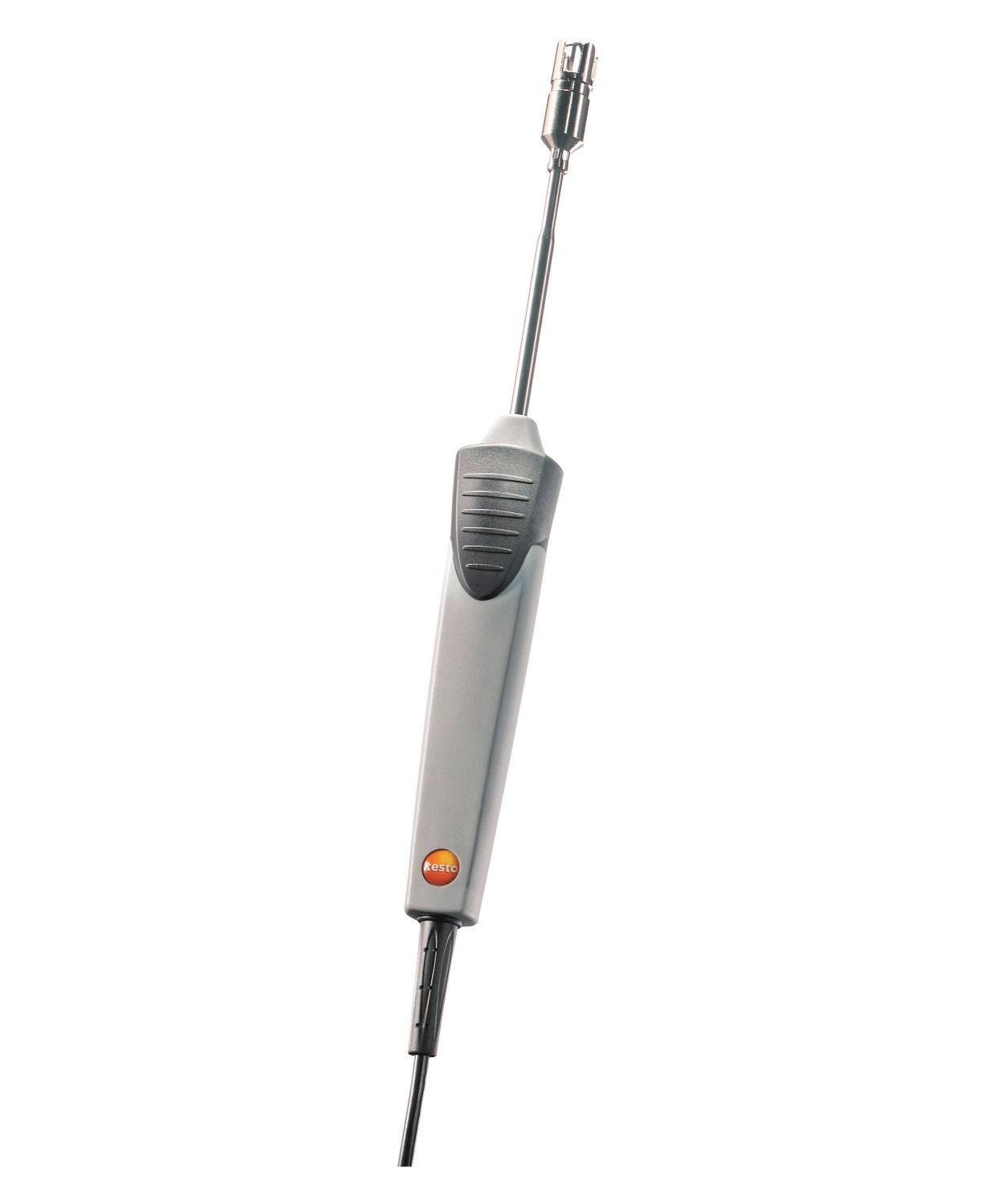

Fast-action surface probe (TC type K)

Part No. 0602 0393

The extremely fast-action surface temperature probe with sprung thermocouple strip is suitable for a wide range of applications – including uneven surfaces.

Temperature - TC Type K (NiCr-Ni) Technical Data

Measuring range -60 to +300 °C
Accuracy Class 2 ¹⁾
Reaction time 3 s

1) According to standard EN 60584-2, the accuracy of Class 2 refers to -40 to +1200 °C.

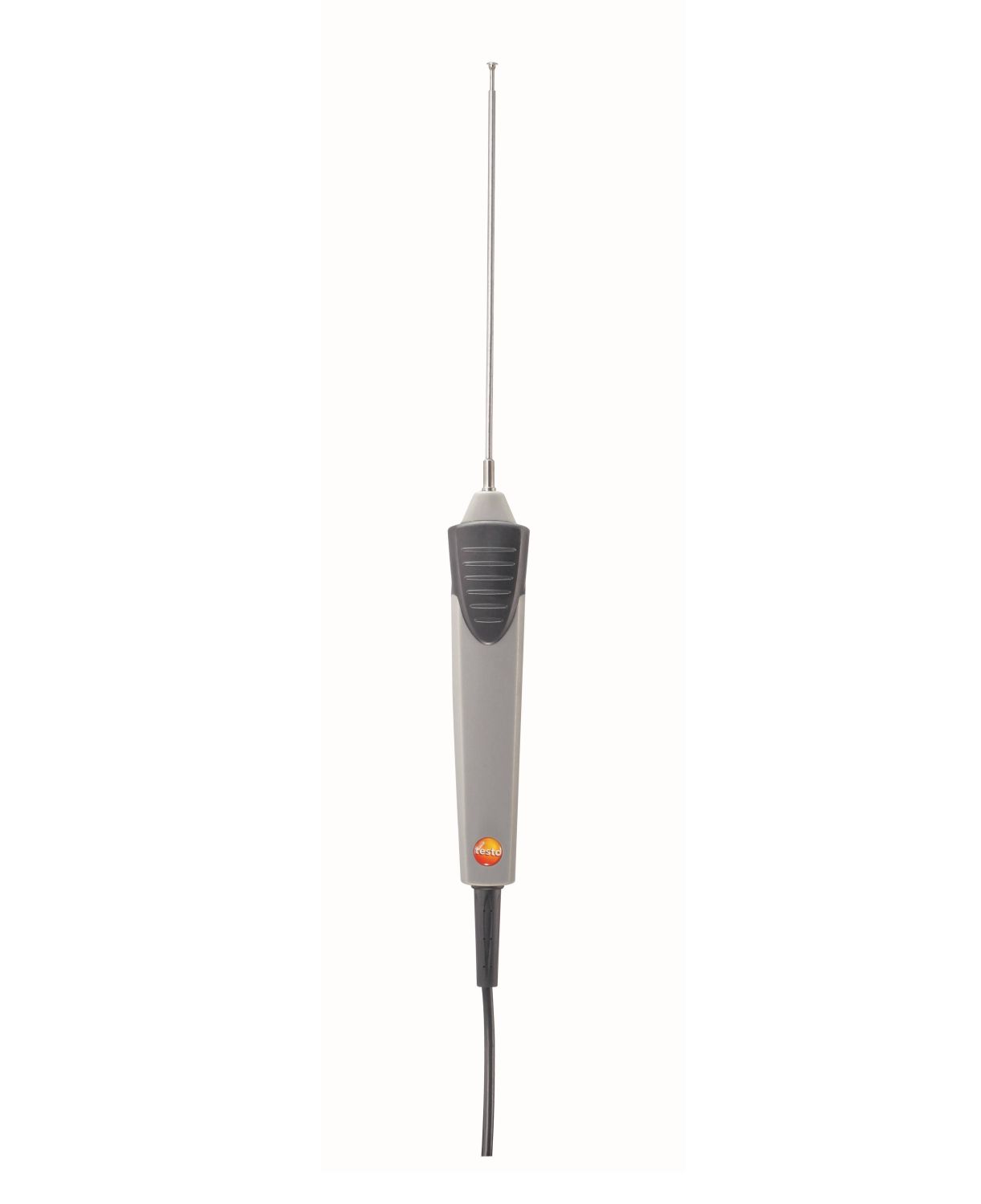

Surface probe with a small measuring head (TC type K)

Part No. 0602 0693

Accurate, waterproof and versatile: the temperature probe measures surface temperatures of up to 1000 °C. Its small measuring head is ideal for carrying out measurements on flat surfaces. Short response time.

Temperature - TC Type K (NiCr-Ni) Technical Data

Measuring range -60 to +1000 °C
Accuracy Class 1 ¹⁾
Reaction time 20 s

1) According to standard EN 60584-2, the accuracy of Class 1 refers to -40 to +1000 °C (Type K), Class 2 to -40 to +1200 °C (Type K), Class 3 to -200 to +40 °C (Type K).

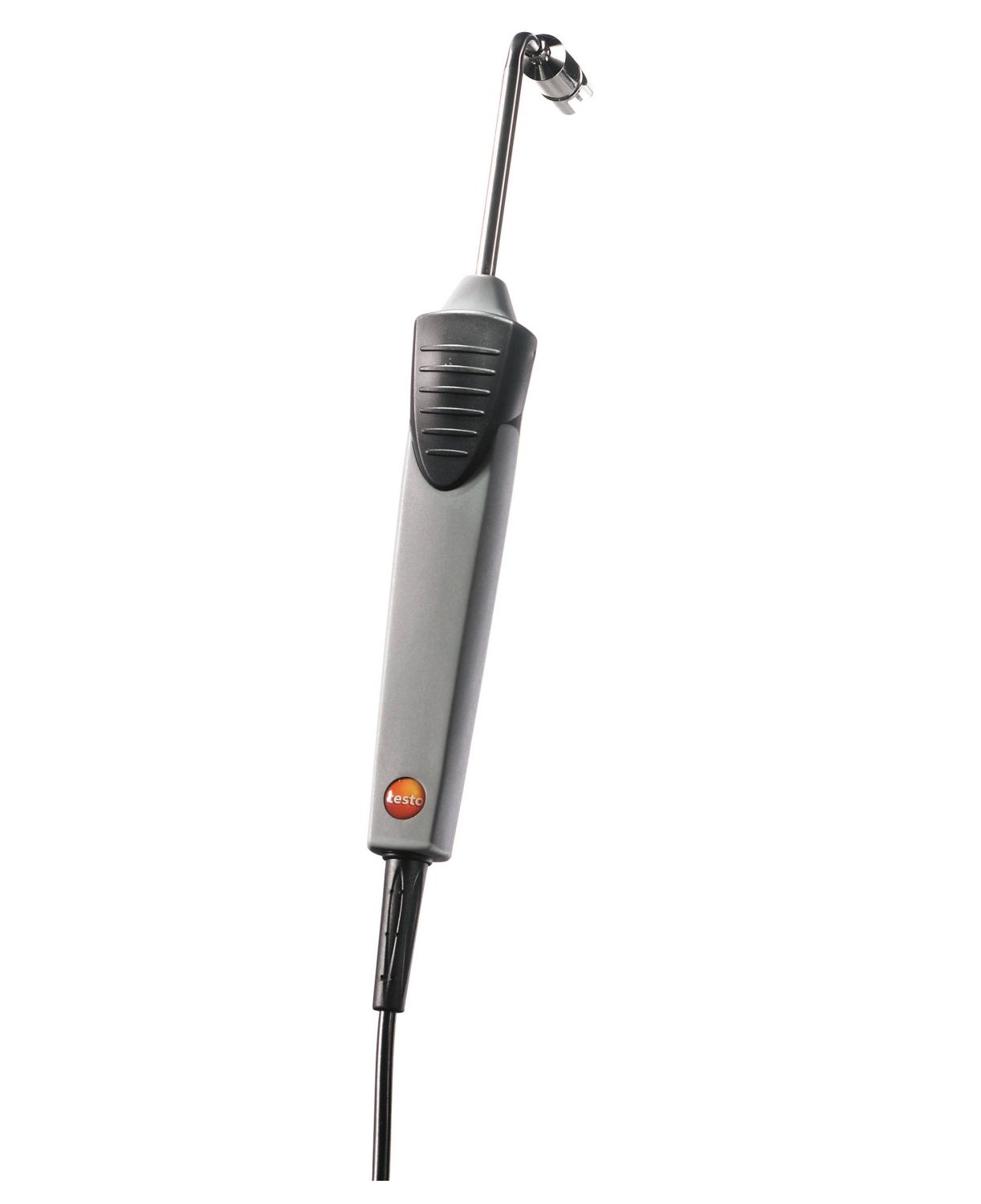

Fast-action, angled surface probe (TC type K)

Part No. 0602 0993

Use this fast-action temperature probe to measure surface temperatures accurately and reliably, even in inaccessible areas – the angled probe tube makes this possible.

Temperature - TC Type K (NiCr-Ni) Technical Data

Measuring range -60 to +300 °C
Accuracy Class 2 ¹⁾
Reaction time 3 s

1) According to standard EN 60584-2, the accuracy of Class 1 refers to -40 to +1000 °C (Type K), Class 2 to -40 to +1200 °C (Type K), Class 3 to -200 to +40 °C (Type K).

Surface probe with widened measuring tip (TC type K)

Part No. 0602 1993

Waterproof, robust and versatile: this temperature probe with sturdy probe shaft and widened measuring tip is ideal for measuring the temperature on flat surfaces.

Temperature - TC Type K (NiCr-Ni) Technical Data

Measuring range -60 to +400 °C
Accuracy Class 2 ¹⁾
Reaction time 30 s

1) According to standard EN 60584-2, the accuracy of Class 1 refers to -40 to +1000 °C (Type K), Class 2 to -40 to +1200 °C (Type K), Class 3 to -200 to +40 °C (Type K).

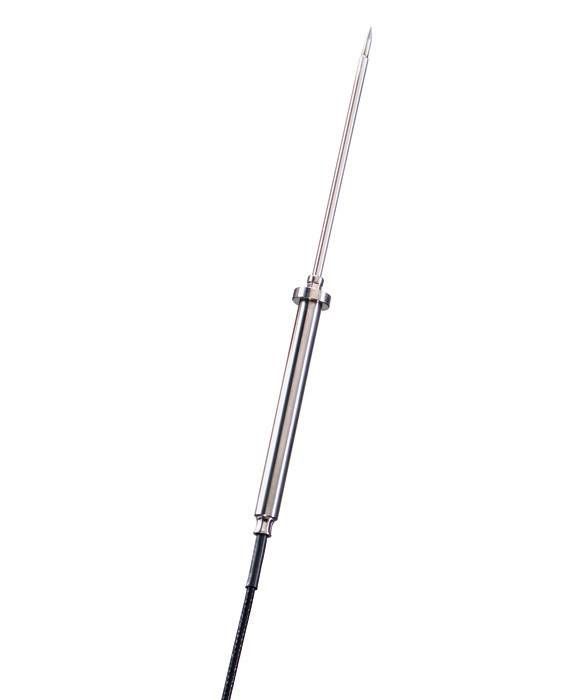

Waterproof food probe made of stainless steel (IP65), TC Type K

Part No. 0602 2292

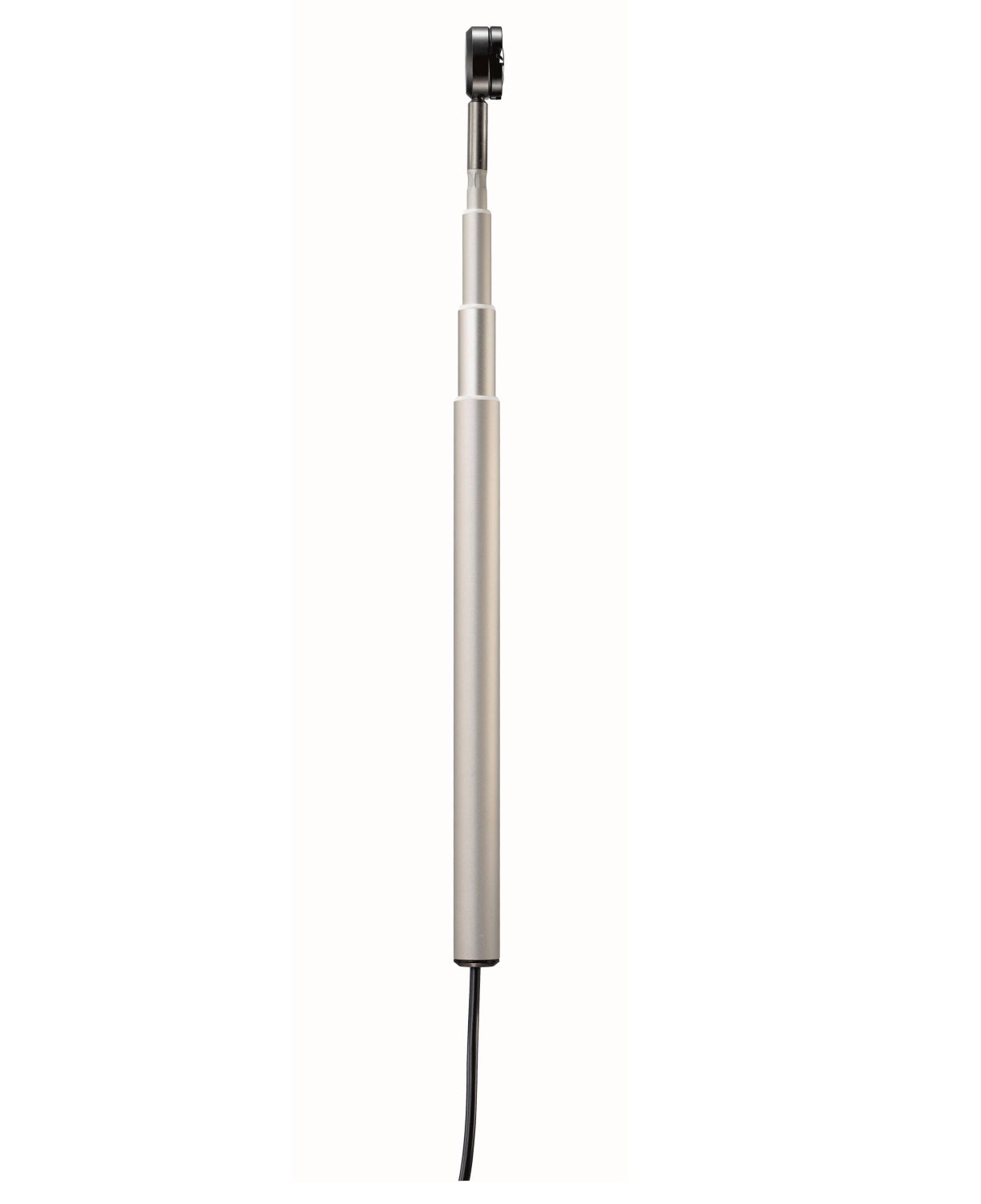

Flat head surface probe with telescopic handle max

Part No. 0602 2394

Temperature - TC Type K (NiCr-Ni) Technical Data

Measuring range -50 to +250 °C
Accuracy Class 2 ¹⁾
Reaction time 3 s

1) According to standard EN 60584-2, the accuracy of Class 1 refers to -40 to +1000 °C (Type K), Class 2 to -40 to +1200 °C (Type K), Class 3 to -200 to +40 °C (Type K).

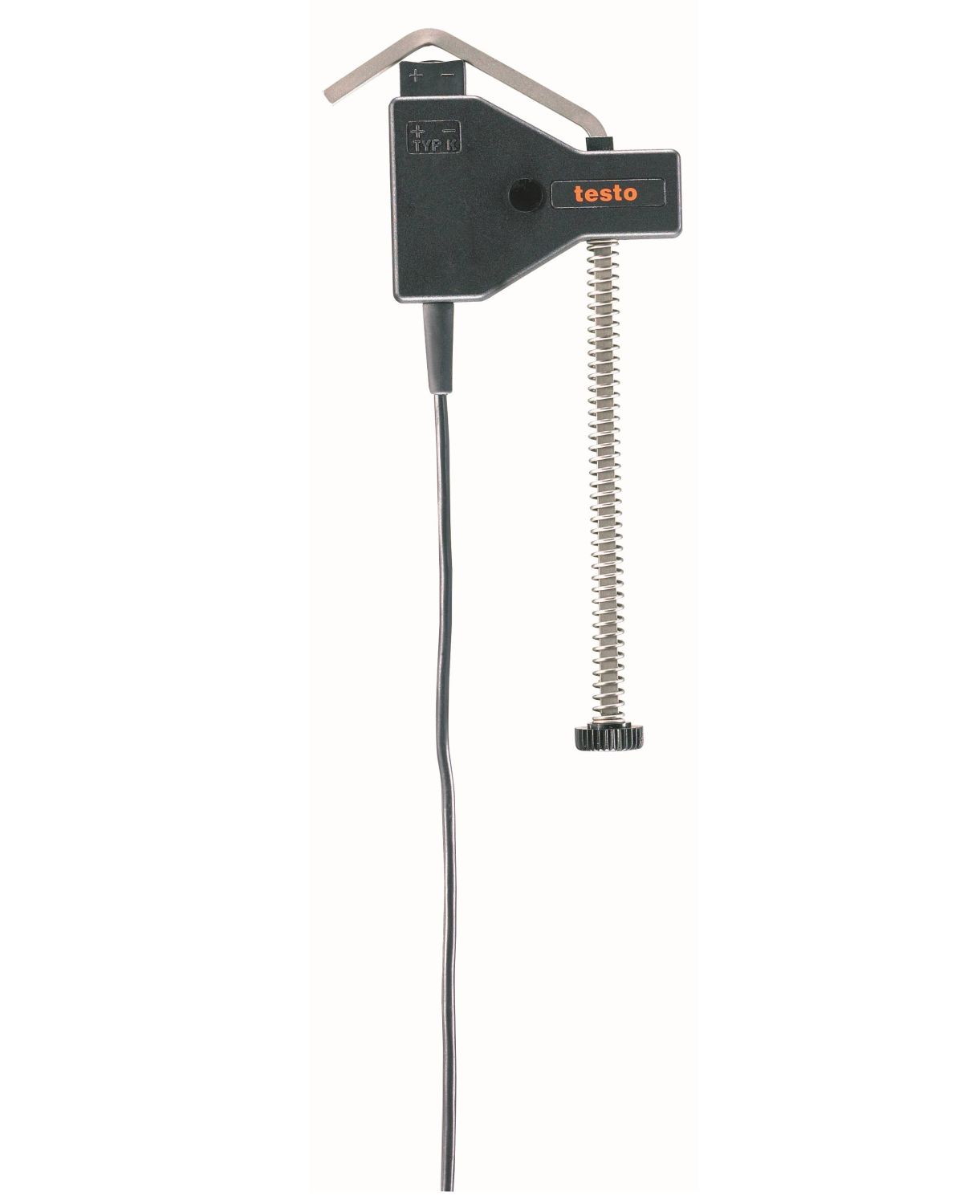

Temperature probe with clamping bracket (TC Type K)

Part No. 0602 4592

Pipe wrap probe for pipe diameter 5 to 65 mm, with exchangeable measuring head. Meas. range short-term up to +280°C, TC Type K

Temperature - TC Type K (NiCr-Ni) Technical Data

Measuring range -60 to +130 °C
Accuracy Class 2 ¹⁾
Reaction time 5 s

1) According to standard EN 60584-2, the accuracy of Class 1 refers to -40 to +1000 °C (Type K), Class 2 to -40 to +1200 °C (Type K), Class 3 to -200 to +40 °C (Type K).

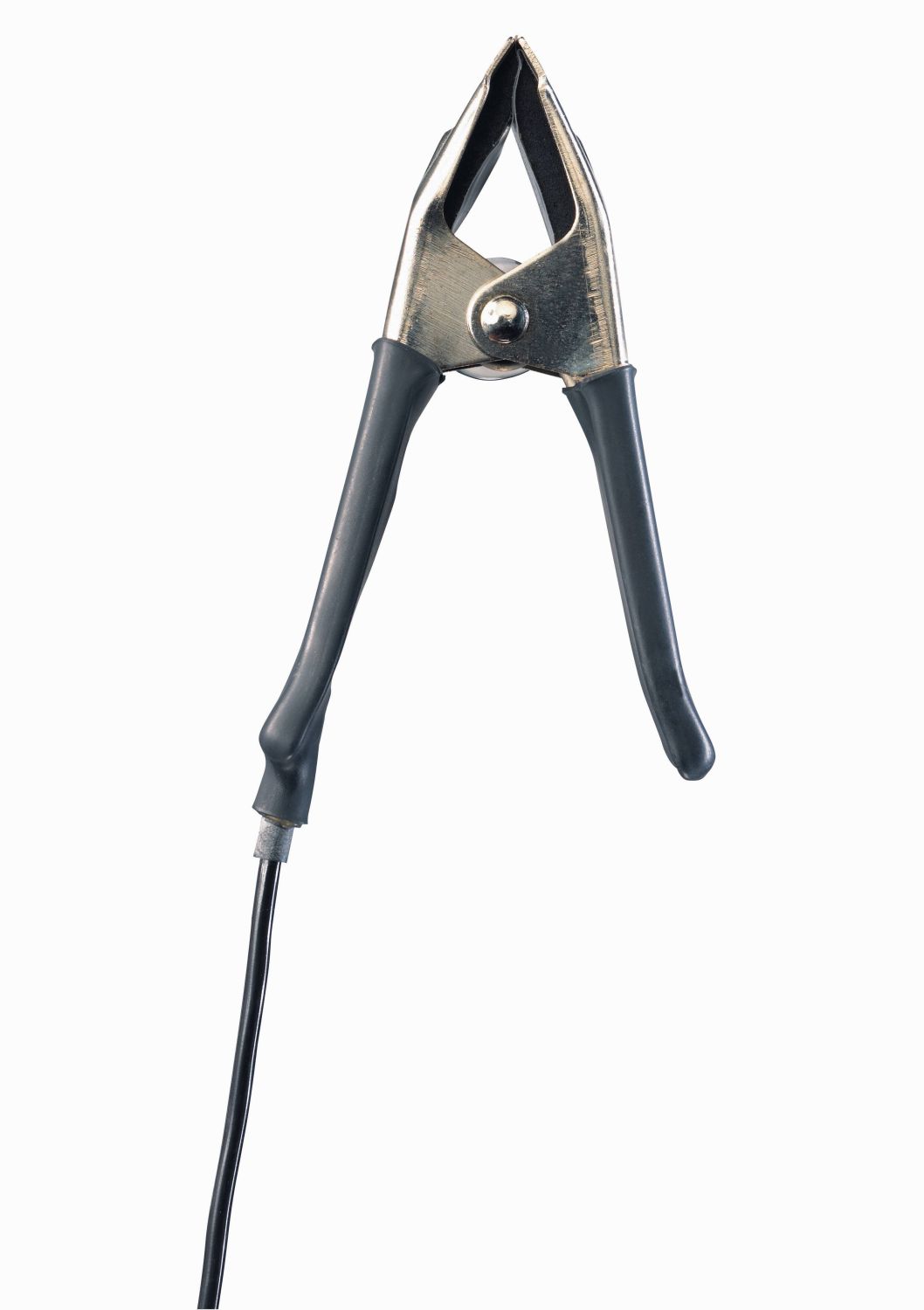

Clamp probe for measurements on pipes

Part No. 0602 4692

Temperature - TC Type K (NiCr-Ni) Technical Data

Measuring range -50 to +100 °C
Accuracy briefly to +130
Reaction time 5 s

1) According to standard EN 60584-2, the accuracy of Class 1 refers to -40 to +1000 °C (Type K), Class 2 to -40 to +1200 °C (Type K), Class 3 to -200 to +40 °C (Type K).

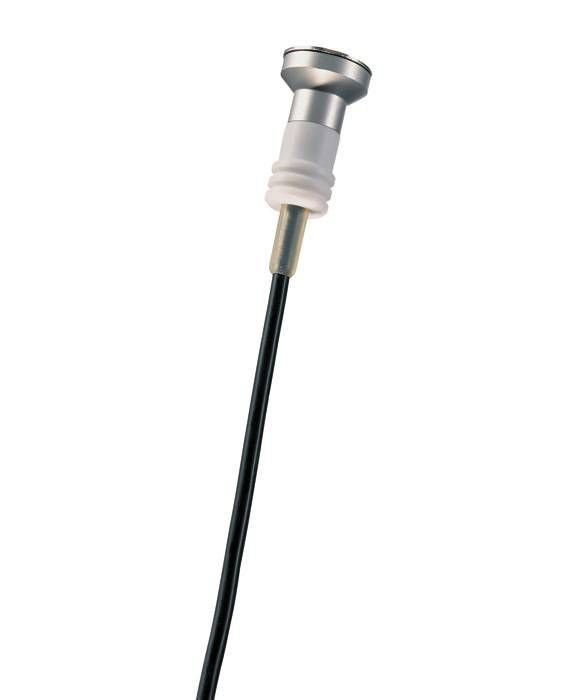

Magnetic probe (TC type K) - for surface temperatures

Part No. 0602 4792

Key Features:

Thermocouple type K
Adhesive force approx. 20 N
Can be connected to a wide range of measuring instruments/data loggers
Measuring range: -50 to +170 °C

Temperature - TC Type K (NiCr-Ni) Technical Data

Measuring range -50 to +170 °C
Accuracy Class 2 ¹⁾
Reaction time 150 s

1) According to standard EN 60584-2, the accuracy of Class 1 refers to -40 to +1000 °C (Type K), Class 2 to -40 to +1200 °C (Type K), Class 3 to -200 to +40 °C (Type K).

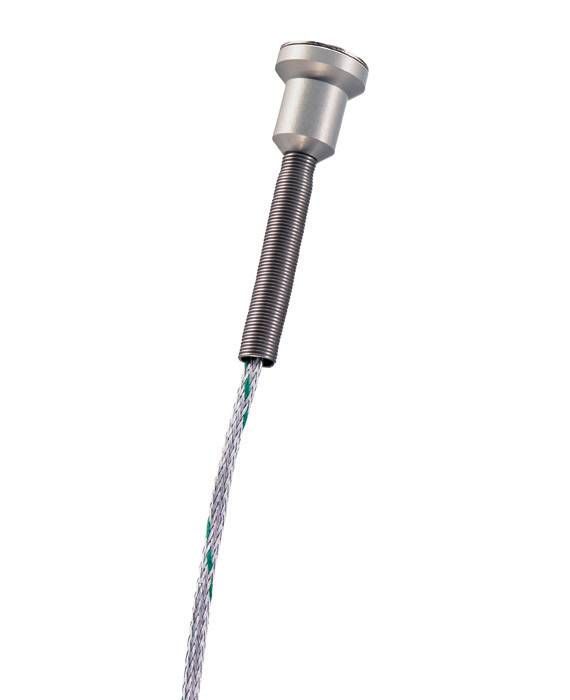

Temperature probe with magnet (TC Type K)

Part No. 0602 4892

Key Features:

Self-adhesive thanks to a magnet: probe for measuring surface temperature on metal surfaces

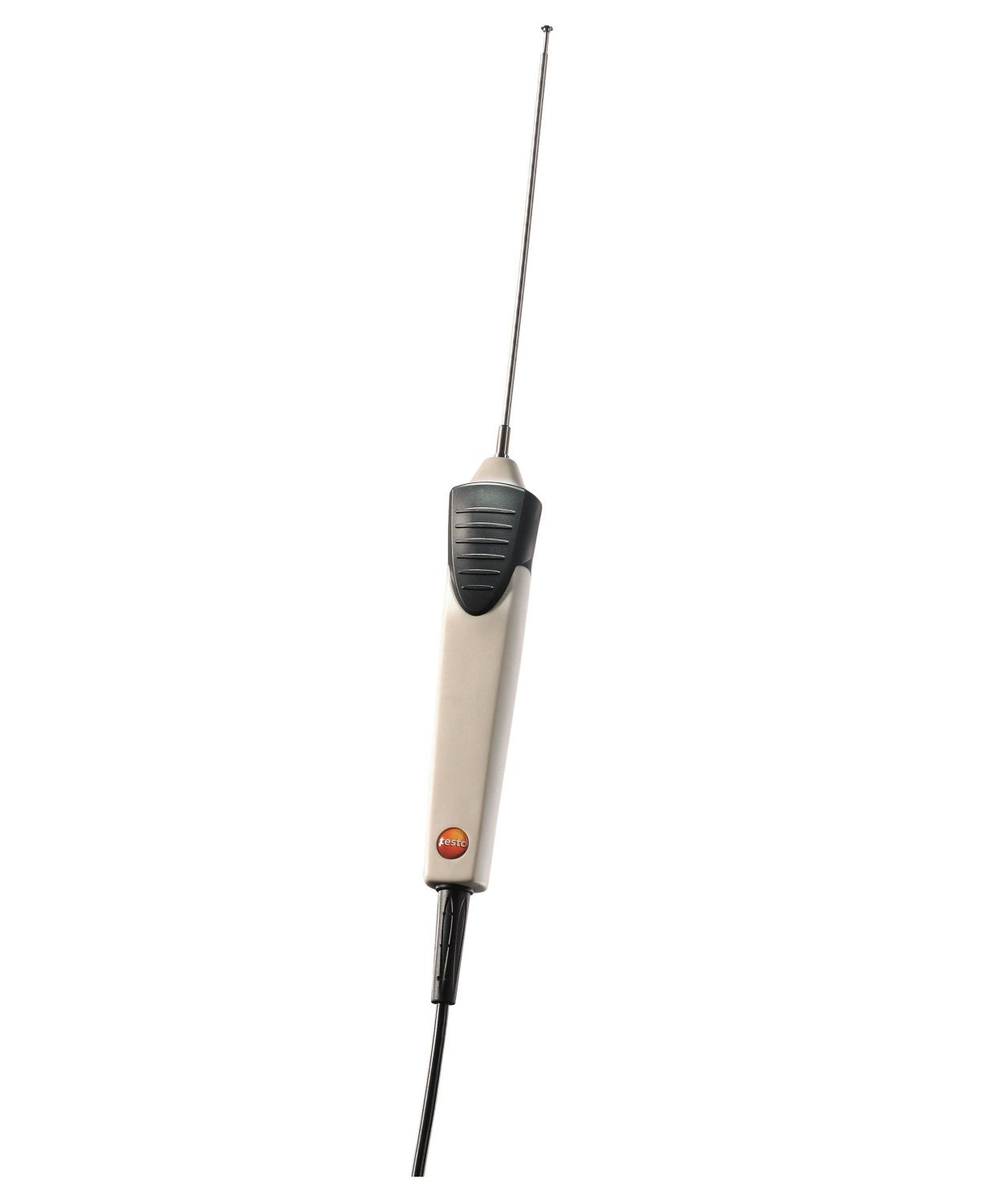

TC Type K temperature probe with 1.6 m cable

Temperature - TC Type K (NiCr-Ni) Technical Data

Measuring range -50 to +400 °C
Accuracy Class 2 ¹⁾

1) According to standard EN 60584-2, the accuracy of Class 1 refers to -40 to +1000 °C (Type K), Class 2 to -40 to +1200 °C (Type K), Class 3 to -200 to +40 °C (Type K).

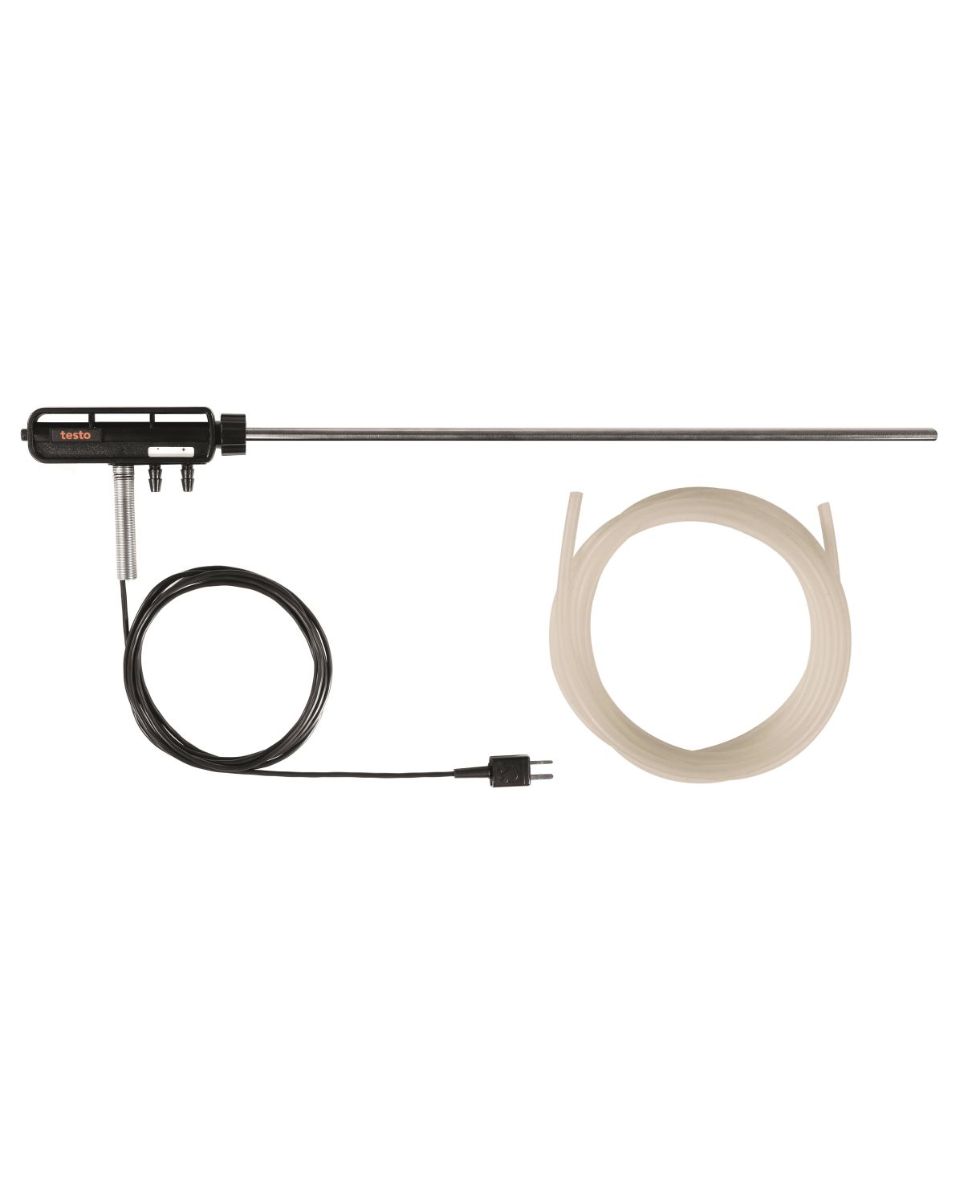

Straight Pitot tube 360 mm

Part No. 0635 2043

Key Features:

For measuring flow velocities, e.g. in ventilation ducts or process air
Length: 360 mm
Measuring range: 1 to 30 m/s
Operating temperature: 0 to +600 °C

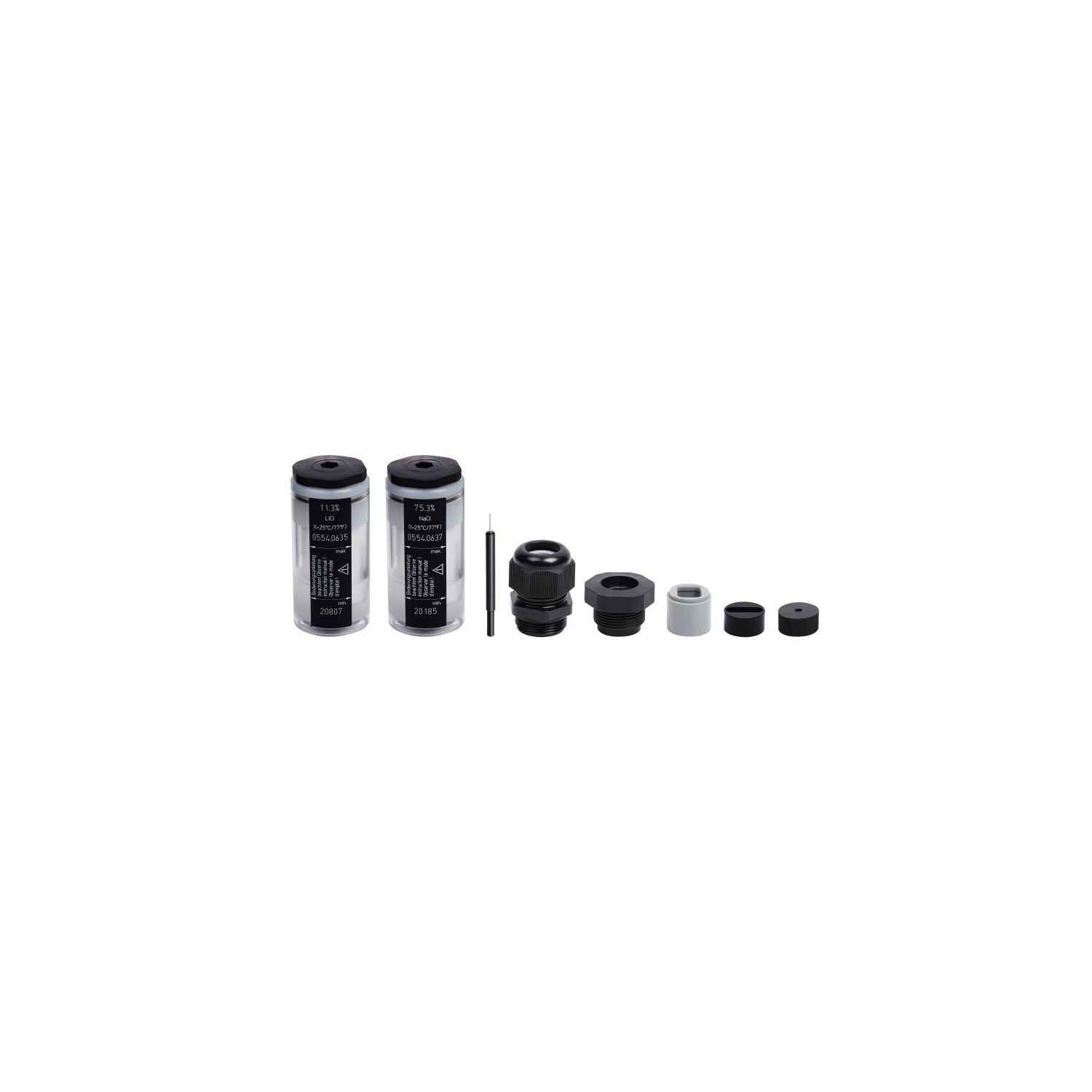

Control and adjustment set for Testo humidity probes

Part No. 0554 0660

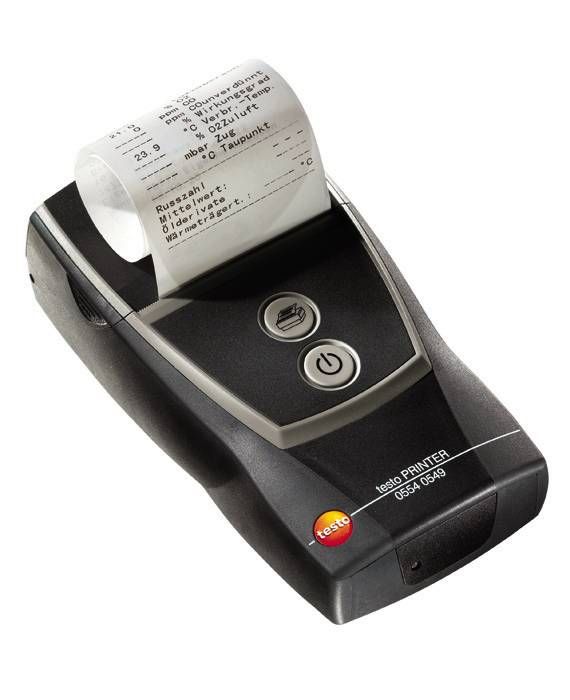

Testo quick printer

Part No. 0554 0549

Compact printer, with IRDA technology offers fast, easy to read printouts of measurements at every job site. Internal magnets will hold the printer to magnetic surfaces for hands free operation.

Key Features:

Evaluate restoration measures quickly and without error.
Measurement of air moisture, material equilibrium moisture, pressure dew point
Instrument memory for up to 10,000 readings

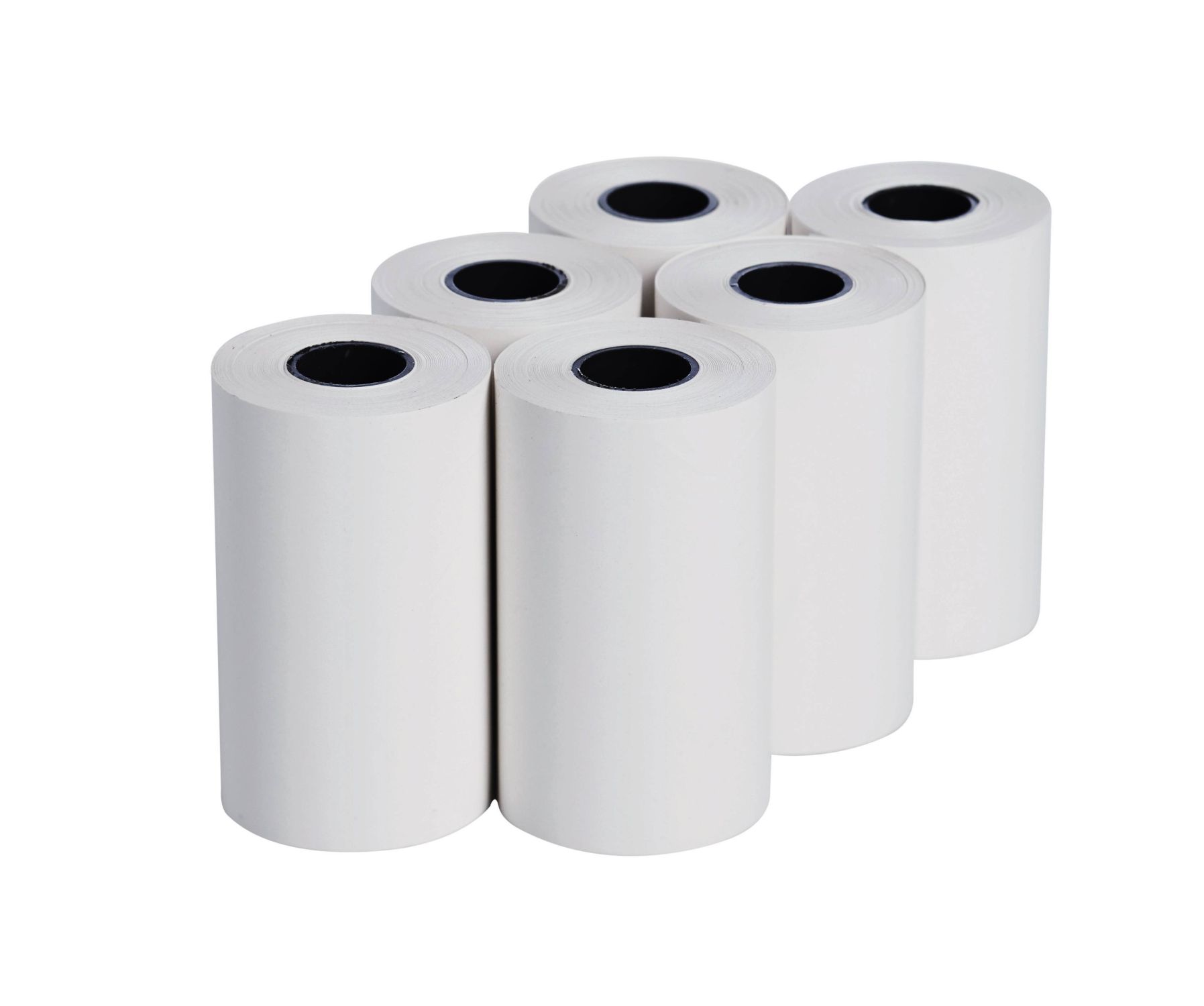

Spare thermal paper for printer, permanent ink

Part No. 0554 0568

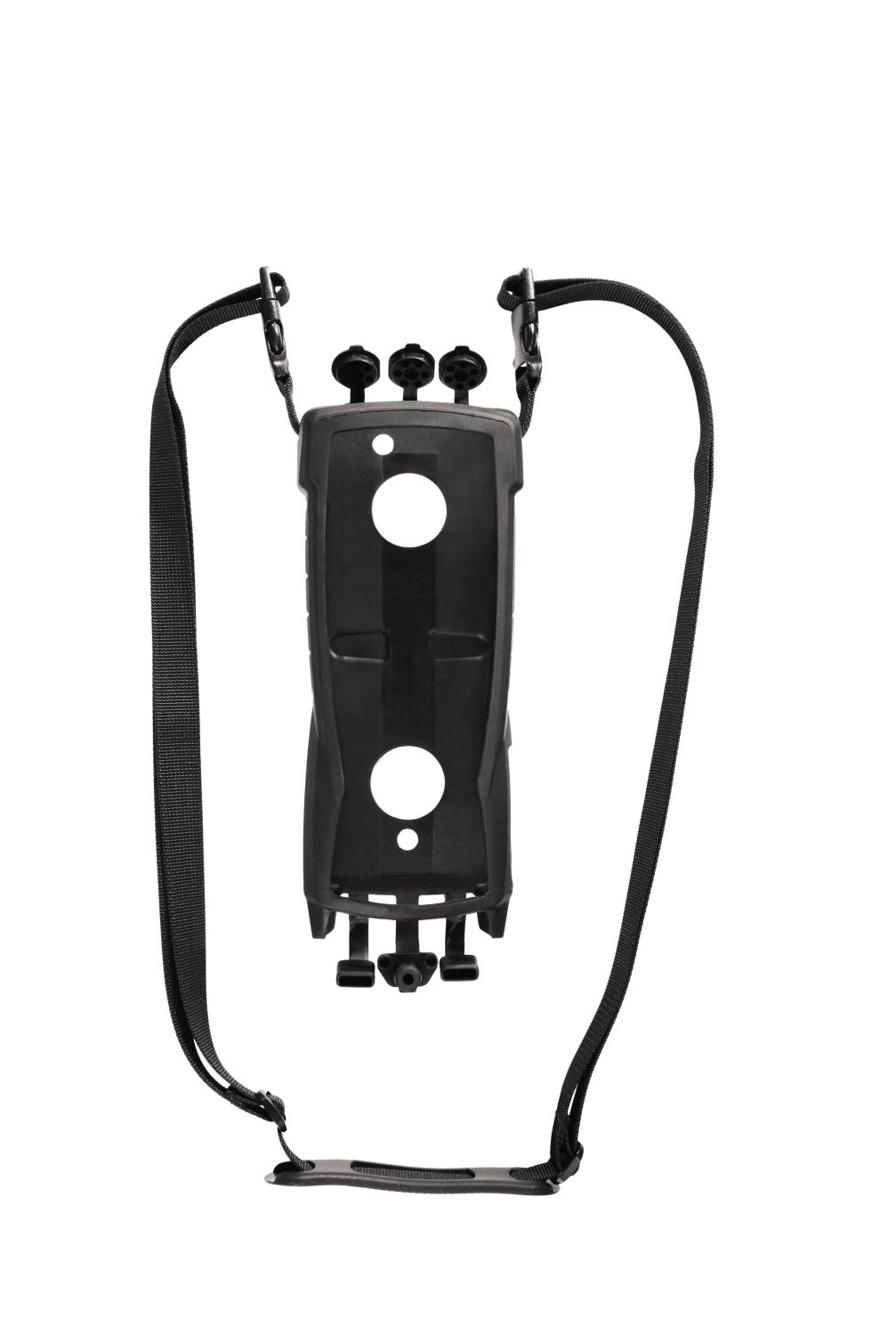

Softcase testo 480

Part No. 0516 0481

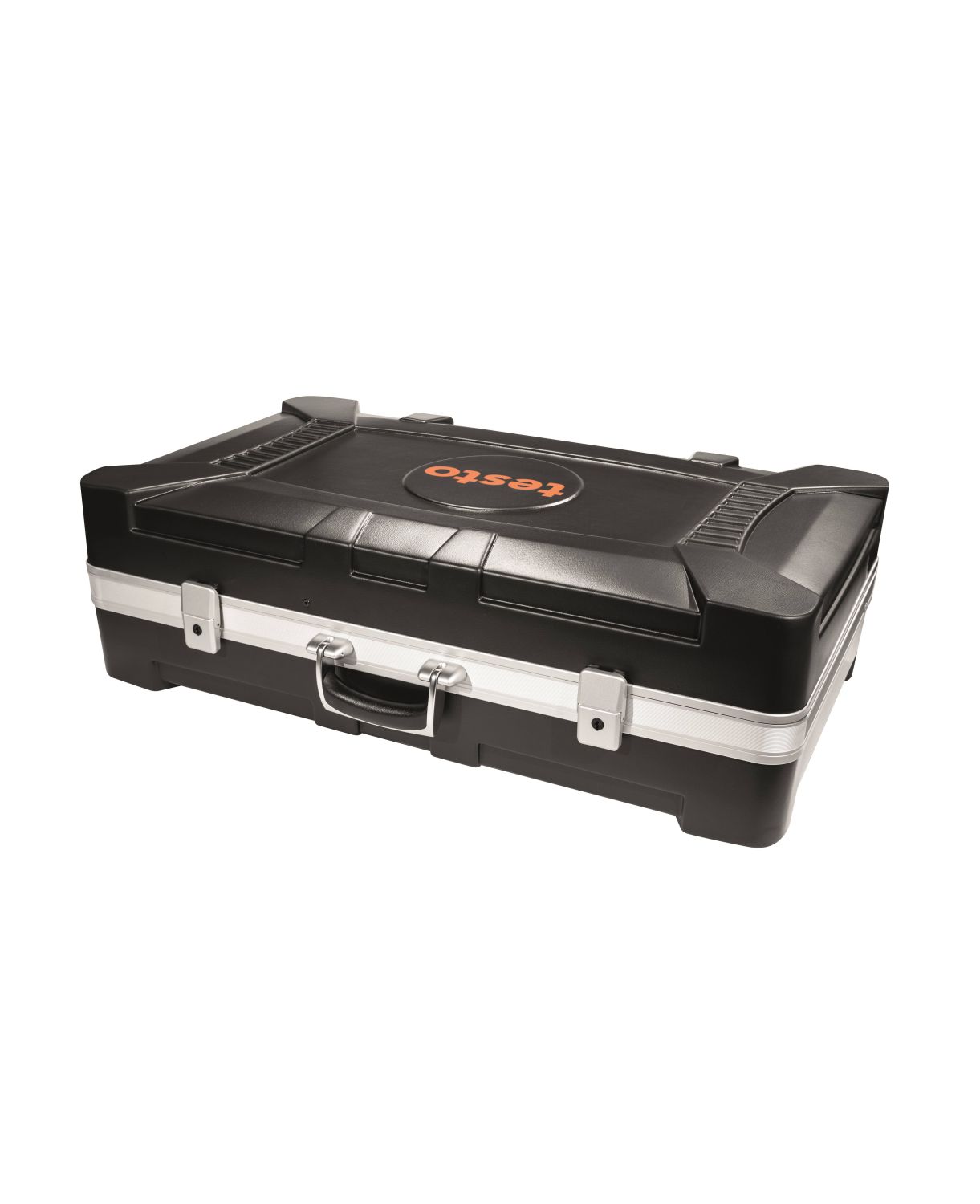

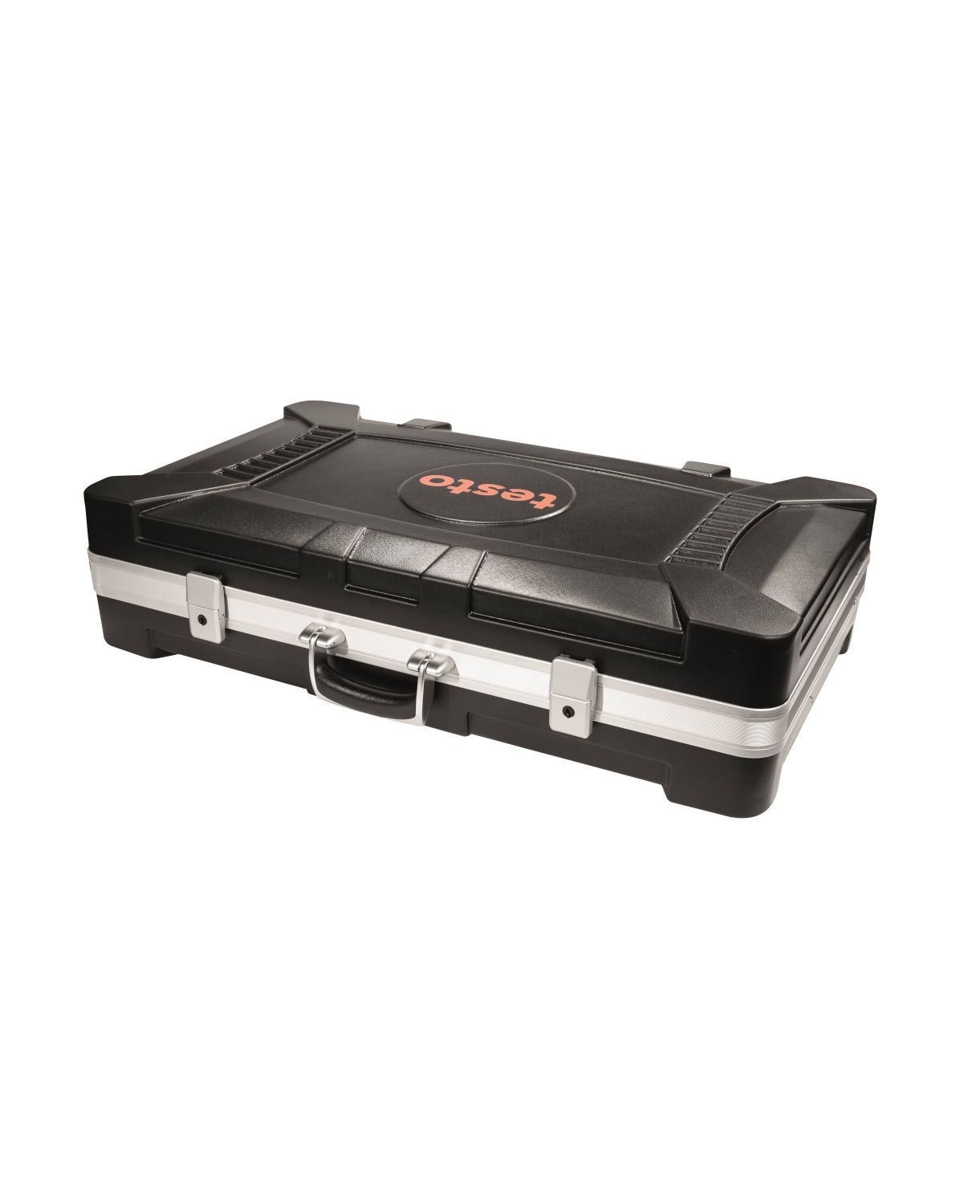

System case for HVAC measurements

Part No. 0516 4800

System case for comfort level measurement

Part No. 0516 4801

Plug-in head cable for digital probes

Part No. 0430 0100

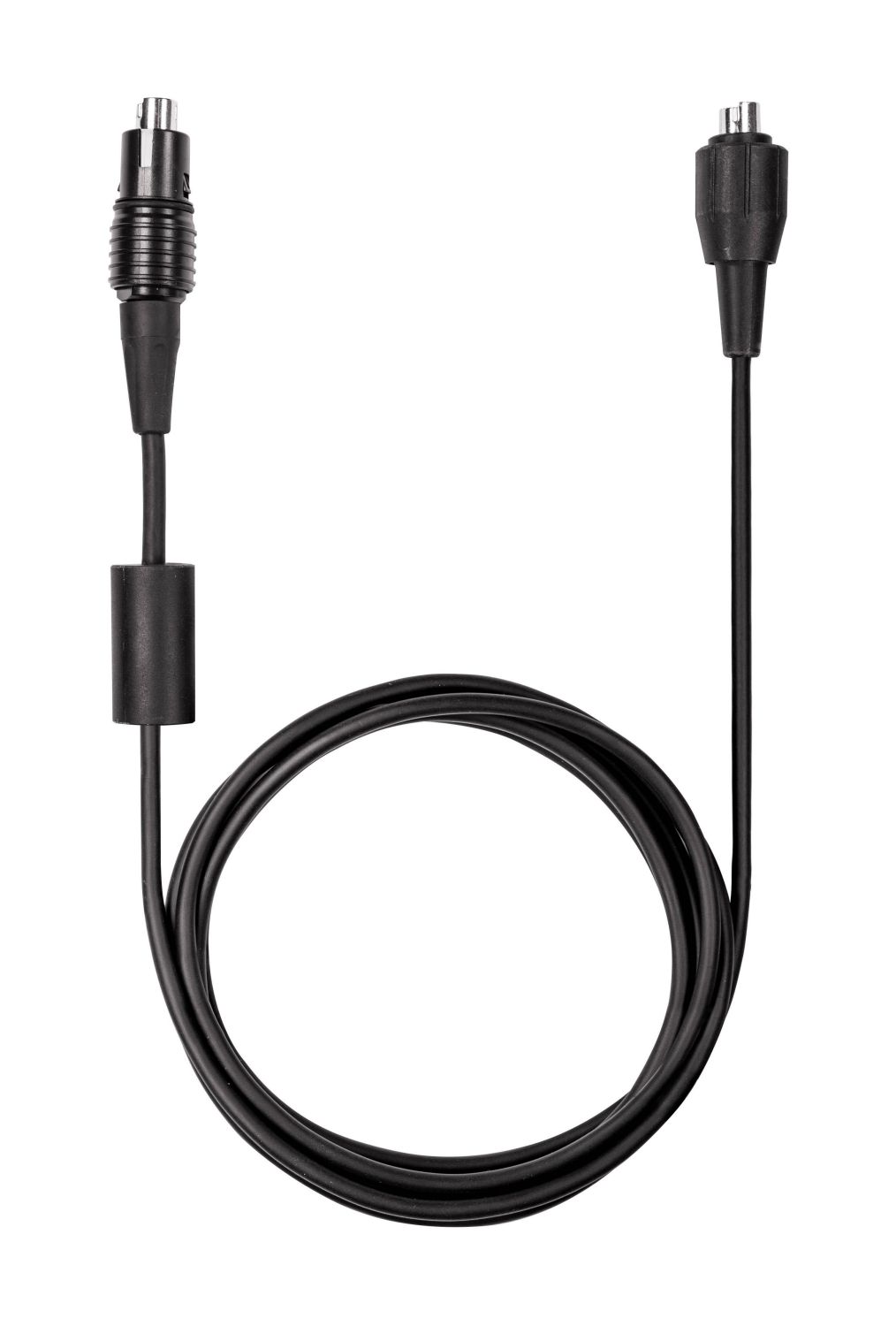

Plug-in head cable 5m

Part No. 0430 0101

Key Features:

For use in conjunction with a telescopic rod (optional)
Cable length: 5 m
Compatible with all digital probes from the testo 480 range

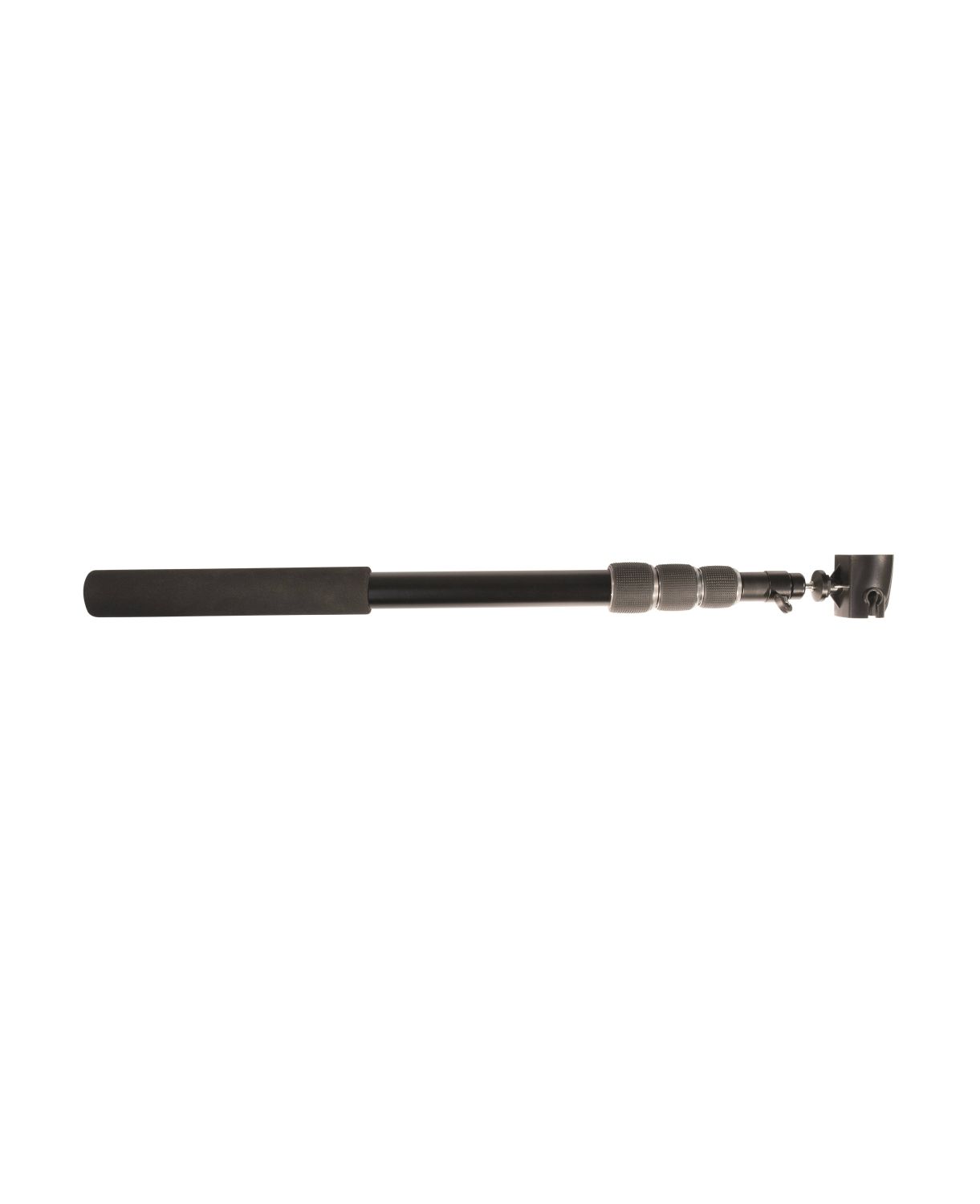

Telescope testo 480

Part No. 0430 0946

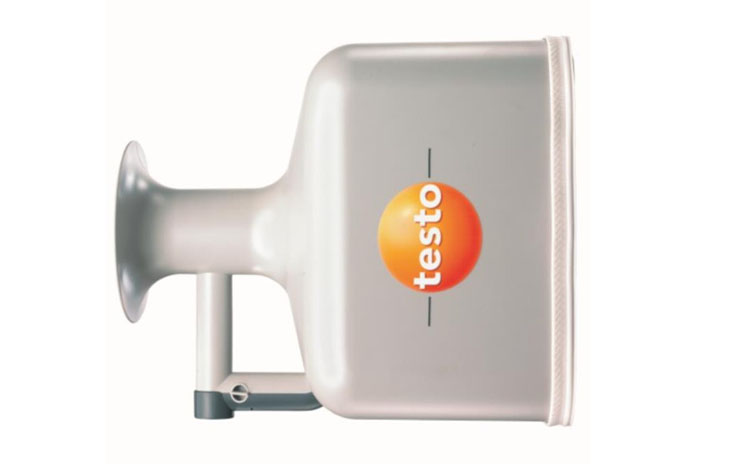

TESTOVENT 410, VOLUME FLOW FUNNEL, Ø 340 MM/330X330 MM, INCL. CASE

Part No. 0554 0410

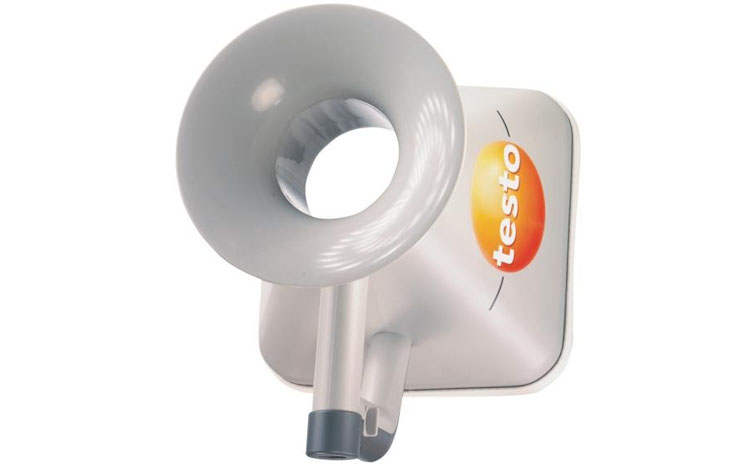

TESTOVENT 415, VOLUME FLOW FUNNEL, Ø 210 MM/210X210 MM, INCL. CASE

Part No. 0554 0415

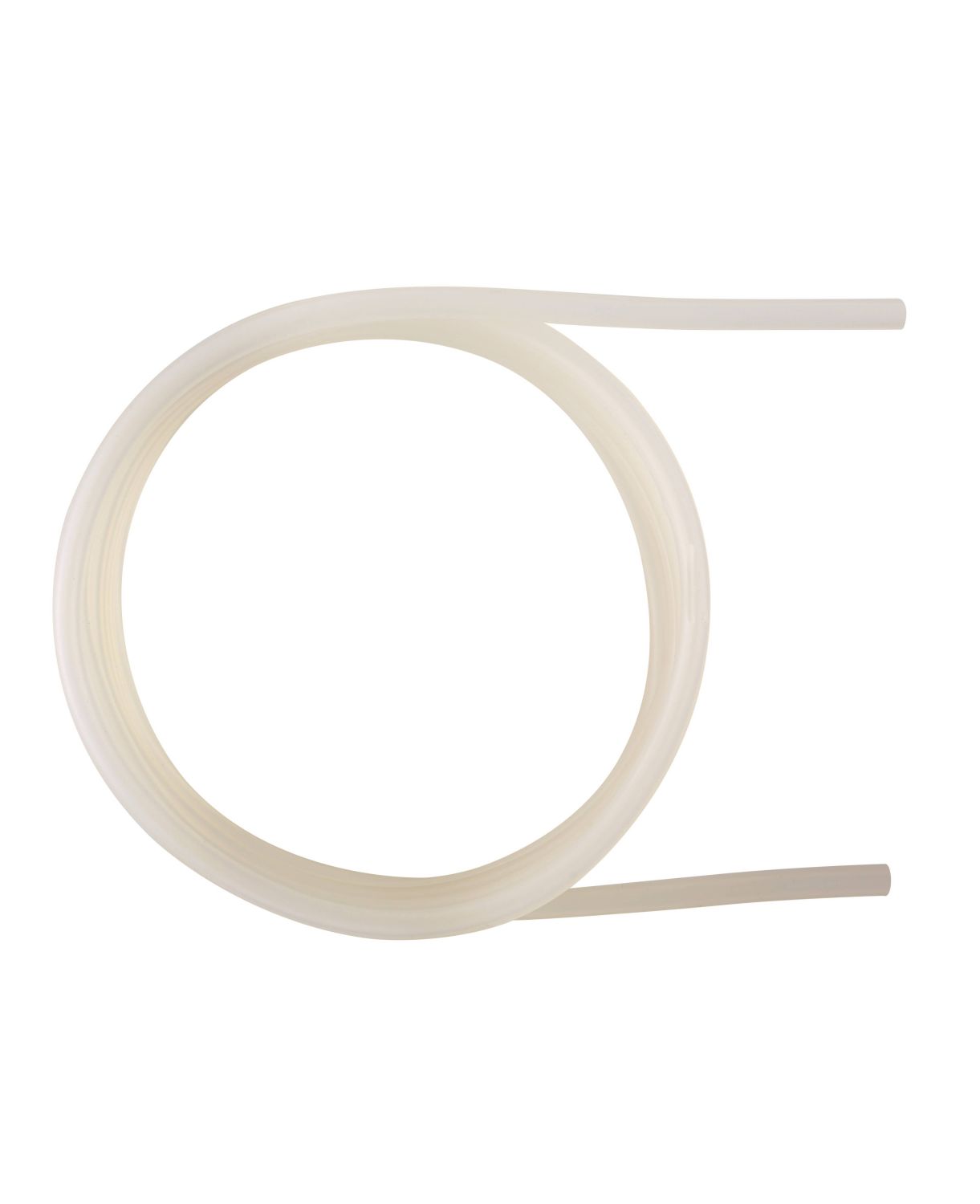

Connection hose; silicone; 5 m long; max

Part No. 0554 0440

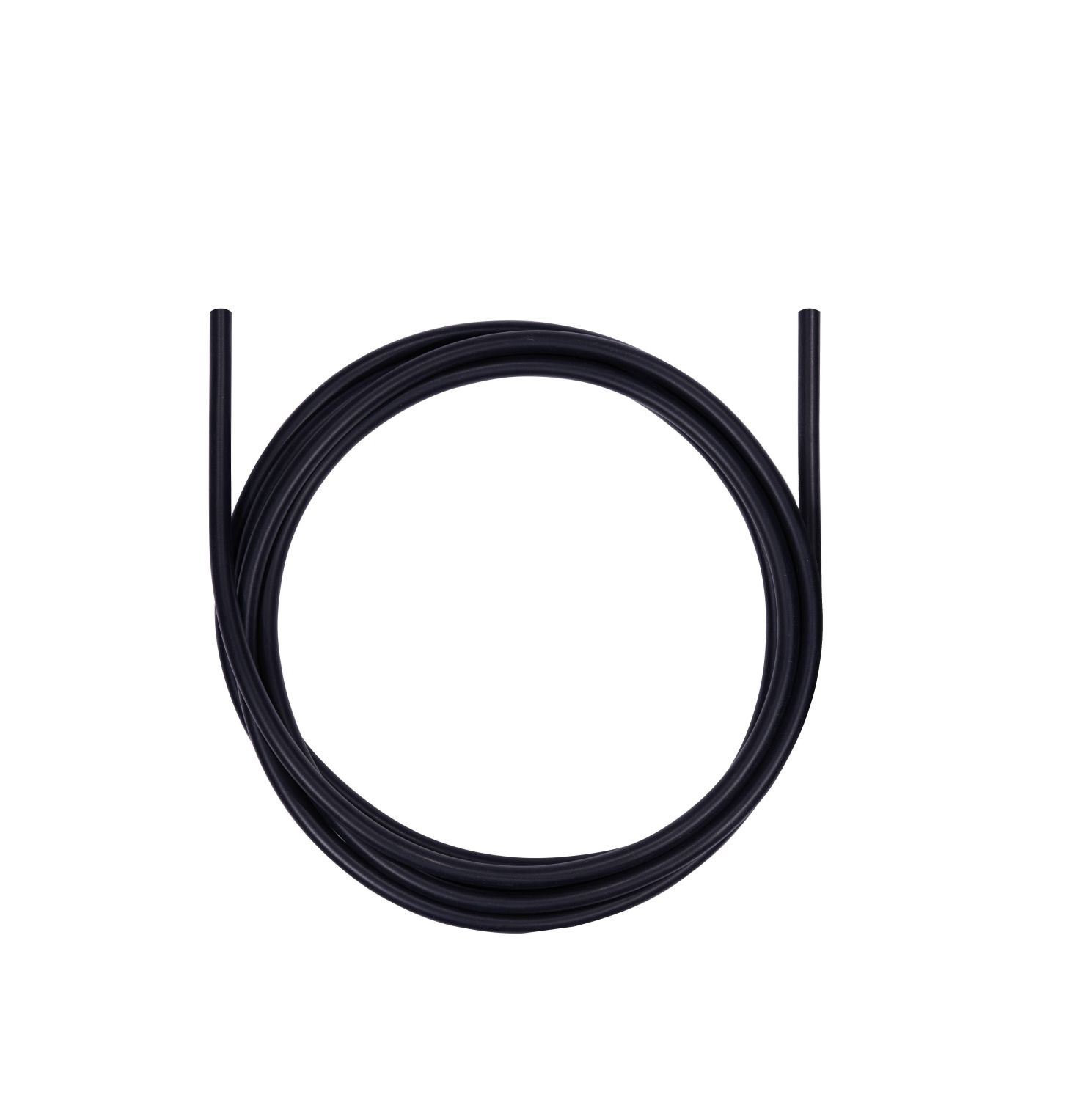

Connection hose silicone-free for differential pressure measurement, length 5 m, load up to maximum 700 hPa, (mbar)

Part No. 0554 0453

Stainless steel sintered filter, pore size 100 µm

Part No. 0554 0641

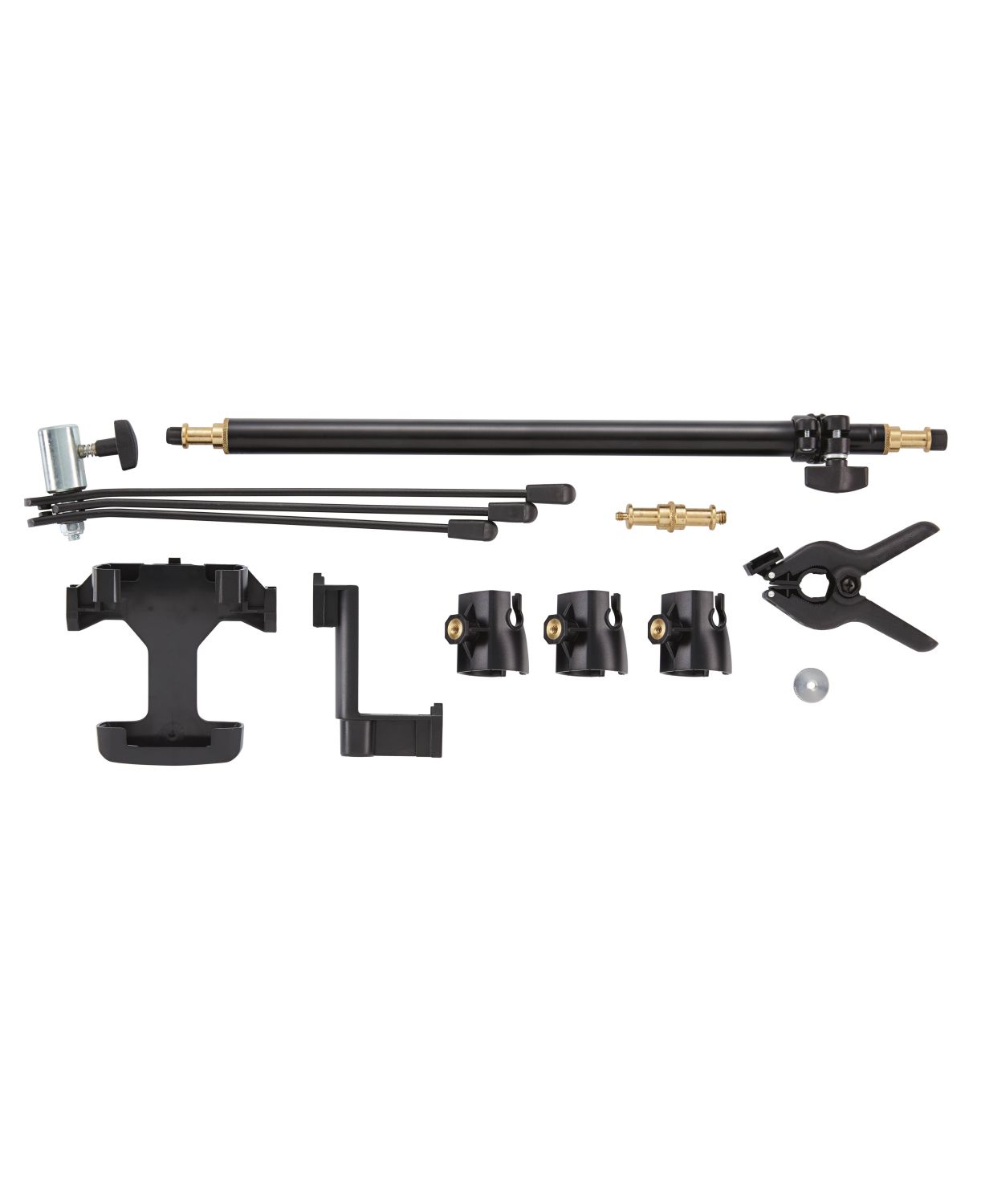

Tripod for workplace evaluation

Part No. 0554 0743

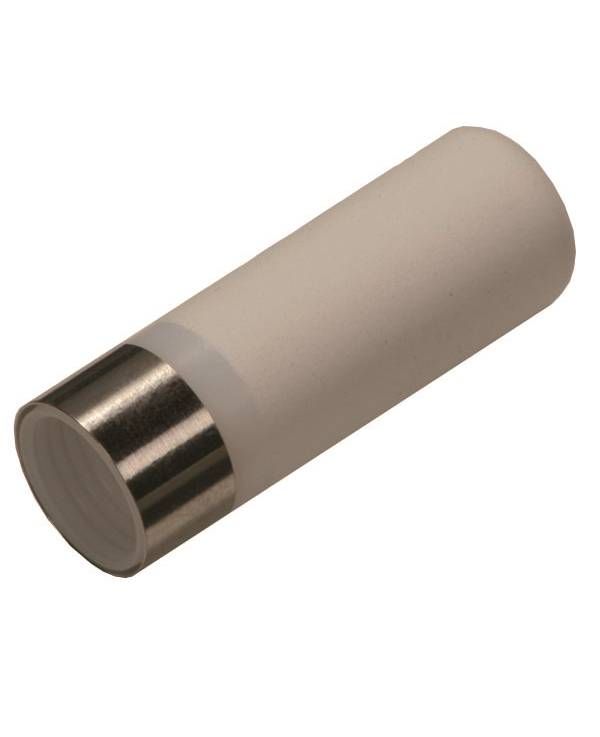

Sintered PTFE filter, Ø 12 mm, for corrosive media

Part No. 0554 0756

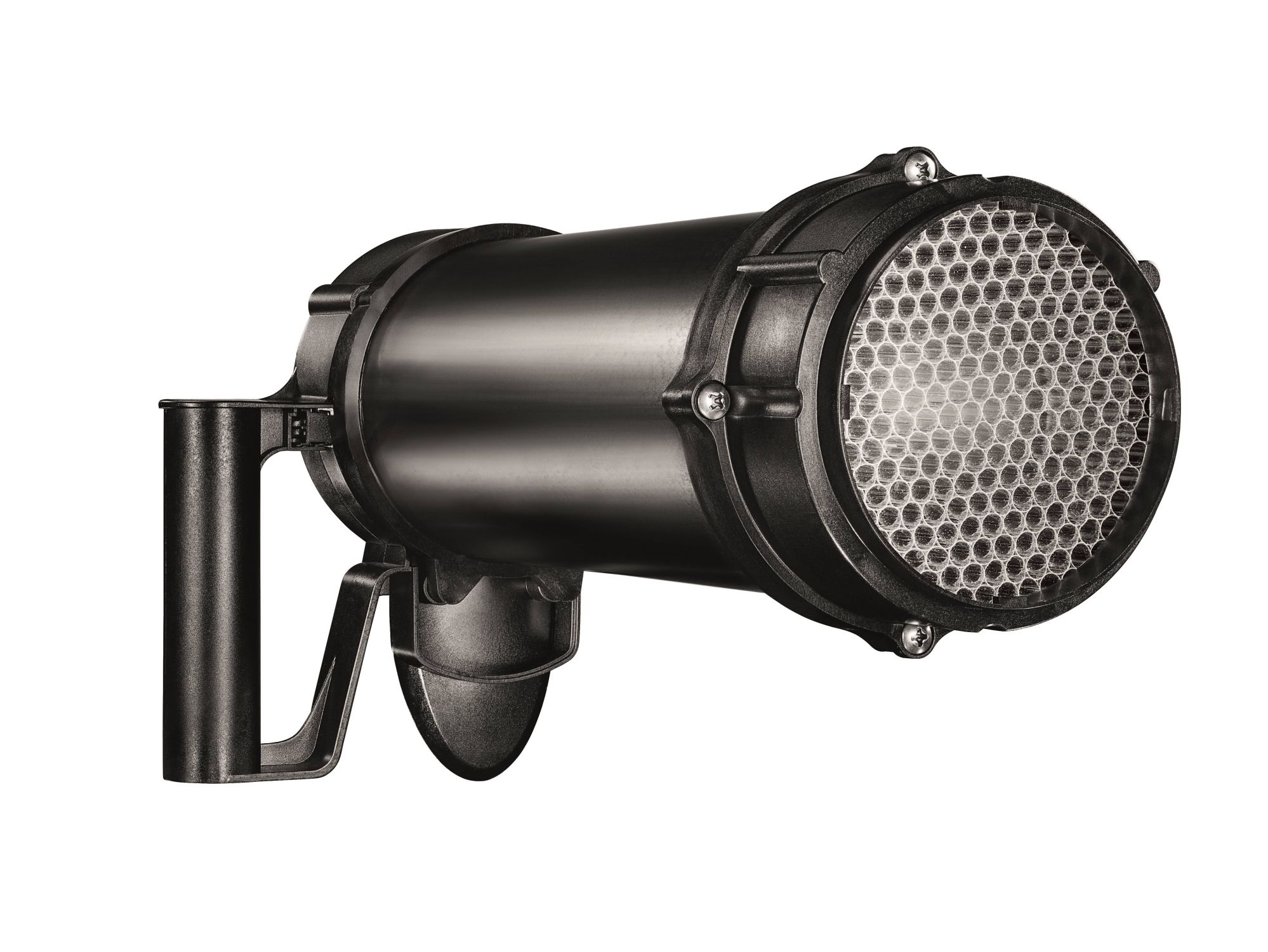

testovent 417

Part No. 0554 4172

Key Features:

More accurate volume flow measurement independent of the swirl direction
Reliable measurement results on swirl outlets
Flow straightener retrofittable for existing Testo funnels sets

testovent 417 - flow straightener set for volume flow

Part No. 0554 4173

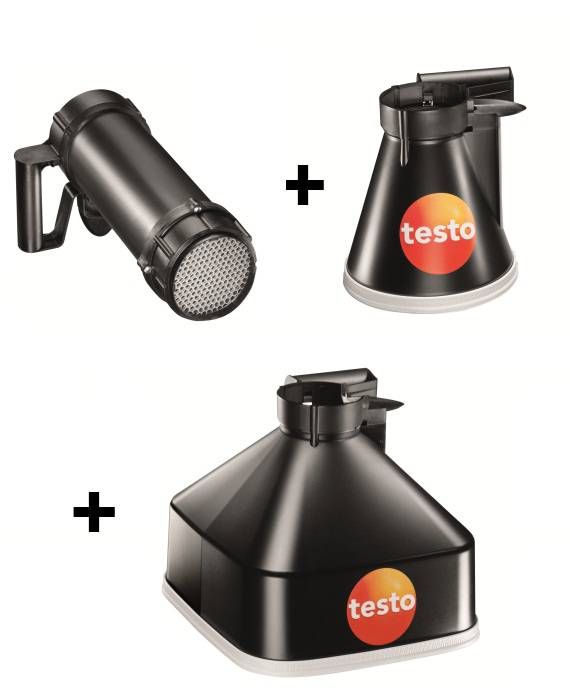

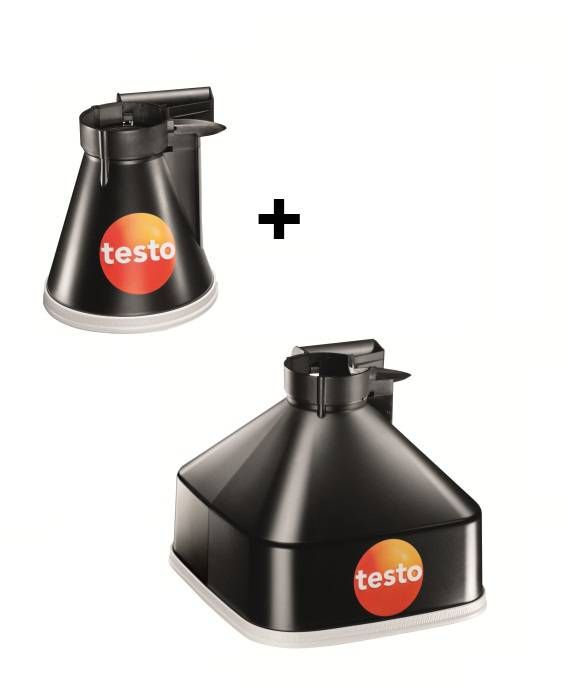

testovent 417 - funnel set for volume flow measurement

Part No. 0563 4170

The flow funnel kit is an optional kit for the testo 417, and can be used with the vane attachment of the testo 435. The flow funnel is ideal for measurements below 50 CFM. The funnel kit Includes an 8 inch round and 13 inch square funnel, ensuring proper measurements for a variety of ducts.
