testo 440 - Air velocity and IAQ measuring instrument


Category: HVAC INSTRUMENTS

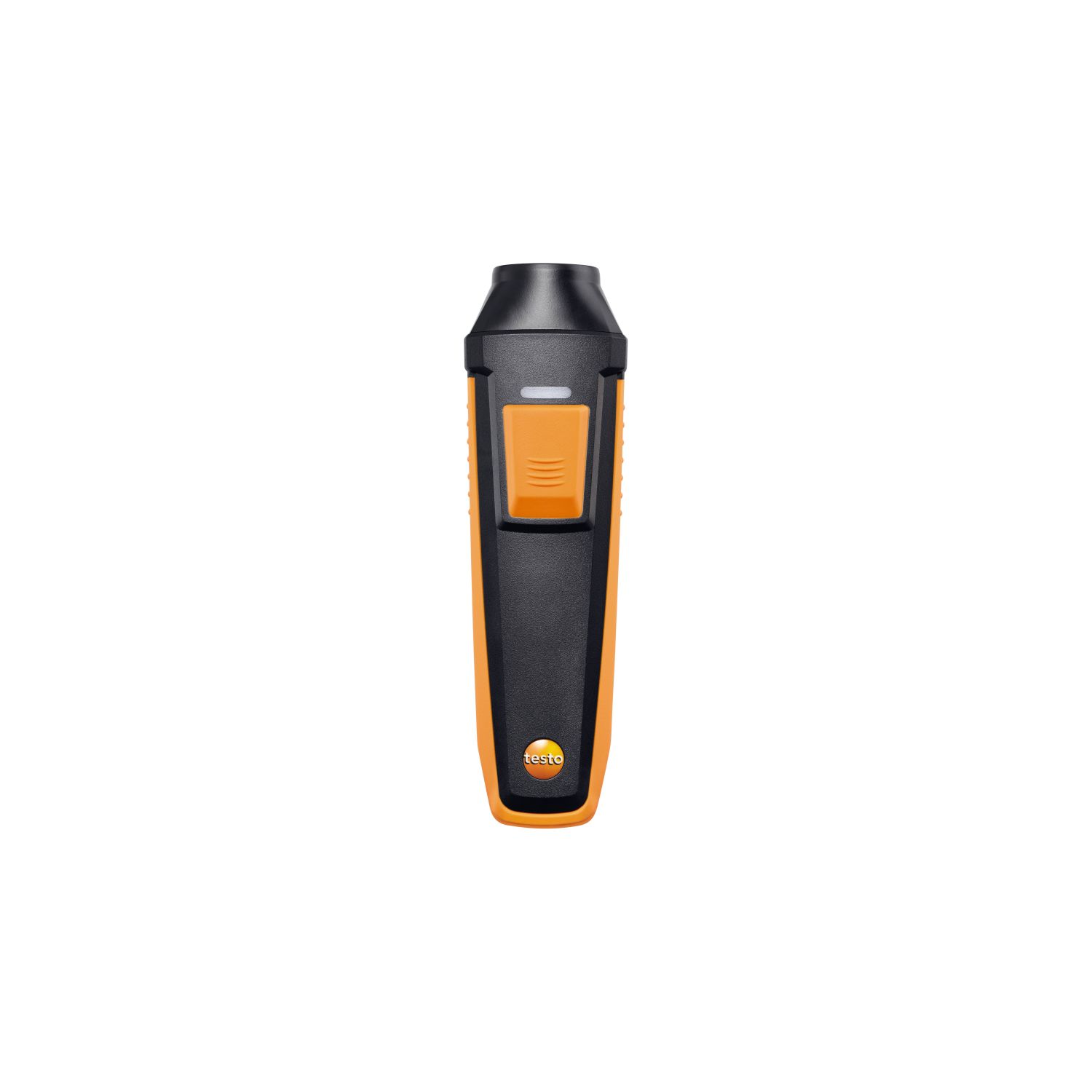

Universal Bluetooth® handle for connecting probe heads

Part No. 0554 1111

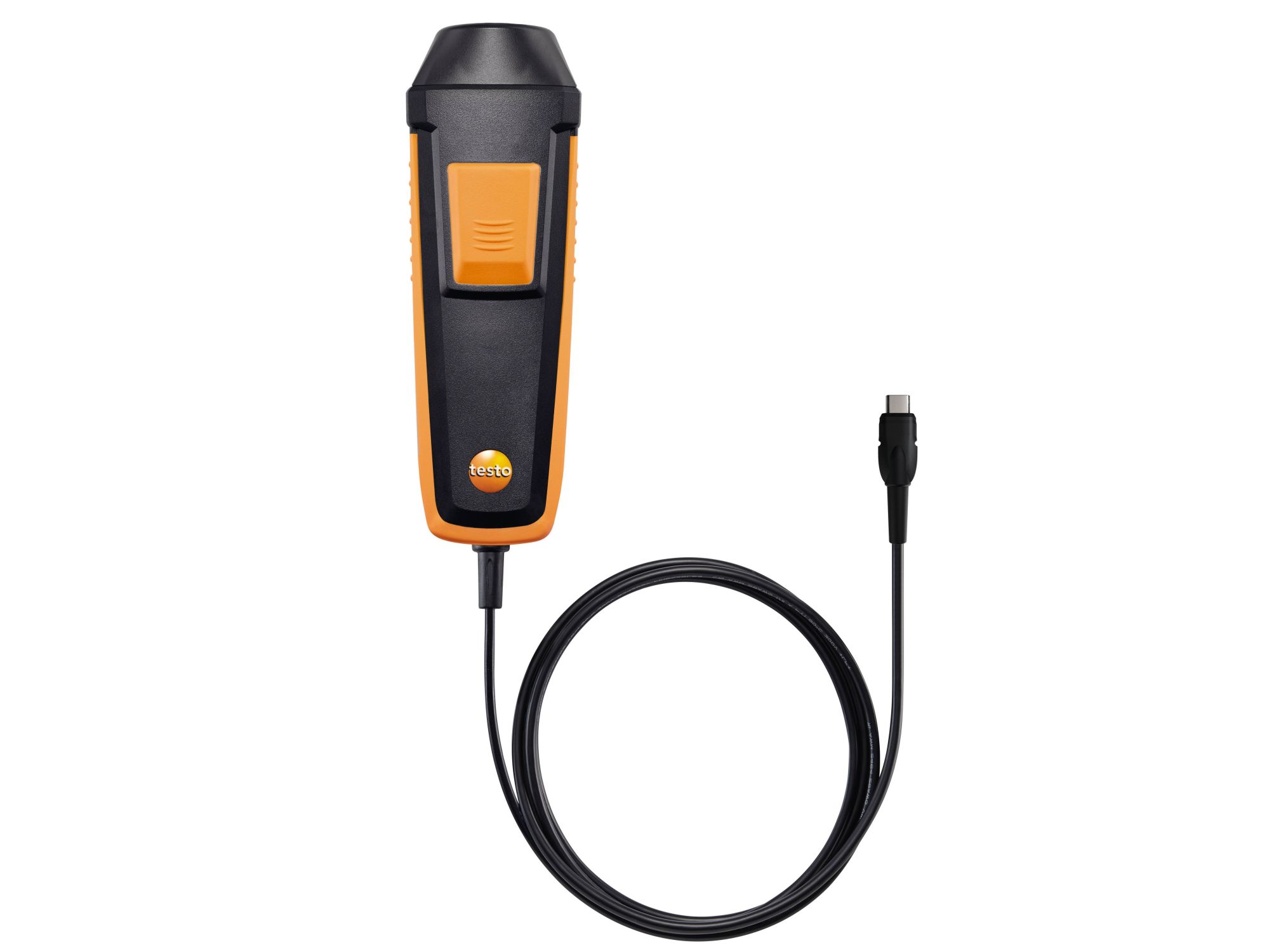

Universal cable handle for connecting probe heads

Part No. 0554 2222

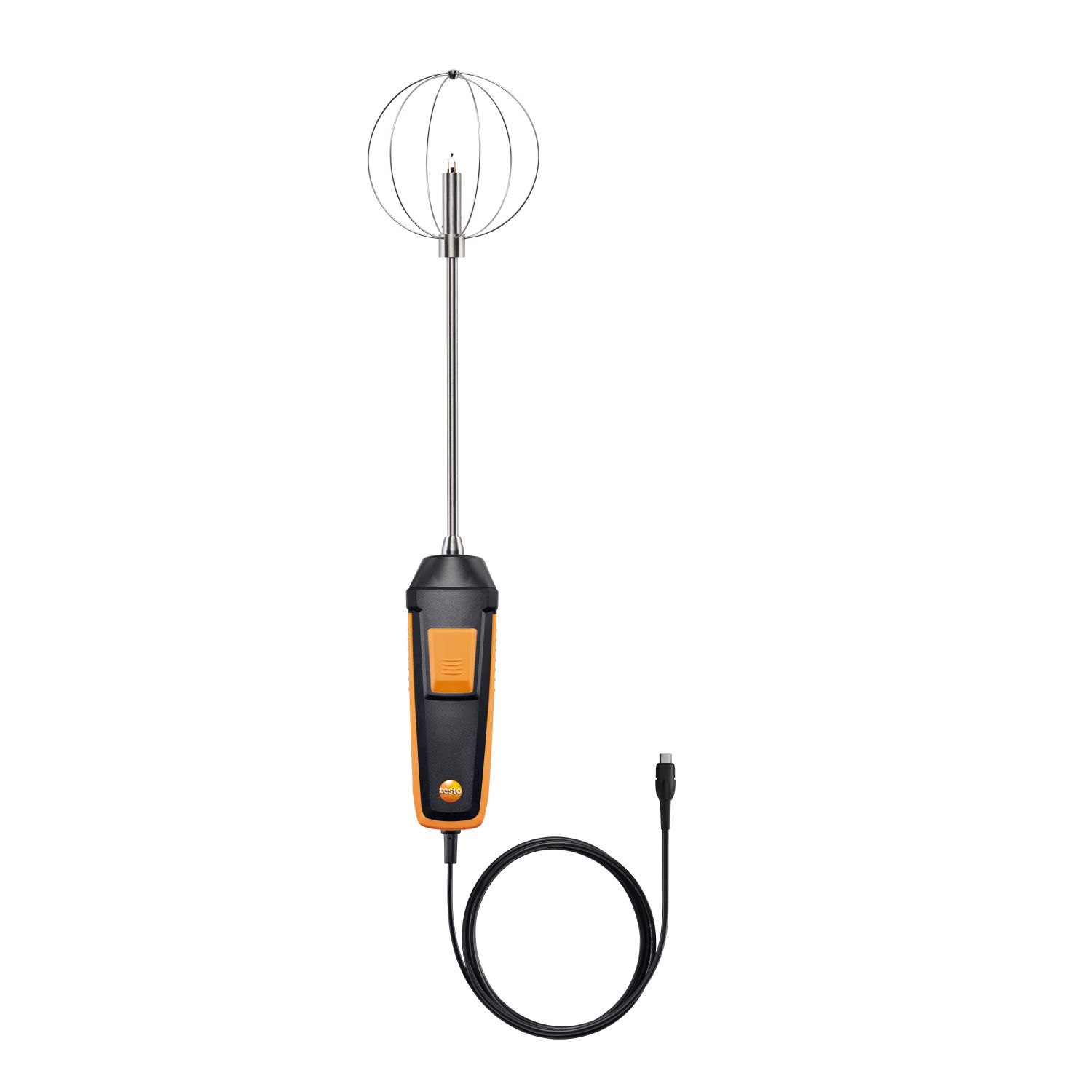

Turbulence probe (digital) - wired

Part No. 0628 0152

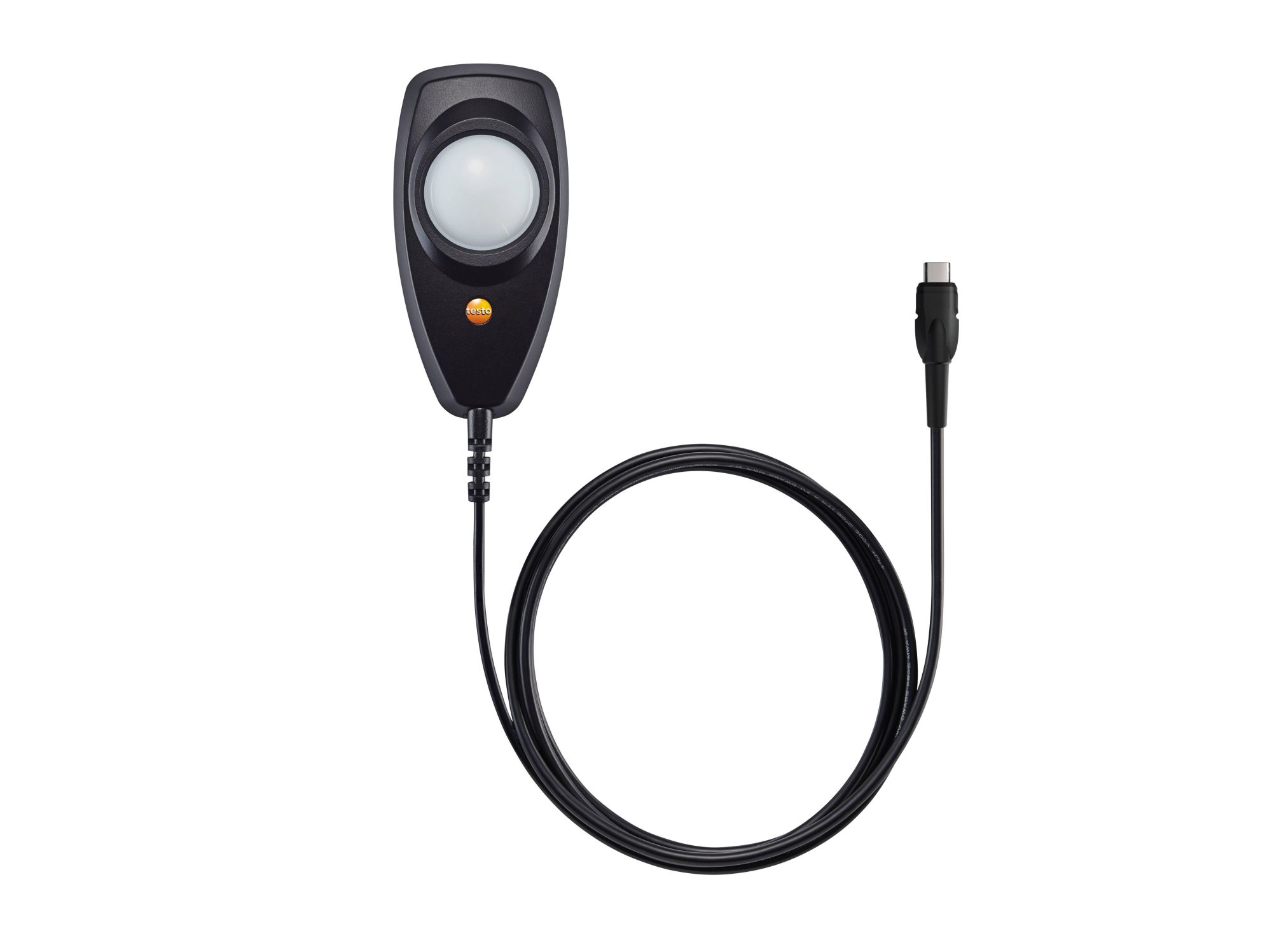

Lux probe (digital) - for measuring illuminance, wired

Part No. 0635 0551


CO₂ probe (digital) - with Bluetooth® including temperature and humidity sensor

Part No. 0632 1551

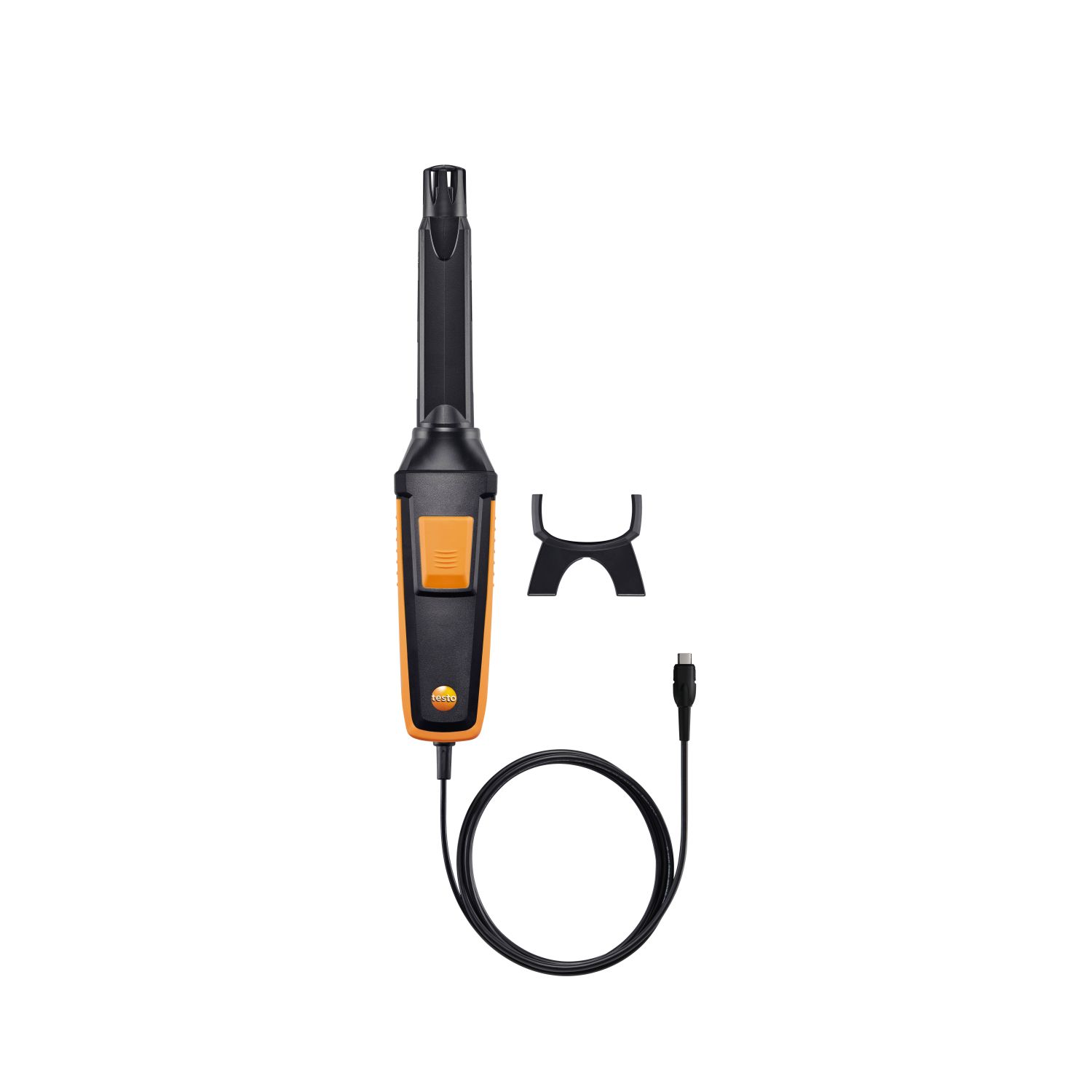

CO₂ probe (digital) - including temperature and humidity sensor, wired

Part No. 0632 1552

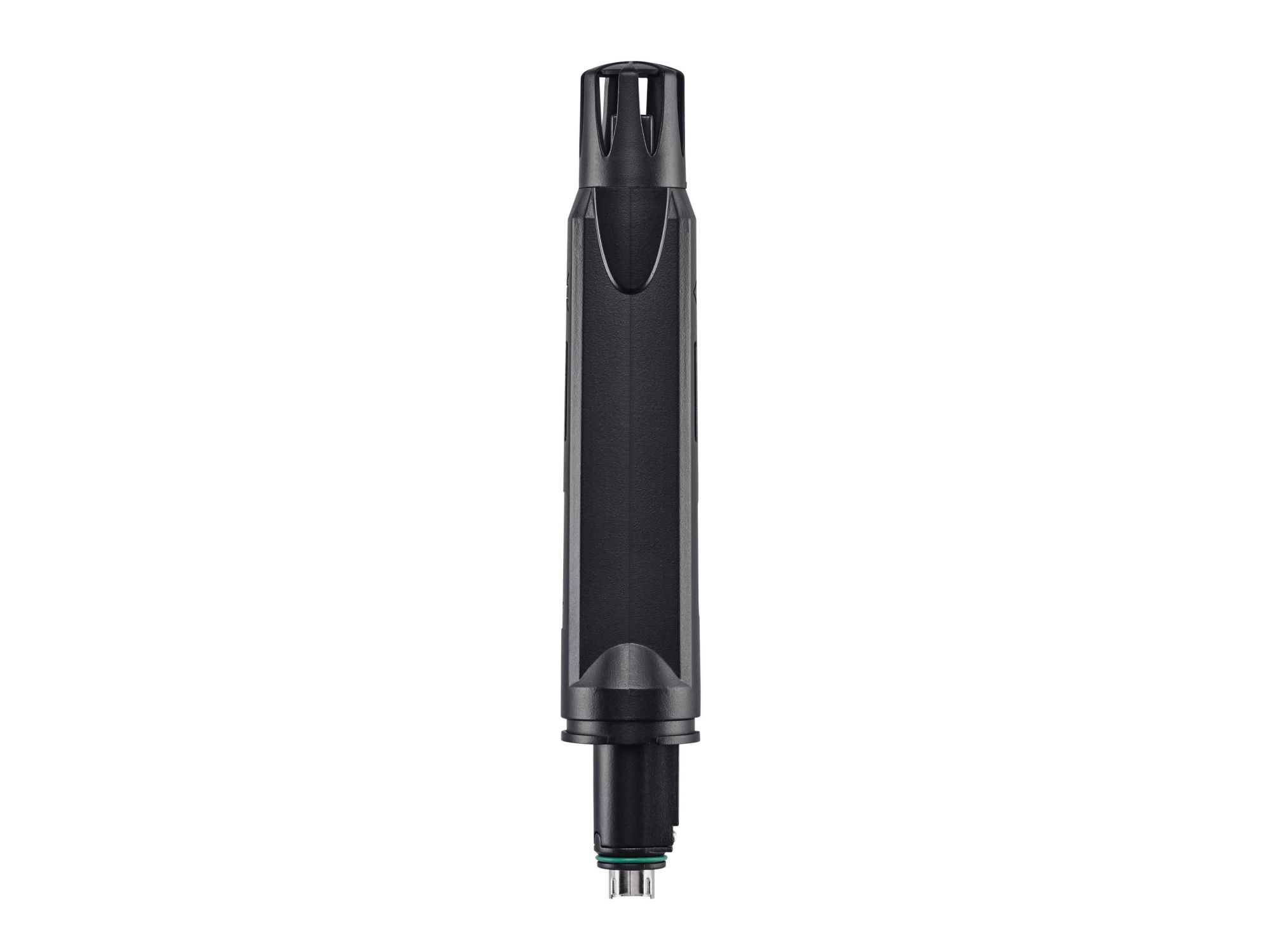

CO₂ probe head including temperature and humidity sensor

Part No. 0632 1550

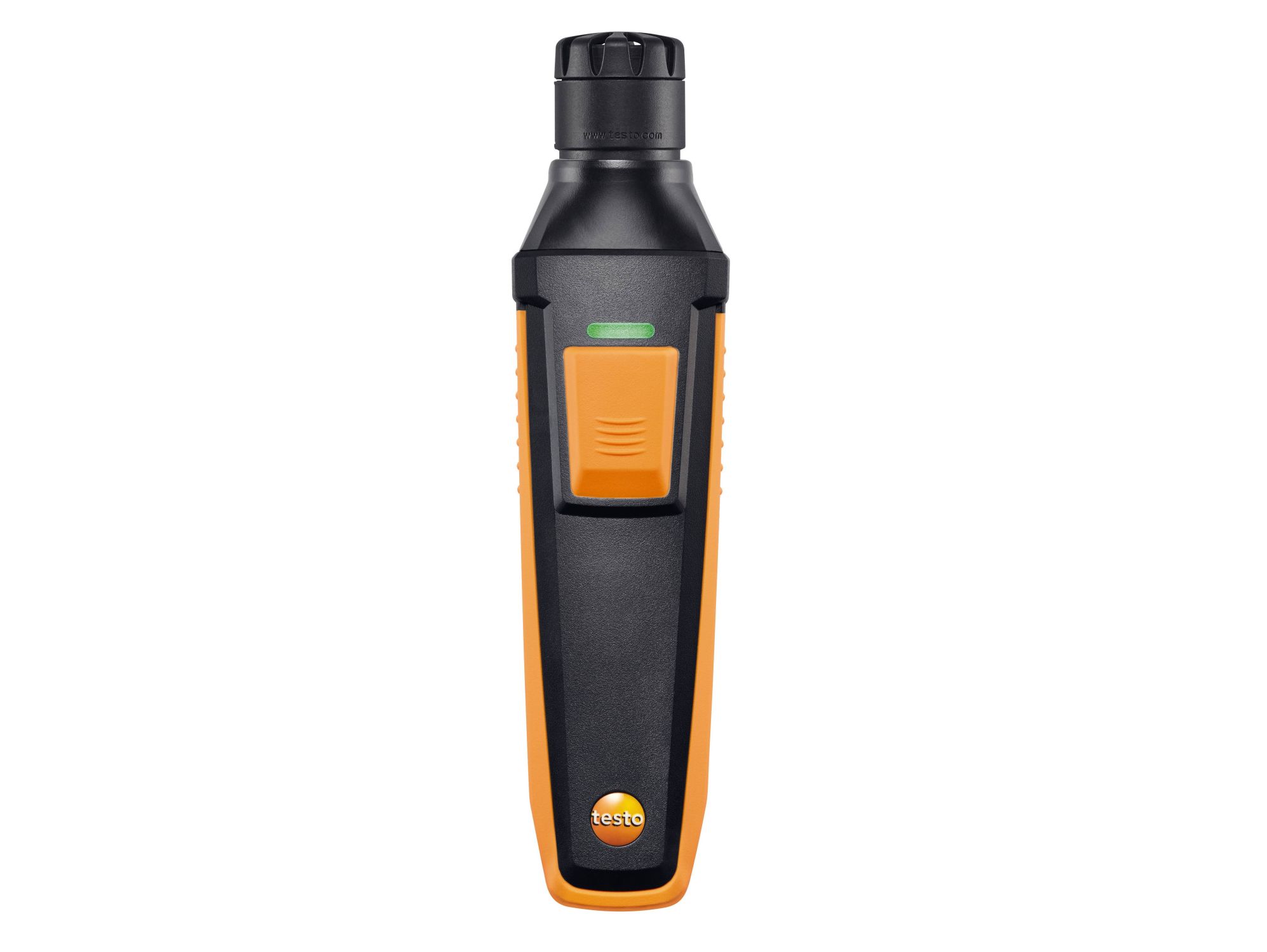

CO probe (digital) - with Bluetooth®

Part No. 0632 1271

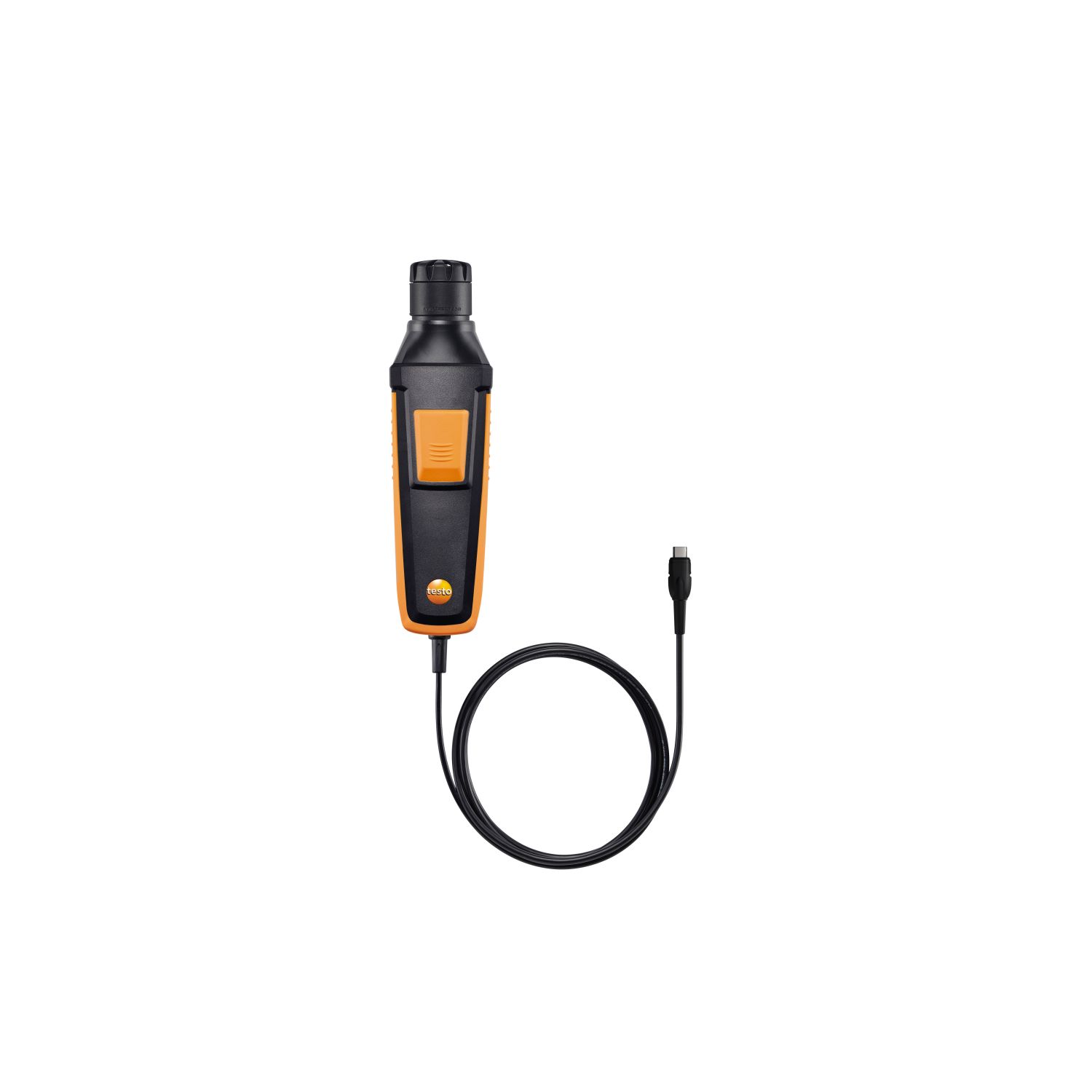

CO probe (digital) - wired

Part No. 0632 1272

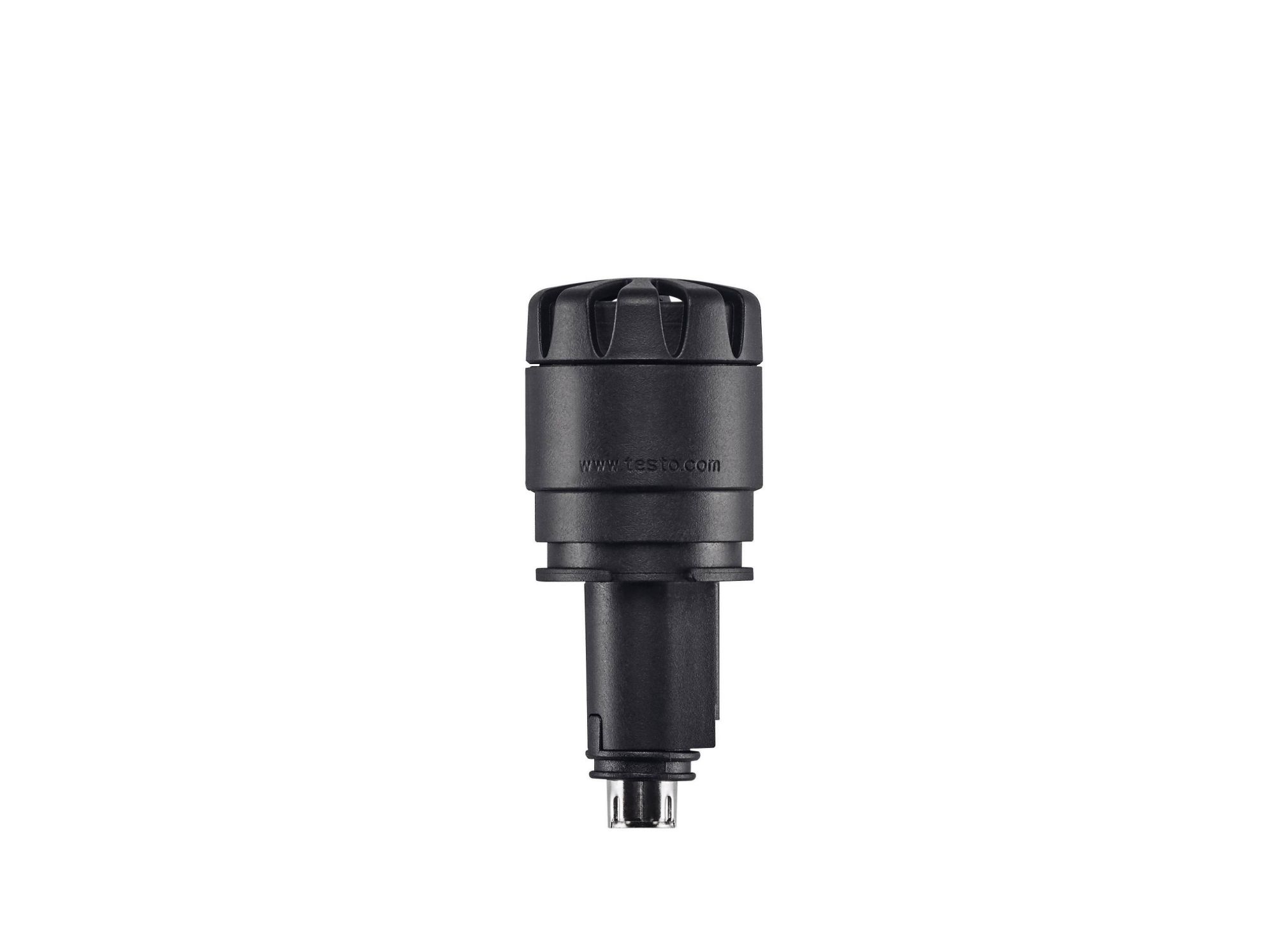

CO probe head

Part No. 0632 1270

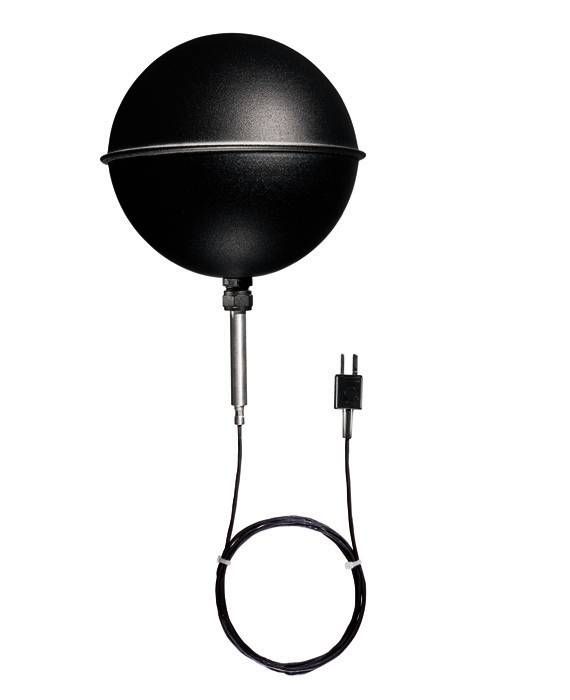

Globe thermometer (TC type K) - for radiant heat

Part No. 0602 0743

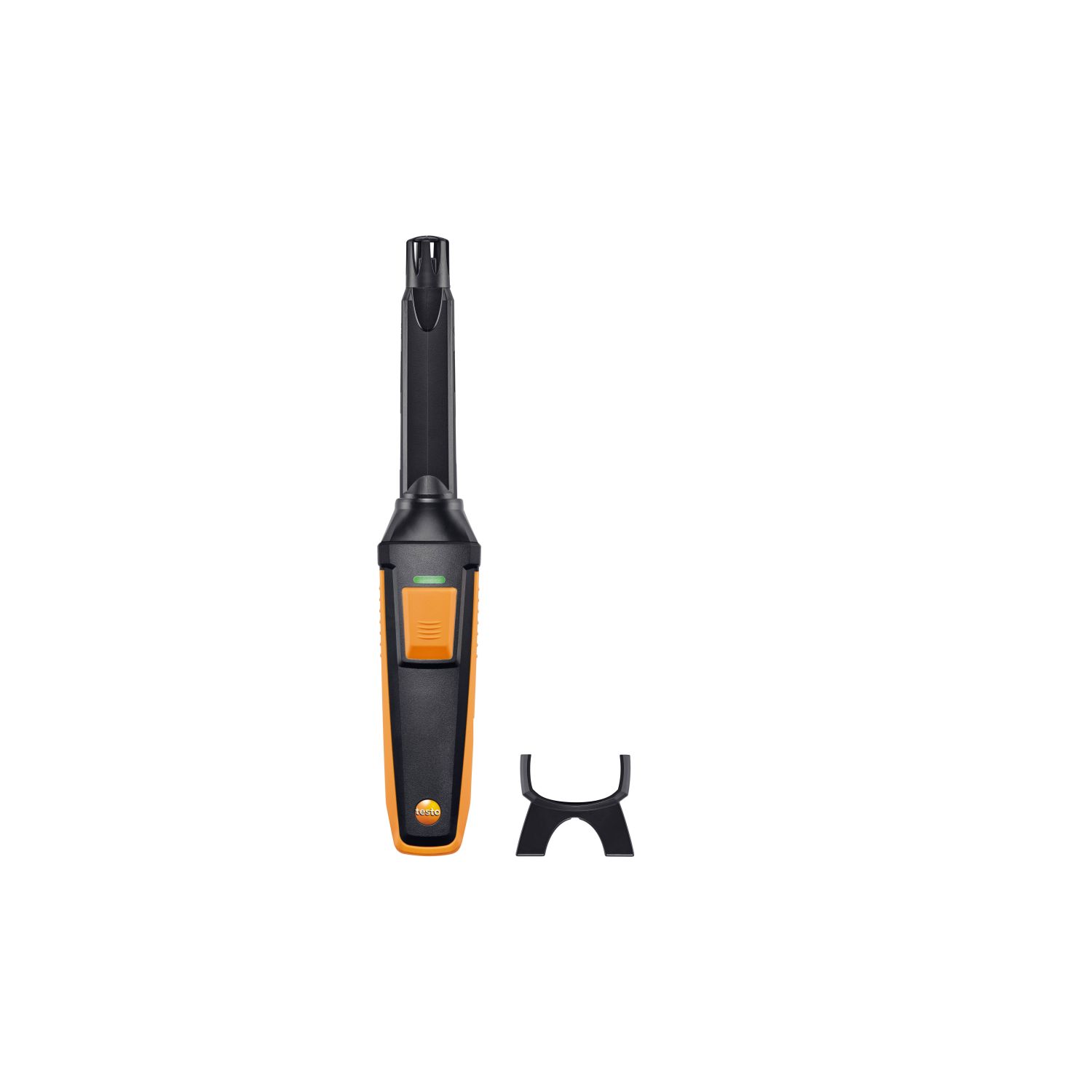

Humidity/temperature probe (digital) - with Bluetooth®

Part No. 0636 9731

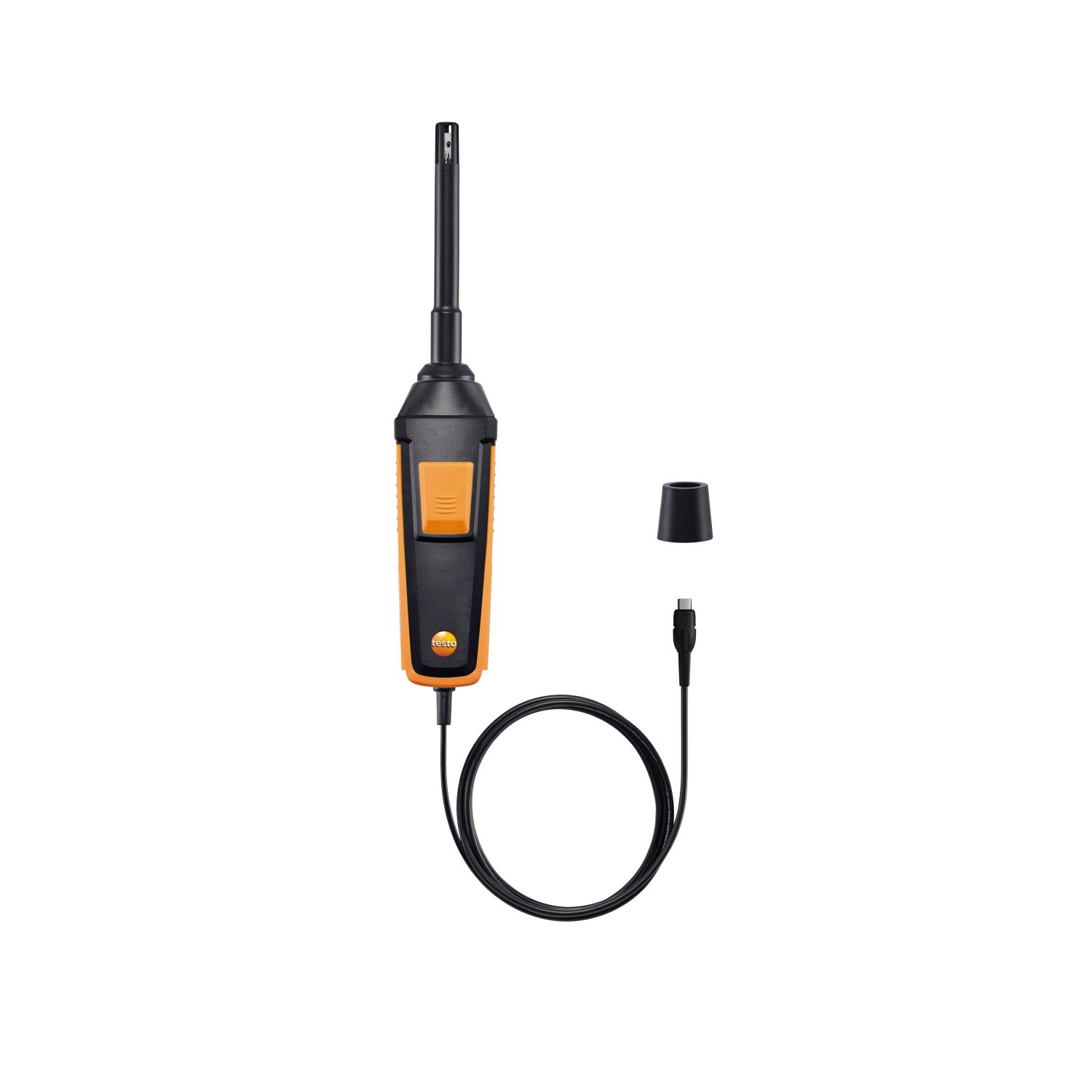

Humidity/temperature probe (digital) - wired

Part No. 0636 9732

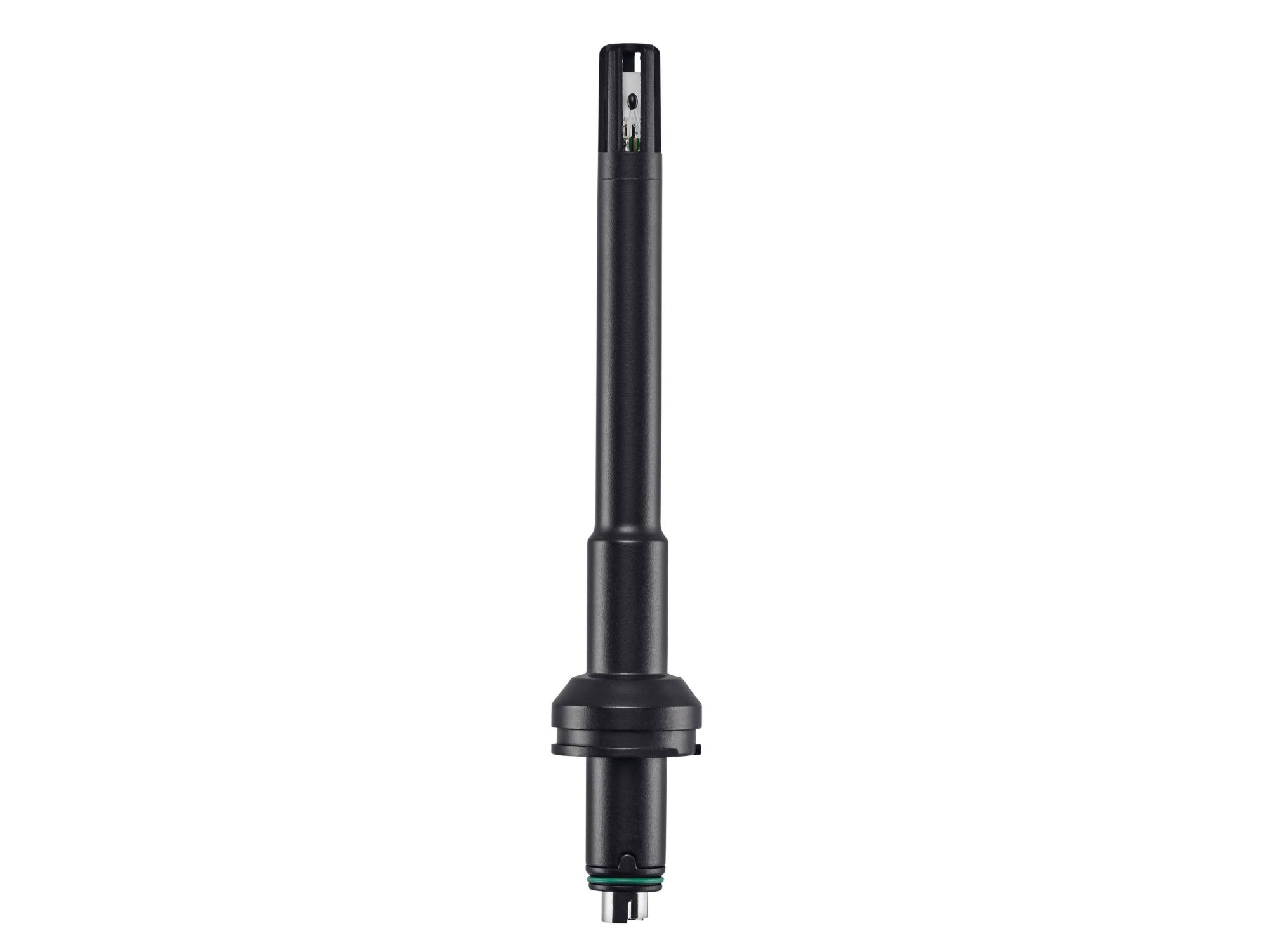

Humidity/temperature probe head

Part No. 0636 9730

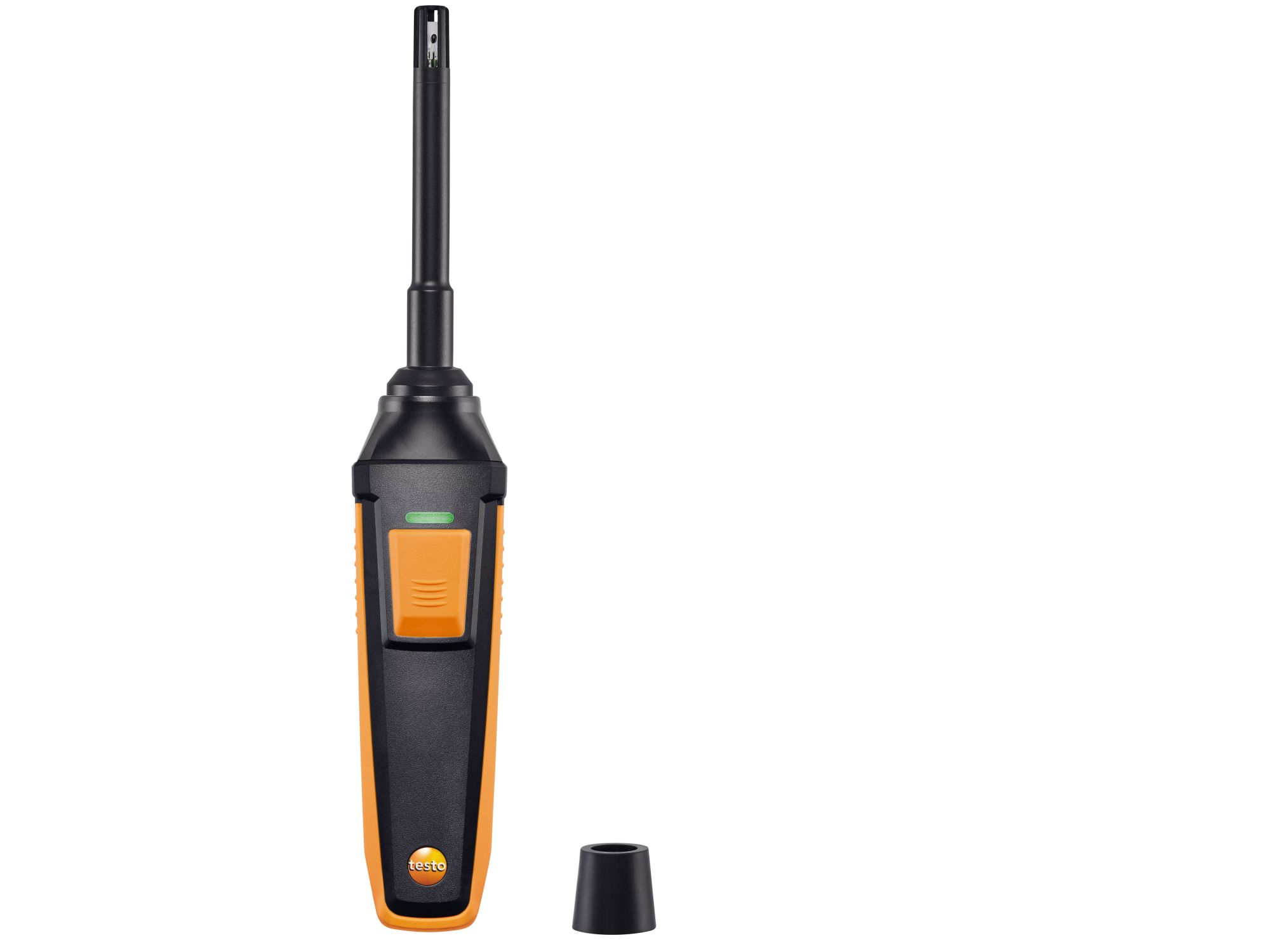

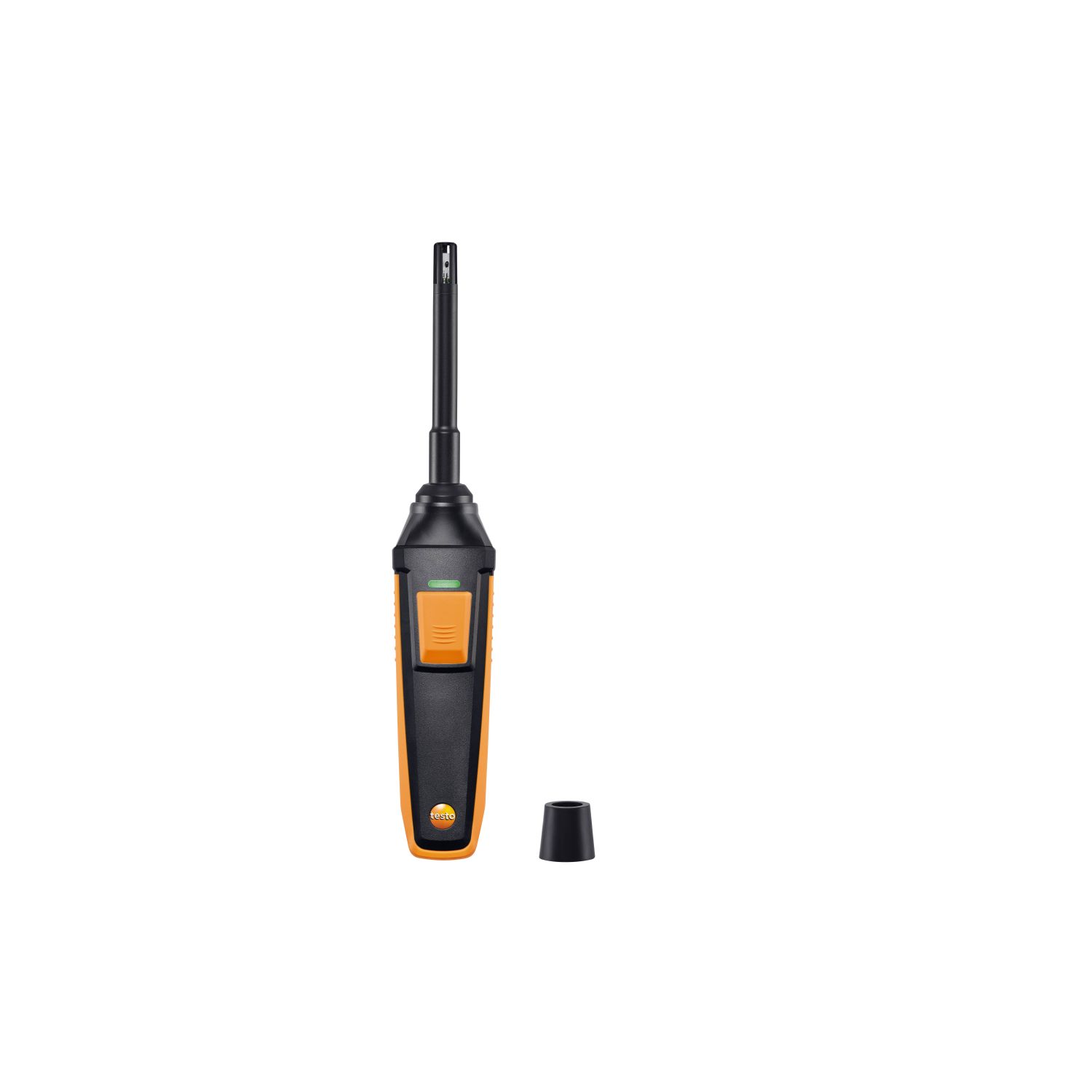

High-precision humidity/temperature probe (digital) - with Bluetooth®

Part No. 0636 9771


High-precision humidity/temperature probe (digital) - wired

Part No. 0636 9772


High-precision humidity/temperature probe head

Part No. 0636 9770

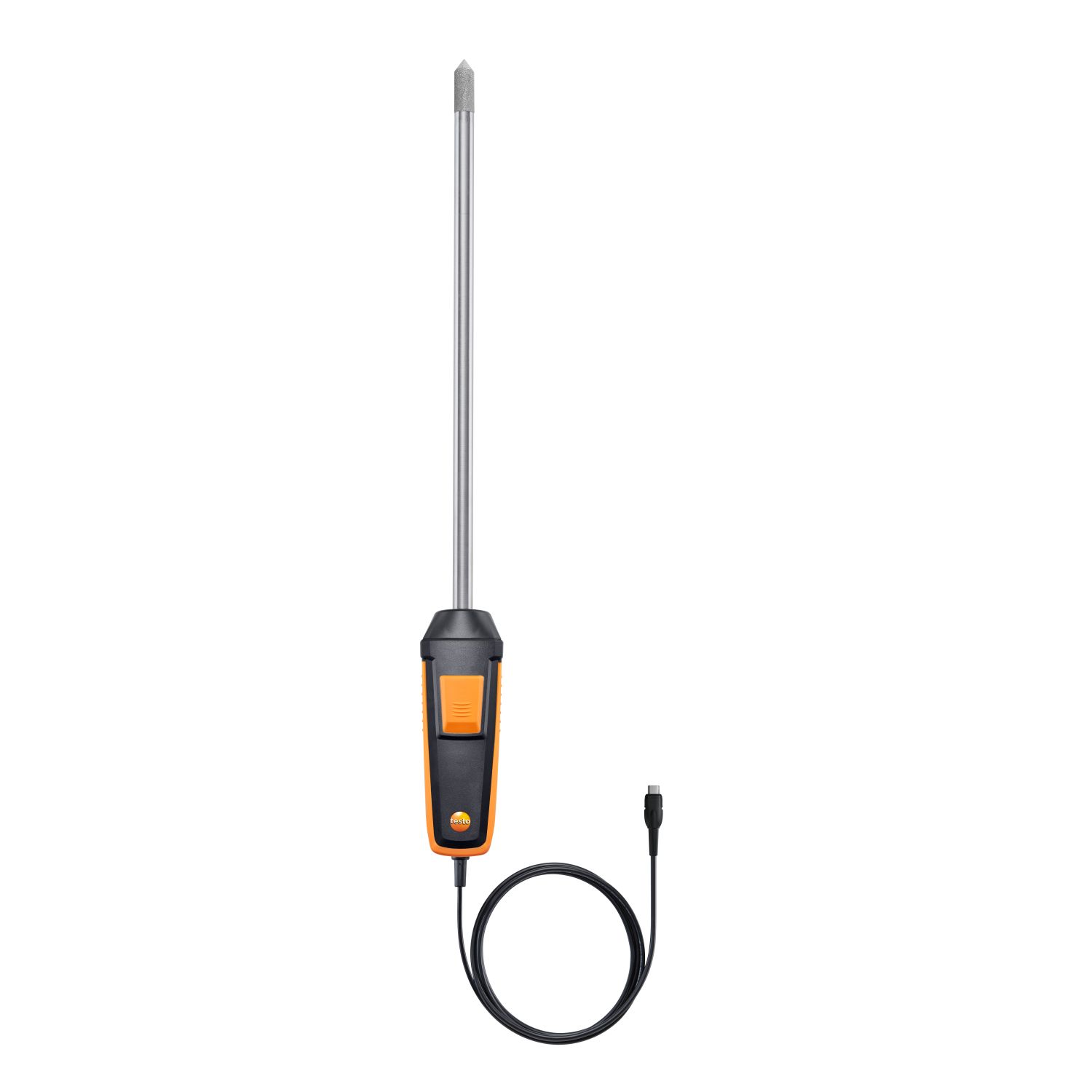

Robust humidity/temperature probe (digital) - for temperatures up to +180 °C, wired

Part No. 0636 9775

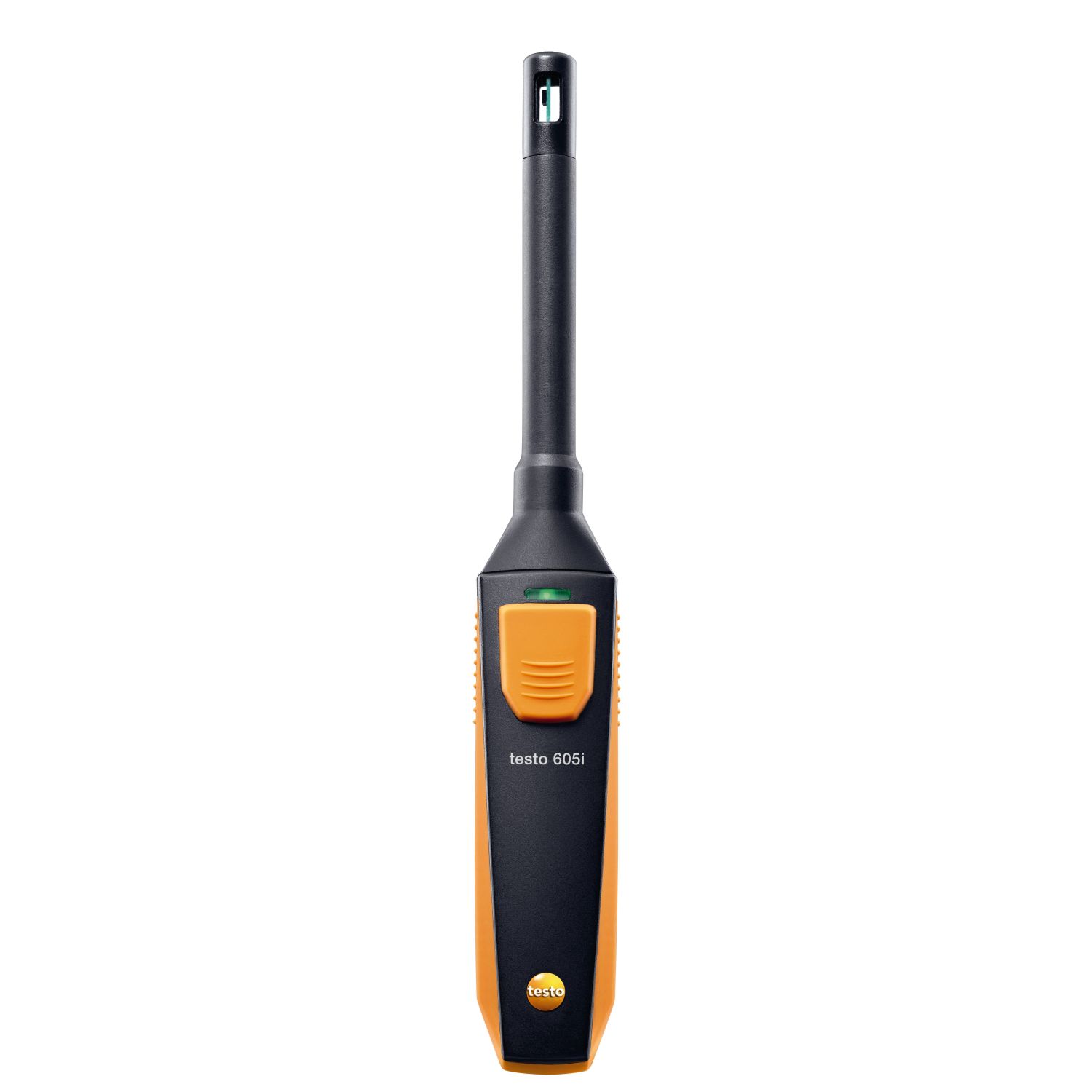

testo 605 i - thermohygrometer with smartphone operation

Part No. 0560 1605

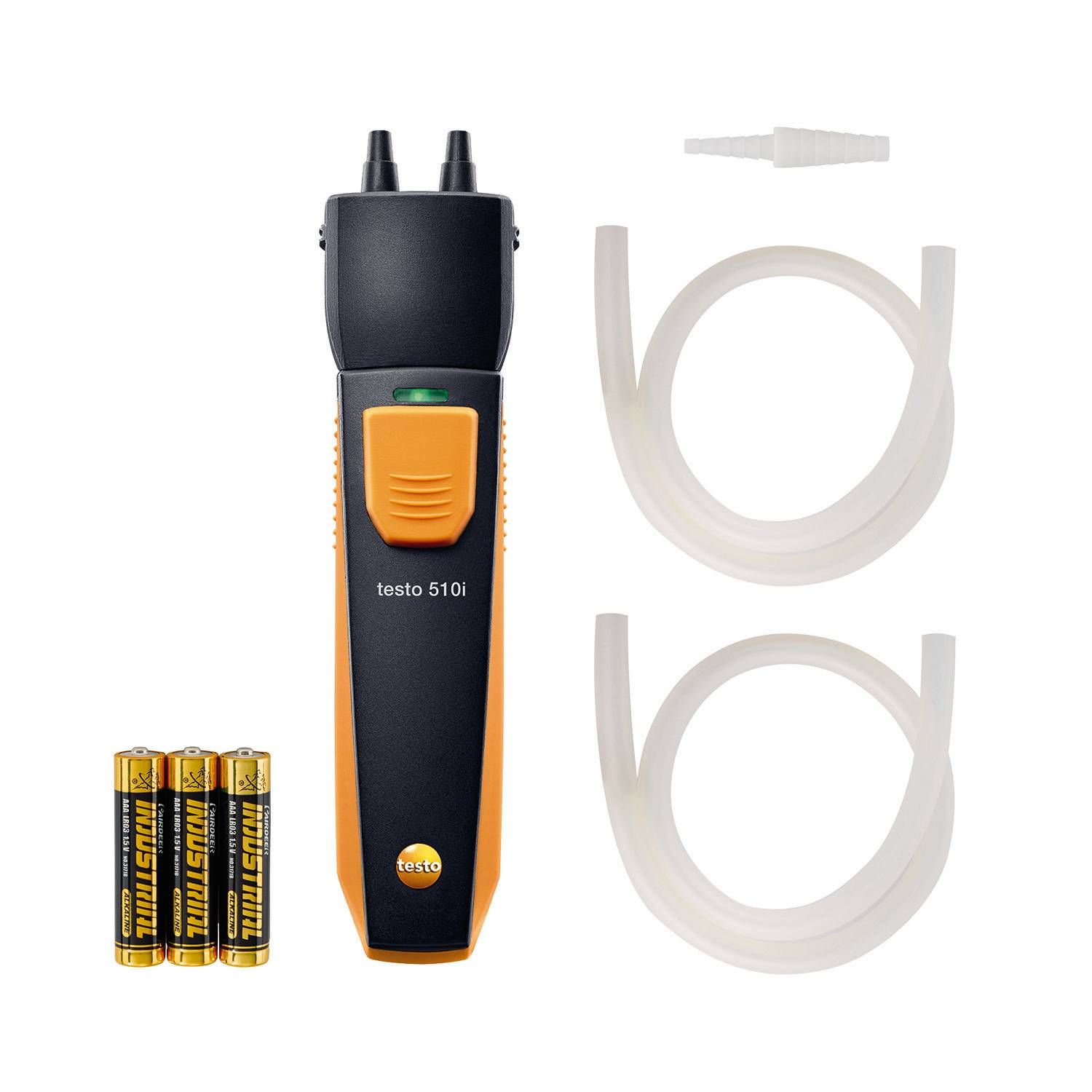

testo 510 i - differential pressure measuring instrument with smartphone operation

Part No. 0560 1510

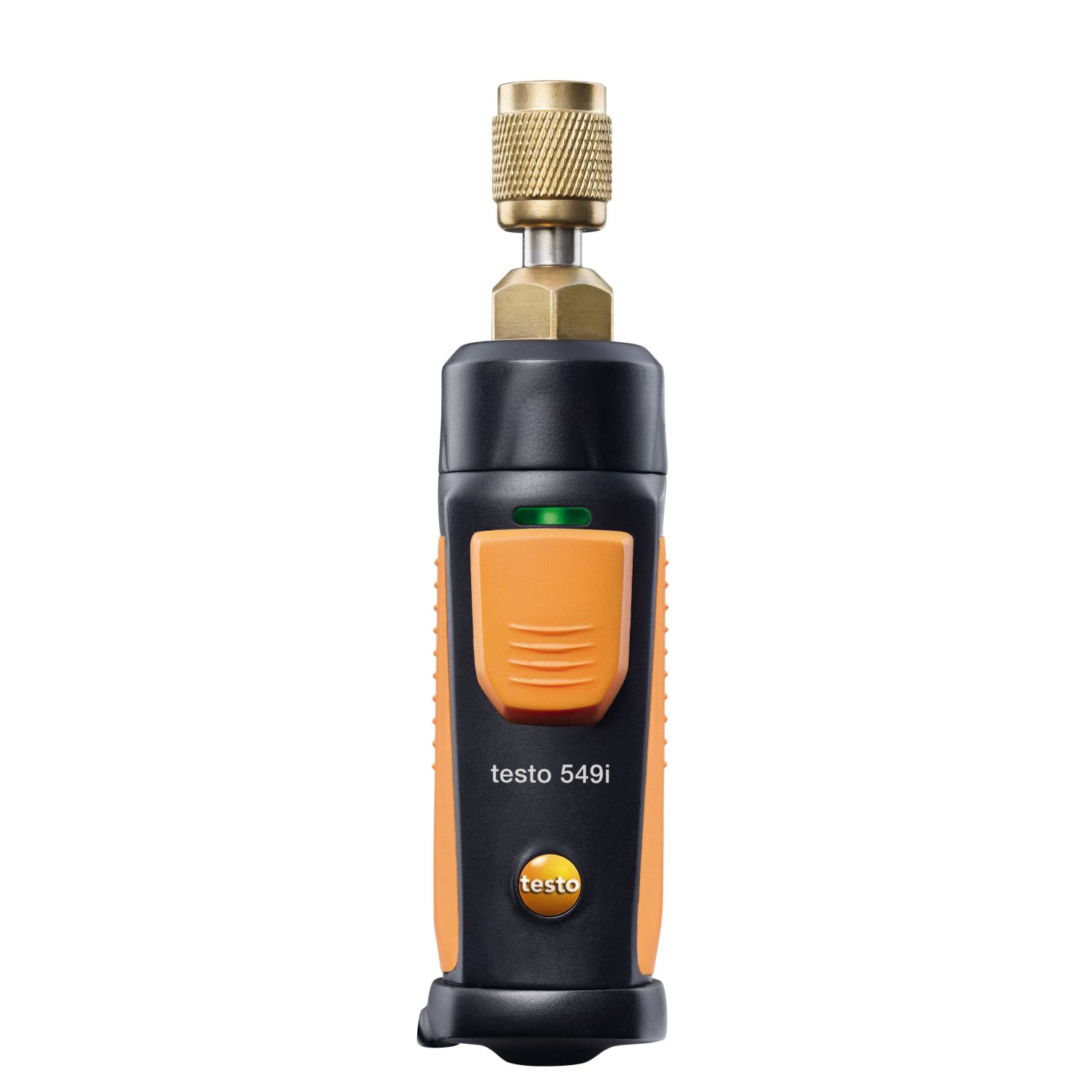

testo 549 i - high-pressure measuring instrument with smartphone operation

Part No. 0560 1549

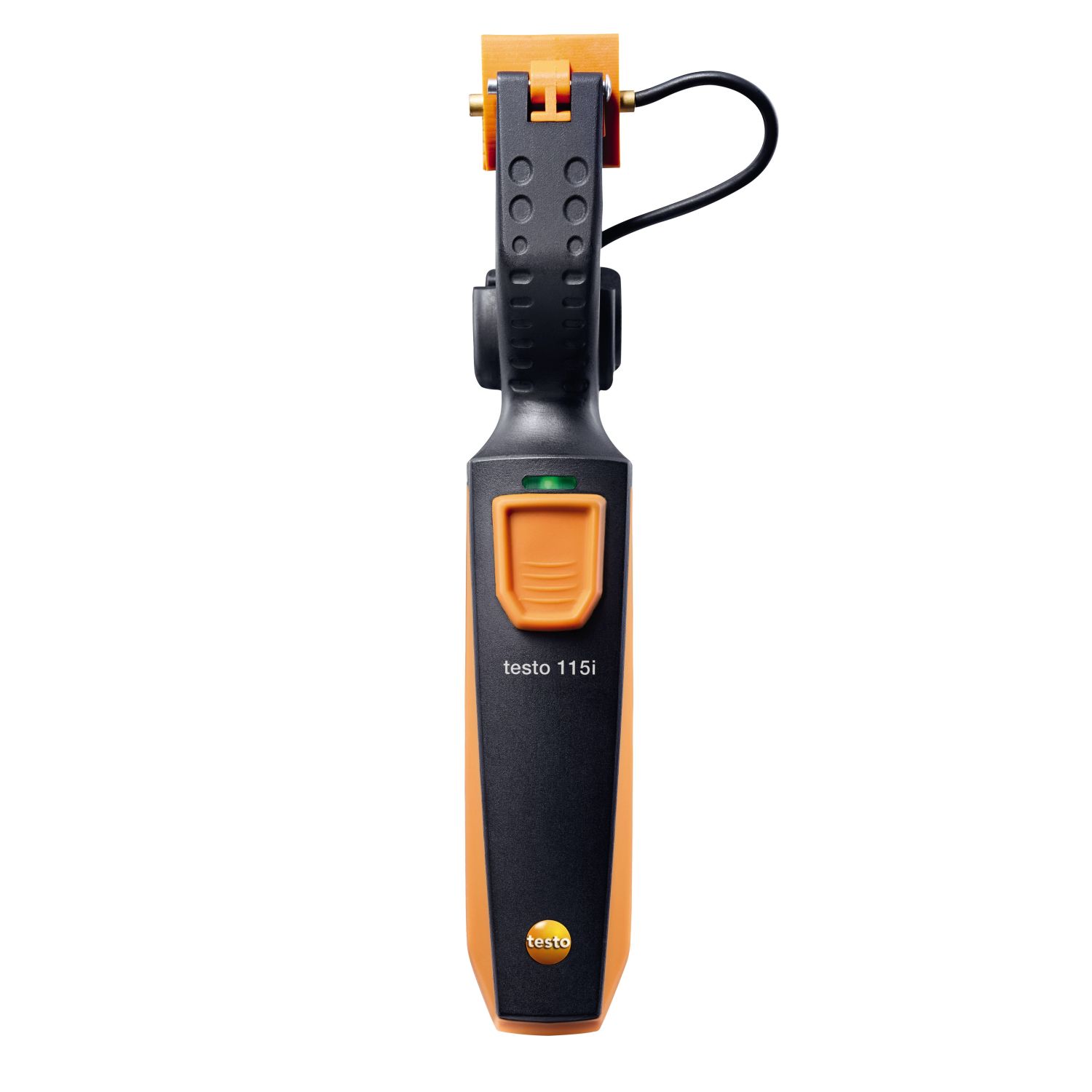

testo 115 i - clamp thermometer with smartphone operation

Part No. 0560 1115

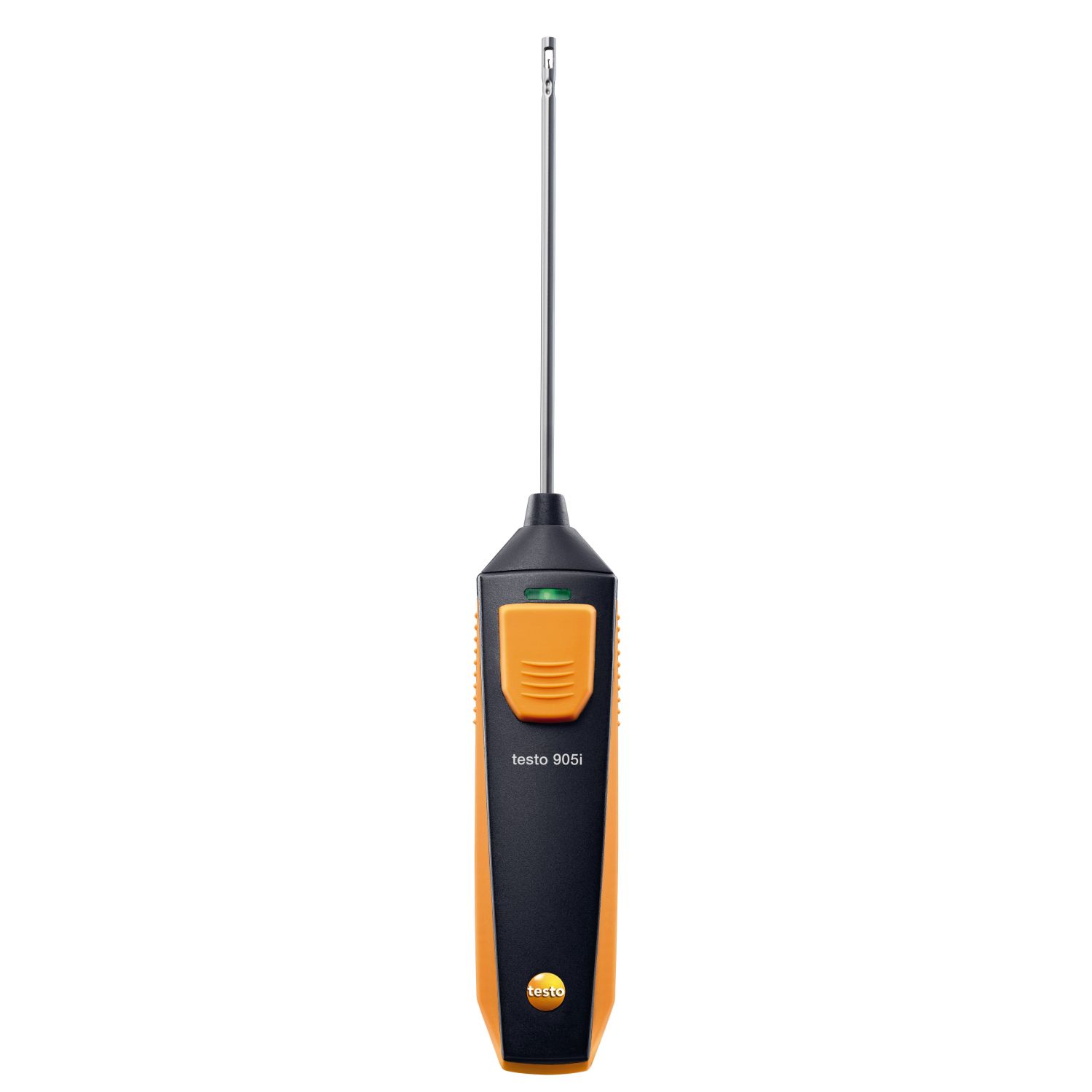

testo 905 i - thermometer with smartphone operation

Part No. 0560 1905

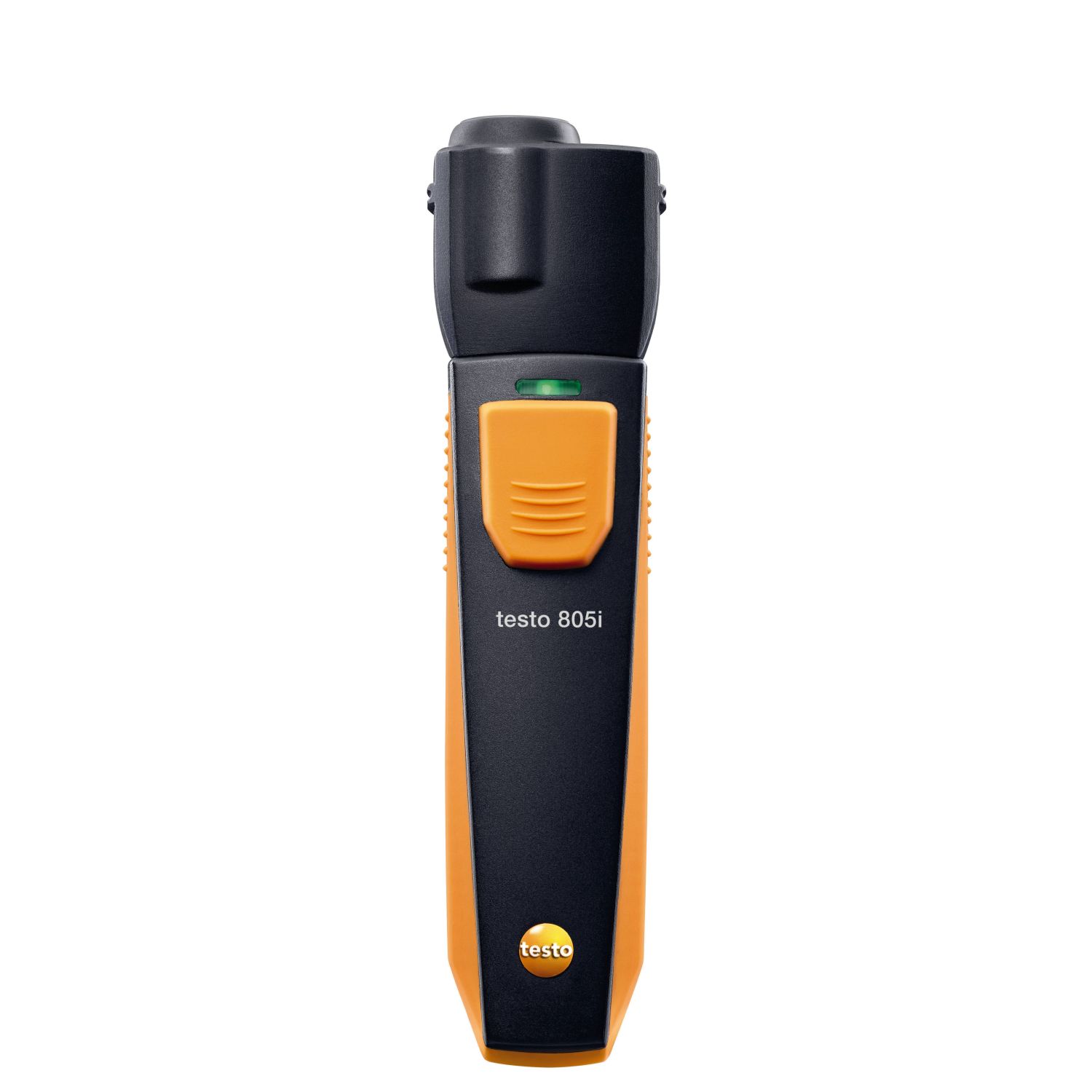

testo 805 i - infrared thermometer with smartphone operation

Part No. 0560 1805

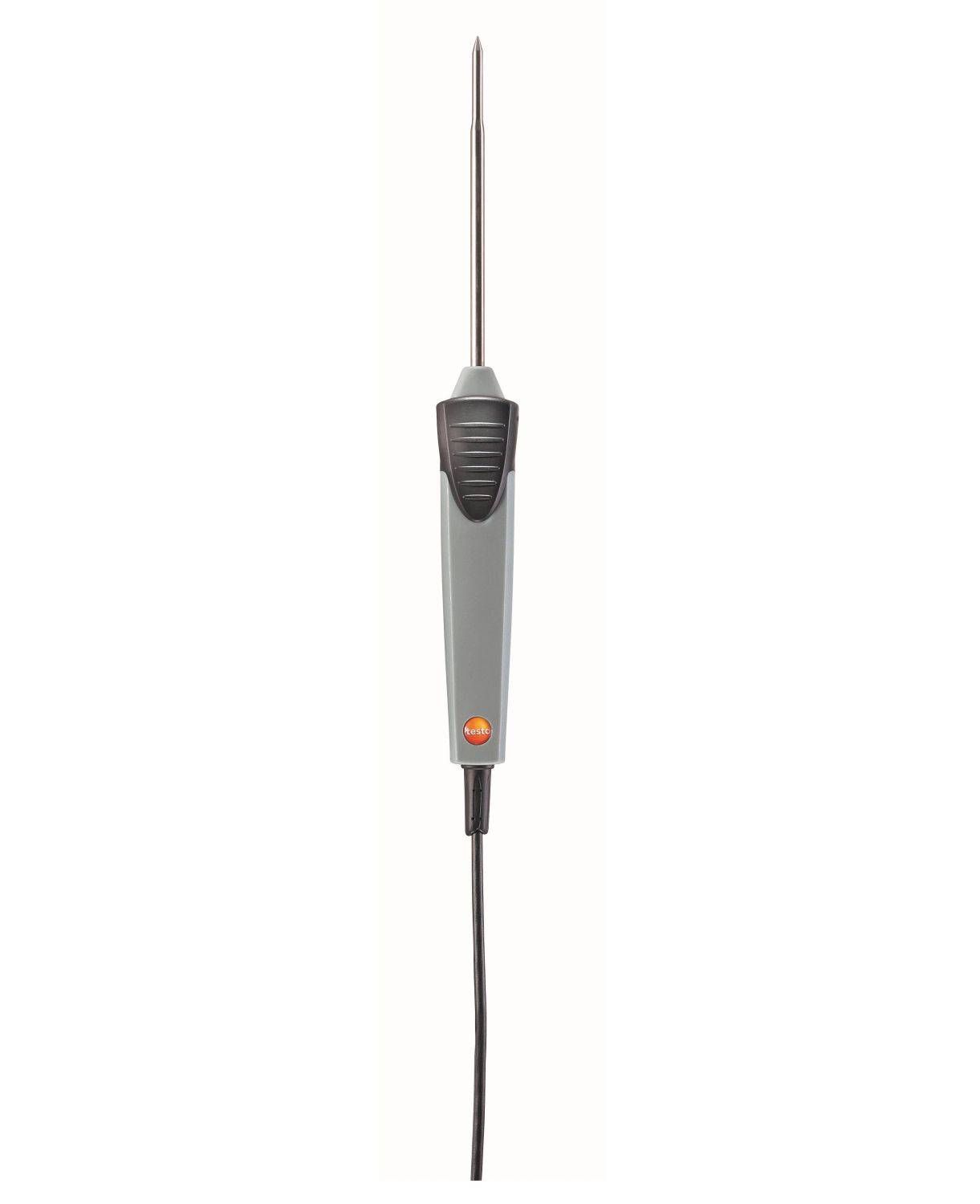

Waterproof immersion/penetration probe - with NTC temperature sensor

Part No. 0615 1212

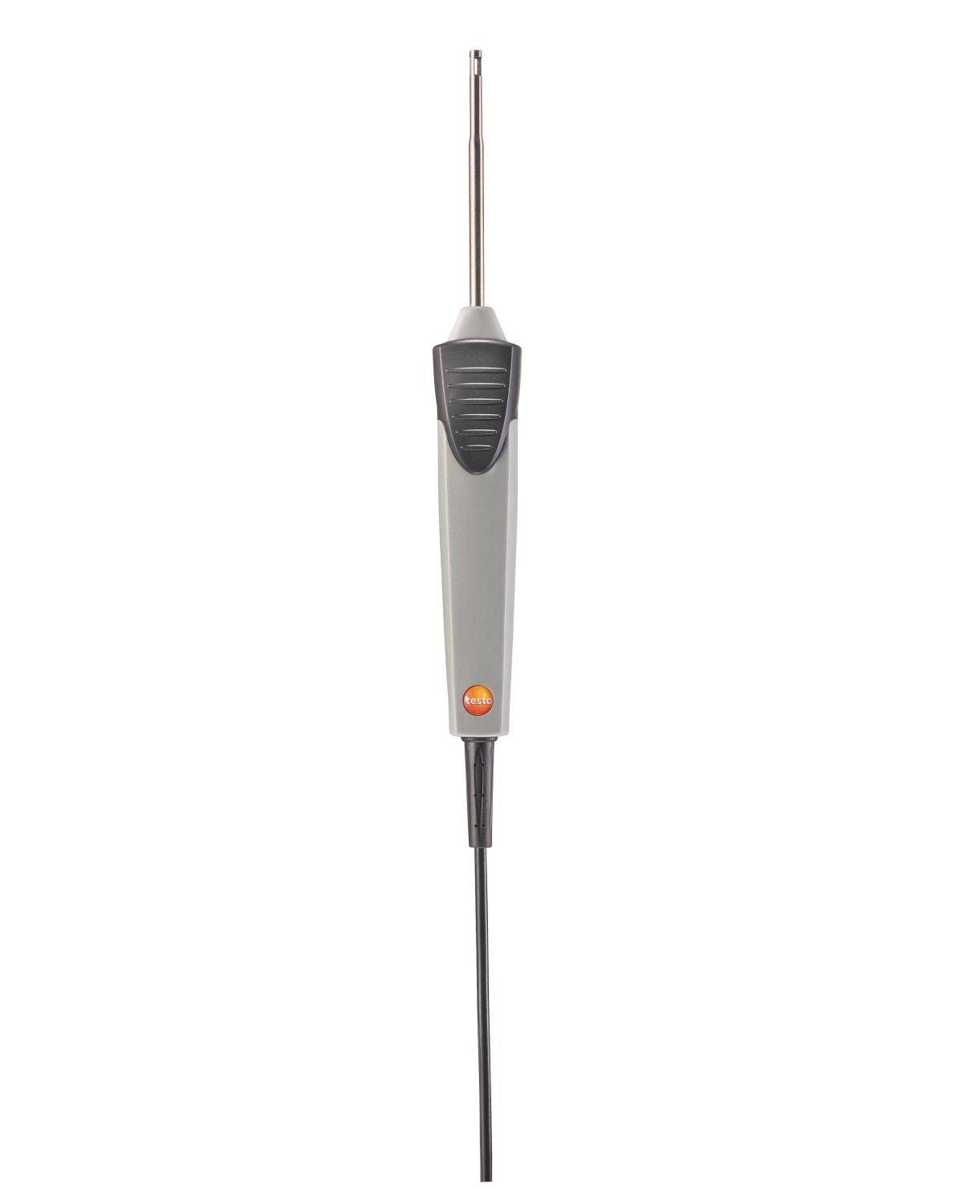

Robust air probe - with NTC temperature sensor

Part No. 0615 1712

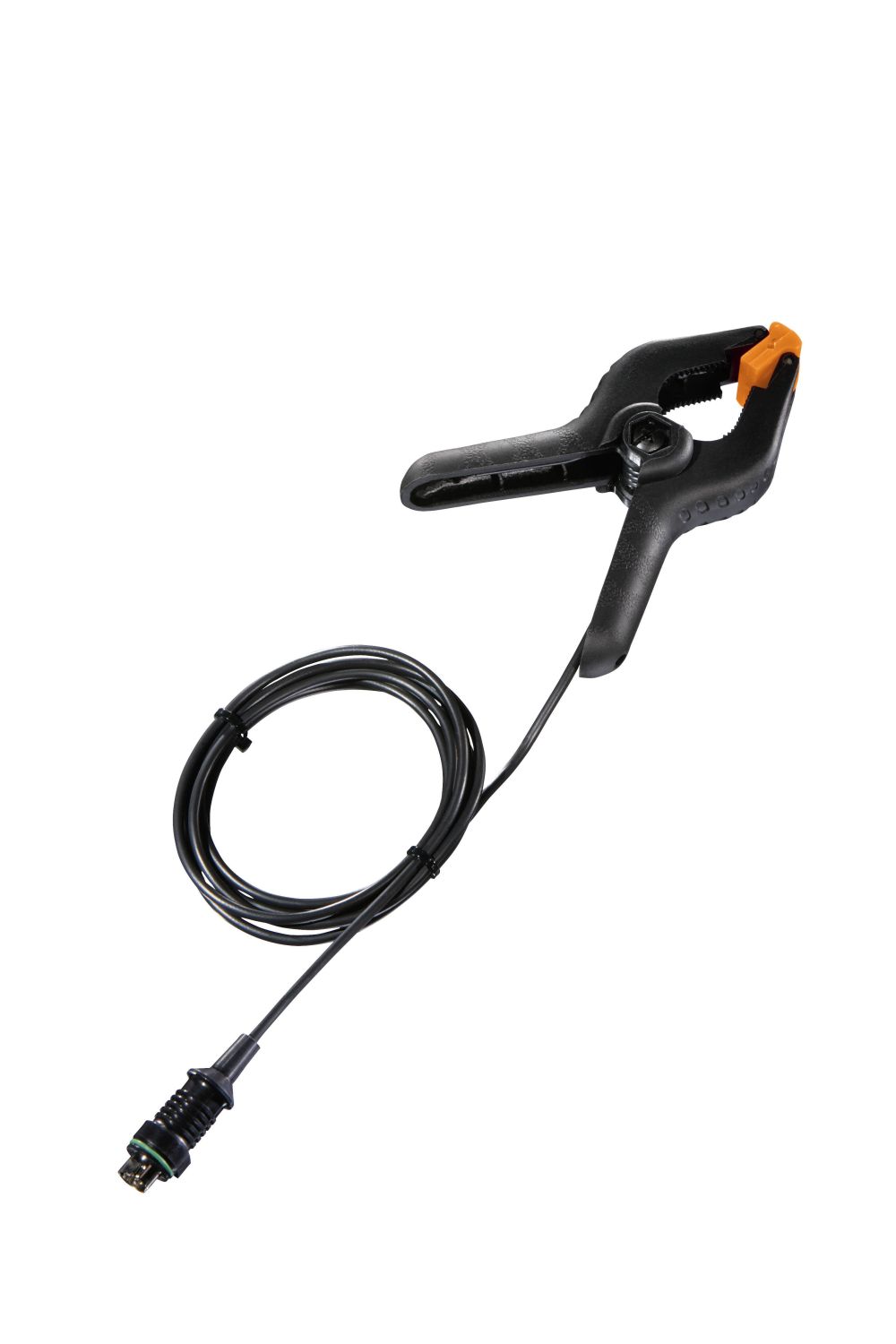

Clamp probe (NTC) - for measurements on pipes (Ø 6-35 mm)

Part No. 0615 5505

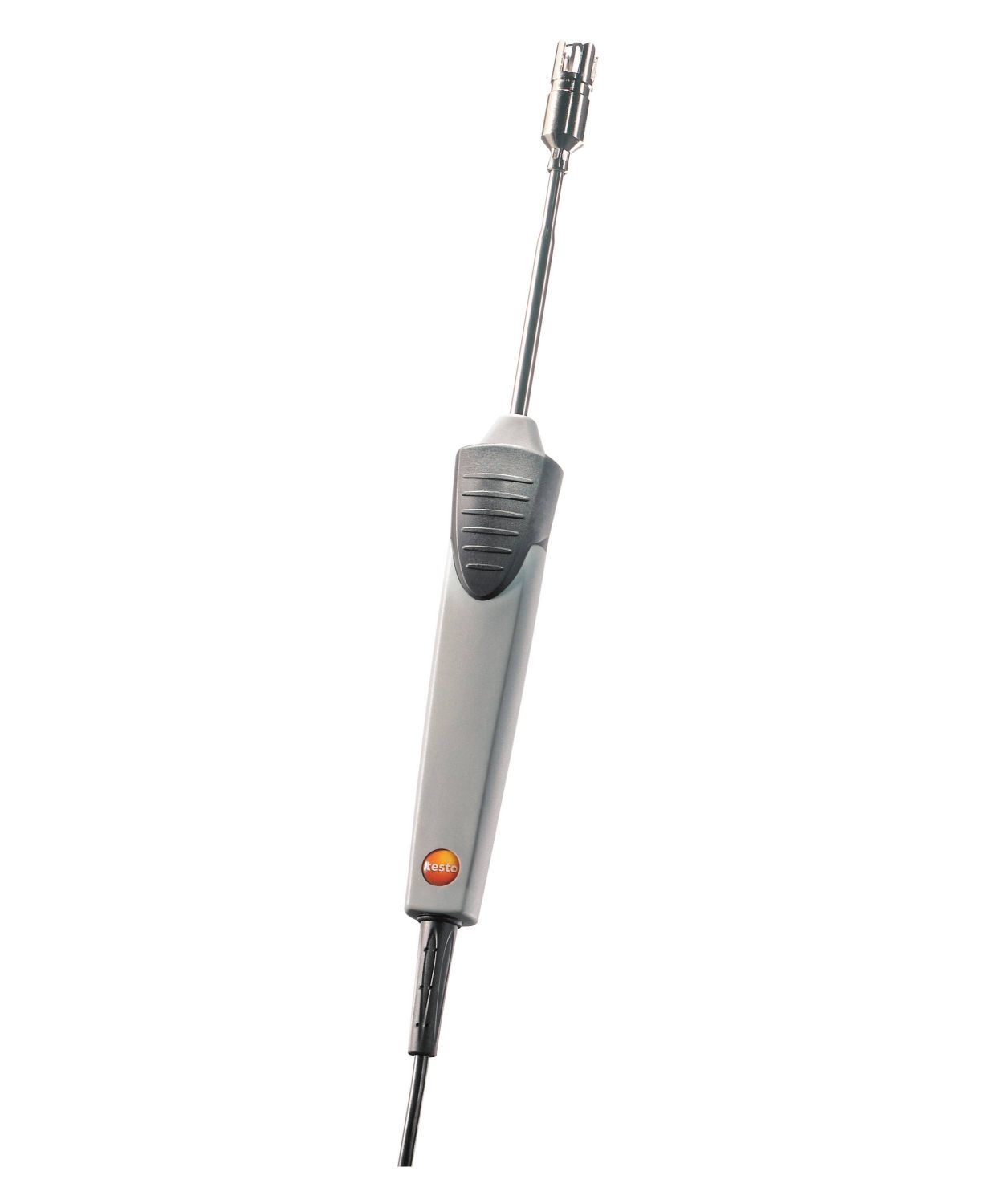

Fast-action surface probe (TC type K)

Part No. 0602 0393

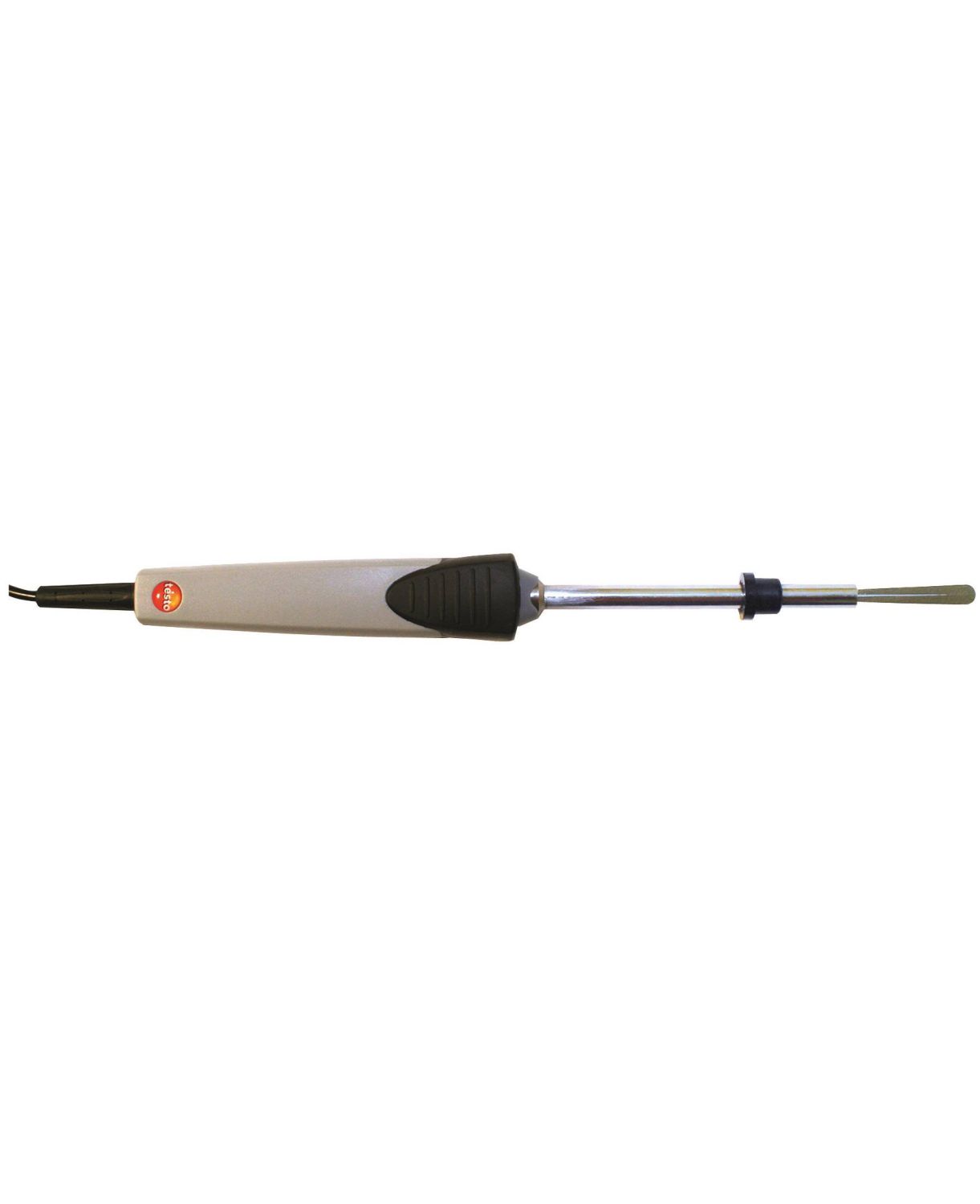

Fast-reaction paddle surface probe, for measurements in inaccessible places, e.g. narrow apertures and slots, TC Type K

Part No. 0602 0193

Technical Data

Temperature - TC Type K (NiCr-Ni)

  • Measuring range 0 to +300 °C
  • Accuracy Class 2 *
  • Reaction time 5 s
*Accor ding t o standard EN 60584-2, the accuracy of Class 1 refers to -40 to +1000 °C (Type K), CLass 2 to -40 to +1200 °C (Type K), Class 3 to -200 to +40 °C (Tyoe K).

General Technical Data
  1. Fixed cable true
  2. Diameter probe shaft tip 7 mm
  3. Diameter probe shaft 8 mm
  4. Length probe shaft tip 40 mm
  5. Length probe shaft 145 mm


Surface probe with a small measuring head (TC type K)

Part No. 0602 0693

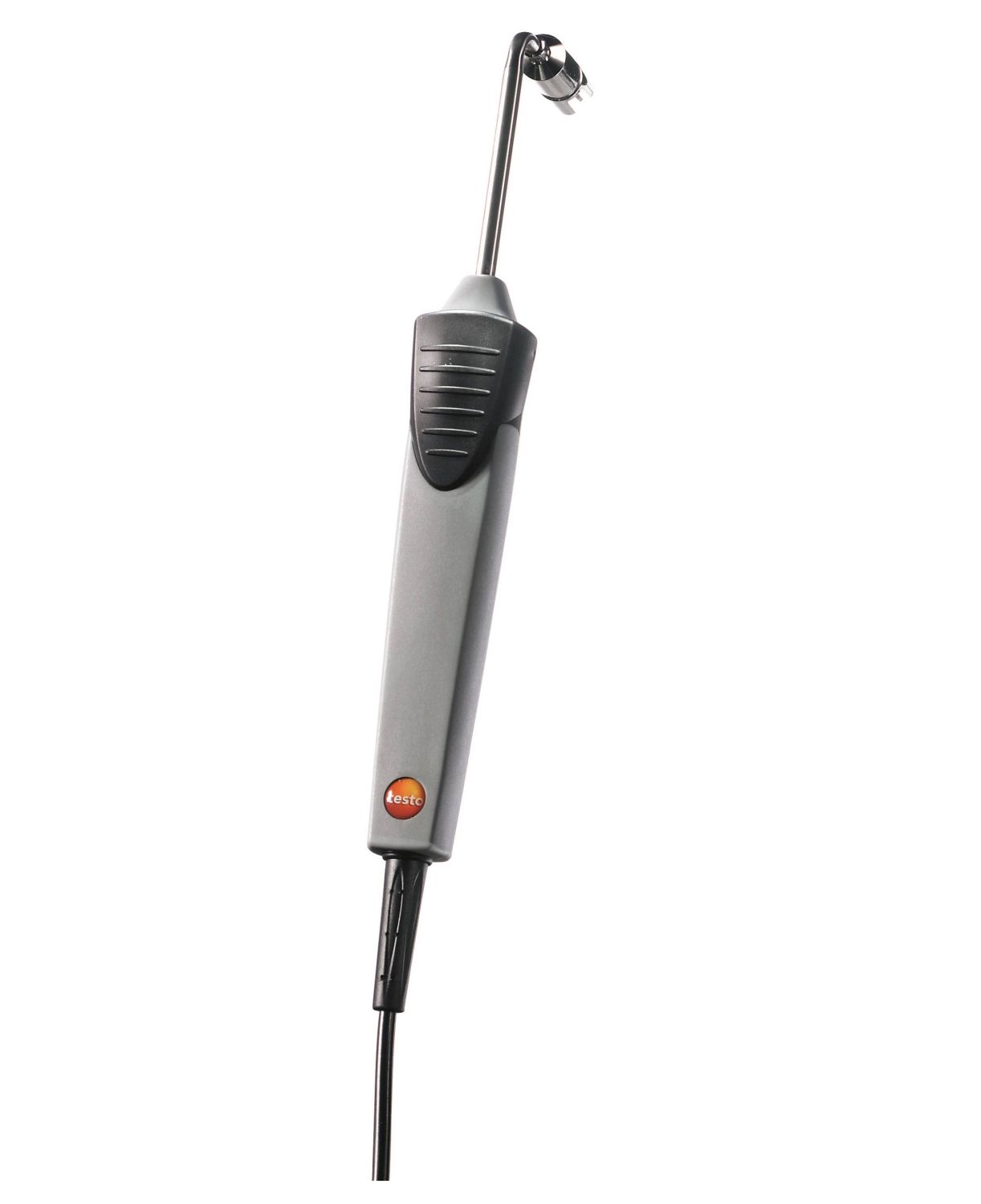

Fast-action, angled surface probe (TC type K)

Part No. 0602 0993

Use this fast-action temperature probe to measure surface temperatures accurately and reliably, even in inaccessible areas – the angled probe tube makes this possible.

Temperature - TC Type K (NiCr-Ni) Technical Data
  • Measuring range -60 to +300 °C
  • Accuracy Class 2 ¹⁾
  • Reaction time 3 s
1) According to standard EN 60584-2, the accuracy of Class 1 refers to -40 to +1000 °C (Type K), Class 2 to -40 to +1200 °C (Type K), Class 3 to -200 to +40 °C (Type K).

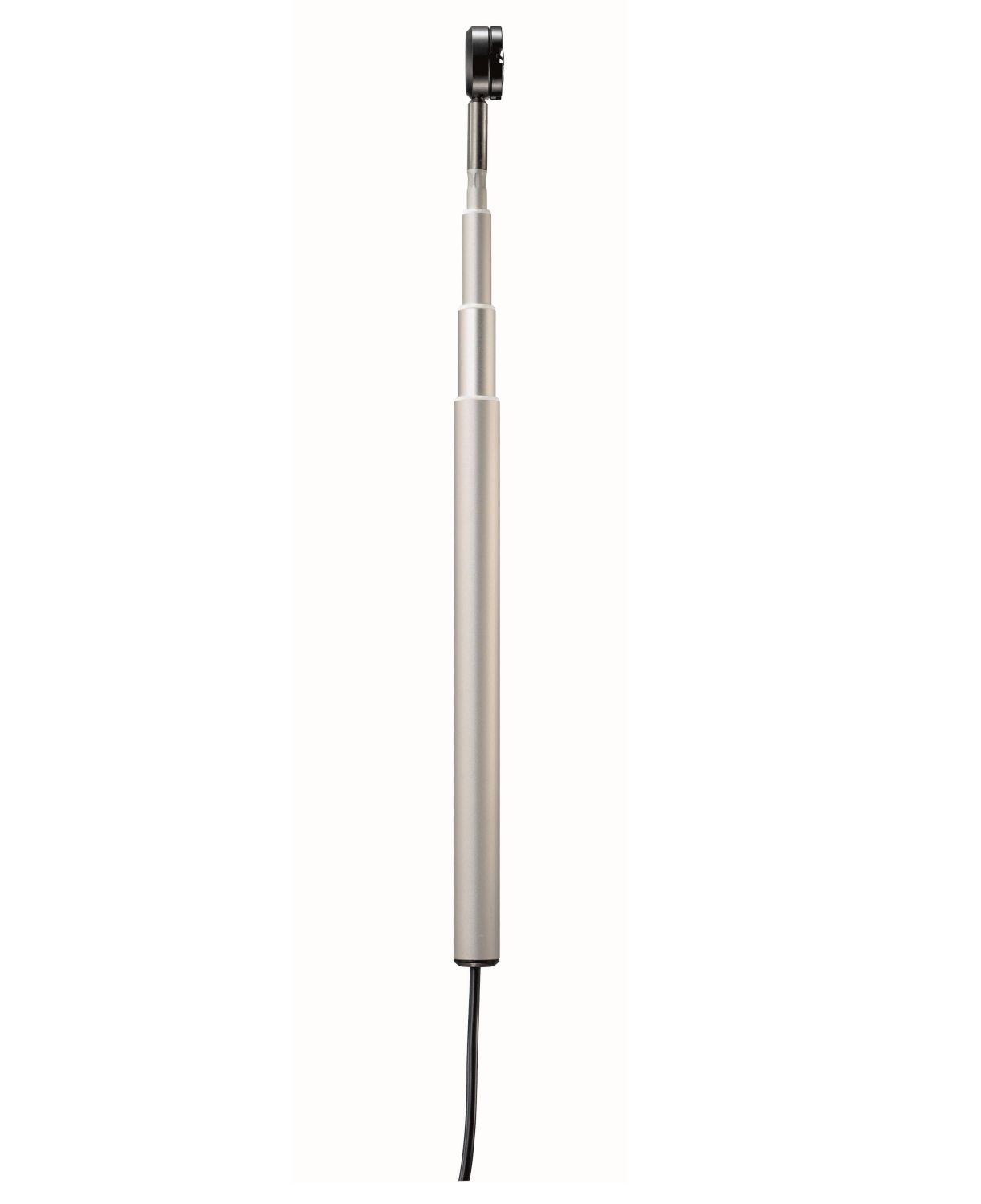

Flat head surface probe with telescopic handle max

Part No. 0602 2394

Temperature - TC Type K (NiCr-Ni) Technical Data
  • Measuring range -50 to +250 °C
  • Accuracy Class 2 ¹⁾
  • Reaction time 3 s
1) According to standard EN 60584-2, the accuracy of Class 1 refers to -40 to +1000 °C (Type K), Class 2 to -40 to +1200 °C (Type K), Class 3 to -200 to +40 °C (Type K).


Flat head surface probe with telescopic handle max

Part No. 0602 2394

Temperature - TC Type K (NiCr-Ni) Technical Data
  • Measuring range -50 to +250 °C
  • Accuracy Class 2 ¹⁾
  • Reaction time 3 s
1) According to standard EN 60584-2, the accuracy of Class 1 refers to -40 to +1000 °C (Type K), Class 2 to -40 to +1200 °C (Type K), Class 3 to -200 to +40 °C (Type K).

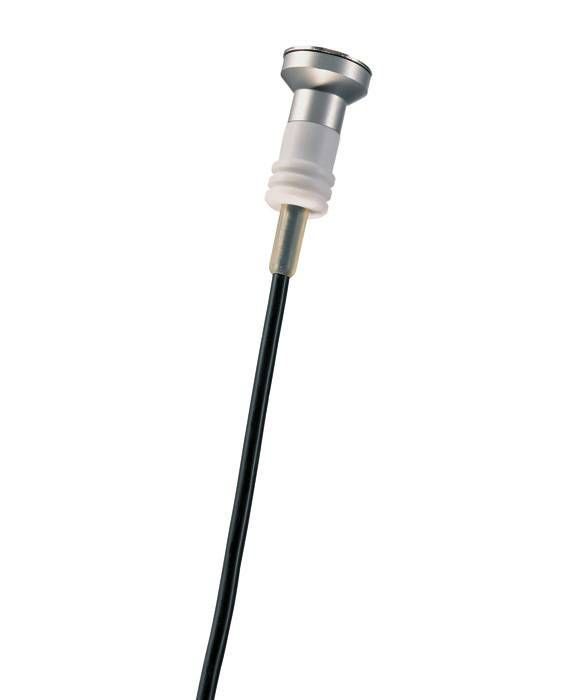

Magnetic probe (TC type K) - for surface temperatures

Part No. 0602 4792

Key Features:

  • Thermocouple type K
  • Adhesive force approx. 20 N
  • Can be connected to a wide range of measuring instruments/data loggers
  • Measuring range: -50 to +170 °C
Temperature - TC Type K (NiCr-Ni) Technical Data
  • Measuring range -50 to +170 °C
  • Accuracy Class 2 ¹⁾
  • Reaction time 150 s
1) According to standard EN 60584-2, the accuracy of Class 1 refers to -40 to +1000 °C (Type K), Class 2 to -40 to +1200 °C (Type K), Class 3 to -200 to +40 °C (Type K).

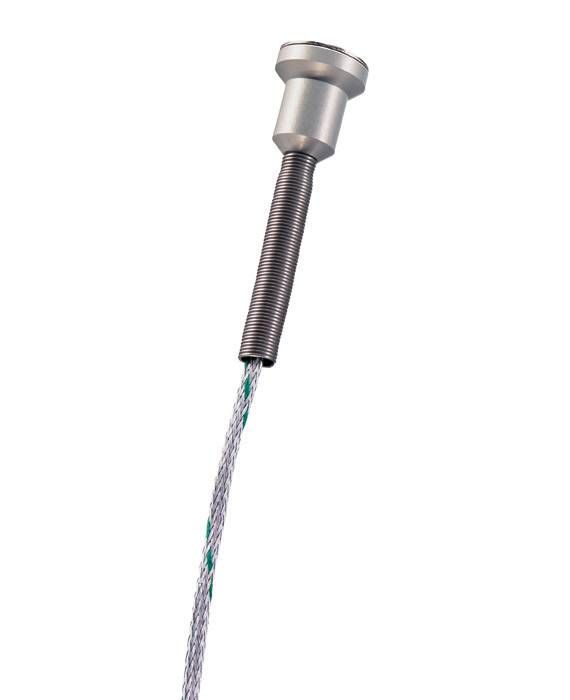

Temperature probe with magnet (TC Type K)

Part No. 0602 4892

Key Features:
  • Self-adhesive thanks to a magnet: probe for measuring surface temperature on metal surfaces
  • TC Type K temperature probe with 1.6 m cable
Temperature - TC Type K (NiCr-Ni) Technical Data
  • Measuring range -50 to +400 °C
  • Accuracy Class 2 ¹⁾
1) According to standard EN 60584-2, the accuracy of Class 1 refers to -40 to +1000 °C (Type K), Class 2 to -40 to +1200 °C (Type K), Class 3 to -200 to +40 °C (Type K).

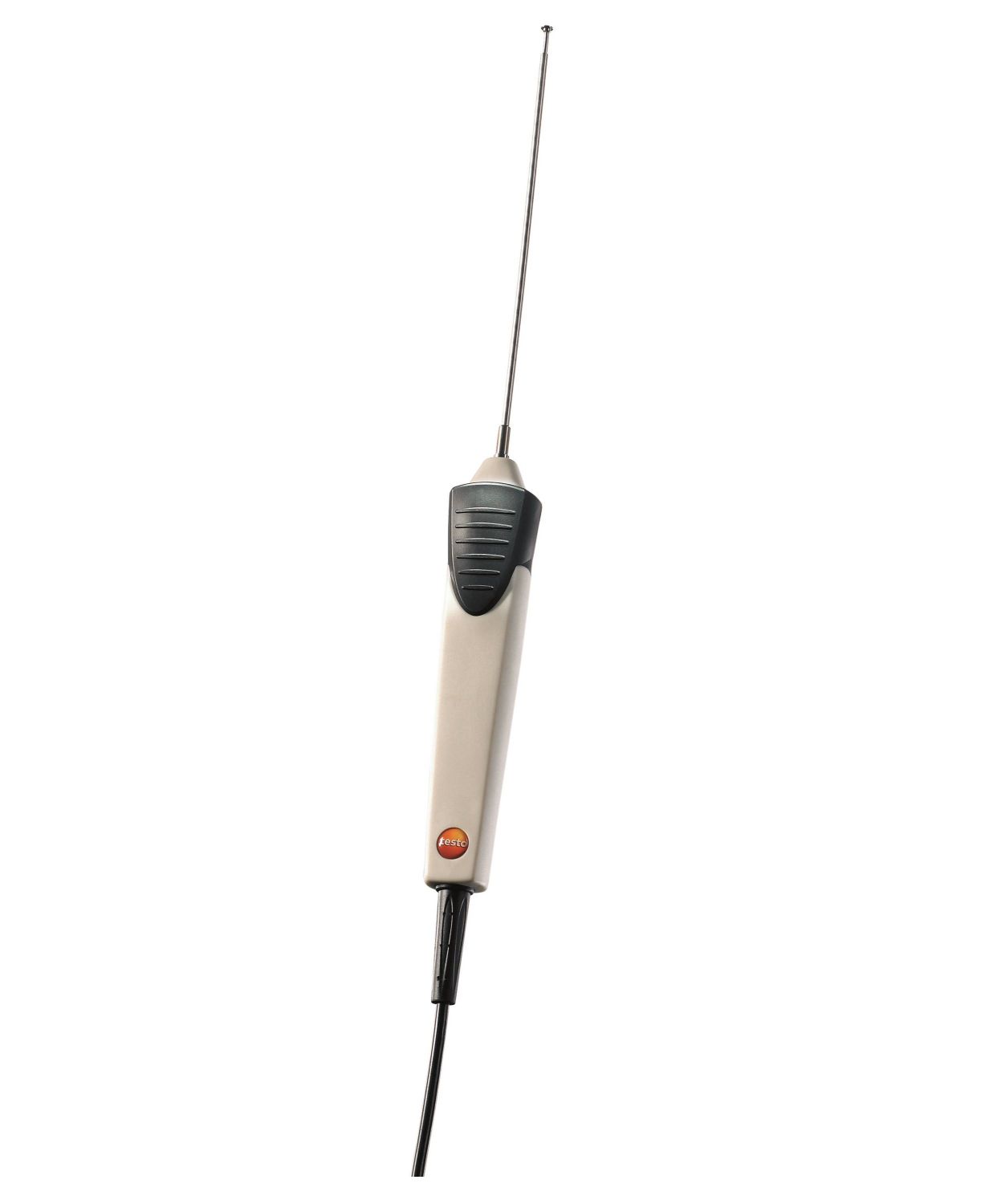

Surface probe with widened measuring tip (TC type K)

Part No. 0602 1993

Waterproof, robust and versatile: this temperature probe with sturdy probe shaft and widened measuring tip is ideal for measuring the temperature on flat surfaces.

Temperature - TC Type K (NiCr-Ni) Technical Data
  • Measuring range -60 to +400 °C
  • Accuracy Class 2 ¹⁾
  • Reaction time 30 s
1) According to standard EN 60584-2, the accuracy of Class 1 refers to -40 to +1000 °C (Type K), Class 2 to -40 to +1200 °C (Type K), Class 3 to -200 to +40 °C (Type K).

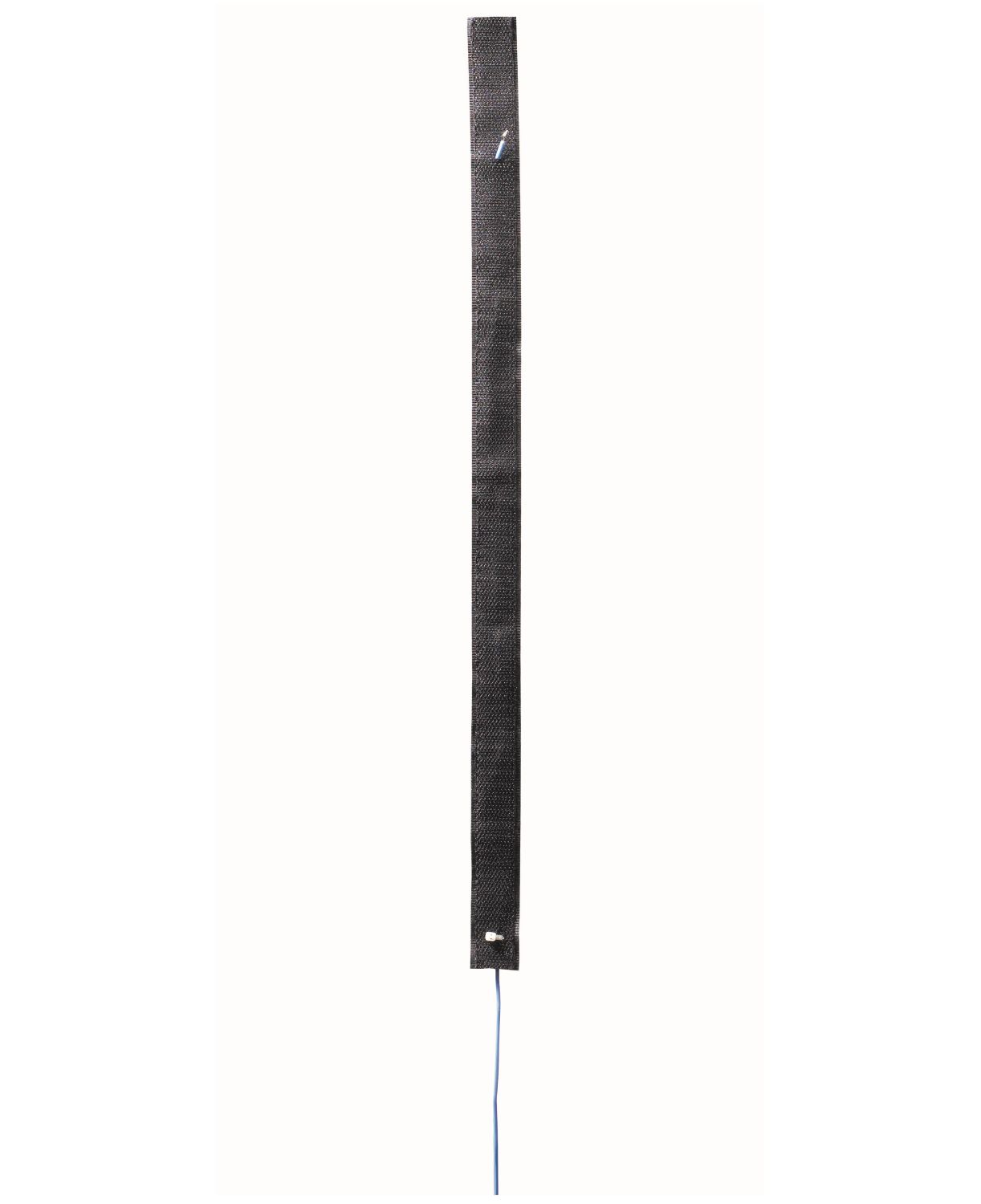

Temperature probe with Velcro (TC Type K)

Part No. 0628 0020

Key Features:
  • With Velcro: makes it easy to attach the surface probe to pipes with a diameter of up to 120 mm
  • TC Type K temperature probe with 1.5 m cable
  • Measuring range: -50 to +120 °C
Temperature - TC Type K (NiCr-Ni) Technical Data
  • Measuring range -50 to +120 °C
  • Accuracy Class 1 ¹⁾
  • Reaction time 90 s
1) According to standard EN 60584-2, the accuracy of Class 1 refers to -40 to +1000 °C (Type K), Class 2 to -40 to +1200 °C (Type K), Class 3 to -200 to +40 °C (Type K).

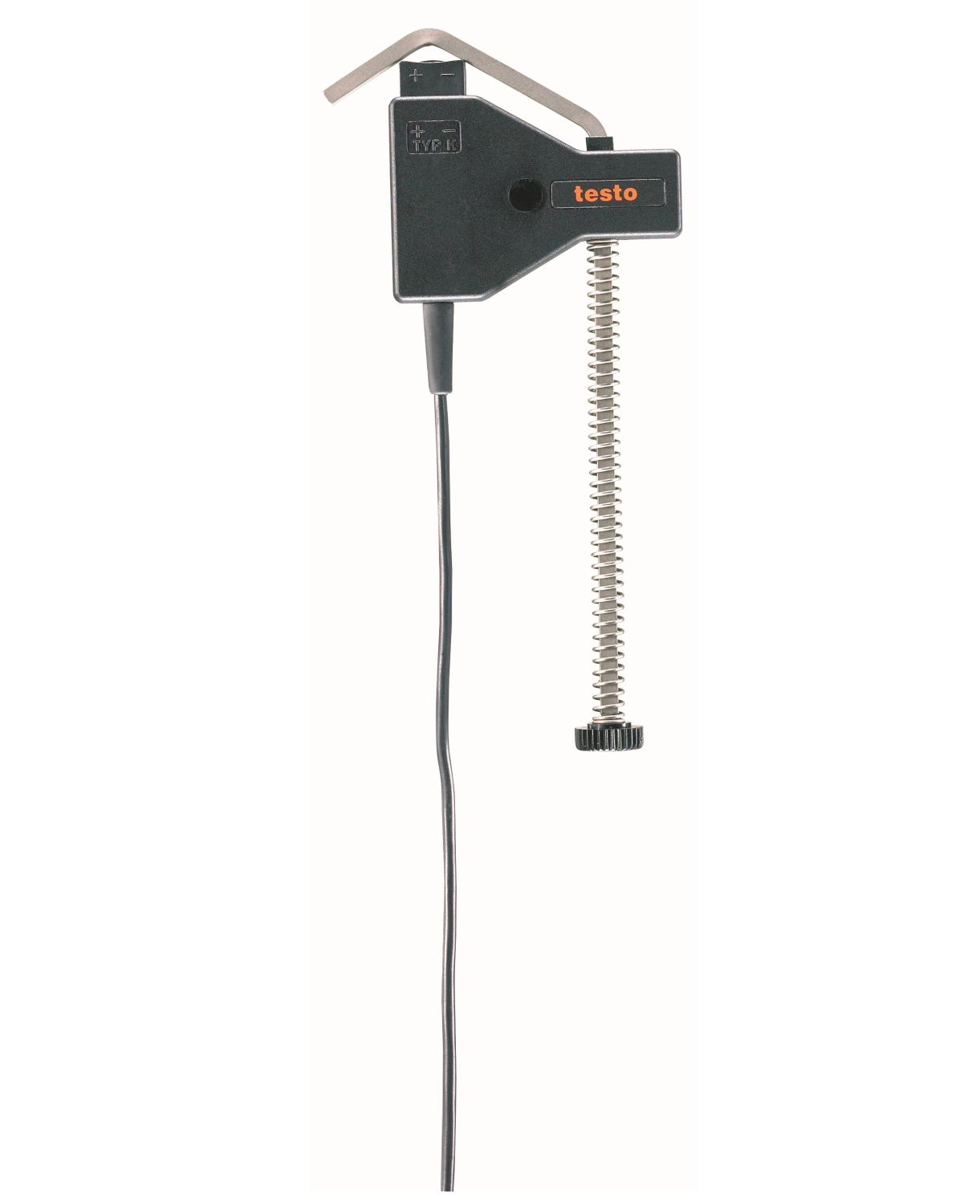

Temperature probe with clamping bracket (TC Type K)

Part No. 0602 4592

Pipe wrap probe for pipe diameter 5 to 65 mm, with exchangeable measuring head. Meas. range short-term up to +280°C, TC Type K

Temperature - TC Type K (NiCr-Ni) Technical Data
  • Measuring range -60 to +130 °C
  • Accuracy Class 2 ¹⁾
  • Reaction time 5 s
1) According to standard EN 60584-2, the accuracy of Class 1 refers to -40 to +1000 °C (Type K), Class 2 to -40 to +1200 °C (Type K), Class 3 to -200 to +40 °C (Type K).

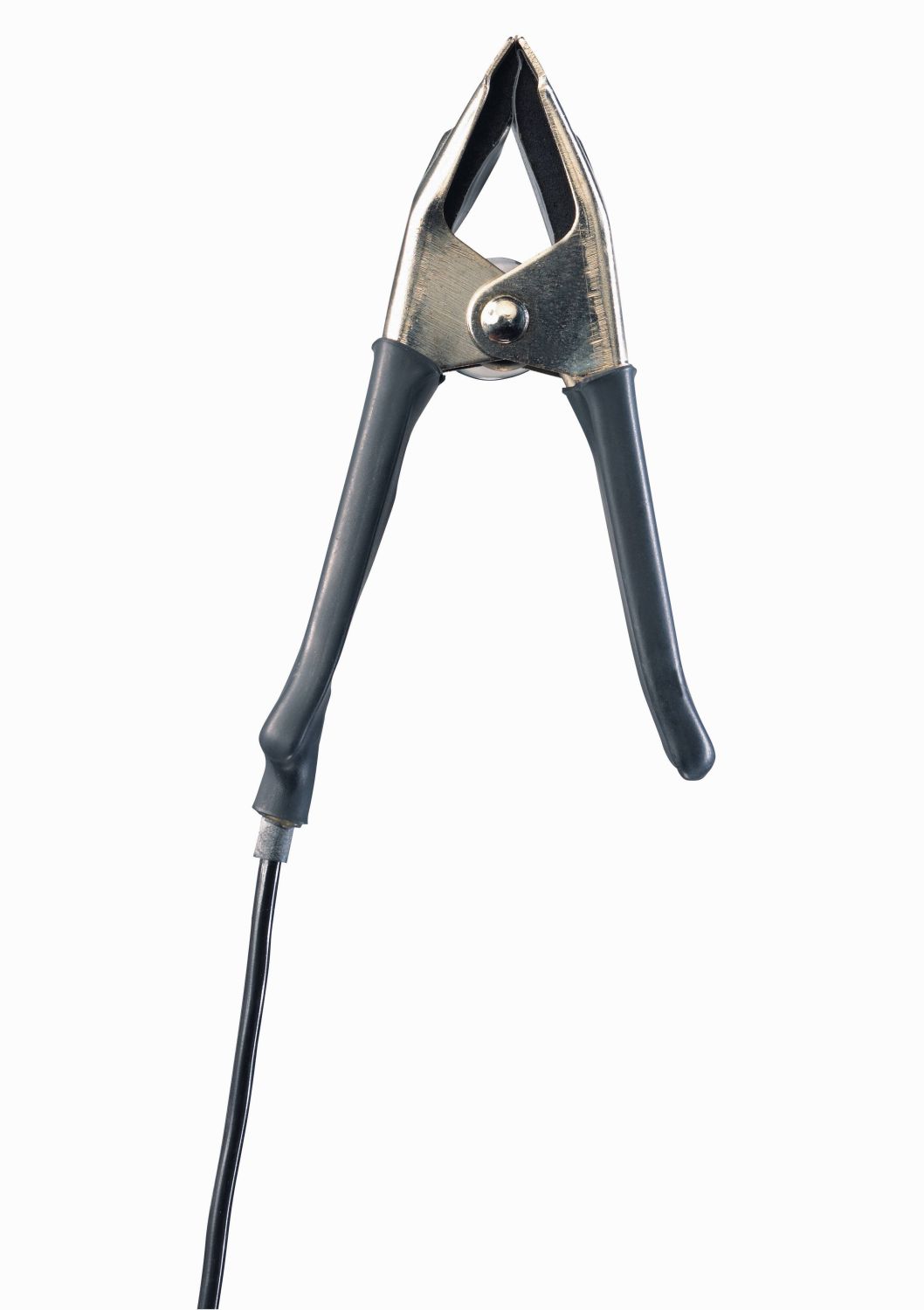

Clamp probe for measurements on pipes

Part No. 0602 4692

Temperature - TC Type K (NiCr-Ni) Technical Data
  • Measuring range -50 to +100 °C
  • Accuracy briefly to +130
  • Reaction time 5 s
1) According to standard EN 60584-2, the accuracy of Class 1 refers to -40 to +1000 °C (Type K), Class 2 to -40 to +1200 °C (Type K), Class 3 to -200 to +40 °C (Type K).

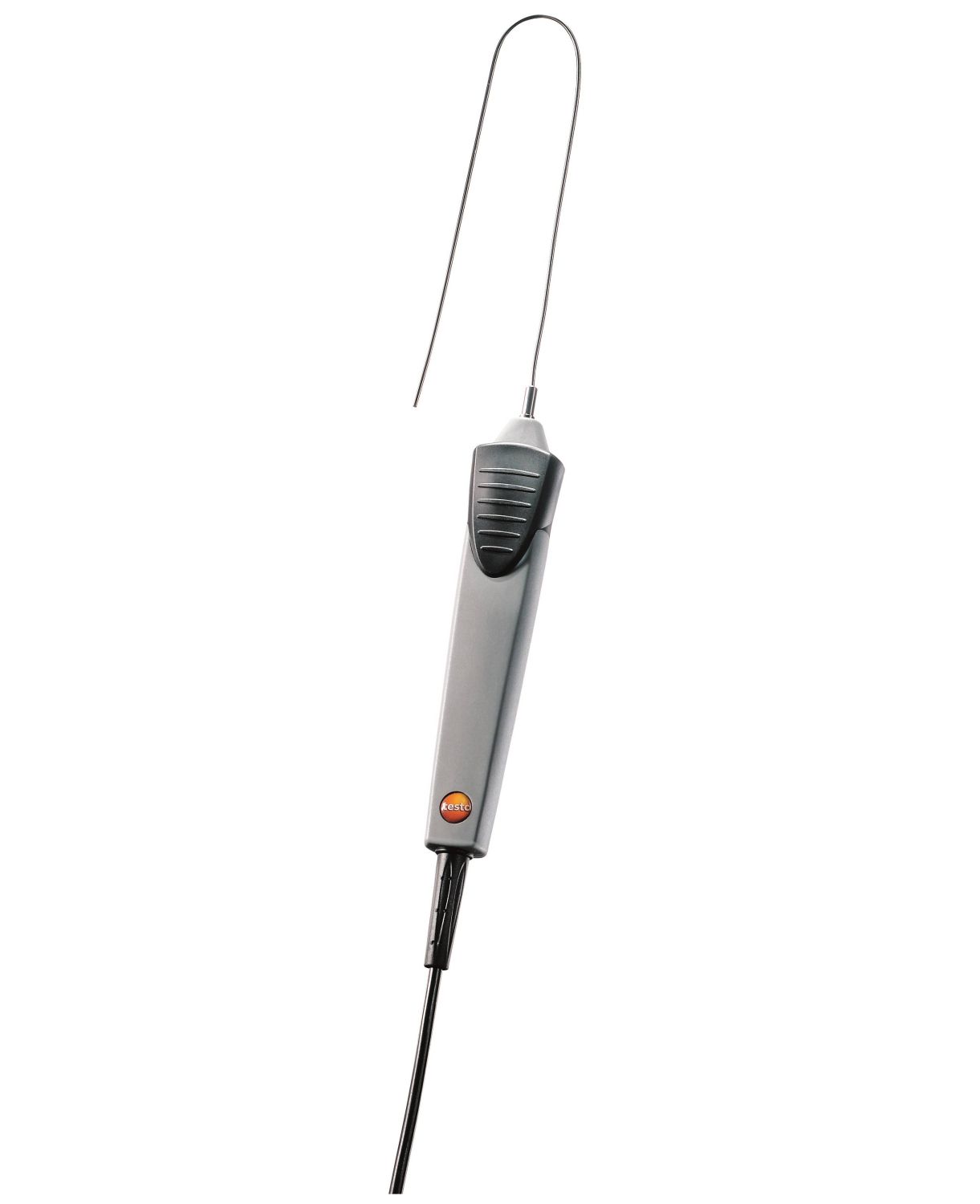

Flexible, fast-action immersion probe (TC type K)

Part No. 0602 0593
  • Fast, flexible and waterproof: the immersion probe is ideal for carrying out accurate immersion measurements in various liquids.
Key Features:
  • Short response time of 2 seconds
  • Thermocouple type K
  • Waterproof
  • Very large measuring range: -60 to +1000 °C

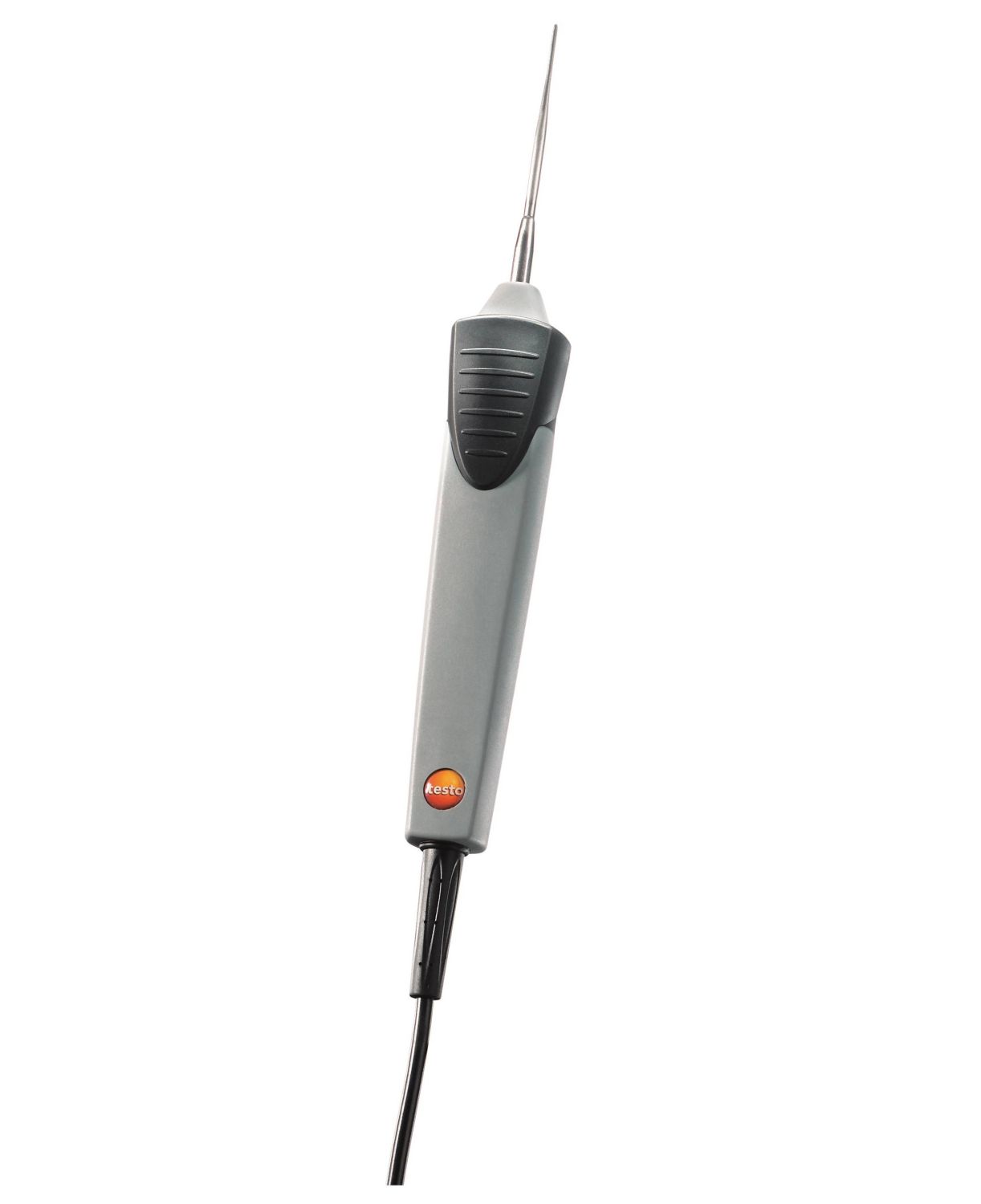

Fast-action immersion/penetration probe (TC type K)

Part No. 0602 2693

Fast-action temperature probe with penetration tip – ideal for temperature measurements in pastes and semi-solid media, in liquids and in the air.

Key Features:
  • 1.5 mm thin probe tip for fast temperature recording, 60 mm long probe shaft
  • Splash-proof in accordance with IP54
  • Very short response time of 3 seconds
  • Measuring range: -60 to +800 °C

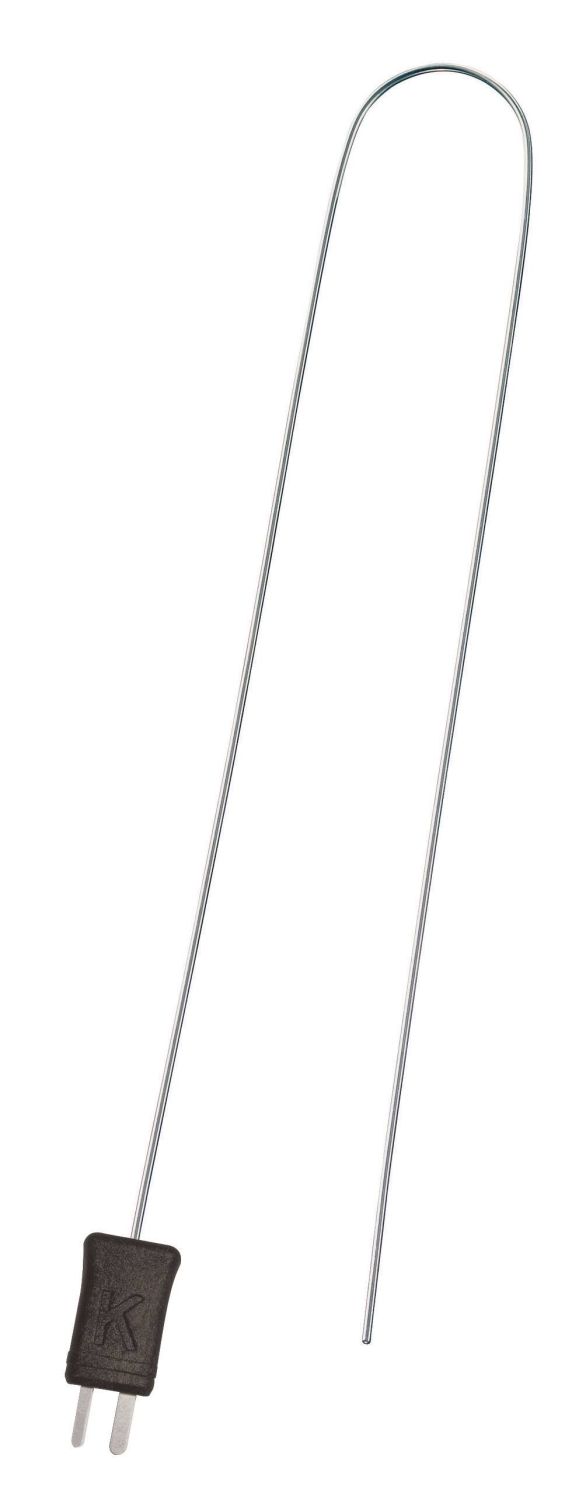

Immersion tip, flexible, TC Type K

Part No. 0602 5792


Immersion tip, flexible, TC Type K

Part No. 0602 5793

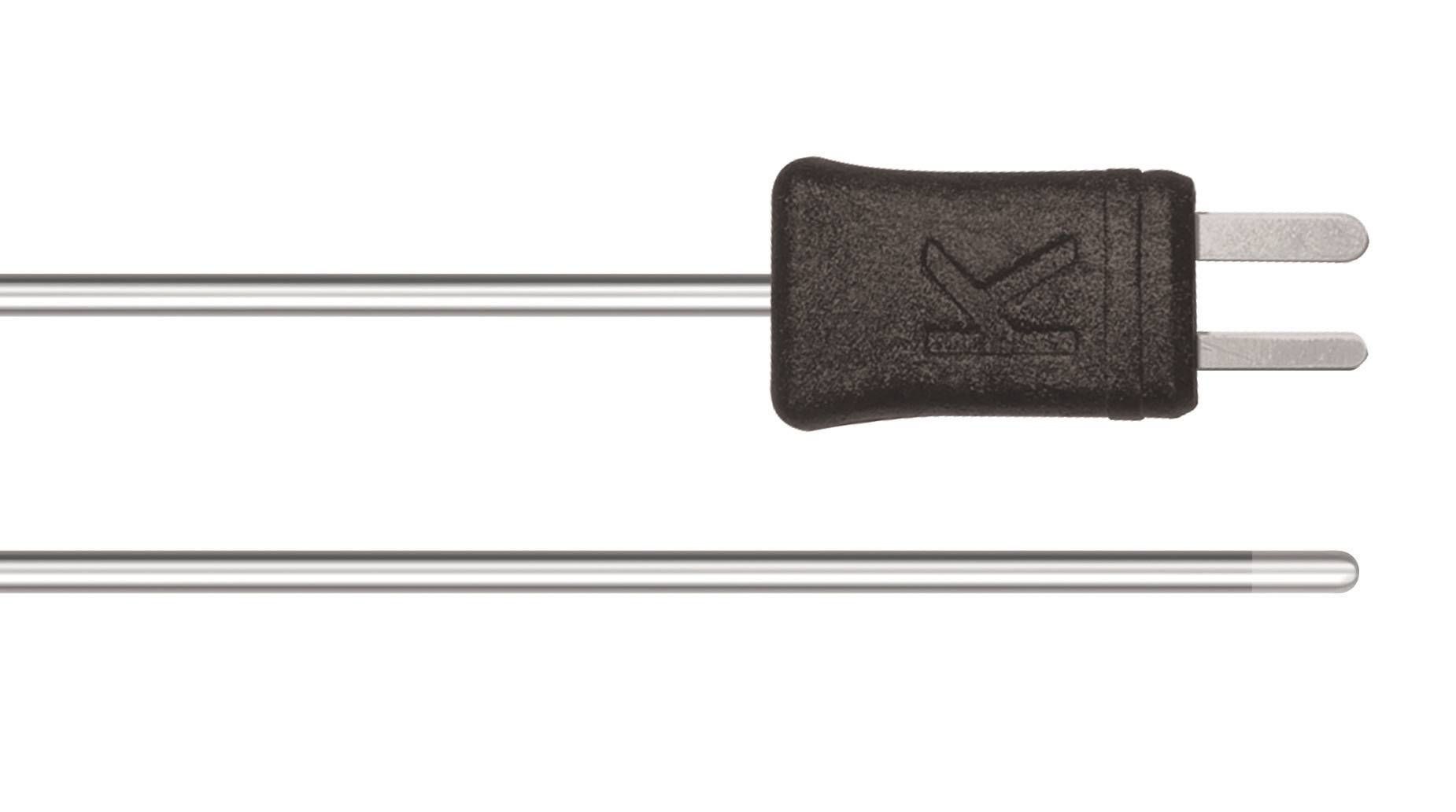

Immersion measurement tip, flexible, for measurements in air/exhaust gases

Part No. 0602 5693

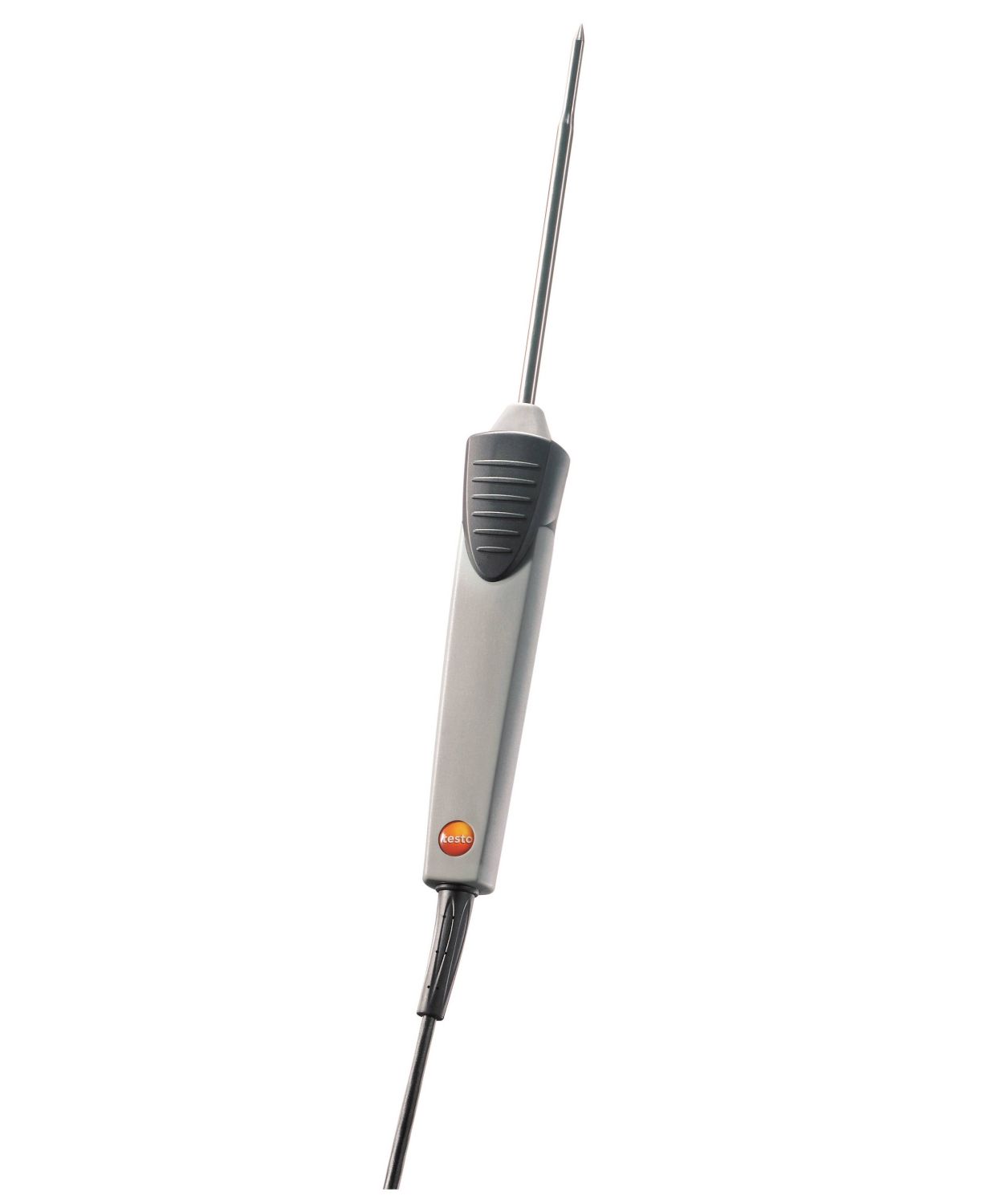

Waterproof immersion/penetration probe (TC type K)

Part No. 0602 1293
  • The waterproof immersion and penetration probe guarantees fast temperature measurement in liquids and semi-solid media.
Key Features:
  • Thermocouple type K
  • Response time of 7 seconds
  • Waterproof
  • Measuring range: -60 to +400 °C

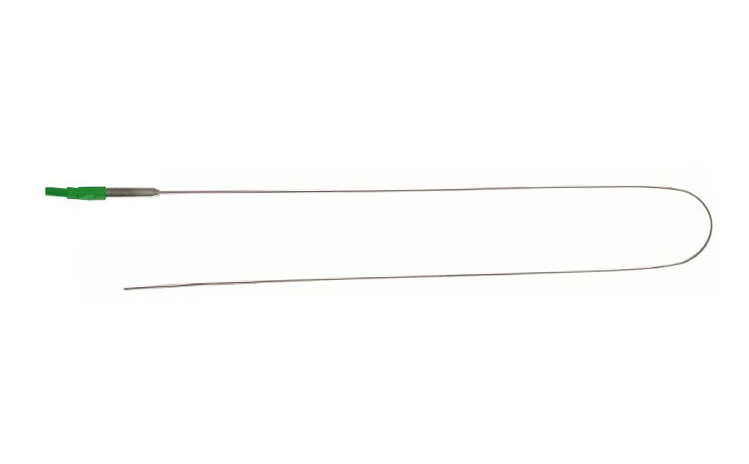

FLEXIBLE, LOW-MASS IMMERSION MEASUREMENT TIP, IDEAL FOR MEASUREMENTS IN SMALL VOLUMES

Part No. 0602 0493
  • Flexible, low-mass immersion measurement tip, ideal for measurements in small volumes such as petri dishes, or for surface measurements (e.g. attached with adhesive tape), TC Type K
Key Features:
  • TC Type K temperature probe with flexible measuring tip, short response time and 2 m cable
  • Very fast temperature measurement in air, liquids, pastes and on surfaces
  • Measuring range: -200 to +1000 °C
  •

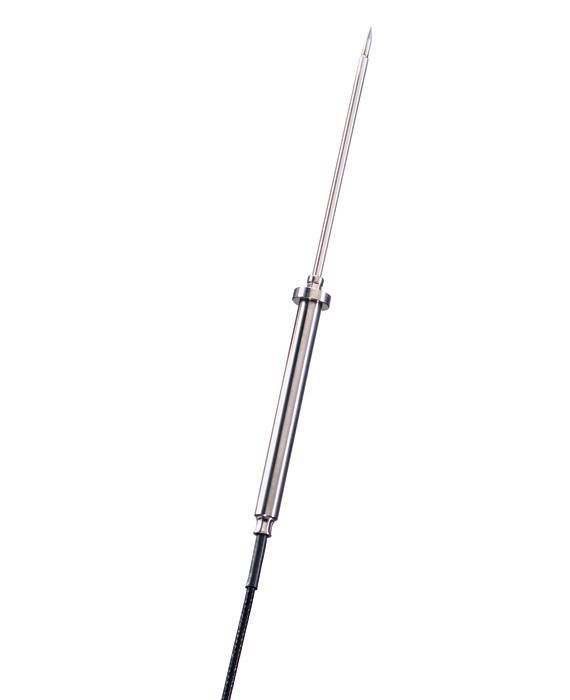

Waterproof food probe made of stainless steel (IP65), TC Type K

Part No. 0602 2292

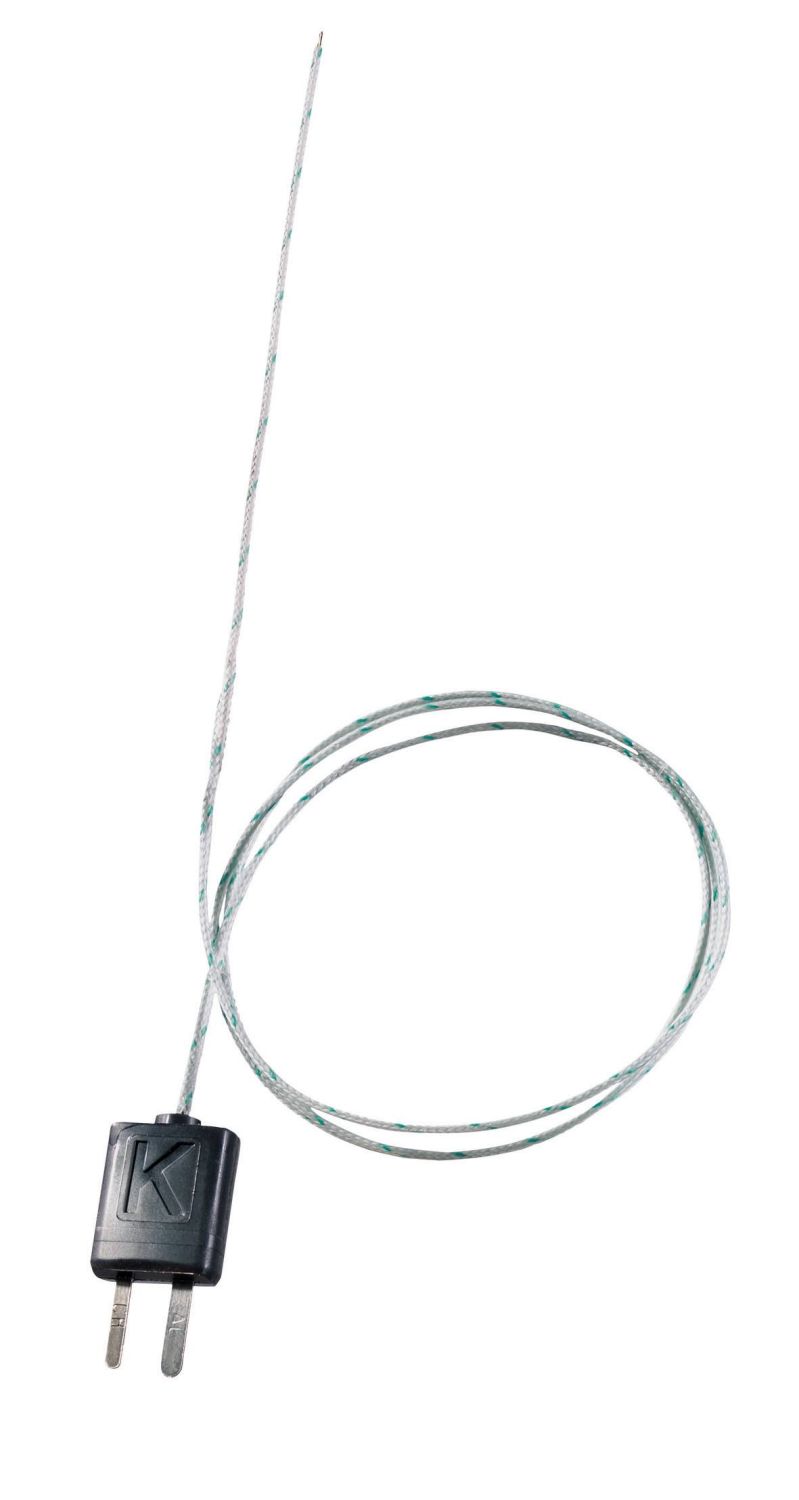

Thermocouple with TC adapter, flexible, 800 mm long

Part No. 0602 0644

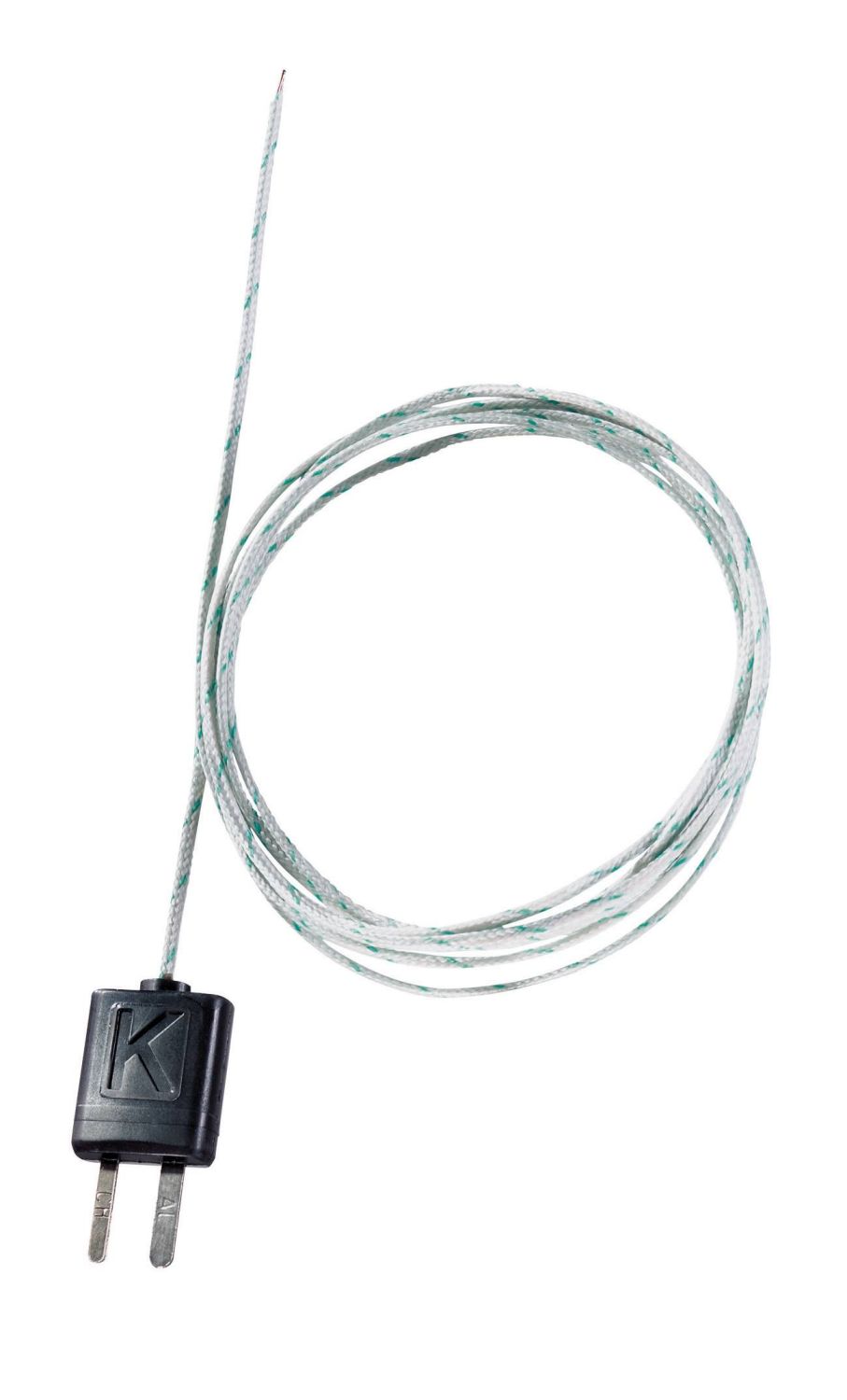

Thermocouple with TC adapter, flexible, length 1500 mm , fibreglass, TC Type K

Part No. 0602 0645

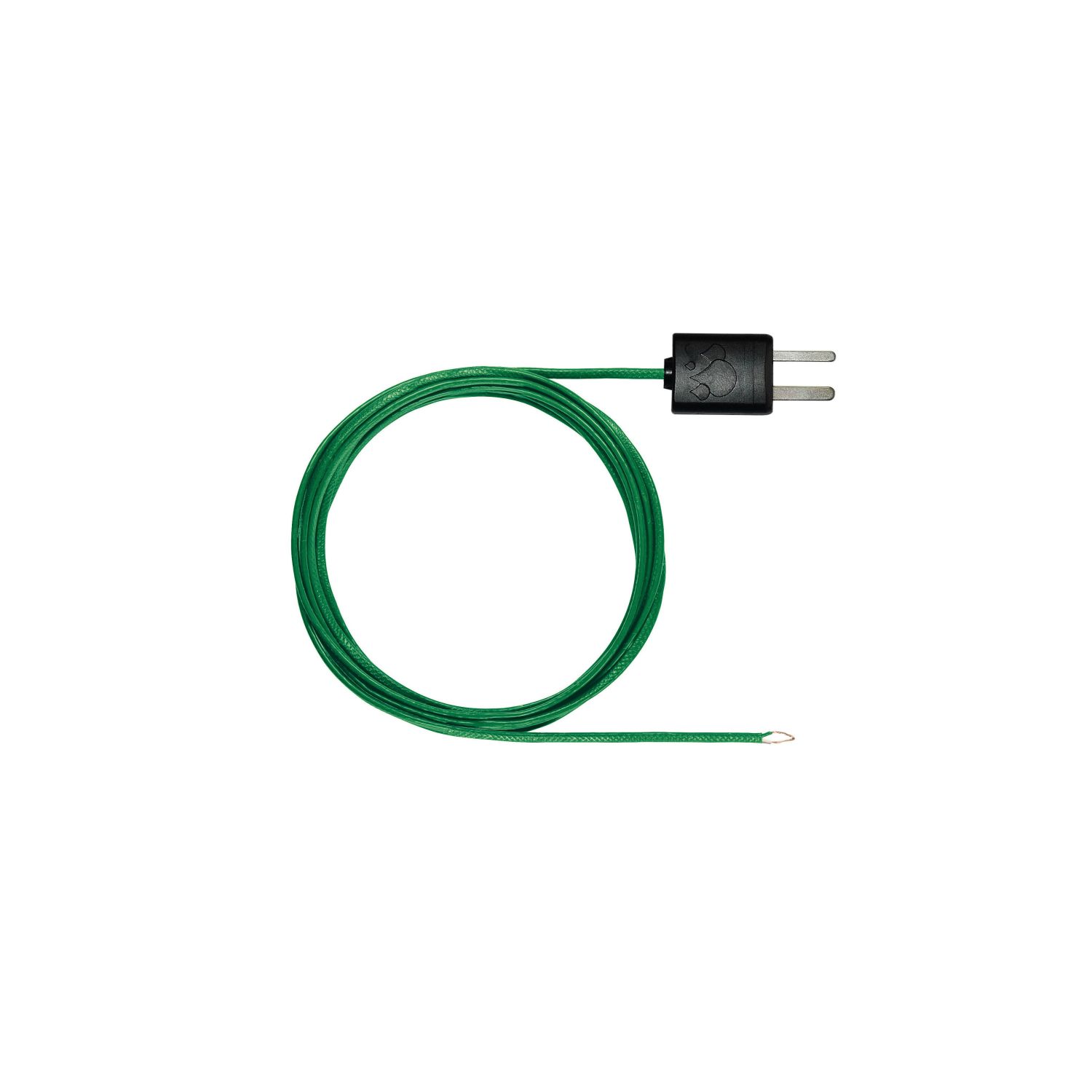

hermocouple with TC adapter, flexible, 1500 mm long, PTFE, TC Type K

Part No. 0602 0646

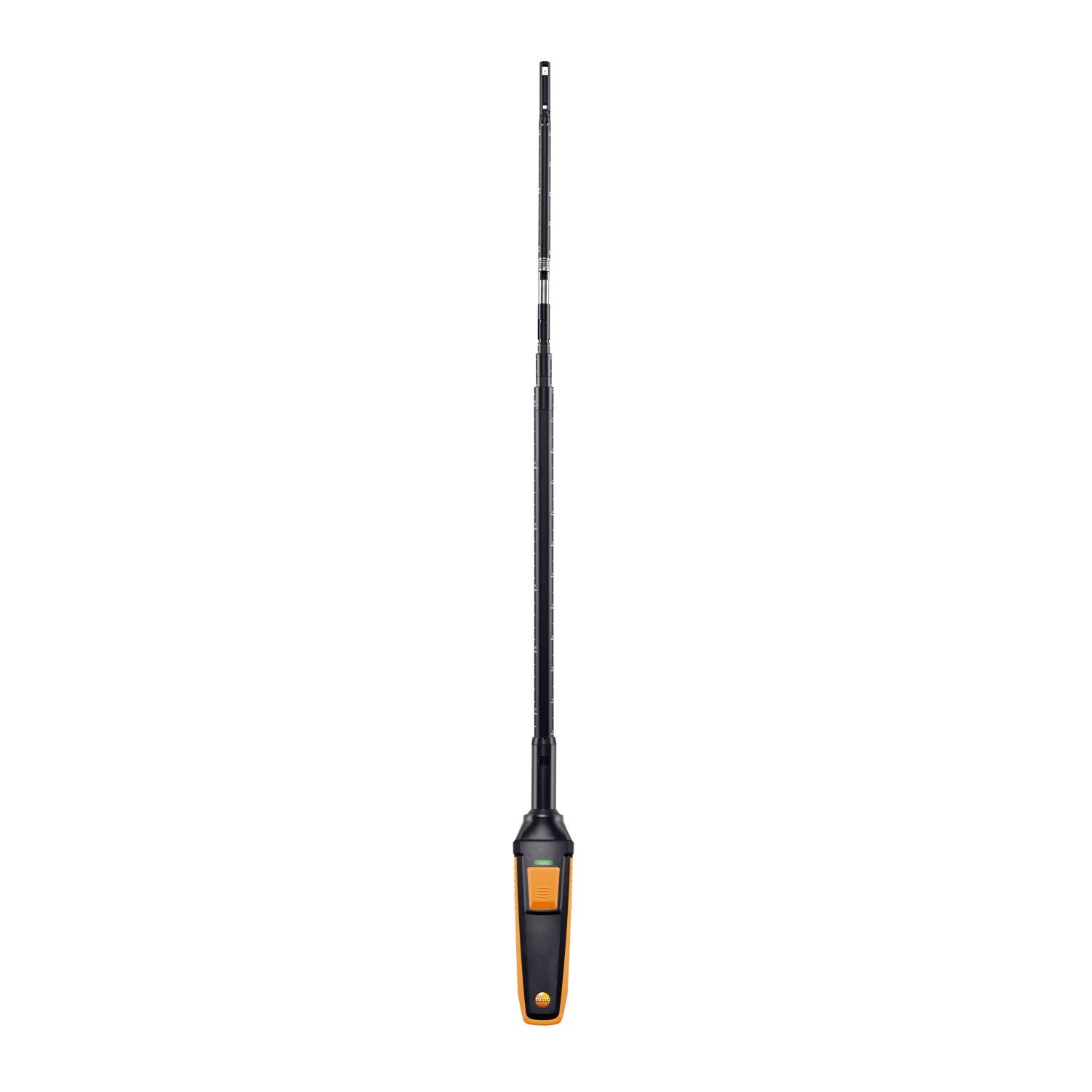

Hot wire probe (digital) - with Bluetooth® including temperature and humidity sensor

Part No. 0635 1571


Hot wire probe (digital) - including temperature and humidity sensor, wired

Part No. 0635 1572

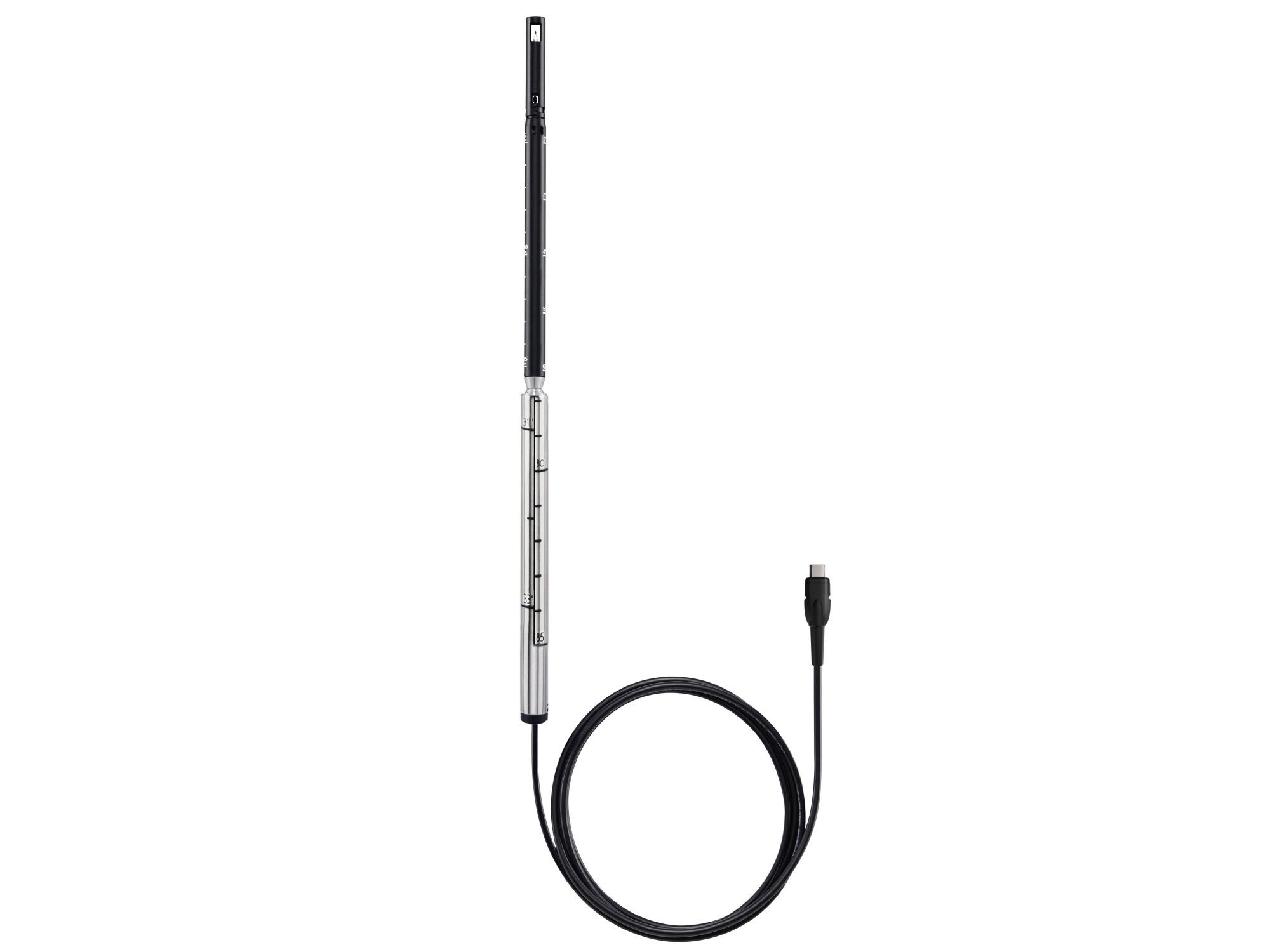

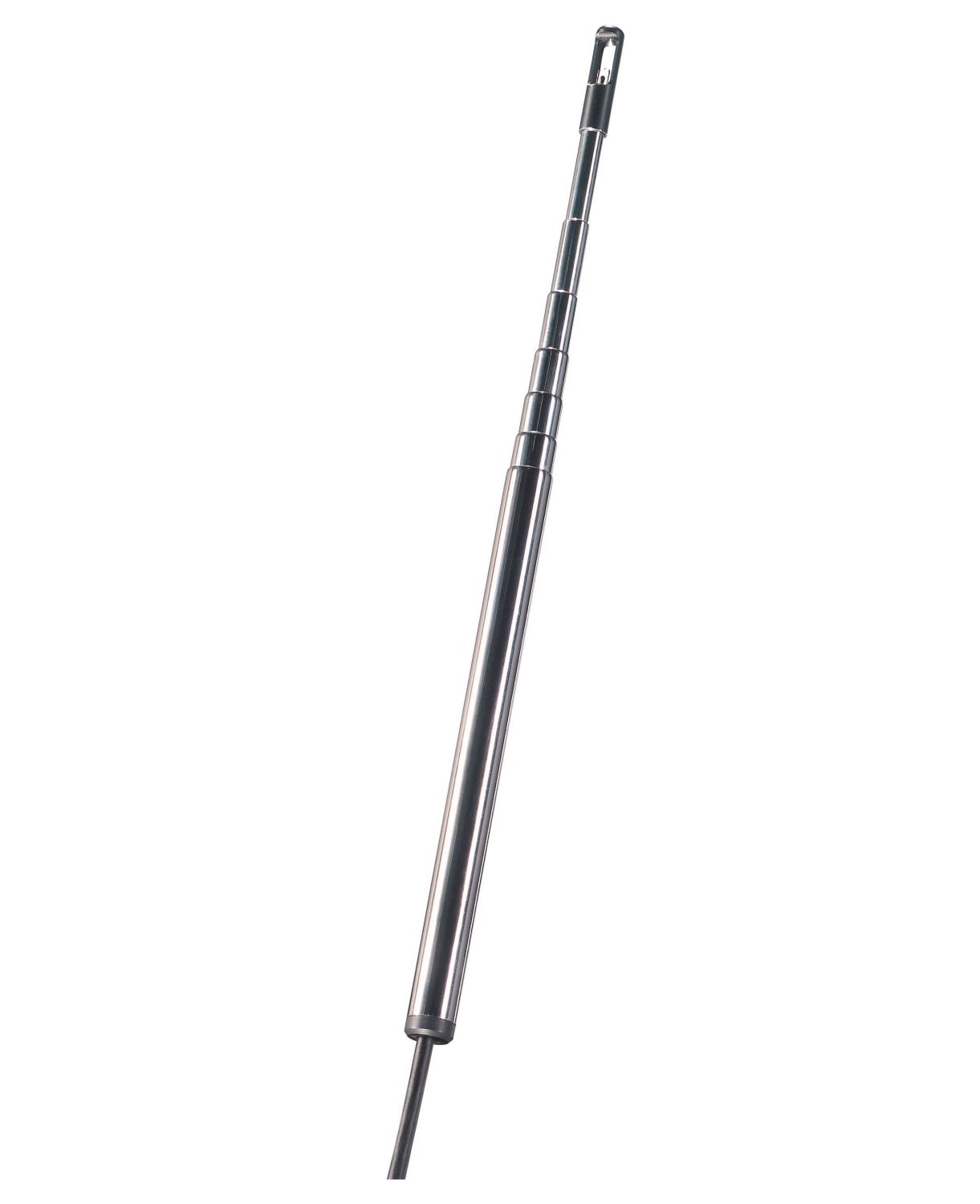

Hot wire probe (Ø 7.5 mm) - for flow and temperature

Part No. 0635 1570


Vane probe (Ø 16 mm, digital) - including temperature sensor, wired

Part No. 0635 9572

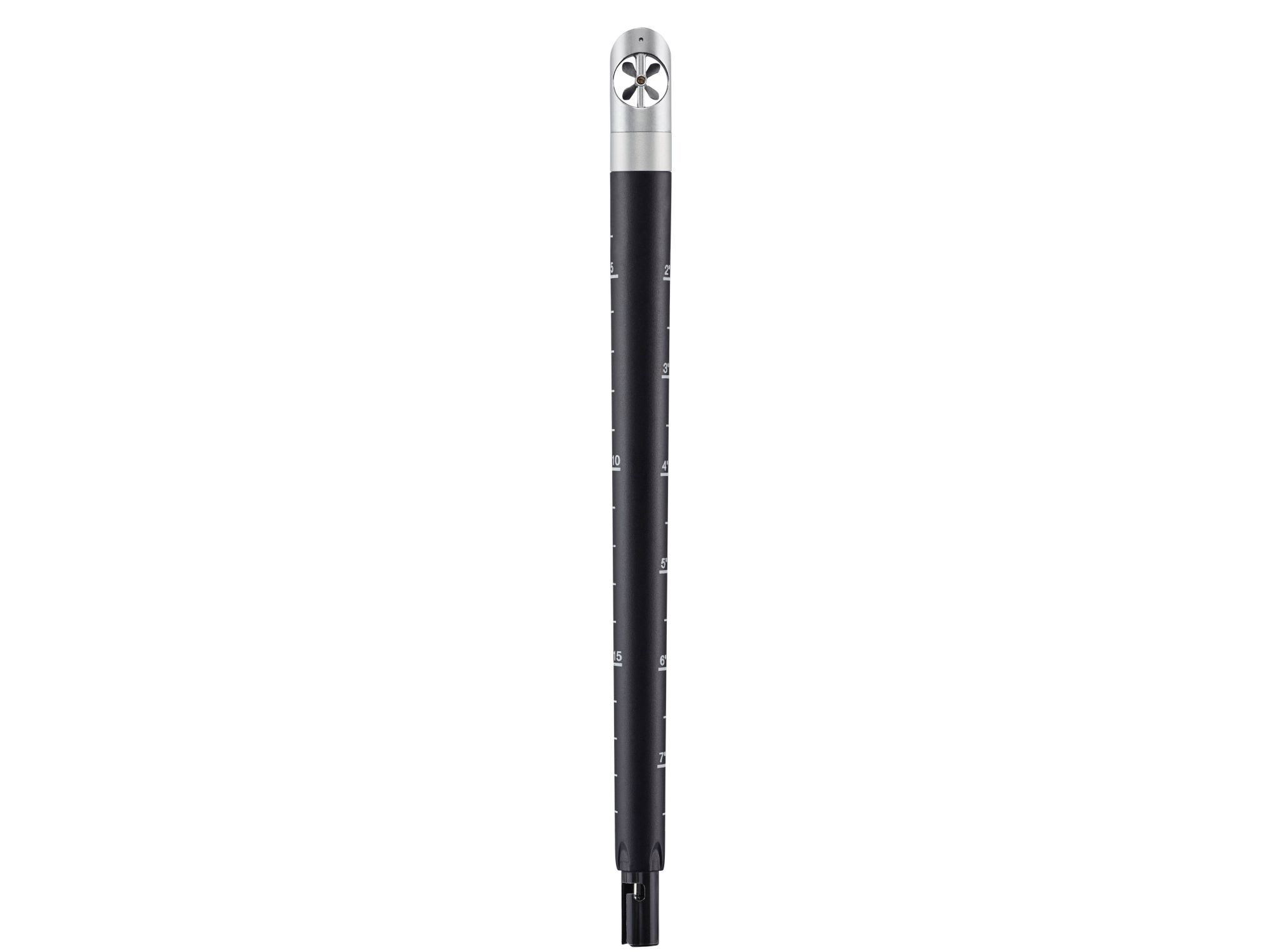

16 mm vane probe head including temperature sensor

Part No. 0635 9570


Hot wire probe (digital) - including temperature sensor, wired

Part No. 0635 1032

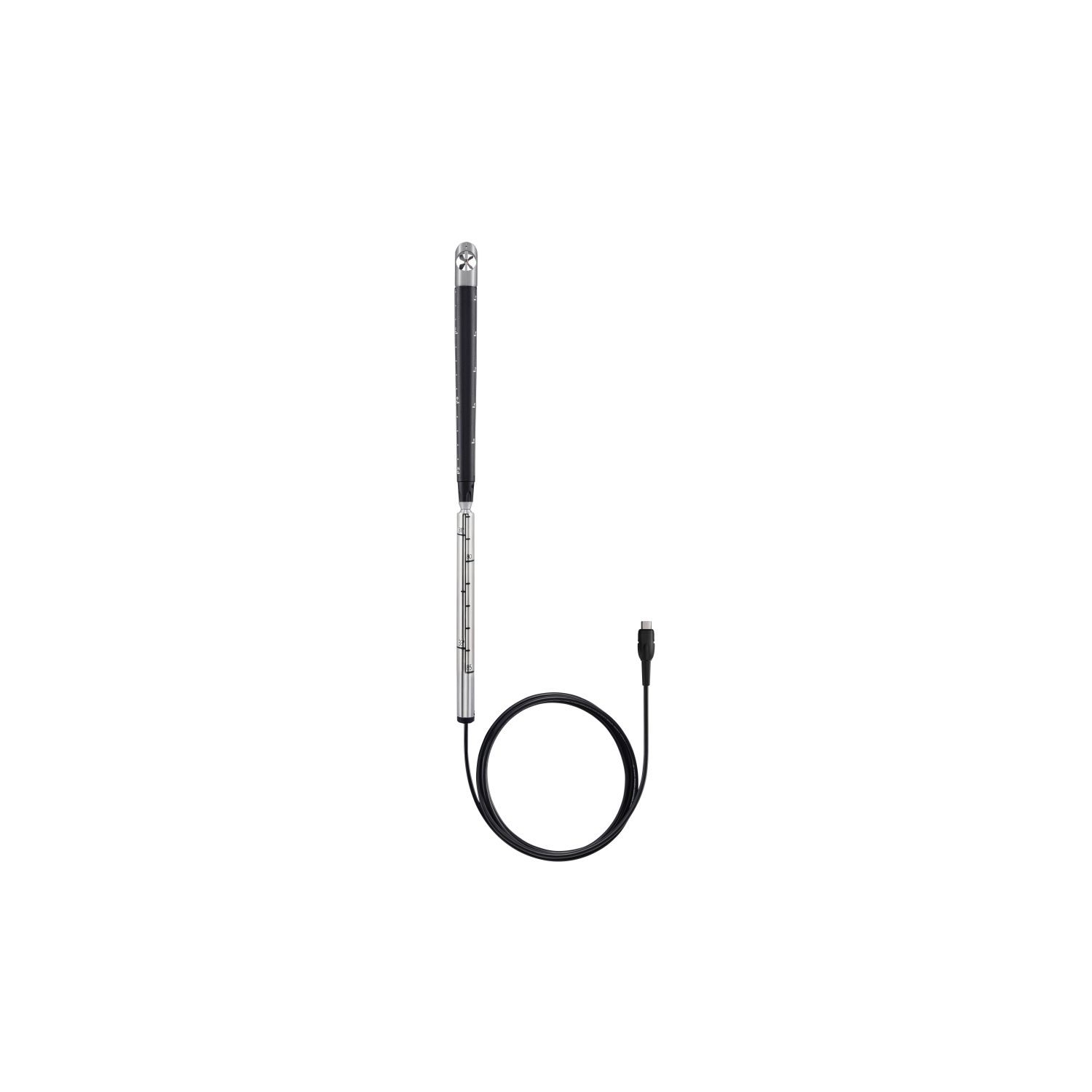

Vane probe (Ø 16 mm, digital) - wired

Part No. 0635 9532

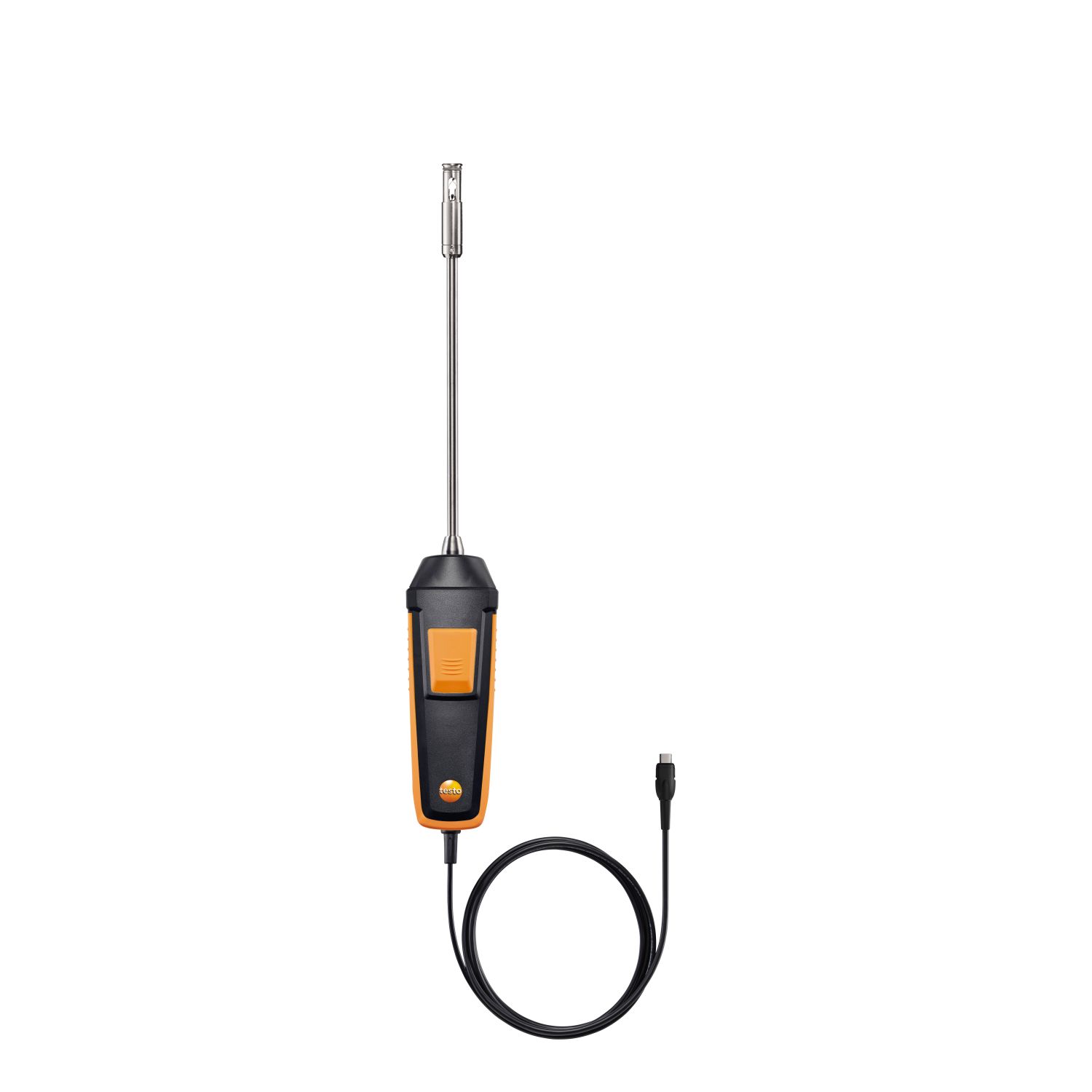

Fume cupboard probe (digital) - wired

Part No. 0635 1052

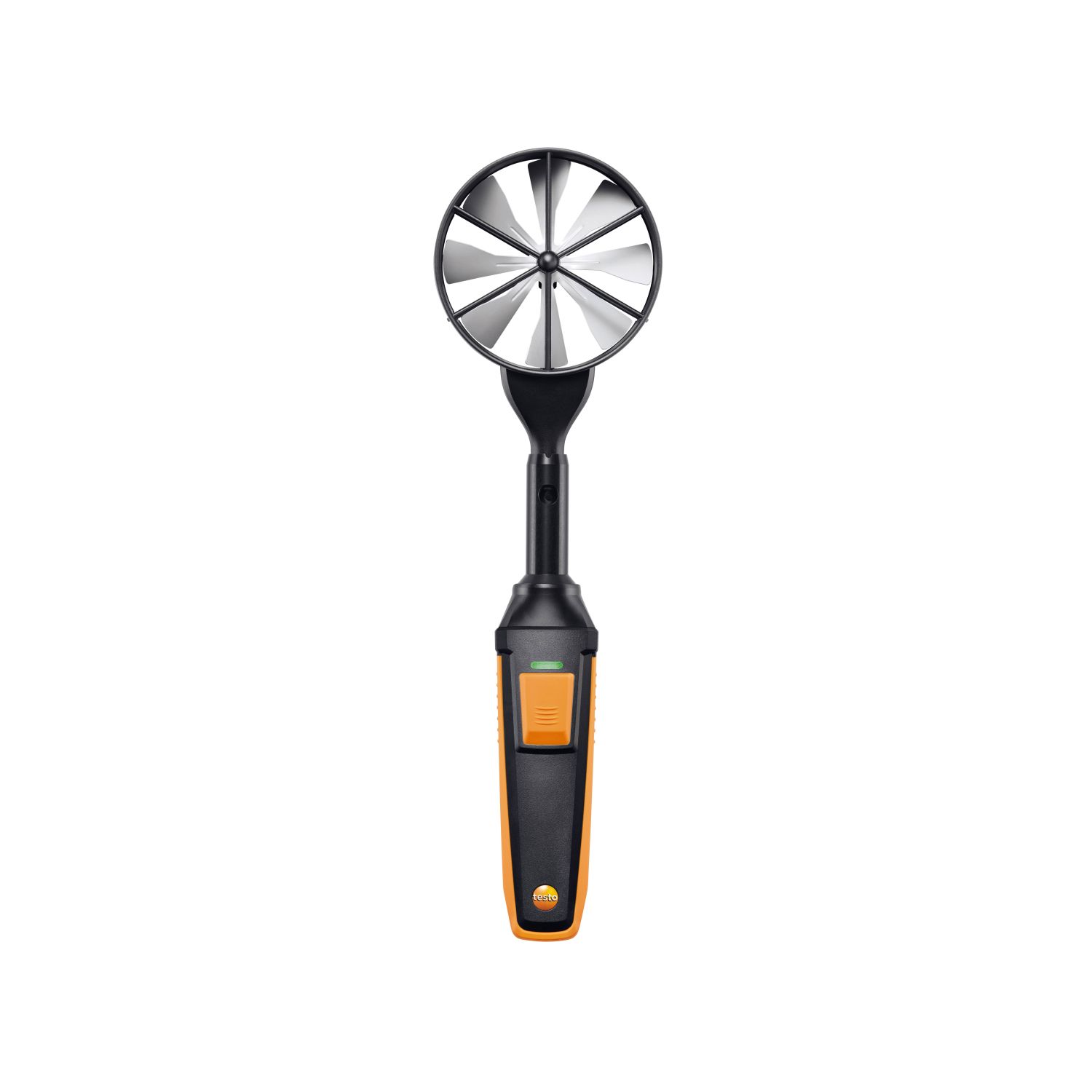

High-precision vane probe (Ø 100 mm, digital) - with Bluetooth® including temperature sensor

Part No. 0635 9371

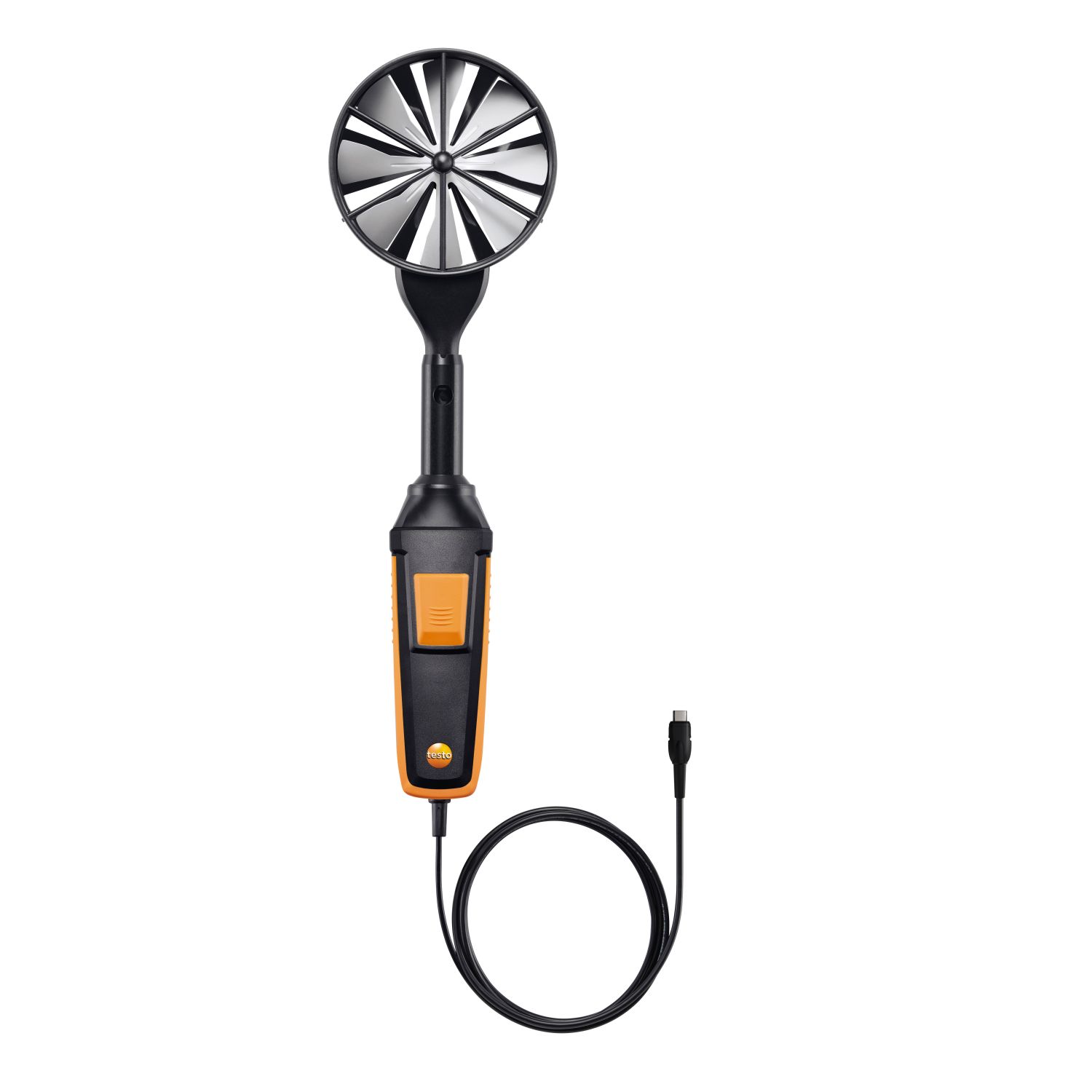

High-precision vane probe (Ø 100 mm, digital) - including temperature sensor, wired

Part No. 0635 9372

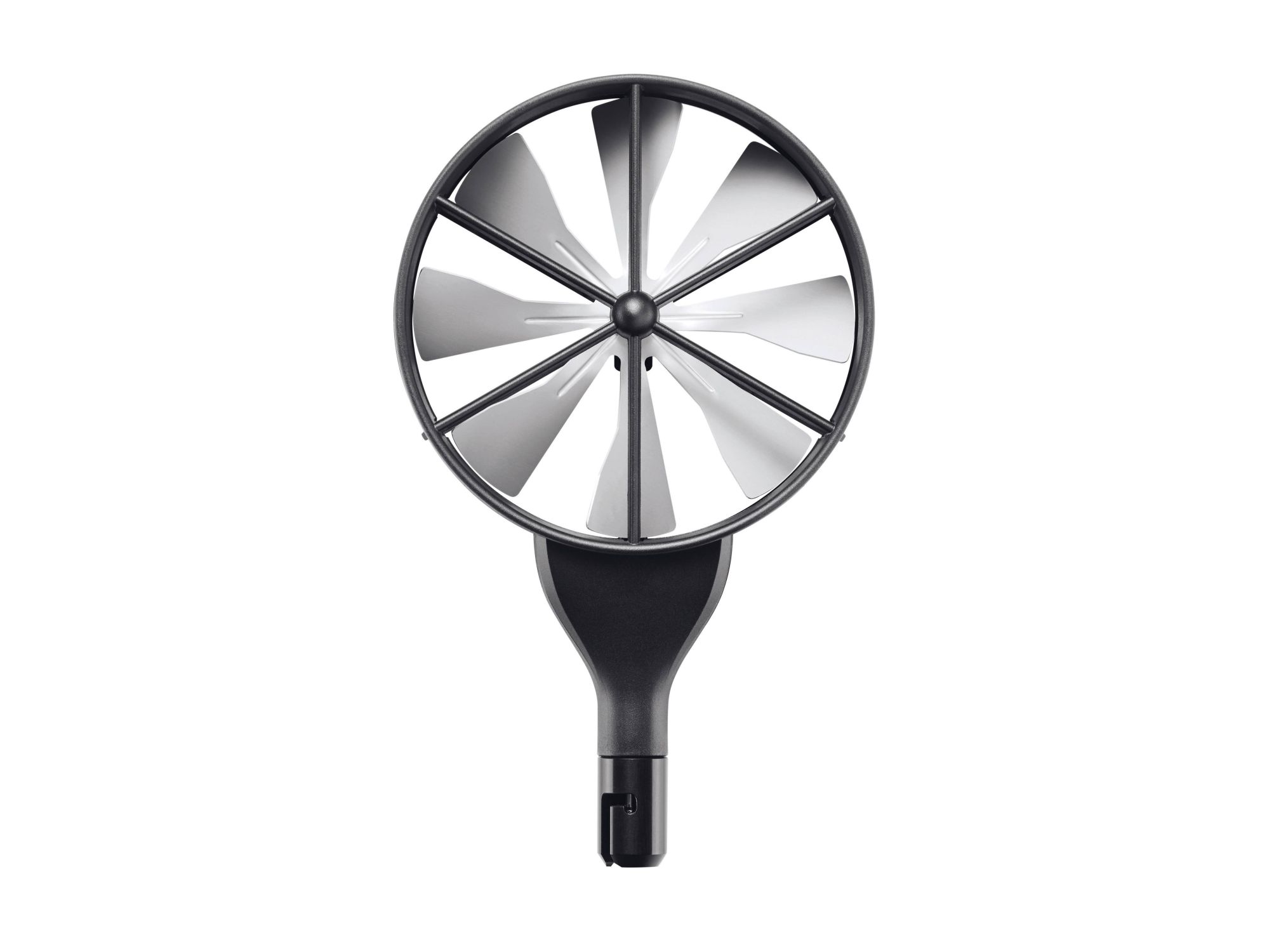

High-precision 100 mm vane probe head including temperature sensor

Part No. 0635 9370

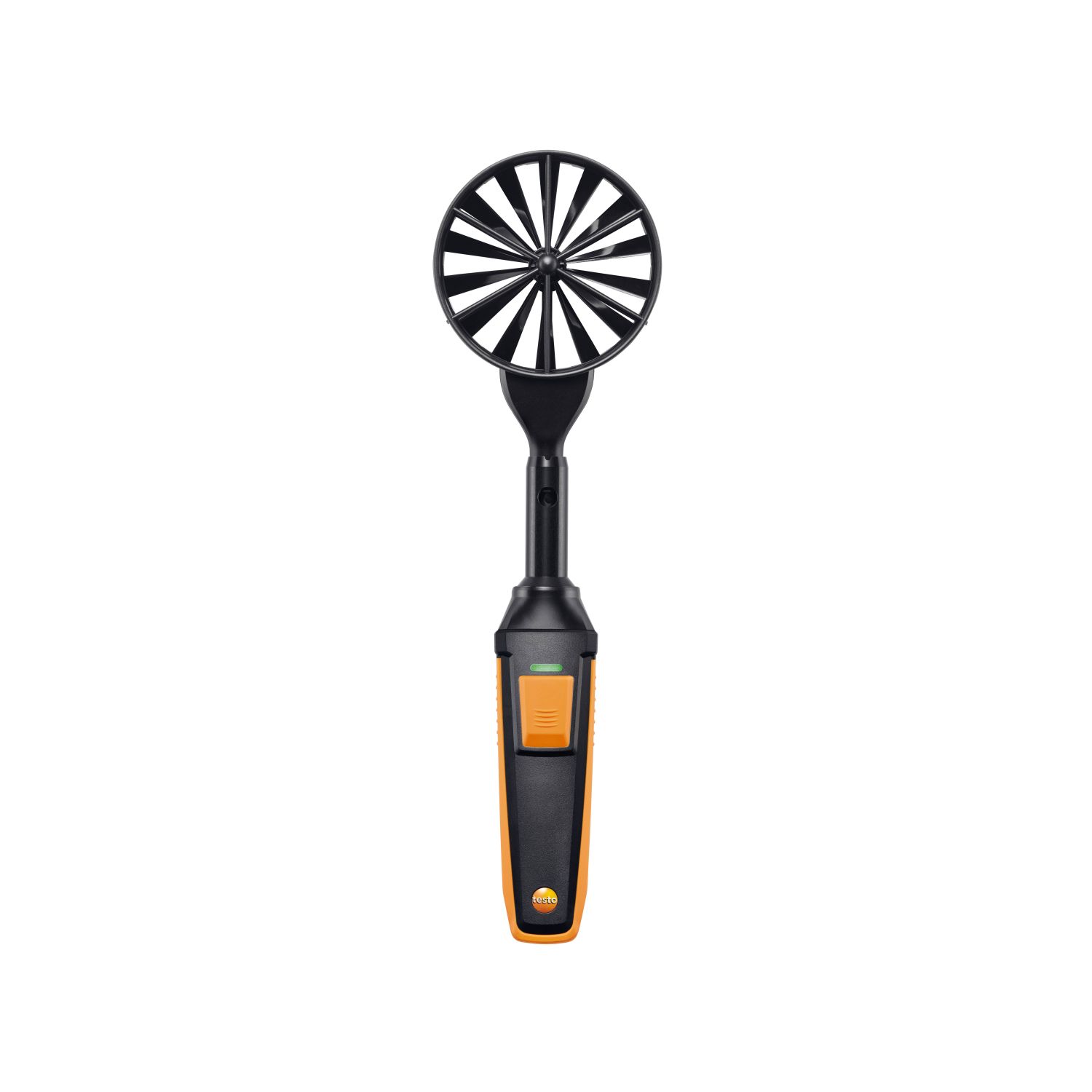

Vane probe (Ø 100 mm, digital) - with Bluetooth® including temperature sensor

Part No. 0635 9431

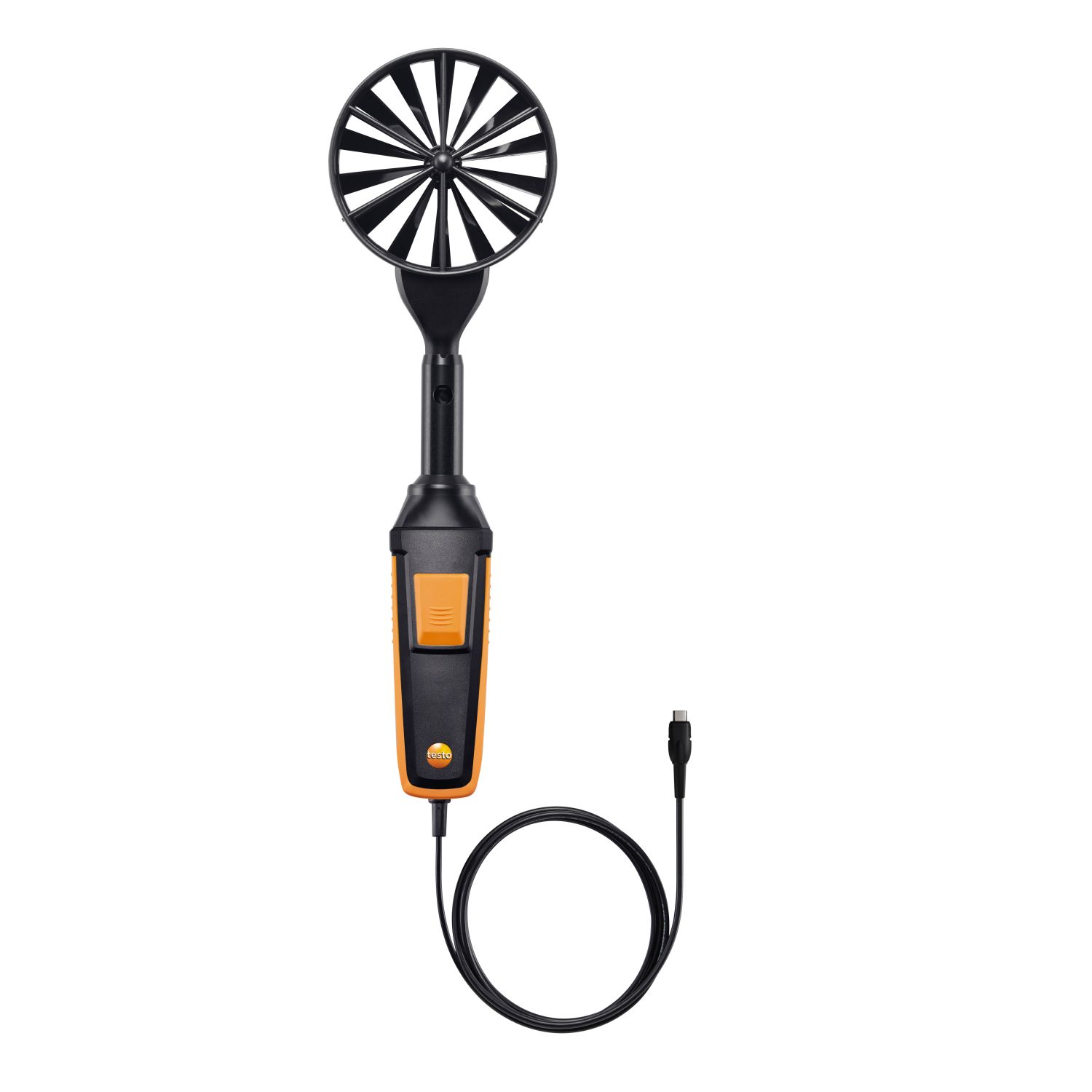

Vane probe (Ø 100 mm, digital) - including temperature sensor, wired

Part No. 0635 9432

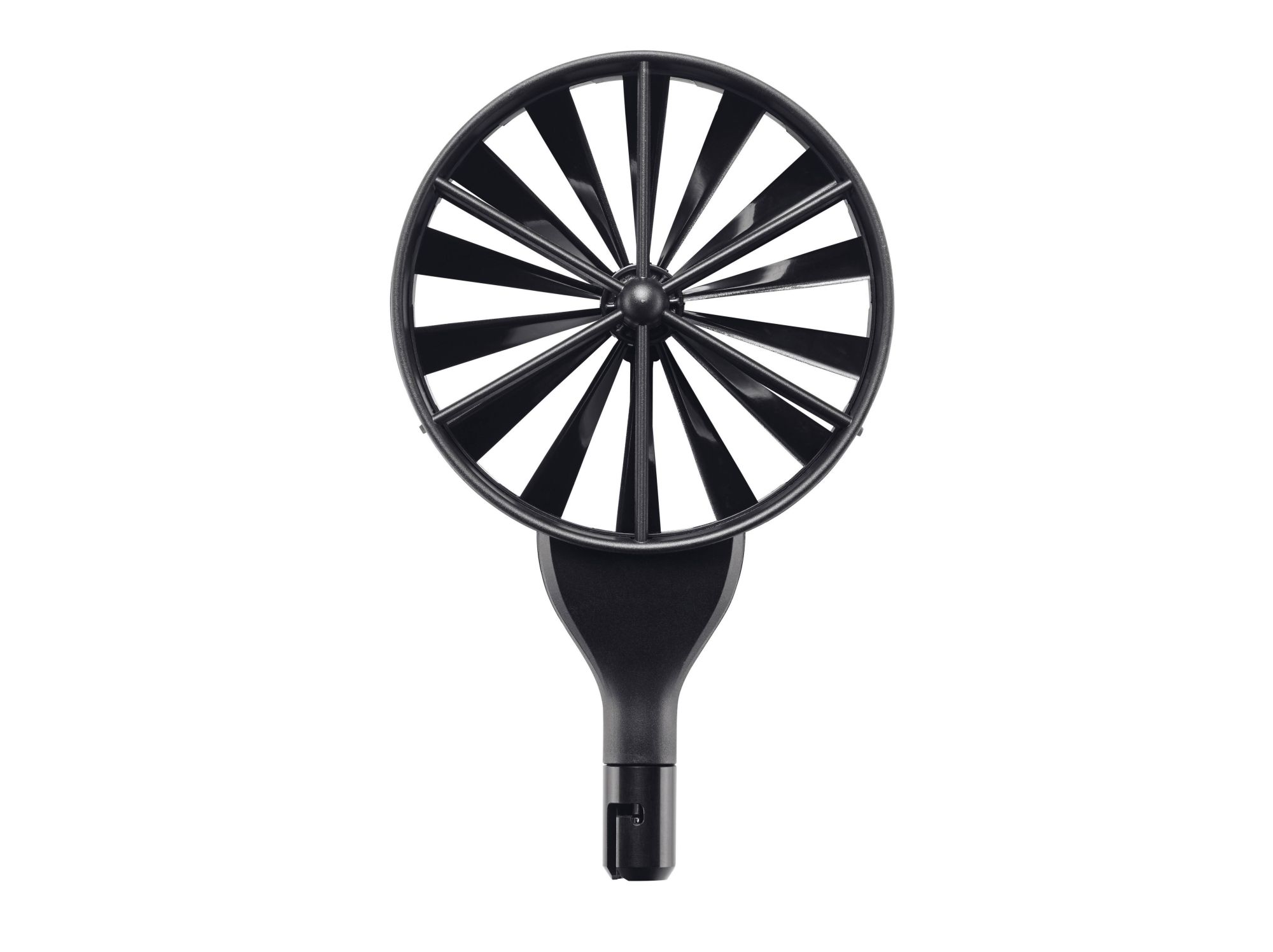

100 mm vane probe head

Part No. 0635 9430

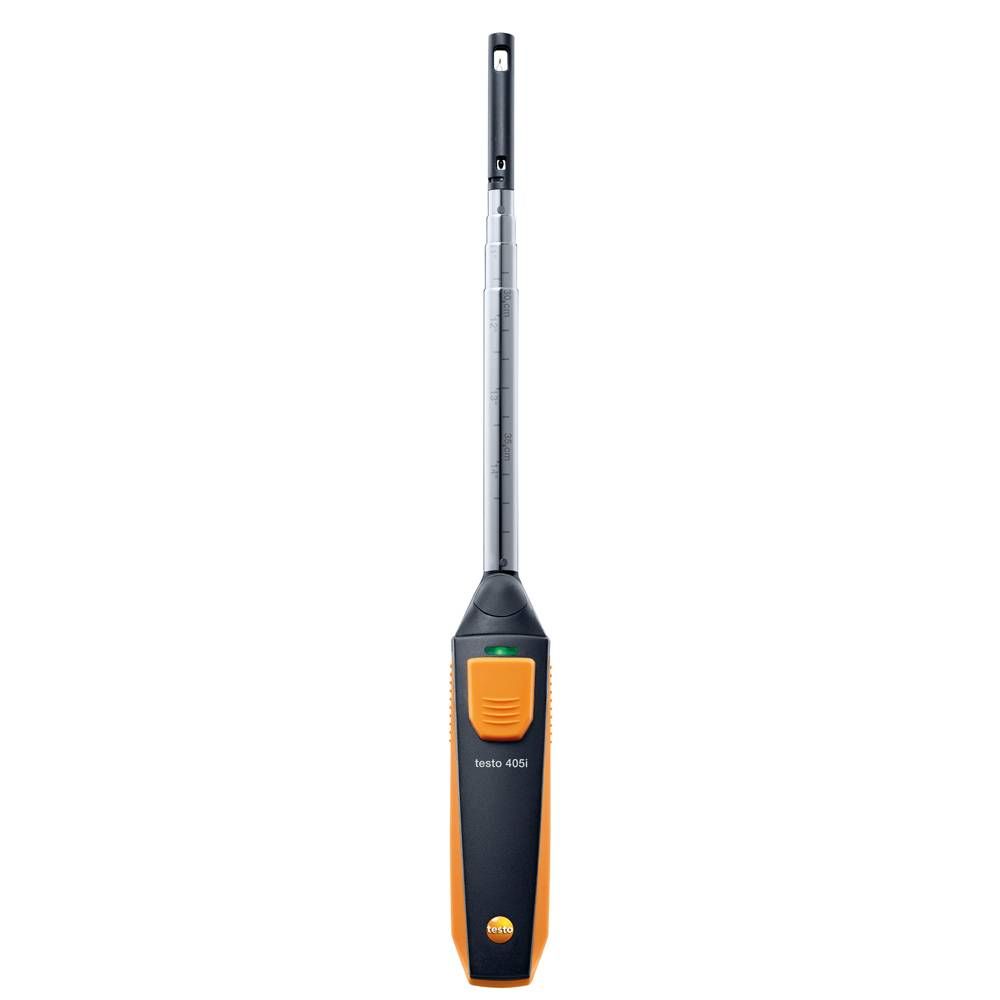

testo 405 i - thermal anemometer with smartphone operation

Part No. 0560 1405

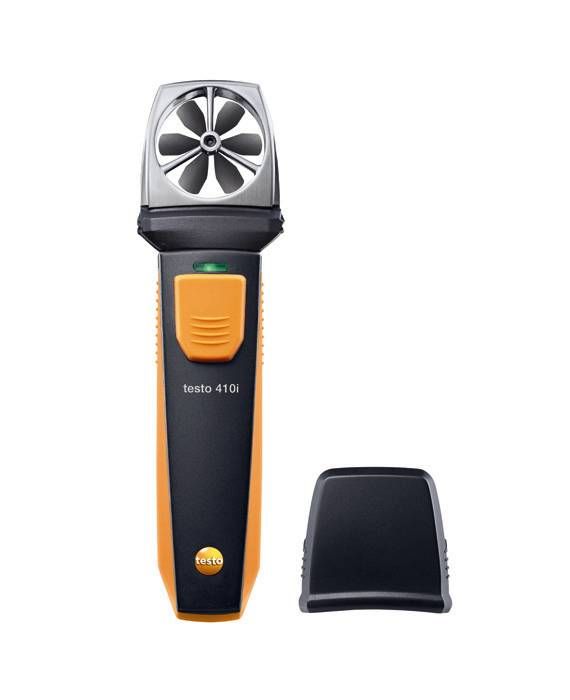

testo 410 i - vane anemometer with smartphone operation

Part No. 0560 1410

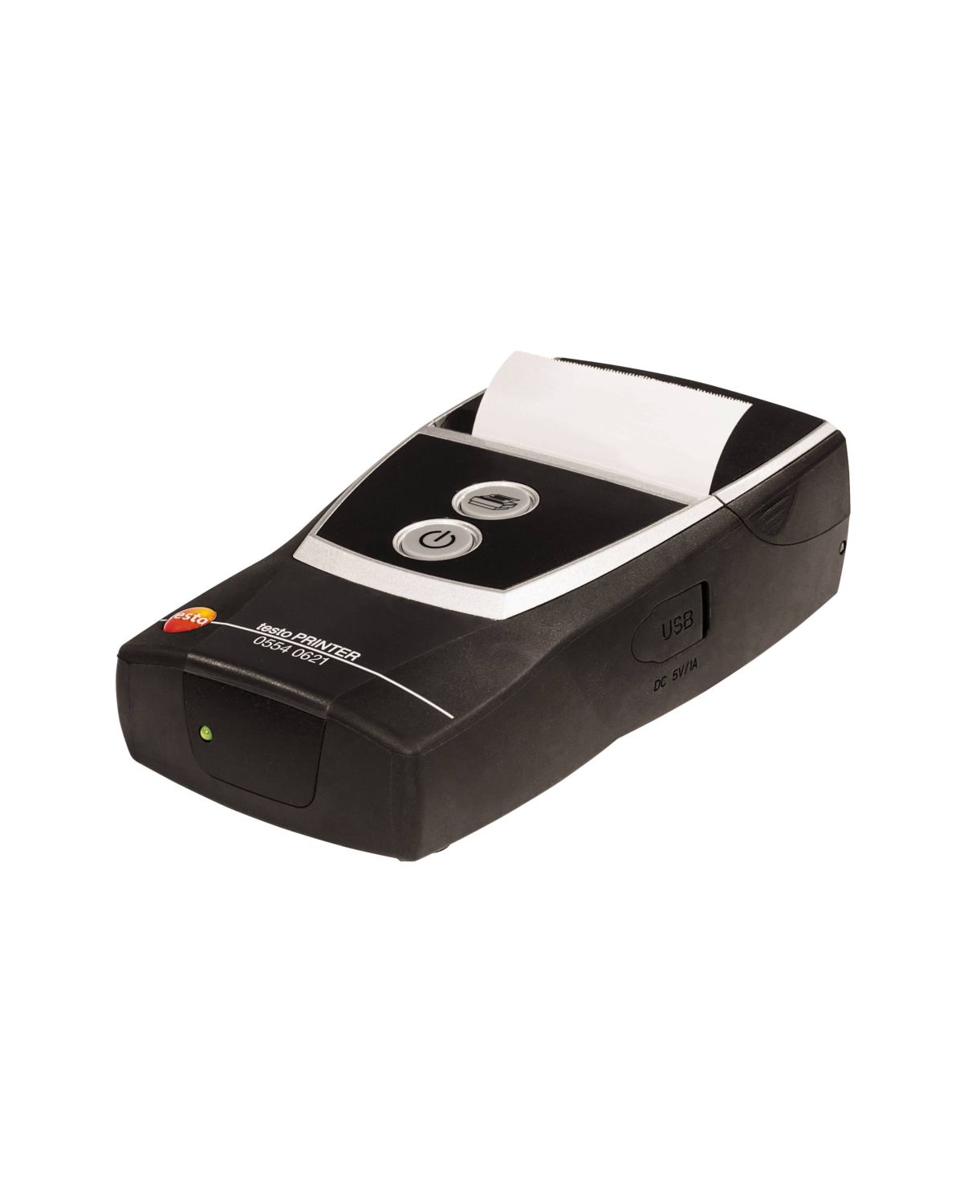

Bluetooth®/IRDA printer

Part No. 0554 0621

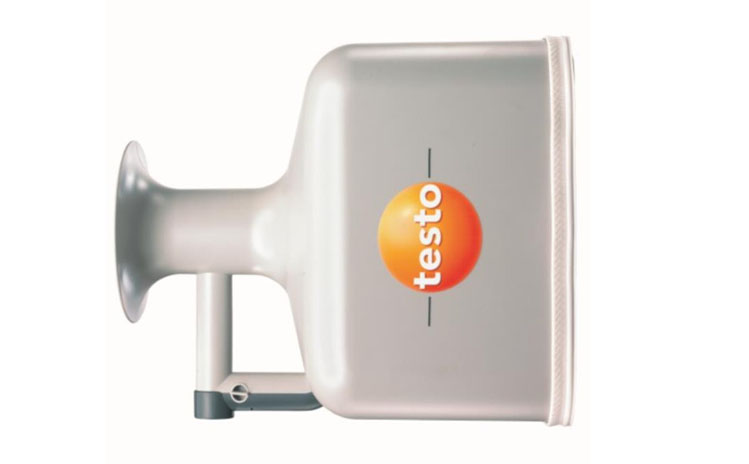

TESTOVENT 410, VOLUME FLOW FUNNEL, Ø 340 MM/330X330 MM, INCL. CASE

Part No. 0554 0410

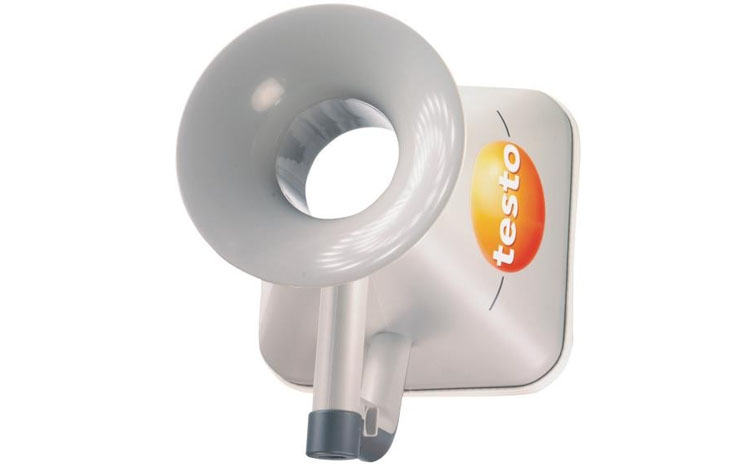

TESTOVENT 415, VOLUME FLOW FUNNEL, Ø 210 MM/210X210 MM, INCL. CASE

Part No. 0554 0415


testovent 417 - funnel set for volume flow measurement

Part No. 0563 4170

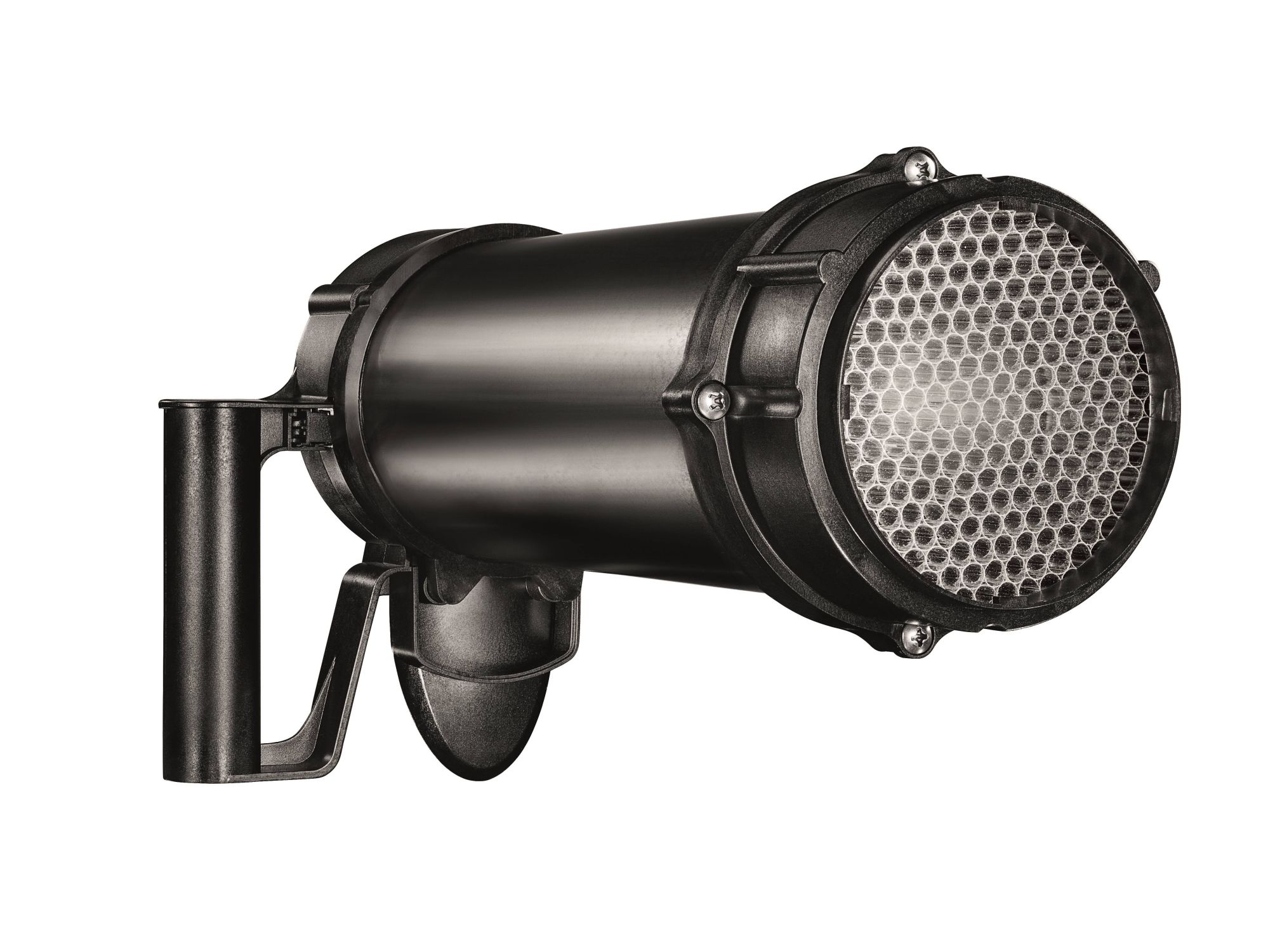

testovent 417

Part No. 0554 4172

Flow straightener testovent 417

Key Features:
  • More accurate volume flow measurement independent of the swirl direction
  • Reliable measurement results on swirl outlets
  • Flow straightener retrofittable for existing Testo funnels sets

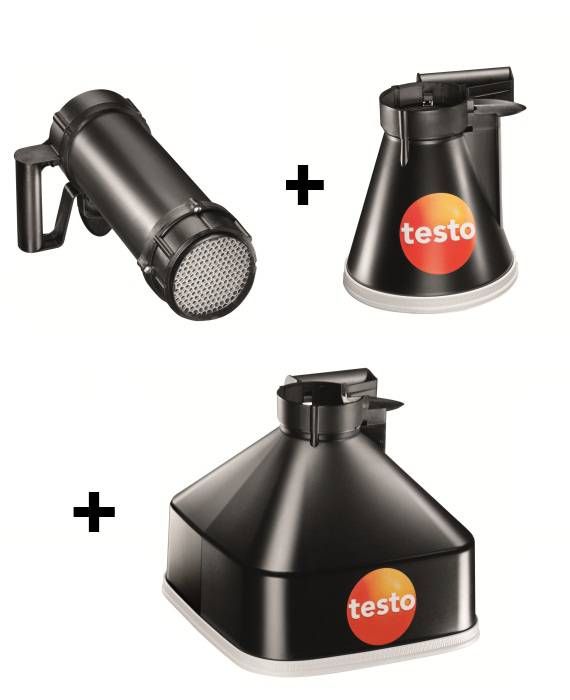

testovent 417 - flow straightener set for volume flow

Part No. 0554 4173

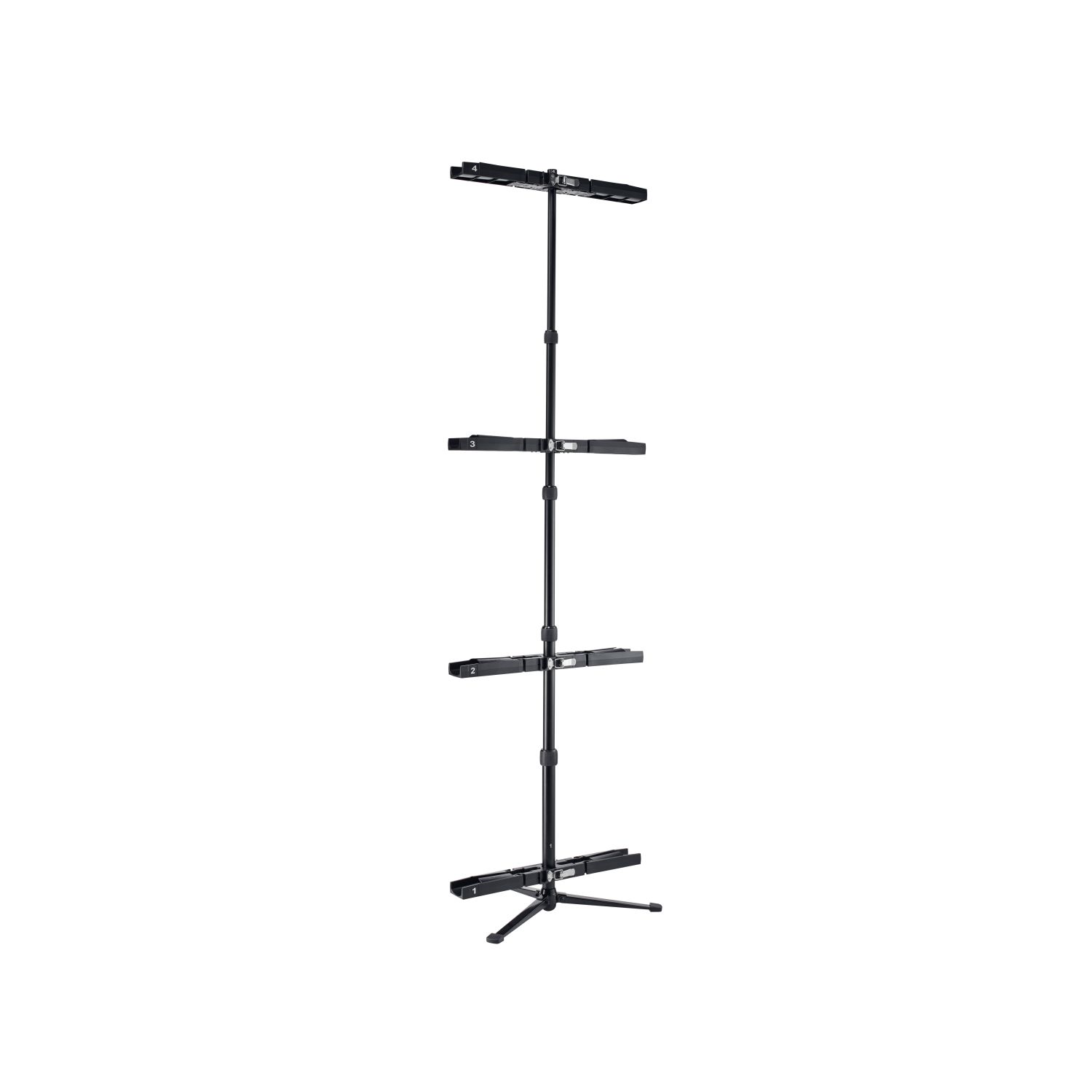

Measuring tripod for comfort level measurement, to ensure standard-compliant positioning of probes

Part No. 0554 1590

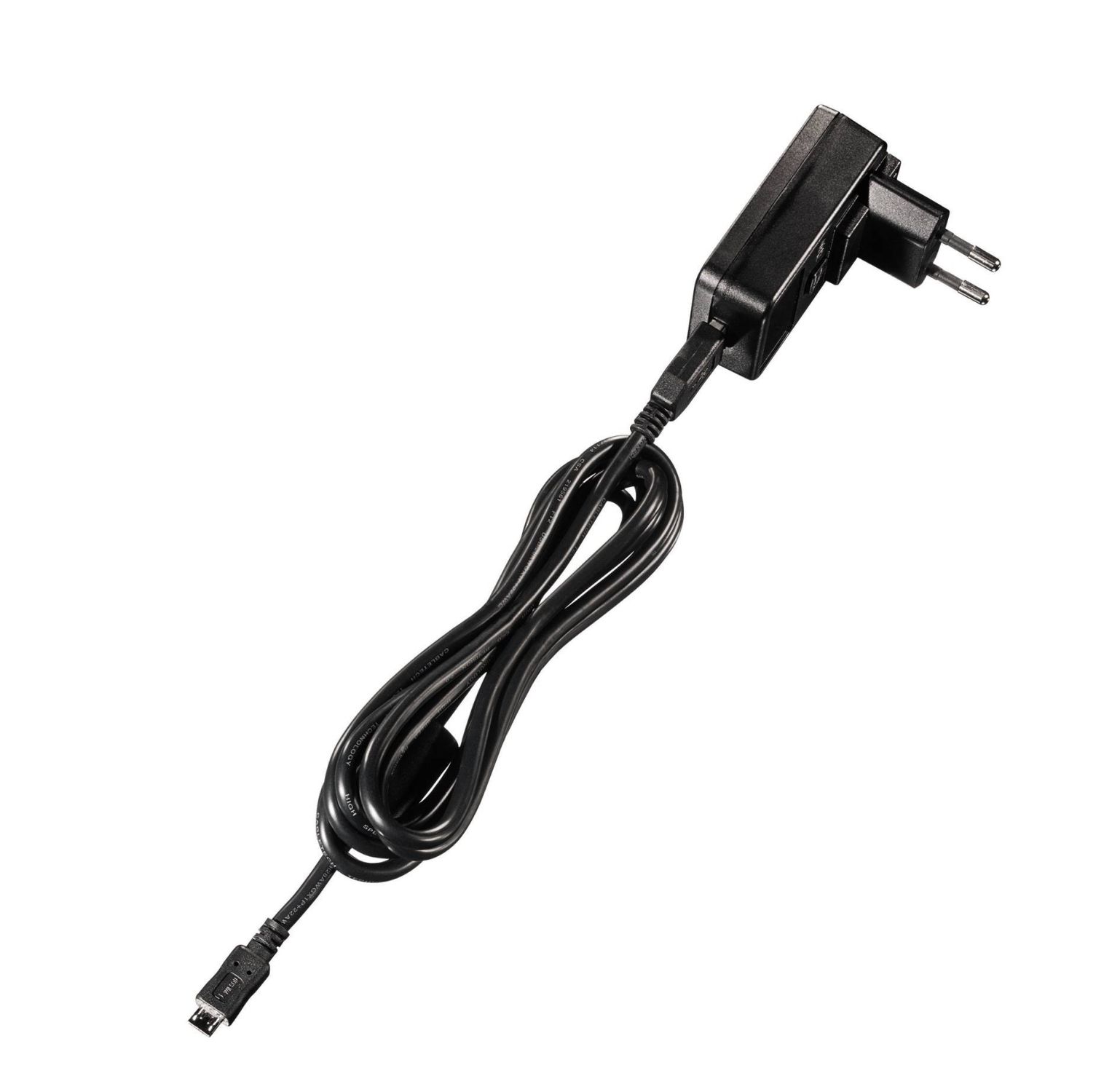

USB mains unit incl. cable

Part No. 0554 1105

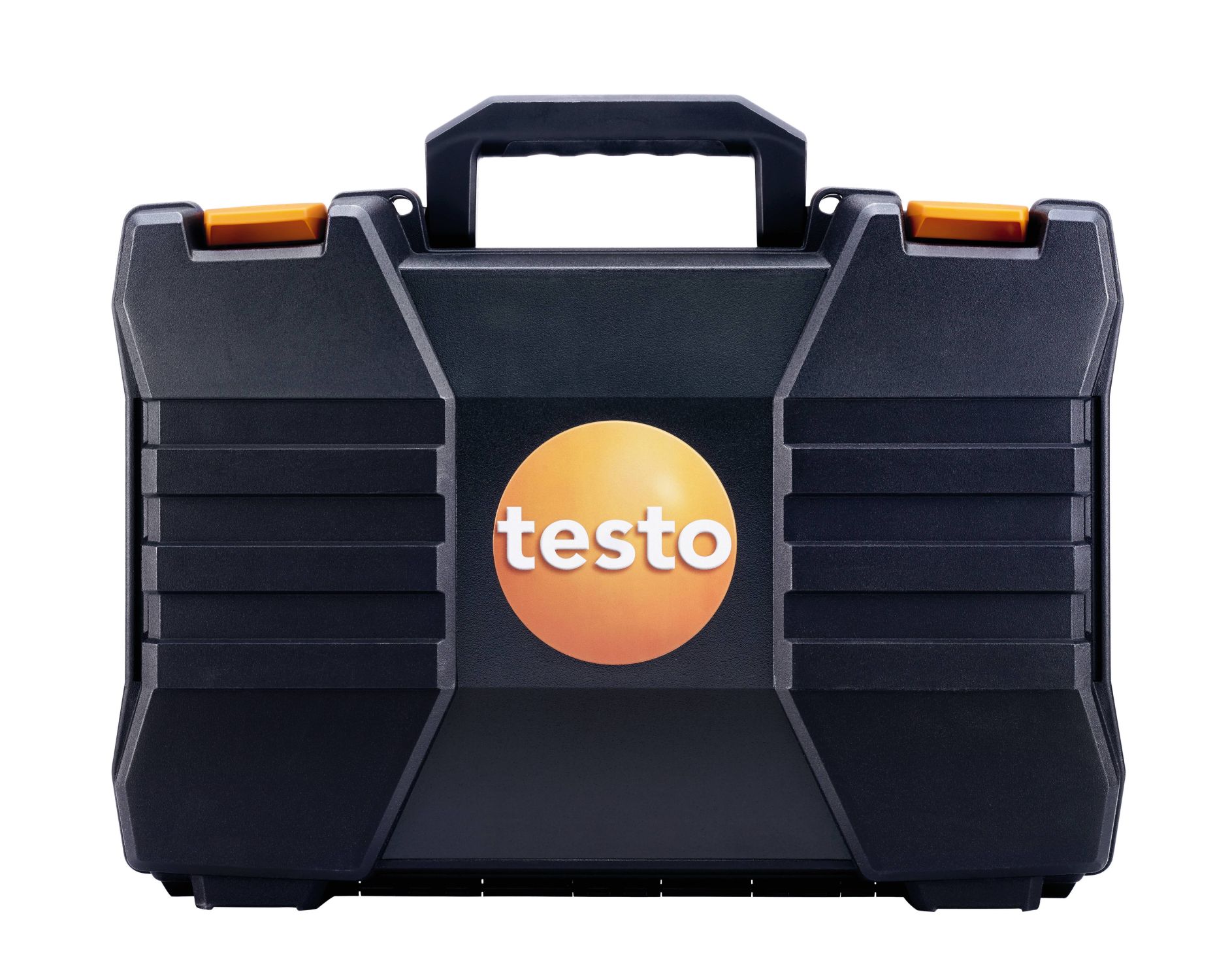

Service case for volume flow measurement

Part No. 0516 4900

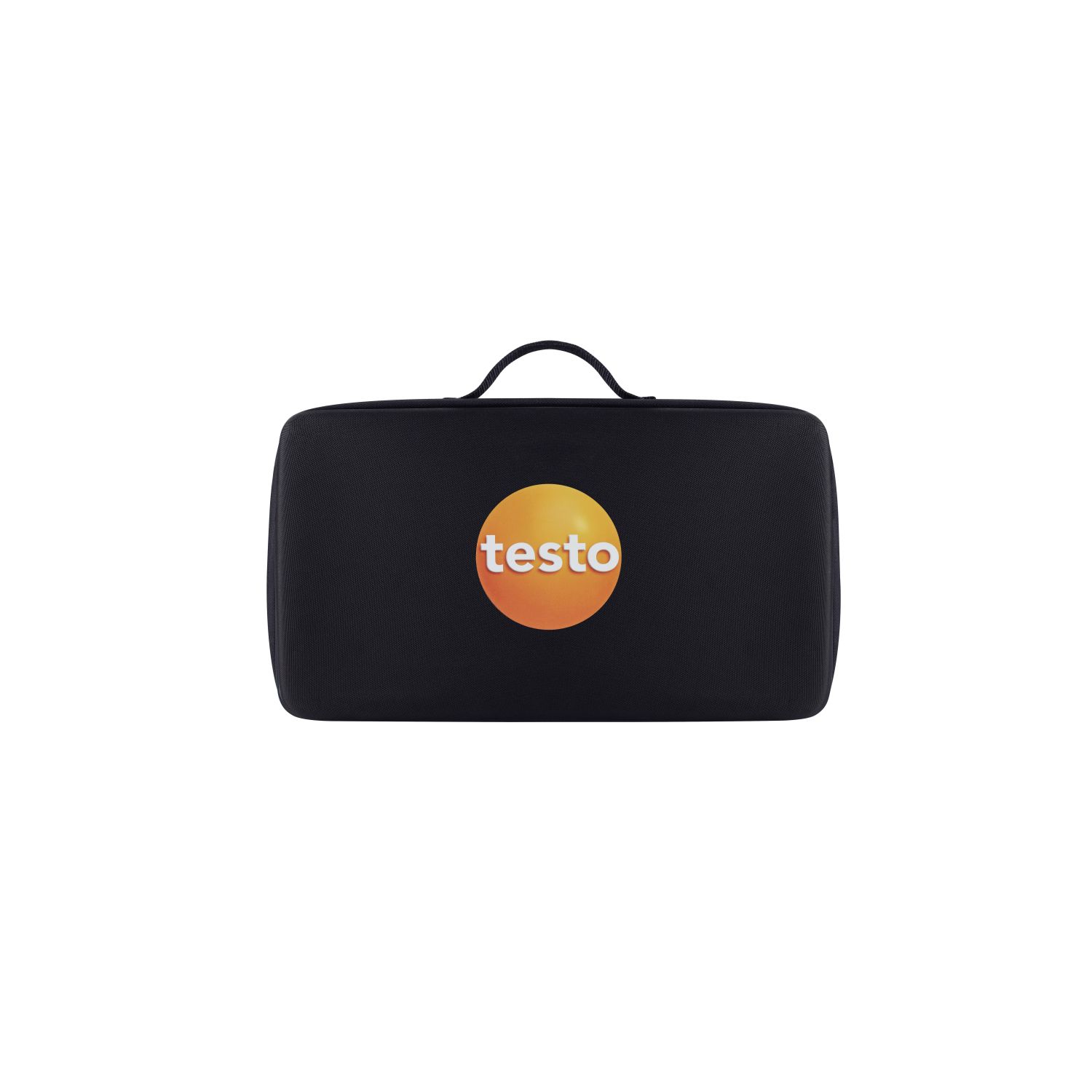

Combi-case for testo 440 and multiple probes

Part No. 0516 4401
