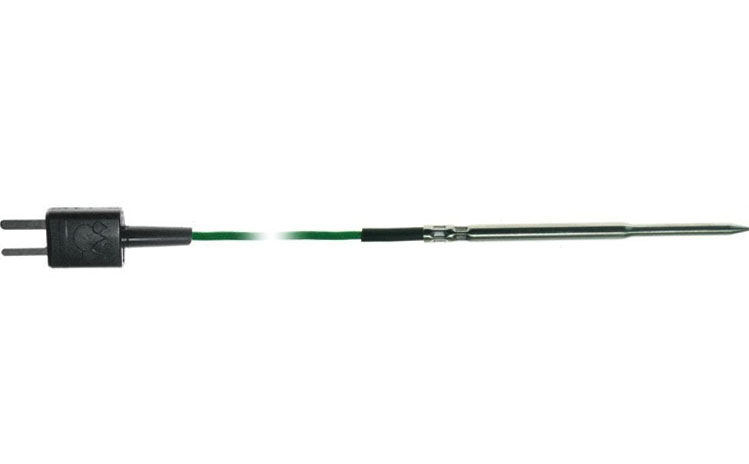

TEMPERATURE PROBE WITH PENETRATION TIP (TC TYPE K)

Part No. 0572 9001

Key Features:

TC Type K temperature probe with exceptionally flat cable, which can be pushed through narrow openings, e.g. through slits in doors
Temperature measurement in pastes and semi-solid media and also in liquids and air

Temperature - TC Type K (NiCr-Ni)
  • Measuring range -40 to +220 °C
  • Accuracy Class 1
  • Reaction time 7 s

General Technical Data
  1. Length probe shaft 60 mm
  2. Protection class IP54
  3. Cable length 2 m
  4. Diameter probe shaft tip 3.6 mm
  5. Diameter probe shaft 5 mm
  6. Length probe shaft tip 30 mm

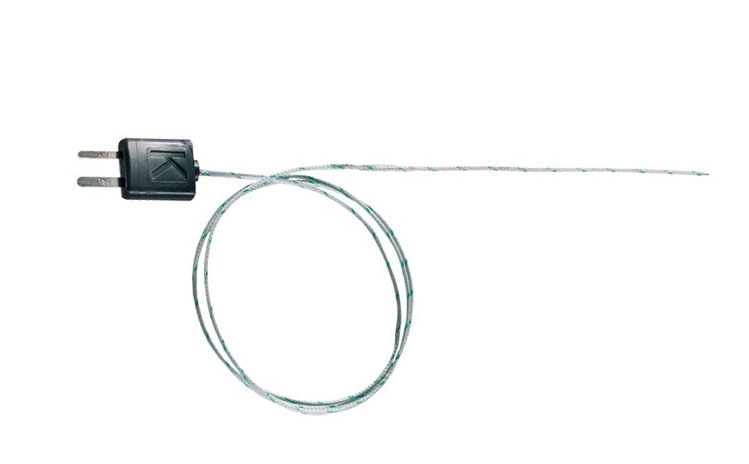

THERMOCOUPLE WITH TC ADAPTER, FLEXIBLE, 800 MM LONG, FIBRE GLASS, TC TYPE K

Part No. 0602 0644

Temperature - TC Type K (NiCr-Ni)
  • Measuring range -50.0° t1 400.0 °C
  • Accuracy Class 2 ¹⁾
  • Reaction time 5 s

1) According to standard EN 60584-2, the accuracy of Class 1 refers to -40 to +1000 °C (Type K), Class 2 to -40 to +1200 °C (Type K), Class 3 to -200 to +40 °C (Type K).

General Technical Data
  • Diameter probe shaft 1.5 mm
  • Length probe shaft 800 mm


Thermocouple with TC adapter, flexible, length 1500 mm , fib...

Part No. 0602 0645

Temperature - TC Type K (NiCr-Ni)
  • Measuring range -50 to +400 °C
  • Accuracy Class 2 ¹⁾
  • Reaction time 5 s
1) According to standard EN 60584-2, the accuracy of Class 1 refers to -40 to +1000 °C (Type K), Class 2 to -40 to +1200 °C (Type K), Class 3 to -200 to +40 °C (Type K).

General Technical Data
  1. Diameter probe shaft 1.5 mm
  2. Length probe shaft 1,500 mm

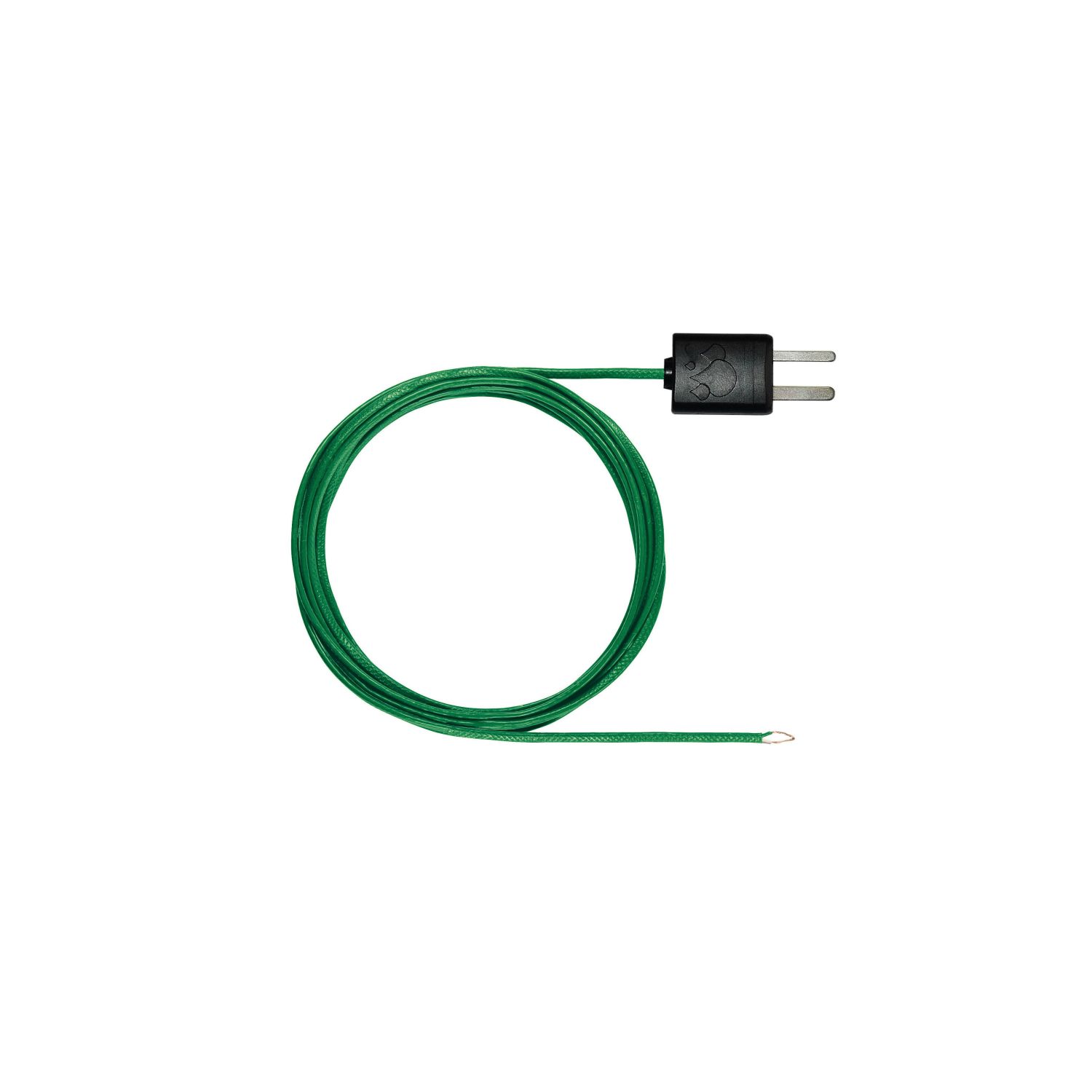

Thermocouple with TC adapter, flexible, 1500 mm long, PTFE, ...

Part No. 0602 0646

Temperature - TC Type K (NiCr-Ni)
  • Measuring range -50 to +250 °C
  • Accuracy Class 2 ¹⁾
  • Reaction time 5 s
1) According to standard EN 60584-2, the accuracy of Class 1 refers to -40 to +1000 °C (Type K), Class 2 to -40 to +1200 °C (Type K), Class 3 to -200 to +40 °C (Type K).

General Technical Data
  1. Cable length 1,500 mm
  2. Diameter probe shaft 1.5 mm

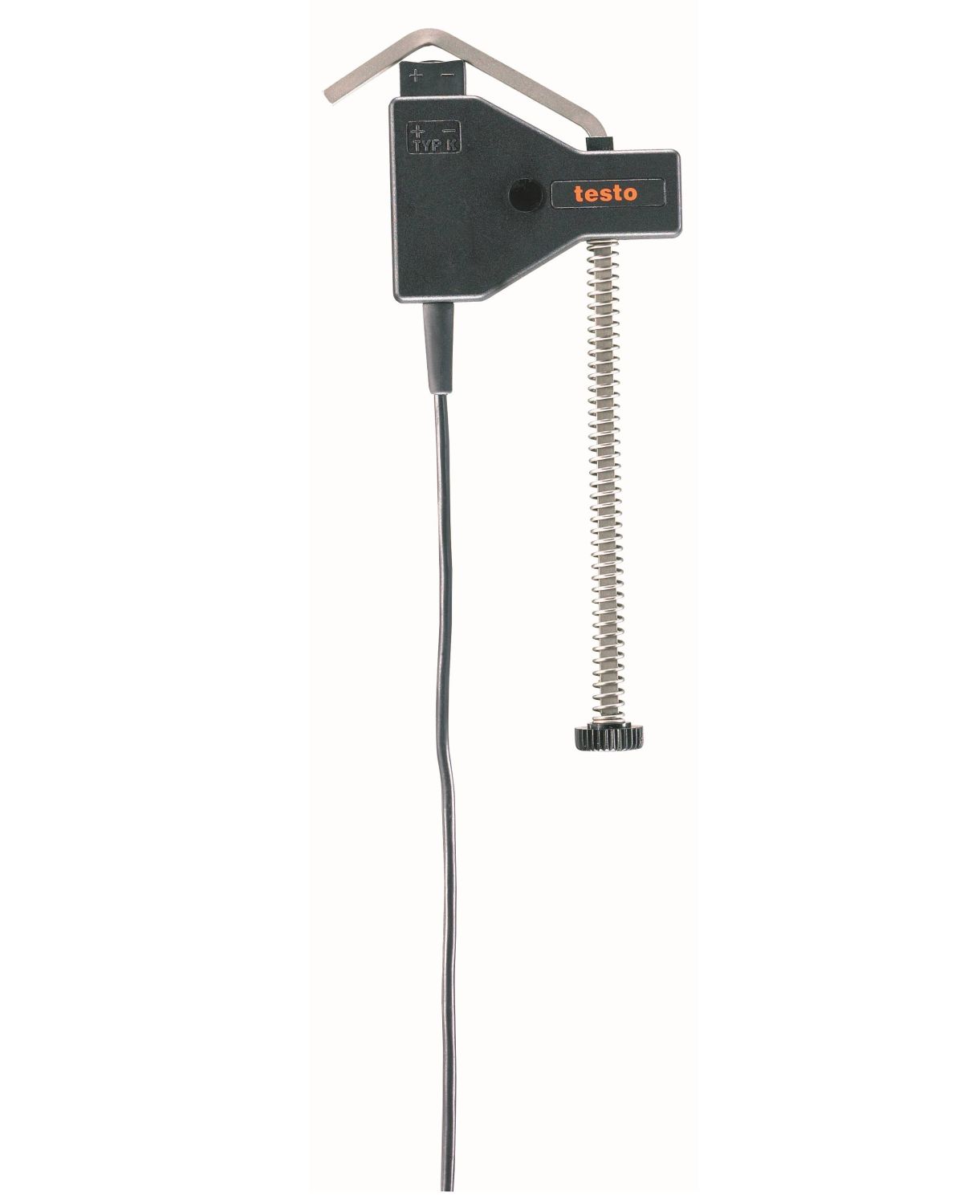

Temperature probe with clamping bracket (TC Type K)

Part No. 0602 4592

Key Features:

With clamping bracket: enables quick, easy attachment of the probe to pipes with a diameter of 5 to 65 mm
TC Type K temperature probe with 1.2 m cable
Measuring range: -60 to +130 °C, briefly up to +280 °C
Temperature - TC Type K (NiCr-Ni)
  • Measuring range -60 to +130 °C
  • Accuracy Class 2 ¹⁾
  • Reaction time 5 s
1) According to standard EN 60584-2, the accuracy of Class 1 refers to -40 to +1000 °C (Type K), Class 2 to -40 to +1200 °C (Type K), Class 3 to -200 to +40 °C (Type K).\

General Technical Data
  1. Diameter 5 mm; 65 mm
  2. Temperature maximum 280 °C
  3. Fixed cable yes
  4. Cable length 1.2 m

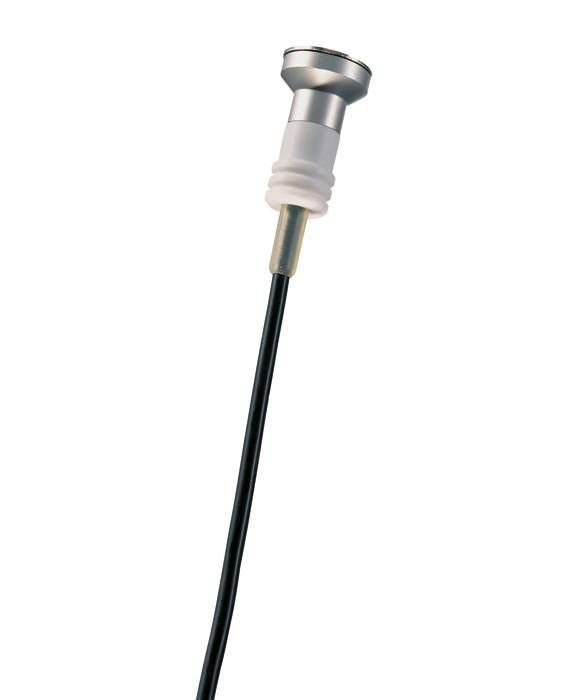

Magnetic probe (TC type K) - for surface temperatures

Part No. 0602 4792

Thermocouple type K
Adhesive force approx. 20 N
Can be connected to a wide range of measuring instruments/data loggers
Measuring range: -50 to +170 °C

Temperature - TC Type K (NiCr-Ni)
  • Measuring range -50 to +170 °C
  • Accuracy Class 2 ¹⁾
  • Reaction time 150 s
1) According to standard EN 60584-2, the accuracy of Class 1 refers to -40 to +1000 °C (Type K), Class 2 to -40 to +1200 °C (Type K), Class 3 to -200 to +40 °C (Type K).

General Technical Data
  1. Adhesive force 20 N
  2. Length probe shaft 35 mm
  3. Fixed cable yes
  4. Cable length 1.6 m
  5. Diameter probe shaft tip 20 mm

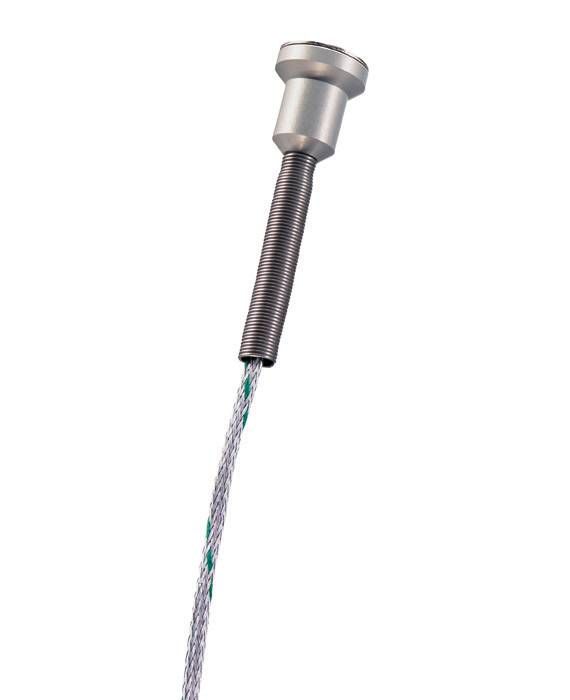

Temperature probe with magnet (TC Type K)

Part No. 0602 4892

Key Features:

Self-adhesive thanks to a magnet: probe for measuring surface temperature on metal surfaces
TC Type K temperature probe with 1.6 m cable
Measuring range: -50 to +400 °C

Temperature - TC Type K (NiCr-Ni)
  • Measuring range -50 to +400 °C
  • Accuracy Class 2 ¹⁾
1) According to standard EN 60584-2, the accuracy of Class 1 refers to -40 to +1000 °C (Type K), Class 2 to -40 to +1200 °C (Type K), Class 3 to -200 to +40 °C (Type K).

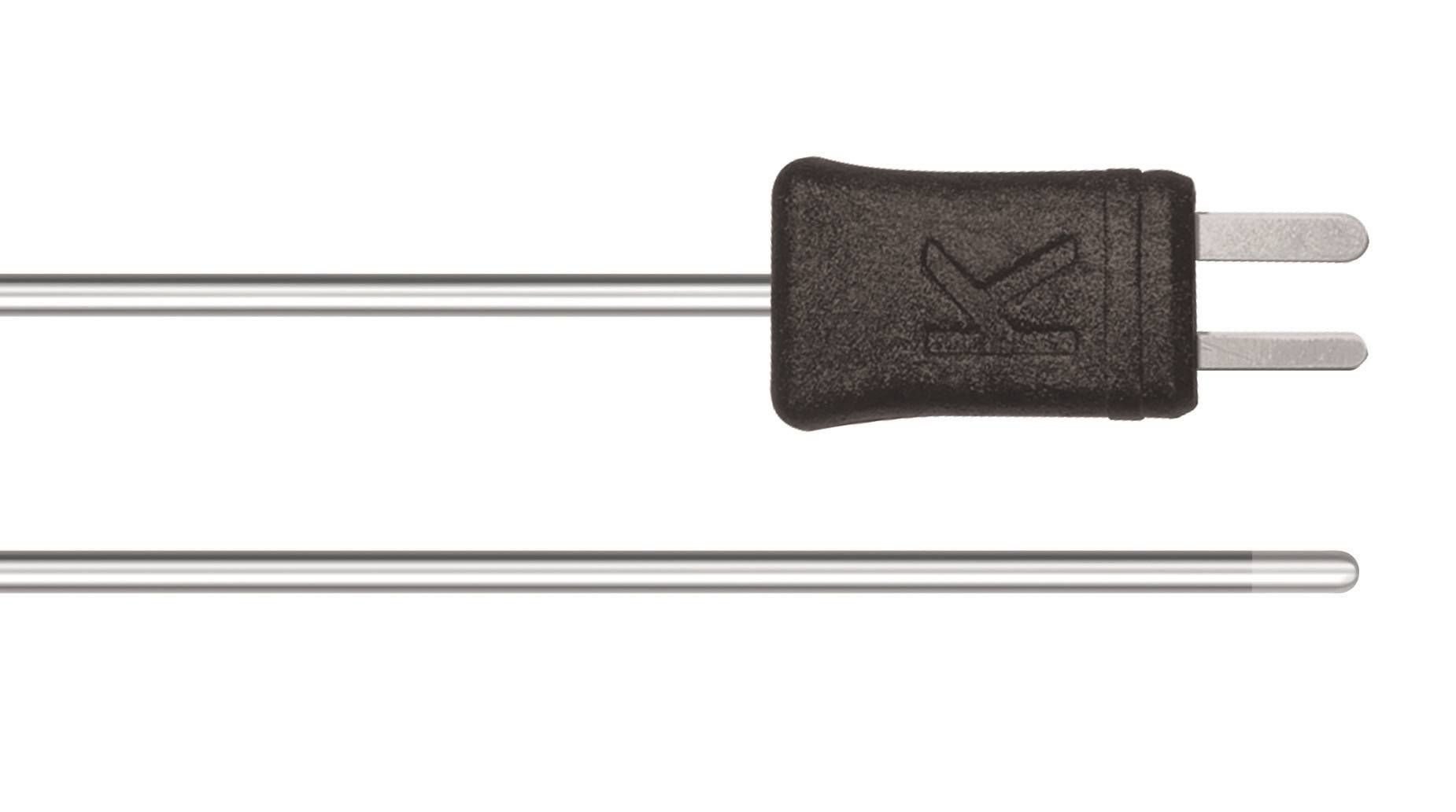

Immersion measurement tip, flexible, for measurements in air...

Part No. 0602 5693

Temperature - TC Type K (NiCr-Ni)
  • Measuring range -200 to +1300 °C
  • Accuracy Class 1 ¹⁾
  • Reaction time 4 s
1) According to standard EN 60584-2, the accuracy of Class 1 refers to -40 to +1000 °C (Type K), Class 2 to -40 to +1200 °C (Type K), Class 3 to -200 to +40 °C (Type K).

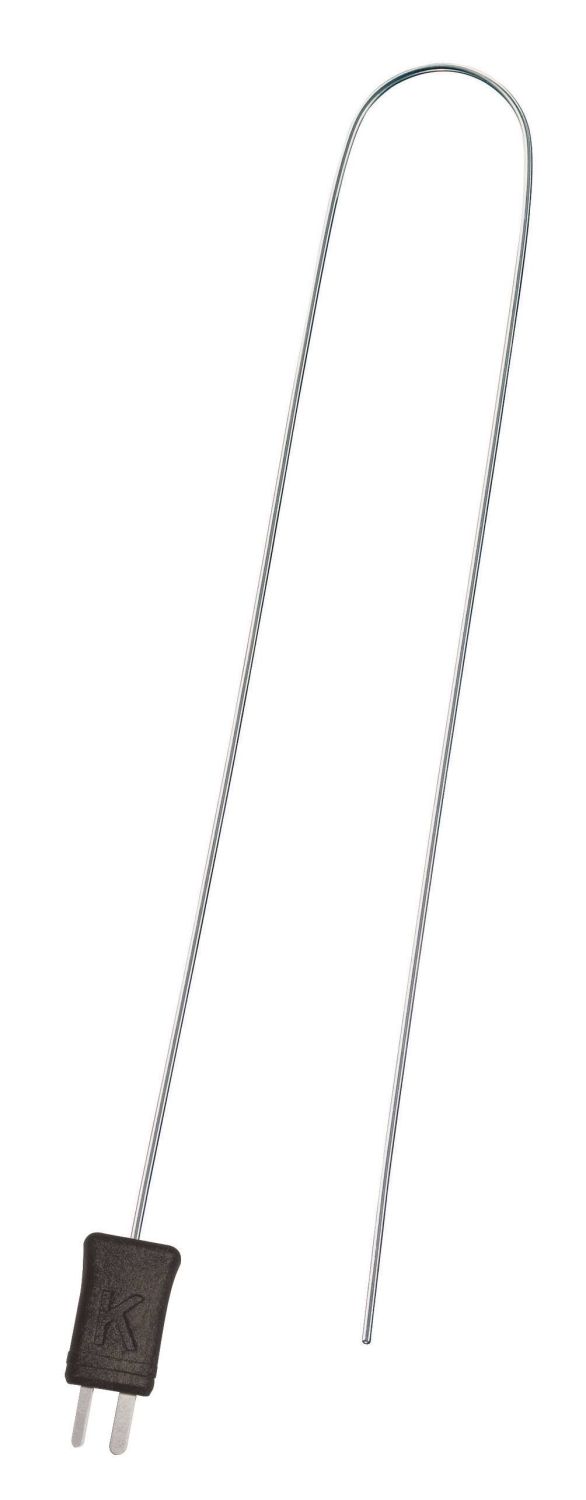

Immersion tip, flexible, TC Type K

Part No. 0602 5792

Temperature - TC Type K (NiCr-Ni)
  • Measuring range -200 to +1000 °C
  • Accuracy Class 1 ¹⁾
  • Reaction time 5 s
1) According to standard EN 60584-2, the accuracy of Class 1 refers to -40 to +1000 °C (Type K), Class 2 to -40 to +1200 °C (Type K), Class 3 to -200 to +40 °C (Type K).

General Technical Data
  1. Diameter probe shaft tip 1.5 mm
  2. Length probe shaft 500 mm

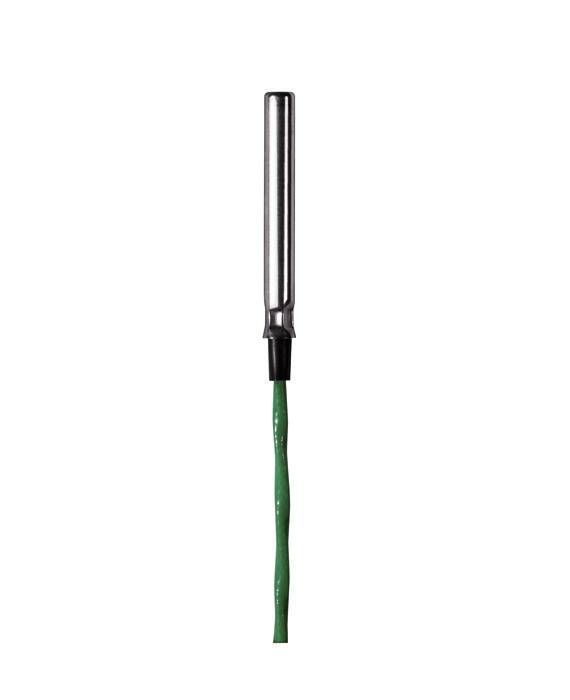

TEMPERATURE PROBE WITH STAINLESS STEEL SLEEVE (TC TYPE K)

Part No. 0628 7533

Key Features:


TC Type K temperature probe with stainless steel sleeve and 1.9 m cable

Temperature measurement in liquids, pastes and also in air


Temperature - TC Type K (NiCr-Ni)

  • Measuring range -50 to +250 °C
  • Accuracy Class 2 ¹⁾
  • Reaction time 20 s
1) According to standard EN 60584-2, the accuracy of Class 1 refers to -40 to +1000 °C (Type K), Class 2 to -40 to +1200 °C (Type K), Class 3 to -200 to +40 °C (Type K).

General Technical Data
  1. Fixed cable true
  2. Cable length 1.9 m
  3. Diameter probe shaft 6 mm
  4. Length probe shaft 40 mm

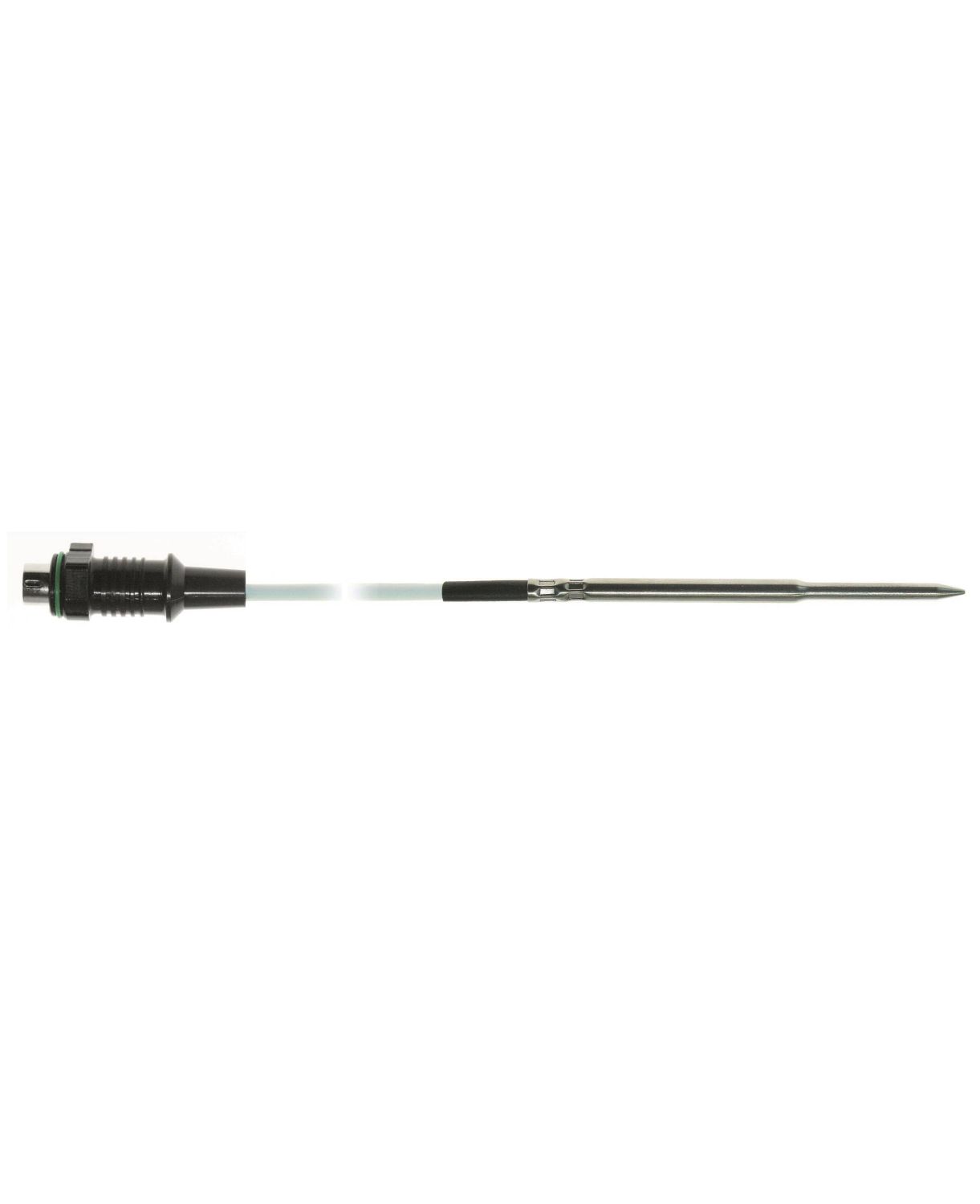

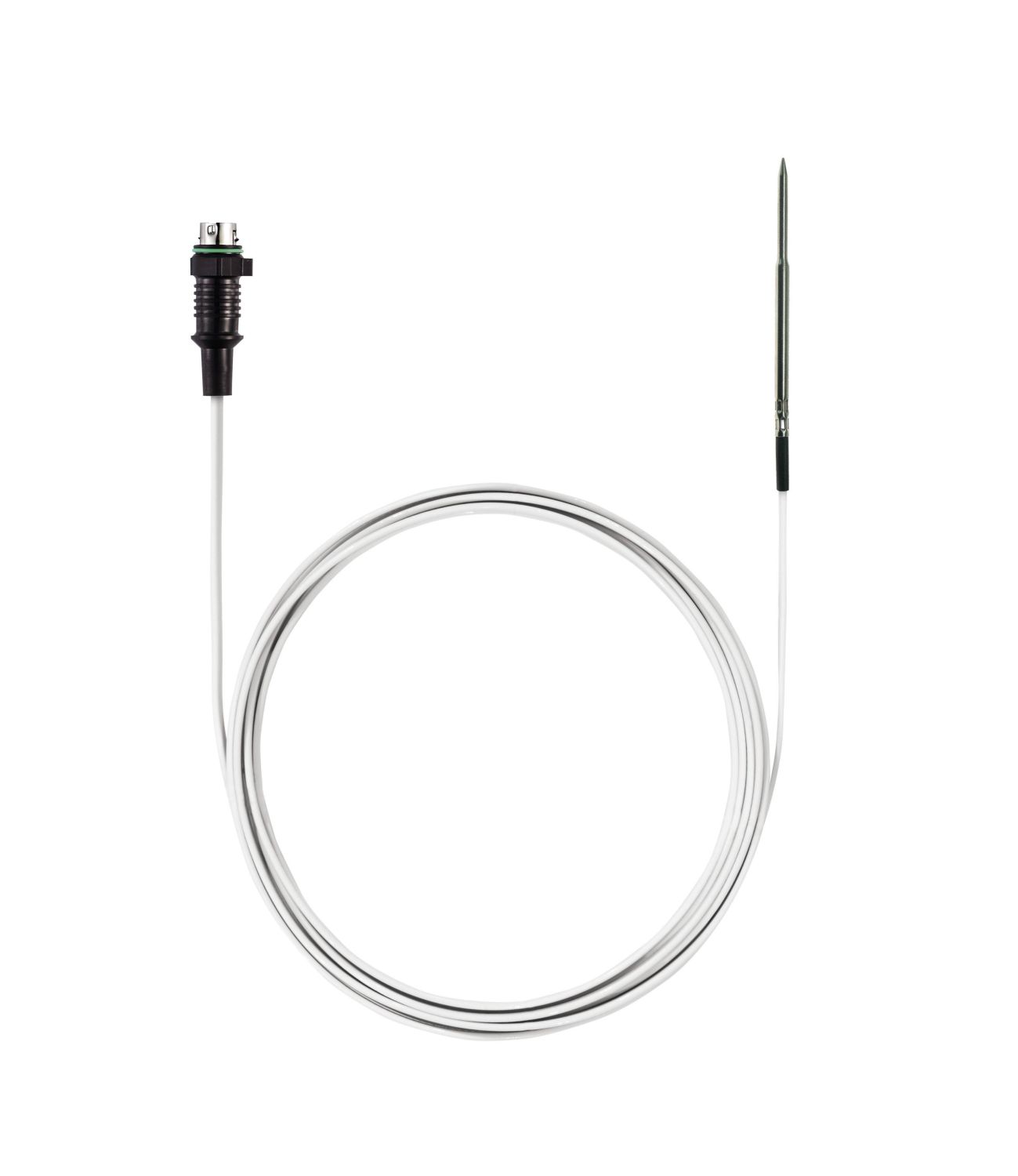

Temperature probe with penetration tip (NTC)

Part No. 0572 1001

Key Features:

NTC probe with exceptionally flat cable (2 m long), which can be pushed through narrow openings, e.g. through slits in doors
Temperature measurement in pastes and semi-solid media and also in liquids and air

Temperature – NTC Technical Data

  • Measuring range -40 to +125 °C
  • Accuracy ±0.5 % of mv (100 to +125 °C)
  •                  ±0.2 °C (-25 to +80 °C)
  •                  ±0.4 °C Remaining Range
  • Reaction time 8 s
General Technical Data
  1. Protection class IP54
  2. Cable length 2 m
  3. Diameter probe shaft tip 3.6 mm
  4. Diameter probe shaft 5 mm
  5. Length probe shaft tip 30 mm
  6. Length probe shaft 60 mm

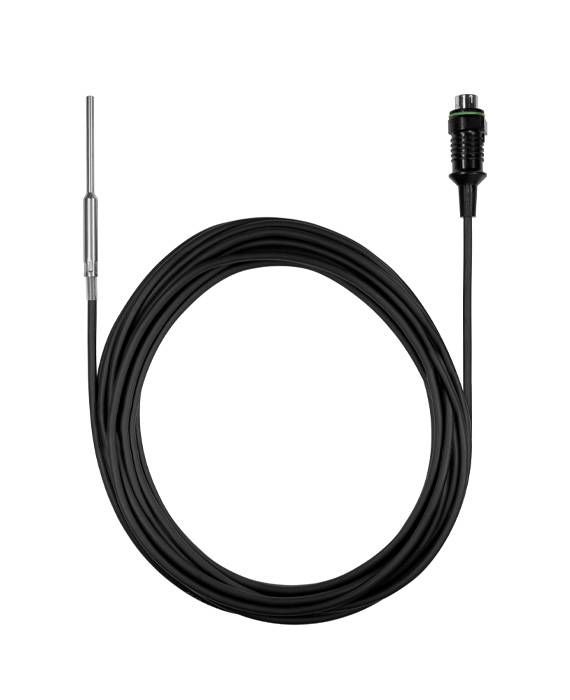

Temperature probe with a long (NTC)

Part No. 0610 1725

Key Features:
NTC probe with exceptionally long 6 m cable, can be installed for long-term measurements
Temperature measurement in liquids, pastes and in air

Temperature – NTC Technical Data
  • Measuring range -35 to +80 °C
  • Accuracy ±0.2 °C (-25 to +75 °C)
  •                  ±0.4 °C (Remaining Range)
  • Reaction time 5 s
General Technical Data
  1. Protection class IP67 with TopSafe
  2. Fixed cable true
  3. Cable length 6 m
  4. Diameter probe shaft tip 3 mm
  5. Diameter probe shaft 3 mm
  6. Length probe shaft 40 mm

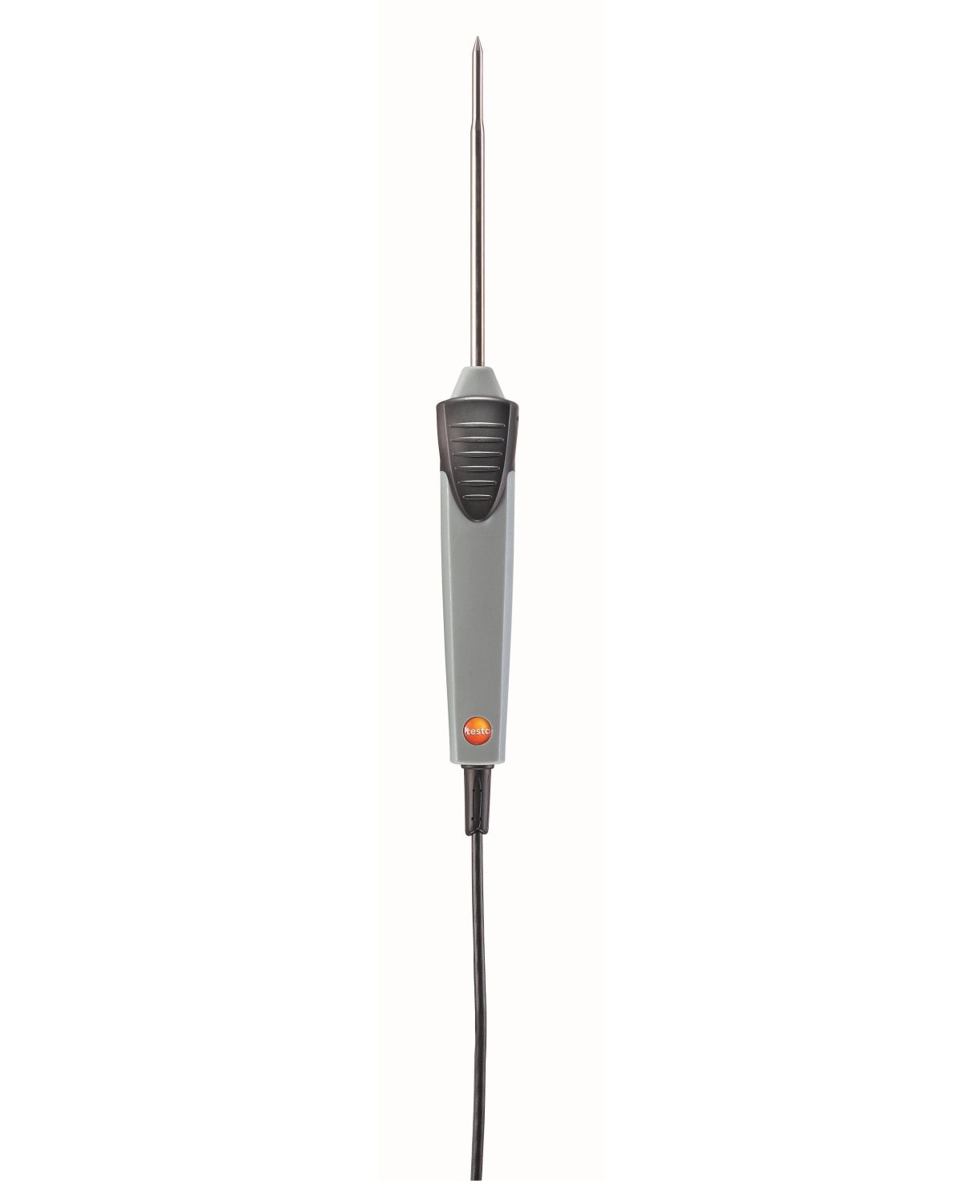

Waterproof immersion/penetration probe (NTC)

Part No. 0613 1212

The waterproof immersion/penetration probe with NTC sensor records the temperature in liquids and semi-solid media quickly and accurately.

Temperature – NTC
  • Measuring range -50 to +150 °C
  • Accuracy ±0.5 % of mv (100 to +150 °C)
  • ±0.2 °C (-25 to +74.9 °C)
  • ±0.4 °C (remaimig range)
  • Reaction time 10 s

General Technical Data
  1. Waterproof Waterproof NTC immersion/penetration probe
  2. Fixed cable true
  3. Cable length 1.2 m
  4. Diameter probe shaft tip 4 mm
  5. Diameter probe shaft 5 mm
  6. Length probe shaft tip 50 mm
  7. Length probe shaft 115 mm

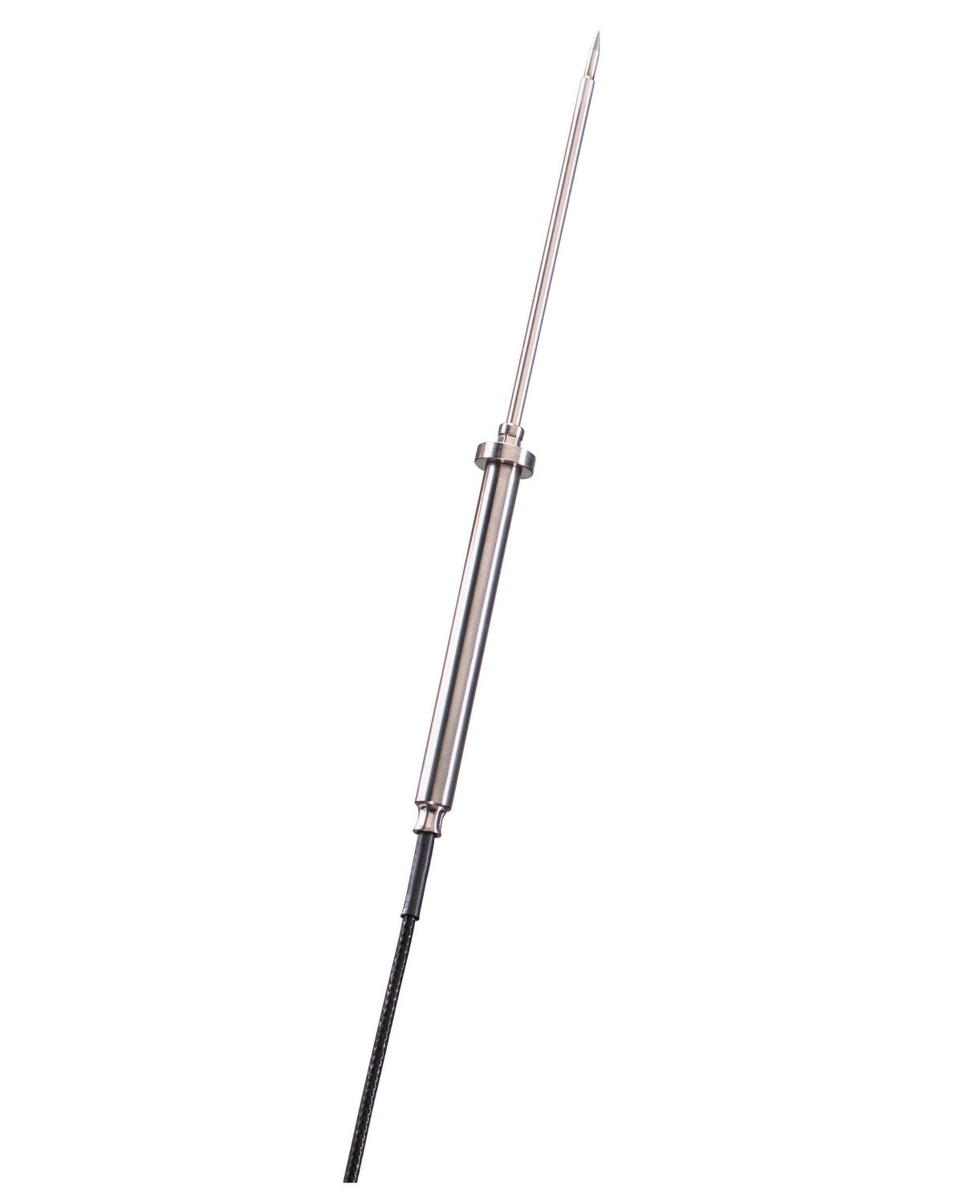

STAINLESS STEEL FOOD PROBE (NTC)

Part No. 0613 2211
Ideal for measuring the temperature of food: the temperature probe is made of hygienic stainless steel, is easy to clean and waterproof in accordance with IP65.
Temperature – NTC
  • Measuring range -50 to +150 °C ¹⁾
  • Accuracy ±0.5 % of mv (+100 to +150 °C)
  •                  ±0.2 °C (-25 to +74.9 °C)
  •                  ±0.4 °C (Remaining Range)
  • Reaction time 8 s
1) Long-term measurement range +125°C, short-term +150°C or +140°C (2 minutes)

General Technical Data
  1. Protection class IP65
  2. Fixed cable true
  3. Cable length 1.6 m
  4. Diameter probe shaft tip 3 mm
  5. Diameter probe shaft 4 mm
  6. Length probe shaft tip 15 mm
  7. Length probe shaft 125 mm

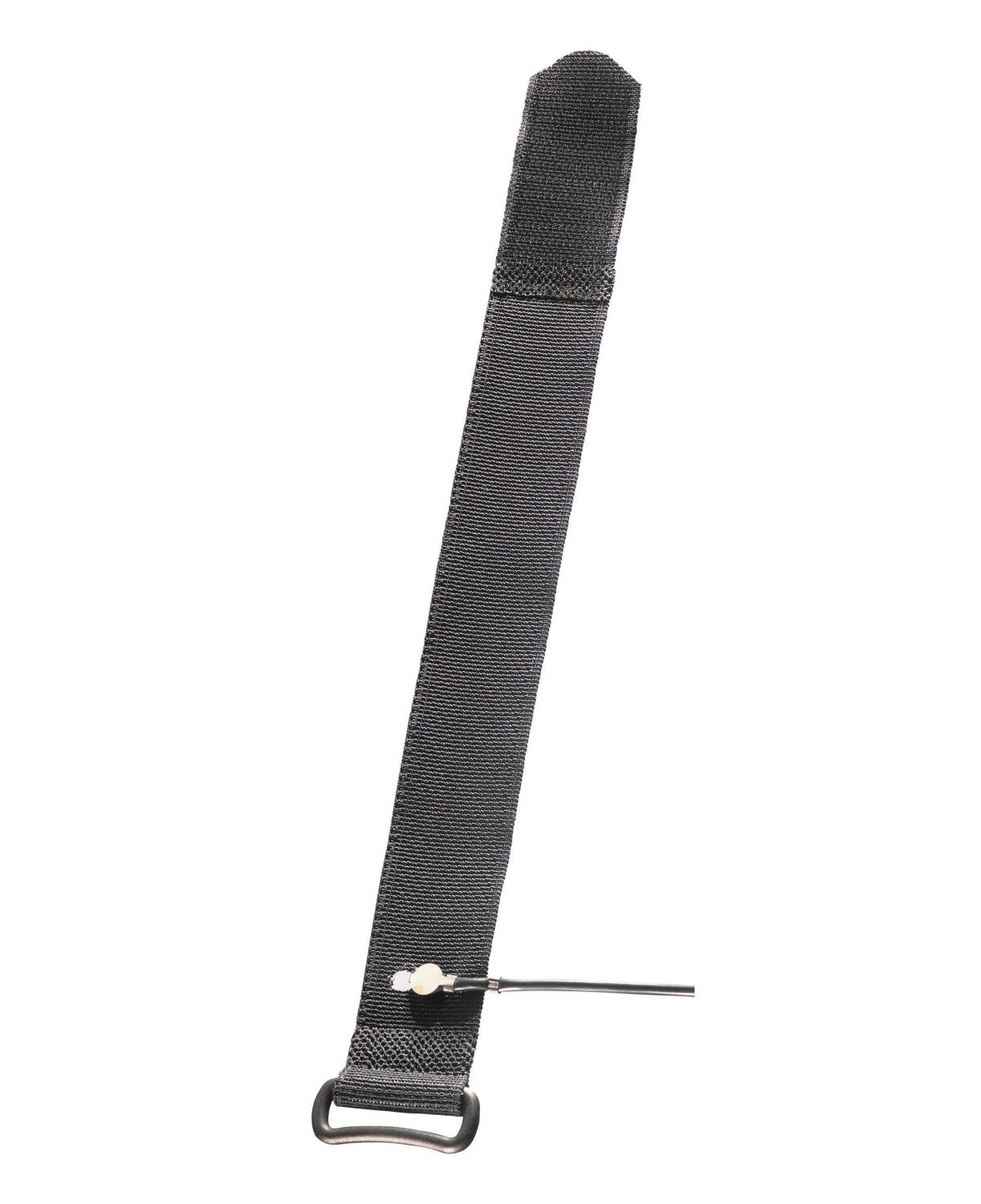

TEMPERATURE PROBE WITH VELCRO (NTC)

Part No. 0613 4611

Temperature probe with Velcro for surface measurements on pipes

Temperature – NTC
  • Measuring range -50 to +70 °C ¹⁾
  • Accuracy ±0.2 (-25 to +70 °C)
  •                  ±0.4 °C (-50 to -25.1 °C)
  • Reaction time 60.0 s
1) Long-term measurement range +125°C, short-term +150°C or +140°C (2 minutes)

General Technical Data
  1. Diameter 75 mm
  2. Temperature maximum 75 °C
  3. Length probe shaft 300 mm
  4. Waterproof Waterproof NTC surface probe
  5. Fixed cable yes
  6. Cable length 1.5 m


Accurate immersion/penetration probe, cable: 1.5 m long, IP ...

Part No. 0628 0006

Temperature – NTC Technical Data
  • Measuring range -35 to +80 °C
  • Accuracy ±0.2 °C (-25 to +75.0 °C)
  •                  ±0.4 °C (-35 to --25.1 °C)
  •                  ±0.4 °C (+75 to +80 °C)
  • Reaction time 5 s
General Technical Data
  1. Protection class IP67 with TopSafe
  2. Cable length 1.5 m
  3. Diameter probe shaft tip 3 mm
  4. Diameter probe shaft 3 mm
  5. Length probe shaft 40 mm

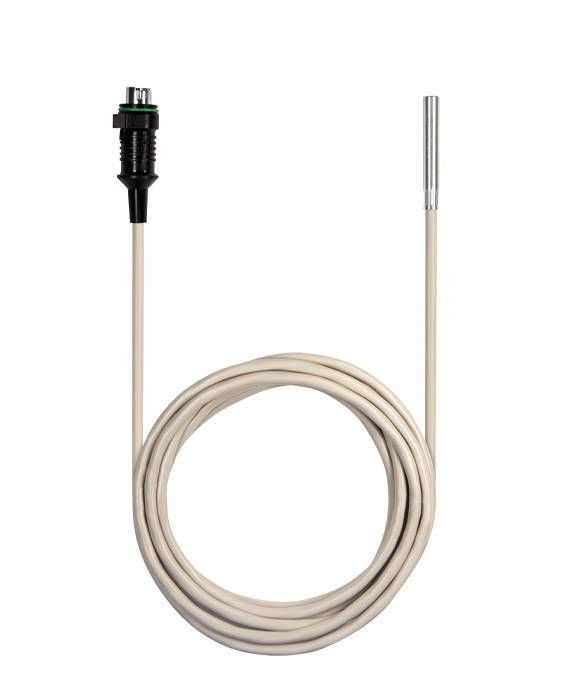

Temperature probe with aluminium sleeve (NTC)

Part No. 0628 7503

Temperature – NTC Technical Data

  • Measuring range -30 to +90 °C
  • Accuracy ±0.2 °C (0 to +70 °C)
  •                  ±0.5 °C (Remaining Range)
  • Reaction time 190 s

General Technical Data
  1. Protection class IP65
  2. Fixed cable true
  3. Cable length 2.4 m
  4. Diameter probe shaft 6 mm
  5. Length probe shaft 40 mm

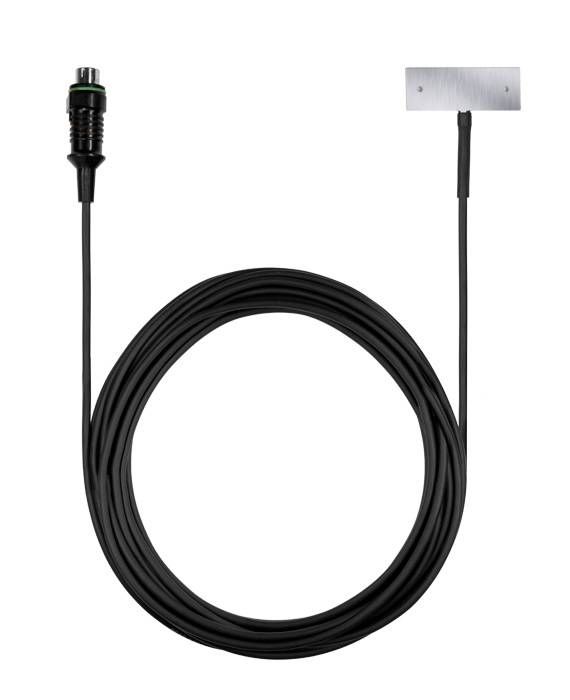

Wall surface temperature probe, e.g. to prove damage in buil...

Part No. 0628 7507
Temperature – NTC Technical Data
  1. Measuring range -50 to +80 °C
  2. Accuracy ±0.2 °C (0 to +70 °C)
  3. Reaction time 20 s

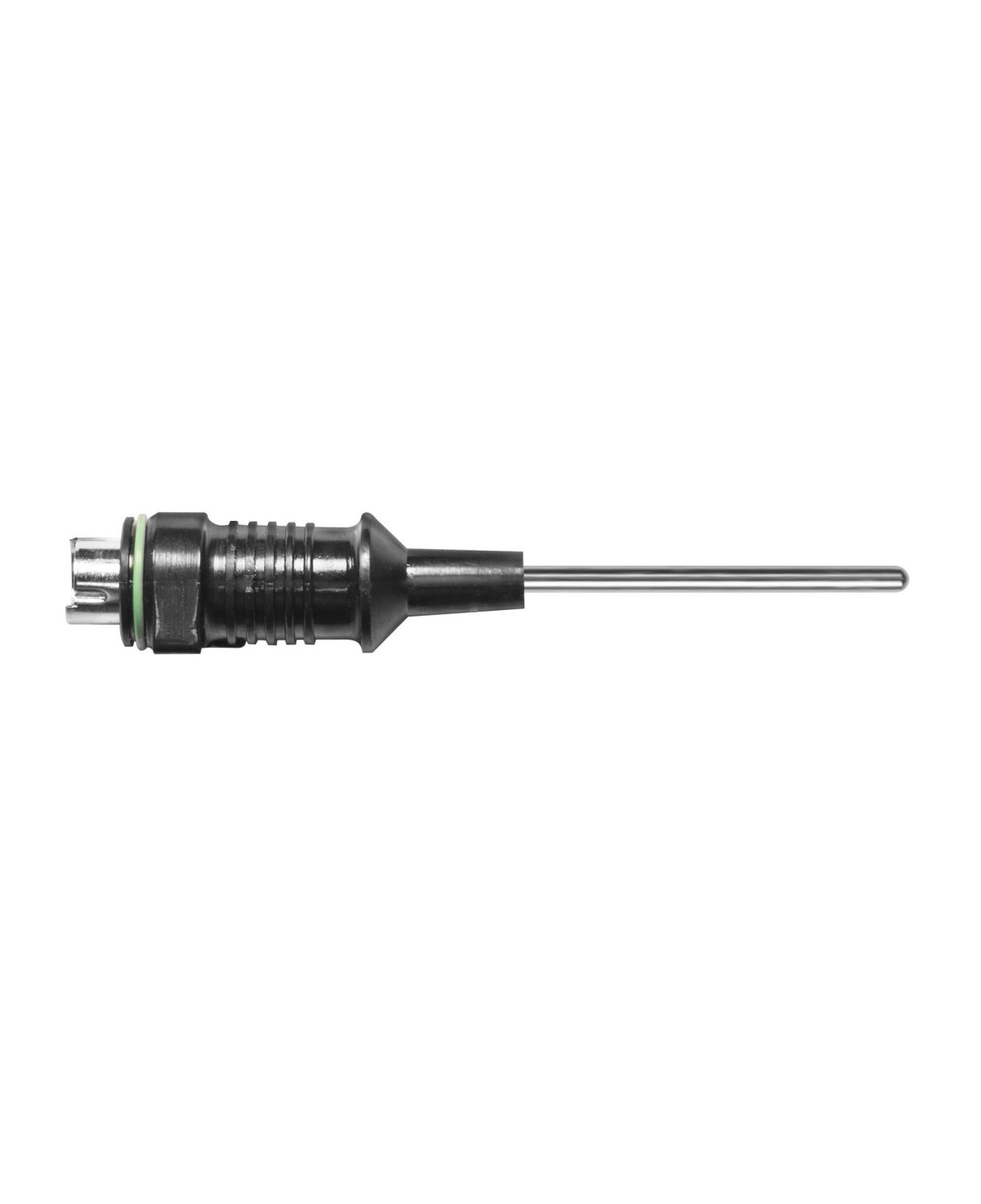

Stub probe for temperature measurements (NTC)

Part No. 0628 7510

Stub probe for temperature measurements in liquids, pastes and in air
Temperature – NTC Technical data
  • Measuring range -20 to +70 °C
  • Accuracy ±0.2 °C (-20 to +40 °C)
  •                  ±0.4 °C (40.1 to +70 °C)
  • Reaction time 15 s

General Technical Data
  1. Protection class IP54
  2. Diameter probe shaft 3 mm
  3. Length probe shaft 35 mm

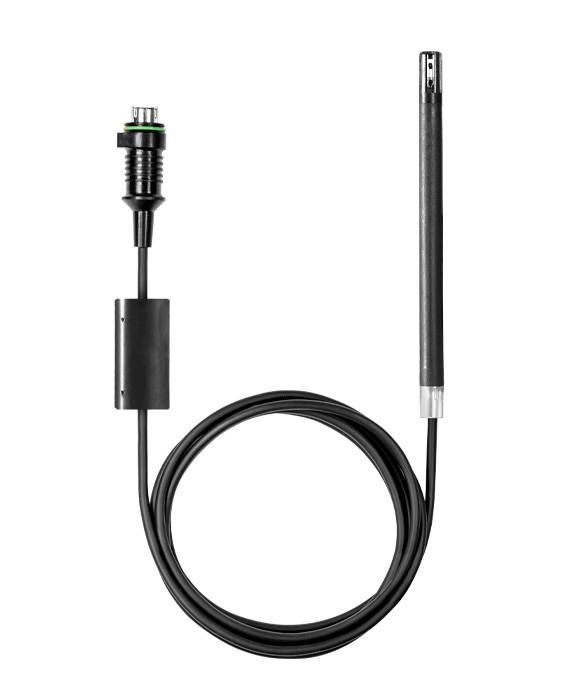

Humidity/temperature probe with cable

Part No. 0572 6172

Measures air temperature and humidity quickly and reliably
Probe can be installed for long-term measurements, probe tube diameter 12 mm

Temperature – NTC Technical Data
  • Measuring range -20 to +70 °C
  • Accuracy ±0.3
Humidity – Capacitive Technical Data
  • Measuring range 0 to +100 %RH
  • Accuracy ±2 %RH at +25 °C (2 to +98 %RH)
  •                  ±0.03 %RH/K

General Technical Data

  • Length probe shaft 12 mm

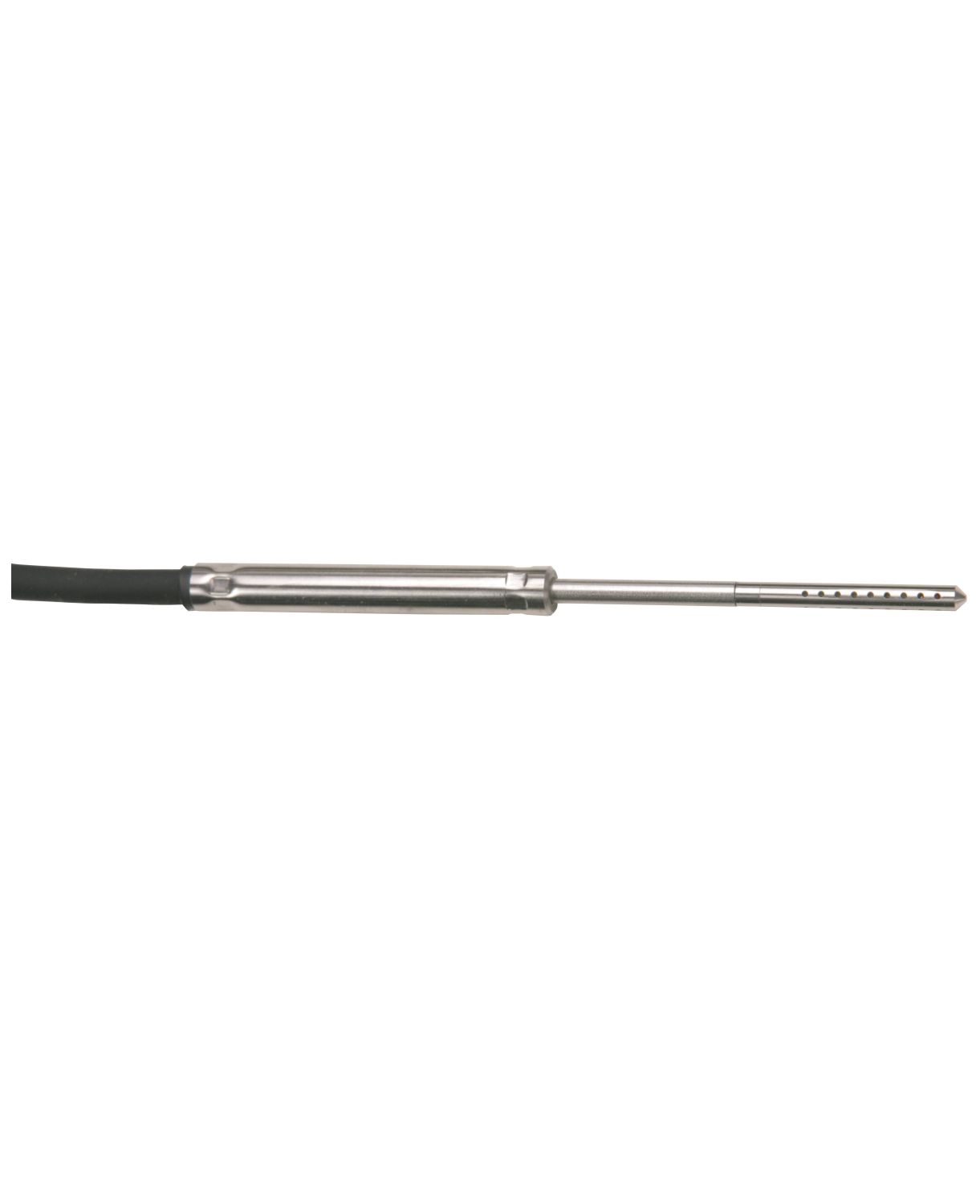

Thin humidity/temperature probe with cable

Part No. 0572 6174

Measures air temperature and humidity quickly and reliably
Probe with an exceptionally small diameter of 4 mm
Temperature – NTC Technical Data

  • Measuring range 0 to +40 °C
  • Accuracy ±0.3 °C
  • Humidity – Capacitive Technical Data
  • Measuring range 0 to +100 %RH
  • Accuracy ±2 %RH at +25 °C (2 to +98 %RH)
  •                  ±0.08 %RH/K
General Technical Data
  • Length probe shaft 4 mm


Connection cable for unlimited Pt100 stationary probes (4-wi...

Part No. 0554 0213


Penetration probe Pt100 with ribbon cable, cable length 2 m,...

Part No. 0572 7001

Temperature - Pt100 Technical Data
  • Measuring range -85 to +150 °C
  • Accuracy Class A
  • Reaction time 35 s
General Technical Data
  1. Length probe shaft 60 mm
  2. Protection class IP54
  3. Fixed cable yes
  4. Cable length 2 m
  5. Diameter probe shaft tip 3.6 mm
  6. Diameter probe shaft 5 mm
  7. Length probe shaft tip 30 mm

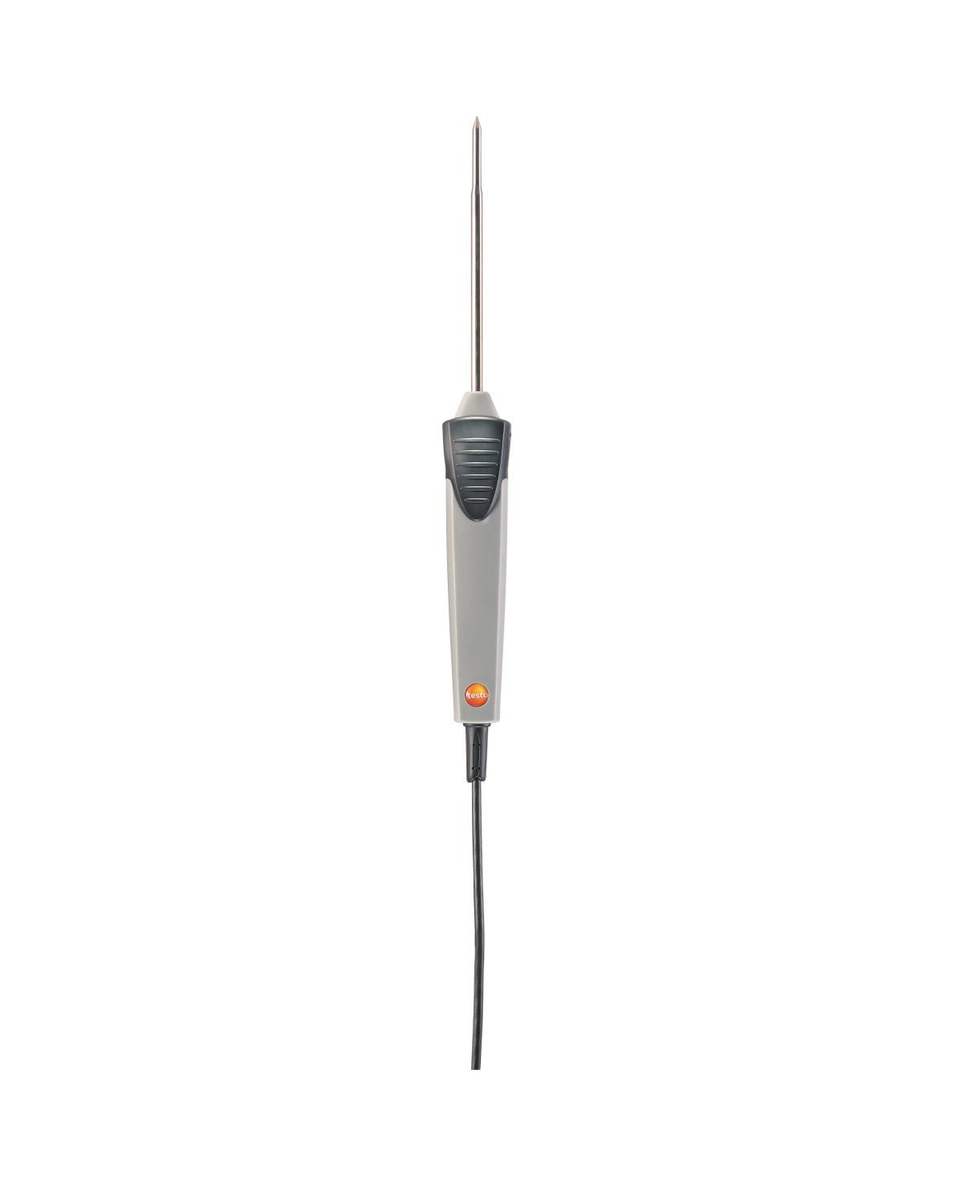

Robust waterproof immersion/penetration probe (Pt100)

Part No. 0609 1273

Temperature - Pt100 Technical Data
  • Measuring range -50 to +400 °C
  • Accuracy Class A (-50 to +300 °C)
  • Class B (Remaining Range) ¹⁾
  • Reaction time 12 s
1) According to standard 60751, the accuracies of Class A and B refer to -200 to +600 °C (Pt100)

General Technical Data
  1. Fixed cable true
  2. Cable length 1.2 m
  3. Diameter probe shaft tip 3.7 mm
  4. Diameter probe shaft 5 mm
  5. Length probe shaft tip 50 mm
  6. Length probe shaft 114 mm


Robust stainless steel food probe (Pt100)

Part No. 0609 2272

The robust stainless steel food probe (with an appropriate measuring instrument) enables particularly accurate measurement of the core temperature of foods.

Key Features:

Pt100 sensor for particularly accurate measurement results
EN 13485 and HACCP-compliant
Protected against water jets according to IP65
Measuring range: -50 to +400 °C

Temperature - Pt100 Technical Data
  • Measuring range -50 to +400 °C
  • Accuracy Class A (-50 to +300 °C)
  • Class B (Remaining Range) ¹⁾
  • Reaction time 10 s
1) According to standard 60751, the accuracies of Class A and B refer to -200 to +600 °C (Pt100)

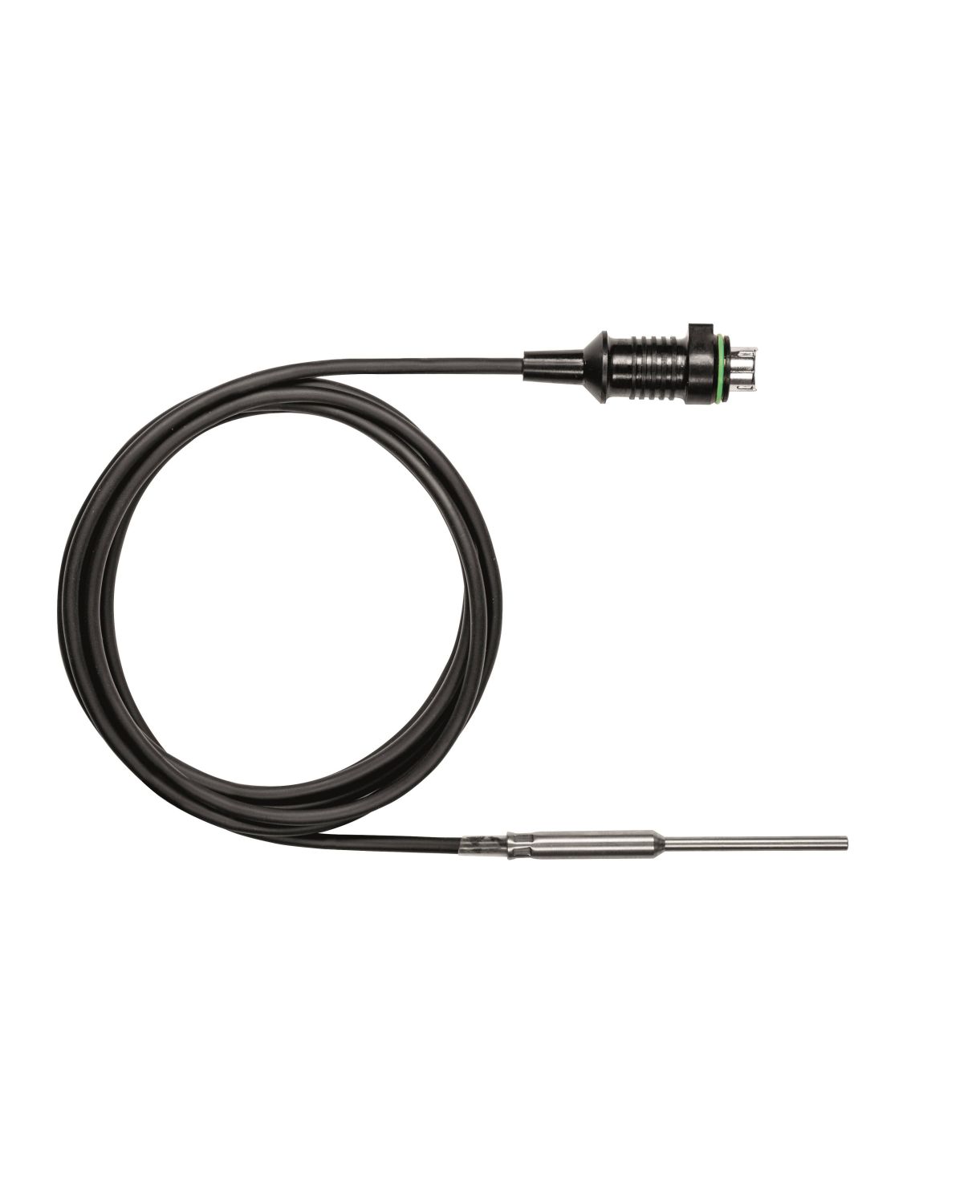

General Technical Data
  1. Protection class IP65
  2. Fixed cable true
  3. Cable length 1.5 m
  4. Diameter probe shaft tip 3 mm
  5. Diameter probe shaft 4 mm
  6. Length probe shaft tip 15 mm
  7. Length probe shaft 125 mm


https://www.testo.com/en/testo-saveris-base/p/0572-0220

Dwonload
File Type
Data sheet
pdf
download
